YAMAHA XMAX 125 2022 Owners Manual
Manufacturer: YAMAHA, Model Year: 2022, Model line: XMAX 125, Model: YAMAHA XMAX 125 2022Pages: 118, PDF Size: 13.61 MB
Page 1 of 118
PANTONE285C
YP125RA (XMAX 125)
1
2
3
4
5
6
7
8
9
10
11
12
B9Y-F8199-E1
Read this manual carefully
before operating this vehicle.
MOTORCYCLE
OWNER’S MANUAL
Specifications
Consumer information
Scooter care and storage
Periodic maintenance and adjustment
For your safety – pre-operation checks
Instrument and control functions Stop and Start SystemSmart key system Description
Safety information
Operation and important riding points Index
[English (E)]
Page 2 of 118

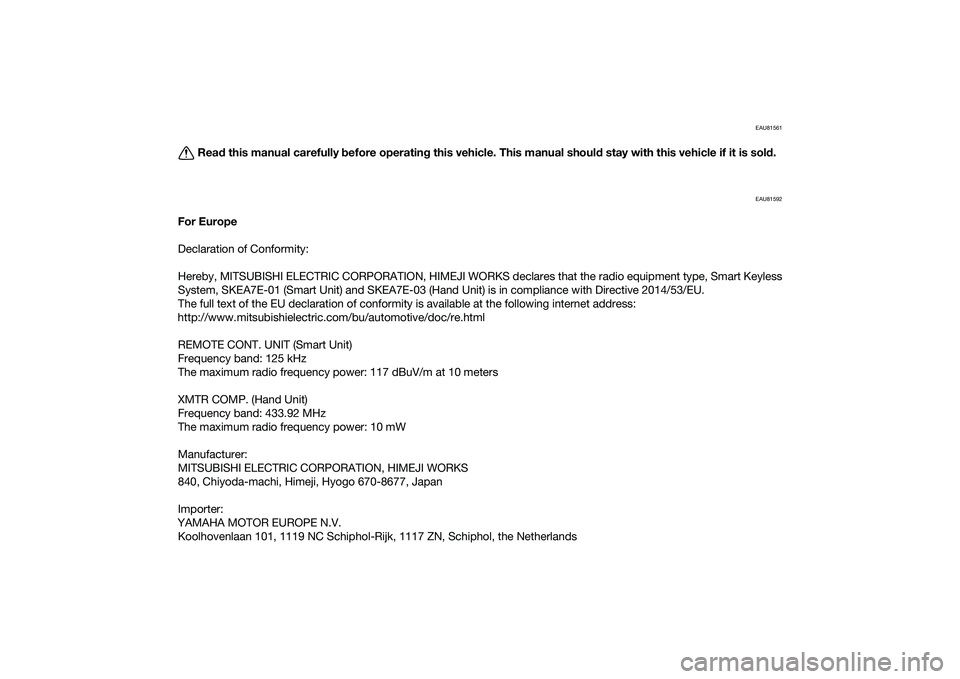

EAU81561
Read this manual carefully before operatin g this vehicle. This manual shoul d stay with this vehicle if it is sol d.
EAU81592
For Europe
Declaration of Conformity:
Hereby, MITSUBISHI ELECTRIC CORPORATION, HIMEJI WORKS declares that the radio equipment type, Smart Keyless
System, SKEA7E-01 (Smart Unit) and SKEA7E-03 (Hand Unit) is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.mitsubishielectric.co m/bu/automotive/doc/re.html
REMOTE CONT. UNIT (Smart Unit)
Frequency band: 125 kHz
The maximum radio frequency power: 117 dBuV/m at 10 meters
XMTR COMP. (Hand Unit)
Frequency band: 433.92 MHz
The maximum radio frequency power: 10 mW
Manufacturer:
MITSUBISHI ELECTRIC CORPORATION, HIMEJI WORKS
840, Chiyoda-machi, Himeji, Hyogo 670-8677, Japan
Importer:
YAMAHA MOTOR EUROPE N.V. Koolhovenlaan 101, 1119 NC Schiphol-Rijk, 1117 ZN, Schiphol, the NetherlandsUB9YE1E0.book Page 1 Tuesday, October 12, 2021 2:29 PM
Page 3 of 118

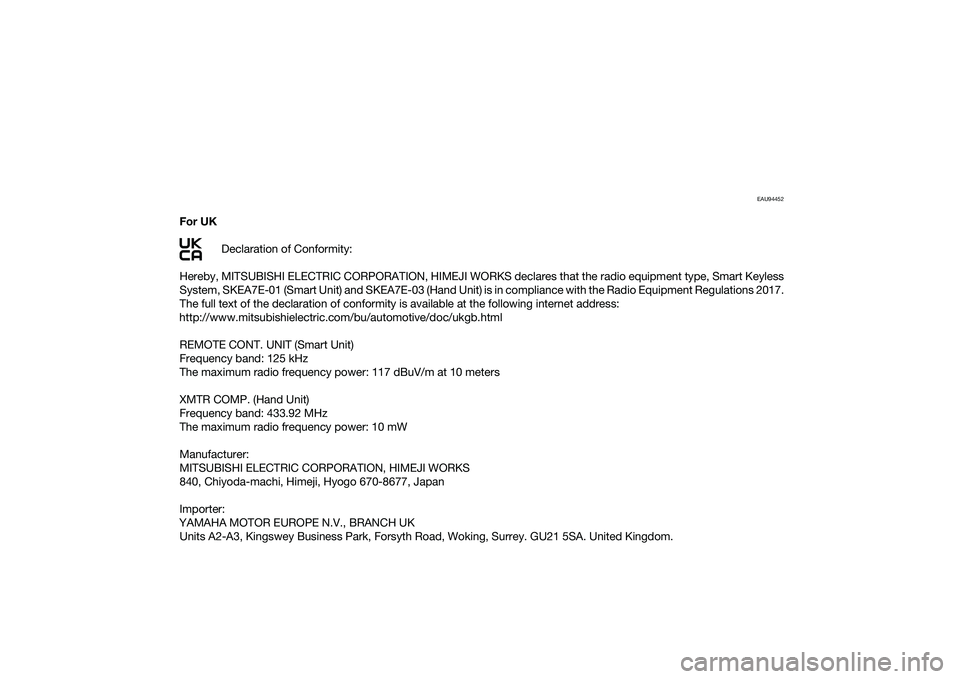

EAU94452
For UKDeclaration of Conformity:
Hereby, MITSUBISHI ELECTRIC CORPORATION, HIMEJI WORKS declares that the radio equipment type, Smart Keyless
System, SKEA7E-01 (Smart Unit) and SKEA7E-03 (Hand Unit) is in compliance with the Radio Equipment Regulations 2017.
The full text of the declaration of conformity is available at the following internet address:
http://www.mitsubishielectric.com/bu/automotive/doc/ukgb.html
REMOTE CONT. UNIT (Smart Unit)
Frequency band: 125 kHz
The maximum radio frequency power: 117 dBuV/m at 10 meters
XMTR COMP. (Hand Unit)
Frequency band: 433.92 MHz
The maximum radio frequency power: 10 mW
Manufacturer:
MITSUBISHI ELECTRIC CORPORATION, HIMEJI WORKS
840, Chiyoda-machi, Himeji, Hyogo 670-8677, Japan
Importer:
YAMAHA MOTOR EUROPE N.V., BRANCH UK Units A2-A3, Kingswey Business Park, Forsyth Road, Woking, Surrey. GU21 5SA. United Kingdom.
UB9YE1E0.book Page 2 Tuesday, October 12, 2021 2:29 PM
Page 4 of 118
UB9YE1E0.book Page 3 Tuesday, October 12, 2021 2:29 PM
Page 5 of 118

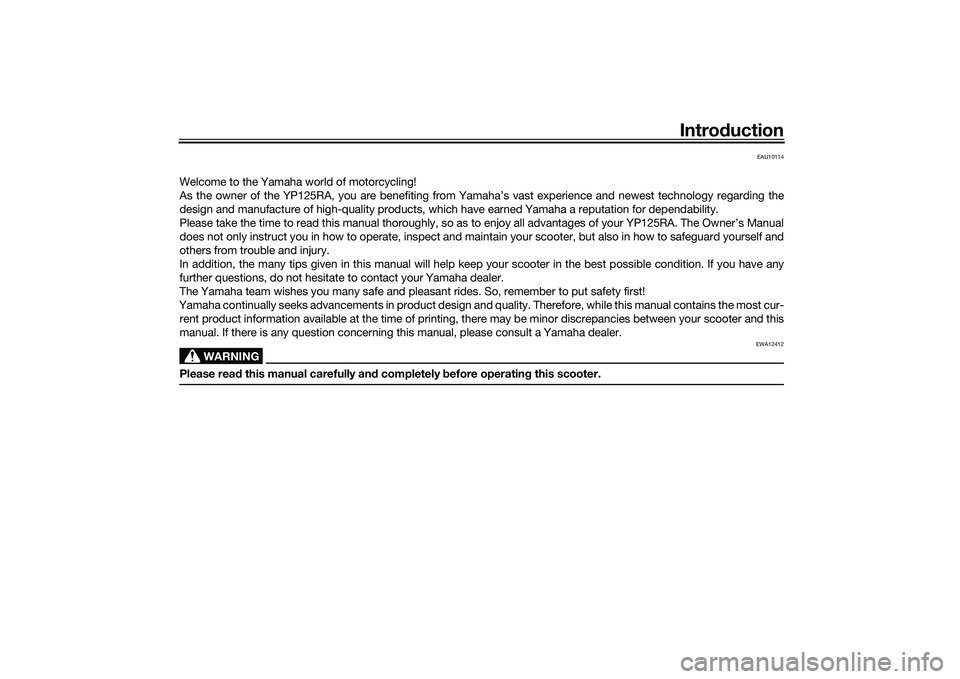

Introduction
EAU10114
Welcome to the Yamaha world of motorcycling!
As the owner of the YP125RA, you are benefiting from Yamaha’s vast experience and newest technology regarding the
design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your YP125RA. The Owner’s Manual
does not only instruct you in how to operate, inspect and maintain your scooter, but also in how to safeguard yourself and
others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most cur- rent product information available at the time of printing, there may be minor discrepancies between your scooter and this
manual. If there is any question concerning this manual, please consult a Yamaha dealer.
WARNING
EWA12412
Please rea d this manual carefully an d completely before operatin g this scooter.
UB9YE1E0.book Page 1 Tuesday, October 12, 2021 2:29 PM
Page 6 of 118

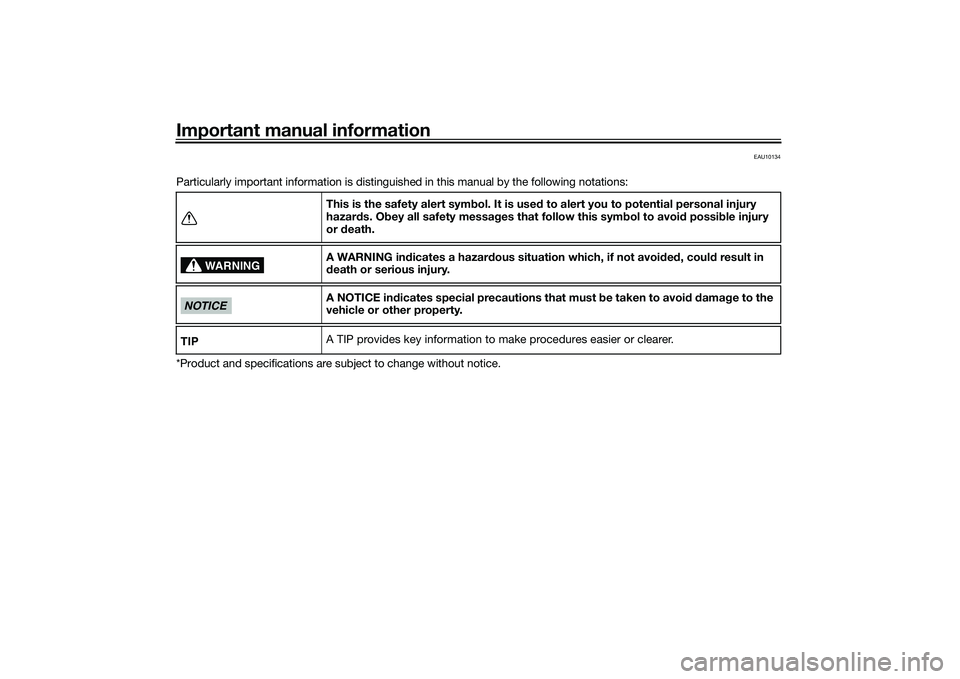

Important manual information
EAU10134
Particularly important information is distinguished in this manual by the following notations:
*Product and specifications are subject to change without notice.This is the safety alert sym
bol. It is use d to alert you to potential personal injury
hazar ds. Ob ey all safety messa ges that follow this sym bol to avoi d possi ble injury
or death.
A WARNING in dicates a hazar dous situation which, if not avoi ded , coul d result in
d eath or serious injury.
A NOTICE in dicates special precautions that must be taken to avoi d d ama ge to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP
UB9YE1E0.book Page 1 Tuesday, October 12, 2021 2:29 PM
Page 7 of 118

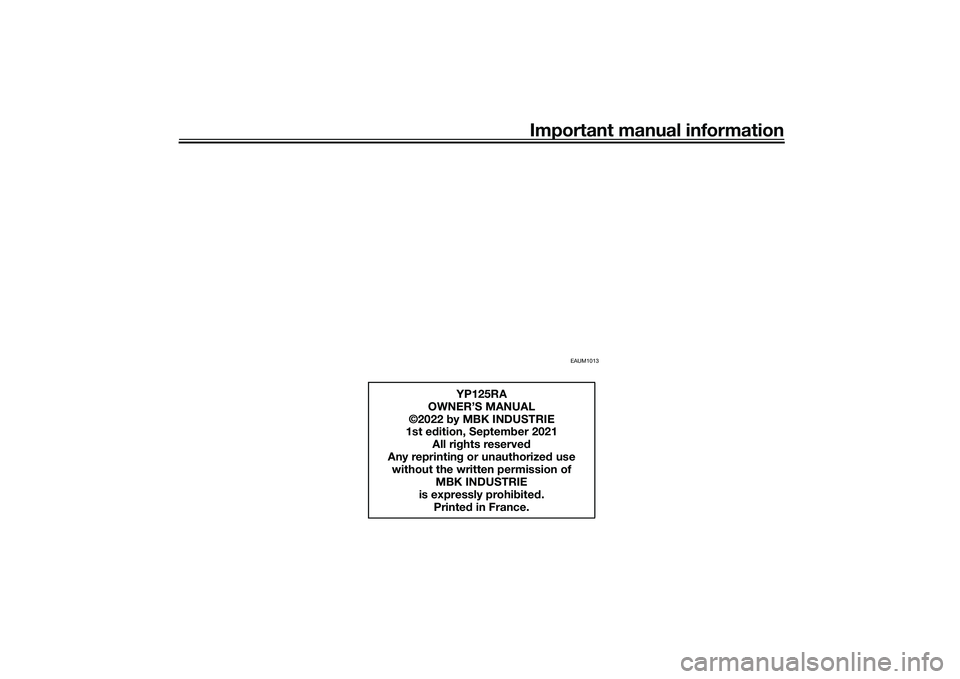

Important manual information
EAUM1013
YP125RA
OWNER’S MANUAL
©2022 by MBK INDUSTRIE
1st e dition, Septem ber 2021
All ri ghts reserve d
Any reprintin g or unauthorize d use
without the written permission of
MBK INDUSTRIE
is expressly prohi bite d.
Printe d in France.
UB9YE1E0.book Page 2 Tuesday, October 12, 2021 2:29 PM
Page 8 of 118
Table of contentsSafety information ............................ 1-1
Further safe-riding points ............... 1-5
Description ....................................... 2-1
Left view ......................................... 2-1
Right view ....................................... 2-2
Controls and instruments ............... 2-3
Smart key system ........................... 3-1
Smart key system ........................... 3-1
Operating range of the smart key system......................................... 3-2
Handling of the smart key and mechanical keys ......................... 3-3
Smart key ....................................... 3-5
Replacing the smart key battery..... 3-6
Main switch .................................... 3-8
Stop an d Start System ..................... 4-1
Stop and Start System ................... 4-1
Stop and Start System operation ... 4-1
Instrument an d control functions ... 5-1
Indicator lights and warning lights............................................ 5-1
Speedometer .................................. 5-3
Tachometer .................................... 5-3
Multi-function display ..................... 5-4
Handlebar switches ...................... 5-12
Front brake lever .......................... 5-14
Rear brake lever ........................... 5-14 Anti-lock brake system (ABS) ....... 5-14
Traction control system ................ 5-15
Fuel tank cap ................................ 5-17
Fuel ............................................... 5-18
Fuel tank overflow hose ................ 5-20
Catalytic converter ........................ 5-20
Storage compartments ................. 5-20
Windshield .................................... 5-22
Handlebar position ....................... 5-25
Adjusting the shock absorber
assemblies ................................. 5-25
Auxiliary DC jack .......................... 5-26
Sidestand ...................................... 5-27
Ignition circuit cut-off system ....... 5-27
For your safety – pre-operation
checks ............................................... 6-1
Operation an d important ri din g
points ................................................. 7-1
Engine break-in ............................... 7-1
Starting the engine .......................... 7-2
Starting off ...................................... 7-3
Acceleration and deceleration ........ 7-3
Braking ............................................ 7-3
Tips for reducing fuel consumption ................................ 7-4
Parking ........................................... 7-4 Perio
dic maintenance an d
a d justment ........................................ 8-1
Tool kit ............................................ 8-2
Periodic maintenance chart for the emission control system ............. 8-3
General maintenance and lubrication chart .......................... 8-4
Removing and installing the
panel............................................ 8-8
Checking the spark plug................. 8-9
Canister ........................................ 8-10
Engine oil and oil strainer ............. 8-10
Final transmission oil .................... 8-12
Coolant ......................................... 8-13
Air filter and V-belt case air filter elements .................................... 8-14
Checking the throttle grip free
play ............................................ 8-17
Valve clearance............................. 8-17
Tires .............................................. 8-17
Cast wheels .................................. 8-19
Checking the front and rear brake lever free play .................. 8-19
Checking the front and rear brake pads ................................ 8-20
Checking the brake fluid level ...... 8-21
Changing the brake fluid .............. 8-22
Checking the V-belt ...................... 8-22
Checking and lubricating the
cables ........................................ 8-23UB9YE1E0.book Page 1 Tuesday, October 12, 2021 2:29 PM
Page 9 of 118
Table of contents
Checking and lubricating the
throttle grip and cable ................8-23
Lubricating the front and rear brake levers................................8-23
Checking and lubricating the
centerstand and sidestand ........8-24
Checking the front fork..................8-25
Checking the steering ...................8-25
Checking the wheel bearings ........8-26
Battery ...........................................8-26
Replacing the fuses .......................8-27
Vehicle lights .................................8-29
Front turn signal light.....................8-29
Rear turn signal light bulb .............8-30
Replacing the license plate light bulb ............................................8-30
Troubleshooting ............................8-31
Troubleshooting chart ...................8-32
Emergency mode .........................8-34
Scooter care an d stora ge ................9-1
Matte color caution .........................9-1
Care .................................................9-1
Storage ............................................9-3
Specifications ..................................10-1
Consumer information ...................11-1
Identification numbers ...................11-1
Diagnostic connector ....................11-2
Vehicle data recording ..................11-2 In
dex ................................................ 12-1
UB9YE1E0.book Page 2 Tuesday, October 12, 2021 2:29 PM
Page 10 of 118

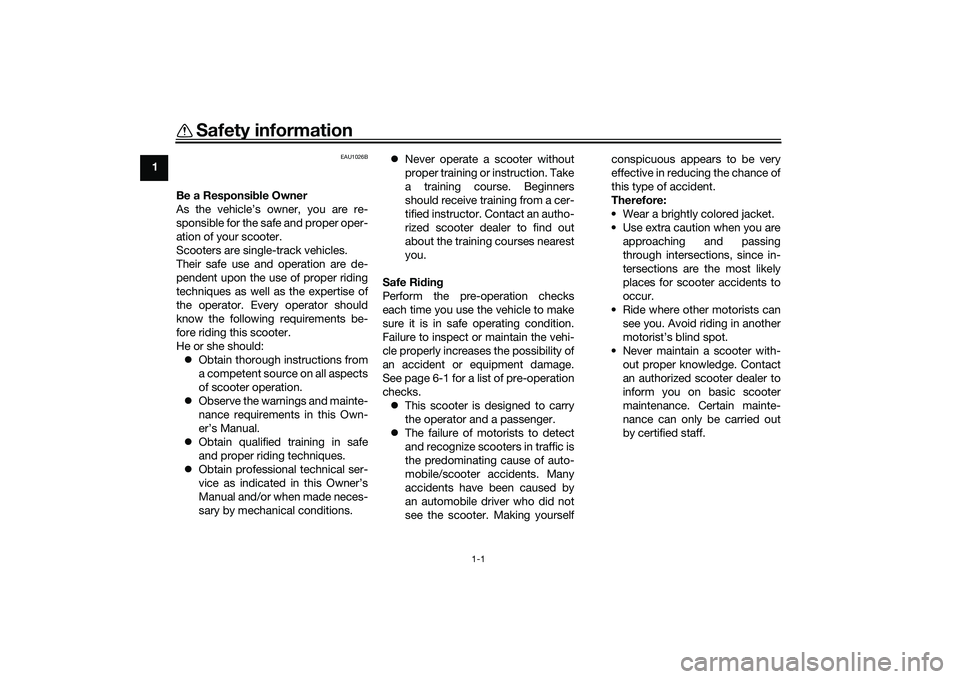

1-1
1
Safety information
EAU1026B
Be a Responsible Owner
As the vehicle’s owner, you are re-
sponsible for the safe and proper oper-
ation of your scooter.
Scooters are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements be-
fore riding this scooter.
He or she should: Obtain thorough instructions from
a competent source on all aspects
of scooter operation.
Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.
Obtain qualified training in safe
and proper riding techniques.
Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.
Never operate a scooter without
proper training or instruction. Take
a training course. Beginners
should receive training from a cer-
tified instructor. Contact an autho-
rized scooter dealer to find out
about the training courses nearest
you.
Safe Ri din g
Perform the pre-operation checks
each time you use the vehicle to make
sure it is in safe operating condition.
Failure to inspect or maintain the vehi-
cle properly increases the possibility of
an accident or equipment damage.
See page 6-1 for a list of pre-operation
checks. This scooter is designed to carry
the operator and a passenger.
The failure of motorists to detect
and recognize scooters in traffic is
the predominating cause of auto-
mobile/scooter accidents. Many
accidents have been caused by
an automobile driver who did not
see the scooter. Making yourself conspicuous appears to be very
effective in reducing the chance of
this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when you are approaching and passing
through intersections, since in-
tersections are the most likely
places for scooter accidents to
occur.
• Ride where other motorists can see you. Avoid riding in another
motorist’s blind spot.
• Never maintain a scooter with- out proper knowledge. Contact
an authorized scooter dealer to
inform you on basic scooter
maintenance. Certain mainte-
nance can only be carried out
by certified staff.UB9YE1E0.book Page 1 Tuesday, October 12, 2021 2:29 PM
