●To avoid humidity from sprea-
ding through the storage com-
partment, wrap wet articles in
a plastic bag before storing
them in the compartment.
●Since the storage compart-
ment may get wet while the
scooter is being washed, wrap
any articles stored in the com-
partment in a plastic bag.
●Do not keep anything valuable
or breakable in the storage
compartment.
EWAT1051
s s
WARNING
●Do not exceed the load limit of
5 kg (11 lb) for the rear storage
compartment.
●Do not exceed the maximum
load of 180 kg (397 lb) for the
vehicle.

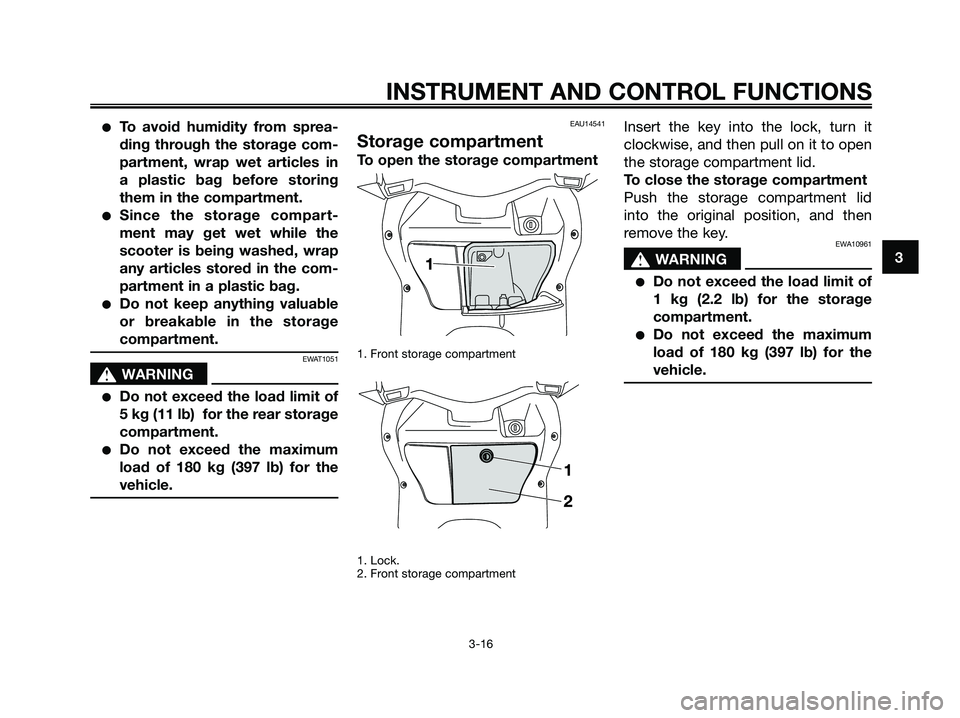

EAU14541
Storage compartment
To open the storage compartment
1. Front storage compartment
1. Lock.
2. Front storage compartment
Insert the key into the lock, turn it
clockwise, and then pull on it to open
the storage compartment lid.
To close the storage compartment
Push the storage compartment lid
into the original position, and then
remove the key.
EWA10961
s s
WARNING
●Do not exceed the load limit of
1 kg (2.2 lb) for the storage
compartment.
●Do not exceed the maximum
load of 180 kg (397 lb) for the
vehicle.
INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
1C0-F8199-E5.QXD 3/10/08 05:56 Página 31

EAUT1060

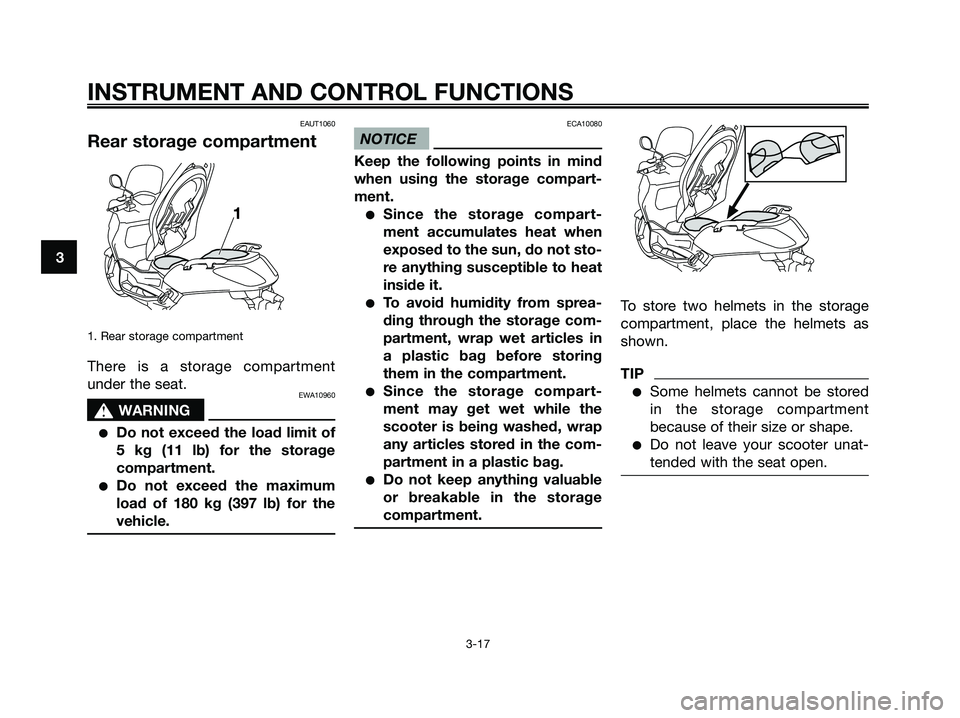

Rear storage compartment
1. Rear storage compartment
There is a storage compartment
under the seat.
EWA10960
s s
WARNING
●Do not exceed the load limit of
5 kg (11 lb) for the storage
compartment.
●Do not exceed the maximum
load of 180 kg (397 lb) for the
vehicle.
ECA10080
NOTICE
Keep the following points in mind
when using the storage compart-
ment.
●Since the storage compart-
ment accumulates heat when
exposed to the sun, do not sto-
re anything susceptible to heat
inside it.
●To avoid humidity from sprea-
ding through the storage com-
partment, wrap wet articles in
a plastic bag before storing
them in the compartment.
●Since the storage compart-
ment may get wet while the
scooter is being washed, wrap
any articles stored in the com-
partment in a plastic bag.
●Do not keep anything valuable
or breakable in the storage
compartment.
To store two helmets in the storage
compartment, place the helmets as
shown.
TIP
●Some helmets cannot be stored
in the storage compartment
because of their size or shape.
●Do not leave your scooter unat-
tended with the seat open.
INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
1C0-F8199-E5.QXD 3/10/08 05:56 Página 32

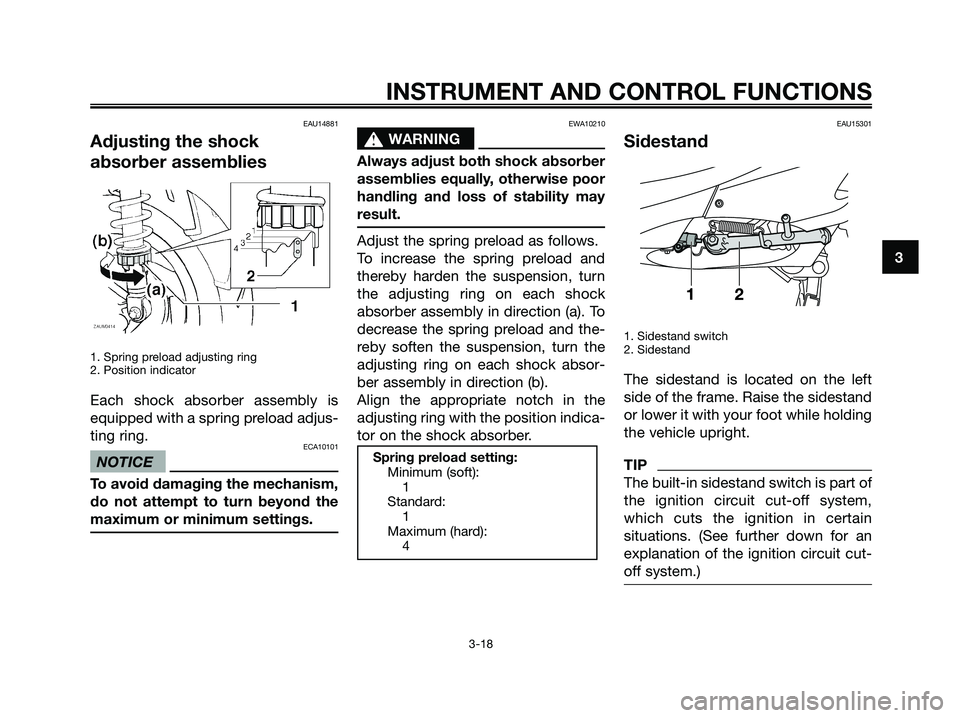

EAU14881
Adjusting the shock
absorber assemblies
1. Spring preload adjusting ring
2. Position indicator
Each shock absorber assembly is
equipped with a spring preload adjus-
ting ring.
ECA10101
NOTICE
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
EWA10210
s s
WARNING
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction (a). To
decrease the spring preload and the-
reby soften the suspension, turn the
adjusting ring on each shock absor-
ber assembly in direction (b).
Align the appropriate notch in the
adjusting ring with the position indica-
tor on the shock absorber.
EAU15301
Sidestand
1. Sidestand switch
2. Sidestand
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
TIP
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See further down for an
explanation of the ignition circuit cut-
off system.)Spring preload setting:
Minimum (soft):
1
Standard:
1
Maximum (hard):
4
INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
1C0-F8199-E5.QXD 3/10/08 05:56 Página 33

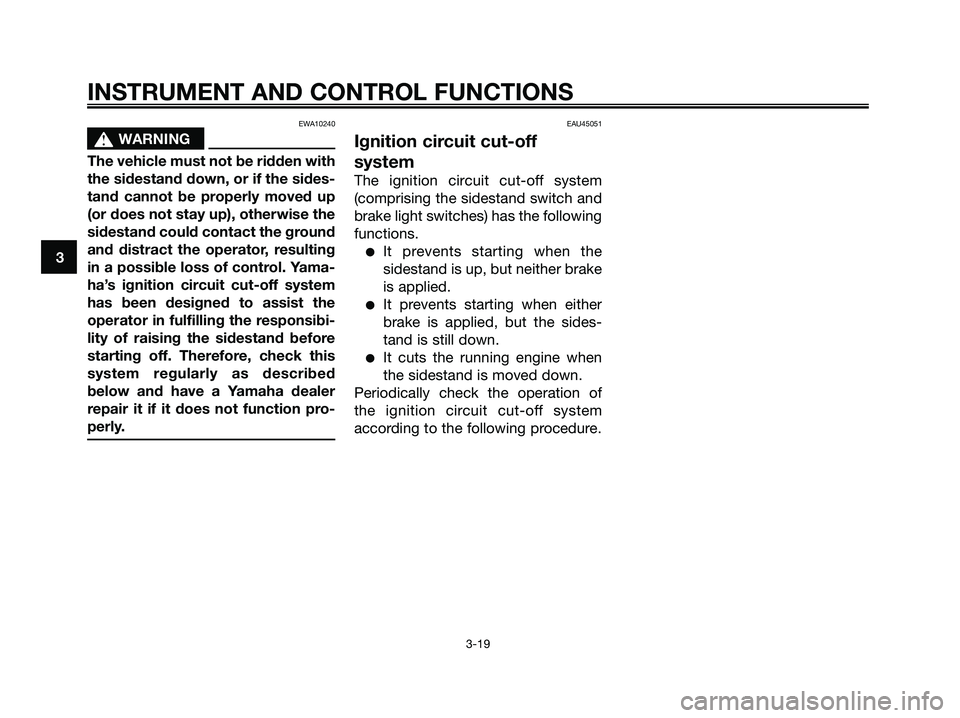

EWA10240
s s
WARNING
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU45051
Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
●It prevents starting when the
sidestand is up, but neither brake
is applied.
●It prevents starting when either
brake is applied, but the sides-
tand is still down.
●It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
1C0-F8199-E5.QXD 3/10/08 05:56 Página 34

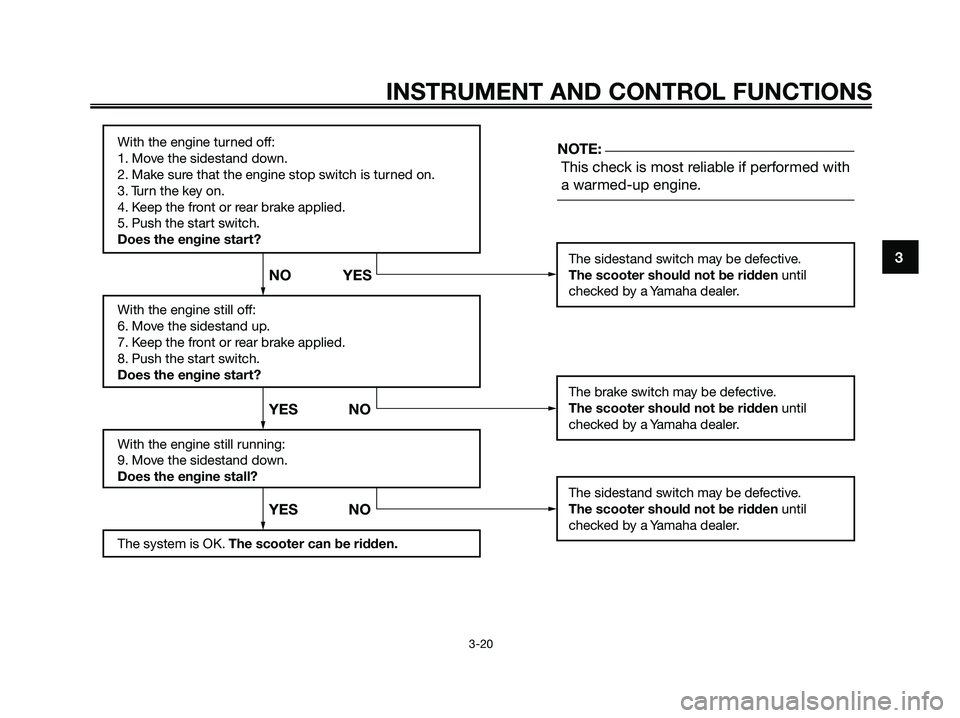

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.
This check is most reliable if performed with
a warmed-up engine.
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YESNOTE:
INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
1C0-F8199-E5.QXD 3/10/08 05:56 Página 35

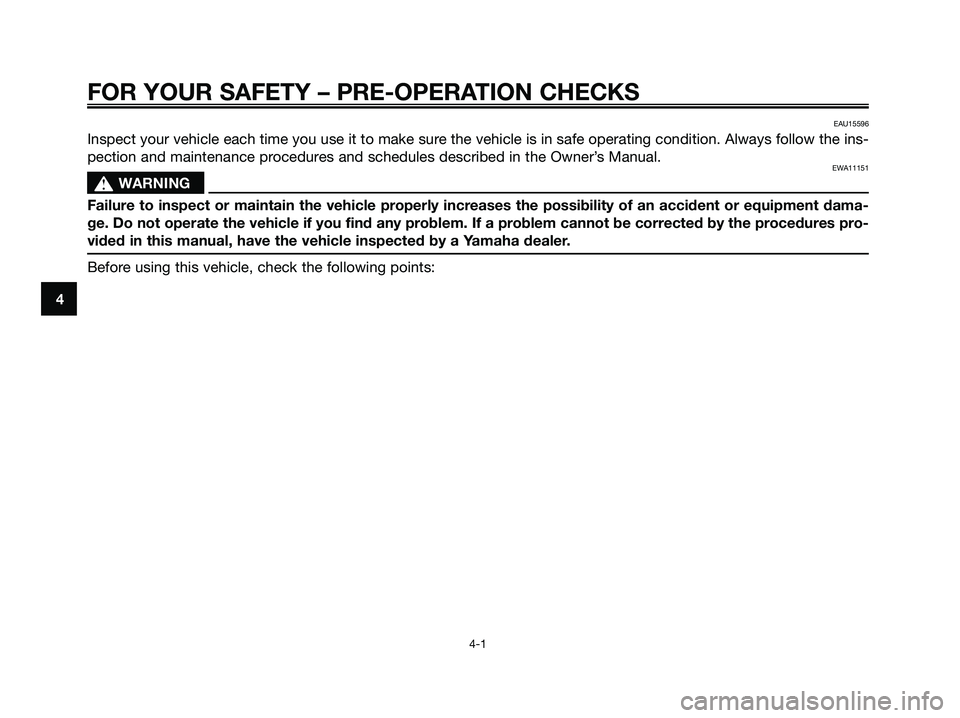

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the ins-
pection and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
s s
WARNING
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment dama-
ge. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures pro-
vided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
1C0-F8199-E5.QXD 3/10/08 05:56 Página 36

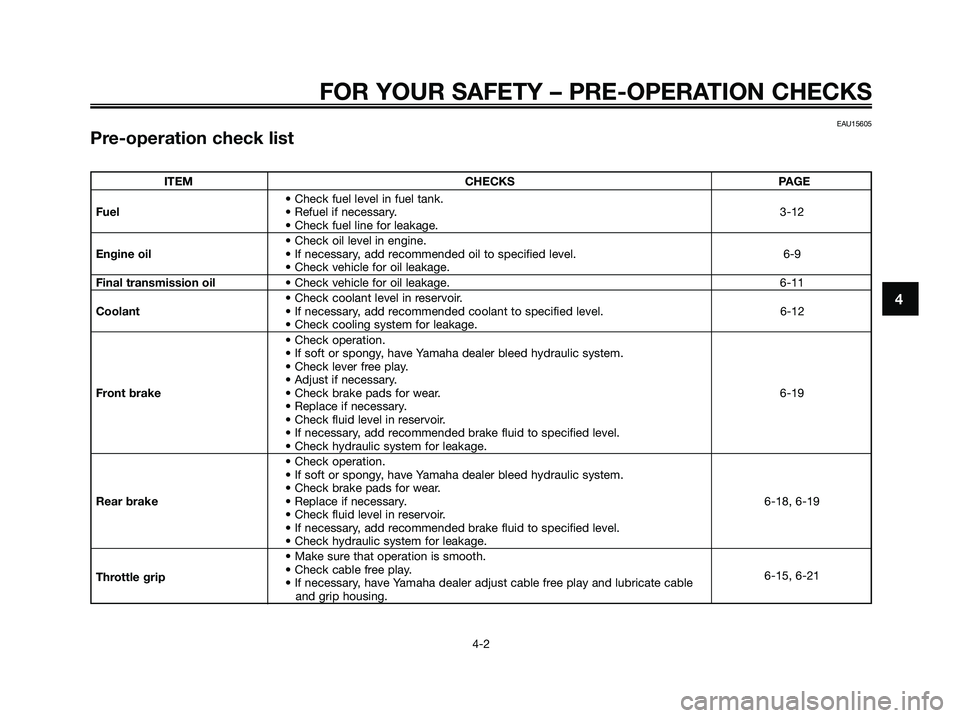

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-12
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-9
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-11
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-12
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check lever free play.
• Adjust if necessary.
Front brake• Check brake pads for wear. 6-19
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Rear brake• Replace if necessary. 6-18, 6-19
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
• If necessary, have Yamaha dealer adjust cable free play and lubricate cable 6-15, 6-21
and grip housing.
1C0-F8199-E5.QXD 3/10/08 05:56 Página 37

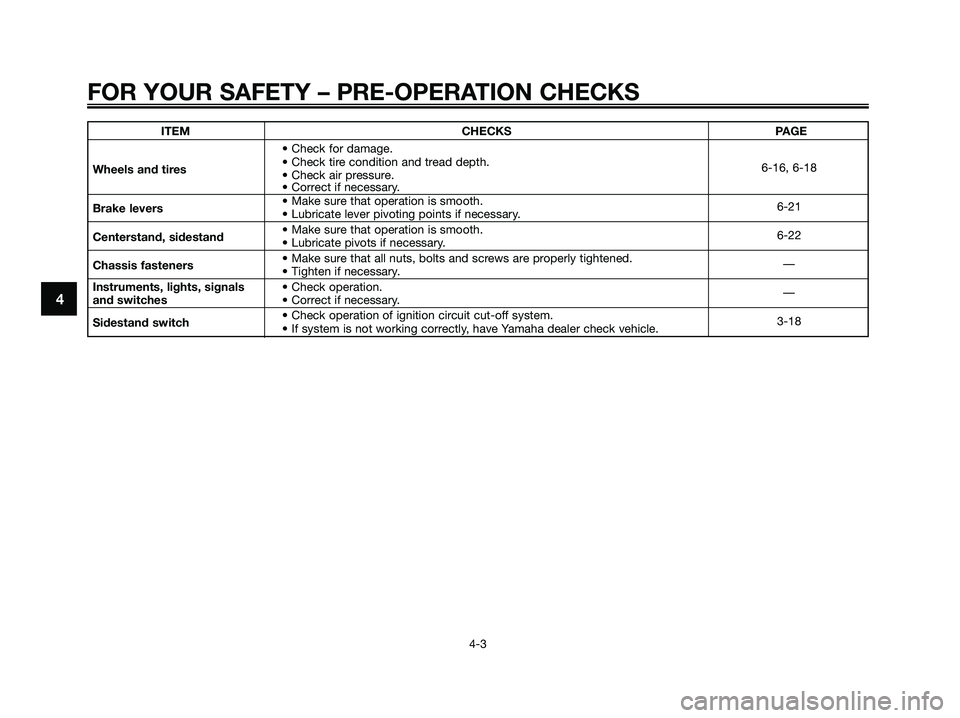

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-3
4
ITEM CHECKS PAGE
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
• Check air pressure.6-16, 6-18
• Correct if necessary.
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.6-21
Centerstand, sidestand• Make sure that operation is smooth.
• Lubricate pivots if necessary.6-22
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
Instruments, lights, signals • Check operation.
and switches• Correct if necessary.—
Sidestand switch • Check operation of ignition circuit cut-off system.
• If system is not working correctly, have Yamaha dealer check vehicle.3-18
1C0-F8199-E5.QXD 3/10/08 05:56 Página 38

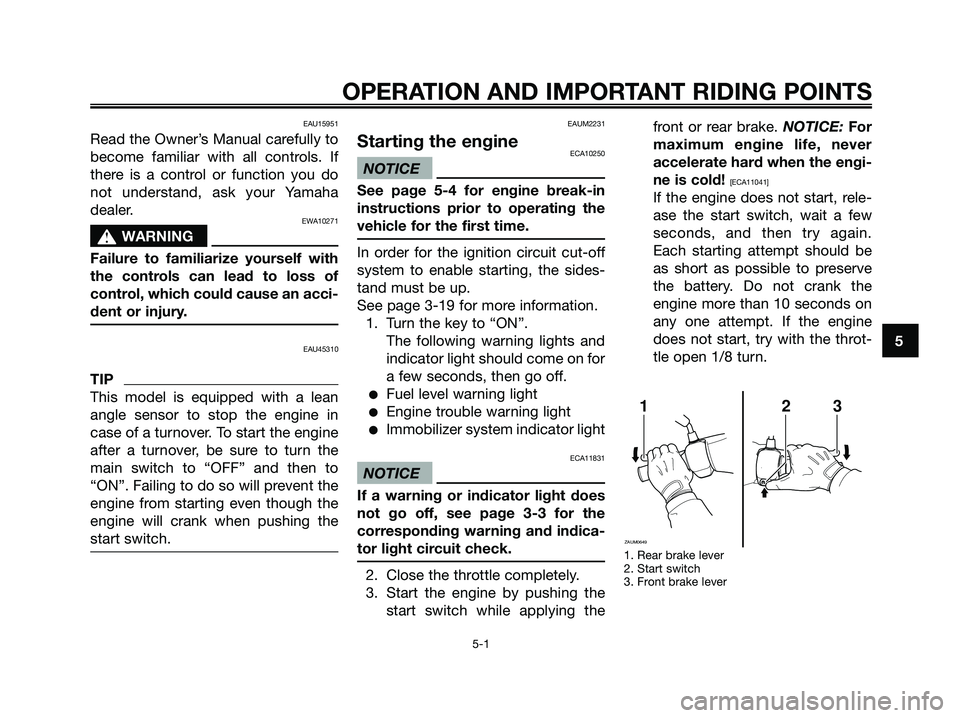

EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do
not understand, ask your Yamaha
dealer.
EWA10271
s s
WARNING
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an acci-
dent or injury.
EAU45310
TIP
This model is equipped with a lean
angle sensor to stop the engine in
case of a turnover. To start the engine
after a turnover, be sure to turn the
main switch to “OFF” and then to
“ON”. Failing to do so will prevent the
engine from starting even though the
engine will crank when pushing the
start switch.
EAUM2231
Starting the engineECA10250
NOTICE
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the sides-
tand must be up.
See page 3-19 for more information.
1. Turn the key to “ON”.
The following warning lights and
indicator light should come on for
a few seconds, then go off.
●Fuel level warning light
●Engine trouble warning light
●Immobilizer system indicator light
ECA11831
NOTICE
If a warning or indicator light does
not go off, see page 3-3 for the
corresponding warning and indica-
tor light circuit check.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying thefront or rear brake. NOTICE: For
maximum engine life, never
accelerate hard when the engi-
ne is cold!
[ECA11041]
If the engine does not start, rele-
ase the start switch, wait a few
seconds, and then try again.
Each starting attempt should be
as short as possible to preserve
the battery. Do not crank the
engine more than 10 seconds on
any one attempt. If the engine
does not start, try with the throt-
tle open 1/8 turn.
1. Rear brake lever
2. Start switch
3. Front brake lever
123
ZAUM0649
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
1C0-F8199-E5.QXD 3/10/08 05:56 Página 39

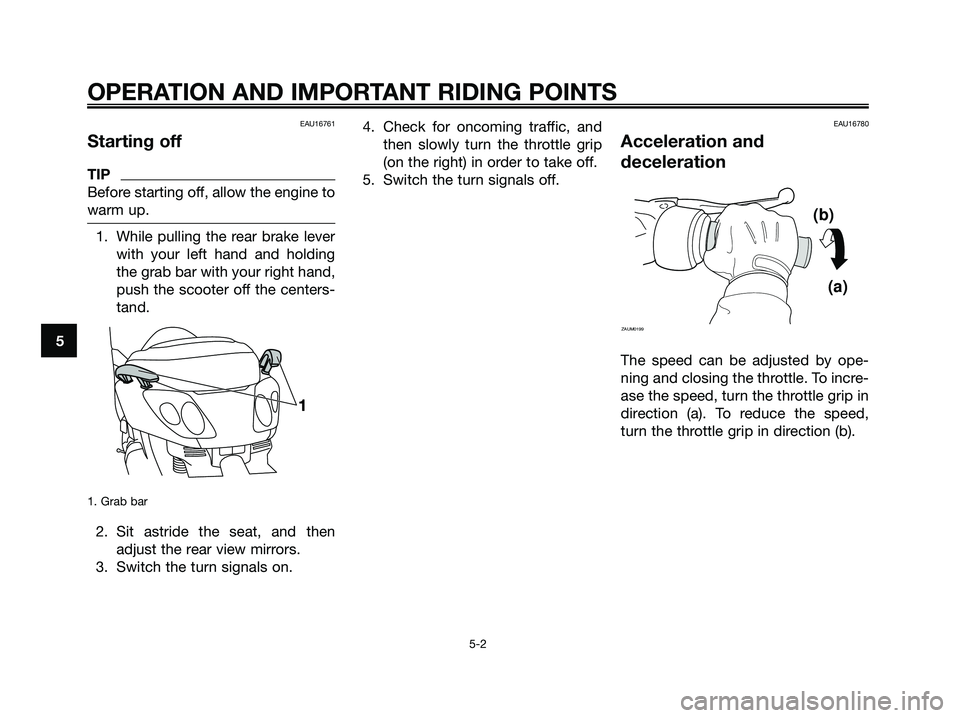

EAU16761
Starting off
TIP
Before starting off, allow the engine to
warm up.
1. While pulling the rear brake lever
with your left hand and holding
the grab bar with your right hand,
push the scooter off the centers-
tand.
1. Grab bar
2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signals on.4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signals off.
EAU16780
Acceleration and
deceleration
The speed can be adjusted by ope-
ning and closing the throttle. To incre-
ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).
(b)
(a)
ZAUM0199
OPERATION AND IMPORTANT RIDING POINTS
5-2
5
1C0-F8199-E5.QXD 3/10/08 05:56 Página 40
