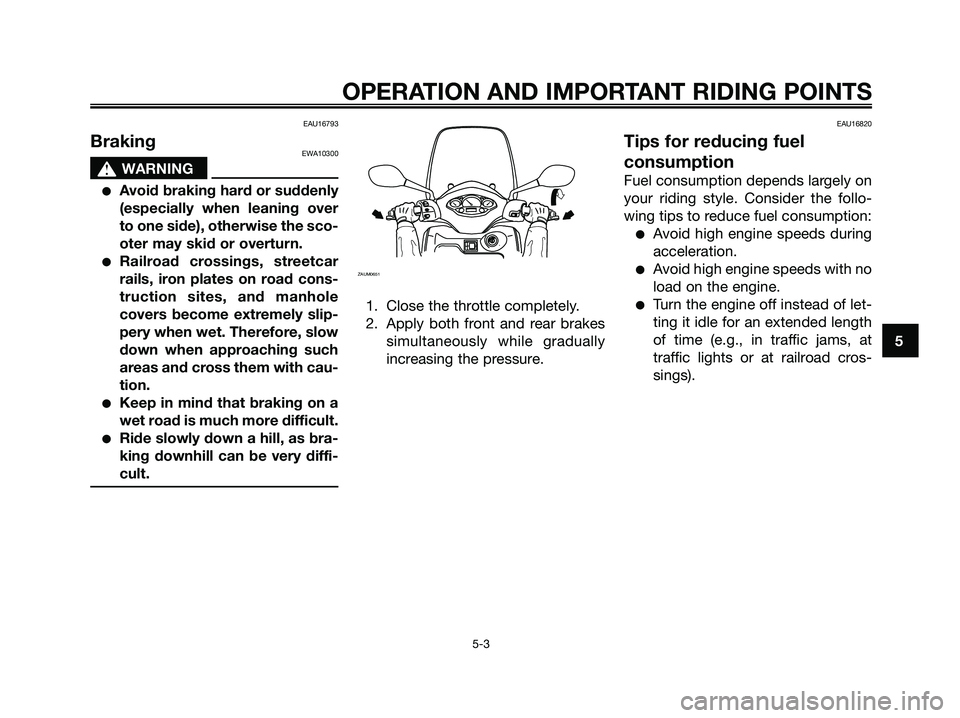

EAU16793
BrakingEWA10300
s s
WARNING
●Avoid braking hard or suddenly
(especially when leaning over
to one side), otherwise the sco-
oter may skid or overturn.
●Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Therefore, slow
down when approaching such
areas and cross them with cau-
tion.
●Keep in mind that braking on a
wet road is much more difficult.
●Ride slowly down a hill, as bra-
king downhill can be very diffi-
cult.
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
EAU16820
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the follo-
wing tips to reduce fuel consumption:
●Avoid high engine speeds during
acceleration.
●Avoid high engine speeds with no
load on the engine.
●Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cros-
sings).
PUSHOPEN
ZAUM0651
OPERATION AND IMPORTANT RIDING POINTS
5-3
5
1C0-F8199-E5.QXD 3/10/08 05:56 Página 41

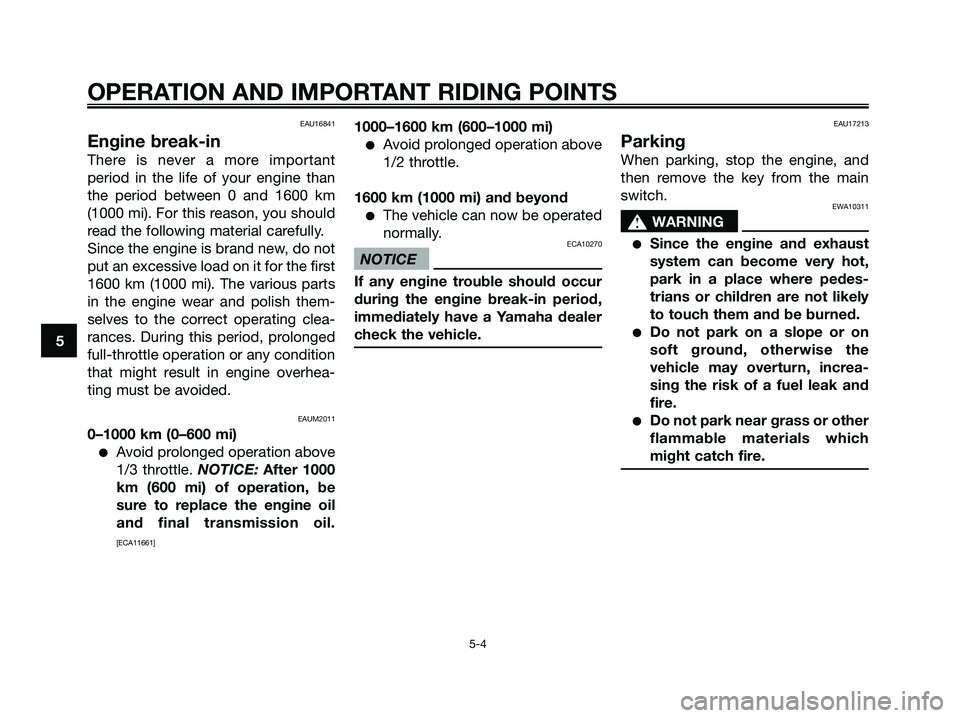

EAU16841
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1600 km
(1000 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts
in the engine wear and polish them-
selves to the correct operating clea-
rances. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAUM2011
0–1000 km (0–600 mi)
●Avoid prolonged operation above
1/3 throttle. NOTICE:After 1000
km (600 mi) of operation, be
sure to replace the engine oil
and final transmission oil.
[ECA11661]
1000–1600 km (600–1000 mi)
●Avoid prolonged operation above
1/2 throttle.
1600 km (1000 mi) and beyond
●The vehicle can now be operated
normally.
ECA10270
NOTICE
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
EAU17213
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10311
s s
WARNING
●Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them and be burned.
●Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn, increa-
sing the risk of a fuel leak and
fire.
●Do not park near grass or other
flammable materials which
might catch fire.
OPERATION AND IMPORTANT RIDING POINTS
5-4
5
1C0-F8199-E5.QXD 3/10/08 05:56 Página 42

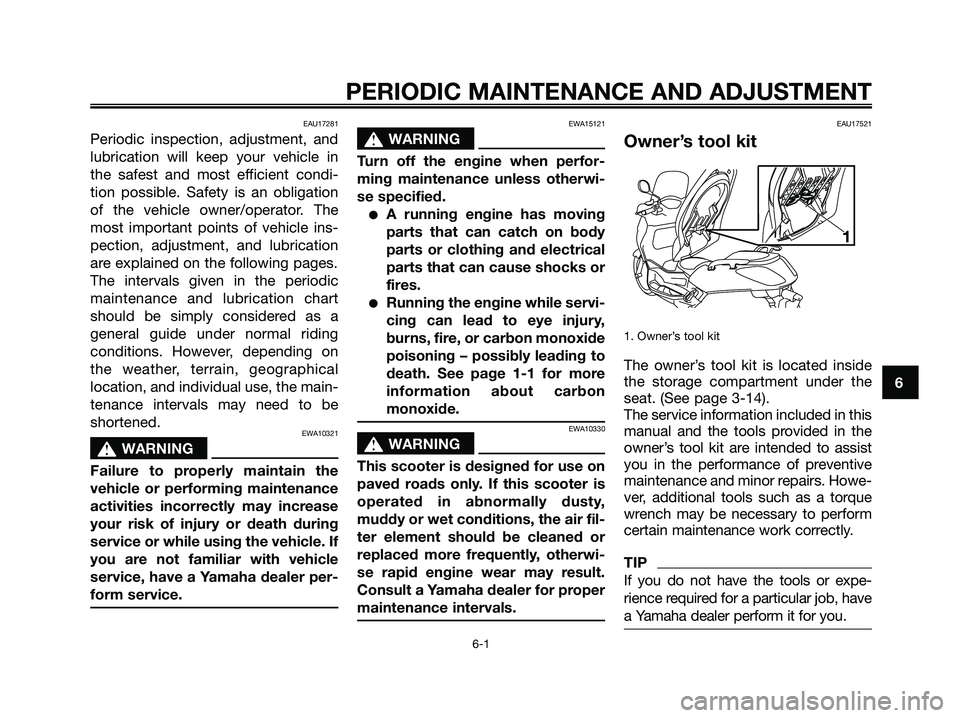

EAU17281
Periodic inspection, adjustment, and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. Safety is an obligation
of the vehicle owner/operator. The
most important points of vehicle ins-
pection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, depending on
the weather, terrain, geographical
location, and individual use, the main-
tenance intervals may need to be
shortened.
EWA10321
s s
WARNING
Failure to properly maintain the
vehicle or performing maintenance
activities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle
service, have a Yamaha dealer per-
form service.
EWA15121
s s
WARNING
Turn off the engine when perfor-
ming maintenance unless otherwi-
se specified.
●A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
●Running the engine while servi-
cing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more
information about carbon
monoxide.
EWA10330
s s
WARNING
This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty,
muddy or wet conditions, the air fil-
ter element should be cleaned or
replaced more frequently, otherwi-
se rapid engine wear may result.
Consult a Yamaha dealer for proper
maintenance intervals.
EAU17521
Owner’s tool kit
1. Owner’s tool kit
The owner’s tool kit is located inside
the storage compartment under the
seat. (See page 3-14).
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. Howe-
ver, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
TIP
If you do not have the tools or expe-
rience required for a particular job, have
a Yamaha dealer perform it for you.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
1C0-F8199-E5.QXD 3/10/08 05:56 Página 43

PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU1770A
Periodic maintenance and lubrication chart
TIP
●The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK,
a mileage-based maintenance, is performed instead.
●From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
●Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
1*Fuel line• Check fuel and vacuum hoses
for cracks or damage.√√√ √√
• Check condition.
2Spark plug• Clean and regap.√√
• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√
4Air filter element• Replace.√√
5V-belt case air filter
element• Clean.√√√ √
• Check operation, fluid level and
6*Front brakevehicle for fluid leakage.√√ √√ √ √
• Replace brake pads. Whenever worn to the limit
1C0-F8199-E5.QXD 3/10/08 05:56 Página 44

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6

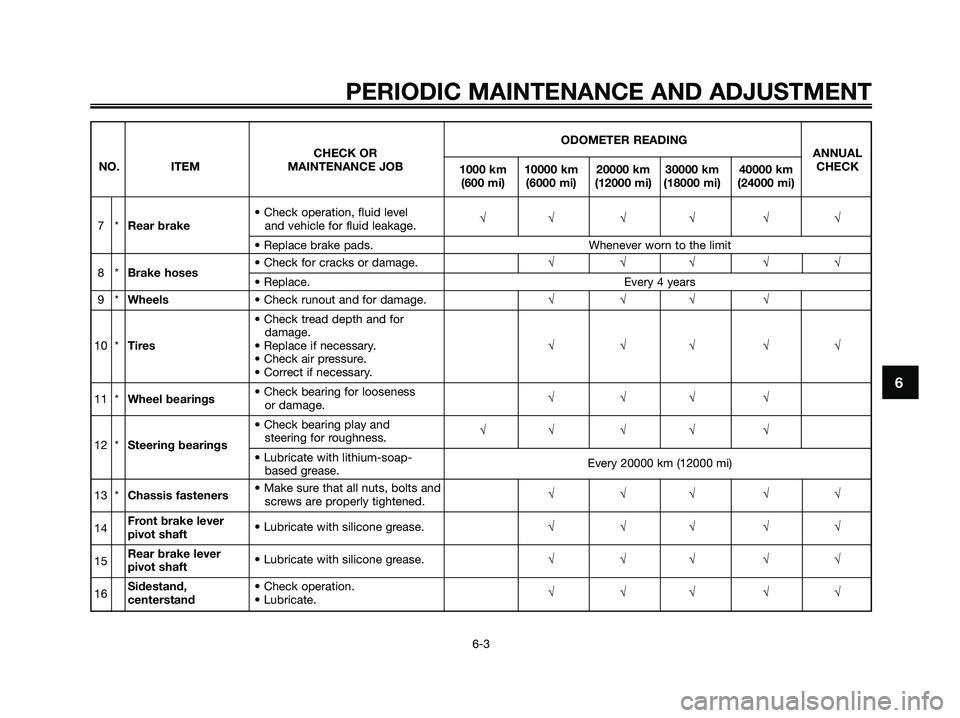

ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
• Check operation, fluid level
7*Rear brakeand vehicle for fluid leakage.√√ √√ √ √
• Replace brake pads. Whenever worn to the limit
8*Brake hoses• Check for cracks or damage.√√√ √√• Replace. Every 4 years
9*Wheels• Check runout and for damage.√√√ √
• Check tread depth and for
damage.
10 *Tires• Replace if necessary.√√√ √√
• Check air pressure.
• Correct if necessary.
11 *Wheel bearings• Check bearing for looseness
or damage.√√√ √
• Check bearing play and
12 *Steering bearingssteering for roughness.√√ √√ √
• Lubricate with lithium-soap-
based grease.Every 20000 km (12000 mi)
13 *Chassis fasteners• Make sure that all nuts, bolts and
screws are properly tightened.√√√ √√
14Front brake lever
pivot shaft• Lubricate with silicone grease.√√√ √√
15Rear brake lever
pivot shaft• Lubricate with silicone grease.√√√ √√
16Sidestand, • Check operation.
centerstand• Lubricate.√√√ √√
1C0-F8199-E5.QXD 3/10/08 05:56 Página 45

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6

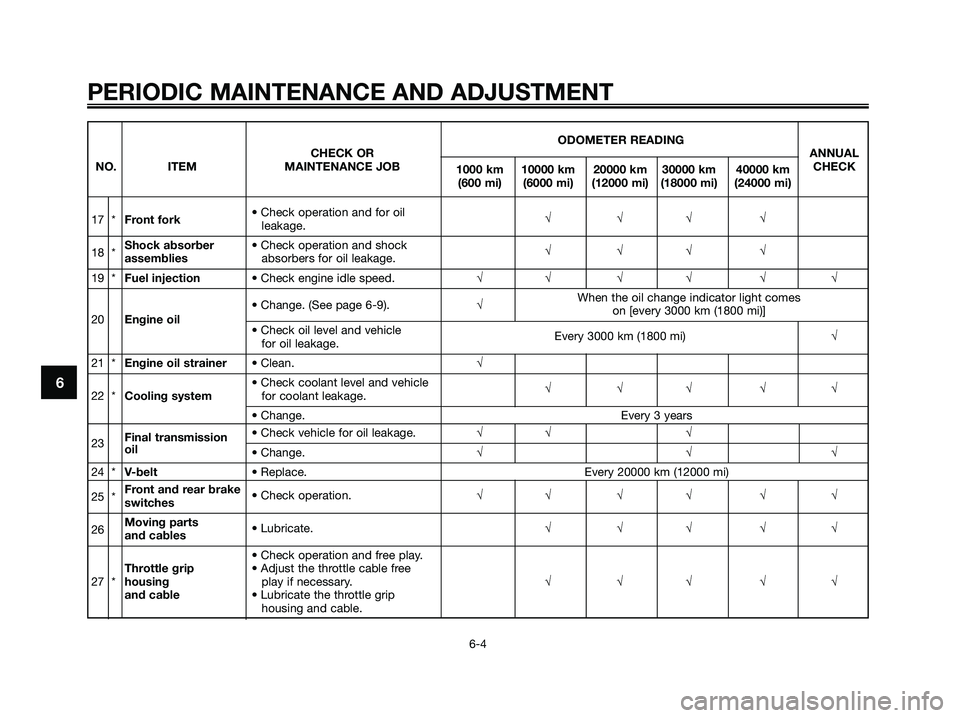

ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
17 *Front fork• Check operation and for oil
leakage.√√√ √
18 *Shock absorber • Check operation and shock
assembliesabsorbers for oil leakage.√√√ √
19 *Fuel injection• Check engine idle speed.√√ √√ √ √
20Engine oil• Change. (See page 6-9). √When the oil change indicator light comes
on [every 3000 km (1800 mi)]
• Check oil level and vehicle
for oil leakage.Every 3000 km (1800 mi)√
21 *Engine oil strainer• Clean.√
• Check coolant level and vehicle
22 *Cooling systemfor coolant leakage.√√√ √√
• Change. Every 3 years
23Final transmission • Check vehicle for oil leakage.√√ √oil
• Change.√√√
24 *V-belt• Replace. Every 20000 km (12000 mi)
25 *Front and rear brake
switches• Check operation.√√ √√ √ √
26Moving parts
and cables• Lubricate.√√√ √√
• Check operation and free play.
Throttle grip • Adjust the throttle cable free
27 *housingplay if necessary.√√√ √√
and cable• Lubricate the throttle grip
housing and cable.
1C0-F8199-E5.QXD 3/10/08 05:56 Página 46

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)

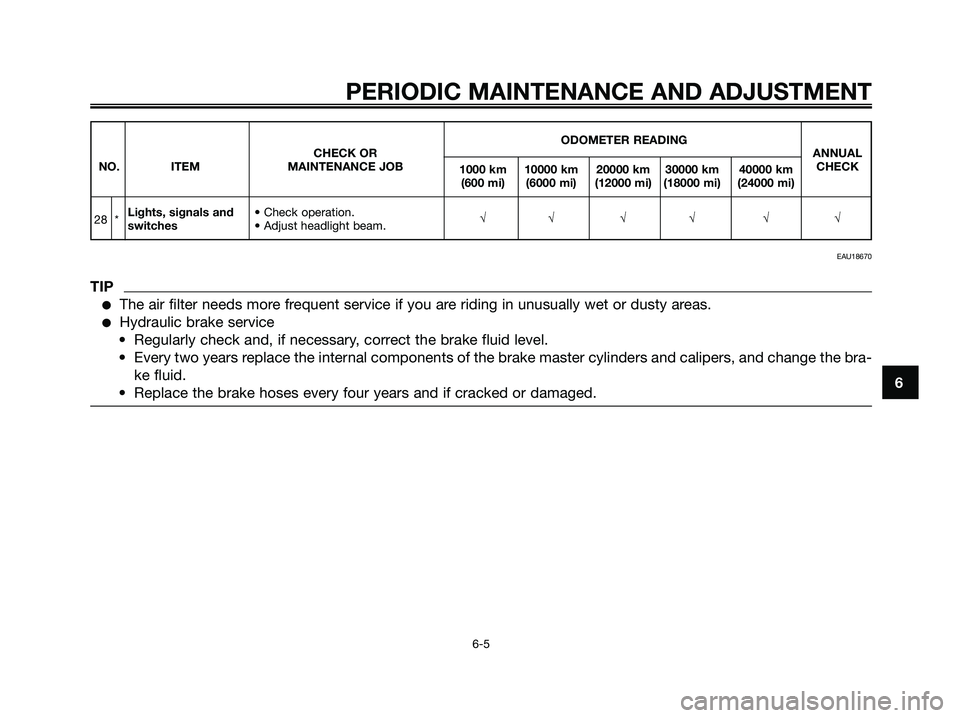

28 *Lights, signals and • Check operation.
switches• Adjust headlight beam.√√ √√ √ √
EAU18670
TIP
●The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
●Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the bra-
ke fluid.
• Replace the brake hoses every four years and if cracked or damaged.
1C0-F8199-E5.QXD 3/10/08 05:56 Página 47

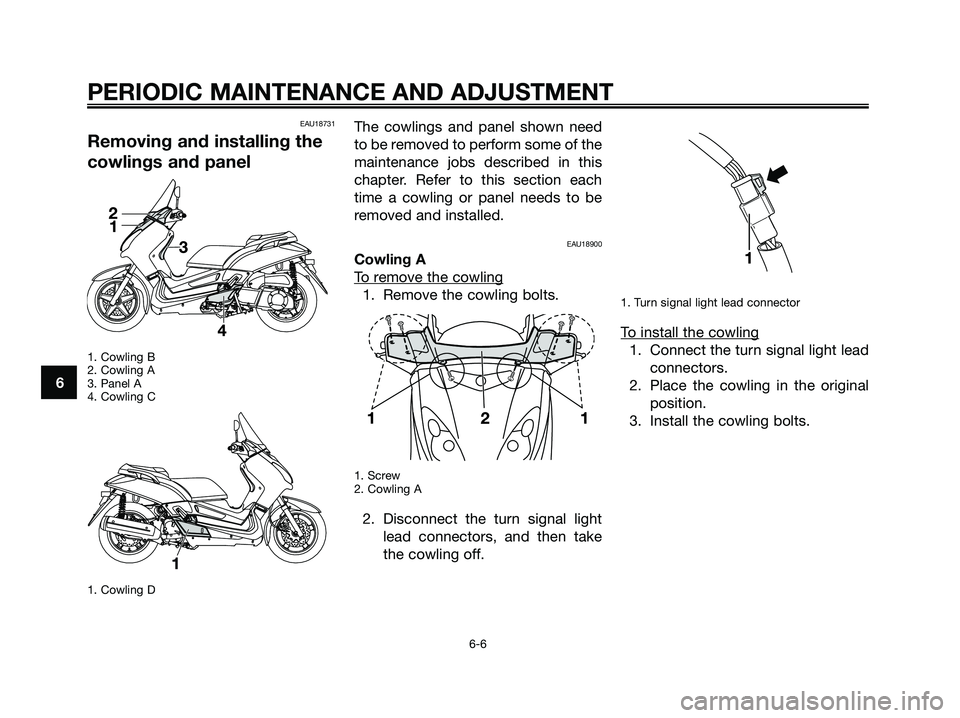

EAU18731
Removing and installing the
cowlings and panel
1. Cowling B
2. Cowling A
3. Panel A
4. Cowling C
1. Cowling D
The cowlings and panel shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each
time a cowling or panel needs to be
removed and installed.
EAU18900
Cowling A
T
o remove the cowling
1. Remove the cowling bolts.
1. Screw
2. Cowling A
2. Disconnect the turn signal light
lead connectors, and then take
the cowling off.
1. Turn signal light lead connector
To install the cowling
1. Connect the turn signal light lead
connectors.
2. Place the cowling in the original
position.
3. Install the cowling bolts.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
1C0-F8199-E5.QXD 3/10/08 05:56 Página 48

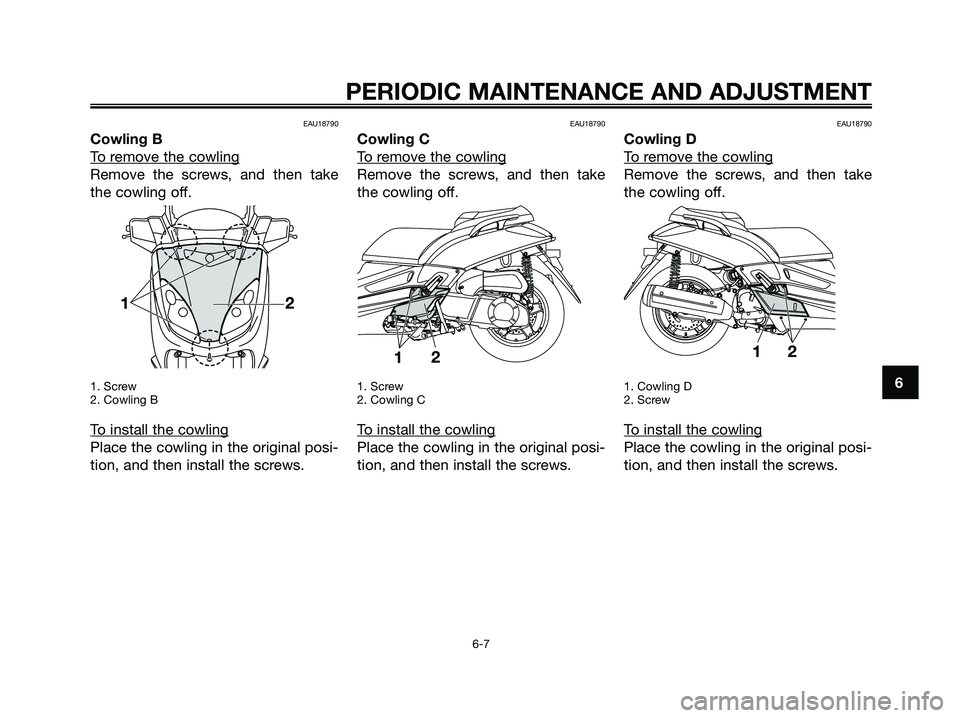

EAU18790
Cowling B
T
o remove the cowling
Remove the screws, and then take
the cowling off.
1. Screw
2. Cowling B
To install the cowling
Place the cowling in the original posi-
tion, and then install the screws.
EAU18790
Cowling C
T
o remove the cowling
Remove the screws, and then take
the cowling off.
1. Screw
2. Cowling C
To install the cowling
Place the cowling in the original posi-
tion, and then install the screws.
EAU18790
Cowling D
T
o remove the cowling
Remove the screws, and then take
the cowling off.
1. Cowling D
2. Screw
To install the cowling
Place the cowling in the original posi-
tion, and then install the screws.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
1C0-F8199-E5.QXD 3/10/08 05:56 Página 49

EAUM1250

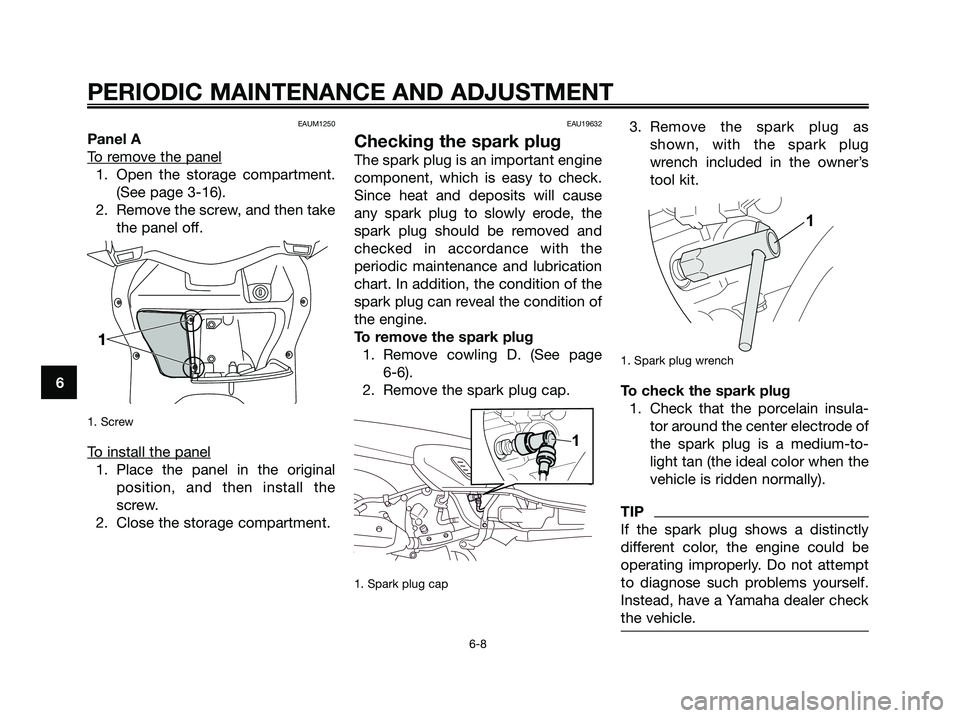

Panel A
T
o remove the panel
1. Open the storage compartment.
(See page 3-16).
2. Remove the screw, and then take
the panel off.
1. Screw
To install the panel
1. Place the panel in the original
position, and then install the
screw.
2. Close the storage compartment.
EAU19632
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause
any spark plug to slowly erode, the
spark plug should be removed and
checked in accordance with the
periodic maintenance and lubrication
chart. In addition, the condition of the
spark plug can reveal the condition of
the engine.
To remove the spark plug
1. Remove cowling D. (See page
6-6).
2. Remove the spark plug cap.
1. Spark plug cap
3. Remove the spark plug as
shown, with the spark plug
wrench included in the owner’s
tool kit.
1. Spark plug wrench
To check the spark plug
1. Check that the porcelain insula-
tor around the center electrode of
the spark plug is a medium-to-
light tan (the ideal color when the
vehicle is ridden normally).
TIP
If the spark plug shows a distinctly
different color, the engine could be
operating improperly. Do not attempt
to diagnose such problems yourself.
Instead, have a Yamaha dealer check
the vehicle.
1
1
PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
1C0-F8199-E5.QXD 3/10/08 05:56 Página 50
