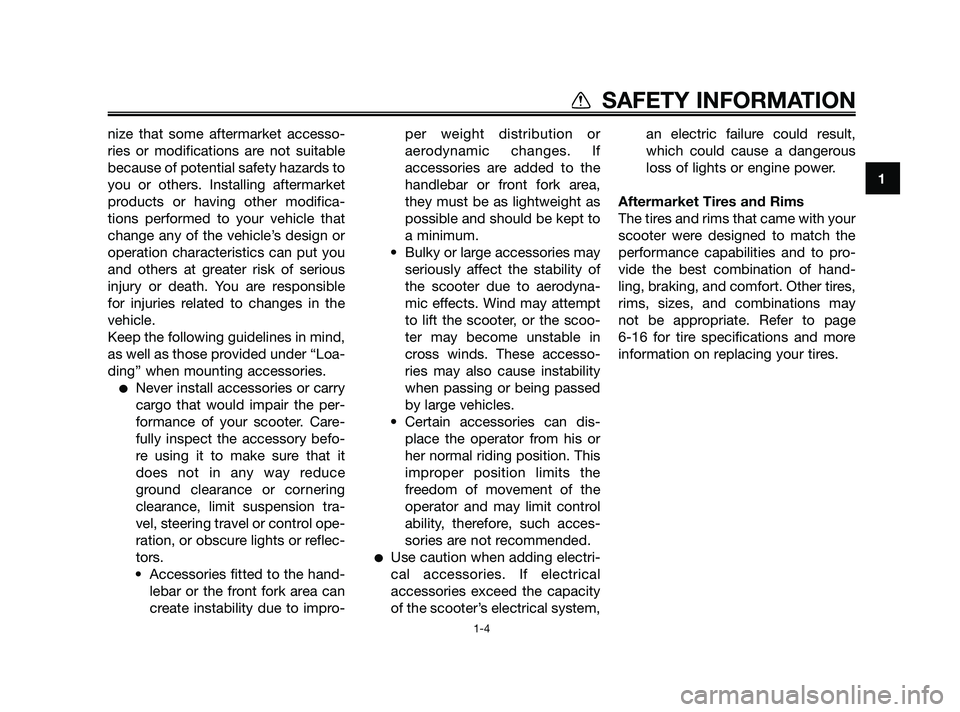

nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifica-
tions performed to your vehicle that
change any of the vehicle’s design or
operation characteristics can put you
and others at greater risk of serious
injury or death. You are responsible
for injuries related to changes in the
vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Care-
fully inspect the accessory befo-
re using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand- lebar or the front fork area can
create instability due to impro- per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may seriously affect the stability of
the scooter due to aerodyna-
mic effects. Wind may attempt
to lift the scooter, or the scoo-
ter may become unstable in
cross winds. These accesso-
ries may also cause instability
when passing or being passed
by large vehicles.
• Certain accessories can dis- place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
operator and may limit control
ability, therefore, such acces-
sories are not recommended.
Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the scooter’s electrical system, an electric failure could result,
which could cause a dangerous
loss of lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
scooter were designed to match the
performance capabilities and to pro-
vide the best combination of hand-
ling, braking, and comfort. Other tires,
rims, sizes, and combinations may
not be appropriate. Refer to page
6-16 for tire specifications and more
information on replacing your tires.
1
SAFETY INFORMATION

1-4

37P-F8199-E0 18/9/09 14:54 Página 11

EAU10372

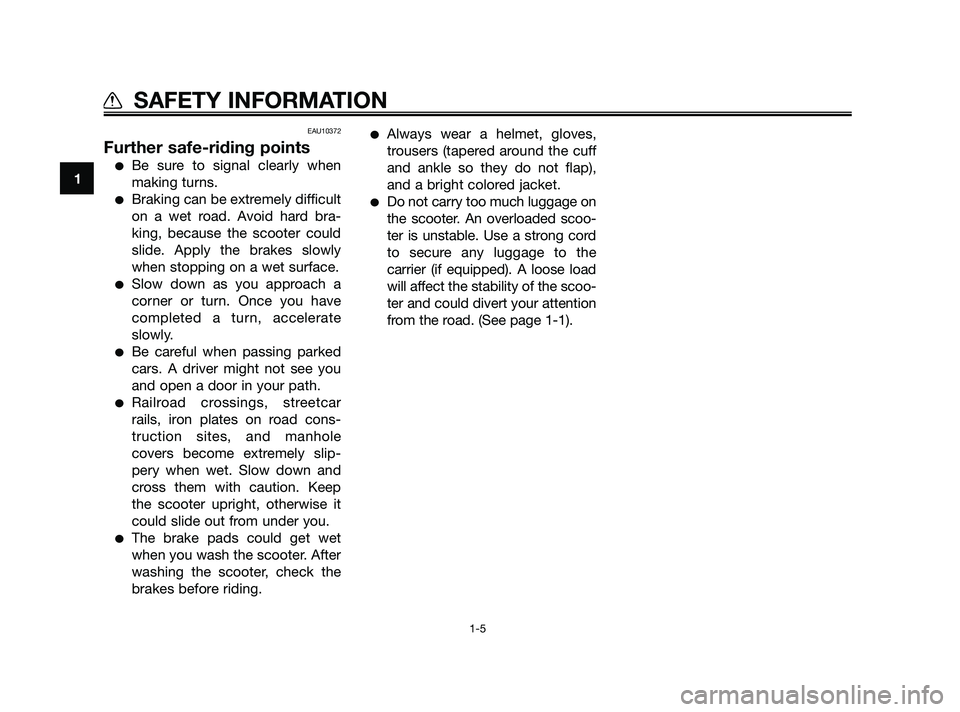

Further safe-riding points
Be sure to signal clearly when
making turns.
Braking can be extremely difficult
on a wet road. Avoid hard bra-
king, because the scooter could
slide. Apply the brakes slowly
when stopping on a wet surface.
Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.
The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap),
and a bright colored jacket.
Do not carry too much luggage on
the scooter. An overloaded scoo-
ter is unstable. Use a strong cord
to secure any luggage to the
carrier (if equipped). A loose load
will affect the stability of the scoo-
ter and could divert your attention
from the road. (See page 1-1).
1
SAFETY INFORMATION

1-5

37P-F8199-E0 18/9/09 14:54 Página 12

EAU10410

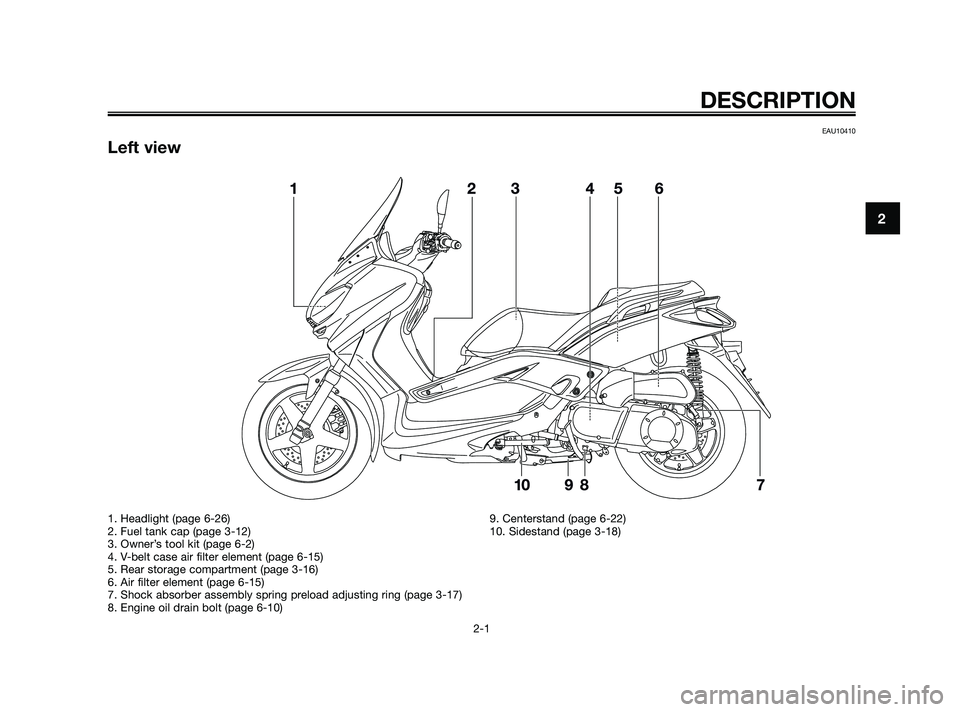

Left view

DESCRIPTION
2-1
2
1. Headlight (page 6-26)
2. Fuel tank cap (page 3-12)
3. Owner’s tool kit (page 6-2)
4. V-belt case air filter element (page 6-15)
5. Rear storage compartment (page 3-16)
6. Air filter element (page 6-15)
7. Shock absorber assembly spring preload adjusting ring (page 3-17)
8. Engine oil drain bolt (page 6-10)9. Centerstand (page 6-22)
10. Sidestand (page 3-18)

37P-F8199-E0 18/9/09 14:54 Página 13

EAU10420

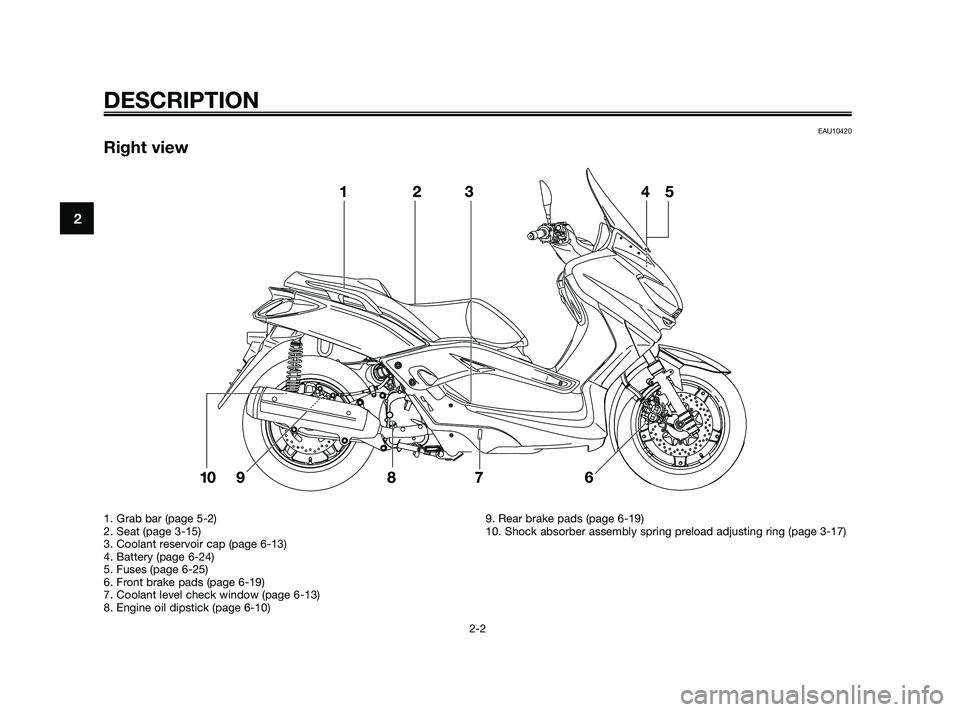

Right view

DESCRIPTION
2-2
2
1. Grab bar (page 5-2)
2. Seat (page 3-15)
3. Coolant reservoir cap (page 6-13)
4. Battery (page 6-24)
5. Fuses (page 6-25)
6. Front brake pads (page 6-19)
7. Coolant level check window (page 6-13)
8. Engine oil dipstick (page 6-10)9. Rear brake pads (page 6-19)
10. Shock absorber assembly spring preload adjusting ring (page 3-17)

37P-F8199-E0 18/9/09 14:54 Página 14

EAU10430

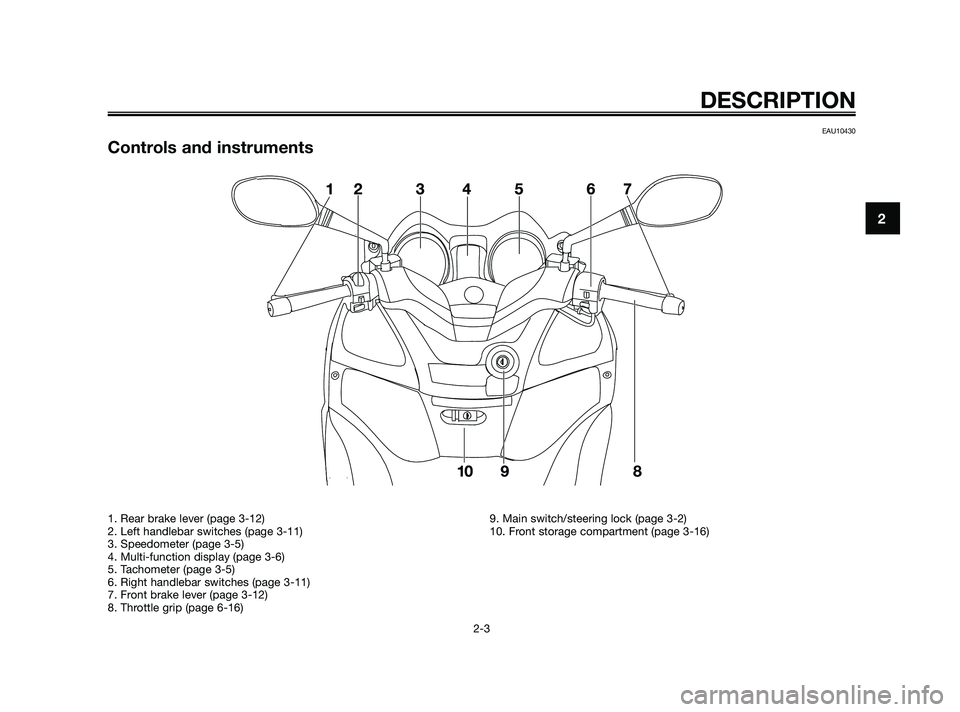

Controls and instruments


DESCRIPTION
2-3
2
1. Rear brake lever (page 3-12)
2. Left handlebar switches (page 3-11)
3. Speedometer (page 3-5)
4. Multi-function display (page 3-6)
5. Tachometer (page 3-5)
6. Right handlebar switches (page 3-11)
7. Front brake lever (page 3-12)
8. Throttle grip (page 6-16)9. Main switch/steering lock (page 3-2)
10. Front storage compartment (page 3-16)
37P-F8199-E0 18/9/09 14:54 Página 15

EAU10976

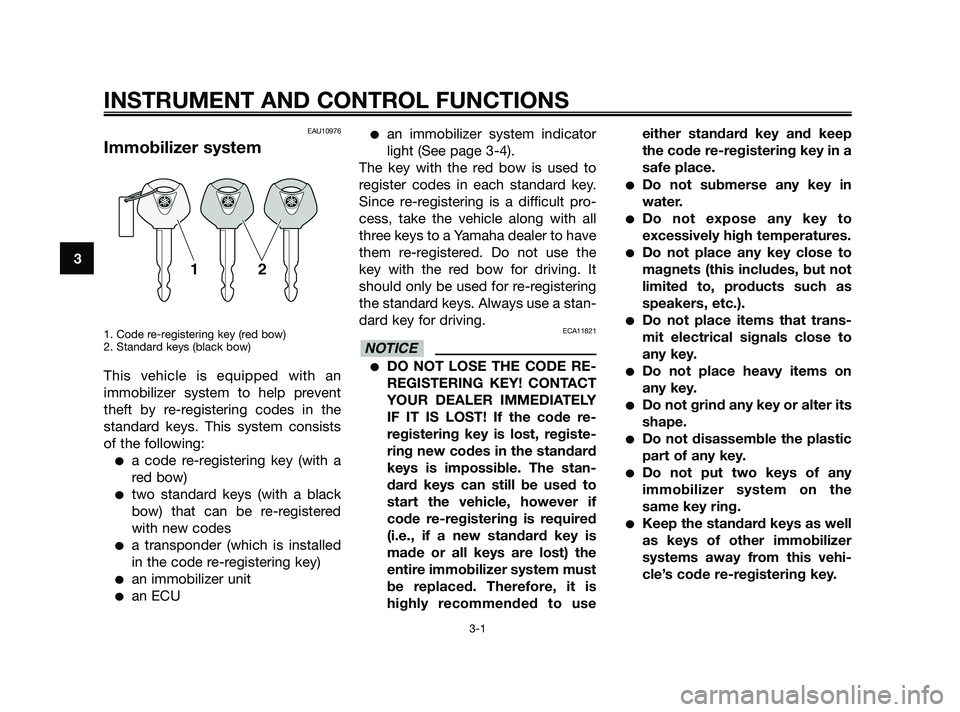

Immobilizer system
1. Code re-registering key (red bow)
2. Standard keys (black bow)
This vehicle is equipped with an
immobilizer system to help prevent
theft by re-registering codes in the
standard keys. This system consists
of the following:
a code re-registering key (with a
red bow)
two standard keys (with a black
bow) that can be re-registered
with new codes
a transponder (which is installed
in the code re-registering key)
an immobilizer unit
an ECU
an immobilizer system indicator
light (See page 3-4).
The key with the red bow is used to
register codes in each standard key.
Since re-registering is a difficult pro-
cess, take the vehicle along with all
three keys to a Yamaha dealer to have
them re-registered. Do not use the
key with the red bow for driving. It
should only be used for re-registering
the standard keys. Always use a stan-
dard key for driving.
ECA11821
DO NOT LOSE THE CODE RE-
REGISTERING KEY! CONTACT
YOUR DEALER IMMEDIATELY
IF IT IS LOST! If the code re-
registering key is lost, registe-
ring new codes in the standard
keys is impossible. The stan-
dard keys can still be used to
start the vehicle, however if
code re-registering is required
(i.e., if a new standard key is
made or all keys are lost) the
entire immobilizer system must
be replaced. Therefore, it is
highly recommended to use either standard key and keep
the code re-registering key in a
safe place.
Do not submerse any key in
water.
Do not expose any key to
excessively high temperatures.
Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).
Do not place items that trans-
mit electrical signals close to
any key.
Do not place heavy items on
any key.
Do not grind any key or alter its
shape.
Do not disassemble the plastic
part of any key.
Do not put two keys of any
immobilizer system on the
same key ring.
Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.

NOTICE

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3

37P-F8199-E0 18/9/09 14:54 Página 16

Keep other immobilizer system
keys away from the main
switch as they may cause sig-
nal interference.EAU10471

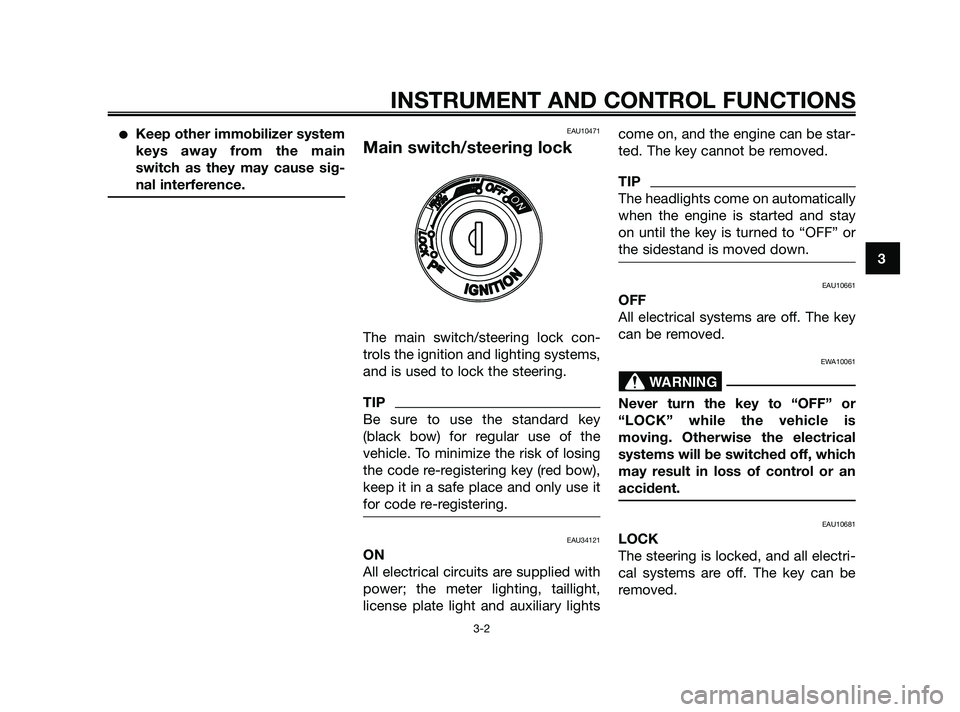

Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering.
TIP
Be sure to use the standard key
(black bow) for regular use of the
vehicle. To minimize the risk of losing
the code re-registering key (red bow),
keep it in a safe place and only use it
for code re-registering.
EAU34121
ON
All electrical circuits are supplied with
power; the meter lighting, taillight,
license plate light and auxiliary lightscome on, and the engine can be star-
ted. The key cannot be removed.
TIP
The headlights come on automatically
when the engine is started and stay
on until the key is turned to “OFF” or
the sidestand is moved down.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving. Otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident.
EAU10681
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.

WARNING

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3

37P-F8199-E0 18/9/09 14:54 Página 17

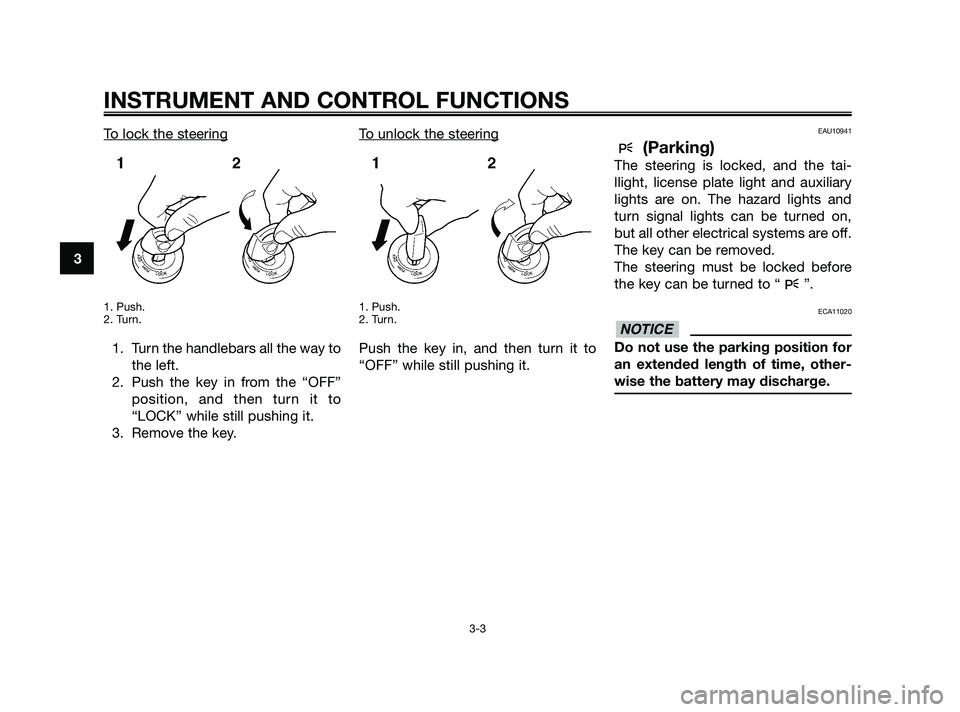

To lock the steering
1. Push.
2. Turn.
1. Turn the handlebars all the way tothe left.
2. Push the key in from the “OFF” position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key. T
o unlock the steering
1. Push.
2. Turn.
Push the key in, and then turn it to
“OFF” while still pushing it.
EAU10941
(Parking)
The steering is locked, and the tai-
llight, license plate light and auxiliary
lights are on. The hazard lights and
turn signal lights can be turned on,
but all other electrical systems are off.
The key can be removed.
The steering must be locked before
the key can be turned to “ ”.
ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.

NOTICE

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3

37P-F8199-E0 18/9/09 14:54 Página 18

EAU11004
Indicator and warning lights
1. Turn signal indicator lights “ ” and “ ”
2. High beam indicator light “ ”
3. Immobilizer system indicator light
4. Engine trouble warning light “ ”
EAU11030
Turn signal indicator lights “ ”
and “ ”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “ ”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAU43023
Engine trouble warning light “ ”
This warning light comes on if an
electrical circuit monitoring the engine
is not working correctly. If this occurs,
have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to
“ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
TIP
This warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not
indicate a malfunction.
EAU38623
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the
key to “ON”. The indicator lightshould come on for a few seconds,
and then go off.
If the indicator light does not come on
initially when the key is turned to
“ON”, or if the indicator light remains
on, have a Yamaha dealer check the
electrical circuit.
When the key is turned to “OFF” and
30 seconds have passed, the indica-
tor light will start flashing indicating
the immobilizer system is enabled.
After 24 hours have passed, the indi-
cator light will stop flashing, however
the immobilizer system is still ena-
bled.
This model is also equipped with a
self-diagnosis device for the immobi-
lizer system. (See page 3-6 for an
explanation of the self-diagnosis
device.)

1234

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3

37P-F8199-E0 18/9/09 14:54 Página 19

EAU11601
Speedometer

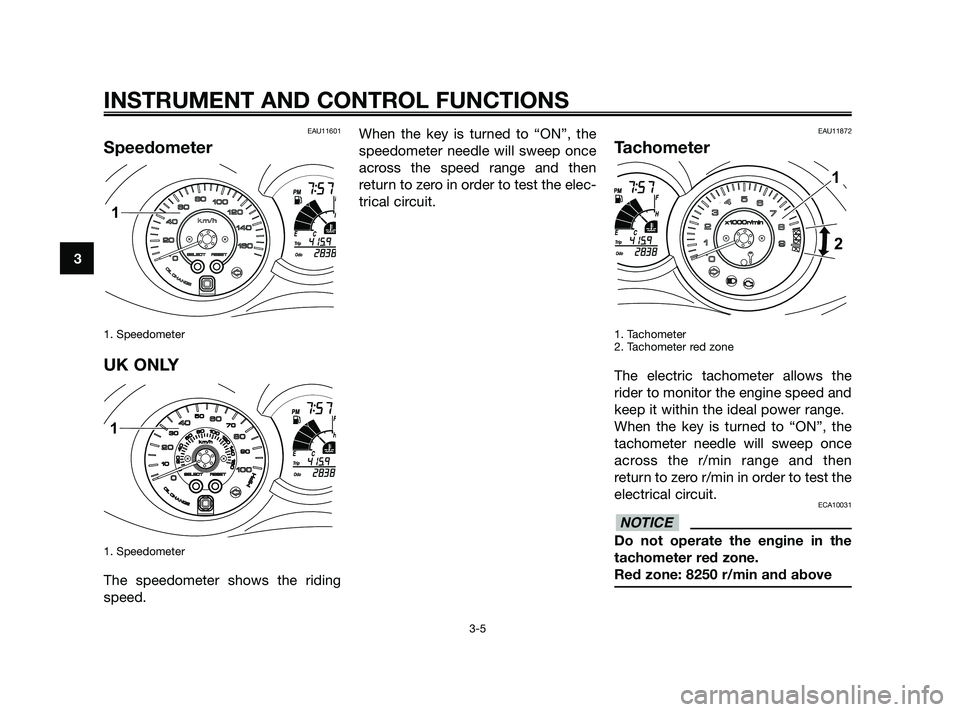

1. Speedometer
UK ONLY
1. Speedometer
The speedometer shows the riding
speed.When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then
return to zero in order to test the elec-
trical circuit.
EAU11872
Tachometer
1. Tachometer
2. Tachometer red zone
The electric tachometer allows the
rider to monitor the engine speed and
keep it within the ideal power range.
When the key is turned to “ON”, the
tachometer needle will sweep once
across the r/min range and then
return to zero r/min in order to test the
electrical circuit.
ECA10031
Do not operate the engine in the
tachometer red zone.
Red zone: 8250 r/min and above

NOTICE

1
2

1

1

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3

37P-F8199-E0 18/9/09 14:54 Página 20
