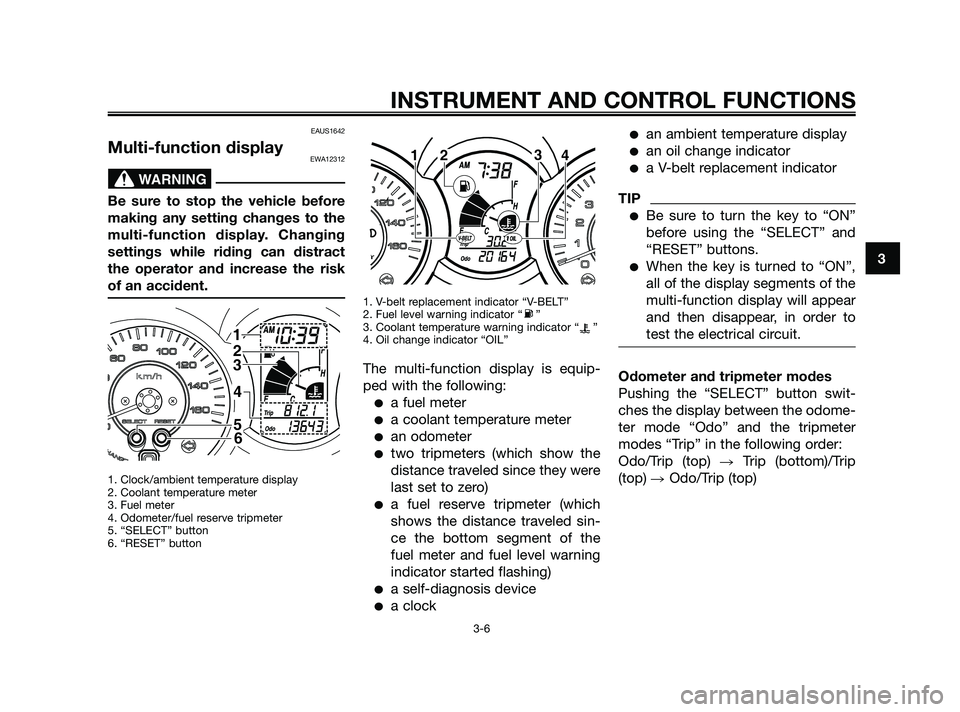

Multi-function displayEWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract
the operator and increase the risk
of an accident.
1. Clock/ambient temperature display
2. Coolant temperature meter
3. Fuel meter
4. Odometer/fuel reserve tripmeter
5. “SELECT” button
6. “RESET” button1. V-belt replacement indicator “V-BELT”
2. Fuel level warning indicator “ ”
3. Coolant temperature warning indicator “ ”
4. Oil change indicator “OIL”
The multi-function display is equip-
ped with the following:
a fuel meter
a coolant temperature meter
an odometer
two tripmeters (which show the
distance traveled since they were
last set to zero)
a fuel reserve tripmeter (which
shows the distance traveled sin-
ce the bottom segment of the
fuel meter and fuel level warning
indicator started flashing)
a self-diagnosis device
a clock
an ambient temperature display
an oil change indicator
a V-belt replacement indicator
TIP
Be sure to turn the key to “ON”
before using the “SELECT” and
“RESET” buttons.
When the key is turned to “ON”,
all of the display segments of the
multi-function display will appear
and then disappear, in order to
test the electrical circuit.
Odometer and tripmeter modes
Pushing the “SELECT” button swit-
ches the display between the odome-
ter mode “Odo” and the tripmeter
modes “Trip” in the following order:
Odo/Trip (top)
Trip (bottom)/Trip
(top) Odo/Trip (top)

12 3
4

1
2
3
4
5 6

WARNING

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3

37P-F8199-E0 18/9/09 14:54 Página 21

When approximately 1.7 L (0.45 US
gal, 0.37 Imp.gal) of fuel remains in
the fuel tank, the bottom segment of
the fuel meter and fuel level warning
indicator will start flashing, and the
display will automatically change to
the fuel reserve tripmeter mode “Trip
F” and start counting the distance tra-
veled from that point. In that case,
pushing the “SELECT” button swit-
ches the display between the various
tripmeter and odometer modes in the
following order:
Trip F/Trip (top) Trip (bottom)/Trip
(top) Odo/Trip (top) Trip F/Trip
(top)

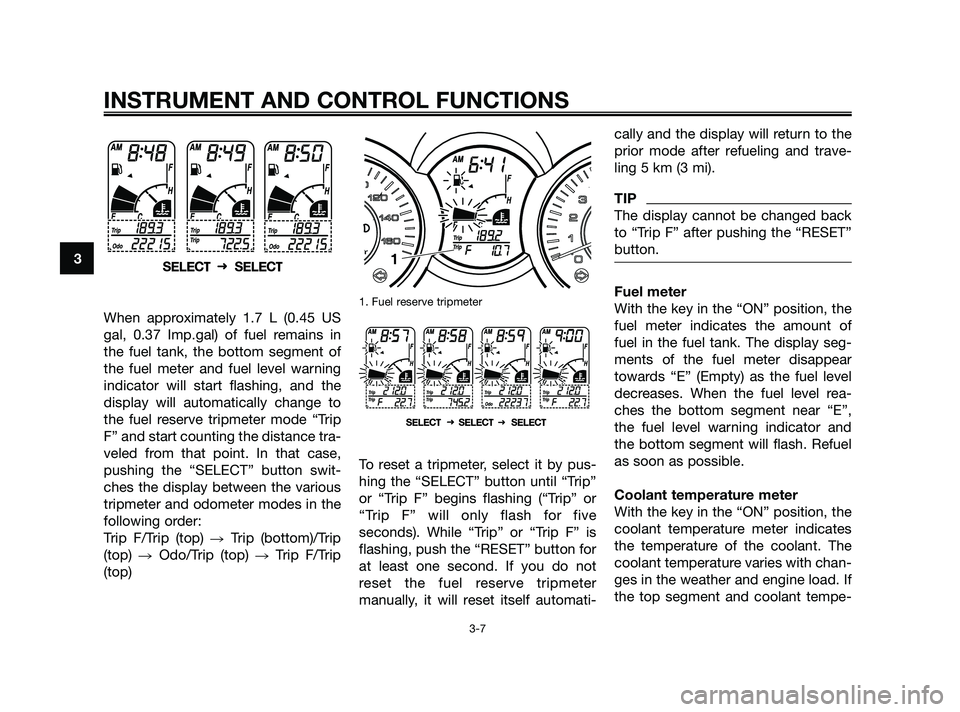

1. Fuel reserve tripmeter
To reset a tripmeter, select it by pus-
hing the “SELECT” button until “Trip”
or “Trip F” begins flashing (“Trip” or
“Trip F” will only flash for five
seconds). While “Trip” or “Trip F” is
flashing, push the “RESET” button for
at least one second. If you do not
reset the fuel reserve tripmeter
manually, it will reset itself automati- cally and the display will return to the
prior mode after refueling and trave-
ling 5 km (3 mi).
TIP
The display cannot be changed back
to “Trip F” after pushing the “RESET”
button.
Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear
towards “E” (Empty) as the fuel level
decreases. When the fuel level rea-
ches the bottom segment near “E”,
the fuel level warning indicator and
the bottom segment will flash. Refuel
as soon as possible.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chan-
ges in the weather and engine load. If
the top segment and coolant tempe-

1

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3

37P-F8199-E0 18/9/09 14:54 Página 22

rature warning indicator flash, stop
the vehicle and let the engine cool.
(See page 6-30).
ECA10021
Do not continue to operate the
engine if it is overheating.
Oil change indicator “OIL”
This indicator flashes at the initial
1000 km (600 mi), then at 4000 km
(2500 mi) and every 3000 km (1800
mi) thereafter to indicate that the
engine oil should be changed.
After changing the engine oil, reset
the oil change indicator. (See page
6-10). If the engine oil is changed before the
oil change indicator comes on (i.e.
before the periodic oil change interval
has been reached), the indicator must
be reset after the oil change for the
next periodic oil change to be indica-
ted at the correct time. (See page
6-10).
The electrical circuit of the indicator
can be checked according to the
following procedure.
1. Turn the key to “ON”.
2. Check that the indicator comes on for a few seconds and then
goes off.
3. If the indicator does not come on, have a Yamaha dealer check the
electrical circuit.
V-belt replacement indicator
“V-BELT”
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to
be replaced.
The electrical circuit of the indicator
can be checked according to the
following procedure. 1. Turn the key to “ON”.
2. Check that the indicator comes
on for a few seconds and then
goes off.
3. If the indicator does not come on, have a Yamaha dealer check the
electrical circuit.
Self-diagnosis device
This model is equipped with a self-
diagnosis device for various electrical
circuits.
If a problem is detected in any of tho-
se circuits, the multi-function display
will indicate an error code.
If the multi-function display indicates
such an error code, note the code
number, and then have a Yamaha
dealer check the vehicle.ECA11790
If the multi-function display indica-
tes an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine
damage.

NOTICE

NOTICE

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3

37P-F8199-E0 18/9/09 14:54 Página 23

The self-diagnosis device also
detects problems in the immobilizer
system circuits.
If a problem is detected in the immo-
bilizer system circuits, the immobilizer
system indicator light will flash and
the multi-function display will indicate
an error code when the key is turned
to “ON”.
TIP
If the multi-function display indicates
error code 52, this could be caused
by transponder interference. If this
error appears, try the following.
1. Error code display
1. Use the code re-registering keyto start the engine.
TIP
Make sure there are no other immobi-
lizer keys close to the main switch,
and do not keep more than one
immobilizer key on the same key ring!
Immobilizer system keys may cause
signal interference, which may pre-
vent the engine from starting.
2. If the engine starts, turn it off, andtry starting the engine with the
standard keys.
3. If one or both of the standard keys do not start the engine, take
the vehicle, the code re-registe-
ring key and both standard keys
to a Yamaha dealer and have the
standard keys re-registered.
If the multi-function display indicates
any error codes, note the code num-
ber, and then have a Yamaha dealer
check the vehicle. Clock mode
T
o set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flas- hing, push the “RESET” button to
set the hours.
3. Push the “SELECT” button, and the minute digits will start flas-
hing.

1

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3

37P-F8199-E0 18/9/09 14:54 Página 24

4. Push the “RESET” button to setthe minutes.
5. Push the “SELECT” button and then release it to start the clock.

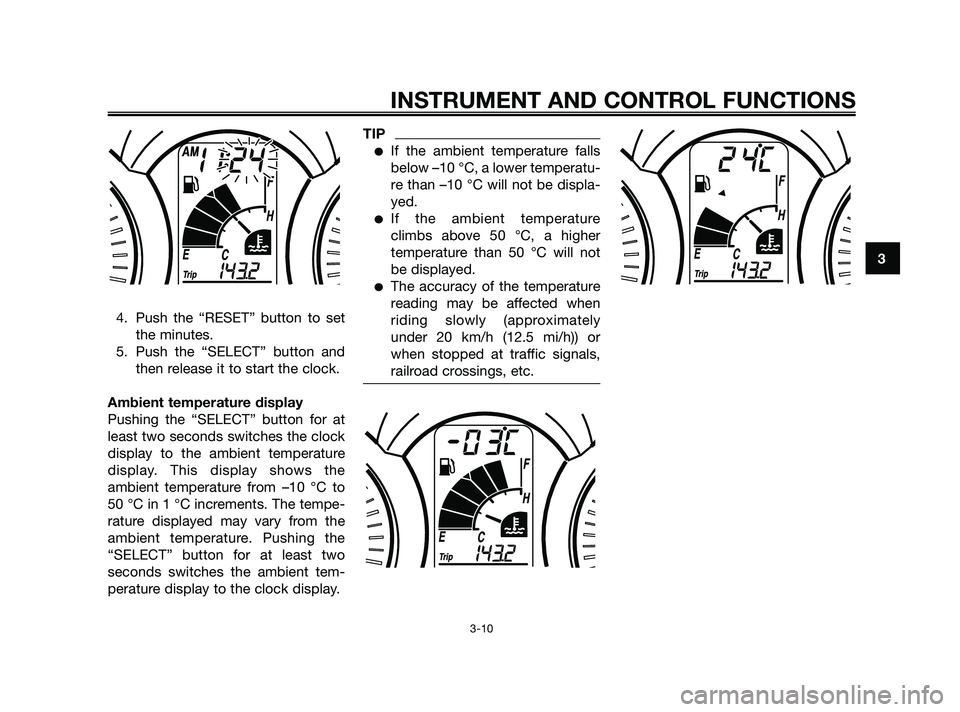

Ambient temperature display
Pushing the “SELECT” button for at
least two seconds switches the clock
display to the ambient temperature
display. This display shows the
ambient temperature from –10 °C to
50 °C in 1 °C increments. The tempe-
rature displayed may vary from the
ambient temperature. Pushing the
“SELECT” button for at least two
seconds switches the ambient tem-
perature display to the clock display.
TIP
If the ambient temperature falls
below –10 °C, a lower temperatu-
re than –10 °C will not be displa-
yed.
If the ambient temperature
climbs above 50 °C, a higher
temperature than 50 °C will not
be displayed.
The accuracy of the temperature
reading may be affected when
riding slowly (approximately
under 20 km/h (12.5 mi/h)) or
when stopped at traffic signals,
railroad crossings, etc.

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3

37P-F8199-E0 18/9/09 14:54 Página 25

EAU12348
Handlebar switches
Left
1. Pass switch “PASS”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
Right
1. Hazard switch “ ”
2. Start switch “ ”
EAU12350
Pass switch “PASS”
Press this switch to flash the head-
light.
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12721
Start switch “ ”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter. See page 5-1 for starting ins-
tructions prior to starting the engine.
EAU41700
The engine trouble warning light will
come on when the key is turned to
“ON” and the start switch is pushed,
but this does not indicate a malfunc-
tion.
EAU12733
Hazard switch “ ”
With the key in the “ON” or “ ”
position, use this switch to turn on the
hazard lights (simultaneous flashing
of all turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10061
Do not use the hazard lights for an
extended length of time with the
engine not running, otherwise the
battery may discharge.

NOTICE

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3

37P-F8199-E0 18/9/09 14:54 Página 26

EAU12900

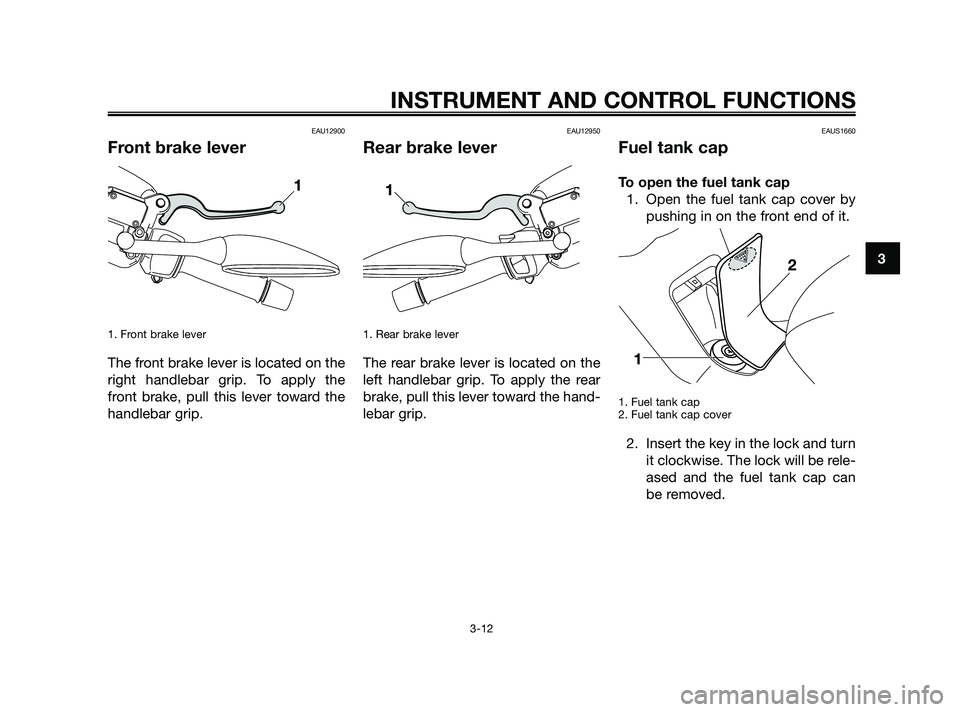

Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAUS1660
Fuel tank cap
To open the fuel tank cap1. Open the fuel tank cap cover by pushing in on the front end of it.
1. Fuel tank cap
2. Fuel tank cap cover
2. Insert the key in the lock and turnit clockwise. The lock will be rele-
ased and the fuel tank cap can
be removed.

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3

37P-F8199-E0 18/9/09 14:54 Página 27

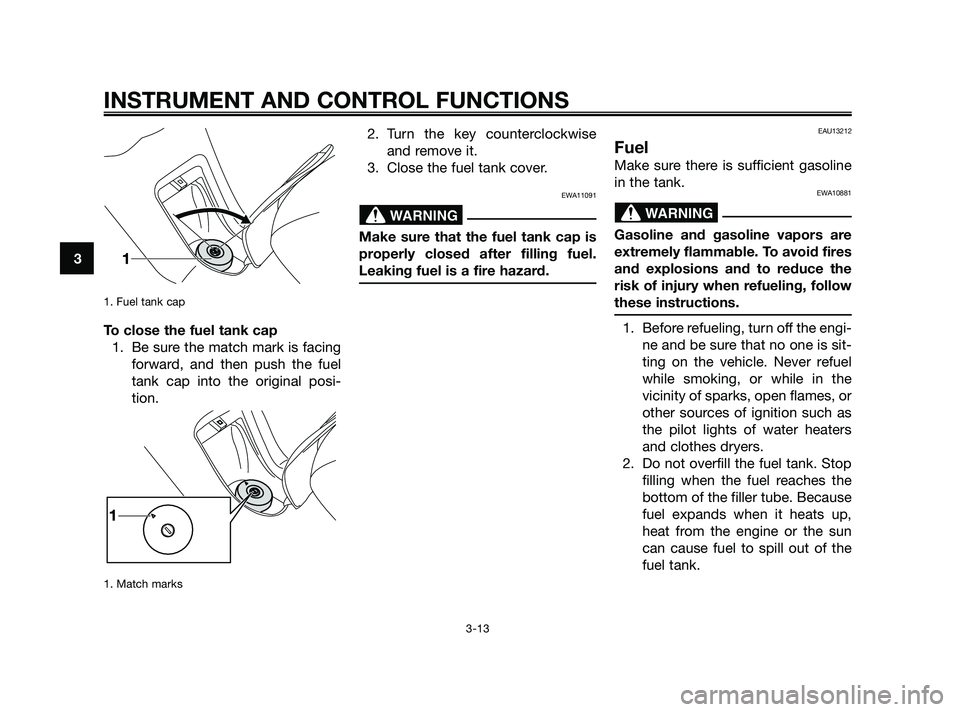

1. Fuel tank cap
To close the fuel tank cap1. Be sure the match mark is facing forward, and then push the fuel
tank cap into the original posi-
tion.
1. Match marks
2. Turn the key counterclockwiseand remove it.
3. Close the fuel tank cover.
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13212
Fuel
Make sure there is sufficient gasoline
in the tank.
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the engi- ne and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the
vicinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. Stop filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank.

WARNING
WARNING

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3

37P-F8199-E0 18/9/09 14:54 Página 28

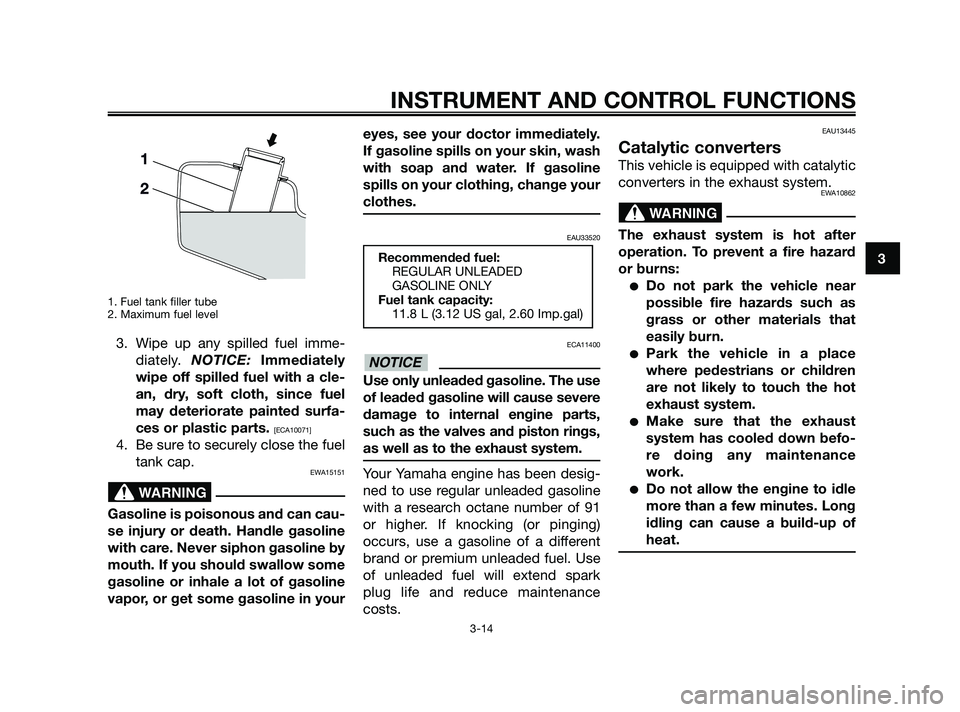

1. Fuel tank filler tube
2. Maximum fuel level
3. Wipe up any spilled fuel imme-diately. NOTICE: Immediately
wipe off spilled fuel with a cle-
an, dry, soft cloth, since fuel
may deteriorate painted surfa-
ces or plastic parts.
[ECA10071]
4. Be sure to securely close the fuel tank cap.
EWA15151
Gasoline is poisonous and can cau-
se injury or death. Handle gasoline
with care. Never siphon gasoline by
mouth. If you should swallow some
gasoline or inhale a lot of gasoline
vapor, or get some gasoline in your eyes, see your doctor immediately.
If gasoline spills on your skin, wash
with soap and water. If gasoline
spills on your clothing, change your
clothes.
EAU33520
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark
plug life and reduce maintenance
costs.
EAU13445
Catalytic converters
This vehicle is equipped with catalytic
converters in the exhaust system.
EWA10862
The exhaust system is hot after
operation. To prevent a fire hazard
or burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
Make sure that the exhaust
system has cooled down befo-
re doing any maintenance
work.
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.

WARNING

NOTICE

Recommended fuel:
REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity: 11.8 L (3.12 US gal, 2.60 Imp.gal)

WARNING

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3

37P-F8199-E0 18/9/09 14:54 Página 29

ECA10701
Use only unleaded gasoline. The
use of leaded gasoline will cause
unrepairable damage to the cataly-
tic converter.
EAUT1040

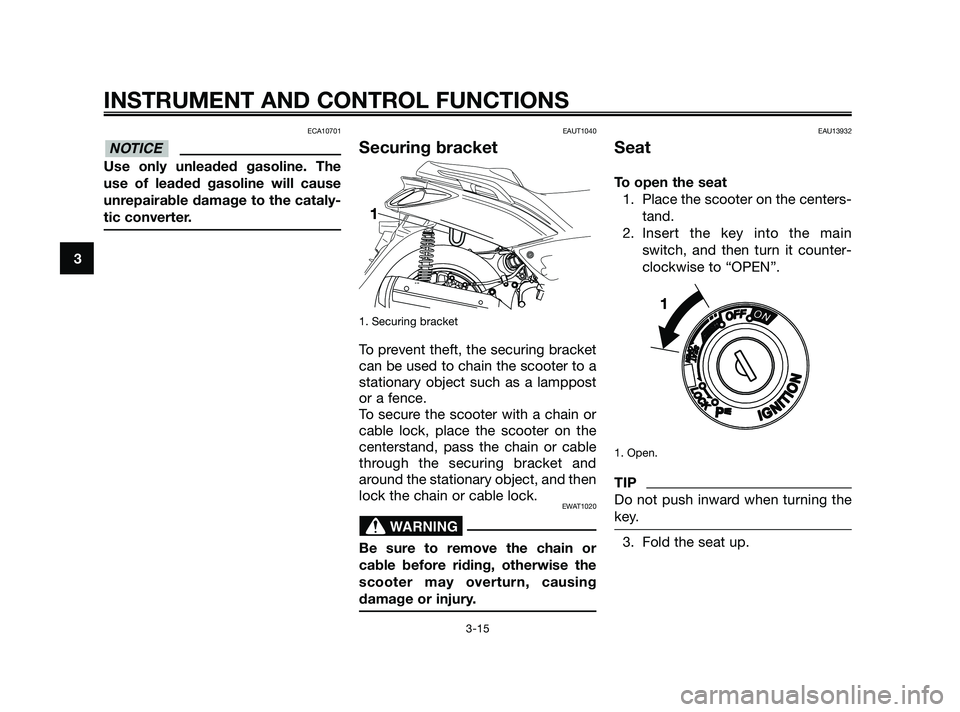

Securing bracket
1. Securing bracket
To prevent theft, the securing bracket
can be used to chain the scooter to a
stationary object such as a lamppost
or a fence.
To secure the scooter with a chain or
cable lock, place the scooter on the
centerstand, pass the chain or cable
through the securing bracket and
around the stationary object, and then
lock the chain or cable lock.
EWAT1020
Be sure to remove the chain or
cable before riding, otherwise the
scooter may overturn, causing
damage or injury.
EAU13932
Seat
To open the seat1. Place the scooter on the centers- tand.
2. Insert the key into the main switch, and then turn it counter-
clockwise to “OPEN”.
1. Open.
TIP
Do not push inward when turning the
key.
3. Fold the seat up.

WARNING

NOTICE

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3

37P-F8199-E0 18/9/09 14:54 Página 30
