PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
EAUB1560

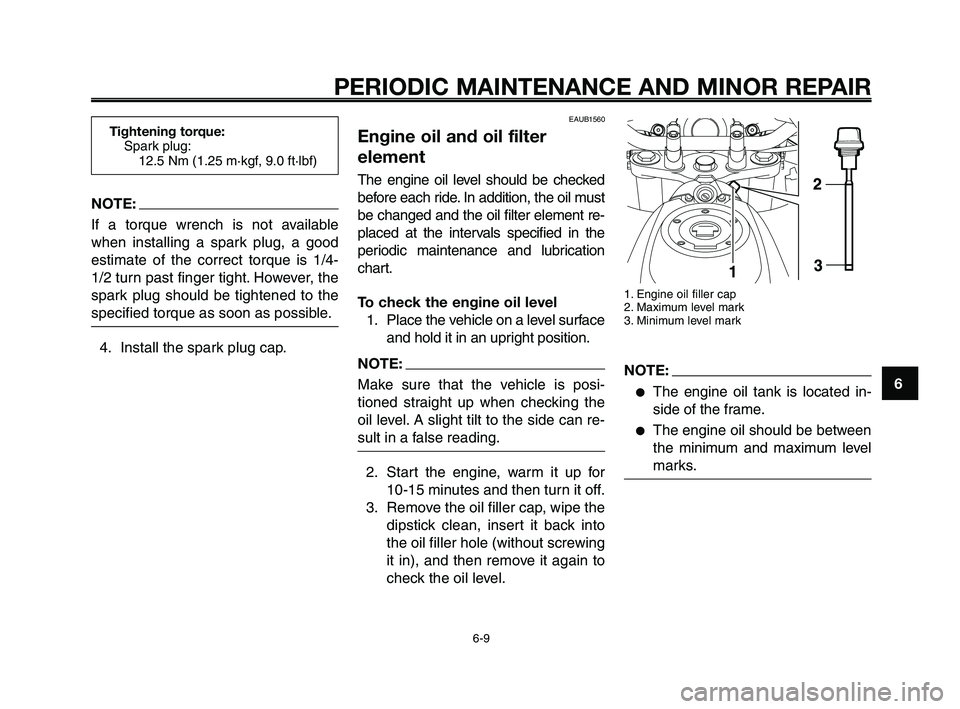

Engine oil and oil filter
element
The engine oil level should be checked
before each ride. In addition, the oil must
be changed and the oil filter element re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart.
To check the engine oil level1. Place the vehicle on a level surface and hold it in an upright position.
NOTE:
Make sure that the vehicle is posi-
tioned straight up when checking the
oil level. A slight tilt to the side can re-
sult in a false reading.
2. Start the engine, warm it up for 10-15 minutes and then turn it off.
3. Remove the oil filler cap, wipe the dipstick clean, insert it back into
the oil filler hole (without screwing
it in), and then remove it again to
check the oil level.
1. Engine oil filler cap
2. Maximum level mark
3. Minimum level mark
NOTE:
●The engine oil tank is located in-
side of the frame.
●The engine oil should be between
the minimum and maximum level
marks.
Tightening torque:Spark plug:12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
NOTE:
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4-
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
4. Install the spark plug cap.
XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-9
Page 52 of 97

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
1
2
3
4
5
6
7
8
9
10
To change the engine oil
(with or without oil filter element
replacement)
1. Mounting screw
2. Engine guard
1. Start the engine, warm it up for sev- eral minutes, and then turn it off.
2. To reach the drain bolt of the crankcase and the drain bolt of
the oil tank, remove the engine
guard by removing the screws.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the engine oil filler cap and the drain bolt to drain the oil
from the crankcase.
5. Remove the drain bolt to drain the oil from the oil tank.
1. Engine oil crankcase drain bolt
1. Engine oil tank drain bolt
6. Remove the oil filter elementdrain bolt to drain the oil from the
oil filter element.
1
ECA10010CAUTION:
Do not operate the vehicle until you
know that the engine oil level is suf-
ficient.
EWA10360
WARNING0
Never remove the engine oil tank
cap after high-speed operation,
otherwise hot engine oil could
spout out and cause damage or in-
jury. Always let the engine oil cool
down sufficiently before removing
the oil tank cap.
4. If the engine oil is below the mini- mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
5. Install the oil filler cap.
XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-10
Page 53 of 97

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
Tightening torques:Oil filter element cover bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Oil filter element drain bolt: 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Tightening torques:Engine oil drain bolt (crankcase):30 Nm (3.0 m·kgf, 22 ft·lbf)
Engine oil drain bolt (oil tank): 18 Nm (1.8 m·kgf, 12.9 ft·lbf)
13. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil filter
cap.
10. Install the oil filter element drain
bolt.
11. Tighten the oil filter element cover bolts and the oil filter element
drain bolt to their specified
torques.1. Engine oil filter element
2. O-rings
12. Install the engine oil drain bolts,and then tighten them to their
specified torques.
NOTE:
Skip steps 7-9 if the oil filter element is
not being replaced.
7. Remove the oil filter element cov- er by removing the bolts.
8. Remove and replace the oil filter element and O-rings.
9. Install the oil filter element cover by installing the bolts.
NOTE:
Make sure that the O-rings are proper-
ly seated.
1. Engine oil filter element drain bolt
2. Oil filter element cover bolts
2
1
XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-11
Page 54 of 97

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
1
2
3
4
5
6
7
8
9
10
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the
coolant must be changed at the inter-
vals specified in the periodic mainte-
nance and lubrication chart.
EAU20252
To check the coolant level 1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.
NOTE:
●The coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
●Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the coolant reservoir.
ECA11620CAUTION:
● In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a
higher quality than specified. In
addition, do not use oils la-
beled “ENERGY CONSERVING
II” or higher.
● Make sure that no foreign ma-
terial enters the crankcase.
14. Start the engine, and then let it idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the en-
gine off and check for the cause.
15. Turn the engine off, and then check the oil level and correct it if
necessary.
16. Install the engine guard by in- stalling the screws.
NOTE:
Be sure to wipe off spilled oil on any
parts after the engine and exhaust
system have cooled down.
Recommended engine oil:See page 8-1.
Oil quantity: Without oil filter element
replacement:2.50 L (2.64 US qt) (2.19 Imp.qt)
With oil filter element replacement: 2.60 L (2.73 US qt) (2.26 Imp.qt)
ECAM1060CAUTION:
The engine oil tank must be filled in
2 steps. First, fill the engine oil tank
with 1.90 L (2.0 US qt) (1.67 Imp.qt)
of the recommended engine oil.
Then, start the engine, race it 5 or 6
times, turn it off, and then add the
remainder of the engine oil.
XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-12
Page 55 of 97

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
NOTE:
The coolant should be between the
minimum and maximum level marks.
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
4. Reservoir cap
3. If the coolant is at or below theminimum level mark, remove pan-
el E (See page 6-7.), remove the
reservoir cap, add coolant to the
maximum level mark, and then in-
stall the reservoir cap and the
panel.
ECA10471CAUTION:
● If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
● If water has been used instead
of coolant, replace it with
coolant as soon as possible,
otherwise the cooling system
will not be protected against
frost and corrosion.
● If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possi-
ble, otherwise the effective-
ness of the coolant will be re-
duced.
Coolant reservoir capacity:
0.50 L (0.52 US qt) (0.44 Imp.qt)
EWA10380
WARNING0
Never attempt to remove the radia-
tor cap when the engine is hot.
NOTE:
●The radiator fan is automatically
switched on or off according to
the coolant temperature in the ra-
diator.
●If the engine overheats, see page
3-4 for further instructions.
EAU33030
Changing the coolant
EWA10380
WARNING0
Never attempt to remove the radia-
tor cap when the engine is hot.
The coolant must be changed at the
intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer change the
coolant.
XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-13

Page 56 of 97

PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
1
2
3
4
5
6
7
8
9
10
1. Air filter element
ECA10480CAUTION: ● Make sure that the air filter ele-
ment is properly seated in the
air filter case.
● The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
5. Install the air filter case cover by installing the screws.
6. Install the seat.
1
EAUB1480
Replacing the air filter
element and cleaning the
check hose
The air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas. In addition,
the air filter check hose must be fre-
quently checked and cleaned if neces-
sary. To replace the air filter element
1. Air filter case
2. Screws
1. Remove the seat. (See page 3-
14.)
2. Remove the air filter case cover by removing the screws.
3. Pull the air filter element out.
4. Insert a new air filter element into the air filter case as shown.
XT660Z 04-06 ING 31-03-2008 14:05 Pagina 6-14
Page 57 of 97

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
To clean the air filter check hose
1. Air filter check hose
2. Check hose cap
1. Check the hose on the side of theair filter case for accumulated dirt
or water.
2. If dirt or water is visible, remove the hose, clean it, and then install
it.
EAU44730
Checking the engine idling
speed
1. Idle adjusting screw
a. Increasing the engine idling speed
b. Decreasing the engine idling speed
The engine idling speed must be
checked as follows and, if necessary,
adjusted by a Yamaha dealer at the in-
tervals specified in the periodic main-
tenance and lubrication chart.
Start the engine and warm it up for
several minutes at 1000-2000 r/min
while occasionally revving it to 4000-
5000 r/min.
Engine idling speed:1400-1600 r/min
XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-15
Page 58 of 97

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
1
2
3
4
5
6
7
8
9
10
EAU21640
Tires
To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points regard-
ing the specified tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
EWA10500
WARNING0
●The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the tempera-
ture of the tires equals the am-
bient temperature).
●The tire air pressure must be
adjusted in accordance with
the riding speed and with the
total weight of rider, passenger,
cargo, and accessories ap-
proved for this model.
EAU21382
Checking the throttle cable
free play
1. Throttle cable free play
The throttle cable free play should
measure 3.0-5.0 mm (0.12-0.20 in) at
the throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21401
Valve clearance
The valve clearance changes with
use, resulting in improper air-fuel mix-
ture and/or engine noise. To prevent
this from occurring, the valve clear-
ance must be adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-16
Page 59 of 97

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
EWA11020
WARNING0
Because loading has an enormous
impact on the handling, braking,
performance and safety character-
istics of your motorcycle, you
should keep the following precau-
tions in mind.
●NEVER OVERLOAD THE MO-
TORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,
passenger, cargo, and acces-
sories does not exceed the
specified maximum load for the
vehicle.
●Do not carry along loosely
packed items, which can shift
during a ride.
●Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.
Tire air pressure
(measured on cold tires):Up to 90 kg (198 lb):
Front:210 kPa (30 psi) (2.1 kgf/cm
2)
Rear: 230 kPa (33 psi) (2.3 kgf/cm
2)
90 kg (198 lb) to maximum load:
Front: 230 kPa (33 psi) (2.3 kgf/cm
2)
Rear: 250 kPa (36 psi) (2.5 kgf/cm
2)
Off-road riding:
Front: 200 kPa (29 psi) (2.0 kgf/cm
2)
Rear: 200 kPa (29 psi) (2.0 kgf/cm
2)
High-speed riding:
Front: 210 kPa (30 psi) (2.1 kgf/cm
2)
Rear: 230 kPa (33 psi) (2.3 kgf/cm
2)
Maximum load*: 190 kg (419 lb)
* Total weight of rider, passenger, cargo and accessories
●Adjust the suspension and tire
air pressure with regard to the
load.
●Check the tire condition and air
pressure before each ride.
XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-17
Page 60 of 97

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
1
2
3
4
5
6
7
8
9
10
Tire information
This motorcycle is equipped with tube
tires.
EWA10460
WARNING0
●The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the vehicle
cannot be guaranteed.
●After extensive tests, only the
tires listed below have been
approved for this model by
Yamaha Motor Co., Ltd.
Tire inspection
1. Tire sidewall
2. Tire tread depth
The tires must be checked before
each ride. If the center tread depth
reaches the specified limit, if the tire
has a nail or glass fragments in it, or if
the sidewall is cracked, have a Yama-
ha dealer replace the tire immediately.
NOTE:
The tire tread depth limits may differ
from country to country. Always com-
ply with the local regulations.
Minimum tire tread depth
(front and rear): 1.6 mm (0.06 in)
XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-18
