PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
Front tire:Size:90/90-21M/C 54S
90/90-21M/C 54T
Manufacturer/model: METZELER/TOURANCE
FRONT MICHELIN/SIRAC
Rear tire: Size:130/80-17M/C 65S
130/80-17M/C 65T
Manufacturer/model: METZELER/TOURANCE
MICHELIN/SIRAC A
EWA10570
WARNING0
●Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the mo-
torcycle with excessively worn
tires decreases riding stability
and can lead to loss of control.
●The replacement of all wheel-
and brake-related parts, in-
cluding the tires, should be left
to a Yamaha dealer, who has
the necessary professional
knowledge and experience.
●It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
very carefully and replace it as
soon as possible with a high-
quality product.

EAU21940
Spoke wheels
To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points regard-
ing the specified wheels.
●The wheel rims should be
checked for cracks, bends or
warpage, and the spokes for
looseness or damage before
each ride. If any damage is found,
have a Yamaha dealer replace the
wheel. Do not attempt even the
smallest repair to the wheel. A de-
formed or cracked wheel must be
replaced.
●The wheel should be balancedwhenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
●Ride at moderate speeds afterchanging a tire since the tire sur-
face must first be "broken in" for it
to develop its optimal characteris-
tics.

XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-19

PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
1
2
3
4
5
6
7
8
9
10
NOTE:
If the specified clutch lever free play
could be obtained as described above,
tighten the locknut and skip the rest of
the procedure, otherwise proceed as
follows. 3. Fully turn the adjusting bolt at the clutch lever in direction (a) to
loosen the clutch cable.
4. Loosen the locknut at the crankcase.
1. Locknut
2. Clutch lever free play adjusting nut(crankcase)
5. To increase the clutch lever free
play, turn the adjusting nut in di-
rection (a). To decrease the clutch
lever free play, turn the adjusting
nut in direction (b).
6. Tighten the locknut at the clutch lever and the crankcase.

1
b
a
2

EAU22041
Adjusting the clutch lever
free play
1. Locknut
2. Adjusting bolt
3. Clutch lever free play
The clutch lever free play should mea-
sure 10.0-15.0 mm (0.39-0.59 in) as
shown. Periodically check the clutch
lever free play and, if necessary, ad-
just it as follows.1. Loosen the locknut at the clutch lever.
2. To increase the clutch lever free play, turn the adjusting bolt in di-
rection (a). To decrease the clutch
lever free play, turn the adjusting
bolt in direction (b).

31
2
b
a

XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-20

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
EAU22390

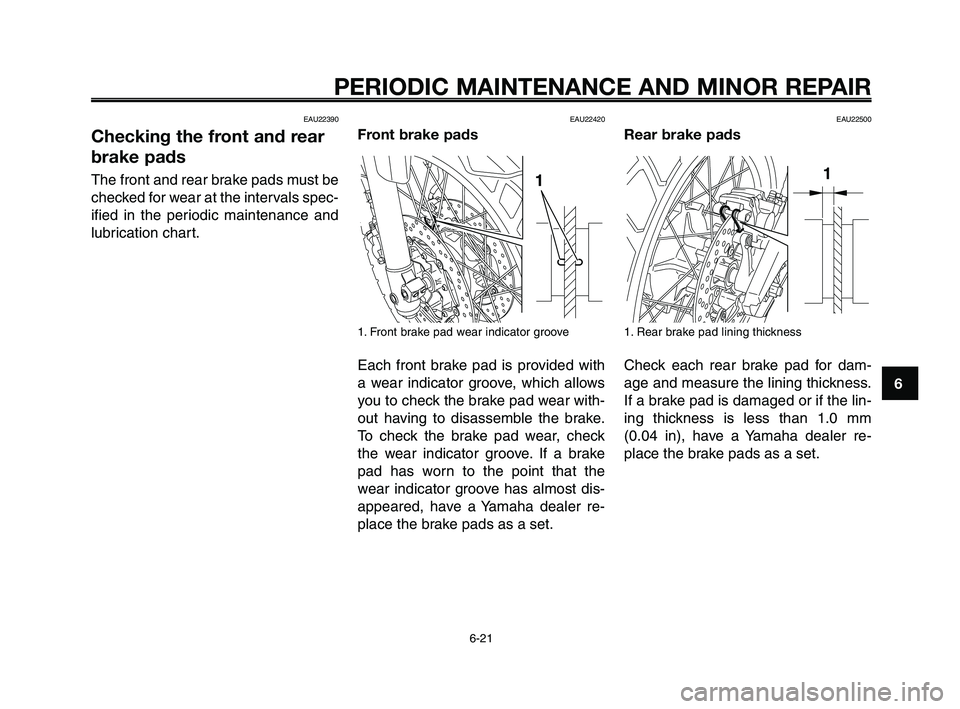

Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22420
Front brake pads
1. Front brake pad wear indicator groove
Each front brake pad is provided with
a wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the
wear indicator groove has almost dis-
appeared, have a Yamaha dealer re-
place the brake pads as a set.

EAU22500
Rear brake pads
1. Rear brake pad lining thickness
Check each rear brake pad for dam-
age and measure the lining thickness.
If a brake pad is damaged or if the lin-
ing thickness is less than 1.0 mm
(0.04 in), have a Yamaha dealer re-
place the brake pads as a set.

XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-21

PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
1
2
3
4
5
6
7
8
9
10
Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake flu-
id is above the minimum level mark
and replenish if necessary.
A low brake fluid level may indicate
worn brake pads and/or brake system
leakage. If the brake fluid level is low,
be sure to check the brake pads for
wear and the brake system for leak-
age.
Observe these precautions:
●When checking the fluid level,
make sure that the top of the
brake fluid reservoir is level.
●Use only the recommended qual-
ity brake fluid, otherwise the rub-
ber seals may deteriorate, caus-
ing leakage and poor braking
performance.
●Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.
●Be careful that water does not en-
ter the brake fluid reservoir when
refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.
●Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid imme-
diately.
●As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if
the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause.
Recommended brake fluid: DOT 4
EAU22580
Checking the brake fluid
level
Front brake
1. Minimum level mark
Rear brake
1. Minimum level mark

XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-22

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
EAU22730
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the NOTE after the periodic mainte-
nance and lubrication chart. In addi-
tion, have the oil seals of the master
cylinders and calipers as well as the
brake hoses replaced at the intervals
listed below or whenever they are
damaged or leaking.
●Oil seals: Replace every two
years.
●Brake hoses: Replace every four
years.
EAU22760
Drive chain slack
The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22783
To check the drive chain slack
1. Drive chain slack
1. Place the motorcycle on the side-stand.
NOTE:
When checking and adjusting the dri-
ve chain slack, there should be no
weight on the motorcycle.
2. Shift the transmission into theneutral position.
3. Move the rear wheel by pushing the motorcycle to locate the tight-
est portion of the drive chain, and
then measure the drive chain
slack as shown.
4. If the drive chain slack is incor- rect, adjust it as follows.
NOTE:
When checking the drive chain slack,
the chain tensioner should not be
touching the drive chain.
Drive chain slack:50.0-60.0 mm (1.96-2.36 in)
XT660Z 04-06 ING 11-03-2008 10:41 Pagina 6-23

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
1
2
3
4
5
6
7
8
9
10
1. Wheel axle
2. Drive chain slack adjusting bolt
3. Locknut
4. Alignment marks
ECA10570
CAUTION:
Improper drive chain slack will
overload the engine as well as oth-
er vital parts of the motorcycle and
can lead to chain slippage or break-
age. To prevent this from occurring,
keep the drive chain slack within
the specified limits.
3. Tighten the locknuts, then the axle nut to their specified torques.
Tightening torques:
Locknut:16 Nm (1.6 m·kgf, 11 ft·lbf)
Axle nut: 105 Nm (10.5 m·kgf, 75 ft·lbf)
EAU34311
To adjust the drive chain slack1. Loosen the axle nut and the lock- nut on each side of the swingarm.
2. To tighten the drive chain, turn the adjusting bolt on each side of the
swingarm in direction (a). To
loosen the drive chain, turn the
adjusting bolt on each side of the
swingarm in direction (b), and
then push the rear wheel forward.
NOTE:
Using the alignment marks on each
side of the swingarm, make sure that
both chain pullers are in the same po-
sition for proper wheel alignment.
XT660Z 04-06 ING 31-03-2008 14:05 Pagina 6-24

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
EAU23022
Cleaning and lubricating
the drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly
wear out, especially when riding in
dusty or wet areas. Service the drive
chain as follows.
ECA10581CAUTION:
The drive chain must be lubricated
after washing the motorcycle and
riding in the rain.
1. Clean the drive chain with kerosene and a small soft brush.
ECA11120CAUTION:
To prevent damaging the O-rings,
do not clean the drive chain with
steam cleaners, high-pressure
washers or inappropriate solvents. 2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
ECA11110CAUTION:
Do not use engine oil or any other
lubricants for the drive chain, as
they may contain substances that
could damage the O-rings.
EAU23100
Checking and lubricating
the cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is dam-
aged or does not move smoothly, have
a Yamaha dealer check or replace it.
Recommended lubricant: Engine oil
EWA10720
WARNING0
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions.

XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-25

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
1
2
3
4
5
6
7
8
9
10

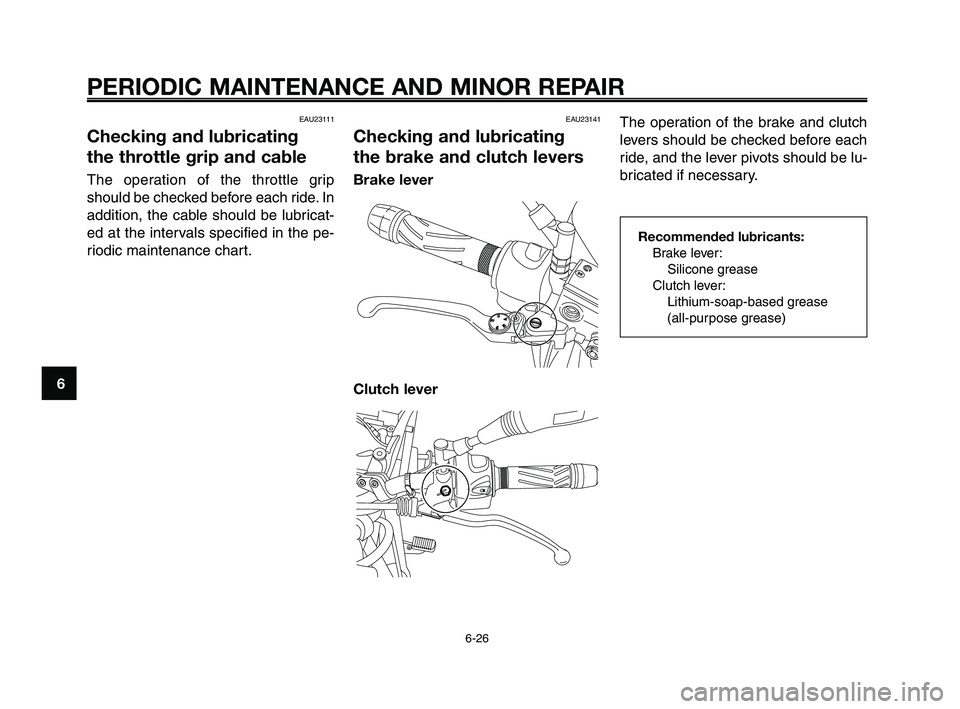

The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Recommended lubricants: Brake lever:Silicone grease
Clutch lever: Lithium-soap-based grease
(all-purpose grease)
EAU23111
Checking and lubricating
the throttle grip and cable
The operation of the throttle grip
should be checked before each ride. In
addition, the cable should be lubricat-
ed at the intervals specified in the pe-
riodic maintenance chart.
EAU23141
Checking and lubricating
the brake and clutch levers
Brake lever
Clutch lever

XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-26

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
EAU23181
Lubricating the brake
pedal
The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricat-
ed if necessary.
Recommended lubricant:Silicone grease
EAU23200
Checking and lubricating
the sidestand
The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated
if necessary.
EWA10730
WARNING0
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it.
Recommended lubricant:Lithium-soap-based grease
(all-purpose grease)
EAU23250
Lubricating the rear
suspension
The pivoting points of the rear suspen-
sion must be lubricated at the intervals
specified in the periodic maintenance
and lubrication chart.
Recommended lubricant:Lithium-soap-based grease
XT660Z 04-06 ING 31-03-2008 14:05 Pagina 6-27

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
1
2
3
4
5
6
7
8
9
10
EAU23271
Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the period-
ic maintenance and lubrication chart.
To check the condition
EWA10750
WARNING0
Securely support the motorcycle so
that there is no danger of it falling
over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation 1. Place the motorcycle on a level surface and hold it in an upright
position.
2. While applying the front brake, push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.

ECA10590CAUTION:
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.

EAUM1650
Lubricating the swingarm
pivots
The swingarm pivots must be lubricat-
ed at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
Recommended lubricant: Lithium-soap-based grease

XT660Z 04-06 ING 11-03-2008 8:31 Pagina 6-28
