INSTRUMENT AND CONTROL FUNCTIONS
3-5
EAUB1501

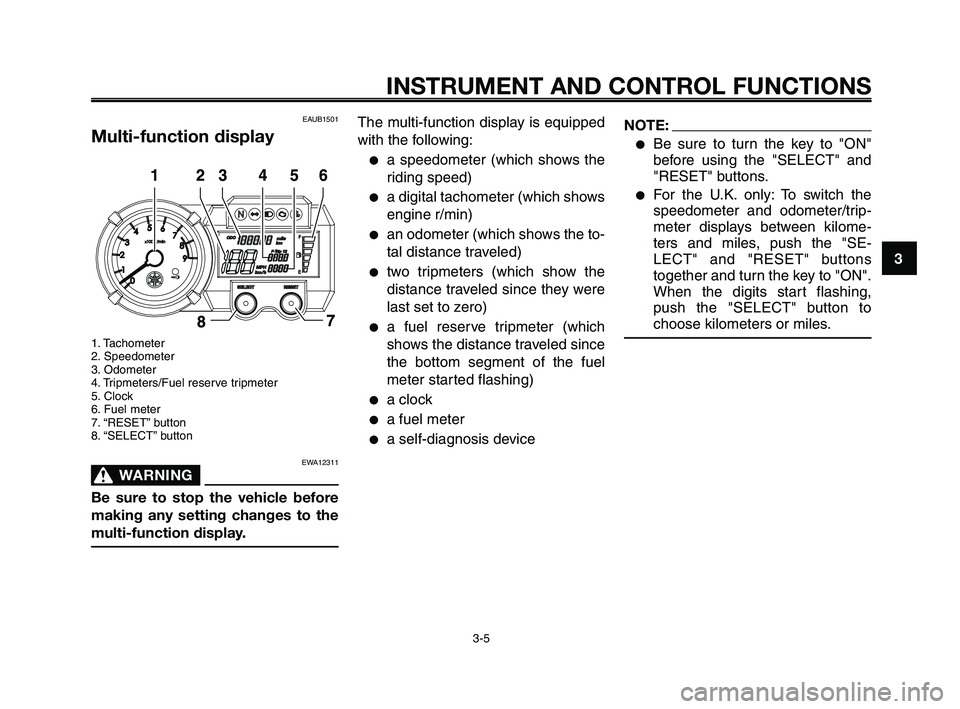

Multi-function display
1. Tachometer
2. Speedometer
3. Odometer
4. Tripmeters/Fuel reserve tripmeter
5. Clock
6. Fuel meter
7. “RESET” button
8. “SELECT” button
EWA12311
WARNING0
Be sure to stop the vehicle before
making any setting changes to the
multi-function display.
The multi-function display is equipped
with the following:
●a speedometer (which shows the
riding speed)
●a digital tachometer (which shows
engine r/min)
●an odometer (which shows the to-
tal distance traveled)
●two tripmeters (which show the
distance traveled since they were
last set to zero)
●a fuel reserve tripmeter (which
shows the distance traveled since
the bottom segment of the fuel
meter started flashing)
●a clock
●a fuel meter
●a self-diagnosis device
NOTE:
●Be sure to turn the key to "ON"
before using the "SELECT" and
"RESET" buttons.
●For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilome-
ters and miles, push the "SE-
LECT" and "RESET" buttons
together and turn the key to "ON".
When the digits start flashing,
push the "SELECT" button to
choose kilometers or miles.
XT660Z 01-03 ING 30-07-2008 11:43 Pagina 3-5

INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
10

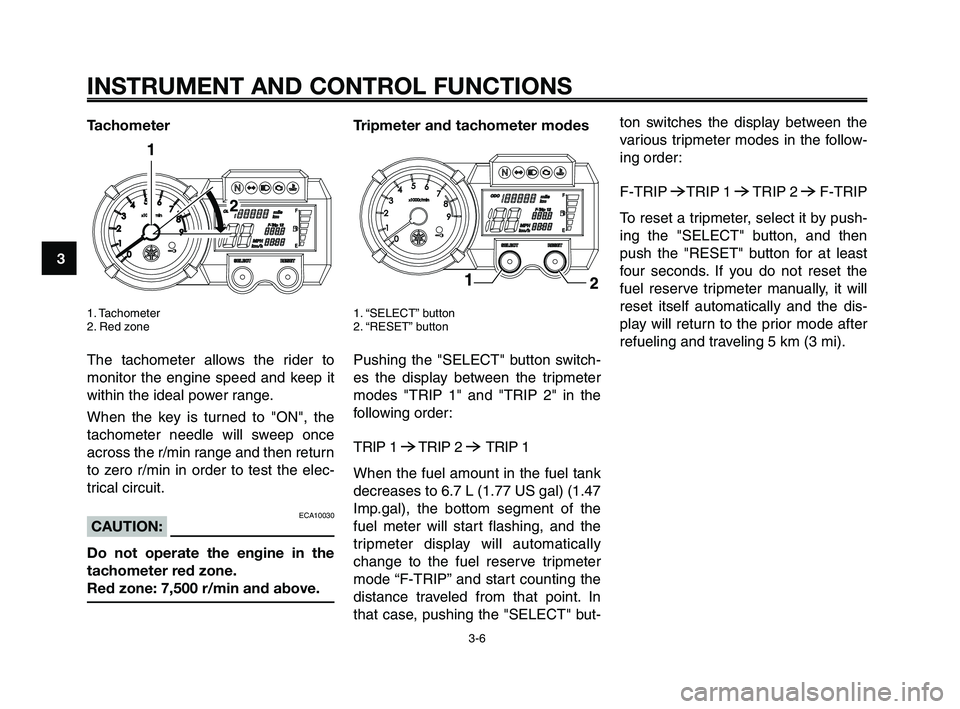

Tachometer
1. Tachometer
2. Red zone
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
When the key is turned to "ON", the
tachometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the elec-
trical circuit.
ECA10030CAUTION:
Do not operate the engine in the
tachometer red zone.
Red zone: 7,500 r/min and above.

Tripmeter and tachometer modes
1. “SELECT” button
2. “RESET” button
Pushing the "SELECT" button switch-
es the display between the tripmeter
modes "TRIP 1" and "TRIP 2" in the
following order:
TRIP 1
6TRIP 2 6TRIP 1
When the fuel amount in the fuel tank
decreases to 6.7 L (1.77 US gal) (1.47
Imp.gal), the bottom segment of the
fuel meter will start flashing, and the
tripmeter display will automatically
change to the fuel reserve tripmeter
mode “F-TRIP” and start counting the
distance traveled from that point. In
that case, pushing the "SELECT" but-

ton switches the display between the
various tripmeter modes in the follow-
ing order:
F-TRIP
6TRIP 1 6TRIP 2 6F-TRIP
To reset a tripmeter, select it by push-
ing the "SELECT" button, and then
push the "RESET" button for at least
four seconds. If you do not reset the
fuel reserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km (3 mi).

XT660Z 01-03 ING 10-03-2008 16:11 Pagina 3-6

1
2
3
4
5
6
7
8
9
10
INSTRUMENT AND CONTROL FUNCTIONS
3-7

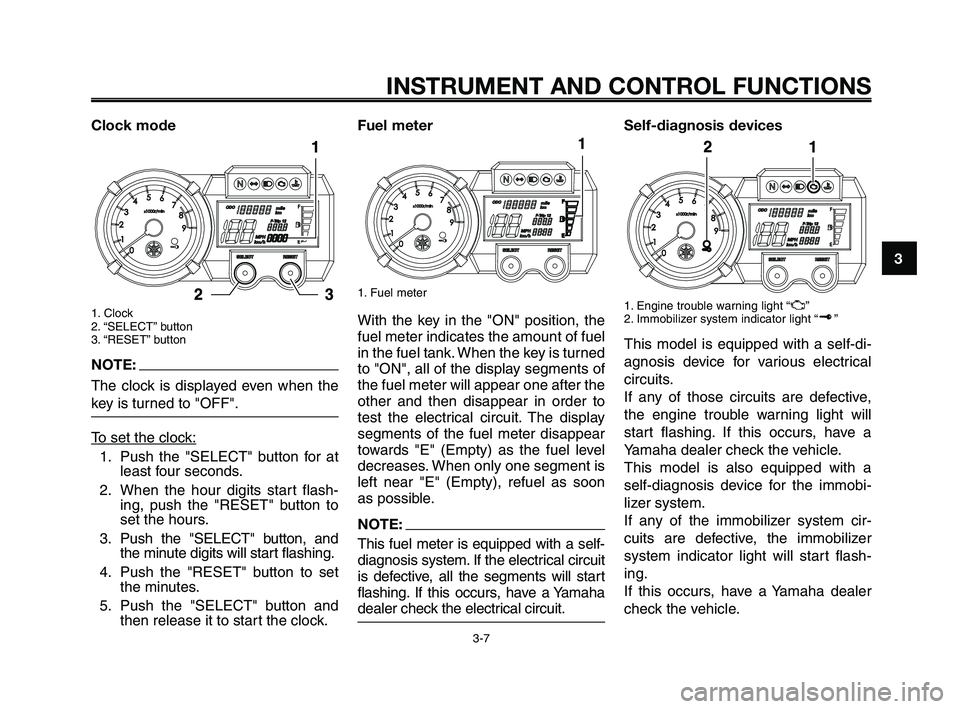

Clock mode
1. Clock
2. “SELECT” button
3. “RESET” button
NOTE:
The clock is displayed even when the
key is turned to "OFF".
T
o set the clock:
1. Push the "SELECT" button for atleast four seconds.
2. When the hour digits start flash- ing, push the "RESET" button to
set the hours.
3. Push the "SELECT" button, and the minute digits will start flashing.
4. Push the "RESET" button to set the minutes.
5. Push the "SELECT" button and then release it to start the clock.
Fuel meter
1. Fuel meter
With the key in the "ON" position, the
fuel meter indicates the amount of fuel
in the fuel tank. When the key is turned
to "ON", all of the display segments of
the fuel meter will appear one after the
other and then disappear in order to
test the electrical circuit. The display
segments of the fuel meter disappear
towards "E" (Empty) as the fuel level
decreases. When only one segment is
left near "E" (Empty), refuel as soon
as possible.
NOTE:
This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, all the segments will start
flashing. If this occurs, have a Yamaha
dealer check the electrical circuit.
Self-diagnosis devices
1. Engine trouble warning light “ U”
2. Immobilizer system indicator light “ ”
This model is equipped with a self-di-
agnosis device for various electrical
circuits.
If any of those circuits are defective,
the engine trouble warning light will
start flashing. If this occurs, have a
Yamaha dealer check the vehicle.
This model is also equipped with a
self-diagnosis device for the immobi-
lizer system.
If any of the immobilizer system cir-
cuits are defective, the immobilizer
system indicator light will start flash-
ing.
If this occurs, have a Yamaha dealer
check the vehicle.
XT660Z 01-03 ING 28-07-2008 14:13 Pagina 3-7

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9
10

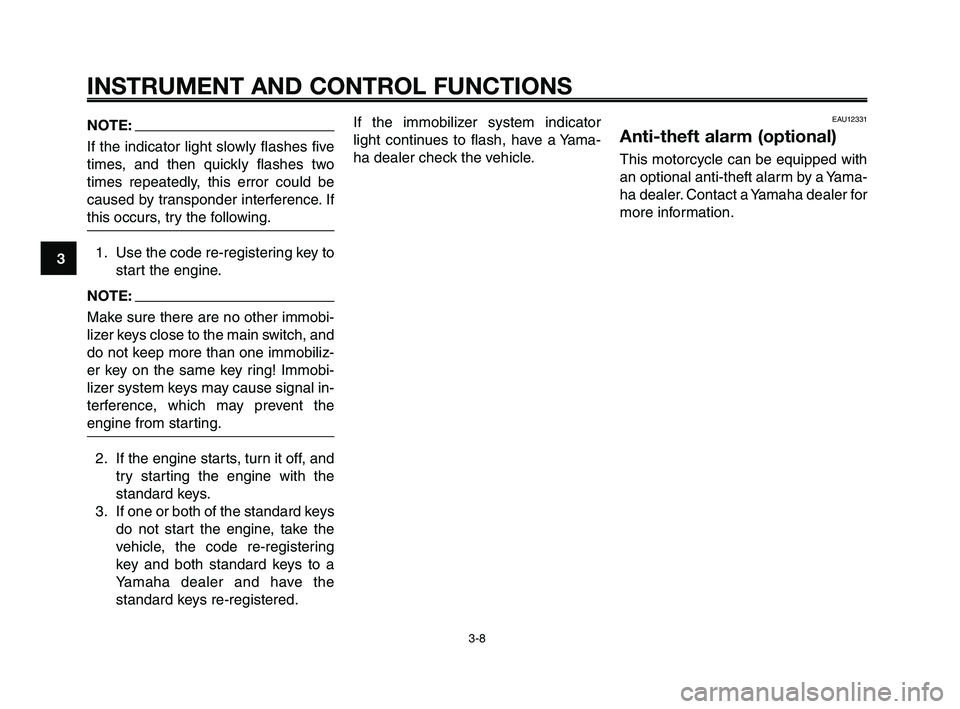

NOTE:
If the indicator light slowly flashes five
times, and then quickly flashes two
times repeatedly, this error could be
caused by transponder interference. If
this occurs, try the following. 1. Use the code re-registering key to start the engine.
NOTE:
Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobiliz-
er key on the same key ring! Immobi-
lizer system keys may cause signal in-
terference, which may prevent the
engine from starting.
2. If the engine starts, turn it off, and try starting the engine with the
standard keys.
3. If one or both of the standard keys do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the
standard keys re-registered. If the immobilizer system indicator
light continues to flash, have a Yama-
ha dealer check the vehicle.
EAU12331
Anti-theft alarm (optional)
This motorcycle can be equipped with
an optional anti-theft alarm by a Yama-
ha dealer. Contact a Yamaha dealer for
more information.
XT660Z 01-03 ING 30-07-2008 11:43 Pagina 3-8

1
2
3
4
5
6
7
8
9
10
INSTRUMENT AND CONTROL FUNCTIONS
3-9
EAU12347

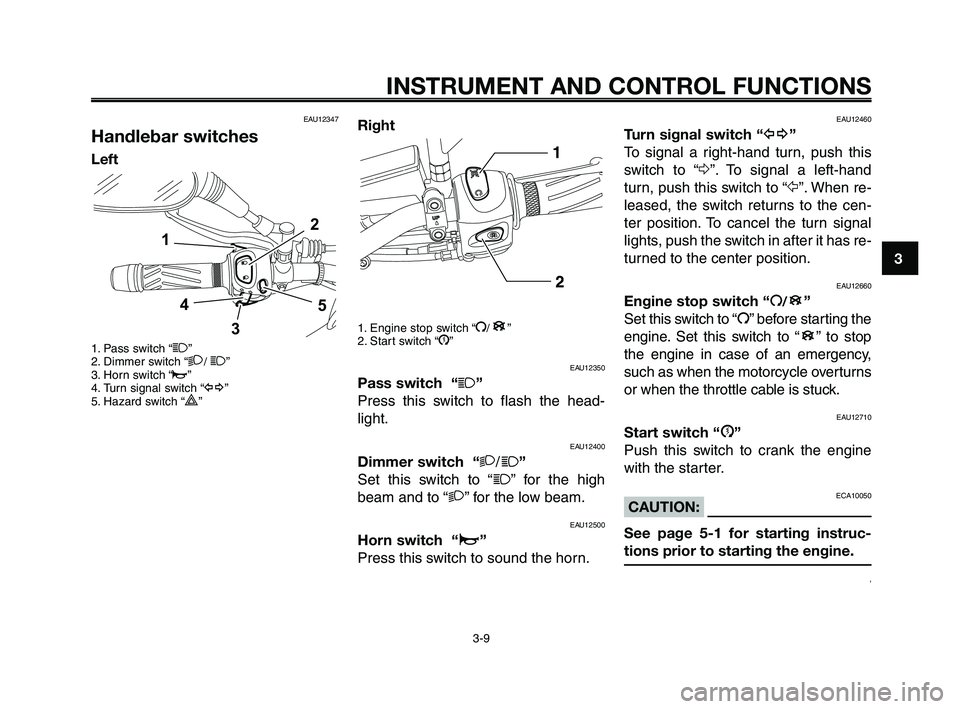

Handlebar switches
Left
1. Pass switch “1”
2. Dimmer switch “2/ 1 ”
3. Horn switch “o”
4. Turn signal switch “ y”
5. Hazard switch “
r”

54
2
1
3

Right
1. Engine stop switch “I/”
2. Start switch “J”
EAU12350
Pass switch “1”
Press this switch to flash the head-
light.
EAU12400
Dimmer switch “ 2/1”
Set this switch to “
1” for the high
beam and to “ 2” for the low beam.
EAU12500
Horn switch “ o”
Press this switch to sound the horn.
B

EAU12460
Turn signal switch “ y”
To signal a right-hand turn, push this
switch to “ Δ”. To signal a left-hand
turn, push this switch to “ Ÿ”. When re-
leased, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12660
Engine stop switch “ I/”
Set this switch to “ I” before starting the
engine. Set this switch to “ ” to stop
the engine in case of an emergency,
such as when the motorcycle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “J”
Push this switch to crank the engine
with the starter.
ECA10050CAUTION:
See page 5-1 for starting instruc-
tions prior to starting the engine.
,
B
B

XT660Z 01-03 ING 10-03-2008 16:11 Pagina 3-9

INSTRUMENT AND CONTROL FUNCTIONS
3-10
1
2
3
4
5
6
7
8
9
10
EAU12733

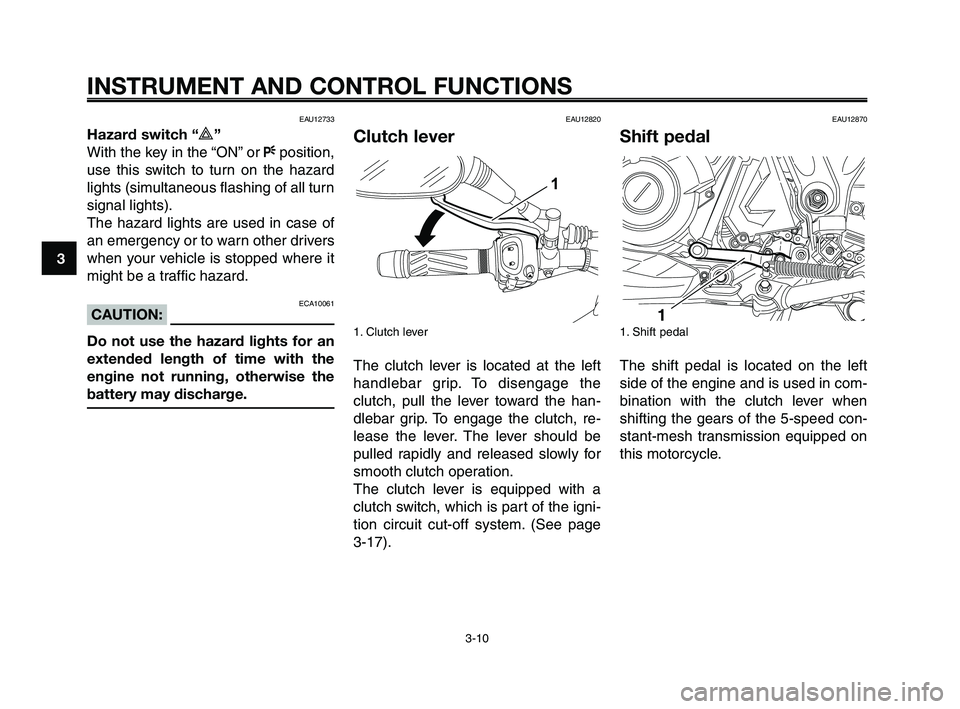

Hazard switch “r”
With the key in the “ON” or Fposition,
use this switch to turn on the hazard
lights (simultaneous flashing of all turn
signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10061CAUTION:
Do not use the hazard lights for an
extended length of time with the
engine not running, otherwise the
battery may discharge.
EAU12820
Clutch lever
1. Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the han-
dlebar grip. To engage the clutch, re-
lease the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-17).

1

EAU12870
Shift pedal
1. Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.

XT660Z 01-03 ING 10-03-2008 16:11 Pagina 3-10

1
2
3
4
5
6
7
8
9
10
INSTRUMENT AND CONTROL FUNCTIONS
3-11
EAU26822

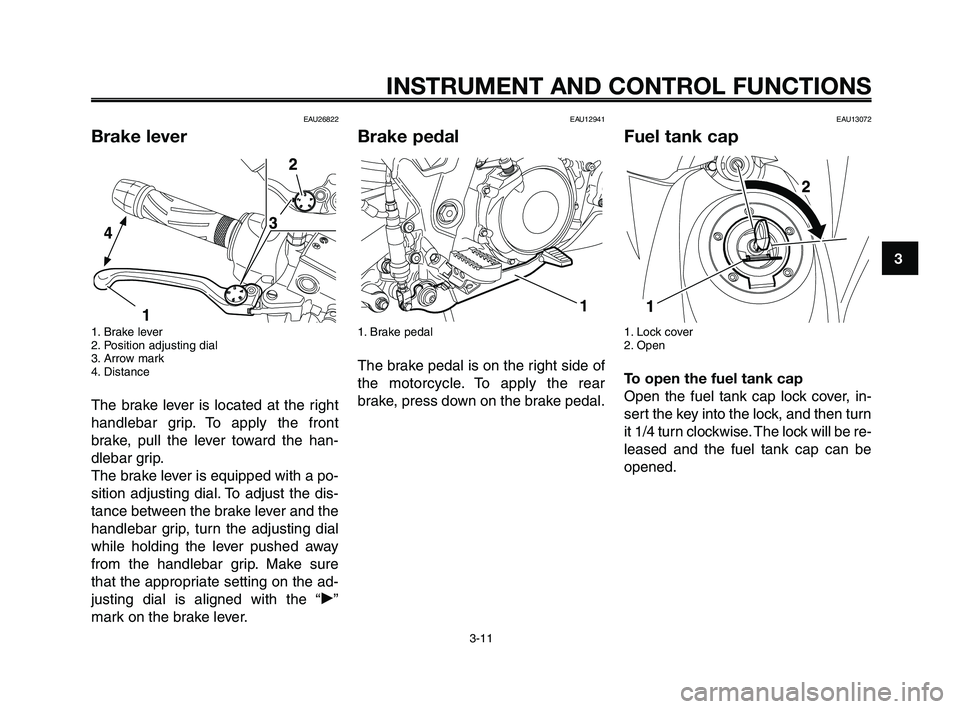

Brake lever
1. Brake lever
2. Position adjusting dial
3. Arrow mark
4. Distance
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the han-
dlebar grip.
The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure
that the appropriate setting on the ad-
justing dial is aligned with the “˙”
mark on the brake lever.

EAU12941
Brake pedal
1. Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.

1

EAU13072
Fuel tank cap
1. Lock cover
2. Open
To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.

XT660Z 01-03 ING 10-03-2008 16:11 Pagina 3-11

INSTRUMENT AND CONTROL FUNCTIONS
3-12
1
2
3
4
5
6
7
8
9
10

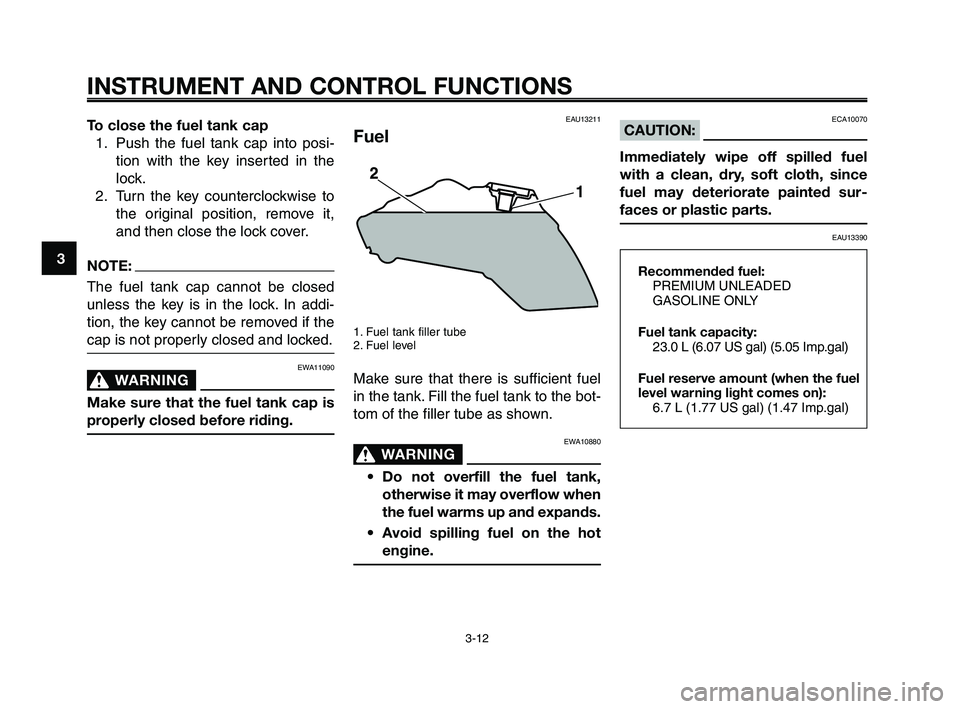

To close the fuel tank cap 1. Push the fuel tank cap into posi- tion with the key inserted in the
lock.
2. Turn the key counterclockwise to the original position, remove it,
and then close the lock cover.
NOTE:
The fuel tank cap cannot be closed
unless the key is in the lock. In addi-
tion, the key cannot be removed if the
cap is not properly closed and locked.
EWA11090
WARNING0
Make sure that the fuel tank cap is
properly closed before riding.

EAU13211
Fuel
1. Fuel tank filler tube
2. Fuel level
Make sure that there is sufficient fuel
in the tank. Fill the fuel tank to the bot-
tom of the filler tube as shown.
EWA10880
WARNING0
• Do not overfill the fuel tank,otherwise it may overflow when
the fuel warms up and expands.
• Avoid spilling fuel on the hot
engine.

ECA10070CAUTION:
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted sur-
faces or plastic parts.
EAU13390
Recommended fuel: PREMIUM UNLEADED
GASOLINE ONLY
Fuel tank capacity: 23.0 L (6.07 US gal) (5.05 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on): 6.7 L (1.77 US gal) (1.47 Imp.gal)

XT660Z 01-03 ING 10-03-2008 16:11 Pagina 3-12

1
2
3
4
5
6
7
8
9
10
INSTRUMENT AND CONTROL FUNCTIONS
3-13
EAU13412

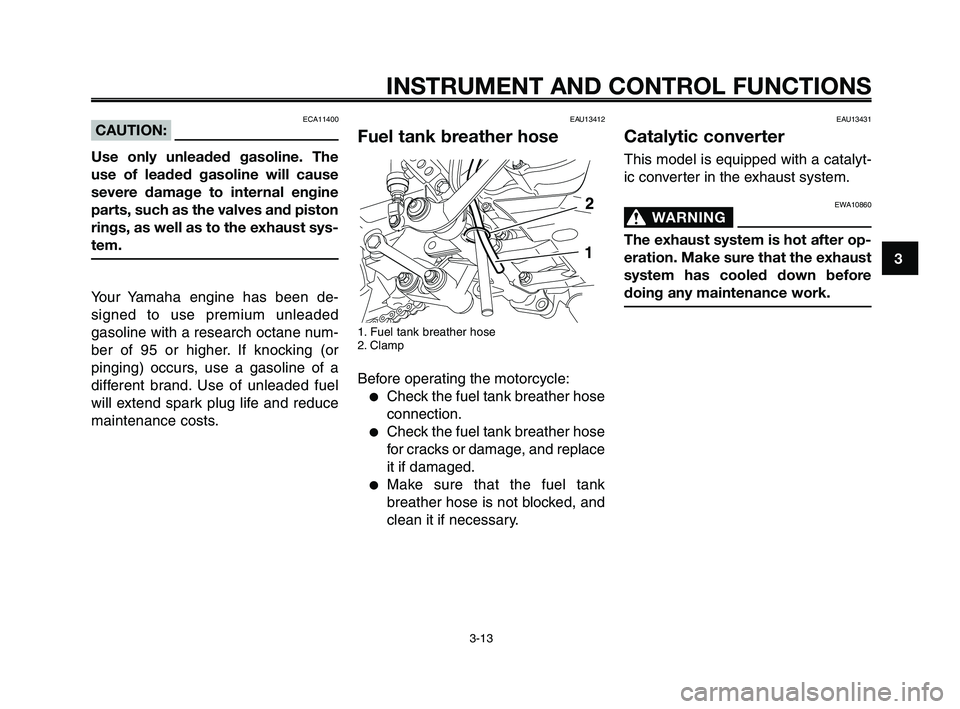

Fuel tank breather hose
1. Fuel tank breather hose
2. Clamp
Before operating the motorcycle:
●Check the fuel tank breather hose
connection.
●Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.
●Make sure that the fuel tank
breather hose is not blocked, and
clean it if necessary.

ECA11400CAUTION:
Use only unleaded gasoline. The
use of leaded gasoline will cause
severe damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys-
tem.
Your Yamaha engine has been de-
signed to use premium unleaded
gasoline with a research octane num-
ber of 95 or higher. If knocking (or
pinging) occurs, use a gasoline of a
different brand. Use of unleaded fuel
will extend spark plug life and reduce
maintenance costs.
EAU13431
Catalytic converter
This model is equipped with a catalyt-
ic converter in the exhaust system.
EWA10860
WARNING0
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before
doing any maintenance work.

XT660Z 01-03 ING 10-03-2008 16:11 Pagina 3-13

INSTRUMENT AND CONTROL FUNCTIONS
3-14
1
2
3
4
5
6
7
8
9
10
To install the seat
1. Projections
2. Seat holders
1. Insert the projections on the front of the seat into the seat holders.
2. Push the rear of the seat down.
NOTE:
Make sure that the seat is properly se-
cured before riding.

EAU13870

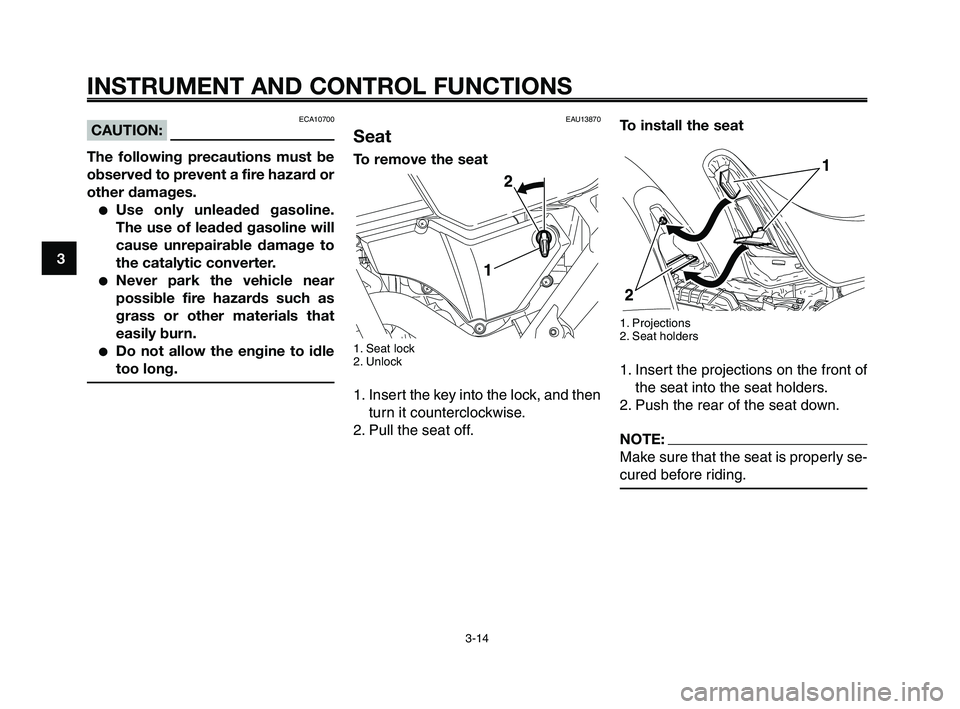

Seat
To remove the seat
1. Seat lock
2. Unlock
1. Insert the key into the lock, and then turn it counterclockwise.
2. Pull the seat off.

ECA10700CAUTION:
The following precautions must be
observed to prevent a fire hazard or
other damages.
●Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
●Never park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●Do not allow the engine to idle
too long.

XT660Z 01-03 ING 10-03-2008 16:11 Pagina 3-14
