YAMAHA XVZ1300TF 2000 Owners Manual

9-1
9
EAU01038
9-SPECIFICATIONSSpecifications
Model XVZ1300TF
Dimensions
Overall length 2,705 mm
Overall width 900 mm
Overall height 1,565 mm (except for D)
1,380 mm (for D)
Seat height 750 mm
Wheelbase 1,705 mm
Minimum ground clearance 155 mm
Minimum turning radius 3,500 mm
Basic weight (with oil and full
fuel tank)
394 kg
Engine
Engine type Liquid cooled 4-stroke, DOHC
Cylinder arrangement V-type 4-cylinder
Displacement 1,294 cm
3
Bore ´ stroke 79 ´ 66 mm
Compression ratio 10:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG type or
higher
Quantity
Periodic oil change 3.5 L
With oil filter replacement 3.7 L
Total amount 4.3 L

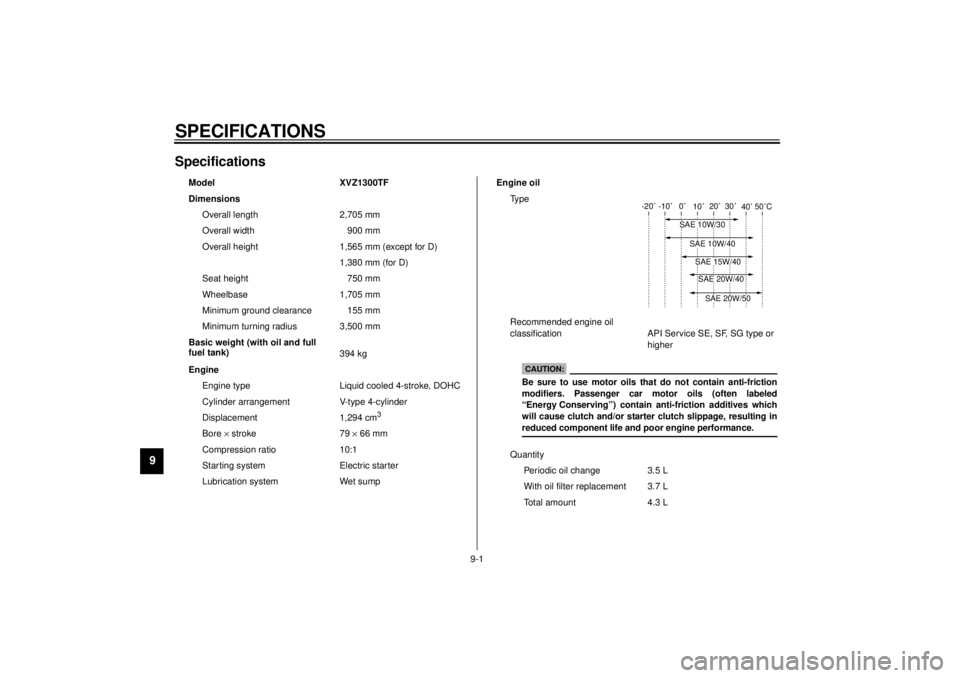

-20˚ -10˚ 0˚
10˚20˚ 30˚
40˚50˚C
SAE 10W/30
SAE 15W/40SAE 20W/40SAE 20W/50
SAE 10W/40
CAUTION:Be sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled
“Energy Conserving”) contain anti-friction additives which
will cause clutch and/or starter clutch slippage, resulting in
reduced component life and poor engine performance.
E_5jc_Spec.fm Page 1 Saturday, October 16, 1999 1:12 PM

SPECIFICATIONS
9-2
9
Final gear oil
Type SAE80API “GL-4” Hypoid Gear
Oil
Quantity 0.2 L
Cooling system capacity
(total amount)
3.5 L
Air filterDry type element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 22.5 L
Reserve amount 3.5 L
Carburetor
Type ´ quantity BDSR32 ´ 4
Manufacturer MIKUNI
Spark plug
Manufacturer/type NGK / DPR8EA-9 or
DENSO / X24EPR-U9
Gap 0.8 ~ 0.9 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.776
Secondary reduction system Shaft drive
Secondary reduction ratio 2.567
Transmission type Constant mesh 5-speedOperation Left foot operation
Gear ratio
1st 2.529
2nd 1.632
3rd 1.200
4th 0.960
5th 0.786
Chassis
Frame type Double cradle
Caster angle 29°10¢
Trail 152 mm
Tire
Front
Type Tubeless
Size 150/80-16 71H
Manufacturer/
model Dunlop / D404F
Bridgestone / G705
Rear
Type Tubeless
Size 150/90B15M/C 74H
Manufacturer/
model Dunlop / D404
Bridgestone / G702
E_5jc_Spec.fm Page 2 Saturday, October 16, 1999 1:12 PM

SPECIFICATIONS
9-3
9
Maximum load* 190 kg
Air pressure (cold tire)
Up to 90 kg load*
Front 250 kPa (2.50 kg/cm
2, 2.50 bar)
Rear 250 kPa (2.50 kg/cm2, 2.50 bar)
90 kg load ~ maximum
load*
Front 250 kPa (2.50 kg/cm2, 2.50 bar)
Rear 280 kPa (2.80 kg/cm2, 2.80 bar)
* Load is total weight of cargo, rider, passenger and accessories.
Wheels
Front
Ty p e C a s t
Size 16 ´ MT 3.50
Rear
Ty p e C a s t
Size 15M/C ´ MT 4.00
Brakes
Front
Type Dual disc brake
Operation Right hand operation
Fluid DOT 4Rear
Type Single disc brake
Operation Right foot operation
Fluid DOT 4
Suspension
Fr o n t
Ty p e Te l e s c o p i c f o r k
Rear
Type Swingarm (link suspension)
Shock absorber
Front Coil-air spring/oil damper
Rear Coil-air spring/oil damper
Wheel travel
Front 140 mm
Rear 105 mm
Electrical
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 29 A @ 5,000 r/min
Battery
Type YTX20L-BS
Voltage, capacity 12 V, 18 AH
E_5jc_Spec.fm Page 3 Saturday, October 16, 1999 1:12 PM

SPECIFICATIONS
9-4
9
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 1
Turn signal light 12 V, 21 W ´ 4
Auxiliary light 12 V, 4 W ´ 1
Licence light 12 V, 5 W ´ 2
Neutral indicator light 12 V, 1.7 W ´ 1
High beam indicator light 12 V, 1.7 W ´ 1
Oil level indicator light 12 V, 1.7 W ´ 1
Turn indicator light 12 V, 1.7 W ´ 2
Fuel level indicator light 14 V, 3 W ´ 1
Coolant temperature indicator
light 12 V, 1.7 W ´ 1
Engine trouble indicator light 12 V, 1.7 W ´ 1
Overdrive indicator light 12 V, 1.7 W ´ 1
Cruise control “SET” indicator
light 12 V, 1.7 W ´ 1
Cruise control “RES” indicator
light 12 V, 1.7 W ´ 1
Cruise control “ON” indicator
light 12 V, 1.7 W ´ 1Audio system amplifier
Output power
Speaker 14 W ´ 4
Headset 1 W ´ 2
Auto-volume range 5 steps
Output impedance
Speaker 4 W
Headset 8 W ~ 16 W
Fuses
Main fuse 30 A
Headlight fuse 15 A
Signaling system fuse 15 A
Ignition fuse 10 A
Radiator fan fuse 10 A
Odometer fuse 10 A
Cruise control fuse 10 A
Carburetor heater fuse 10 A
Audio system fuse 10 A
Auxiliary DC jack fuse 5 A
Auxiliary DC terminal fuse 5 A
E_5jc_Spec.fm Page 4 Saturday, October 16, 1999 1:12 PM

SPECIFICATIONS
9-5
9
EAU01064
HOW TO USE THE CONVERSION TABLECS-02E All specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL
unit data.
Ex.METRIC MULTIPLIER IMPERIAL
**mm´ 0.03937 = **in
2 mm´ 0.03937 = 0.08 in
CONVERSION TABLE
METRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
Torquem·kg
m·kg
cm·kg
cm·kg7.233
86.794
0.0723
0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g2.205
0.03527lb
oz
Speed km/hr 0.6214 mph
Distancekm
m
m
cm
mm0.6214
3.281
1.094
0.3937
0.03937mi
ft
yd
in
in
Volume /
Capacitycc (cm3)
cc (cm3)
lt (liter)
lt (liter)0.03527
0.06102
0.8799
0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Misc.kg/mm
kg/cm2
Centigrade (°
C)55.997
14.2234
9/5 + 32 lb/in
psi (lb/in
2)
Fahrenheit (°
F)
E_5jc_Spec.fm Page 5 Saturday, October 16, 1999 1:12 PM

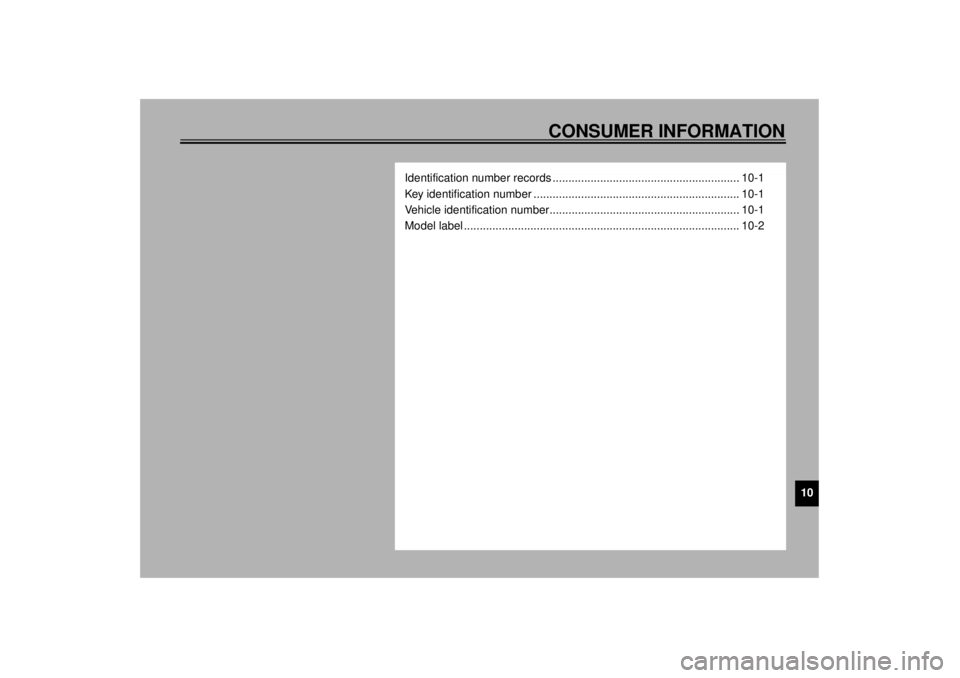

CONSUMER INFORMATION
10
Identification number records ........................................................... 10-1
Key identification number ................................................................. 10-1
Vehicle identification number............................................................ 10-1
Model label ....................................................................................... 10-2
E_5jc_ConsumerTOC.fm Page 1 Saturday, October 16, 1999 1:12 PM

10-1
10
EAU01039
10-CONSUMER INFORMATION
EAU02944
Identification number recordsRecord the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided for assistance when ordering
spare parts from a Yamaha dealer or
for reference in case the vehicle is sto-
len.

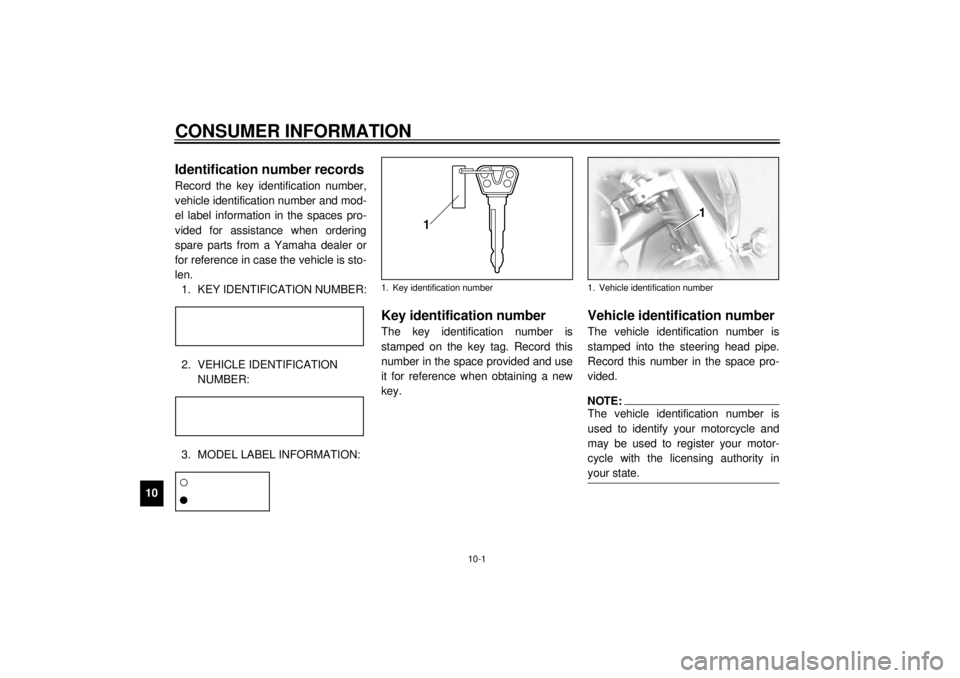

1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification numberThe key identification number is
stamped on the key tag. Record this
number in the space provided and use
it for reference when obtaining a new
key.
EAU01043
Vehicle identification numberThe vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your state. @
1. Key identification number
1. Vehicle identification number
E_5jc_Consumer.fm Page 1 Saturday, October 16, 1999 1:12 PM

CONSUMER INFORMATION
10-2
10
EAU01804
Model labelThe model label is affixed to the frame
under the rider seat. (See page 3-15 for
rider seat removal and installation pro-
cedures.)
Record the information on this label in
the space provided. This information
will be needed to order spare parts
from your Yamaha dealer.1. Model label
E_5jc_Consumer.fm Page 2 Saturday, October 16, 1999 1:12 PM

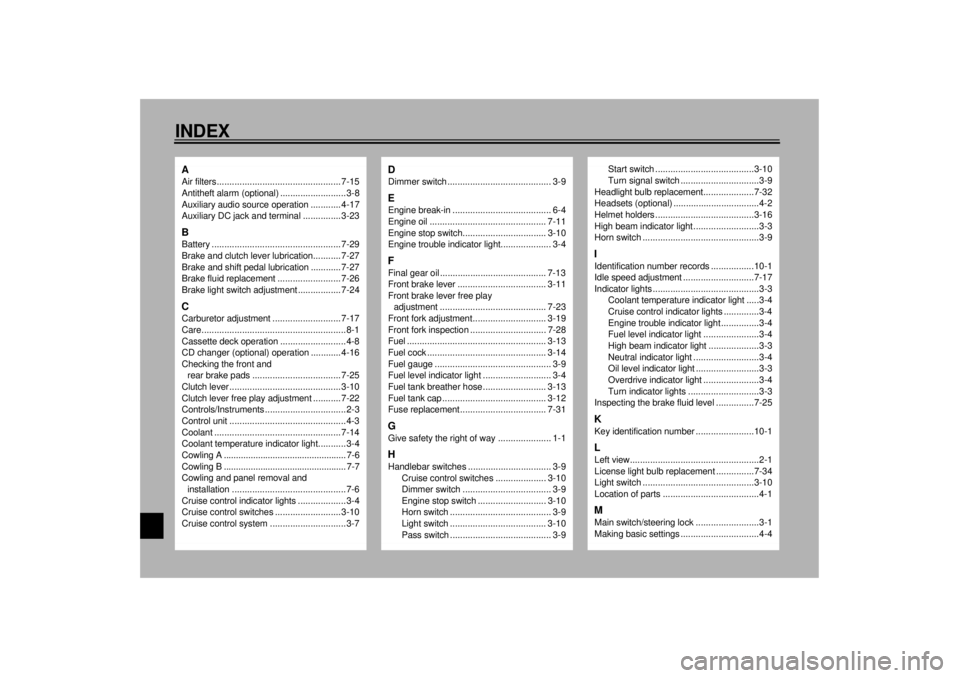

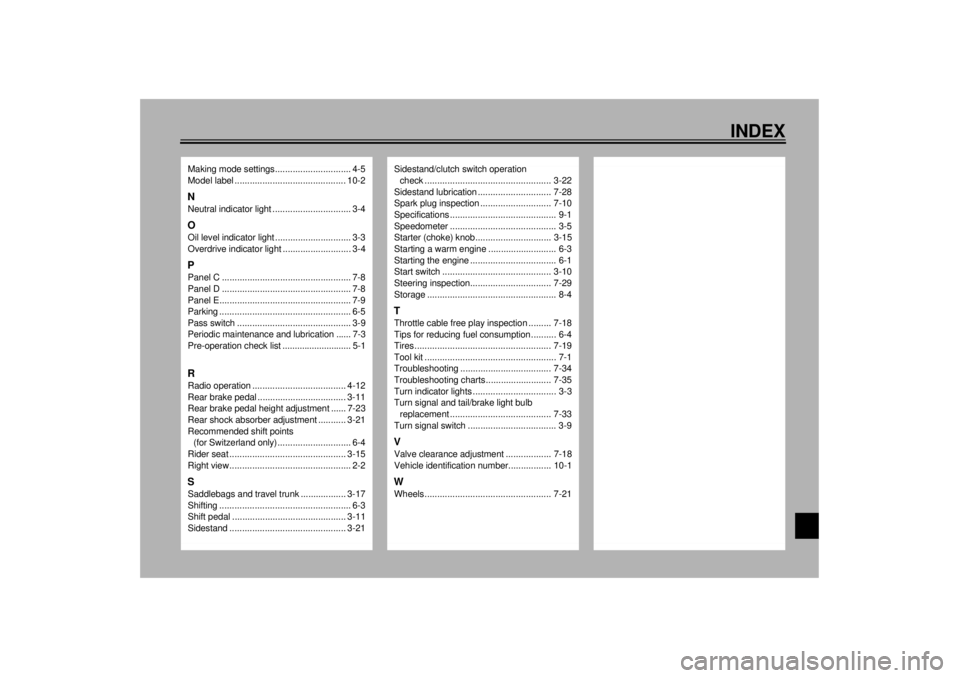

11-INDEXAAir filters................................................. 7-15
Antitheft alarm (optional) ..........................3-8
Auxiliary audio source operation ............ 4-17
Auxiliary DC jack and terminal ............... 3-23BBattery ................................................... 7-29
Brake and clutch lever lubrication........... 7-27
Brake and shift pedal lubrication ............ 7-27
Brake fluid replacement ......................... 7-26
Brake light switch adjustment ................. 7-24CCarburetor adjustment ........................... 7-17
Care.........................................................8-1
Cassette deck operation ..........................4-8
CD changer (optional) operation ............ 4-16
Checking the front and
rear brake pads ................................... 7-25
Clutch lever ............................................ 3-10
Clutch lever free play adjustment ........... 7-22
Controls/Instruments ................................2-3
Control unit ..............................................4-3
Coolant .................................................. 7-14
Coolant temperature indicator light...........3-4
Cowling A .................................................. 7-6
Cowling B .................................................. 7-7
Cowling and panel removal and
installation .............................................7-6
Cruise control indicator lights ...................3-4
Cruise control switches .......................... 3-10
Cruise control system ..............................3-7
DDimmer switch ......................................... 3-9EEngine break-in ....................................... 6-4
Engine oil .............................................. 7-11
Engine stop switch................................. 3-10
Engine trouble indicator light.................... 3-4FFinal gear oil .......................................... 7-13
Front brake lever ................................... 3-11
Front brake lever free play
adjustment .......................................... 7-23
Front fork adjustment............................. 3-19
Front fork inspection .............................. 7-28
Fuel ....................................................... 3-13
Fuel cock ............................................... 3-14
Fuel gauge .............................................. 3-9
Fuel level indicator light ........................... 3-4
Fuel tank breather hose ......................... 3-13
Fuel tank cap ......................................... 3-12
Fuse replacement.................................. 7-31GGive safety the right of way ..................... 1-1HHandlebar switches ................................. 3-9
Cruise control switches .................... 3-10
Dimmer switch ................................... 3-9
Engine stop switch ........................... 3-10
Horn switch ........................................ 3-9
Light switch ...................................... 3-10
Pass switch ........................................ 3-9
Start switch .......................................3-10
Turn signal switch ...............................3-9
Headlight bulb replacement....................7-32
Headsets (optional) ..................................4-2
Helmet holders .......................................3-16
High beam indicator light ..........................3-3
Horn switch ..............................................3-9
IIdentification number records .................10-1
Idle speed adjustment ............................7-17
Indicator lights ..........................................3-3
Coolant temperature indicator light .....3-4
Cruise control indicator lights ..............3-4
Engine trouble indicator light ...............3-4
Fuel level indicator light ......................3-4
High beam indicator light ....................3-3
Neutral indicator light ..........................3-4
Oil level indicator light .........................3-3
Overdrive indicator light ......................3-4
Turn indicator lights ............................3-3
Inspecting the brake fluid level ...............7-25KKey identification number .......................10-1LLeft view...................................................2-1
License light bulb replacement ...............7-34
Light switch ............................................3-10
Location of parts ......................................4-1MMain switch/steering lock .........................3-1
Making basic settings ...............................4-4
E_5jcIX.fm Page 1 Saturday, October 16, 1999 1:12 PM

INDEX
Making mode settings.............................. 4-5
Model label ............................................ 10-2NNeutral indicator light ............................... 3-4OOil level indicator light .............................. 3-3
Overdrive indicator light ........................... 3-4PPanel C ................................................... 7-8
Panel D ................................................... 7-8
Panel E.................................................... 7-9
Parking .................................................... 6-5
Pass switch ............................................. 3-9
Periodic maintenance and lubrication ...... 7-3
Pre-operation check list ............................ 5-1RRadio operation ..................................... 4-12
Rear brake pedal ................................... 3-11
Rear brake pedal height adjustment ...... 7-23
Rear shock absorber adjustment ........... 3-21
Recommended shift points
(for Switzerland only)............................. 6-4
Rider seat .............................................. 3-15
Right view................................................ 2-2SSaddlebags and travel trunk .................. 3-17
Shifting .................................................... 6-3
Shift pedal ............................................. 3-11
Sidestand .............................................. 3-21
Sidestand/clutch switch operation
check .................................................. 3-22
Sidestand lubrication ............................. 7-28
Spark plug inspection ............................ 7-10
Specifications .......................................... 9-1
Speedometer .......................................... 3-5
Starter (choke) knob.............................. 3-15
Starting a warm engine ........................... 6-3
Starting the engine .................................. 6-1
Start switch ........................................... 3-10
Steering inspection................................ 7-29
Storage ................................................... 8-4TThrottle cable free play inspection ......... 7-18
Tips for reducing fuel consumption .......... 6-4
Tires...................................................... 7-19
Tool kit .................................................... 7-1
Troubleshooting .................................... 7-34
Troubleshooting charts .......................... 7-35
Turn indicator lights ................................. 3-3
Turn signal and tail/brake light bulb
replacement ........................................ 7-33
Turn signal switch ................................... 3-9VValve clearance adjustment .................. 7-18
Vehicle identification number................. 10-1WWheels .................................................. 7-21
E_5jcIX.fm Page 2 Saturday, October 16, 1999 1:12 PM
