8. Clean the seat with a vinyl
upholstery cleaner to keep the
cover pliable and glossy.
9. Automotive-type wax may be
applied to all painted and chrome-
plated surfaces. Avoid
combination cleaner waxes. Many
contain abrasive which may mar
the paint or protective finish. When
finished, start the engine and let it
idle for several minutes.
B. STORAGELong term storage (60 days or more)
of your Motorcycle will require some
preventive procedures to guard
against deterioration. After thor-
oughly cleaning the Motorcycle,
prepare for storage as follows:
1. Drain the fuel tank, fuel lines, and
carburetor float bowl.
2. Remove the empty fuel tank, pour
a cup of SAE 10W30 or 20W40
motor oil in the tank, shake the
tank to coat the inner surfaces
thoroughly and drain off the
excess oil. Reinstall the tank.
3. Remove the spark plug, pour
about one tablespoon of SAE
10W30 or 20W40 motor oil in the
spark plug hole and reinstall the
spark plug. Kick the engine over
several times (with the ignition off)
to coat the cylinder wall with oil.
4. Remove the drive chain.
Thoroughly clean the chain withsolvent and lubricate it. Reinstall
the chain or store it in a plastic bag
(tied to frame for safe-keeping).
5. Lubricate all control cables.
6. Block up the frame to raise both
wheels off the ground.
7. Tie a plastic bag over the
exhaust pipe outlet to prevent
moisture from entering.
8. If storing in a humid or salt-air
atmosphere, coat all exposed
metal surfaces with a light film of
oil. Do not apply oil to any rubber
parts or the seat cover.
9. Remove the battery and charge it.
Store it in a dry place and
recharge it once a month. Do not
store the battery in an excessively
warm or cold place (less than 0ºC
or more than Ambient).
Make any necessary repairs before
storing the Motorcycle.
CLEANING AND STORAGE
7-2
NOTE :
Page 62 of 79

SPECIFICATIONS
8-1
SpecificationsModel LIBERO (5TS8)
Dimensions
Kerb weight :(With Engine Oil &
90% Fuel in Tank)- 119Kg.
Engine ::
Overall length 2,000 mm
Overall width 730 mm
Overall height 1,050 mm
Seat height (Upto Rider) 800 mm
(Upto Pillion Rider) 850 mm
Wheelbase 1,290 mm
Ground clearance 173 mm
Minimum turning radius 2,000 mm
Engine type
Cylinder arrangement
Displacement
Bore x Stroke 49X56
Compression ratio 9 : 1
Starting system
Lubrication system
Maximum power 7.6
Maximum torque 0.80Air cooled 4-stroke,SOHC
Forward inclined single
cylinder
106 cm
mm
Kick starter
Wet sump
PS(5.59 KW) @ 7500
Kgm. @ 6000
3
RPM
RPM
EngineOil:
Capacity
Air filter:
Fuel :
Carburettor:Type:
:
Periodic oil change 1.0
Total amount
Type G
Fuel tank capacity
Reserve amount
Type Variable Venturi Type
Manufacturer M/S Keihin Fie PrivateBe sure to use motor oils that do not contain
antifriction modifiers. Passenger car motor oils (often
labelled Energy conserving) contain anti-friction
additives which will cause clutch and/or starter clutch
slippage, resulting in reduced component life and
poor engine performance.
YAMALUBE 4-Stroke motor
oil (20W40 type SG)
L
1.2 L (First fill/Overhaul)
Wet type element
asoline (Petrol)
13.0 Litres
1.7Litres
Limited India.
CAUTION :
Page 63 of 79

8-2
Spark plug :
Clutch type :
Transmission :
Chassis: Type/Manufacturer P-RA7HC--(CHAMPION)
Spark plug gap 0.8 ± 0.1 mm
Primary reduction system Spur gear
Primary reduction ratio 3.722 (67/18)
Secondary reduction system Chain drive
Secondary reduction ratio 3.214 (45/14)
Transmission type Constant mesh 4 speed
Operation
Gear ratio 1st 3
2nd 1.688 (27/16)
3rd 1.200 (24/20)
4th 0.875 (21/24)
Frame type Double Cradle
Caster angle
Trail 91mmWet, multiple-disc
Left foot operation
.000 (33/11)
26.4
o
Tyre with Tube
Size
Front
Rear 3.00
Air pressure (cold tyre ):
Single Rider
Front
Rear 33
With Pillion and rider
Front
Rear2.75 x18” 4PR
X18” 6PR
25 psi (1.75 Kgf/cm )
psi (2.25Kgf/cm )
25 psi (1.75Kgf/cm )
36 psi (2.5 Kgf/cm )
2
2
2
2
SPECIFICATIONS
Page 64 of 79

SPECIFICATIONS
8-3
Wheels:
Brakes:
Suspension :
Shock absorberType:
Size:
Front :
Type Drum brake
Operation Right Hand lever
Front Telescopic fork
Rear
:
Front Coil spring/ oil damper
RearFront Spoke wheel
Rear Spoke wheel
Front 1.60 X 18
Rear 1.60 X 18
Rear :
Type Drum brake
Operation Right foot operation
Swing arm
Coil spring/ oil damperWheel travel:
Electrical:
Bulb voltage ,Wattage x Quantity:
Fuse:Front 120 mm
Rear: 90 mm
Ignition system: CDI (Digitally Timing
Generator system:
Type
Standard output 12V
Battery:
Type
Voltage, capacity
Headlight
Tail / Brake light
Front flasher light
Rear flasher light
Meter light
Neutral indicator light
High beam indicator light
Turn indicator light
Tuning Fork Logo 12V 3.4Wx1
MainAdvanced)
Flywheel magneto
Lead acid
12V 2.5AH
(Halogen-HS1) 12V 35W/ 35W x 1
12V 5W/21W x 1
12V10Wx2
12V10Wx2
12V3.4Wx2
12V3.4Wx1
12V3.4Wx1
12V1.7Wx2
1OA
Page 65 of 79

1. Key identification numberKey identification numberThe key identification number is
stamped on the key.
Record this number in the space
provided and use it for reference
when obtaining a new key.
1. Frame serial numberThe frame serial number is stamped
into the steering head pipe on right
hand side.Frame serial number
1. Engine serial numberThe engine serial number is
stamped into the right hand
crankcase.Engine serial number
CUSTOMER INFORMATION
9-1
Page 66 of 79

10-1
1. Check for any missing item(s), scratches in painted/plated part(s), saddle or other external
visual damages and take corrective action.
Check each of the following items individually and mention the corrective action (as per the
recommended specifications) in the boxes provided.2. Check for missing part(s), if any.A. FRAME
a. Brakes
Front : Free Play at Lever End (10 ~ 15 mm)
Rear :Free Play at Rear Brake (20 ~ 30 mm)
b. Clutch :Free Play at Lever End (10 ~ 15 mm)c. Throttle :Free Play at Throttle Grip (3 ~7 mm)d. Steering :Check for Free Movemente. Suspension
Front Fork : Check for any sticky movement
Rear Shock Abs : For Free Stroking & Setting on both
(To be filled in by the Dealer on receipt of the Motorcycle from YMIS)
Odo-Meter
ReadingDate of
Inspection
Frame
No.Engine
No.Date of
SaleFound OK
Set RightReplaced
Cleaned
Lubricated
RCL
S
PRE-DELIVERY INSPECTION REPORT
No.
service2.pmd11/3/2006, 8:50 PM 1
Page 67 of 79

PRE-DELIVERY INSPECTION REPORT
f. Wheels
Tyre :Tyre pressure Solo Double
(PSI)
Front 25 25
Rear 33 36
R i m : Runout - Radial - 1.5 mm (Max)
- Lateral - 1.5 mm (Max)
Spokes : No loosenes
g. Locks Operation : • Ignition
• Steering• Fuel Tank Cap• Side Cover (L.H.)
h. FastenersSpecified Torque
(Ft-Lb)
1. Front Wheel Axle Nuts 25-40
2. Front Fork (Crown Handle & Inner Tube)13-202. Front Fork under Bracket Stem Nut18-223. Handle Bar Mounting Bolts 13-204. Rear Shock Absorber Mounting Bolts22-355. Rear Swing Arm Pivot Shaft Nut32-526. Rear Wheel Axle/Sprocket. Shaft Nuts60-70
B. ENGINE
a. Engine Oil : • Oil Level (For checking - Refer Pg. 6-9)
• Check for any Leakages
10-2
service2.pmd11/3/2006, 8:50 PM 2
Page 68 of 79

b. Spark Plug :Recommended No. P-RA7HC(Champion)
Gap 0.8 ±0.1 mm
c. Valve Clearance :(Cold condition)
(If required) Inlet0.08 ~ 0.12 mm
Exhaust0.10 ~ 0.14 mm
(After matching of the mark on sprocket cam chain with mark on Cylinder
Head Casting and ensuring the Piston at TDC of compression stroke.)
d. Kick Operation: For free Movement
e. Carburetor : • Idle RPM
In warmed up condition
(1300~1500 RPM)
• Check for Overflow
f. Drive Chain : • Alignment
• Slackness(20 ~ 30 mm)
g. FastenersSpecified Torque
(Ft-Lb)
1. Cylinder Head Bolts14-17
2. Engine Mounting
a) Engine Mounting Front and Stay Front25-29
b) Stay Engine Front and Frame25-29c) Engine Mounting Rear and Frame25-29d) Engine Mounting Upper &
Stay Engine Upper25-29e) Stay Engine Upper and Frame25-29f) Engine Mounting Front Lower and Frame25-29
3. Front and Rear Silencer Mounting Nut9-124. Crown Handle Centre Bolt8-14
PRE-DELIVERY INSPECTION REPORT
10-3
service2.pmd11/3/2006, 8:50 PM 3
Page 69 of 79

PRE-DELIVERY INSPECTION REPORT10-4
C. ELECTRICAL
a. Ignition Switch Operation
b. Left Hand Switch Operation & Pass Beam
• Horn
• Indicator• Head Light
c. All Bulbs - Functioningd. Battery
• Electrolyte Level
• Specific Gravity• Routing of Breather Pipe• Fuse• Routing of Positive Wire (Red) Below Breather Pipe
D. ROAD TEST
a. Starting
b. Gear Shifting Operationc. Clutch Operationd. Application of Brakes (Front and Rear)e. Speedo/ Odo Meter Operationf. Fuel gauge OperationEXPLAINED BYSIGNATURE: _____________ NAME:
CUSTOMER’S SIGN
MAIN SELLING DLR’S STAMP, SIGNATURE
service2.pmd11/3/2006, 8:50 PM 4
Page 70 of 79

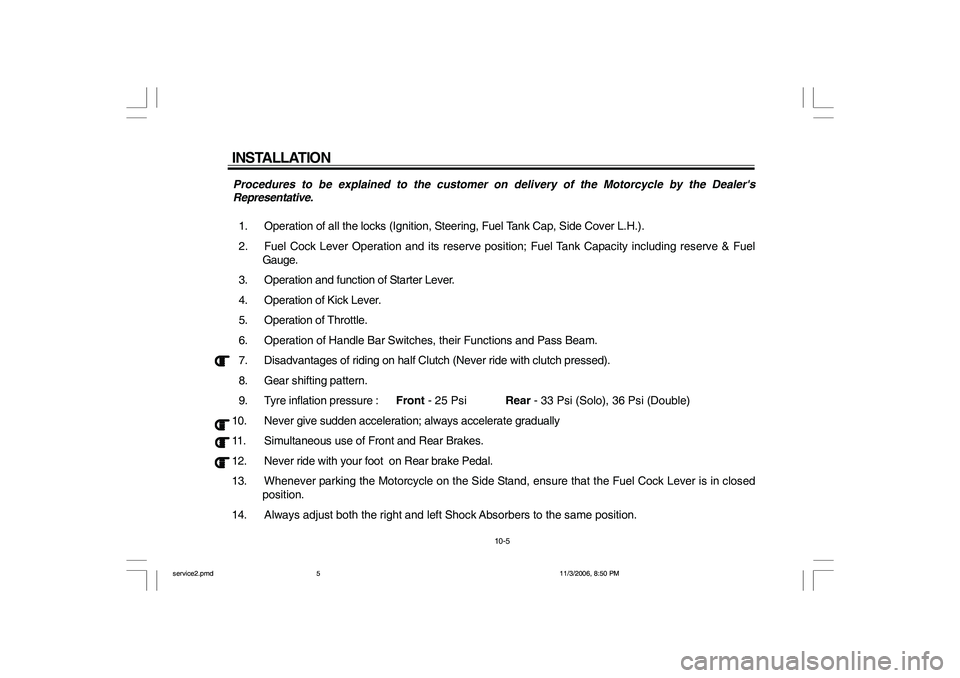

10-5
1. Operation of all the locks (Ignition, Steering, Fuel Tank Cap, Side Cover L.H.).
2. Fuel Cock Lever Operation and its reserve position; Fuel Tank Capacity including reserve & Fuel
Gauge.
3. Operation and function of Starter Lever.
4. Operation of Kick Lever.
5. Operation of Throttle.
6. Operation of Handle Bar Switches, their Functions and Pass Beam.
7. Disadvantages of riding on half Clutch (Never ride with clutch pressed).
8. Gear shifting pattern.
9. Tyre inflation pressure :Front - 25 Psi Rear - 33 Psi (Solo), 36 Psi (Double)
10. Never give sudden acceleration; always accelerate gradually
11. Simultaneous use of Front and Rear Brakes.
12. Never ride with your foot on Rear brake Pedal.
13. Whenever parking the Motorcycle on the Side Stand, ensure that the Fuel Cock Lever is in closed
position.
14. Always adjust both the right and left Shock Absorbers to the same position.INSTALLATIONProcedures to be explained to the customer on delivery of the Motorcycle by the Dealer's
Representative.
