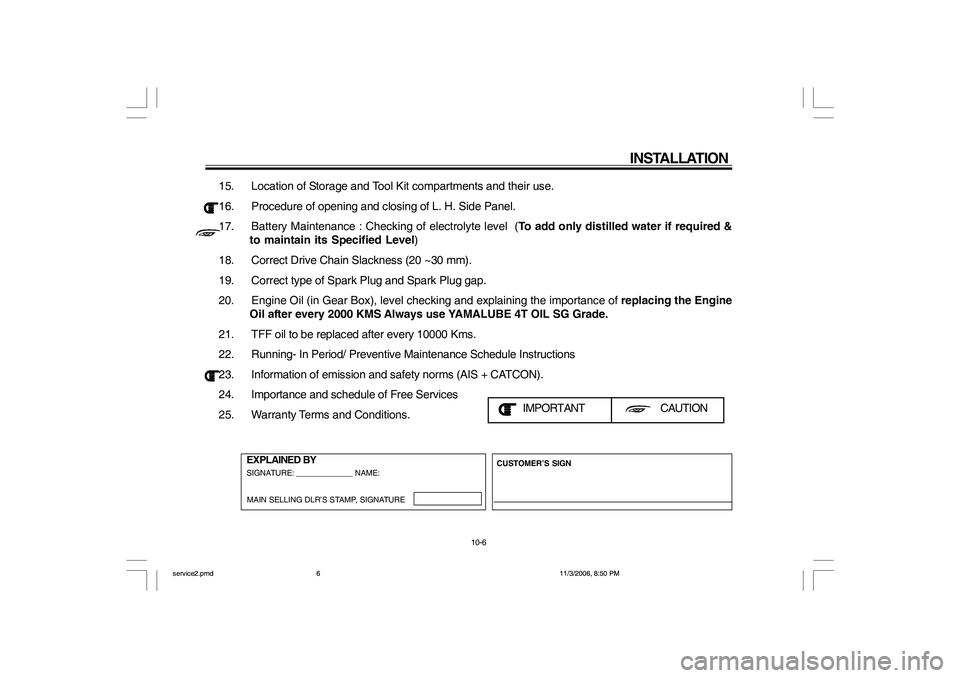

15. Location of Storage and Tool Kit compartments and their use.
16. Procedure of opening and closing of L. H. Side Panel.
17. Battery Maintenance : Checking of electrolyte level (To add only distilled water if required &
to maintain its Specified Level)
18. Correct Drive Chain Slackness (20 ~30 mm).
19. Correct type of Spark Plug and Spark Plug gap.
20. Engine Oil (in Gear Box), level checking and explaining the importance of replacing the Engine
Oil after every 2000 KMS Always use YAMALUBE 4T OIL SG Grade.
21. TFF oil to be replaced after every 10000 Kms.
22. Running- In Period/ Preventive Maintenance Schedule Instructions
23. Information of emission and safety norms (AIS + CATCON).
24. Importance and schedule of Free Services
25. Warranty Terms and Conditions.
INSTALLATION
IMPORTANT CAUTION
10-6
EXPLAINED BYSIGNATURE: _____________ NAME:
CUSTOMER’S SIGN
MAIN SELLING DLR’S STAMP, SIGNATURE
service2.pmd11/3/2006, 8:50 PM 6

NOTES
NOTES.pmd11/4/2006, 10:05 AM 2

NOTES
NOTES.pmd11/4/2006, 10:05 AM 3

NOTES
NOTES.pmd11/4/2006, 10:05 AM 4

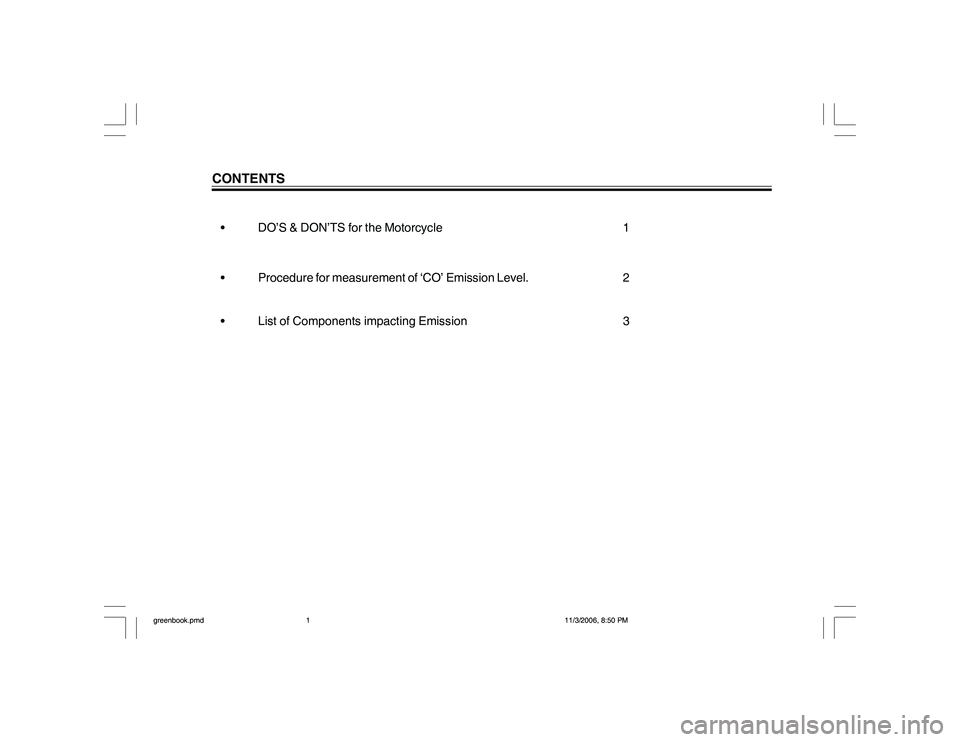

CONTENTS• DO’S & DON’TS for the Motorcycle 1
• Procedure for measurement of ‘CO’ Emission Level. 2
• List of Components impacting Emission 3
greenbook.pmd11/3/2006, 8:50 PM 1

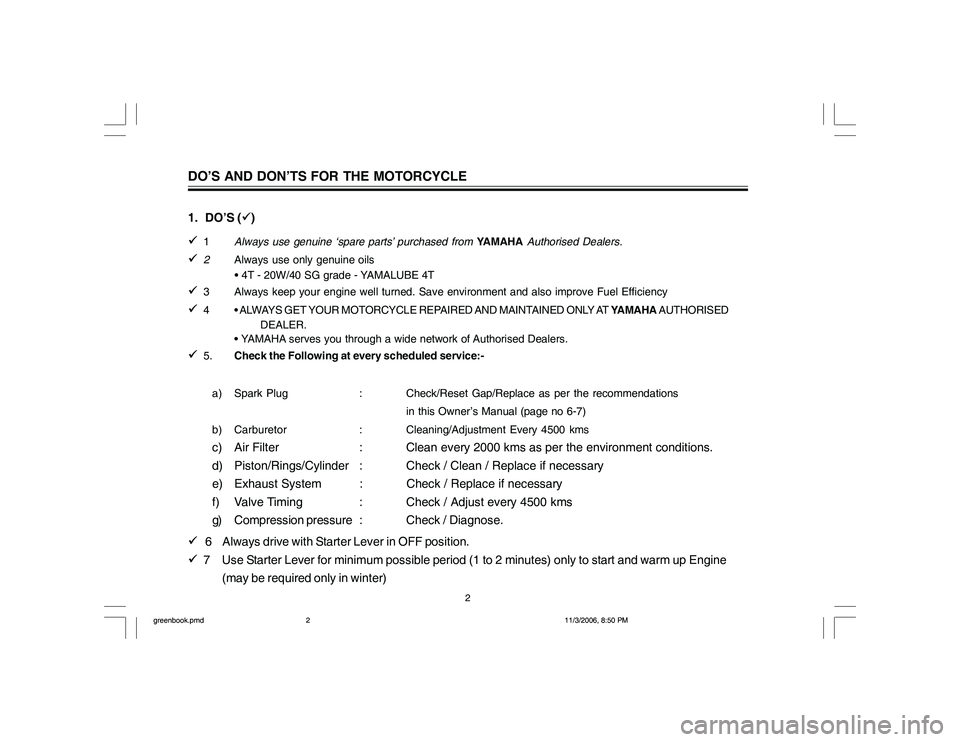

1. DO’S ()

1Always use genuine ‘spare parts’ purchased from YAMAHA Authorised Dealers.

2Always use only genuine oils
• 4T - 20W/40 SG grade - YAMALUBE 4T

3 Always keep your engine well turned. Save environment and also improve Fuel Efficiency

4 • ALWAYS GET YOUR MOTORCYCLE REPAIRED AND MAINTAINED ONLY AT YAMAHA AUTHORISED
DEALER.
• YAMAHA serves you through a wide network of Authorised Dealers.

5.Check the Following at every scheduled service:-
a) Spark Plug : Check/Reset Gap/Replace as per the recommendations
in this Owner’s Manual (page no 6-7)
b) Carburetor :Cleaning/Adjustment Every 4500 kmsc) Air Filter : Clean every 2000 kms as per the environment conditions.
d) Piston/Rings/Cylinder : Check / Clean / Replace if necessary
e) Exhaust System : Check / Replace if necessary
f) Valve Timing : Check / Adjust every 4500 kms
g) Compression pressure :Check / Diagnose.
6 Always drive with Starter Lever in OFF position.
7 Use Starter Lever for minimum possible period (1 to 2 minutes) only to start and warm up Engine
(may be required only in winter)
DO’S AND DON’TS FOR THE MOTORCYCLE
2
greenbook.pmd11/3/2006, 8:50 PM 2

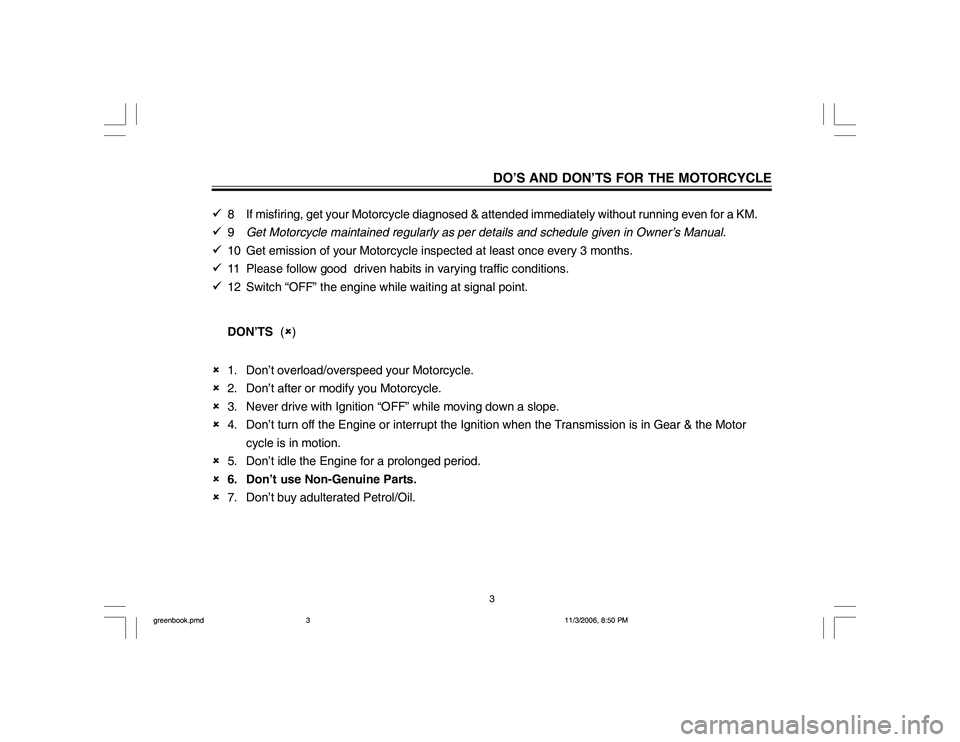

DO’S AND DON’TS FOR THE MOTORCYCLE
8 If misfiring, get your Motorcycle diagnosed & attended immediately without running even for a KM.
9Get Motorcycle maintained regularly as per details and schedule given in Owner’s Manual.
10 Get emission of your Motorcycle inspected at least once every 3 months.
11 Please follow good driven habits in varying traffic conditions.
12 Switch “OFF” the engine while waiting at signal point.
DON’TS ()
1. Don’t overload/overspeed your Motorcycle.
2. Don’t after or modify you Motorcycle.
3. Never drive with Ignition “OFF” while moving down a slope.
4. Don’t turn off the Engine or interrupt the Ignition when the Transmission is in Gear & the Motor
cycle is in motion.
5. Don’t idle the Engine for a prolonged period.
6. Don’t use Non-Genuine Parts.
7. Don’t buy adulterated Petrol/Oil.
3
greenbook.pmd11/3/2006, 8:50 PM 3

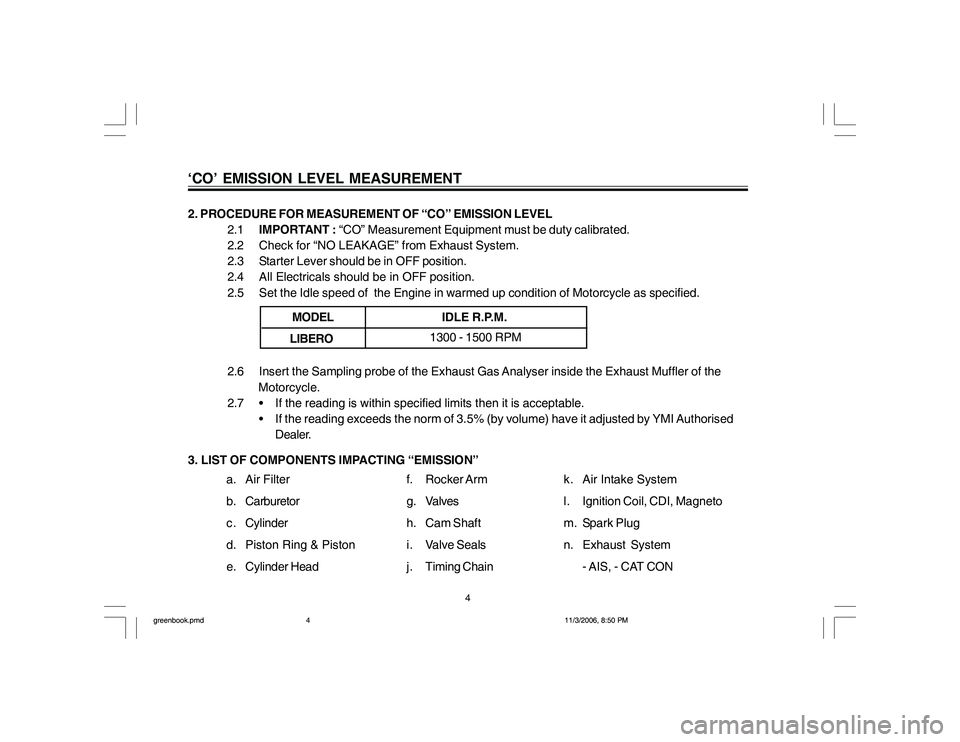

3. LIST OF COMPONENTS IMPACTING “EMISSION” 2. PROCEDURE FOR MEASUREMENT OF “CO” EMISSION LEVEL
