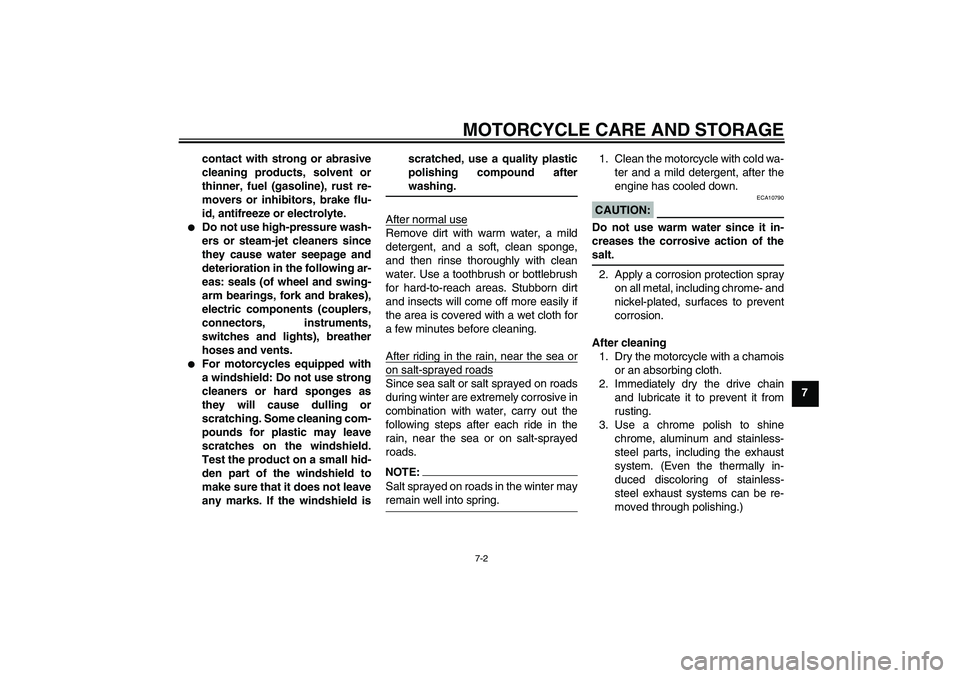

MOTORCYCLE CARE AND STORAGE
7-2
7 contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield isscratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.NOTE:Salt sprayed on roads in the winter mayremain well into spring.1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
CAUTION:
ECA10790
Do not use warm water since it in-
creases the corrosive action of thesalt.
2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
U27SE0E0.book Page 2 Friday, February 22, 2008 8:54 AM

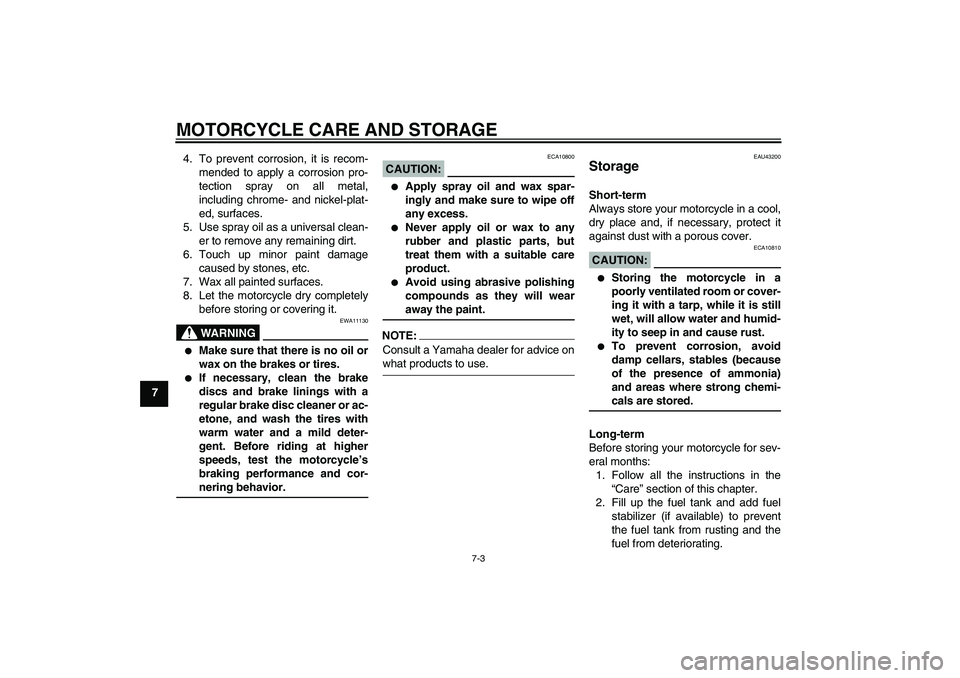

MOTORCYCLE CARE AND STORAGE
7-3
74. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING
EWA11130


Make sure that there is no oil or
wax on the brakes or tires.


If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-nering behavior.
CAUTION:
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wearaway the paint.
NOTE:Consult a Yamaha dealer for advice onwhat products to use.
EAU43200
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
U27SE0E0.book Page 3 Friday, February 22, 2008 8:54 AM

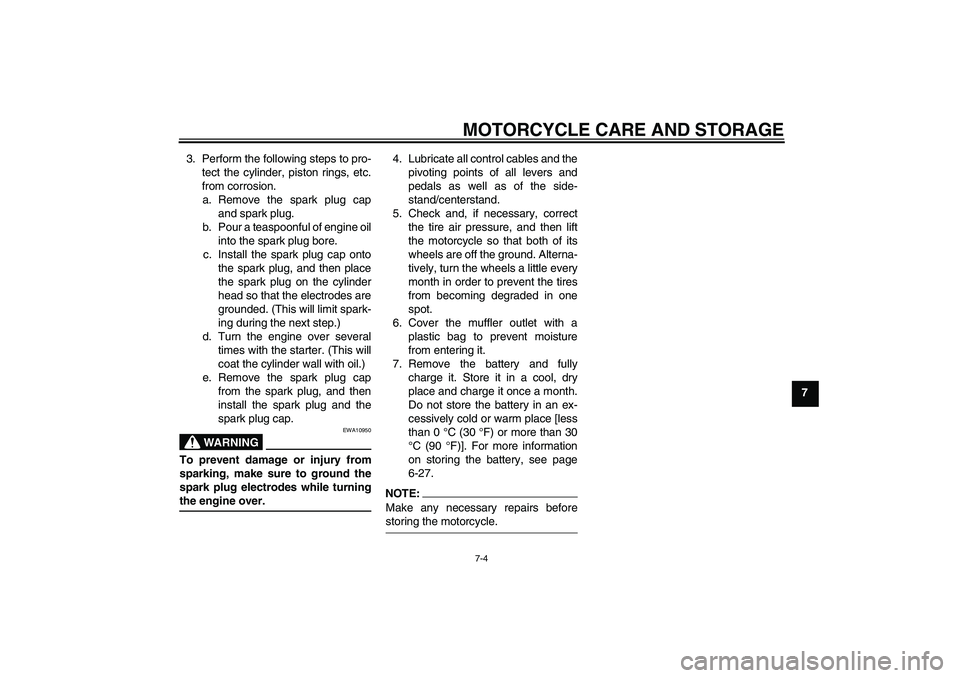

MOTORCYCLE CARE AND STORAGE
7-4
7 3. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-27.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U27SE0E0.book Page 4 Friday, February 22, 2008 8:54 AM

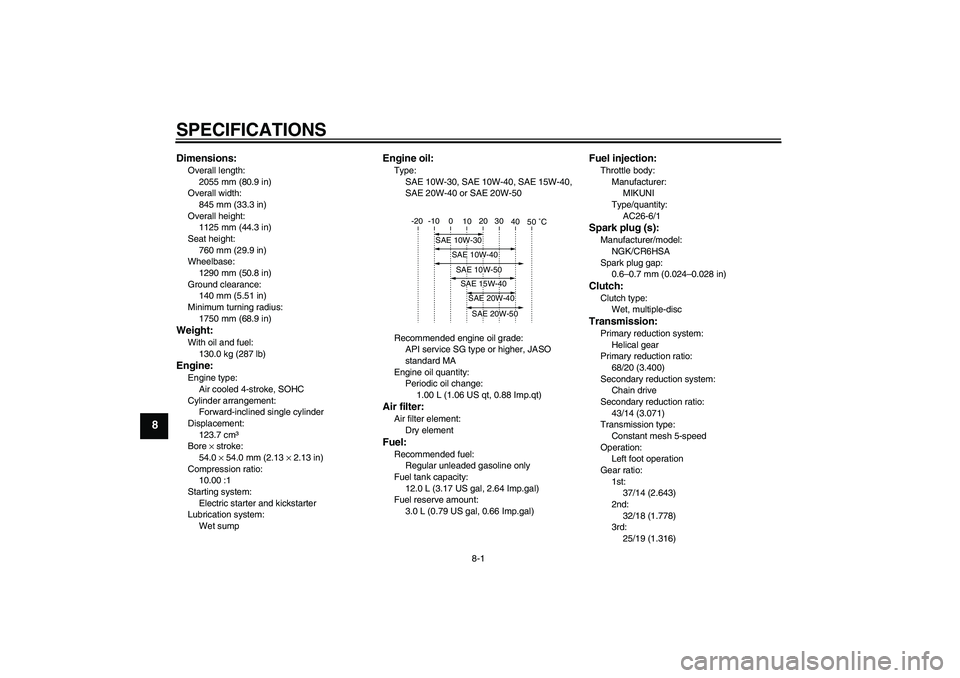

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2055 mm (80.9 in)
Overall width:
845 mm (33.3 in)
Overall height:
1125 mm (44.3 in)
Seat height:
760 mm (29.9 in)
Wheelbase:
1290 mm (50.8 in)
Ground clearance:
140 mm (5.51 in)
Minimum turning radius:
1750 mm (68.9 in)Weight:With oil and fuel:
130.0 kg (287 lb)Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
123.7 cm³
Bore × stroke:
54.0 × 54.0 mm (2.13 × 2.13 in)
Compression ratio:
10.00 :1
Starting system:
Electric starter and kickstarter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Periodic oil change:
1.00 L (1.06 US qt, 0.88 Imp.qt)Air filter:Air filter element:
Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
12.0 L (3.17 US gal, 2.64 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)
Fuel injection:Throttle body:
Manufacturer:
MIKUNI
Type/quantity:
AC26-6/1Spark plug (s):Manufacturer/model:
NGK/CR6HSA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Helical gear
Primary reduction ratio:
68/20 (3.400)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
43/14 (3.071)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
37/14 (2.643)
2nd:
32/18 (1.778)
3rd:
25/19 (1.316)
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U27SE0E0.book Page 1 Friday, February 22, 2008 8:54 AM

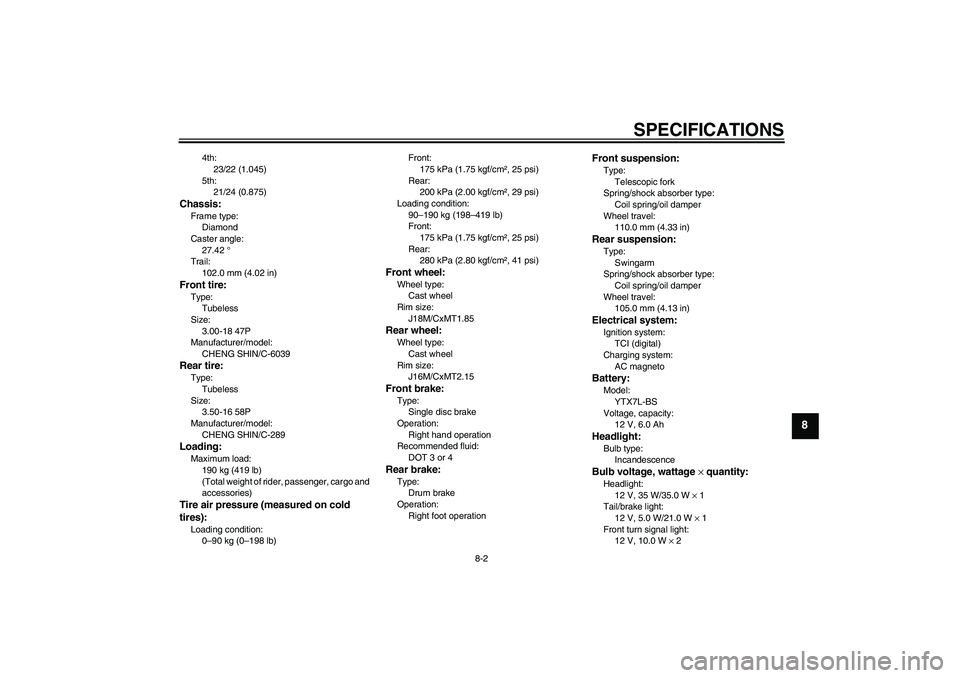

SPECIFICATIONS
8-2
8
4th:
23/22 (1.045)
5th:
21/24 (0.875)
Chassis:Frame type:
Diamond
Caster angle:
27.42 °
Trail:
102.0 mm (4.02 in)Front tire:Type:
Tubeless
Size:
3.00-18 47P
Manufacturer/model:
CHENG SHIN/C-6039Rear tire:Type:
Tubeless
Size:
3.50-16 58P
Manufacturer/model:
CHENG SHIN/C-289Loading:Maximum load:
190 kg (419 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)Front:
175 kPa (1.75 kgf/cm², 25 psi)
Rear:
200 kPa (2.00 kgf/cm², 29 psi)
Loading condition:
90–190 kg (198–419 lb)
Front:
175 kPa (1.75 kgf/cm², 25 psi)
Rear:
280 kPa (2.80 kgf/cm², 41 psi)
Front wheel:Wheel type:
Cast wheel
Rim size:
J18M/CxMT1.85Rear wheel:Wheel type:
Cast wheel
Rim size:
J16M/CxMT2.15Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 3 or 4Rear brake:Type:
Drum brake
Operation:
Right foot operation
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
110.0 mm (4.33 in)Rear suspension:Type:
Swingarm
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105.0 mm (4.13 in)Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
YTX7L-BS
Voltage, capacity:
12 V, 6.0 AhHeadlight:Bulb type:
IncandescenceBulb voltage, wattage × quantity:Headlight:
12 V, 35 W/35.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
U27SE0E0.book Page 2 Wednesday, February 27, 2008 2:29 PM

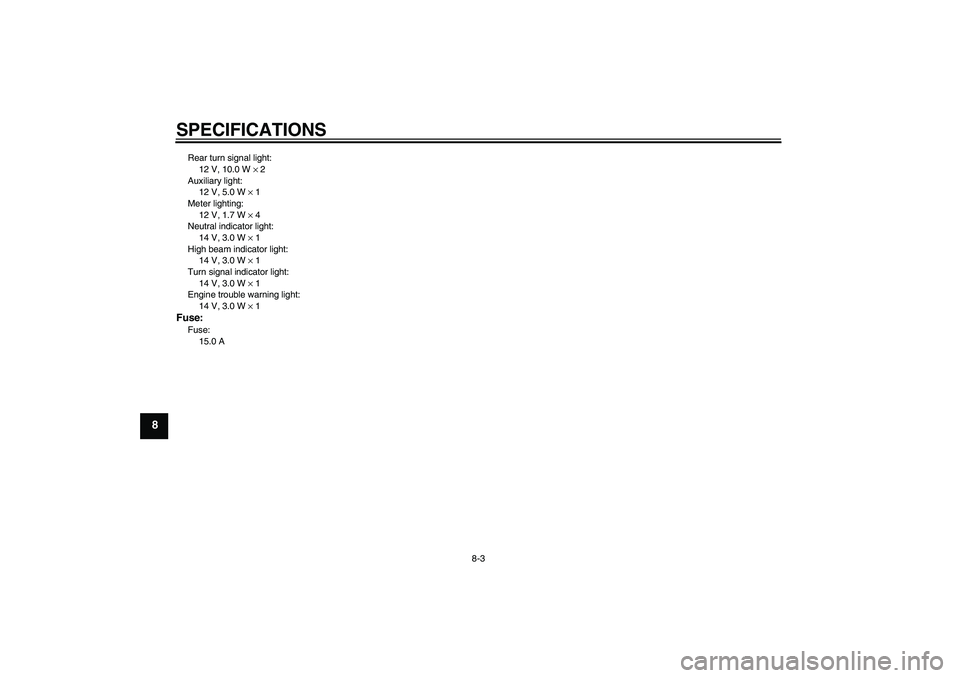

SPECIFICATIONS
8-3
8
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
Meter lighting:
12 V, 1.7 W × 4
Neutral indicator light:
14 V, 3.0 W × 1
High beam indicator light:
14 V, 3.0 W × 1
Turn signal indicator light:
14 V, 3.0 W × 1
Engine trouble warning light:
14 V, 3.0 W × 1Fuse:Fuse:
15.0 A
U27SE0E0.book Page 3 Friday, February 22, 2008 8:54 AM

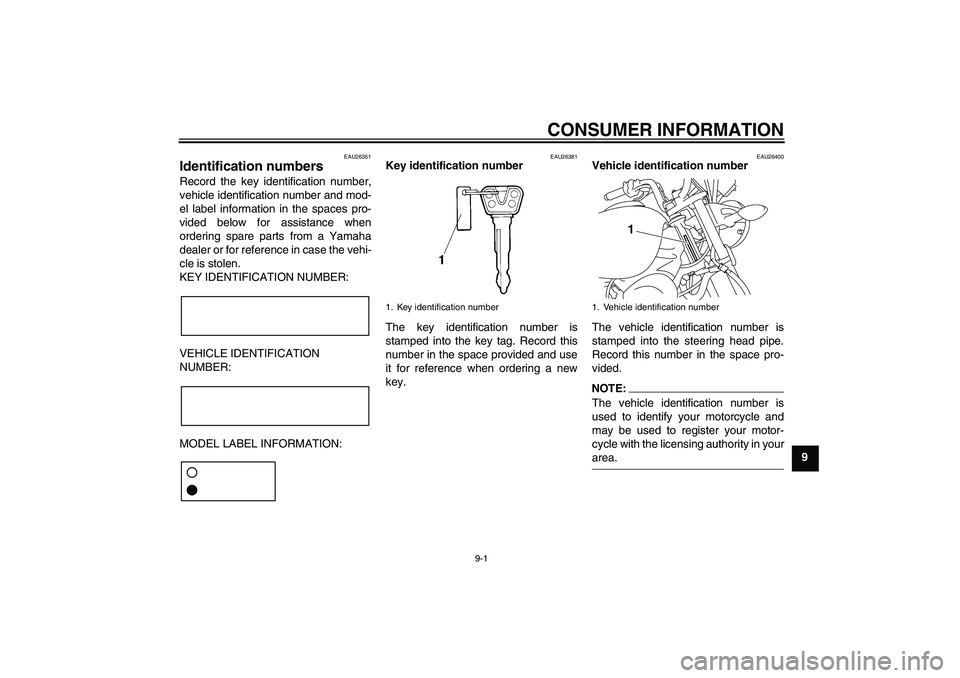

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
1. Vehicle identification number
1
U27SE0E0.book Page 1 Friday, February 22, 2008 8:54 AM

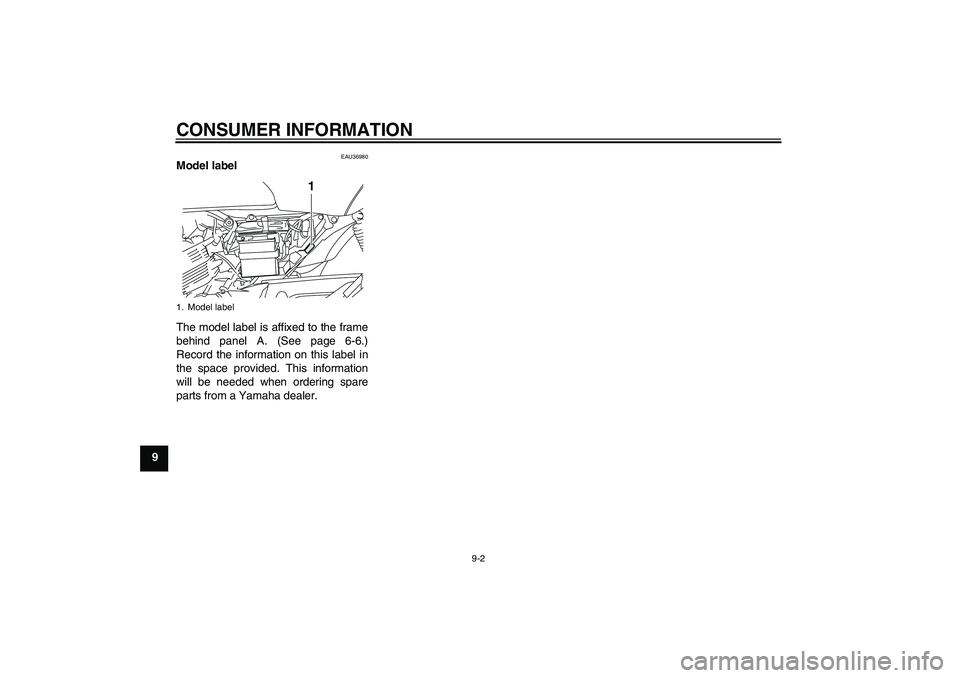

CONSUMER INFORMATION
9-2
9
EAU36980
Model label
The model label is affixed to the frame
behind panel A. (See page 6-6.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label
1
U27SE0E0.book Page 2 Friday, February 22, 2008 8:54 AM

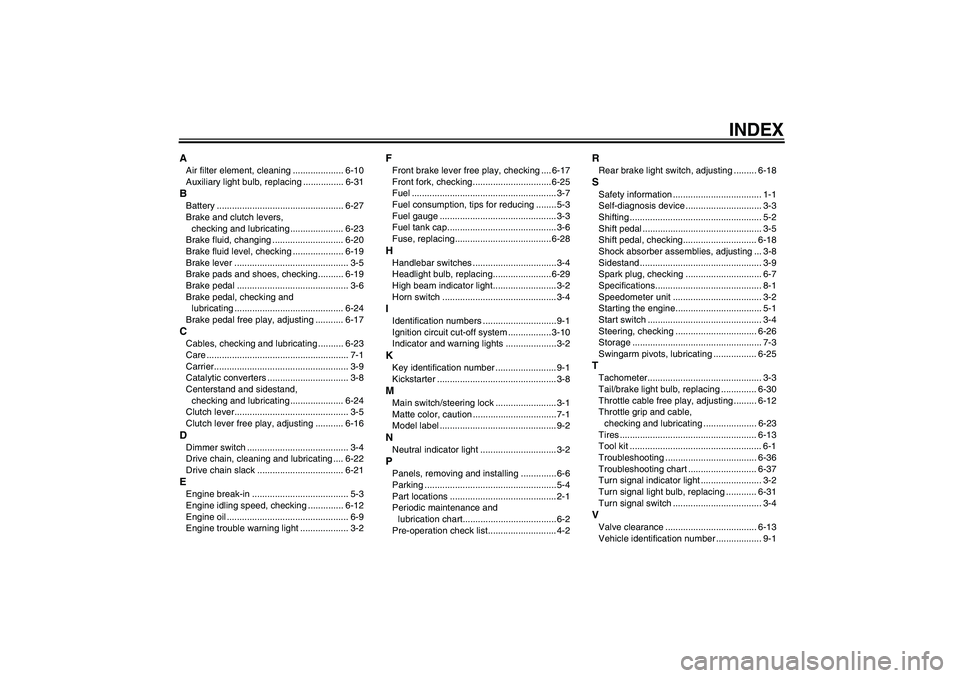

INDEX
AAir filter element, cleaning .................... 6-10
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-27
Brake and clutch levers,
checking and lubricating ..................... 6-23
Brake fluid, changing ............................ 6-20
Brake fluid level, checking .................... 6-19
Brake lever ............................................. 3-5
Brake pads and shoes, checking.......... 6-19
Brake pedal ............................................ 3-6
Brake pedal, checking and
lubricating ........................................... 6-24
Brake pedal free play, adjusting ........... 6-17CCables, checking and lubricating .......... 6-23
Care ........................................................ 7-1
Carrier..................................................... 3-9
Catalytic converters ................................ 3-8
Centerstand and sidestand,
checking and lubricating ..................... 6-24
Clutch lever............................................. 3-5
Clutch lever free play, adjusting ........... 6-16DDimmer switch ........................................ 3-4
Drive chain, cleaning and lubricating .... 6-22
Drive chain slack .................................. 6-21EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-12
Engine oil ................................................ 6-9
Engine trouble warning light ................... 3-2
FFront brake lever free play, checking .... 6-17
Front fork, checking...............................6-25
Fuel ......................................................... 3-7
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge .............................................. 3-3
Fuel tank cap........................................... 3-6
Fuse, replacing...................................... 6-28HHandlebar switches ................................. 3-4
Headlight bulb, replacing....................... 6-29
High beam indicator light......................... 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-10
Indicator and warning lights .................... 3-2KKey identification number ........................ 9-1
Kickstarter ............................................... 3-8MMain switch/steering lock ........................ 3-1
Matte color, caution .................................7-1
Model label .............................................. 9-2NNeutral indicator light .............................. 3-2PPanels, removing and installing .............. 6-6
Parking ....................................................5-4
Part locations .......................................... 2-1
Periodic maintenance and
lubrication chart.....................................6-2
Pre-operation check list........................... 4-2
RRear brake light switch, adjusting ......... 6-18SSafety information ................................... 1-1
Self-diagnosis device .............................. 3-3
Shifting .................................................... 5-2
Shift pedal ............................................... 3-5
Shift pedal, checking............................. 6-18
Shock absorber assemblies, adjusting ... 3-8
Sidestand ................................................ 3-9
Spark plug, checking .............................. 6-7
Specifications.......................................... 8-1
Speedometer unit ................................... 3-2
Starting the engine.................................. 5-1
Start switch ............................................. 3-4
Steering, checking ................................ 6-26
Storage ................................................... 7-3
Swingarm pivots, lubricating ................. 6-25TTachometer............................................. 3-3
Tail/brake light bulb, replacing .............. 6-30
Throttle cable free play, adjusting ......... 6-12
Throttle grip and cable,
checking and lubricating ..................... 6-23
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-36
Troubleshooting chart ........................... 6-37
Turn signal indicator light ........................ 3-2
Turn signal light bulb, replacing ............ 6-31
Turn signal switch ................................... 3-4VValve clearance .................................... 6-13
Vehicle identification number .................. 9-1
U27SE0E0.book Page 1 Friday, February 22, 2008 8:54 AM

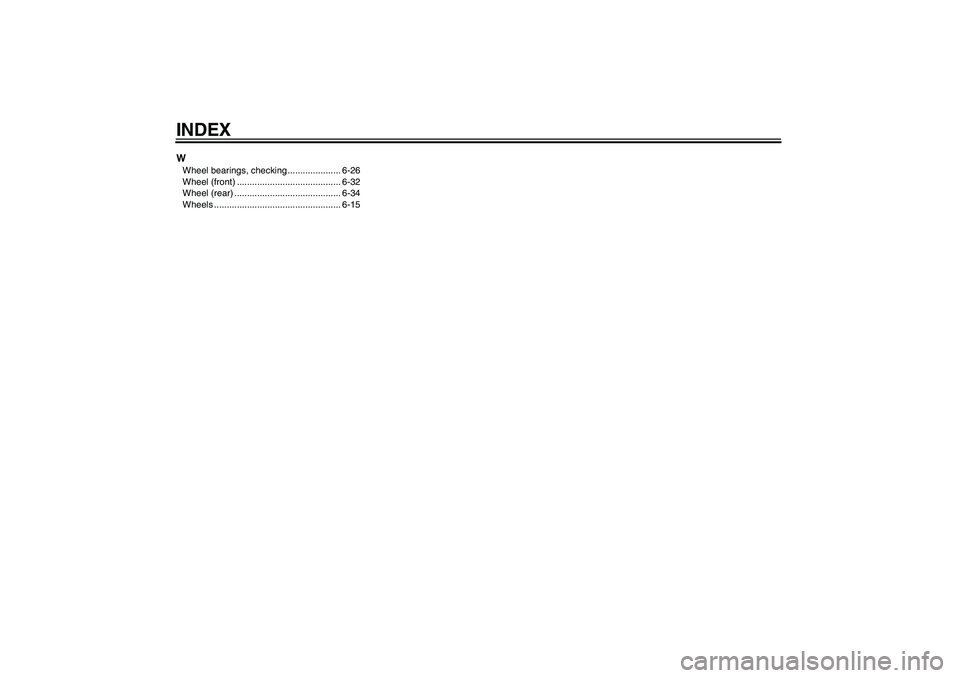

INDEXWWheel bearings, checking ..................... 6-26
Wheel (front) ......................................... 6-32
Wheel (rear) .......................................... 6-34
Wheels .................................................. 6-15
U27SE0E0.book Page 2 Friday, February 22, 2008 8:54 AM
