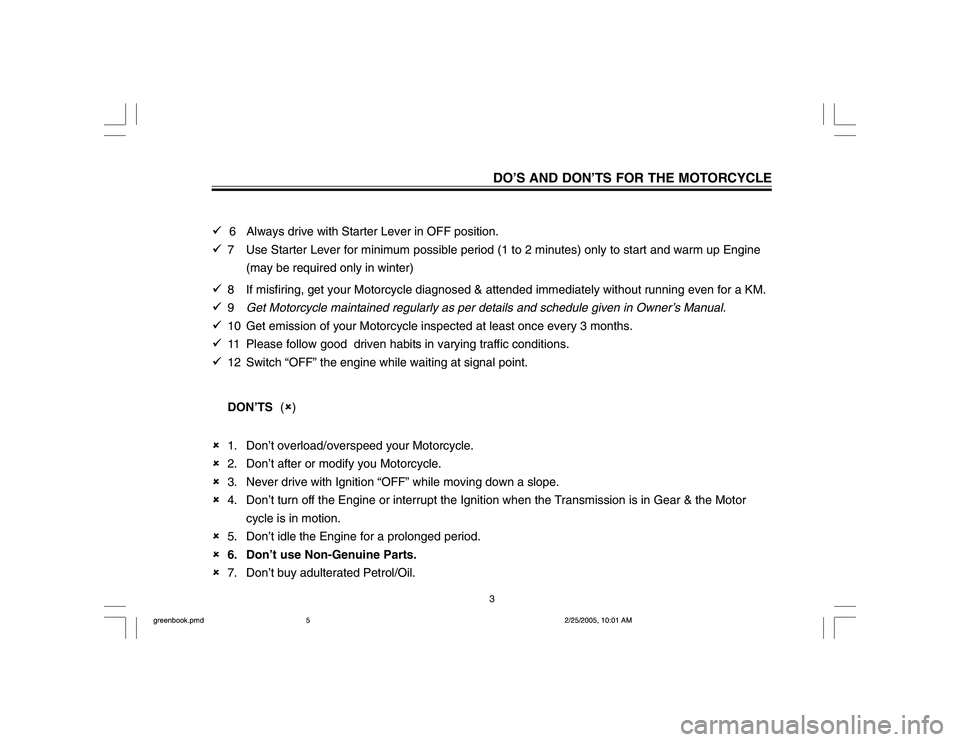

DO’S AND DON’TS FOR THE MOTORCYCLE

6 Always drive with Starter Lever in OFF position.

7 Use Starter Lever for minimum possible period (1 to 2 minutes) only to start and warm up Engine
(may be required only in winter)

8 If misfiring, get your Motorcycle diagnosed & attended immediately without running even for a KM.

9
Get Motorcycle maintained regularly as per details and schedule given in Owner’s Manual.

10 Get emission of your Motorcycle inspected at least once every 3 months.

11 Please follow good driven habits in varying traffic conditions.

12 Switch “OFF” the engine while waiting at signal point.
DON’TS ()
1. Don’t overload/overspeed your Motorcycle.
2. Don’t after or modify you Motorcycle.
3. Never drive with Ignition “OFF” while moving down a slope.
4. Don’t turn off the Engine or interrupt the Ignition when the Transmission is in Gear & the Motor
cycle is in motion.
5. Don’t idle the Engine for a prolonged period.
6. Don’t use Non-Genuine Parts.
7. Don’t buy adulterated Petrol/Oil.
3
greenbook.pmd2/25/2005, 10:01 AM 5

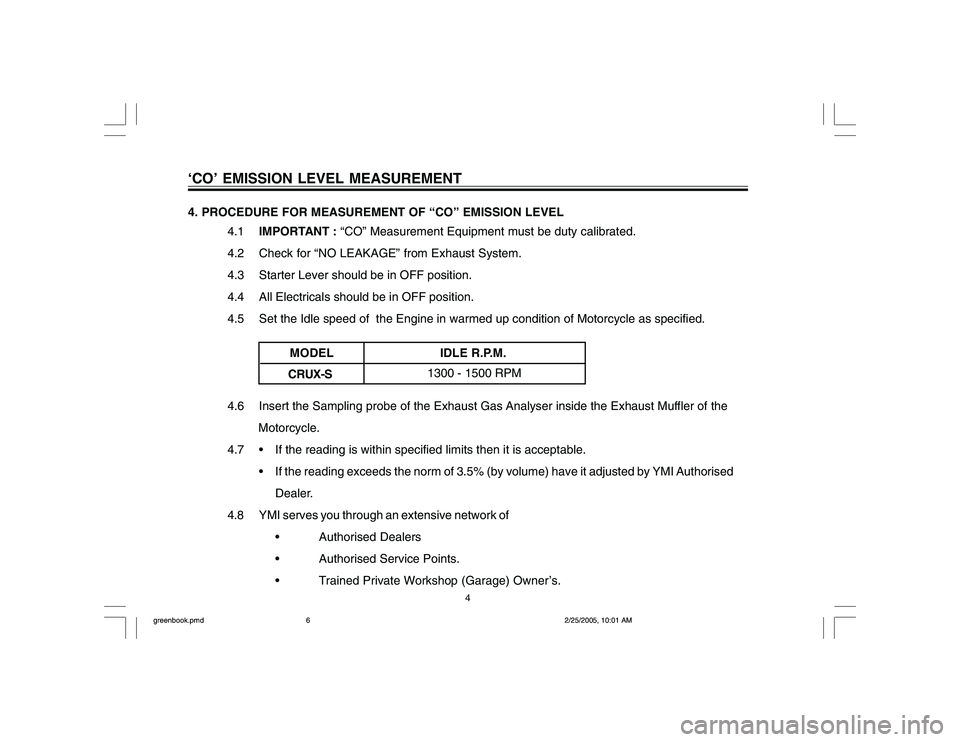

4. PROCEDURE FOR MEASUREMENT OF “CO” EMISSION LEVEL
4.1IMPORTANT : “CO” Measurement Equipment must be duty calibrated.
4.2 Check for “NO LEAKAGE” from Exhaust System.
4.3 Starter Lever should be in OFF position.
4.4 All Electricals should be in OFF position.
4.5 Set the Idle speed of the Engine in warmed up condition of Motorcycle as specified.
4.6 Insert the Sampling probe of the Exhaust Gas Analyser inside the Exhaust Muffler of the
Motorcycle.
4.7  If the reading is within specified limits then it is acceptable.
 If the reading exceeds the norm of 3.5% (by volume) have it adjusted by YMI Authorised
Dealer.
4.8 YMI serves you through an extensive network of
 Authorised Dealers
 Authorised Service Points.
 Trained Private Workshop (Garage) Owner’s.‘CO’ EMISSION LEVEL MEASUREMENT
4
MODELIDLE R.P.M.
1300 - 1500 RPM
CRUX-S
greenbook.pmd2/25/2005, 10:01 AM 6

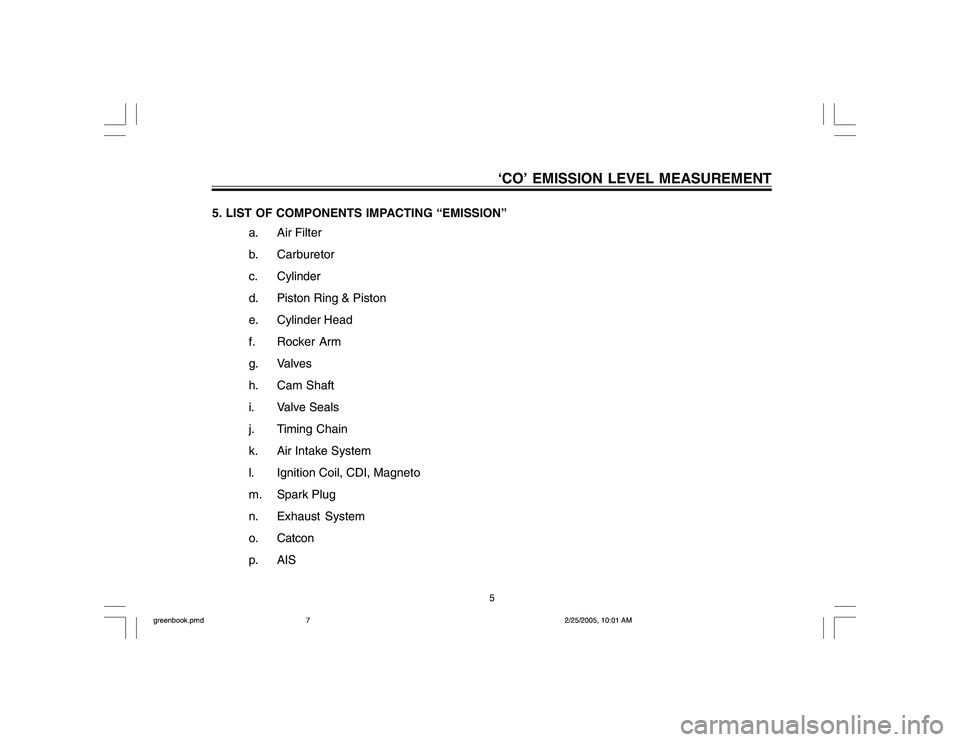

5. LIST OF COMPONENTS IMPACTING “EMISSION”
a. Air Filter
b. Carburetor
c. Cylinder
d. Piston Ring & Piston
e. Cylinder Head
f. Rocker Arm
g. Valves
h. Cam Shaft
i. Valve Seals
j. Timing Chain
k. Air Intake System
l. Ignition Coil, CDI, Magneto
m. Spark Plug
n. Exhaust System
o. Catcon
p. AIS
‘CO’ EMISSION LEVEL MEASUREMENT5
greenbook.pmd2/25/2005, 10:01 AM 7

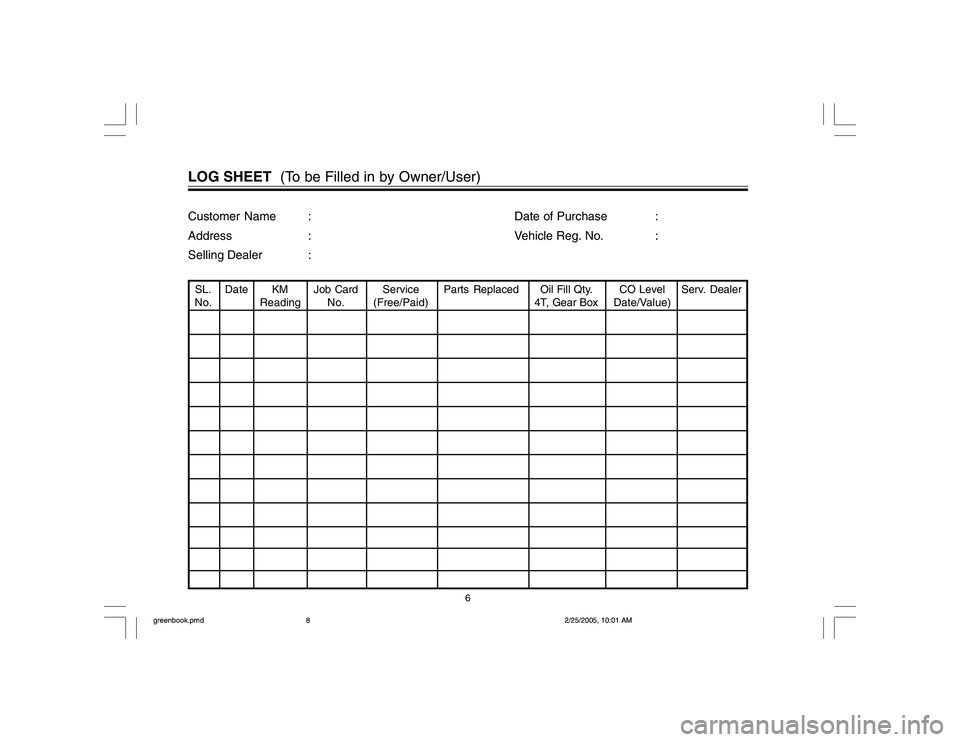

Customer Name : Date of Purchase :
