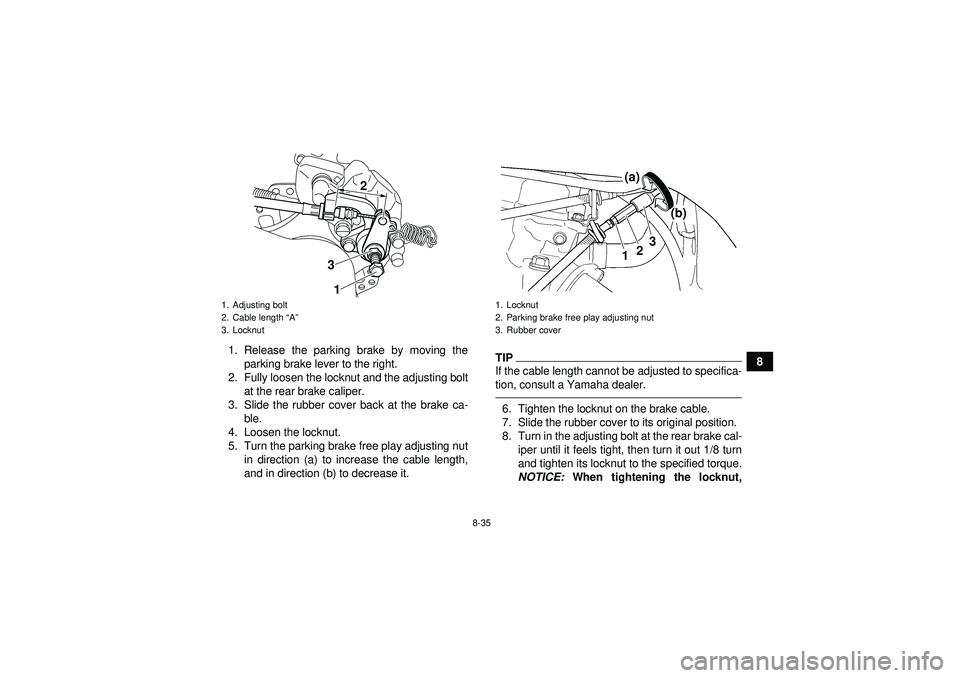

1. Release the parking brake by moving the
parking brake lever to the right.
2. Fully loosen the locknut and the adjusting bolt at the rear brake caliper.
3. Slide the rubber cover back at the brake ca- ble.
4. Loosen the locknut.
5. Turn the parking brake free play adjusting nut in direction (a) to increase the cable length,
and in direction (b) to decrease it.
TIPIf the cable length cannot be adjusted to specifica-
tion, consult a Yamaha dealer.6. Tighten the locknut on the brake cable.
7. Slide the rubber cover to its original position.
8. Turn in the adjusting bolt at the rear brake cal-iper until it feels tight, then turn it out 1/8 turn
and tighten its locknut to the specified torque.
NOTICE: When tightening the locknut,
1. Adjusting bolt
2. Cable length “A”
3. Locknut
1
2
3
1. Locknut
2. Parking brake free play adjusting nut
3. Rubber cover
(a)
(b)
1
2
3
U18P66E0.book Page 35 Monday, May 16, 2011 4:23 PM

8-36
8hold the adjusting bolt with a wrench so
that it does not turn together with the lock-
nut.
[ECB00521]
WARNING
EWB02090Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of the
ATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again.EBU24743Brake light switches The brake light, which is activated by the brake
pedal and brake lever, should come on just before
braking takes effect. The brake light switch for the brake pedal can be
adjusted as follows, but the front brake light switch
should be adjusted by a Yamaha dealer.
Turn the rear brake light switch adjusting nut while
holding the brake light switch in place. To make the
brake light come on earlier, turn the adjusting nut
in direction (a). To make the brake light come on
later, turn the adjusting nut in direction (b).
EBU30152Adjusting the clutch lever free play The clutch lever free play must be checked and, if
necessary, adjusted at the intervals specified in the
periodic maintenance and lubrication chart.
Tightening torque:
Locknut (rear brake caliper):16 Nm (1.6 m ·kgf, 12 ft· lbf)1. Rear brake light switch
2. Rear brake light switch adjusting nut
1
2(a) (b)
U18P66E0.book Page 36 Monday, May 16, 2011 4:23 PM

8-39
8

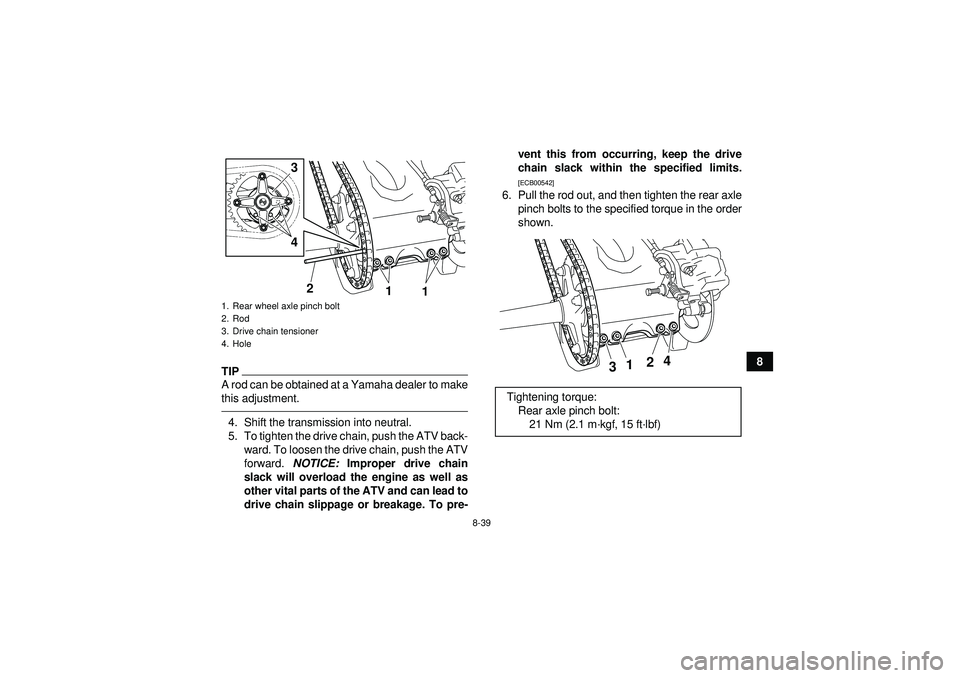

TIPA rod can be obtained at a Yamaha dealer to make
this adjustment.4. Shift the transmission into neutral.
5. To tighten the drive chain, push the ATV back-ward. To loosen the drive chain, push the ATV
forward. NOTICE: Improper drive chain
slack will overload the engine as well as
other vital parts of the ATV and can lead to
drive chain slippage or breakage. To pre- vent this from occurring, keep the drive
chain slack within the specified limits.
[ECB00542]
6. Pull the rod out, and then tighten the rear axle
pinch bolts to the specified torque in the order
shown.
1. Rear wheel axle pinch bolt
2. Rod
3. Drive chain tensioner
4. Hole
3
4
2 11
Tightening torque:
Rear axle pinch bolt:21 Nm (2.1 m ·kgf, 15 ft ·lbf)
3 1 2
4
U18P66E0.book Page 39 Monday, May 16, 2011 4:23 PM

8-51
8
3. Elevate the ATV and place a suitable stand
under the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.

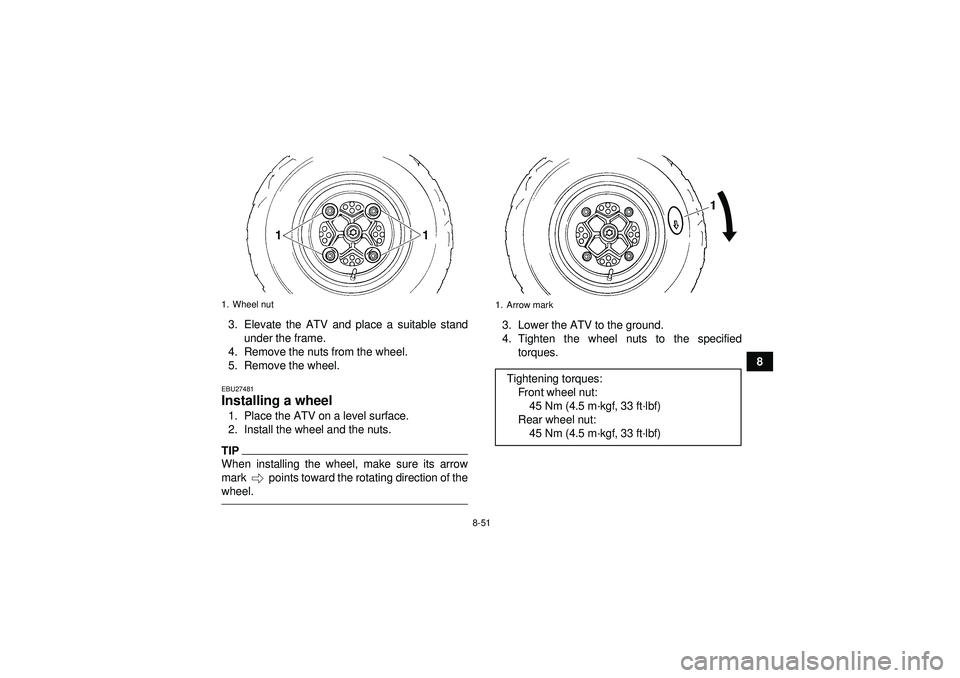

EBU27481Installing a wheel 1. Place the ATV on a level surface.
2. Install the wheel and the nuts.TIPWhen installing the wheel, make sure its arrow
mark points toward the rotating direction of the
wheel.
3. Lower the ATV to the ground.
4. Tighten the wheel nuts to the specified torques.
1. Wheel nut
1. Arrow markTightening torques:Front wheel nut:45 Nm (4.5 m ·kgf, 33 ft ·lbf)
Rear wheel nut: 45 Nm (4.5 m ·kgf, 33 ft ·lbf)
