YAMAHA YZ250F 2007 User Guide
Manufacturer: YAMAHA, Model Year: 2007, Model line: YZ250F, Model: YAMAHA YZ250F 2007Pages: 676, PDF Size: 21.24 MB
Page 11 of 676

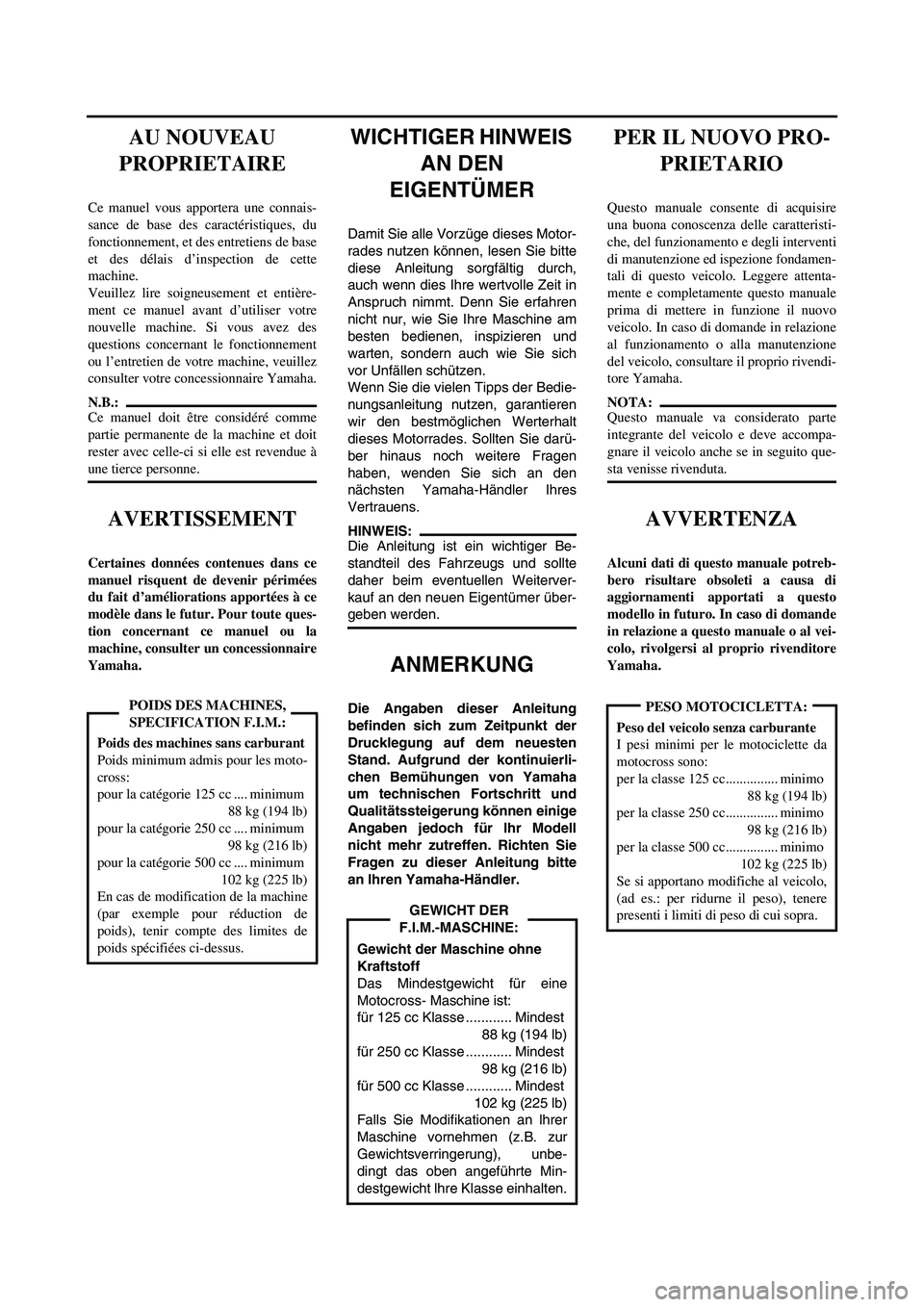

WICHTIGER HINWEIS
AN DEN
EIGENTÜMER
Damit Sie alle Vorzüge dieses Motor-
rades nutzen können, lesen Sie bitte
diese Anleitung sorgfältig durch,
auch wenn dies Ihre wertvolle Zeit in
Anspruch nimmt. Denn Sie erfahren
nicht nur, wie Sie Ihre Maschine am
besten bedienen, inspizieren und
warten, sondern auch wie Sie sich
vor Unfällen schützen.
Wenn Sie die vielen Tipps der Bedie-
nungsanleitung nutzen, garantieren
wir den bestmöglichen Werterhalt
dieses Motorrades. Sollten Sie darü-
ber hinaus noch weitere Fragen
haben, wenden Sie sich an den
nächsten Yamaha-Händler Ihres
Vertrauens.
HINWEIS:
Die Anleitung ist ein wichtiger Be-
standteil des Fahrzeugs und sollte
daher beim eventuellen Weiterver-
kauf an den neuen Eigentümer über-
geben werden.
ANMERKUNG
Die Angaben dieser Anleitung
befinden sich zum Zeitpunkt der
Drucklegung auf dem neuesten
Stand. Aufgrund der kontinuierli-
chen Bemühungen von Yamaha
um technischen Fortschritt und
Qualitätssteigerung können einige
Angaben jedoch für Ihr Modell
nicht mehr zutreffen. Richten Sie
Fragen zu dieser Anleitung bitte
an Ihren Yamaha-Händler.
Gewicht der Maschine ohne
Kraftstoff
Das Mindestgewicht für eine
Motocross- Maschine ist:
für 125 cc Klasse ............ Mindest
88 kg (194 lb)
für 250 cc Klasse ............ Mindest
98 kg (216 lb)
für 500 cc Klasse ............ Mindest
102 kg (225 lb)
Falls Sie Modifikationen an lhrer
Maschine vornehmen (z.B. zur
Gewichtsverringerung), unbe-
dingt das oben angeführte Min-
destgewicht lhre Klasse einhalten.
AU NOUVEAU
PROPRIETAIRE
Ce manuel vous apportera une connais-
sance de base des caractéristiques, du
fonctionnement, et des entretiens de base
et des délais d’inspection de cette
machine.
Veuillez lire soigneusement et entière-
ment ce manuel avant d’utiliser votre
nouvelle machine. Si vous avez des
questions concernant le fonctionnement
ou l’entretien de votre machine, veuillez
consulter votre concessionnaire Yamaha.
N.B.:
Ce manuel doit être considéré comme
partie permanente de la machine et doit
rester avec celle-ci si elle est revendue à
une tierce personne.
AVERTISSEMENT
Certaines données contenues dans ce
manuel risquent de devenir périmées
du fait d’améliorations apportées à ce
modèle dans le futur. Pour toute ques-
tion concernant ce manuel ou la
machine, consulter un concessionnaire
Yamaha.
Poids des machines sans carburant
Poids minimum admis pour les moto-
cross:
pour la catégorie 125 cc .... minimum
88 kg (194 lb)
pour la catégorie 250 cc .... minimum
98 kg (216 lb)
pour la catégorie 500 cc .... minimum
102 kg (225 lb)
En cas de modification de la machine
(par exemple pour réduction de
poids), tenir compte des limites de
poids spécifiées ci-dessus.
POIDS DES MACHINES,
SPECIFICATION F.I.M.:
GEWICHT DER
F.I.M.-MASCHINE:
PER IL NUOVO PRO-
PRIETARIO
Questo manuale consente di acquisire
una buona conoscenza delle caratteristi-
che, del funzionamento e degli interventi
di manutenzione ed ispezione fondamen-
tali di questo veicolo. Leggere attenta-
mente e completamente questo manuale
prima di mettere in funzione il nuovo
veicolo. In caso di domande in relazione
al funzionamento o alla manutenzione
del veicolo, consultare il proprio rivendi-
tore Yamaha.
NOTA:
Questo manuale va considerato parte
integrante del veicolo e deve accompa-
gnare il veicolo anche se in seguito que-
sta venisse rivenduta.
AVVERTENZA
Alcuni dati di questo manuale potreb-
bero risultare obsoleti a causa di
aggiornamenti apportati a questo
modello in futuro. In caso di domande
in relazione a questo manuale o al vei-
colo, rivolgersi al proprio rivenditore
Yamaha.
Peso del veicolo senza carburante
I pesi minimi per le motociclette da
motocross sono:
per la classe 125 cc............... minimo
88 kg (194 lb)
per la classe 250 cc............... minimo
98 kg (216 lb)
per la classe 500 cc............... minimo
102 kg (225 lb)
Se si apportano modifiche al veicolo,
(ad es.: per ridurne il peso), tenere
presenti i limiti di peso di cui sopra.
PESO MOTOCICLETTA:
Page 12 of 676
EC080000

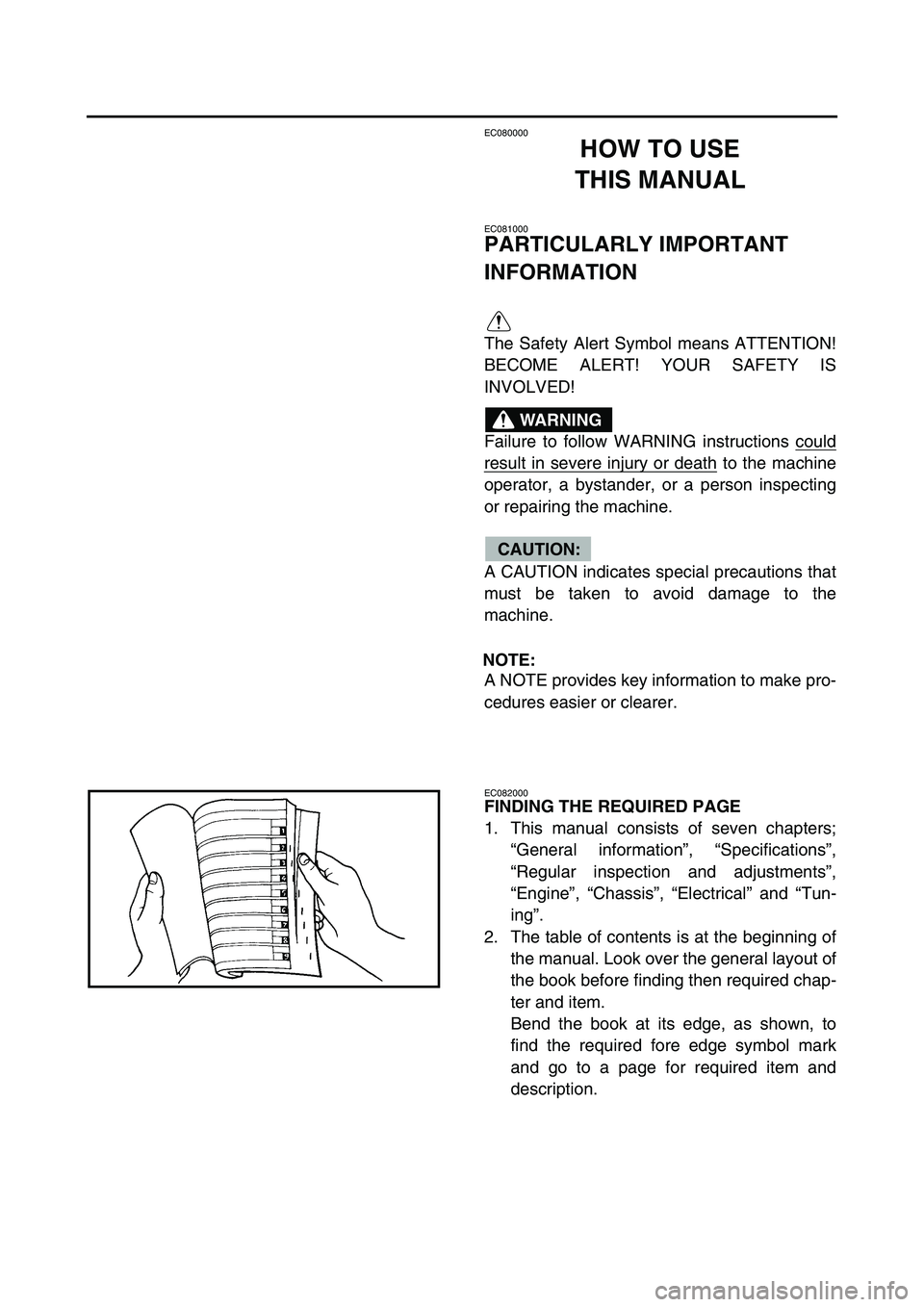

HOW TO USE
THIS MANUAL
EC081000
PARTICULARLY IMPORTANT
INFORMATION
The Safety Alert Symbol means ATTENTION!
BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could
result in severe injury or death to the machine
operator, a bystander, or a person inspecting
or repairing the machine.
A CAUTION indicates special precautions that
must be taken to avoid damage to the
machine.
NOTE:
A NOTE provides key information to make pro-
cedures easier or clearer.
WA R N I N G
CAUTION:
EC082000
FINDING THE REQUIRED PAGE
1. This manual consists of seven chapters;
“General information”, “Specifications”,
“Regular inspection and adjustments”,
“Engine”, “Chassis”, “Electrical” and “Tun-
ing”.
2. The table of contents is at the beginning of
the manual. Look over the general layout of
the book before finding then required chap-
ter and item.
Bend the book at its edge, as shown, to
find the required fore edge symbol mark
and go to a page for required item and
description.
Page 13 of 676

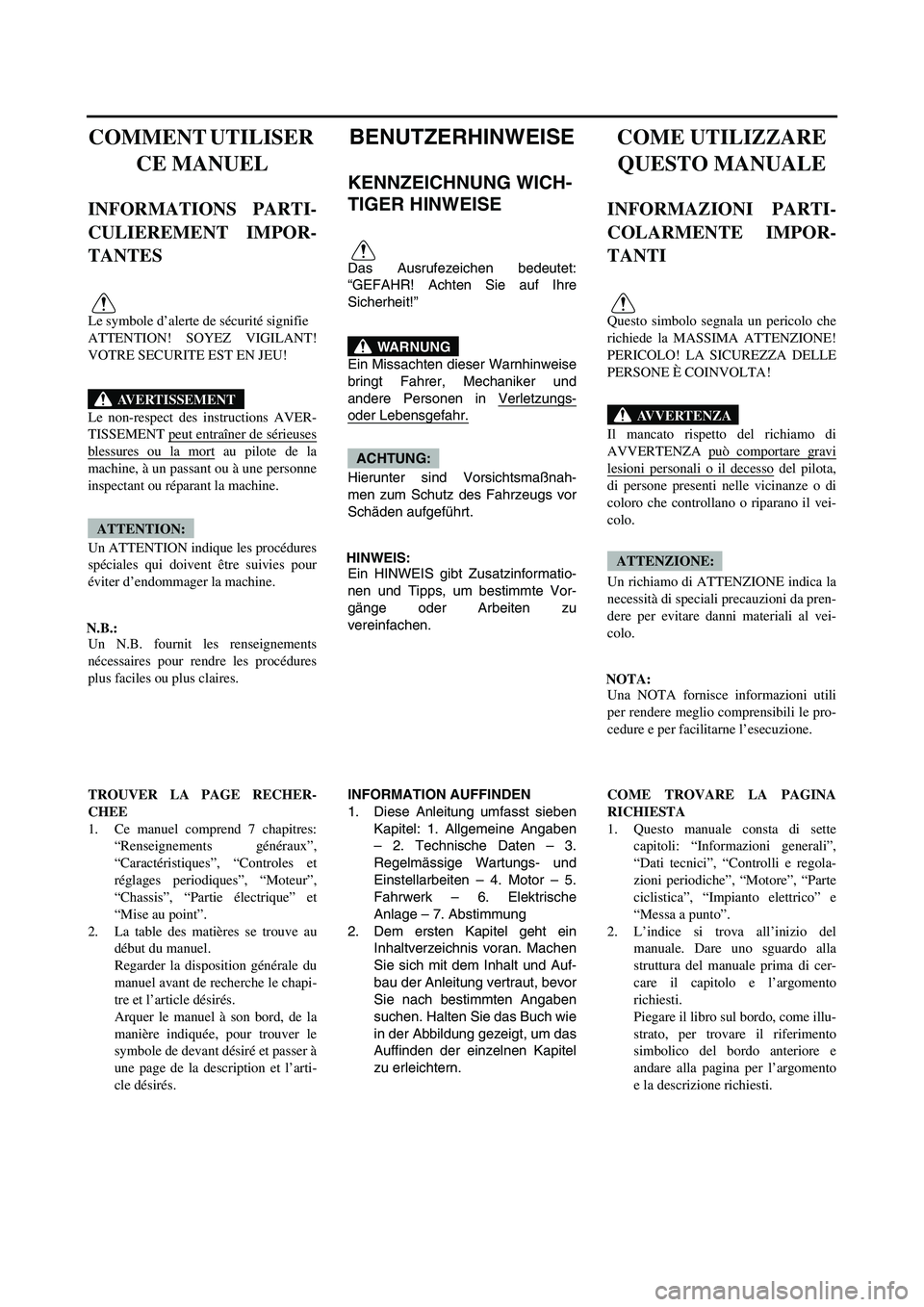

COMMENT UTILISER
CE MANUEL
INFORMATIONS PARTI-
CULIEREMENT IMPOR-
TANTES
Le symbole d’alerte de sécurité signifie
ATTENTION! SOYEZ VIGILANT!
VOTRE SECURITE EST EN JEU!
Le non-respect des instructions AVER-
TISSEMENT peut entraîner de sérieuses
blessures ou la mort au pilote de la
machine, à un passant ou à une personne
inspectant ou réparant la machine.
Un ATTENTION indique les procédures
spéciales qui doivent être suivies pour
éviter d’endommager la machine.
N.B.:
Un N.B. fournit les renseignements
nécessaires pour rendre les procédures
plus faciles ou plus claires.
AVERTISSEMENT
ATTENTION:
TROUVER LA PAGE RECHER-
CHEE
1. Ce manuel comprend 7 chapitres:
“Renseignements généraux”,
“Caractéristiques”, “Controles et
réglages periodiques”, “Moteur”,
“Chassis”, “Partie électrique” et
“Mise au point”.
2. La table des matières se trouve au
début du manuel.
Regarder la disposition générale du
manuel avant de recherche le chapi-
tre et l’article désirés.
Arquer le manuel à son bord, de la
manière indiquée, pour trouver le
symbole de devant désiré et passer à
une page de la description et l’arti-
cle désirés.
BENUTZERHINWEISE
KENNZEICHNUNG WICH-
TIGER HINWEISE
Das Ausrufezeichen bedeutet:
“GEFAHR! Achten Sie auf Ihre
Sicherheit!”
Ein Missachten dieser Warnhinweise
bringt Fahrer, Mechaniker und
andere Personen in Verletzungs-
oder Lebensgefahr.
Hierunter sind Vorsichtsmaßnah-
men zum Schutz des Fahrzeugs vor
Schäden aufgeführt.
HINWEIS:
Ein HINWEIS gibt Zusatzinformatio-
nen und Tipps, um bestimmte Vor-
gänge oder Arbeiten zu
vereinfachen.
WARNUNG
ACHTUNG:
INFORMATION AUFFINDEN
1. Diese Anleitung umfasst sieben
Kapitel: 1. Allgemeine Angaben
– 2. Technische Daten – 3.
Regelmässige Wartungs- und
Einstellarbeiten – 4. Motor – 5.
Fahrwerk – 6. Elektrische
Anlage – 7. Abstimmung
2. Dem ersten Kapitel geht ein
Inhaltverzeichnis voran. Machen
Sie sich mit dem Inhalt und Auf-
bau der Anleitung vertraut, bevor
Sie nach bestimmten Angaben
suchen. Halten Sie das Buch wie
in der Abbildung gezeigt, um das
Auffinden der einzelnen Kapitel
zu erleichtern.
COME UTILIZZARE
QUESTO MANUALE
INFORMAZIONI PARTI-
COLARMENTE IMPOR-
TANTI
Questo simbolo segnala un pericolo che
richiede la MASSIMA ATTENZIONE!
PERICOLO! LA SICUREZZA DELLE
PERSONE È COINVOLTA!
Il mancato rispetto del richiamo di
AVVERTENZA può comportare gravi
lesioni personali o il decesso del pilota,
di persone presenti nelle vicinanze o di
coloro che controllano o riparano il vei-
colo.
Un richiamo di ATTENZIONE indica la
necessità di speciali precauzioni da pren-
dere per evitare danni materiali al vei-
colo.
NOTA:
Una NOTA fornisce informazioni utili
per rendere meglio comprensibili le pro-
cedure e per facilitarne l’esecuzione.
AVVERTENZA
ATTENZIONE:
COME TROVARE LA PAGINA
RICHIESTA
1. Questo manuale consta di sette
capitoli: “Informazioni generali”,
“Dati tecnici”, “Controlli e regola-
zioni periodiche”, “Motore”, “Parte
ciclistica”, “Impianto elettrico” e
“Messa a punto”.
2. L’indice si trova all’inizio del
manuale. Dare uno sguardo alla
struttura del manuale prima di cer-
care il capitolo e l’argomento
richiesti.
Piegare il libro sul bordo, come illu-
strato, per trovare il riferimento
simbolico del bordo anteriore e
andare alla pagina per l’argomento
e la descrizione richiesti.
Page 14 of 676
EC083000

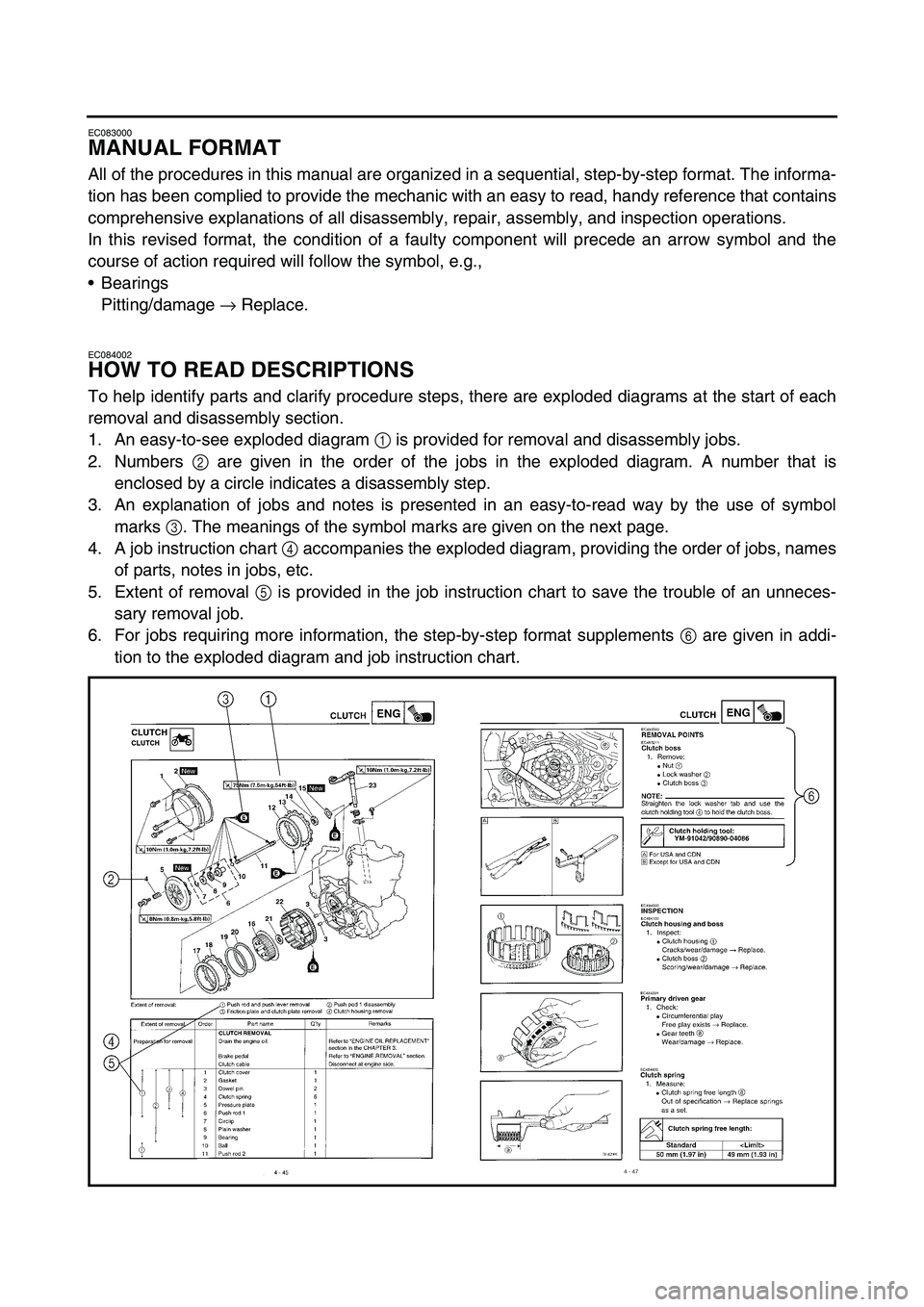

MANUAL FORMAT
All of the procedures in this manual are organized in a sequential, step-by-step format. The informa-
tion has been complied to provide the mechanic with an easy to read, handy reference that contains
comprehensive explanations of all disassembly, repair, assembly, and inspection operations.
In this revised format, the condition of a faulty component will precede an arrow symbol and the
course of action required will follow the symbol, e.g.,
Bearings
Pitting/damage →
Replace.
EC084002
HOW TO READ DESCRIPTIONS
To help identify parts and clarify procedure steps, there are exploded diagrams at the start of each
removal and disassembly section.
1. An easy-to-see exploded diagram 1
is provided for removal and disassembly jobs.
2. Numbers 2
are given in the order of the jobs in the exploded diagram. A number that is
enclosed by a circle indicates a disassembly step.
3. An explanation of jobs and notes is presented in an easy-to-read way by the use of symbol
marks 3

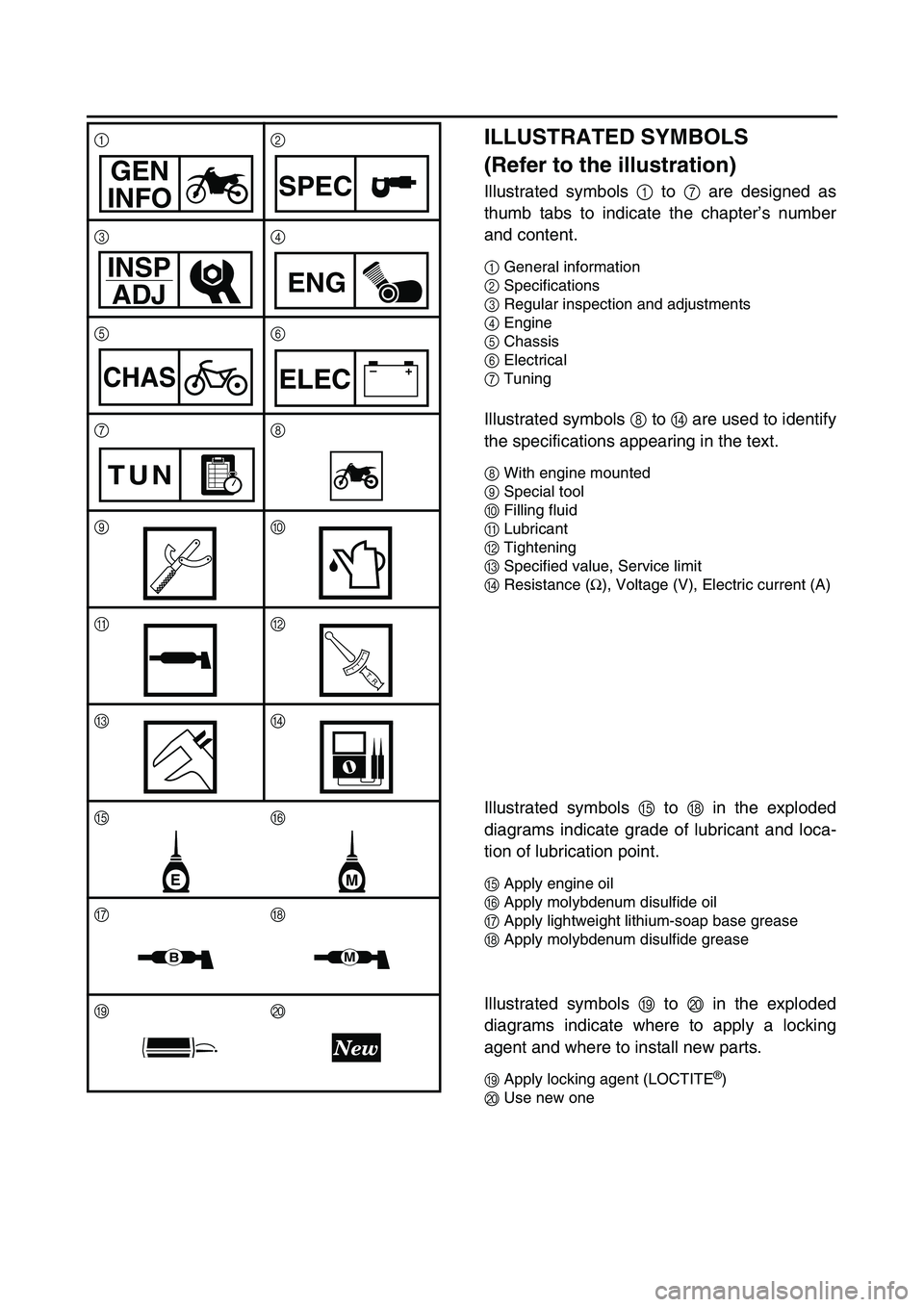

. The meanings of the symbol marks are given on the next page.
4. A job instruction chart 4
accompanies the exploded diagram, providing the order of jobs, names
of parts, notes in jobs, etc.
5. Extent of removal 5
is provided in the job instruction chart to save the trouble of an unneces-
sary removal job.
6. For jobs requiring more information, the step-by-step format supplements 6
are given in addi-
tion to the exploded diagram and job instruction chart.
Page 15 of 676

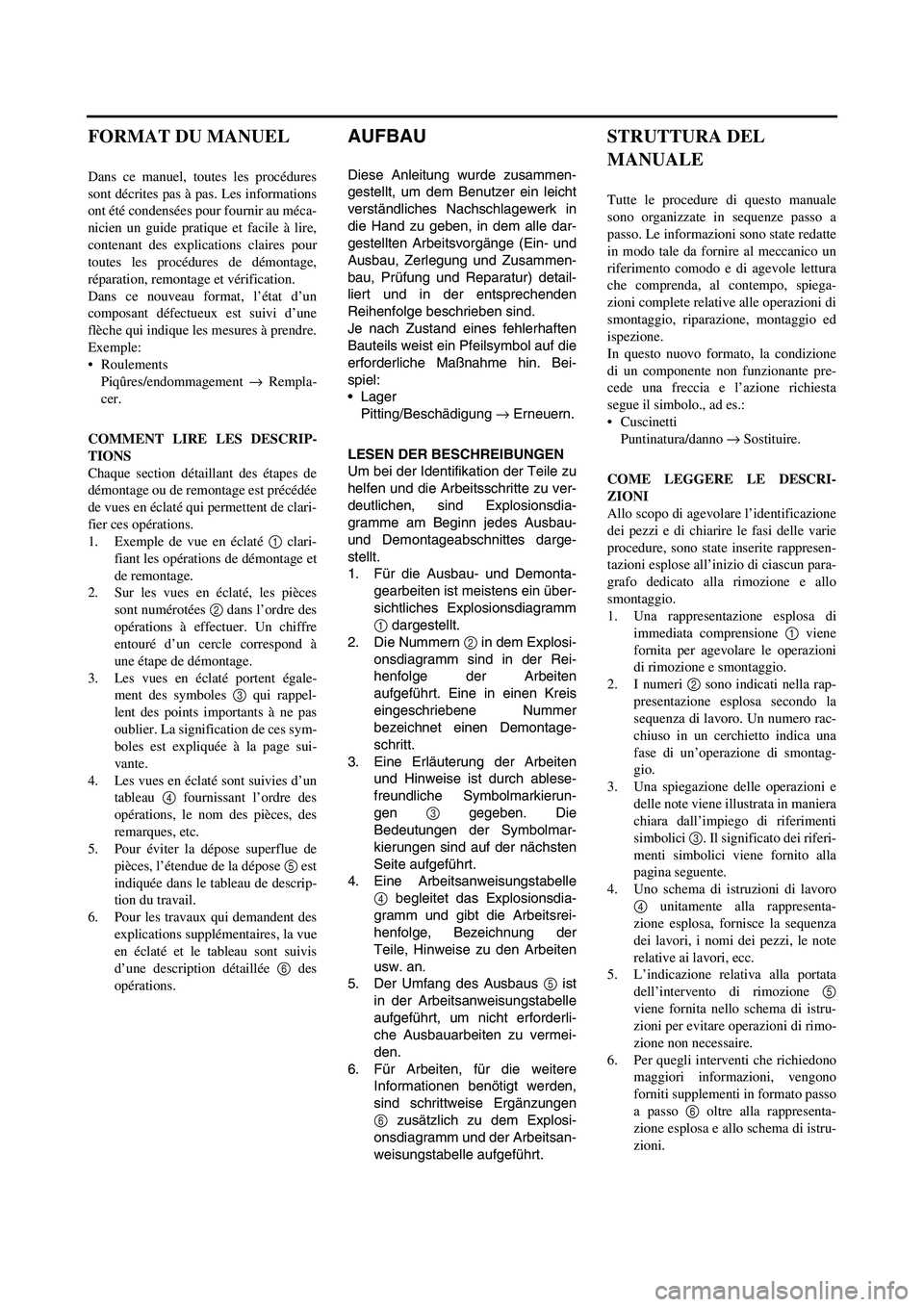

AUFBAU
Diese Anleitung wurde zusammen-
gestellt, um dem Benutzer ein leicht
verständliches Nachschlagewerk in
die Hand zu geben, in dem alle dar-
gestellten Arbeitsvorgänge (Ein- und
Ausbau, Zerlegung und Zusammen-
bau, Prüfung und Reparatur) detail-
liert und in der entsprechenden
Reihenfolge beschrieben sind.
Je nach Zustand eines fehlerhaften
Bauteils weist ein Pfeilsymbol auf die
erforderliche Maßnahme hin. Bei-
spiel:
Lager
Pitting/Beschädigung → Erneuern.
LESEN DER BESCHREIBUNGEN
Um bei der Identifikation der Teile zu
helfen und die Arbeitsschritte zu ver-
deutlichen, sind Explosionsdia-
gramme am Beginn jedes Ausbau-
und Demontageabschnittes darge-
stellt.
1. Für die Ausbau- und Demonta-
gearbeiten ist meistens ein über-
sichtliches Explosionsdiagramm
1 dargestellt.
2. Die Nummern 2 in dem Explosi-
onsdiagramm sind in der Rei-
henfolge der Arbeiten
aufgeführt. Eine in einen Kreis
eingeschriebene Nummer
bezeichnet einen Demontage-
schritt.
3. Eine Erläuterung der Arbeiten
und Hinweise ist durch ablese-
freundliche Symbolmarkierun-
gen 3 gegeben. Die
Bedeutungen der Symbolmar-
kierungen sind auf der nächsten
Seite aufgeführt.
4. Eine Arbeitsanweisungstabelle
4 begleitet das Explosionsdia-
gramm und gibt die Arbeitsrei-
henfolge, Bezeichnung der
Teile, Hinweise zu den Arbeiten
usw. an.
5. Der Umfang des Ausbaus 5 ist
in der Arbeitsanweisungstabelle
aufgeführt, um nicht erforderli-
che Ausbauarbeiten zu vermei-
den.
6. Für Arbeiten, für die weitere
Informationen benötigt werden,
sind schrittweise Ergänzungen
6 zusätzlich zu dem Explosi-
onsdiagramm und der Arbeitsan-
weisungstabelle aufgeführt.
FORMAT DU MANUEL
Dans ce manuel, toutes les procédures
sont décrites pas à pas. Les informations
ont été condensées pour fournir au méca-
nicien un guide pratique et facile à lire,
contenant des explications claires pour
toutes les procédures de démontage,
réparation, remontage et vérification.
Dans ce nouveau format, l’état d’un
composant défectueux est suivi d’une
flèche qui indique les mesures à prendre.
Exemple:
Roulements
Piqûres/endommagement → Rempla-
cer.
COMMENT LIRE LES DESCRIP-
TIONS
Chaque section détaillant des étapes de
démontage ou de remontage est précédée
de vues en éclaté qui permettent de clari-
fier ces opérations.
1. Exemple de vue en éclaté 1 clari-
fiant les opérations de démontage et
de remontage.
2. Sur les vues en éclaté, les pièces
sont numérotées 2 dans l’ordre des
opérations à effectuer. Un chiffre
entouré d’un cercle correspond à
une étape de démontage.
3. Les vues en éclaté portent égale-
ment des symboles 3 qui rappel-
lent des points importants à ne pas
oublier. La signification de ces sym-
boles est expliquée à la page sui-
vante.
4. Les vues en éclaté sont suivies d’un
tableau 4 fournissant l’ordre des
opérations, le nom des pièces, des
remarques, etc.
5. Pour éviter la dépose superflue de
pièces, l’étendue de la dépose 5 est
indiquée dans le tableau de descrip-
tion du travail.
6. Pour les travaux qui demandent des
explications supplémentaires, la vue
en éclaté et le tableau sont suivis
d’une description détaillée 6 des
opérations.
STRUTTURA DEL
MANUALE
Tutte le procedure di questo manuale
sono organizzate in sequenze passo a
passo. Le informazioni sono state redatte
in modo tale da fornire al meccanico un
riferimento comodo e di agevole lettura
che comprenda, al contempo, spiega-
zioni complete relative alle operazioni di
smontaggio, riparazione, montaggio ed
ispezione.
In questo nuovo formato, la condizione
di un componente non funzionante pre-
cede una freccia e l’azione richiesta
segue il simbolo., ad es.:
Cuscinetti
Puntinatura/danno → Sostituire.
COME LEGGERE LE DESCRI-
ZIONI
Allo scopo di agevolare l’identificazione
dei pezzi e di chiarire le fasi delle varie
procedure, sono state inserite rappresen-
tazioni esplose all’inizio di ciascun para-
grafo dedicato alla rimozione e allo
smontaggio.
1. Una rappresentazione esplosa di
immediata comprensione 1 viene
fornita per agevolare le operazioni
di rimozione e smontaggio.
2. I numeri 2 sono indicati nella rap-
presentazione esplosa secondo la
sequenza di lavoro. Un numero rac-
chiuso in un cerchietto indica una
fase di un’operazione di smontag-
gio.
3. Una spiegazione delle operazioni e
delle note viene illustrata in maniera
chiara dall’impiego di riferimenti
simbolici 3. Il significato dei riferi-
menti simbolici viene fornito alla
pagina seguente.
4. Uno schema di istruzioni di lavoro
4 unitamente alla rappresenta-
zione esplosa, fornisce la sequenza
dei lavori, i nomi dei pezzi, le note
relative ai lavori, ecc.
5. L’indicazione relativa alla portata
dell’intervento di rimozione 5
viene fornita nello schema di istru-
zioni per evitare operazioni di rimo-
zione non necessaire.
6. Per quegli interventi che richiedono
maggiori informazioni, vengono
forniti supplementi in formato passo
a passo 6 oltre alla rappresenta-
zione esplosa e allo schema di istru-
zioni.
Page 16 of 676
ILLUSTRATED SYMBOLS
(Refer to the illustration)
Illustrated symbols 1 to 7 are designed as
thumb tabs to indicate the chapter’s number
and content.
1General information
2Specifications
3Regular inspection and adjustments
4Engine
5Chassis
6Electrical
7Tuning
Illustrated symbols 8 to D are used to identify
the specifications appearing in the text.
8With engine mounted
9Special tool
0Filling fluid
ALubricant
BTightening
CSpecified value, Service limit
DResistance (
Ω), Voltage (V), Electric current (A)
Illustrated symbols E to H in the exploded
diagrams indicate grade of lubricant and loca-
tion of lubrication point.
EApply engine oil
FApply molybdenum disulfide oil
GApply lightweight lithium-soap base grease
HApply molybdenum disulfide grease
Illustrated symbols I to J in the exploded
diagrams indicate where to apply a locking
agent and where to install new parts.
IApply locking agent (LOCTITE®)
JUse new one 12
34
56
78
90
AB
CD
EF
GH
IJ
GEN
INFOSPEC
INSP
ADJ
ENG
CHAS–+ELEC
TUN
T R..
EM
BM
Page 17 of 676
ABGEBILDETEN SYM-
BOL
(Siehe Abbildung)
Die unter 1 bis 7 abgebildeten
Symbole weisen auf die Themen der
einzelnen Kapitel hin.
1Allgemeine Angaben
2Technische Daten
3Regelmässige Wartungs- und Einstel-
larbeiten
4Motor
5Fahrwerk
6Elektrische Anlage
7Abstimmung
Die Symbole 8 bis D weisen auf
wichtige Angaben im Text hin.
8Wartung mit montiertem Motor mög-
lich
9Spezialwerkzeug
0Art und Menge einzufüllender Flüssig-
keiten
ASchmiermittel
BAnzugsmoment
CVerschleißgrenzen, Toleranzen
DElektrische Sollwerte
Die Symbole E bis H werden in den
Explosionszeichnungen verwendet
und weisen auf Schmier- und Klebe-
mittel sowie die entsprechenden
Stellen hin.
EMotoröl
FMolybdändisulfidöl
GLeichtes Lithiumfett
HMolybdändisulfidfett
Die Symbole I und J werden eben-
falls in den Explosionszeichnungen
verwendet.
IKlebemittel (LOCTITE®)
JNeues Bauteil verwenden
SYMBOLES GRAPHI-
QUES
(Voir l’illustration)
Les symboles graphiques 1 à 7 servent
à repérer les différents chapitres et à
indiquer leur contenu.
1
Renseignements généraux
2
Caractéristiques
3
Controles et réglages periodiques
4
Moteur
5
Chassis
6
Partie électrique
7
Mise au point
Les symboles graphiques 8 à D per-
mettent d’identifier les spécifications
encadrées dans le texte.
8
Avec de montage du moteur
9
Outil spécial
0
Liquide de remplissage
A
Lubrifiant
B
Serrage
C
Valeur spécifiée, limite de service
D
Résistance (Ω
), tension (V), intensité (A)
Les symboles graphiques E à H utilisés
dans les vues en éclaté indiquent les
endroit à lubrifier et le type de lubrifiant.
E
Appliquer de l’huile moteur
F
Appliquer de l’huile au bisulfure de moly-
bdène
G
Appliquer de la graisse fluide à base de
savon au lithium
H
Appliquer de la graisse au bisulfure de
molybdène
Les symboles graphiques I à J dans
les vues en éclaté indiquent le produit de
blocage à appliquer et les pièces qui
nécessitent un remplacement.
I
Appliquer un agent de blocage (LOC-
TITE®)
J
Utiliser une pièce neuve.
SIMBOLI ILLUSTRATI
(Fare riferimento all’illu-
strazione)
I simboli illustrati da 1 a 7 vengono
realizzati come linguette per indicare il
numero del capitolo ed il suo contenuto.
1
Informazioni generali
2
Dati tecnici
3
Controlli e regolazioni periodiche
4
Motore
5
Parte ciclistica
6
Impianto elettrico
7
Messa a punto
I simboli illustrati da 8 a D vengono
impiegati per identificare le specifiche
che compaiono nel testo.
8
A motore montato
9
Utensile speciale
0
Fluido
A
Lubrificante
B
Serraggio
C
Valore specificato, limite
D
Resistenza (Ω
), Tensione (V), Corrente
elettrica (A)
I simboli illustrati da E a H nella rap-
presentazione esplosa indicano il tipo di
lubrificante e l’ubicazione dei punti di
lubrificazione.
E
Impiegare olio motore
F
Impiegare olio di bisolfuro molibdeno
G
Impiegare grasso a base di sapone di litio
leggero
H
Impiegare grasso di bisolfuro di molib-
deno
I simboli illustrati da I a J nella rap-
presentazione esplosa indicano dove
applicare un agente bloccante e dove
installare i nuovi pezzi.
I
Applicare un agente bloccante (LOC-
TITE®)
J
Usare un pezzo nuovo
Page 18 of 676
EC090010
INDEX
GENERAL INFORMATION
SPECIFICATIONS
REGULAR INSPECTION AND ADJUSTMENTS
ENGINE
CHASSIS
ELECTRICAL
TUNING
Page 19 of 676
INDICE
INFORMAZIONI
GENERALI
1
DATI TECNICI
SPEC2
CONTROLLI E
REGOLAZIONI
PERIODICHE
3
MOTORE
ENG4
PARTE CICLISTICA
CHAS5
IMPIANTO
ELETTRICO
ELEC6
MESSA A PUNTO
TUN7
GEN
INFO
INSP
ADJ
–+
INDEX
RENSEIGNEMENTS
GENERAUX
CARACTERISTI-
QUES
CONTROLES ET
REGLAGES
PERIODIQUES
MOTEUR
CHASSIS
PARTIE
ELECTRIQUE
MISE AU POINT
INDEX
ALLGEMEINE
ANGABEN
TECHNISCHE
DATEN
REGELMÄSSIGE
WARTUNGS- UND
EINSTELLARBEITEN
MOTOR
FAHRWERK
ELEKTRISCHE
ANLAGE
ABSTIMMUNG
Page 20 of 676
EC0A0000
CONTENTS
CHAPTER 1
GENERAL INFORMATION
DESCRIPTION
............................................1-1
MACHINE IDENTIFICATION
......................1-2
IMPORTANT INFORMATION
.....................1-3
CHECKING OF CONNECTION
..................1-6
SPECIAL TOOLS
.......................................1-7
CONTROL FUNCTIONS
...........................1-10
FUEL
.........................................................1-13
STARTING AND BREAK-IN
.....................1-14
TORQUE-CHECK POINTS
.......................1-18
CLEANING AND STORAGE
....................1-19
CHAPTER 2
SPECIFICATIONS
GENERAL SPECIFICATIONS
....................2-1
MAINTENANCE SPECIFICATIONS
...........2-4
GENERAL TORQUE
SPECIFICATIONS
....................................2-17
DEFINITION OF UNITS
............................2-17
LUBRICATION DIAGRAMS
.....................2-18
CABLE ROUTING DIAGRAM
..................2-20
CHAPTER 3
REGULAR INSPECTION AND
ADJUSTMENTS
MAINTENANCE INTERVALS
....................3-1
PRE-OPERATION INSPECTION
AND MAINTENANCE
.................................3-4
ENGINE
.......................................................3-5
CHASSIS
..................................................3-23
ELECTRICAL
............................................3-45
