YAMAHA YZ450F 2008 Service Manual

2-19
CABLE ROUTING DIAGRAM
E. Pass the clutch cable in front of
the radiator mounting boss.
F. Install the connector cover so
that it does not come in between
the radiator hose 1 and radiator.
G. Pass the fuel hose between the
hot starter cable and throttle po-
sition sensor lead.
H. Pass the carburetor breather
hoses and overflow hose so that
all there hoses do not contact
the rear shock absorber.

2-20
CABLE ROUTING DIAGRAM
1. Hot starter cable
2. Clamp
3. Throttle position sensor lead
4. Hump (frame)
5. Neutral switch lead
6. Engine bracket
7. Lower engine guard stay
8. CDI magneto lead
9. Clutch cable
10. Radiator breather hose
11. Radiator hose 212. Engine stop switch lead
13. Sub-wire harness
14. Ground lead
15. CDI unit bracket
16. CDI unit
17. Cable guide
18. Ignition coil lead
19. Throttle cableA. Fasten the hot starter cable and
throttle cables onto the frame.
Locate the clamp ends under
the hot starter cable.
B. Fasten the hot starter cable,
throttle cables, throttle position
sensor lead and ignition coil lead
to the frame.
C. Pass the throttle position sensor
lead over the hot starter cable.

2-21
CABLE ROUTING DIAGRAM
D. Fasten the throttle position sen-
sor lead to the frame behind its
hump.
E. Pass the neutral switch lead on
the inside of the engine bracket.
F. Pass the neutral switch lead
over the lower engine guard
stay.
G. Fasten the neutral switch lead
and radiator breather hose to
the frame.
H. Fasten the neutral switch lead,
CDI magneto lead and radiator
breather hose to the frame.
I. Fasten the neutral switch lead,
CDI magneto lead, radiator
breather hose and clutch cable
to the frame over the radiator
mounting boss.
J. Pass the radiator breather hose
in front of the radiator hose 2, on
the left of the chassis, and then
between the frame and radiator
hose 4.
K. Fasten the sub-wire harness,
engine stop switch lead and
ground lead to the CDI unit
bracket at the position-taped
portion of the sub-wire harness
and with the clamp ends facing
downward.
L. Fasten the ground lead and ca-
ble guide together to the CDI
unit bracket.
M. Locate the clamp ends in the ar-
rowed range.
N. Fasten the neutral switch lead
and CDI magneto lead to the
frame over its hump.

2-22
CABLE ROUTING DIAGRAM
1. Throttle cable (pull)
2. Throttle cable (return)
3. Radiator hose 2
4. Ignition coil
5. Rear arm bracket
6. Cylinder head breather hose
A. Pass the throttle cables over the
radiator hose 2.
B. Pass the throttle cables on the
outside of the ignition coil.C. Fasten the throttle cables with
the clamp so that the cables are
not bent, and pass them under
the rear arm bracket.
D. Pass the cylinder head breather
hose so that it does not contact
the ignition coil.

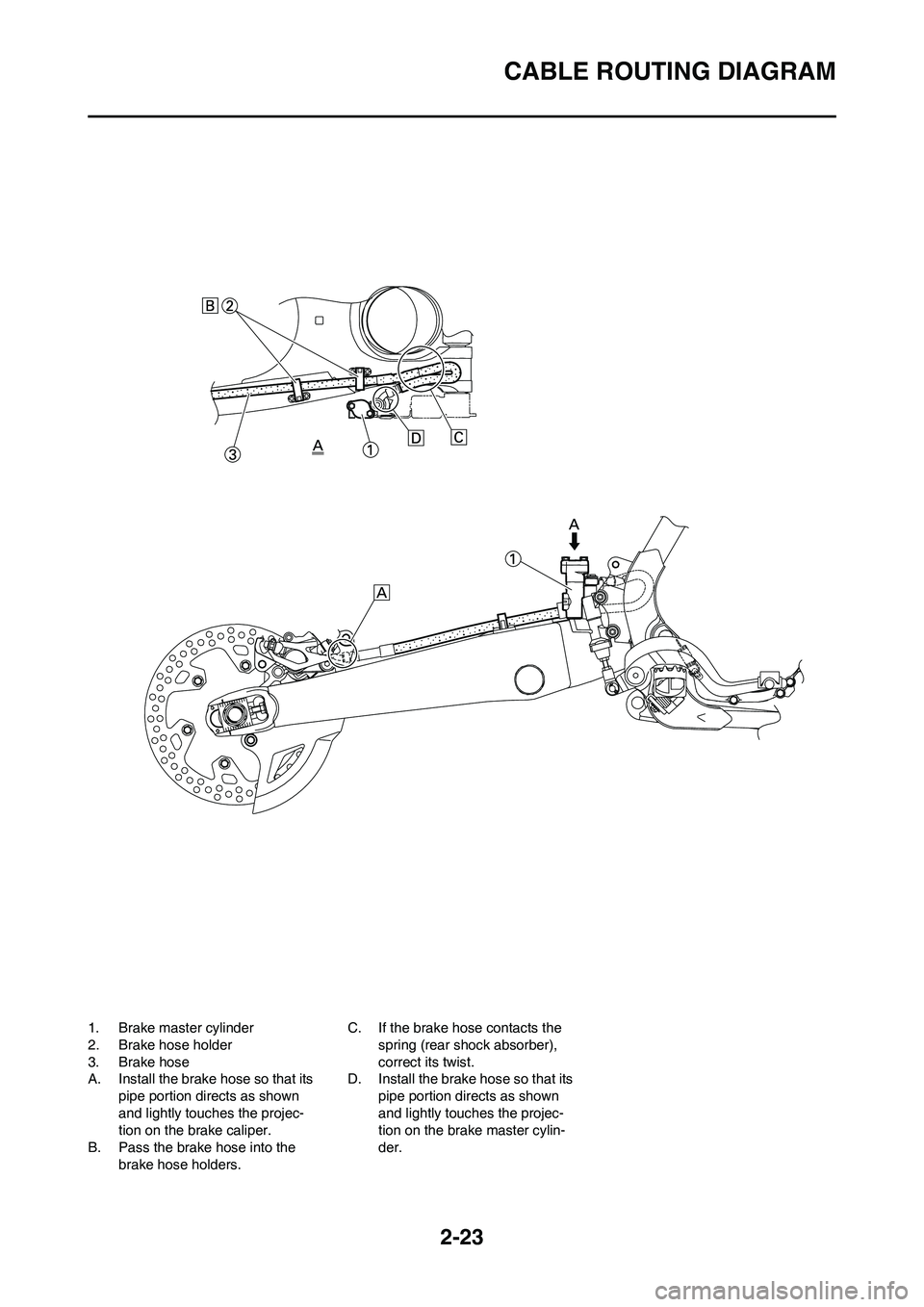

2-23
CABLE ROUTING DIAGRAM
1. Brake master cylinder
2. Brake hose holder
3. Brake hose
A. Install the brake hose so that its
pipe portion directs as shown
and lightly touches the projec-
tion on the brake caliper.
B. Pass the brake hose into the
brake hose holders.C. If the brake hose contacts the
spring (rear shock absorber),
correct its twist.
D. Install the brake hose so that its
pipe portion directs as shown
and lightly touches the projec-
tion on the brake master cylin-
der.

2-24
CABLE ROUTING DIAGRAM
1. Throttle cable
2. Clamp
3. Hot starter cable
4. Clutch cable
5. Engine stop switch lead
6. Cable guide
7. Brake hose
8. Hose guide
A. Fasten the engine stop switch
lead to the handlebar.B. Pass the clutch cable and hot
starter cable through the cable
guide.
C. Pass the brake hose in front of
the number plate.
D. Pass the throttle cables through
the cable guide.
E. Pass the clutch cable and hot
starter cable through the cable
guide on the number plate.

3-1
MAINTENANCE INTERVALS
REGULAR INSPECTION AND ADJUSTMENTS
MAINTENANCE INTERVALS
The following schedule is intended as a general guide to maintenance and lubrication. Bear in mind that such factors as
weather, terrain, geographical location, and individual usage will alter the required maintenance and lubrication intervals. If
you are a doubt as to what intervals to follow in maintaining and lubricating your machine, consult your Yamaha dealer.
ItemAfter
break-
inEvery
race
Every
third
(or 500
km)Every
fifth (or
1,000
km)
As re-
quiredRemarks
ENGINE OIL
Replace
●●
VALVES
Check the valve clearances
●●The engine must be cold.
Inspect
●Check the valve seats and valve
stems for wear.
Replace
●
VALVE SPRINGS
Inspect
●Check the free length and the tilt.
Replace
●
VALVE LIFTERS
Inspect
●Check for scratches and wear.
Replace
●
CAMSHAFTS Inspect the camshaft surface.
Inspect
●Inspect the decompression system.
Replace
●
CAMSHAFT SPROCKETS
Inspect
●Check for wear on the teeth and for
damage.
Replace
●
PISTON
Inspect
●●Inspect crack.
Clean
●Inspect carbon deposits and eliminate
them.
Replace
●
PISTON RING
Inspect
●Check ring end gap.
Replace
●●
PISTON PIN
Inspect
●
Replace●
CYLINDER HEAD Inspect carbon deposits and eliminate
them.
Inspect and clean
●Change gasket.
CYLINDER
Inspect and clean
●Inspect score marks.
Replace
●Inspect wear.
CLUTCH
Inspect and adjust
●●Inspect housing, friction plate, clutch
plate and spring.
3

3-2
MAINTENANCE INTERVALS
Replace●
TRANSMISSION
Inspect
●
Replace bearing●
SHIFT FORK, SHIFT CAM,
GUIDE BAR
Inspect
●Inspect wear.
ROTOR NUT
Retighten
●●
EXHAUST PIPE, SILENCER,
PROTECTOR
Inspect and retighten
●●
Clean●
Replace●* Whichever comes first
CRANK
Inspect and clean
●●
CARBURETOR
Inspect, adjust and clean
●●
SPARK PLUG
Inspect and clean
●●
Replace●
DRIVE CHAIN Use chain lube.
Lubricate, slack, alignment
●●Chain slack: 48–58 mm (1.9–2.3 in)
Replace
●
COOLING SYSTEM
Check coolant level and leakage
●●
Check radiator cap operation●
Replace coolant●Every two years
Inspect hoses
●
OUTSIDE NUTS AND BOLTS
Retighten
●●Refer to "STARTING AND BREAK-
IN" section in the CHAPTER 1.
AIR FILTER
Clean and lubricate
●●Use foam air-filter oil or equivalent oil.
Replace
●
OIL FILTER
Replace
●●
FRAME
Clean and inspect
●●
FUEL TANK, COCK
Clean and inspect
●●
BRAKES
Adjust lever position and pedal
height
●●
ItemAfter
break-
inEvery
race
Every
third
(or 500
km)Every
fifth (or
1,000
km)
As re-
quiredRemarks

3-3

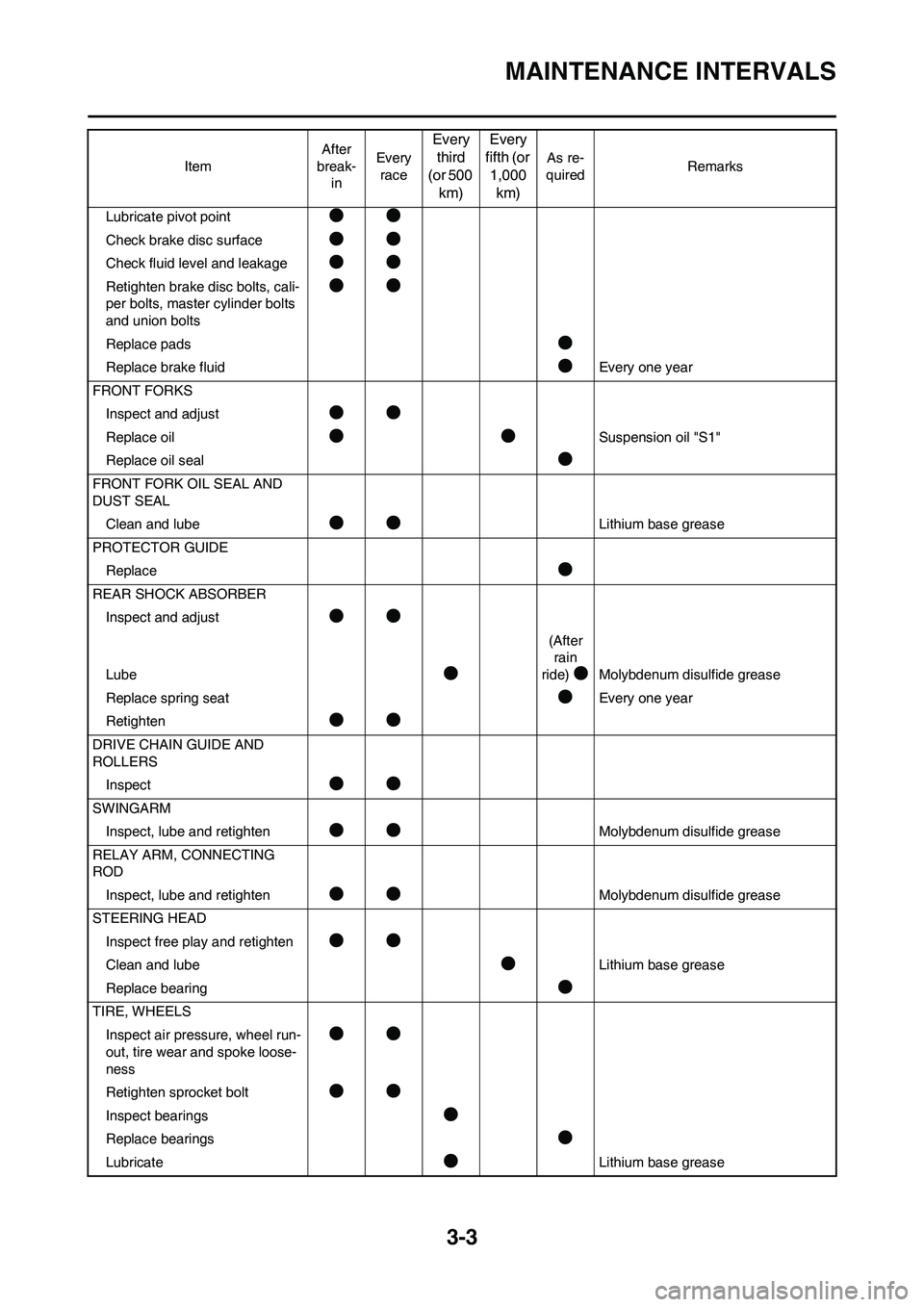

MAINTENANCE INTERVALS
Lubricate pivot point●●
Check brake disc surface●●
Check fluid level and leakage●●
Retighten brake disc bolts, cali-
per bolts, master cylinder bolts
and union bolts●●
Replace pads●
Replace brake fluid●Every one year
FRONT FORKS
Inspect and adjust
●●
Replace oil●●Suspension oil "S1"
Replace oil seal
●
FRONT FORK OIL SEAL AND
DUST SEAL
Clean and lube
●●Lithium base grease
PROTECTOR GUIDE
Replace
●
REAR SHOCK ABSORBER
Inspect and adjust
●●
Lube●
(After
rain
ride)
●Molybdenum disulfide grease
Replace spring seat
●Every one year
Retighten
●●
DRIVE CHAIN GUIDE AND
ROLLERS
Inspect
●●
SWINGARM
Inspect, lube and retighten
●●Molybdenum disulfide grease
RELAY ARM, CONNECTING
ROD
Inspect, lube and retighten
●●Molybdenum disulfide grease
STEERING HEAD
Inspect free play and retighten
●●
Clean and lube●Lithium base grease
Replace bearing
●
TIRE, WHEELS
Inspect air pressure, wheel run-
out, tire wear and spoke loose-
ness
●●
Retighten sprocket bolt●●
Inspect bearings●
Replace bearings●
Lubricate●Lithium base grease ItemAfter
break-
inEvery
race
Every
third
(or 500
km)Every
fifth (or
1,000
km)
As re-
quiredRemarks

3-4

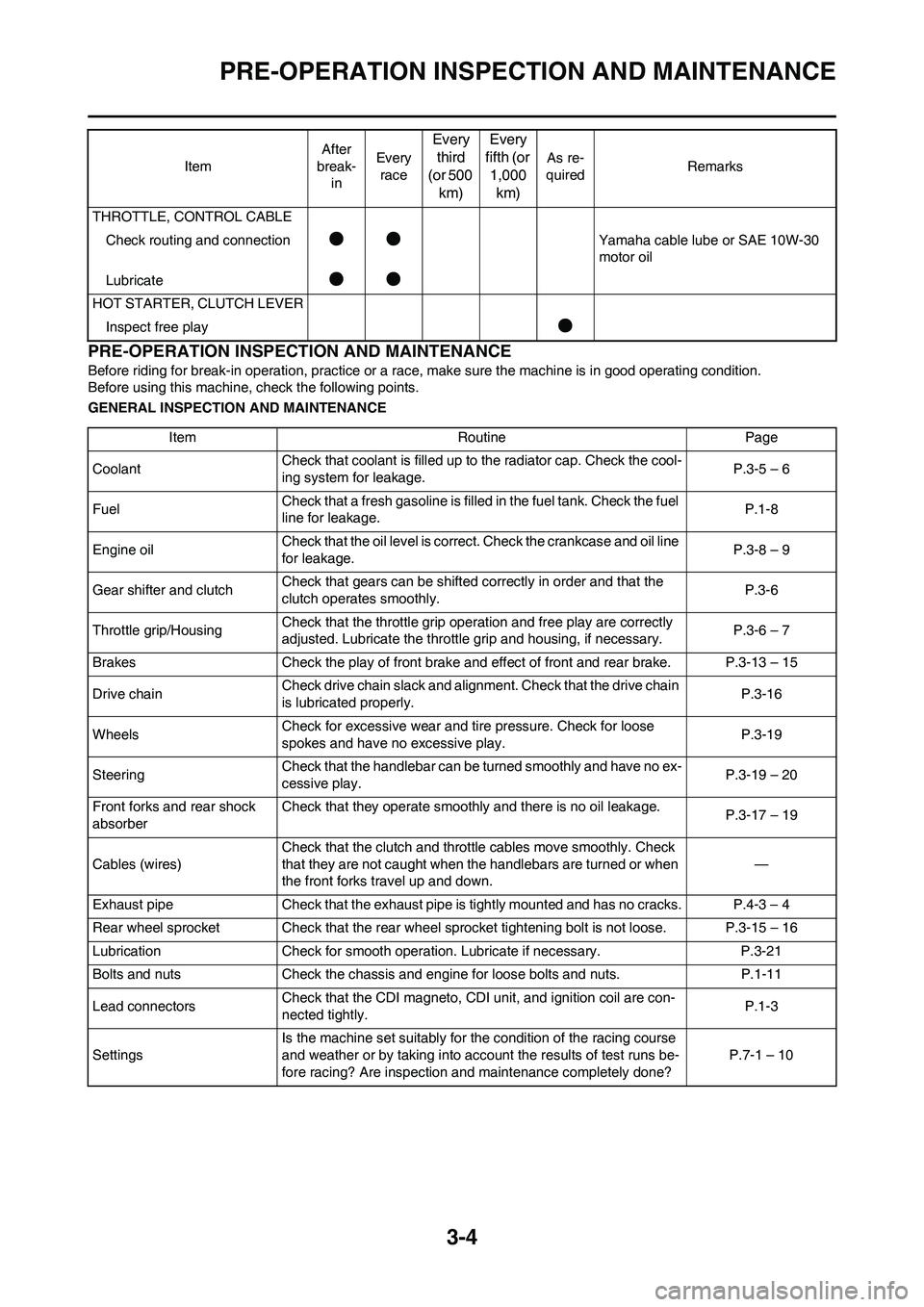

PRE-OPERATION INSPECTION AND MAINTENANCE
PRE-OPERATION INSPECTION AND MAINTENANCE
Before riding for break-in operation, practice or a race, make sure the machine is in good operating condition.
Before using this machine, check the following points.
GENERAL INSPECTION AND MAINTENANCETHROTTLE, CONTROL CABLE
Check routing and connection
●●Yamaha cable lube or SAE 10W-30
motor oil
Lubricate
●●
HOT STARTER, CLUTCH LEVER
Inspect free play
●
ItemAfter
break-
inEvery
race
Every
third
(or 500
km)Every
fifth (or
1,000
km)
As re-
quiredRemarks
Item Routine Page
CoolantCheck that coolant is filled up to the radiator cap. Check the cool-
ing system for leakage.P.3-5 – 6
FuelCheck that a fresh gasoline is filled in the fuel tank. Check the fuel
line for leakage.P.1-8
Engine oilCheck that the oil level is correct. Check the crankcase and oil line
for leakage.P.3-8 – 9
Gear shifter and clutchCheck that gears can be shifted correctly in order and that the
clutch operates smoothly.P.3-6
Throttle grip/HousingCheck that the throttle grip operation and free play are correctly
adjusted. Lubricate the throttle grip and housing, if necessary.P.3-6 – 7
Brakes Check the play of front brake and effect of front and rear brake. P.3-13 – 15
Drive chainCheck drive chain slack and alignment. Check that the drive chain
is lubricated properly.P.3-16
WheelsCheck for excessive wear and tire pressure. Check for loose
spokes and have no excessive play.P.3-19
SteeringCheck that the handlebar can be turned smoothly and have no ex-
cessive play.P.3-19 – 20
Front forks and rear shock
absorberCheck that they operate smoothly and there is no oil leakage.
P.3-17 – 19
Cables (wires)Check that the clutch and throttle cables move smoothly. Check
that they are not caught when the handlebars are turned or when
the front forks travel up and down.—
Exhaust pipe Check that the exhaust pipe is tightly mounted and has no cracks. P.4-3 – 4
Rear wheel sprocket Check that the rear wheel sprocket tightening bolt is not loose. P.3-15 – 16
Lubrication Check for smooth operation. Lubricate if necessary. P.3-21
Bolts and nuts Check the chassis and engine for loose bolts and nuts. P.1-11
Lead connectorsCheck that the CDI magneto, CDI unit, and ignition coil are con-
nected tightly.P.1-3
SettingsIs the machine set suitably for the condition of the racing course
and weather or by taking into account the results of test runs be-
fore racing? Are inspection and maintenance completely done?P.7-1 – 10
