YAMAHA YZ450F 2014 Repair Manual

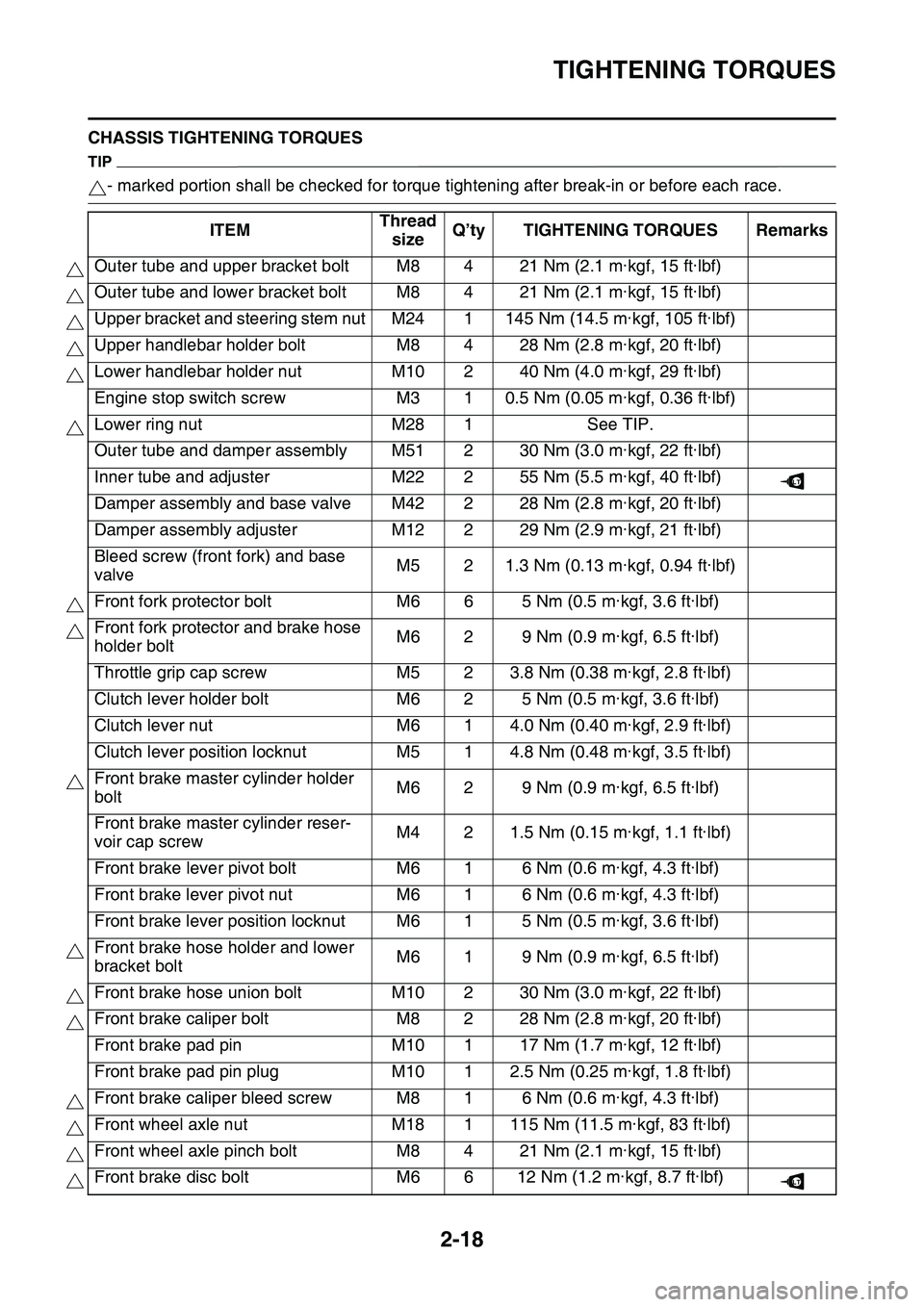

TIGHTENING TORQUES
2-18
CHASSIS TIGHTENING TORQUES
TIP
- marked portion shall be checked for torque tightening after break-in or before each race.
ITEMThread
sizeQ’tyTIGHTENING TORQUESRemarks
Outer tube and upper bracket boltM8421 Nm (2.1 m·kgf, 15 ft·lbf)
Outer tube and lower bracket boltM8421 Nm (2.1 m·kgf, 15 ft·lbf)
Upper bracket and steering stem nutM241145 Nm (14.5 m·kgf, 105 ft·lbf)
Upper handlebar holder boltM8428 Nm (2.8 m·kgf, 20 ft·lbf)
Lower handlebar holder nutM10240 Nm (4.0 m·kgf, 29 ft·lbf)
Engine stop switch screwM310.5 Nm (0.05 m·kgf, 0.36 ft·lbf)
Lower ring nutM281See TIP.
Outer tube and damper assemblyM51230 Nm (3.0 m·kgf, 22 ft·lbf)
Inner tube and adjusterM22255 Nm (5.5 m·kgf, 40 ft·lbf)
Damper assembly and base valveM42228 Nm (2.8 m·kgf, 20 ft·lbf)
Damper assembly adjusterM12229 Nm (2.9 m·kgf, 21 ft·lbf)
Bleed screw (front fork) and base
valveM521.3 Nm (0.13 m·kgf, 0.94 ft·lbf)
Front fork protector boltM665 Nm (0.5 m·kgf, 3.6 ft·lbf)
Front fork protector and brake hose
holder boltM629 Nm (0.9 m·kgf, 6.5 ft·lbf)
Throttle grip cap screwM523.8 Nm (0.38 m·kgf, 2.8 ft·lbf)
Clutch lever holder boltM625 Nm (0.5 m·kgf, 3.6 ft·lbf)
Clutch lever nutM614.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Clutch lever position locknutM514.8 Nm (0.48 m·kgf, 3.5 ft·lbf)
Front brake master cylinder holder
boltM629 Nm (0.9 m·kgf, 6.5 ft·lbf)
Front brake master cylinder reser-
voir cap screwM421.5 Nm (0.15 m·kgf, 1.1 ft·lbf)
Front brake lever pivot boltM616 Nm (0.6 m·kgf, 4.3 ft·lbf)
Front brake lever pivot nutM616 Nm (0.6 m·kgf, 4.3 ft·lbf)
Front brake lever position locknutM615 Nm (0.5 m·kgf, 3.6 ft·lbf)
Front brake hose holder and lower
bracket boltM619 Nm (0.9 m·kgf, 6.5 ft·lbf)
Front brake hose union boltM10230 Nm (3.0 m·kgf, 22 ft·lbf)
Front brake caliper boltM8228 Nm (2.8 m·kgf, 20 ft·lbf)
Front brake pad pinM10117 Nm (1.7 m·kgf, 12 ft·lbf)
Front brake pad pin plugM1012.5 Nm (0.25 m·kgf, 1.8 ft·lbf)
Front brake caliper bleed screwM816 Nm (0.6 m·kgf, 4.3 ft·lbf)
Front wheel axle nutM181115 Nm (11.5 m·kgf, 83 ft·lbf)
Front wheel axle pinch boltM8421 Nm (2.1 m·kgf, 15 ft·lbf)
Front brake disc boltM6612 Nm (1.2 m·kgf, 8.7 ft·lbf)
LT
LT

TIGHTENING TORQUES

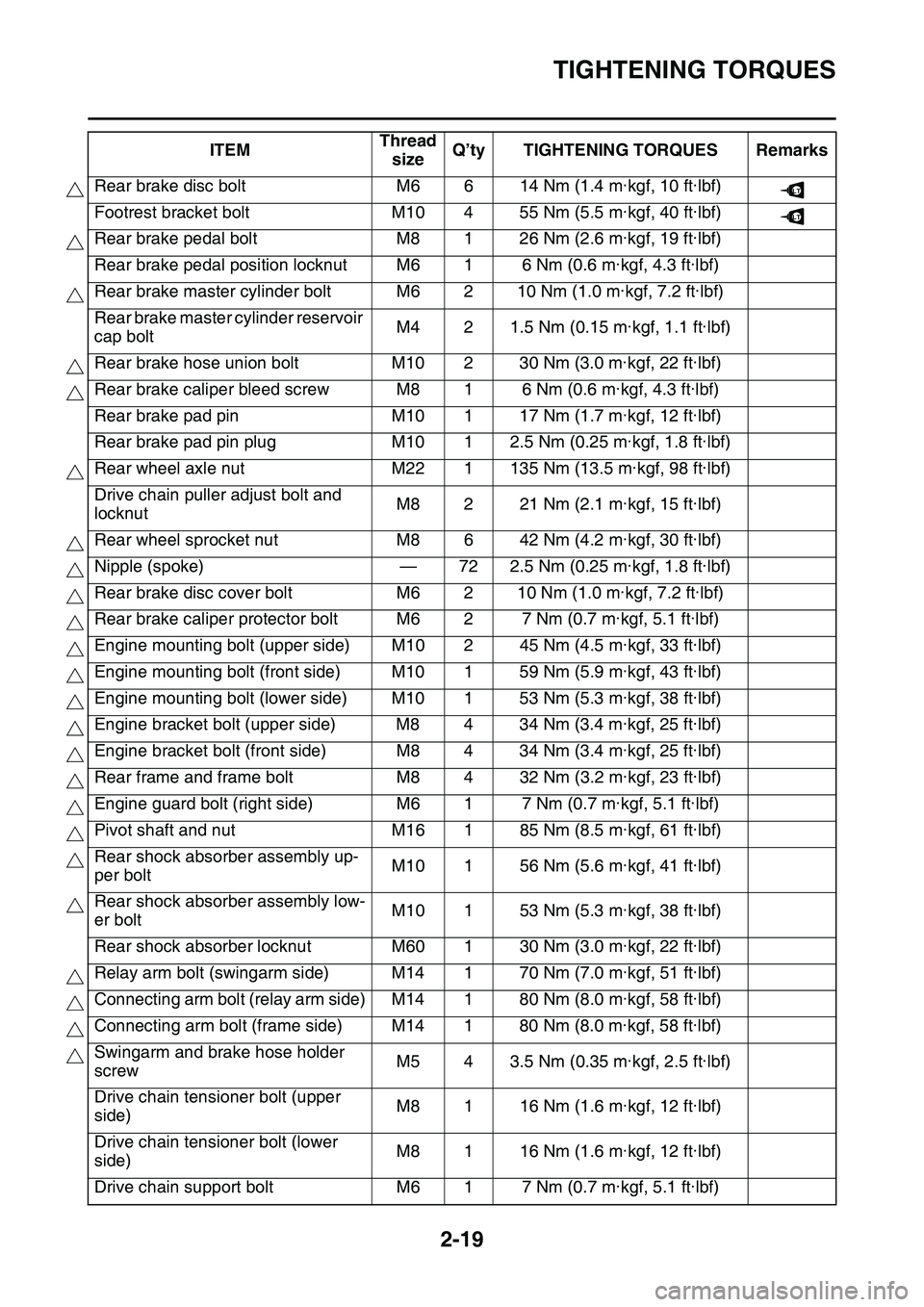

2-19
Rear brake disc boltM6 6 14 Nm (1.4 m·kgf, 10 ft·lbf)
Footrest bracket bolt M10 4 55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear brake pedal bolt M8 1 26 Nm (2.6 m·kgf, 19 ft·lbf)
Rear brake pedal position locknut M6 1 6 Nm (0.6 m·kgf, 4.3 ft·lbf)
Rear brake master cylinder bolt M6 2 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Rear brake master cylinder reservoir
cap bolt M4 2 1.5 Nm (0.15 m·kgf, 1.1 ft·lbf)
Rear brake hose union bolt M10 2 30 Nm (3.0 m·kgf, 22 ft·lbf)
Rear brake caliper bleed screw M8 1 6 Nm (0.6 m·kgf, 4.3 ft·lbf)
Rear brake pad pin M10 1 17 Nm (1.7 m·kgf, 12 ft·lbf)
Rear brake pad pin plug M10 1 2.5 Nm (0.25 m·kgf, 1.8 ft·lbf)
Rear wheel axle nut M22 1 135 Nm (13.5 m·kgf, 98 ft·lbf)
Drive chain puller adjust bolt and
locknut M8 2 21 Nm (2.1 m·kgf, 15 ft·lbf)
Rear wheel sprocket nut M8 6 42 Nm (4.2 m·kgf, 30 ft·lbf)
Nipple (spoke) — 72 2.5 Nm (0.25 m·kgf, 1.8 ft·lbf)
Rear brake disc cover bolt M6 2 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Rear brake caliper protector bolt M6 2 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Engine mounting bolt (upper side) M10 2 45 Nm (4.5 m·kgf, 33 ft·lbf)
Engine mounting bolt (front side) M 10 1 59 Nm (5.9 m·kgf, 43 ft·lbf)
Engine mounting bolt (lower side) M 10 1 53 Nm (5.3 m·kgf, 38 ft·lbf)
Engine bracket bolt (upper side) M8 4 34 Nm (3.4 m·kgf, 25 ft·lbf)
Engine bracket bolt (front side) M8 4 34 Nm (3.4 m·kgf, 25 ft·lbf)
Rear frame and frame bolt M8 4 32 Nm (3.2 m·kgf, 23 ft·lbf)
Engine guard bolt (right side) M6 1 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Pivot shaft and nut M16 1 85 Nm (8.5 m·kgf, 61 ft·lbf)
Rear shock absorber assembly up-
per bolt M10 1 56 Nm (5.6 m·kgf, 41 ft·lbf)
Rear shock absorber assembly low-
er bolt M10 1 53 Nm (5.3 m·kgf, 38 ft·lbf)
Rear shock absorber locknut M60 1 30 Nm (3.0 m·kgf, 22 ft·lbf)
Relay arm bolt (swingarm side) M14 1 70 Nm (7.0 m·kgf, 51 ft·lbf)
Connecting arm bolt (relay arm side) M14 1 80 Nm (8.0 m·kgf, 58 ft·lbf)
Connecting arm bolt (frame side) M14 1 80 Nm (8.0 m·kgf, 58 ft·lbf)
Swingarm and brake hose holder
screw M5 4 3.5 Nm (0.35 m·kgf, 2.5 ft·lbf)
Drive chain tensioner bolt (upper
side) M8 1 16 Nm (1.6 m·kgf, 12 ft·lbf)
Drive chain tensioner bolt (lower
side) M8 1 16 Nm (1.6 m·kgf, 12 ft·lbf)
Drive chain support bolt M6 1 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
ITEM
Thread
size Q’ty TIGHTENING TORQUES RemarksLT
LT

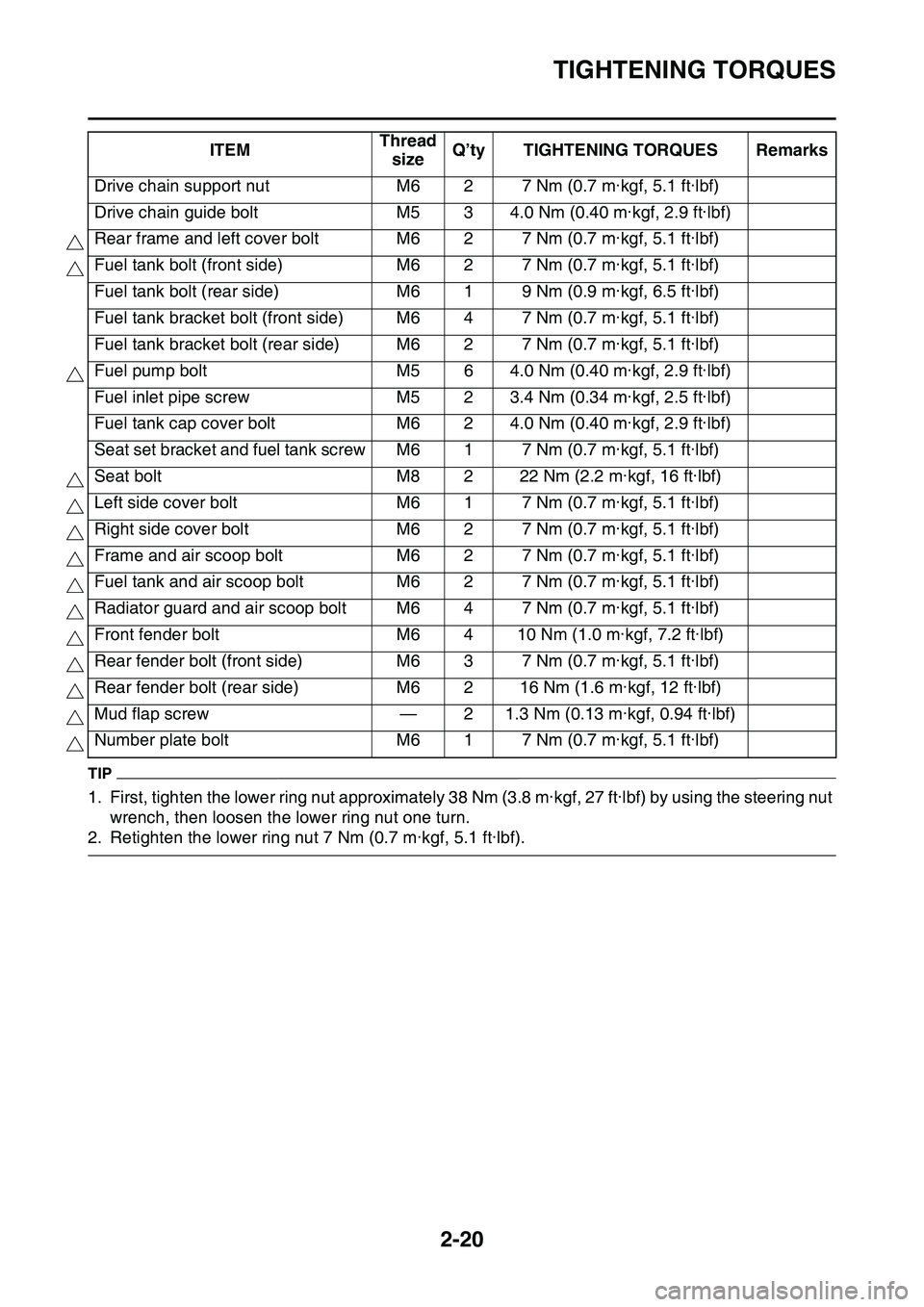

TIGHTENING TORQUES
2-20
TIP
1. First, tighten the lower ring nut approximately 38 Nm (3.8 m·kgf, 27 ft·lbf) by using the steering nut
wrench, then loosen the lower ring nut one turn.
2. Retighten the lower ring nut 7 Nm (0.7 m·kgf, 5.1 ft·lbf).
Drive chain support nutM627 Nm (0.7 m·kgf, 5.1 ft·lbf)
Drive chain guide boltM534.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Rear frame and left cover boltM627 Nm (0.7 m·kgf, 5.1 ft·lbf)
Fuel tank bolt (front side)M627 Nm (0.7 m·kgf, 5.1 ft·lbf)
Fuel tank bolt (rear side)M619 Nm (0.9 m·kgf, 6.5 ft·lbf)
Fuel tank bracket bolt (front side)M647 Nm (0.7 m·kgf, 5.1 ft·lbf)
Fuel tank bracket bolt (rear side)M627 Nm (0.7 m·kgf, 5.1 ft·lbf)
Fuel pump boltM564.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Fuel inlet pipe screwM523.4 Nm (0.34 m·kgf, 2.5 ft·lbf)
Fuel tank cap cover boltM624.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Seat set bracket and fuel tank screwM617 Nm (0.7 m·kgf, 5.1 ft·lbf)
Seat boltM8222 Nm (2.2 m·kgf, 16 ft·lbf)
Left side cover boltM617 Nm (0.7 m·kgf, 5.1 ft·lbf)
Right side cover boltM627 Nm (0.7 m·kgf, 5.1 ft·lbf)
Frame and air scoop boltM627 Nm (0.7 m·kgf, 5.1 ft·lbf)
Fuel tank and air scoop boltM627 Nm (0.7 m·kgf, 5.1 ft·lbf)
Radiator guard and air scoop boltM647 Nm (0.7 m·kgf, 5.1 ft·lbf)
Front fender boltM6410 Nm (1.0 m·kgf, 7.2 ft·lbf)
Rear fender bolt (front side)M637 Nm (0.7 m·kgf, 5.1 ft·lbf)
Rear fender bolt (rear side)M6216 Nm (1.6 m·kgf, 12 ft·lbf)
Mud flap screw—21.3 Nm (0.13 m·kgf, 0.94 ft·lbf)
Number plate boltM617 Nm (0.7 m·kgf, 5.1 ft·lbf)
ITEMThread
sizeQ’ty TIGHTENING TORQUES Remarks

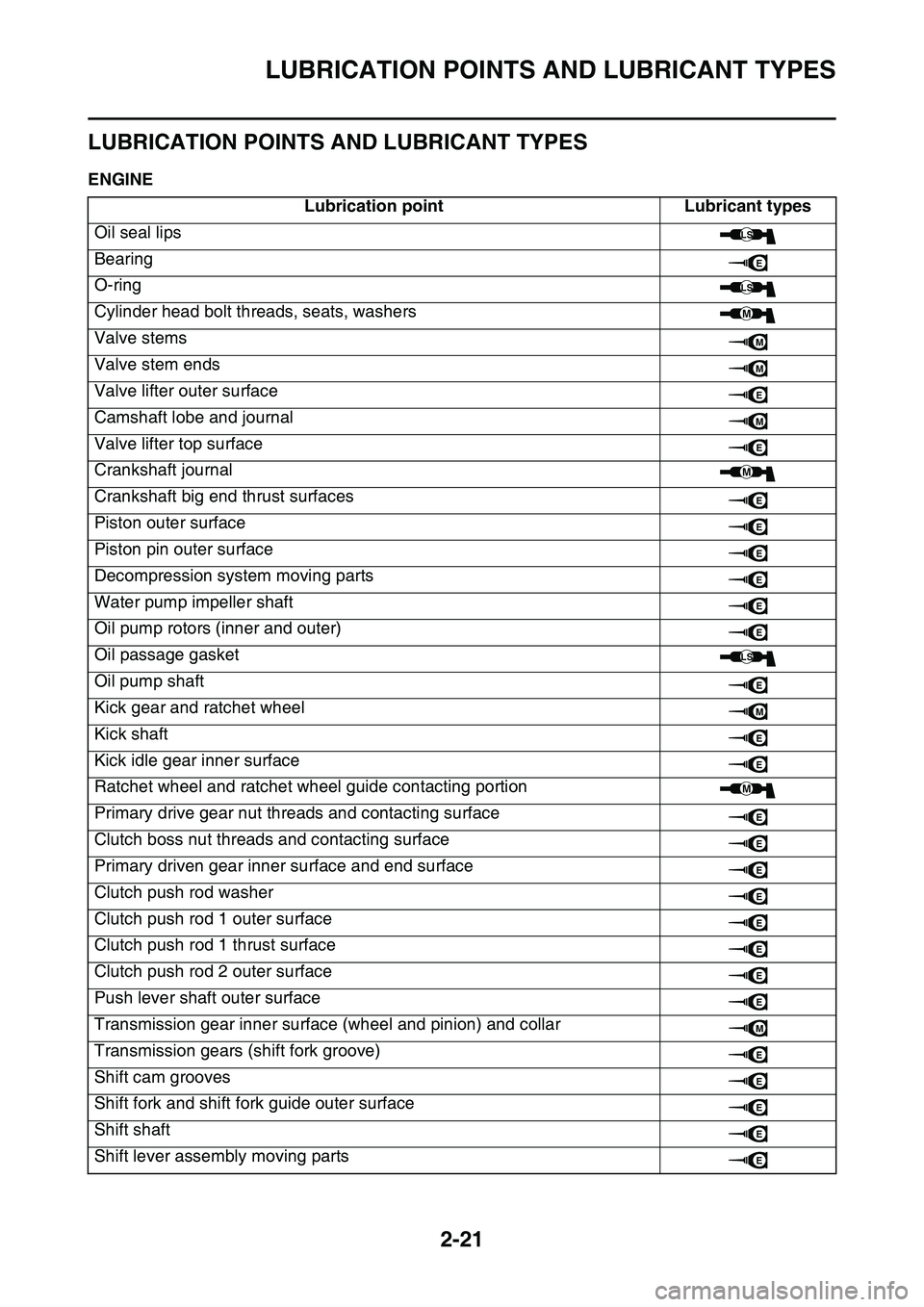

LUBRICATION POINTS AND LUBRICANT TYPES
2-21
EAS1SL1059
LUBRICATION POINTS AND LUBRICANT TYPES
EAS1SL1060ENGINE
Lubrication pointLubricant types
Oil seal lips
Bearing
O-ring
Cylinder head bolt threads, seats, washers
Valve stems
Valve stem ends
Valve lifter outer surface
Camshaft lobe and journal
Valve lifter top surface
Crankshaft journal
Crankshaft big end thrust surfaces
Piston outer surface
Piston pin outer surface
Decompression system moving parts
Water pump impeller shaft
Oil pump rotors (inner and outer)
Oil passage gasket
Oil pump shaft
Kick gear and ratchet wheel
Kick shaft
Kick idle gear inner surface
Ratchet wheel and ratchet wheel guide contacting portion
Primary drive gear nut threads and contacting surface
Clutch boss nut threads and contacting surface
Primary driven gear inner surface and end surface
Clutch push rod washer
Clutch push rod 1 outer surface
Clutch push rod 1 thrust surface
Clutch push rod 2 outer surface
Push lever shaft outer surface
Transmission gear inner surface (wheel and pinion) and collar
Transmission gears (shift fork groove)
Shift cam grooves
Shift fork and shift fork guide outer surface
Shift shaft
Shift lever assembly moving parts
LS
E
LS
M
M
M
E
M
E
M
E
E
E
E
E
E
LS
E
M
E
E
M
E
E
E
E
E
E
E
E
M
E
E
E
E
E

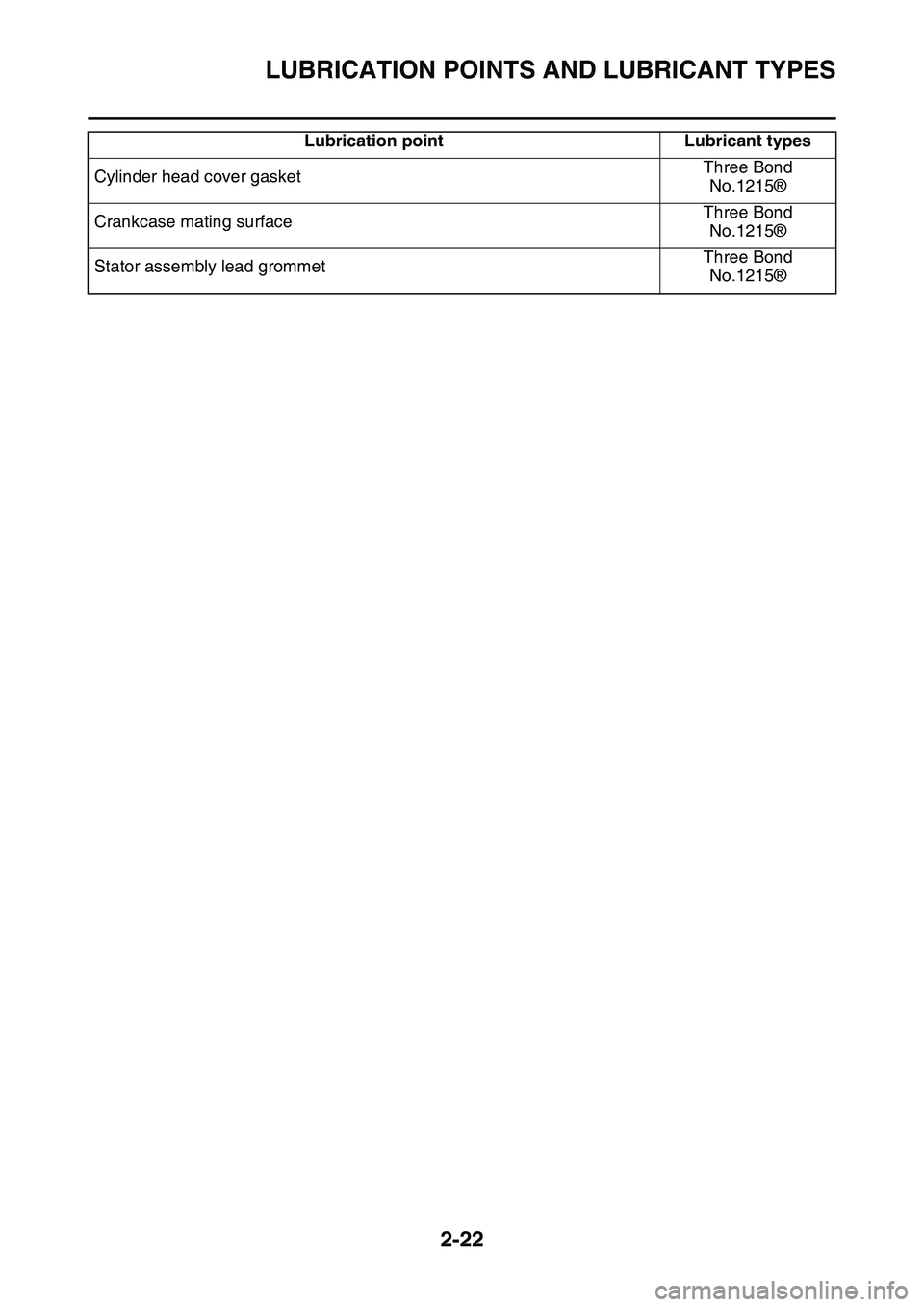

LUBRICATION POINTS AND LUBRICANT TYPES
2-22
EAS1SL1061
Cylinder head cover gasketThree Bond
No.1215®
Crankcase mating surfaceThree Bond
No.1215®
Stator assembly lead grommetThree Bond
No.1215®
Lubrication point Lubricant types

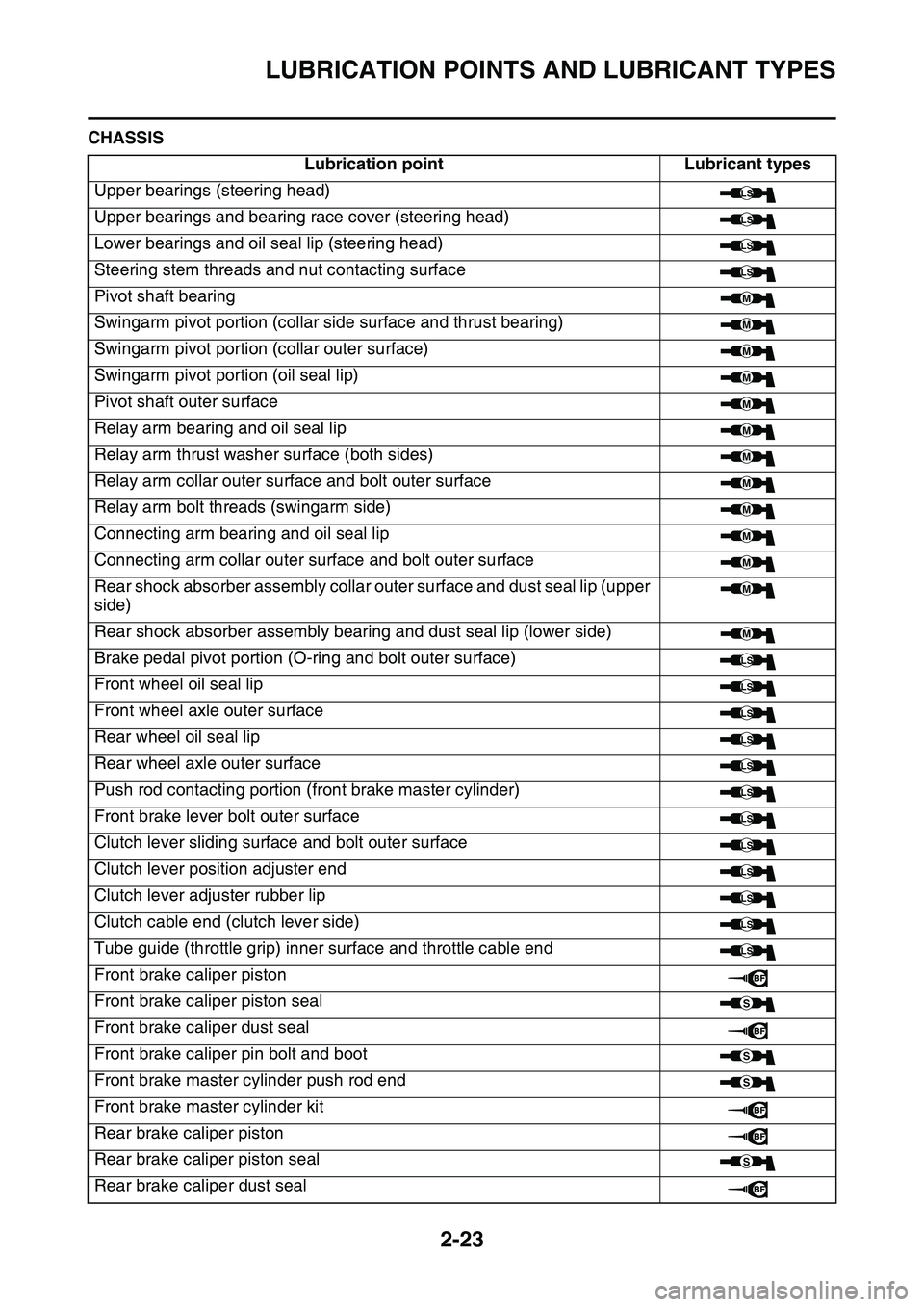

LUBRICATION POINTS AND LUBRICANT TYPES
2-23
CHASSIS
Lubrication pointLubricant types
Upper bearings (steering head)
Upper bearings and bearing race cover (steering head)
Lower bearings and oil seal lip (steering head)
Steering stem threads and nut contacting surface
Pivot shaft bearing
Swingarm pivot portion (collar side surface and thrust bearing)
Swingarm pivot portion (collar outer surface)
Swingarm pivot portion (oil seal lip)
Pivot shaft outer surface
Relay arm bearing and oil seal lip
Relay arm thrust washer surface (both sides)
Relay arm collar outer surface and bolt outer surface
Relay arm bolt threads (swingarm side)
Connecting arm bearing and oil seal lip
Connecting arm collar outer surface and bolt outer surface
Rear shock absorber assembly collar outer surface and dust seal lip (upper
side)
Rear shock absorber assembly bearing and dust seal lip (lower side)
Brake pedal pivot portion (O-ring and bolt outer surface)
Front wheel oil seal lip
Front wheel axle outer surface
Rear wheel oil seal lip
Rear wheel axle outer surface
Push rod contacting portion (front brake master cylinder)
Front brake lever bolt outer surface
Clutch lever sliding surface and bolt outer surface
Clutch lever position adjuster end
Clutch lever adjuster rubber lip
Clutch cable end (clutch lever side)
Tube guide (throttle grip) inner surface and throttle cable end
Front brake caliper piston
Front brake caliper piston seal
Front brake caliper dust seal
Front brake caliper pin bolt and boot
Front brake master cylinder push rod end
Front brake master cylinder kit
Rear brake caliper piston
Rear brake caliper piston seal
Rear brake caliper dust seal
LS
LS
LS
LS
M
M
M
M
M
M
M
M
M
M
M
M
M
LS
LS
LS
LS
LS
LS
LS
LS
LS
LS
LS
LS
S
S
S
S

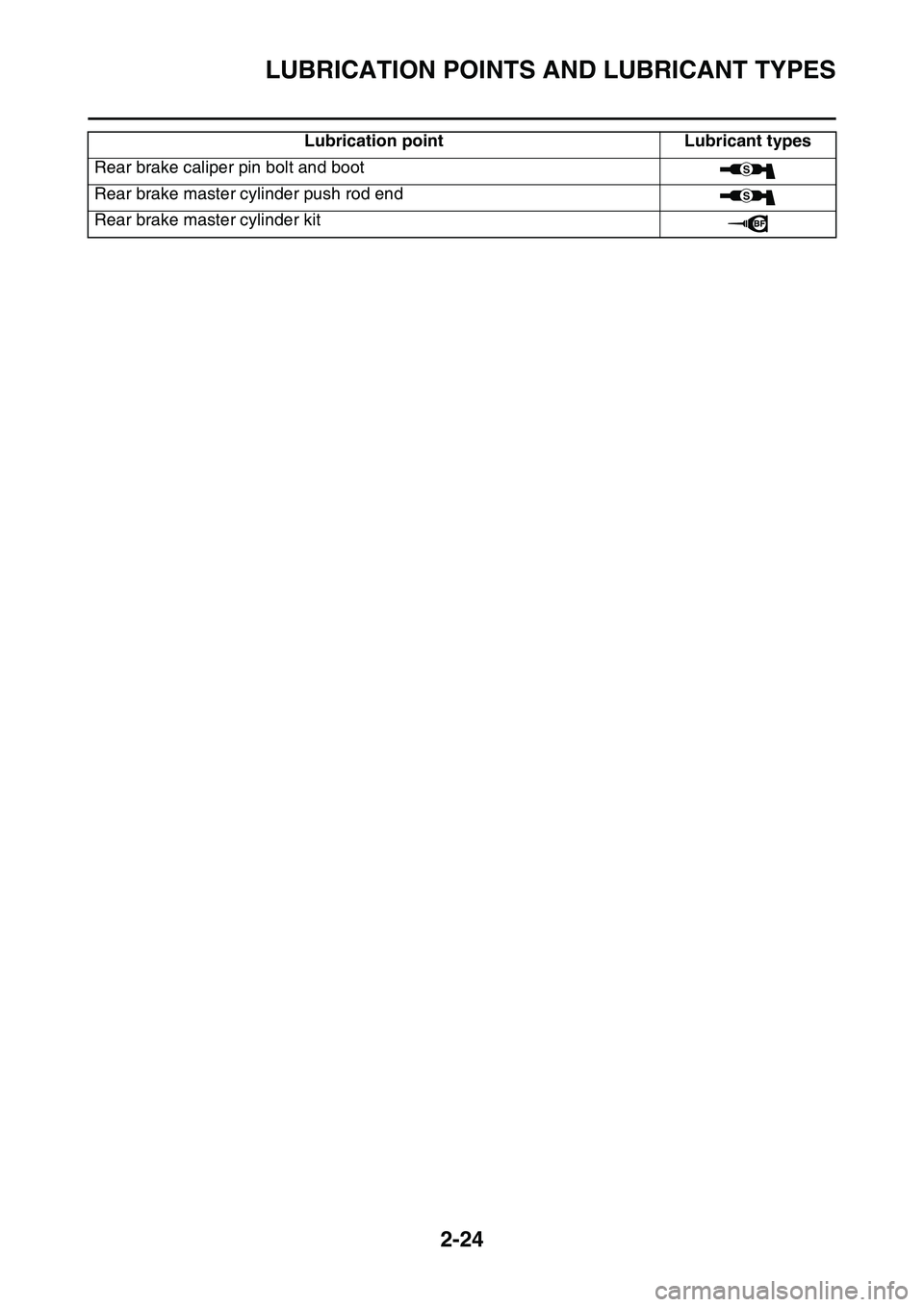

LUBRICATION POINTS AND LUBRICANT TYPES
2-24
Rear brake caliper pin bolt and boot
Rear brake master cylinder push rod end
Rear brake master cylinder kit
Lubrication point Lubricant types
S
S

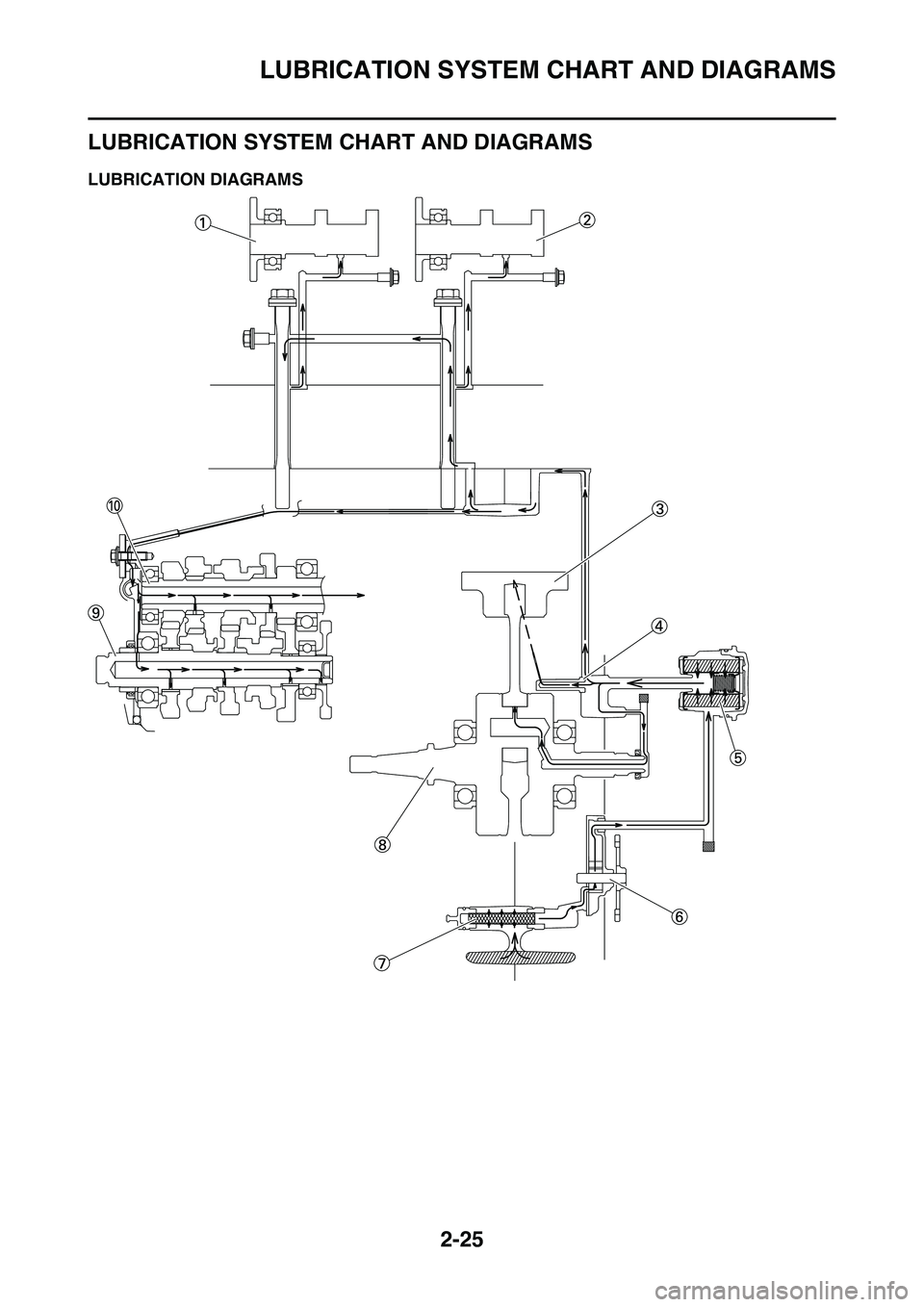

LUBRICATION SYSTEM CHART AND DIAGRAMS
2-25
EAS1SL1062
LUBRICATION SYSTEM CHART AND DIAGRAMS
EAS1SL1063LUBRICATION DIAGRAMS

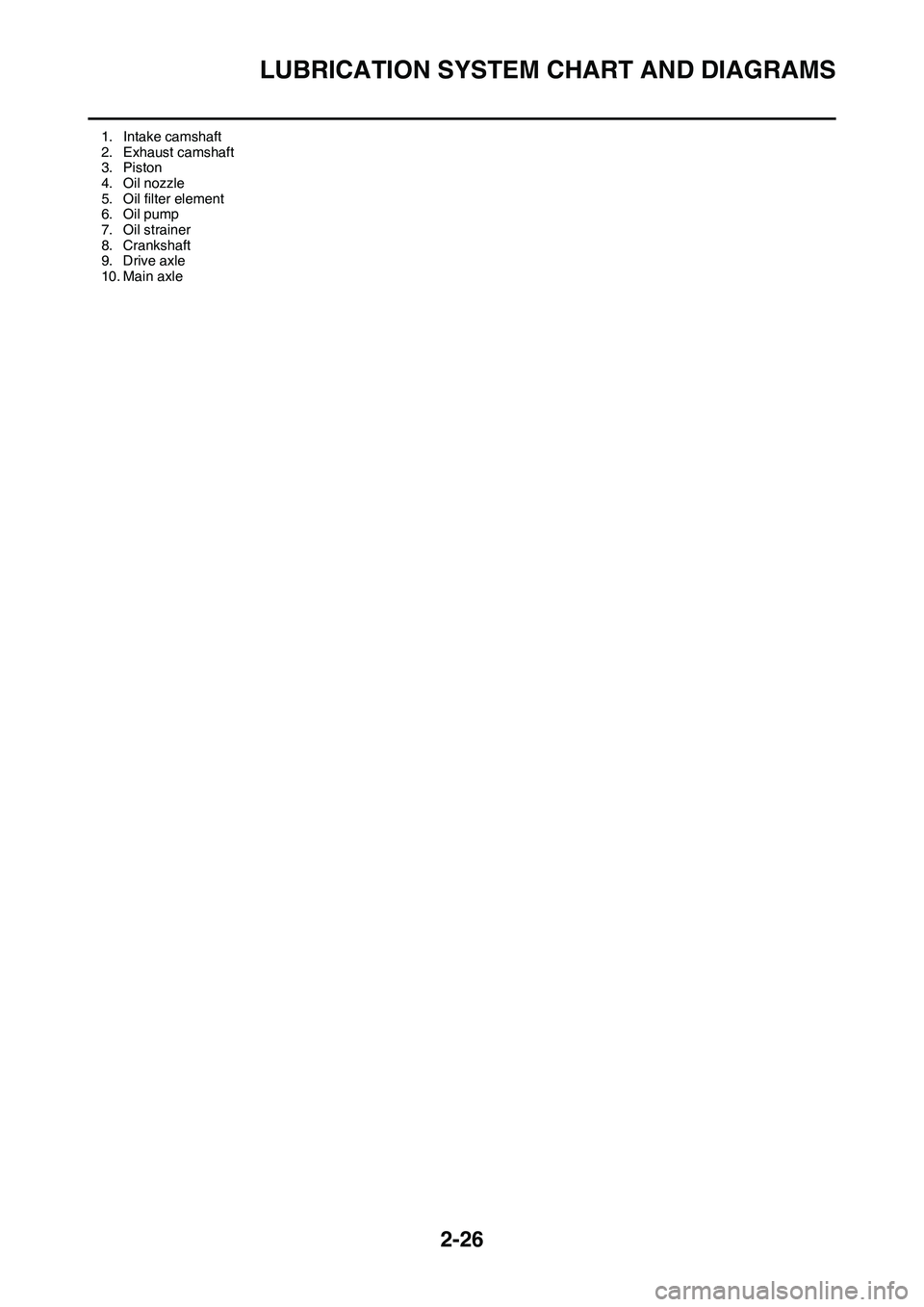

LUBRICATION SYSTEM CHART AND DIAGRAMS
2-26
1. Intake camshaft
2. Exhaust camshaft3. Piston
4. Oil nozzle
5. Oil filter element6. Oil pump
7. Oil strainer
8. Crankshaft9. Drive axle
10. Main axle

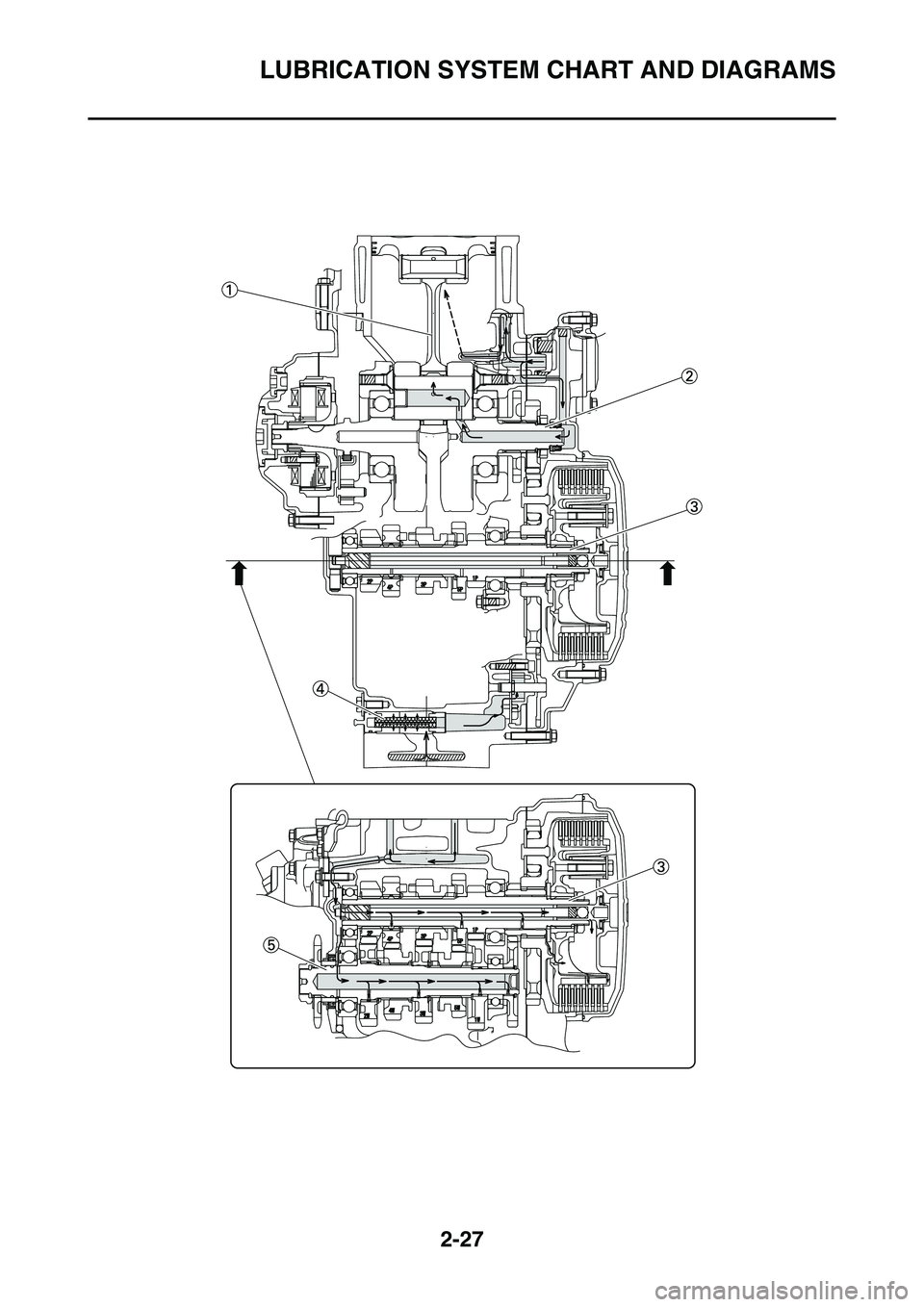

LUBRICATION SYSTEM CHART AND DIAGRAMS
2-27
