YAMAHA YZ450F 2014 Workshop Manual

CHASSIS SPECIFICATIONS
2-8
EAS1SL1054
CHASSIS SPECIFICATIONS
Chassis
Frame type Semi double cradle
Caster angle 27.08 ° (USA) (CAN)
27.50 ° (EUR)
27.67 ° (JPN)
27.58 ° (AUS) (NZL) (ZAF)
Trail 120 mm (4.7 in) (USA) (CAN)
122 mm (4.8 in) (EUR)
124 mm (4.9 in) (JPN) (AUS) (NZL) (ZAF)
Front wheel
Wheel type Spoke wheel
Rim size 21  1.60
Rim material Aluminum
Wheel travel 310.0 mm (12.20 in)
Radial wheel runout limit 2.0 mm (0.08 in)
Lateral wheel runout limit 2.0 mm (0.08 in)
Wheel axle bending limit 0.50 mm (0.02 in)
Rear wheel
Wheel type Spoke wheel
Rim size 19  2.15
Rim material Aluminum
Wheel travel 315.0 mm (12.40 in)
Radial wheel runout limit 2.0 mm (0.08 in)
Lateral wheel runout limit 2.0 mm (0.08 in)
Wheel axle bending limit 0.50 mm (0.02 in)
Front tire
Type With tube
Size 80/100-21 51M
Manufacturer/model DUNLOP/MX51FA (USA) (CAN)
PIRELLI/MID SOFT 32 (EUR)
BRIDGESTONE/M601 (JPN)
DUNLOP/MX51FA (AUS) (NZL) (ZAF)
Rear tire
Type With tube
Size 120/80-19 63M (USA) (CAN)
110/90-19 62M (EUR) (JPN)
120/80-19 63M (AUS) (NZL) (ZAF)
Manufacturer/model DUNLOP/MX51 (USA) (CAN)
PIRELLI/MID SOFT 32 (EUR)
BRIDGESTONE/M602 (JPN)
DUNLOP/MX51 (AUS) (NZL) (ZAF)
Tire air pressure (measured on cold tires)
Front 100 kPa (1.00 kgf/cm2, 15 psi)
Rear 100 kPa (1.00 kgf/cm2, 15 psi)
Front brake
Type Single disc brake
Operation Right hand operation
Front disc brake
Disc outside diameter  thickness 250.0  3.0 mm (9.84  0.12 in)

CHASSIS SPECIFICATIONS
2-9
Brake disc thickness limit 2.5 mm (0.10 in)
Brake pad lining thickness (inner) 4.4 mm (0.17 in)
Limit 1.0 mm (0.04 in)
Brake pad lining thickness (outer) 4.4 mm (0.17 in)
Limit 1.0 mm (0.04 in)
Master cylinder inside diameter 9.52 mm (0.37 in)
Caliper cylinder inside diameter 22.65 mm  2 (0.89 in  2)
Recommended brake fluid DOT 4
Rear brake
Type Single disc brake
Operation Right foot operation
Rear disc brake
Disc outside diameter  thickness 245.0  4.0 mm (9.65  0.16 in)
Brake disc thickness limit 3.5 mm (0.14 in)
Brake disc deflection limit 0.15 mm (0.0059 in)
Brake pad lining thickness (inner) 6.4 mm (0.25 in)
Limit 1.0 mm (0.04 in)
Brake pad lining thickness (outer) 6.4 mm (0.25 in)
Limit 1.0 mm (0.04 in)
Master cylinder inside diameter 11.0 mm (0.43 in)
Caliper cylinder inside diameter 25.40 mm  1 (1.00 in  1)
Recommended fluid DOT 4
Steering
Steering bearing type Taper roller bearing
Center to lock angle (left) 43.0 °
Center to lock angle (right) 43.0 °
Front suspension
Type Telescopic fork
Spring/shock absorber type Coil spring/oil damper
Front fork travel 310.0 mm (12.20 in)
Fork spring free length 497.0 mm (19.57 in)
Limit 492.0 mm (19.37 in)
Installed length 497.0 mm (19.57 in)
Spring rate K1 4.90 N/mm (0.50 kgf/mm, 27.98 lbf/in) (USA) 
(CAN)
4.70 N/mm (0.48 kgf/mm, 26.84 lbf/in) (EUR) 
(JPN) (AUS) (NZL) (ZAF)
Spring stroke K1 0.0–310.0 mm (0.00–12.20 in)
Inner tube outer diameter 48.0 mm (1.89 in)
Inner tube bending limit 0.2 mm (0.01 in)
Optional spring available Yes
Recommended oil Suspension oil S1
Standard oil amount 531.0 cm3 (17.95 US.oz, 18.73 Imp.oz) (USA) 
(CAN)
551.0 cm3 (18.63 US.oz, 19.43 Imp.oz) (EUR) 
(JPN) (AUS) (NZL) (ZAF)
Rebound damping adjusting positions
* Position in which the adjuster is turned in finger tight
Minimum 20 click (s) out*
Standard 8 click (s) out*
Maximum (hard) Fully turned in

CHASSIS SPECIFICATIONS
2-10
Compression damping adjusting positions
* Position in which the adjuster is turned in finger tight
Minimum 20 click (s) out*
Standard 9 click (s) out* (USA) (CAN)
8 click (s) out* (EUR) (JPN) (AUS) NZL) (ZAF)
Maximum (hard) Fully turned in
Rear suspension
Type Swingarm (link suspension)
Spring/shock absorber type Coil spring/gas-oil damper
Rear shock absorber assembly travel 132.0 mm (5.20 in)
Spring free length 275.0 mm (10.83 in)
Spring rate K1 58.00 N/mm (5.91 kgf/mm, 331.18 lbf/in) (USA) 
(CAN)
56.00 N/mm (5.71 kgf/mm, 319.76 lbf/in) (EUR) 
(JPN) (AUS) (NZL) (ZAF)
Spring stroke K1 0.0–150.0 mm (0.00–5.91 in)
Optional spring available Yes
Enclosed gas/air pressure (STD) 980 kPa (9.8 kgf/cm2, 139.4 psi)
Spring installed length
Minimum Position in which the spring is turned in 1.5 mm 
(0.06 in) from its free length.
Standard Position in which the spring is turned in 10 mm 
(0.39 in) from its free length.
Maximum Position in which the spring is turned in 18 mm 
(0.71 in) from its free length.
Rebound damping adjusting positions
* Position in which the adjuster is turned in finger tight
Minimum 30 click (s) out*
Standard 14 click (s) out* (USA) (CAN)
12 click (s) out* (EUR) (JPN) (AUS) (NZL) 
(ZAF)
Maximum Fully turned in
Compression damping adjusting positions 
(for fast compression damping)
* Position in which the adjuster is turned in finger tight
Minimum 2 turn (s) out*
Standard 1-1/2 turn (s) out* (USA) (CAN)
1-1/8 turn (s) out* (EUR) (JPN) (AUS) (NZL) 
(ZAF)
Maximum Fully turned in
Compression damping adjusting positions 
(for slow compression damping)
* Position in which the adjuster is turned in finger tight
Minimum 20 click (s) out*
Standard 12 click (s) out* (USA) (CAN)
10 click (s) out* (EUR) (JPN) (AUS) (NZL) 
(ZAF)
Maximum Fully turned in
Swingarm
Swingarm end free play limit (radial) 1.0 mm (0.04 in)
Swingarm end free play limit (axial) 0.2–0.9 mm (0.01–0.04 in)

CHASSIS SPECIFICATIONS
2-11
Drive chain
Type/manufacturer 520DMA2-SDH/DAIDO
Number of links 114
Drive chain slack 50–60 mm (1.97–2.36 in)
15-link length limit 242.9 mm (9.56 in)

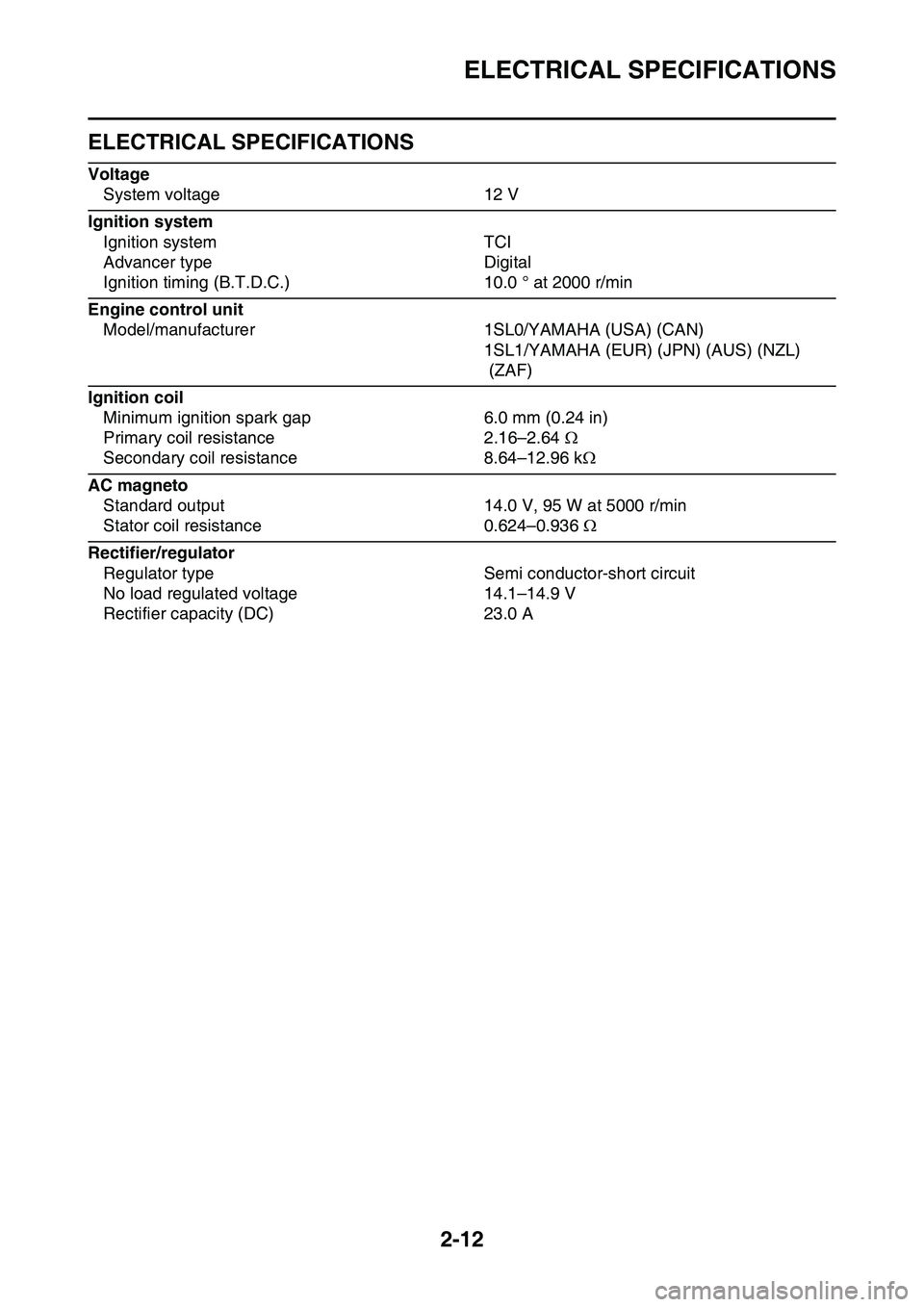

ELECTRICAL SPECIFICATIONS
2-12
EAS1SL1055
ELECTRICAL SPECIFICATIONS
Voltage
System voltage 12 V
Ignition system
Ignition system TCI
Advancer type Digital
Ignition timing (B.T.D.C.) 10.0 ° at 2000 r/min
Engine control unit
Model/manufacturer 1SL0/YAMAHA (USA) (CAN)
1SL1/YAMAHA (EUR) (JPN) (AUS) (NZL)
(ZAF)
Ignition coil
Minimum ignition spark gap 6.0 mm (0.24 in)
Primary coil resistance 2.16–2.64 
Secondary coil resistance 8.64–12.96 k
AC magneto
Standard output 14.0 V, 95 W at 5000 r/min
Stator coil resistance 0.624–0.936 
Rectifier/regulator
Regulator type Semi conductor-short circuit
No load regulated voltage 14.1–14.9 V
Rectifier capacity (DC) 23.0 A

TIGHTENING TORQUES
2-13
EAS20320
TIGHTENING TORQUES
EAS1SL1056GENERAL TIGHTENING TORQUE SPECIFI-
CATIONS
This chart specifies tightening torques for stan-
dard fasteners with a standard ISO thread
pitch. Tightening torque specifications for spe
-
cial components or assemblies are provided for
each chapter of this manual. To avoid warpage,
tighten multi-fastener assemblies in a criss
-
cross pattern and progressive stages until the
specified tightening torque is reached. Unless
otherwise specified, tightening torque specifi
-
cations require clean, dry threads. Compo-
nents should be at room temperature.
A. Distance between flats
B. Outside thread diameter
A (nut)B
(bolt)General tightening
torques
Nmm·kgfft·lbf
10 mm6 mm60.64.3
12 mm8 mm151.511
14 mm10 mm303.022
17 mm12 mm555.540
19 mm14 mm858.561
22 mm16 mm13013.094

TIGHTENING TORQUES
2-14
EAS1SL1057ENGINE TIGHTENING TORQUES
TIP
- marked portion shall be checked for torque tightening after break-in or before each race.
ITEMThread
sizeQ’tyTIGHTENING TORQUESRemarks
Camshaft cap boltM6810 Nm (1.0 m·kgf, 7.2 ft·lbf)
Cylinder head blind plugM12128 Nm (2.8 m·kgf, 20 ft·lbf)
Spark plugM10113 Nm (1.3 m·kgf, 9.4 ft·lbf)
Cylinder head stud bolt (exhaust
pipe)M637 Nm (0.7 m·kgf, 5.1 ft·lbf)

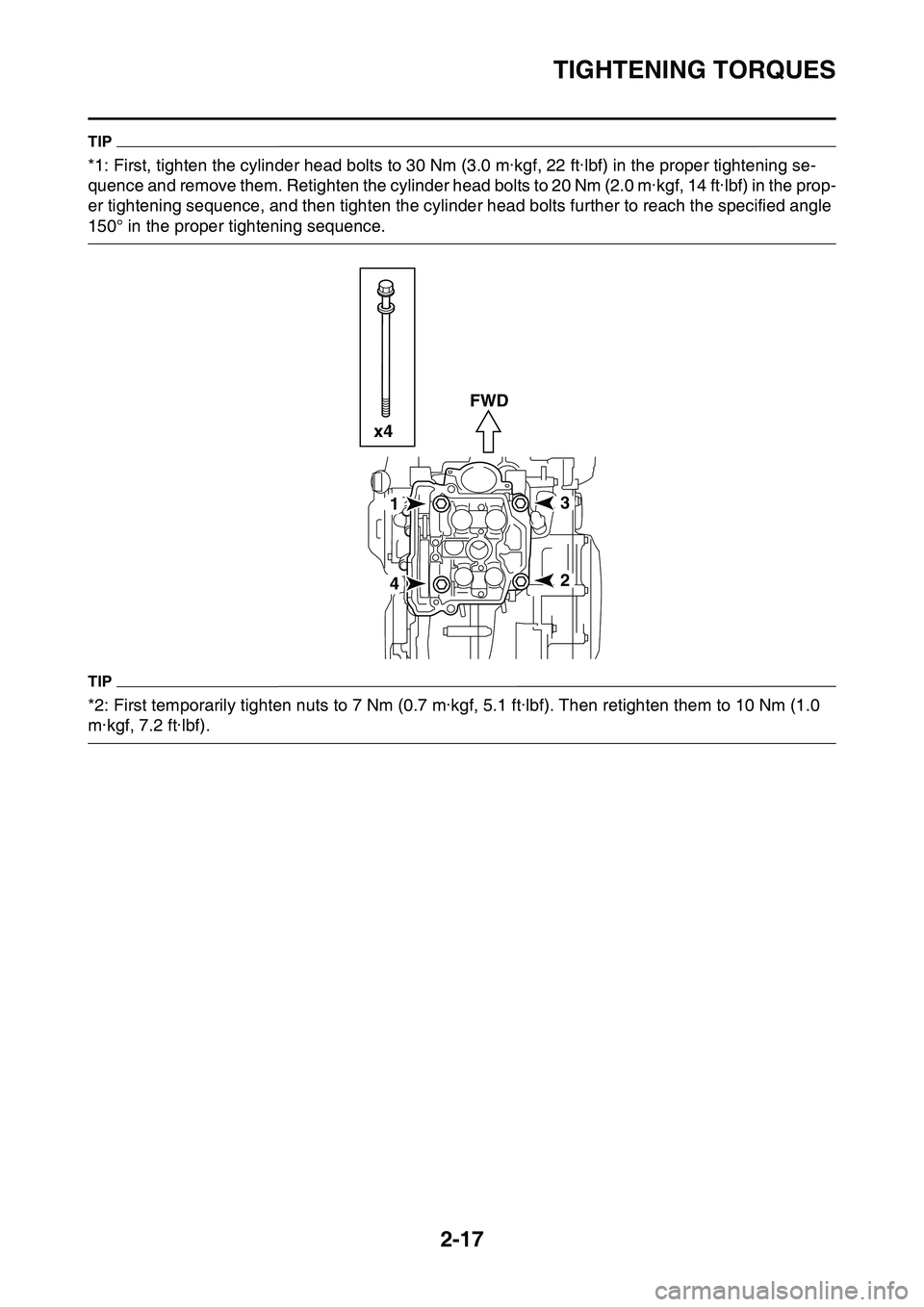

Cylinder head boltsM94See TIP.*1
Cylinder head boltsM6210 Nm (1.0 m·kgf, 7.2 ft·lbf)
Cylinder head cover boltM6310 Nm (1.0 m·kgf, 7.2 ft·lbf)
Oil passage plug (cylinder head)M8115 Nm (1.5 m·kgf, 11 ft·lbf)
Cylinder boltM6110 Nm (1.0 m·kgf, 7.2 ft·lbf)
Oil pressure check boltM6210 Nm (1.0 m·kgf, 7.2 ft·lbf)
Balancer weight plate screwM6310 Nm (1.0 m·kgf, 7.2 ft·lbf)
Balancer driven gear nutM14150 Nm (5.0 m·kgf, 36 ft·lbf)
Use a
lock
washer.
Balancer nutM10145 Nm (4.5 m·kgf, 33 ft·lbf)
Use a
lock
washer.
Timing chain guide stopper plate
(exhaust side)M6110 Nm (1.0 m·kgf, 7.2 ft·lbf)
Timing chain tensioner cap boltM616 Nm (0.6 m·kgf, 4.3 ft·lbf)
Timing chain tensioner boltM6210 Nm (1.0 m·kgf, 7.2 ft·lbf)
Coolant drain boltM6110 Nm (1.0 m·kgf, 7.2 ft·lbf)
Radiator hose clamp screwM681.5 Nm (0.15 m·kgf, 1.1 ft·lbf)
Radiator boltM6410 Nm (1.0 m·kgf, 7.2 ft·lbf)
Radiator pipe bolt M6110 Nm (1.0 m·kgf, 7.2 ft·lbf)
Radiator pipe joint bolt M6110 Nm (1.0 m·kgf, 7.2 ft·lbf)
Water pump housing cover boltM6410 Nm (1.0 m·kgf, 7.2 ft·lbf)
Oil pump boltM525 Nm (0.5 m·kgf, 3.6 ft·lbf)
Oil pump cover screwM412.0 Nm (0.20 m·kgf, 1.4 ft·lbf)
Oil strainer boltM6110 Nm (1.0 m·kgf, 7.2 ft·lbf)
Oil passage cover bolt (left crank-
case)M6110 Nm (1.0 m·kgf, 7.2 ft·lbf)
Throttle cable cover boltM513.5 Nm (0.35 m·kgf, 2.5 ft·lbf)
Throttle body joint boltM6210 Nm (1.0 m·kgf, 7.2 ft·lbf)
Throttle body joint clamp boltM513.0 Nm (0.30 m·kgf, 2.2 ft·lbf)
Air filter joint clamp boltM413.5 Nm (0.35 m·kgf, 2.5 ft·lbf)
Air filter case boltM637 Nm (0.7 m·kgf, 5.1 ft·lbf)
LT
M
LT
LT
LT

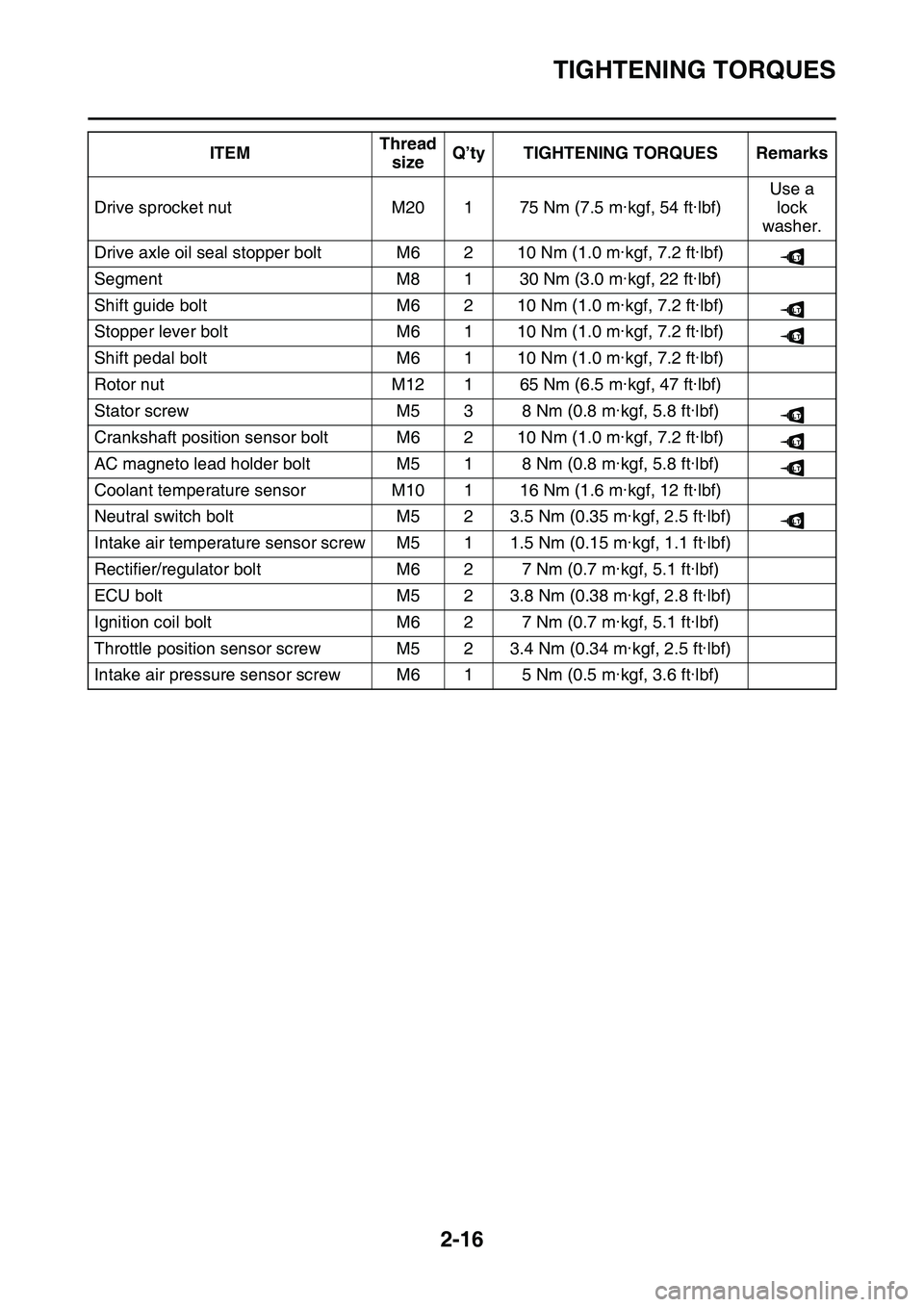

TIGHTENING TORQUES
2-15
Air filter boltM6 1 2.0 Nm (0.20 m·kgf, 1.4 ft·lbf)
Air filter case cover bolt M6 3 6 Nm (0.6 m·kgf, 4.3 ft·lbf)
Air filter guide holder screw M5 8 2.5 Nm (0.25 m·kgf, 1.8 ft·lbf)
Air filter case cap screw M5 1 2.5 Nm (0.25 m·kgf, 1.8 ft·lbf)
Starter knob/Idle screw M12 1 2.1 Nm (0.21 m·kgf, 1.5 ft·lbf)
Throttle cable nut (pull) M10 1 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Throttle cable nut (return) M10 1 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Clutch cable adjuster and locknut M6 1 4.3 Nm (0.43 m·kgf, 3.1 ft·lbf)
Clutch cable locknut (engine side) M8 1 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Exhaust pipe nut M6 3See TIP.
*2
Exhaust pipe protector screw M6 4 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Exhaust pipe bracket bolt M8 1 20 Nm (2.0 m·kgf, 14 ft·lbf)
Frame and silencer bolt (front) M8 1 30 Nm (3.0 m·kgf, 22 ft·lbf)
Frame and silencer bolt (rear) M 8 1 30 Nm (3.0 m·kgf, 22 ft·lbf)
Exhaust pipe clamp bolt M8 2 12 Nm (1.2 m·kgf, 8.7 ft·lbf)
Silencer body bolt M5 6 8 Nm (0.8 m·kgf, 5.8 ft·lbf)
Oil nozzle bolt M6 1 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Engine oil drain bolt M10 1 20 Nm (2.0 m·kgf, 14 ft·lbf)
Crankcase bolt M6 12 12 Nm (1.2 m·kgf, 8.7 ft·lbf)
Clutch cable holder bolt M6 2 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Crankshaft end accessing screw M36 1 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Timing mark accessing screw M14 1 6 Nm (0.6 m·kgf, 4.3 ft·lbf)
Drive chain sprocket cover bolt M6 2 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Crankcase bearing cover plate
screw M6 8 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Crankcase bearing cover plate
screw (crankshaft) M8 4 18 Nm (1.8 m·kgf, 13 ft·lbf) Crimp.
Clutch cover bolt M6 7 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Oil level check window bolt M6 1 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Left crankcase cover bolt M6 7 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Right crankcase cover bolt M6 11 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Oil filter element cover bolt M6 2 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Oil level check window bolt M6 1 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Kick shaft ratchet wheel guide bolt M6 2 12 Nm (1.2 m·kgf, 8.7 ft·lbf)
Kick starter lever bolt M8 1 33 Nm (3.3 m·kgf, 24 ft·lbf)
Kick starter lever boss screw M6 1 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Primary drive gear nut M20 1 100 Nm (10 m·kgf, 72 ft·lbf)
Clutch spring bolt M6 6 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Clutch boss nut M20 1 75 Nm (7.5 m·kgf, 54 ft·lbf)
ITEM
Thread
size Q’ty TIGHTENING TORQUES RemarksLT
LT
LT
LT
LT
LT
LT

TIGHTENING TORQUES
2-16
Drive sprocket nutM20175 Nm (7.5 m·kgf, 54 ft·lbf)
Use a
lock
washer.
Drive axle oil seal stopper boltM6210 Nm (1.0 m·kgf, 7.2 ft·lbf)
SegmentM8130 Nm (3.0 m·kgf, 22 ft·lbf)
Shift guide boltM6210 Nm (1.0 m·kgf, 7.2 ft·lbf)
Stopper lever boltM6110 Nm (1.0 m·kgf, 7.2 ft·lbf)
Shift pedal boltM6110 Nm (1.0 m·kgf, 7.2 ft·lbf)
Rotor nutM12165 Nm (6.5 m·kgf, 47 ft·lbf)
Stator screwM538 Nm (0.8 m·kgf, 5.8 ft·lbf)
Crankshaft position sensor boltM6210 Nm (1.0 m·kgf, 7.2 ft·lbf)
AC magneto lead holder boltM518 Nm (0.8 m·kgf, 5.8 ft·lbf)
Coolant temperature sensorM10116 Nm (1.6 m·kgf, 12 ft·lbf)
Neutral switch boltM523.5 Nm (0.35 m·kgf, 2.5 ft·lbf)
Intake air temperature sensor screwM511.5 Nm (0.15 m·kgf, 1.1 ft·lbf)
Rectifier/regulator boltM627 Nm (0.7 m·kgf, 5.1 ft·lbf)
ECU boltM523.8 Nm (0.38 m·kgf, 2.8 ft·lbf)
Ignition coil boltM627 Nm (0.7 m·kgf, 5.1 ft·lbf)
Throttle position sensor screwM523.4 Nm (0.34 m·kgf, 2.5 ft·lbf)
Intake air pressure sensor screwM615 Nm (0.5 m·kgf, 3.6 ft·lbf)
ITEMThread
sizeQ’ty TIGHTENING TORQUES Remarks
LT
LT
LT
LT
LT
LT
LT

TIGHTENING TORQUES
2-17
TIP
*1: First, tighten the cylinder head bolts to 30 Nm (3.0 m·kgf, 22 ft·lbf) in the proper tightening se-
quence and remove them. Retighten the cylinder head bolts to 20 Nm (2.0 m·kgf, 14 ft·lbf) in the prop-
er tightening sequence, and then tighten the cylinder head bolts further to reach the specified angle
150° in the proper tightening sequence.
TIP
*2: First temporarily tighten nuts to 7 Nm (0.7 m·kgf, 5.1 ft·lbf). Then retighten them to 10 Nm (1.0
m·kgf, 7.2 ft·lbf).
EAS1SL1058
1
42
3 x4FWD
