PERIODIC MAINTENANCE AND ADJUSTMENT
7-16
1
2
3
4
5
678
9
10
11
12
6. Remove the coolant reservoir cap.
7. Remove the coolant reservoir by
removing the bolts, and then turn
the reservoir upside down to emp-
ty it. 8. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
9. Install the coolant reservoir by in- stalling the bolts.
10. Install the coolant drain bolt and its new gasket, and then tighten the
bolt to the specified torque.
11. Pour the specified amount of the recommended coolant into the ra-
diator and reservoir. 12. Install the coolant reservoir cap.
13. Loosen the air bleed bolt to allow
any trapped air to escape from the
water pump.
14. When coolant begins to flow out, tighten the air bleed bolt to the
1. Coolant drain bolt
2. Gasket
1. Coolant reservoir cap
121
1. Coolant reservoir
2. BoltTightening torque:Coolant drain bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
2
Antifreeze/water mixture ratio: 1:1
Recommended antifreeze: High-quality ethylene glycol anti-
freeze containing corrosion inhibitors
for aluminum engines
Coolant quantity:
Radiator (including all routes):2.25 L (2.38 US qt, 1.98 Imp.qt)
Coolant reservoir (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)1. Air bleed bolt
1
2CR-9-E0_1.book 16 ページ ２０１５年１月５日　月曜日　午前１１時５４分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-17
1
2
3
4
5
67
8
9
10
11
12 specified torque.
15. Pour the specified coolant into the radiator until it is full.
16. Install the radiator cap.
17. Start the engine, let it idle for sev-
eral minutes, and then turn it off.
18. Remove the radiator cap to check the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap.
19. Start the engine, and then check the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
20. Install the cowling and panel.
EAU36765
Air filter elementThe air filter element must be replaced
at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the air
filter element.
EAU44735
Checking the engine idling
speedCheck the engine idling speed and, if
necessary, have it corrected by a
Yamaha dealer.
Tightening torque: Air bleed bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Engine idling speed:
1200–1400 r/min
2CR-9-E0_1.book 17 ページ ２０１５年１月５日　月曜日　午前１１時５４分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-18
1
2
3
4
5
678
9
10
11
12
EAU21385
Checking the throttle grip free
playThe throttle grip free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
inner edge of the throttle grip. Periodi-
cally check the throttle grip free play
and, if necessary, have a Yamaha
dealer adjust it.
EAU21402
Valve clearanceThe valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU2177A
TiresTires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).

The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
1. Throttle grip free play
1
2CR-9-E0_1.book 18 ページ ２０１５年１月５日　月曜日　午前１１時５４分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-19
1
2
3
4
5
67
8
9
10
11
12 weight of rider, passenger, car-
go, and accessories approved
for this model.WARNING
EWA10512
Never overload your vehicle. Opera-
tion of an overloaded vehicle couldcause an accident. Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
TIPThe tire tread depth limits may differ
from country to country. Always complywith the local regulations.
WARNING
EWA10472

Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.

The replacement of all wheel
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience to do so.

Ride at moderate speeds after
changing a tire since the tire
surface must first be “broken
in” for it to develop its optimalcharacteristics.
Tire air pressure (measured on cold
tires):
Up to 90 kg (198 lb) load:Front: 250 kPa (2.50 kgf/cm
2, 36 psi)
Rear: 290 kPa (2.90 kgf/cm2, 42 psi)
90 kg (198 lb) to maximum load:
Front: 250 kPa (2.50 kgf/cm2, 36 psi)
Rear:
290 kPa (2.90 kgf/cm2, 42 psi)
High-speed riding: Front:
250 kPa (2.50 kgf/cm2, 36 psi)
Rear: 290 kPa (2.90 kgf/cm2, 42 psi)
Maximum load*: 188 kg (414 lb)
* Total weight of rider, passenger, car-
go and accessories

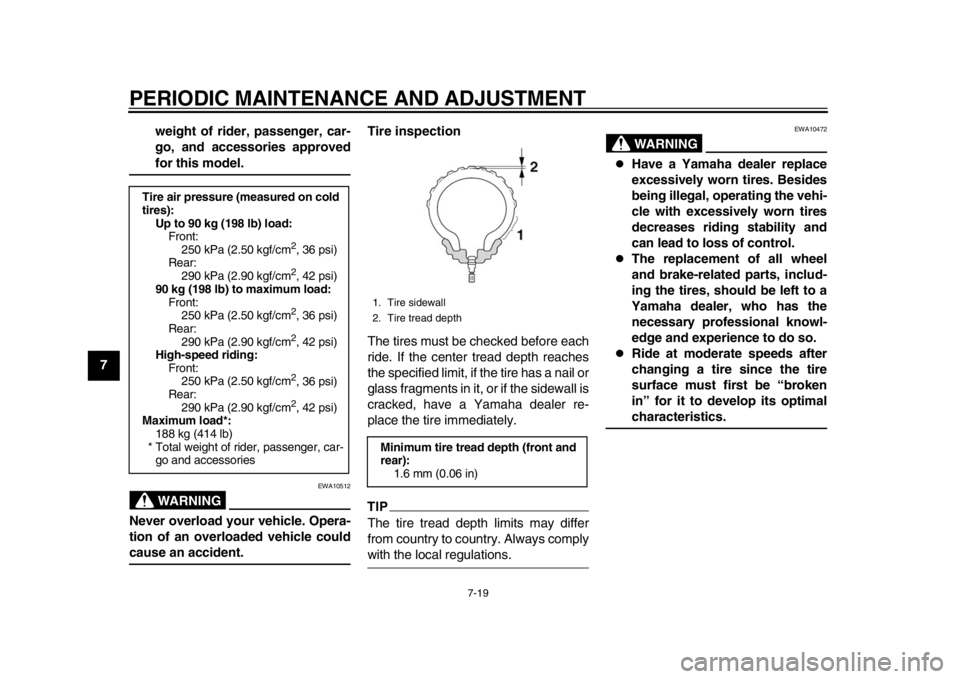

1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear): 1.6 mm (0.06 in)
2CR-9-E0_1.book 19 ページ ２０１５年１月５日　月曜日　午前１１時５４分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-20
1
2
3
4
5
678
9
10
11
12
Tire information
This model is equipped with tubeless
tires and tire air valves.
Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of
ageing. Old and aged tires shall be
checked by tire spec
ialists to ascertain
their suitability for further use.
WARNING
EWA10482

The front and rear tires should
be of the same make and de- sign, otherwise the handling
characteristics of the motorcy-
cle may be different, which
could lead to an accident.

Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.

Use only the tire valves and
valve cores listed below to
avoid tire deflation during ahigh-speed ride.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha.
WARNING
EWA10601
This motorcycle is fitted with su-
per-high-speed tires. Note the fol-
lowing points in order to make the
most efficient use of these tires.
Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super

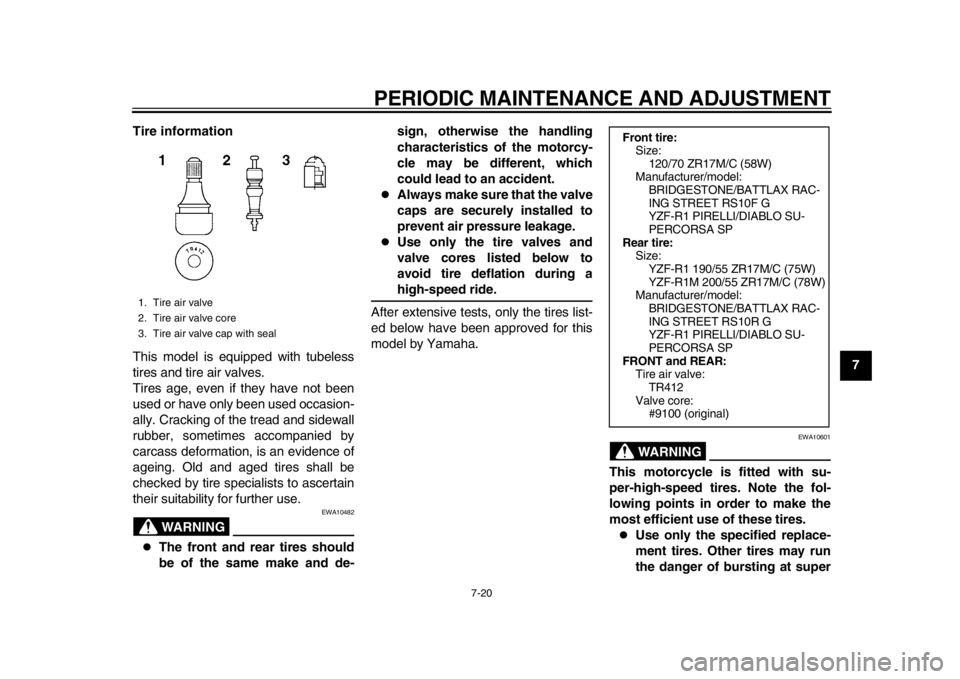

1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
Front tire: Size:120/70 ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BATTLAX RAC-
ING STREET RS10F G
YZF-R1 PIRELLI/DIABLO SU-
PERCORSA SP
Rear tire: Size:
YZF-R1 190/55 ZR17M/C (75W)
YZF-R1M 200/55 ZR17M/C (78W)
Manufacturer/model:
BRIDGESTONE/BATTLAX RAC-
ING STREET RS10R G
YZF-R1 PIRELLI/DIABLO SU-
PERCORSA SP
FRONT and REAR: Tire air valve:
TR412
Valve core: #9100 (original)
2CR-9-E0_1.book 20 ページ ２０１５年１月５日　月曜日　午前１１時５４分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-21
1
2
3
4
5
67
8
9
10
11
12 high speeds.

Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been
“broken in”. Therefore, it is ad-
visable before doing any
high-speed riding to ride con-
servatively for approximately
100 km (60 mi) after installing a
new tire.

The tires must be warmed up
before a high-speed run.

Always adjust the tire air pres-
sure according to the operatingconditions.
EAU66460
Cast magnesium wheelsTo maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
these wheels.
The wheel rims should be checked
for cracks, bends, warpage or
damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.

The wheel should be balanced
whenever the tire or wheel has
been changed or replaced. An un-
balanced wheel can result in poor
performance, adverse handling
characteristics, and shortened tire
life.
These wheels are made of magnesium
and require special care.

When balancing the wheel, use
press-on type weights to avoid
scratching the wheel.

Regularly inspect the wheel for
nicks and scratches. Use touch-up
paint or other sealant to prevent corrosion.

Follow the instructions for cleaning
provided on page 8-1.
2CR-9-E0_1.book 21 ページ ２０１５年１月５日　月曜日　午前１１時５４分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-22
1
2
3
4
5
678
9
10
11
12
EAU67341
Adjusting the clutch lever free
playThe clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
To increase the clutch lever free play,
turn the clutch lever free play adjusting
bolt at the clutch lever in direction (a).
To decrease the clutch lever free play,
turn the adjusting bolt in direction (b).TIPIf the specified clutch lever free play
cannot be obtained as described
above, proceed as follows. 1. Fully turn the adjusting bolt at the clutch lever in direction (a) to loos-
en the clutch cable.
2. Remove cowling B. (See page 7-8.)
3. Loosen the locknut further down the clutch cable.
4. To increase the clutch lever free play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free play,
turn the adjusting nut in direction
(b).
5. Tighten the locknut.
6. Install the cowling.
EAU37914
Checking the brake lever free
playThere should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-

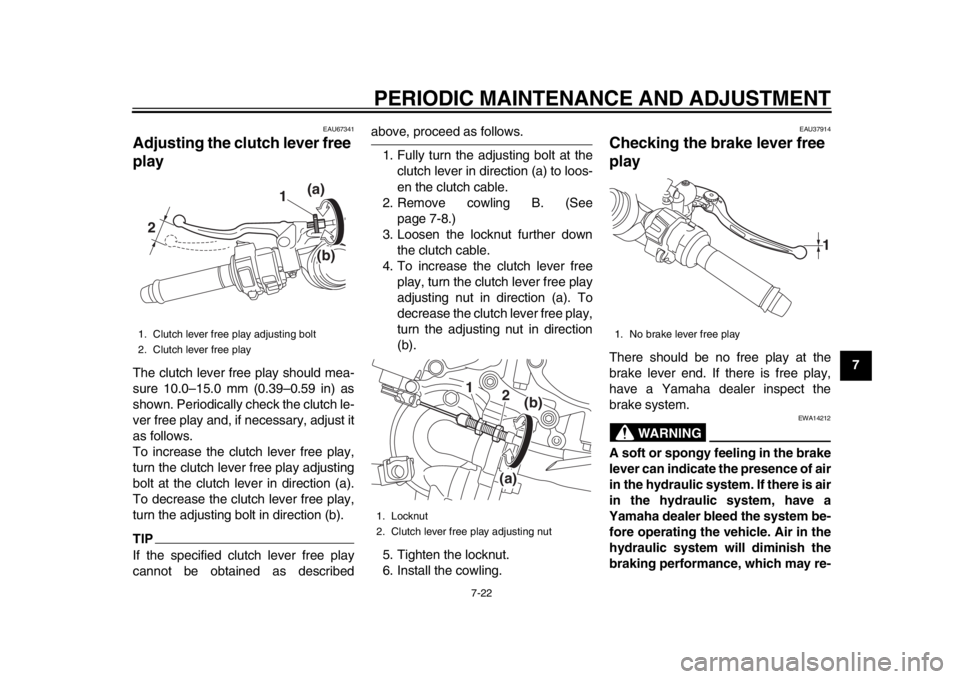

1. Clutch lever free play adjusting bolt
2. Clutch lever free play
1
2 (a)
(b)
1. Locknut
2. Clutch lever free play adjusting nut
1
2
(a)(b)
1. No brake lever free play
1
2CR-9-E0_1.book 22 ページ ２０１５年１月５日　月曜日　午前１１時５４分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-23
1
2
3
4
5
67
8
9
10
11
12 sult in loss of control and an acci-
dent.
EAU36504
Brake light switchesThe brake light, which is activated by
the brake pedal and brake lever, should
come on just before braking takes ef-
fect. If necessary, have a Yamaha deal-
er adjust the brake light switches.
EAU22393
Checking the front and rear
brake padsThe front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU36891
Front brake pads
Each front brake pad is provided with
wear indicators, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check the position
of the wear indicators while applying
the brake. If a brake pad has worn to

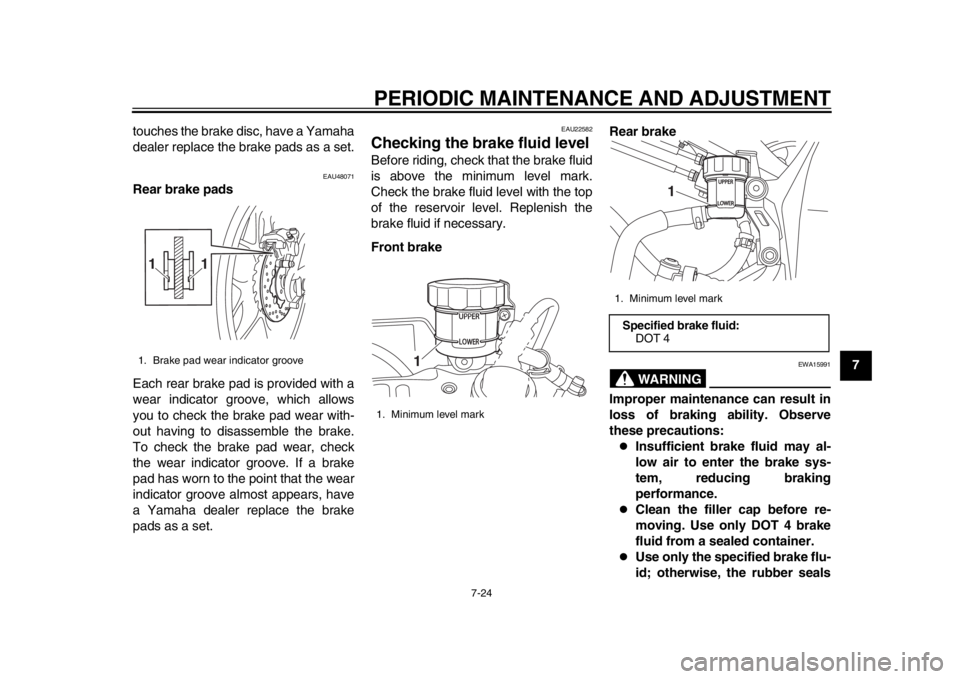

the point that a wear indicator almost1. Brake pad wear indicator
1
2CR-9-E0_1.book 23 ページ ２０１５年１月５日　月曜日　午前１１時５４分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-24
1
2
3
4
5
678
9
10
11
12
touches the brake disc, have a Yamaha
dealer replace the brake pads as a set.
EAU48071
Rear brake pads

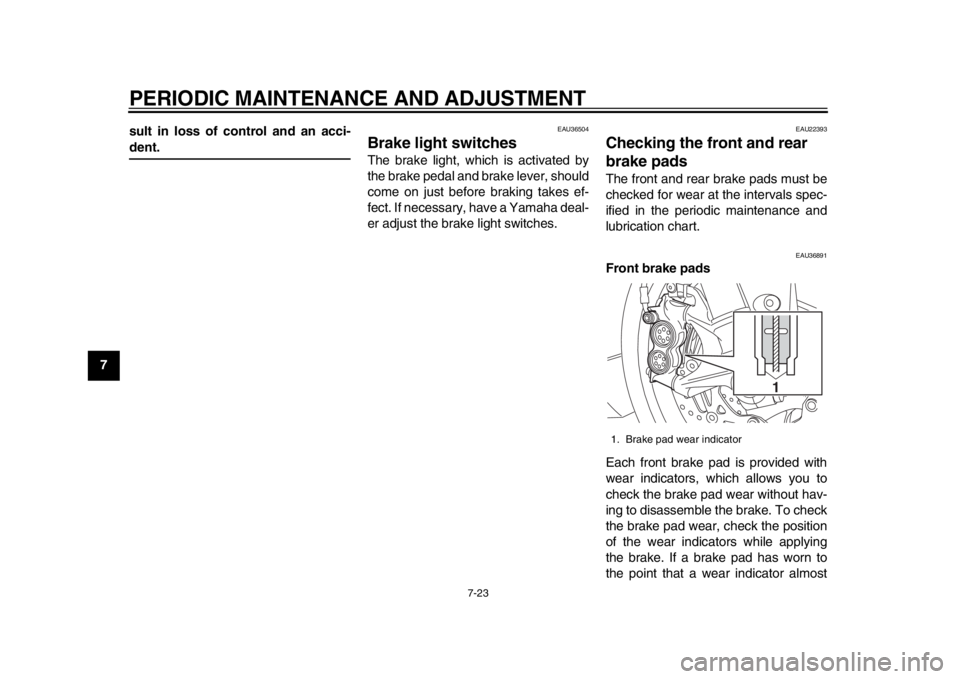

Each rear brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.
EAU22582
Checking the brake fluid levelBefore riding, check that the brake fluid
is above the minimum level mark.
Check the brake fluid level with the top
of the reservoir level. Replenish the
brake fluid if necessary.
Front brake
Rear brake
WARNING
EWA15991
Improper maintenance can result in
loss of braking ability. Observe
these precautions:
Insufficient brake fluid may al-
low air to enter the brake sys-
tem, reducing braking
performance.

Clean the filler cap before re-
moving. Use only DOT 4 brake
fluid from a sealed container.

Use only the specified brake flu-
id; otherwise, the rubber seals
1. Brake pad wear indicator groove
1
1
1. Minimum level mark
1
1. Minimum level markSpecified brake fluid:
DOT 4
1
2CR-9-E0_1.book 24 ページ ２０１５年１月５日　月曜日　午前１１時５４分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-25
1
2
3
4
5
67
8
9
10
11
12 may deteriorate, causing leak-
age.

Refill with the same type of
brake fluid. Adding a brake fluid
other than DOT 4 may result in a
harmful chemical reaction.

Be careful that water does not
enter the brake fluid reservoir
when refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vaporlock.
NOTICE
ECA17641
Brake fluid may damage painted sur-
faces or plastic parts. Always cleanup spilled fluid immediately.
As the brake pads wear, it is normal for
the brake fluid level to gradually go
down. A low brake fluid level may indi-
cate worn brake pads and/or brake sys-
tem leakage; therefore, be sure to
check the brake pads for wear and the
brake system for leakage. If the brake
fluid level goes down suddenly, have a
Yamaha dealer check the cause before
further riding.
EAU22733
Changing the brake fluidHave a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the oil seals
of the master cylinders and calipers as
well as the brake hoses replaced at the
intervals listed below or whenever they
are damaged or leaking.
Oil seals: Replace every two
years.

Brake hoses: Replace every four
years.
EAU22762
Drive chain slackThe drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22776
To check the drive chain slack
1. Place the motorcycle on the sides- tand.TIPWhen checking and adjusting the drive
chain slack, there should be no weighton the motorcycle.
2. Shift the transmission into the neu- tral position.
3. Measure the drive chain slack as shown.Drive chain slack:25.0–35.0 mm (0.98–1.38 in)
2CR-9-E0_1.book 25 ページ ２０１５年１月５日　月曜日　午前１１時５４分
