BATTERY RECHARGING
IMPORTANT The battery recharging procedure is given
as information only. It is advisable to contact an Abarth
Dealership to have this operation performed.
fig. 162F0U166Ab
We recommend recharging the battery slowly for
approximately 24 hours at low amperage. Rapid battery
charging with high currents could damage the battery.
To charge, proceed as follows:
❒proceed as follows: detach the connector A-fig. 162 (by
pressing button B) from sensor C for monitoring the
status of the battery installed on the negative battery
pole D;
❒connect the positive cable to the positive battery
terminal E and the negative terminal to the sensor D
as shown in the figure;
❒turn on the charger. Turn the device off after
recharging;
❒after having disconnected the recharging device,
reconnect the connector A to the sensor C as shown
in the figure.
151-182 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:45 Pagina 177

178
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Battery fluid is poisonous and corrosive:
avoid contact with your skin and eyes.
The battery recharging operation must be
performed in a ventilated place, away from
naked flames or possible sources of sparks to
avoid the risk of explosion and fire.
WARNING
Don’t try to recharge a frozen battery: If
freezing has occurred, the battery should
be checked by skilled personnel to make sure
that the internal elements are not damaged and
that the body is not cracked, with the risk of
leaking poisonous and corrosive acid.
WARNING
JACKING THE CAR
If the vehicle needs to be raised, go to an Abarth
Dealership which is equipped with arm lifts and
workshop lifts.
Lift the car only by positioning the ends of the jack arms
or the workshop lift at the points shown in fig. 163
corresponding to symbols ▼indicated on the side
skirts.
IMPORTANT Take care not to damage the side skirts
when lifting the car with the workshop lift.
fig. 163F0U167Ab
151-182 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:45 Pagina 178

179
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U169Abfig. 165
FASTENING THE TOW RING
fig. 164-165
Proceed as follows:
❒release the cap A;
❒take the tow ring B from its support;
❒fully tighten the ring on the rear or front threaded
pin.
TOWING THE CAR
The tow ring provided with the car is housed in the tool
box under the carpet in the boot.
fig. 164F0U168Ab
151-182 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:45 Pagina 179

180
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The power brakes and power steering
will not operate while the vehicle is
being towed. More effort on the brake pedal
and steering wheel will therefore be required.
Do not use flexible cables when towing and
avoid jerky movements. While towing, make
sure not to damage parts in contact with the
car. When towing the vehicle, be sure to respect
the specific rules of the highway code in
relation to the towing device and the behaviour
to maintain on the road.
WARNING
Clean the threaded housing throughly
before fastening the tow ring. Make sure
that the ring is securely fastened before towing
the car.
WARNING
During towing, do not start the engine.
WARNING
151-182 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:45 Pagina 180

181
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Before towing, switch off the steering
lock (see “Starting device” paragraph in
the “Knowing your car” section). The power
brakes and power steering will not operate
while the vehicle is being towed. More effort on
the brake pedal and steering wheel will
therefore be required. Do not use flexible cables
when towing and avoid jerky movements. While
towing, make sure not to damage parts in
contact with the car. Respect the rules of the
highway code when towing the car, specifically
in relation to the towing device and road
conduct.
WARNING
The front and rear tow hooks should be
used only for emergency operations on
the road. You are allowed to tow the car for
short distances using an appropriate device in
accordance with the highway code (a rigid bar),
to move the vehicle on the road in readiness for
towing or transporting via a breakdown vehicle.
Tow hooks MUST NOT be used to tow vehicles
off the road or where there are obstacles and/or
for towing operations using cables or other non-
rigid devices. Respecting the above conditions,
towing must take place with the two vehicles
(one towing, the other towed) aligned as much
as possible along the same centre line.
WARNING
151-182 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:45 Pagina 181

182
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
blank page
151-182 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:45 Pagina 182

183
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
MAINTENANCE AND CARE
SCHEDULED SERVICING
Correct servicing is essential in guaranteeing a long life
for the car under the best conditions.
This is why Abarth has planned a series of checks and
maintenance operations every 15,000 km.
It is, however, important to remember that scheduled
servicing does not completely cover all the car’s
requirements: even in the initial period before 15,000
km, and then subsequently between one service and
another, ordinary care is always required such as
routine checks involving topping up fluid level, checking
tyre pressures etc...IMPORTANT Scheduled Servicing coupons is specified
by the Manufacturer.
Failure to have them carried out may invalidate the
warranty.
The services can be carried out by any Abarth
Dealership at the appointed times.
If during each operation, in addition to the ones
scheduled, the need arises for further replacements or
repairs, these may only be carried out with the express
agreement of the Customer.
IMPORTANT You are advised to contact an Abarth
Dealership in the event of any minor operating faults,
without waiting for the next service.
183-204 PUNTO Abarth GB 1ed 8-02-2012 13:24 Pagina 183

184
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ● ●●
SCHEDULED SERVICING PLAN
Services must be carried out every 15,000 km.
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150 165 180
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlamps,
direction indicators, hazard warning lights, luggage compartment,
passenger compartment, glove box,
instrument panel warning lights, etc.)
Check operation of windscreen washer system and adjust
nozzles if necessary
Check windscreen/rear window wiper blade position/wear
Check condition and wear of front disc brake pads
and operation of pad wear indicator
Check condition and wear of rear disc brake pads
and operation of pad wear indicator
Visually inspect the condition of: exterior bodywork,
underbody protection, rigid pipes and hoses (exhaust –
fuel supply – brakes), rubber parts (boots, sleeves, bushes, etc.)\
Check cleanliness of locks, lids, engine and boot, and the
cleanliness and lubrication of linkage
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine coolant, etc.)
Check handbrake lever travel and adjust if necessary
Visually inspect conditions of the accessory drive belt(s)
183-204 PUNTO Abarth GB 1ed 8-02-2012 13:24 Pagina 184

185
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
●●
●●● ●● ●
●●● ●● ●
●
●
●●● ●● ● ●● ●
●●●●●●● ●● ●● ●
●● ●
●●● ●● ●
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150 165 180
Visually inspect the conditions of toothed timing belt
Check exhaust gas emissions
Check engine control system operation (using diagnosis socket)
Replace accessory drive belt(s)
Replace toothed timing belt (*)
Replace spark plugs (1)
Replace air filter cartridge
Change engine oil and replace oil filter (or every 12 months) (2)
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
(*) Regardless of the distance covered, the timing belt should be replaced e\
very 4 years for particularly demanding use (cold climates, city driving, idling for a long time, dusty areas) or, in any case, every 5 \
years.
(1 )The following are extremely important to ensure correct operation and pr\
event serious damage to the
engine:
– only use spark plugs of the same make and type specially certified \
for 1.4 Turbo Multi Air engines (see
“Engine”);
– strictly comply with the spark plug replacement interval given in t\
he Scheduled Servicing Plan;
– it is advisable to contact an Abarth Dealership.
(2) If the car is equipped with esseesse kit (for versions/markets, where p\
rovided), the engine oil and engine oil
filter must be changed every 10,000 km or every 12 months.
183-204 PUNTO Abarth GB 1ed 8-02-2012 13:24 Pagina 185

186

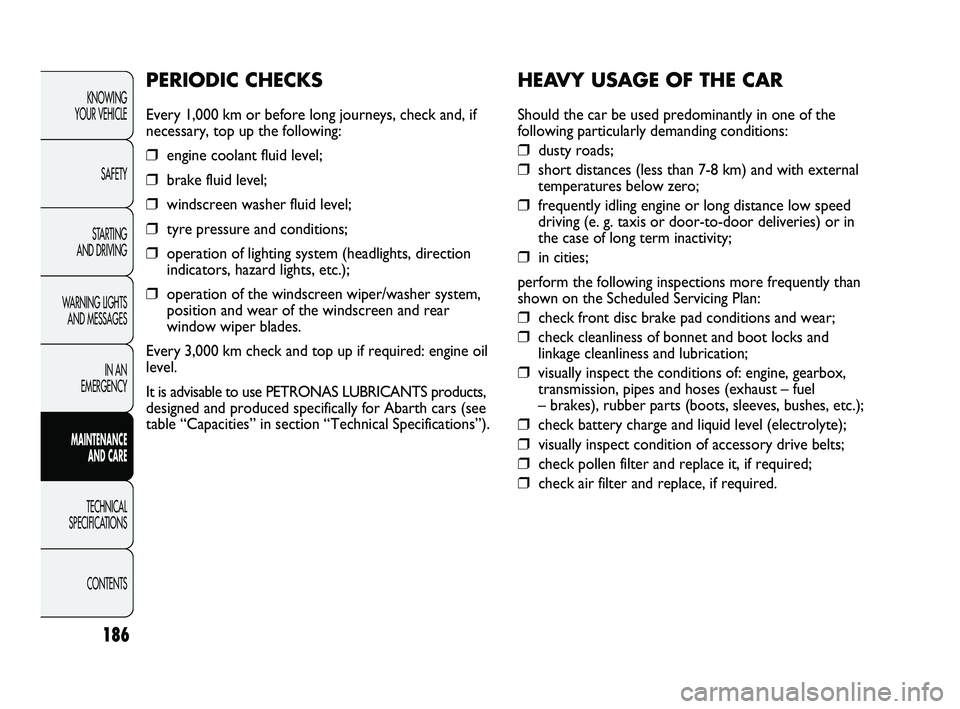

HEAVY USAGE OF THE CAR
Should the car be used predominantly in one of the
following particularly demanding conditions:
❒dusty roads;
❒short distances (less than 7-8 km) and with external
temperatures below zero;
❒frequently idling engine or long distance low speed
driving (e. g. taxis or door-to-door deliveries) or in
the case of long term inactivity;
❒in cities;
perform the following inspections more frequently than
shown on the Scheduled Servicing Plan:
❒check front disc brake pad conditions and wear;
❒check cleanliness of bonnet and boot locks and
linkage cleanliness and lubrication;
❒visually inspect the conditions of: engine, gearbox,
transmission, pipes and hoses (exhaust – fuel
– brakes), rubber parts (boots, sleeves, bushes, etc.);
❒check battery charge and liquid level (electrolyte);
❒visually inspect condition of accessory drive belts;
❒check pollen filter and replace it, if required;
❒check air filter and replace, if required.
PERIODIC CHECKS
Every 1,000 km or before long journeys, check and, if
necessary, top up the following:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions;
❒operation of lighting system (headlights, direction
indicators, hazard lights, etc.);
❒operation of the windscreen wiper/washer system,
position and wear of the windscreen and rear
window wiper blades.
Every 3,000 km check and top up if required: engine oil
level.
It is advisable to use PETRONAS LUBRICANTS products,
designed and produced specifically for Abarth cars (see
table “Capacities” in section “Technical Specifications”).
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
183-204 PUNTO Abarth GB 1ed 8-02-2012 13:24 Pagina 186
