14-215
Shift Solenoid Valve Test
A A
18x1.5mm
49 N·m
(5.0 kgf·m, 36 lbf·ft) B
A
B
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)
B
C
1. Connect the HDS to the DLC (A) located under the driver’s side of the dashboard.
2. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go
to the DLC circuit troubleshooting (see page
11-204).
3. Select Shift Solenoid Valves A, B, C, D, and E Test in the Miscellaneous Test Menu with the HDS.
4. Check that shift solenoid valves A, B, C, D, and E operate with the HDS. A clicking sound should be
heard.
 If a clicking sound is heard, the valves are OK. The test is complete, disconnect the HDS.
 If no clicking sound is heard, go to step 5, and test the solenoid valve.
5. Do the battery removal procedure (see page 22-69).
6. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345).
7. Remove the battery tray, the battery base, and the resonator.
8. Raise the vehicle on a lift, or apply the parking brake, block the rear wheels, and raise the front of
the vehicle. Make sure it is securely supported.
9. Remove the splash shield. 10. Remove the drain plug (A), and drain the automatic
transmission fluid (ATF).
11. Reinstall the drain plug with a new sealing washer (B).
12. Remove the shift solenoid valve cover (A), the dowel pins (B), and the gasket (C).
(cont’d)
Replace.
Replace.
08/08/21 14:46:44 61SNR030_140_0217
ProCarManuals.com
DYNOMITE -2009-

µ
Standard: 12 25
14-216Automatic Transmission
Shift Solenoid Valve Test (cont’d)
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)
13. Disconnect the shift solenoid wire harness
connector, and remove it from the transmission
housing.
14. Measure the shift solenoid valve resistance between the following shift solenoid wire harness
connector terminals and body ground:
 No. 1 (GRN): Shift solenoid valve C
 No. 2 (ORN): Shift solenoid valve B
 No. 3 (RED): Shift solenoid valve E
 No. 5 (BLU): Shift solenoid valve A
 No. 8 (YEL): Shift solenoid valve D
15. If the resistance is within the standard, go to step 17 and check the solenoid valve for a clicking
sound. If the resistance is out of standard, go to
step 16.
16. Disconnect the shift solenoid valve connector, and measure the resistance at the solenoid valve
connector. Replace the shift solenoid valve if the
resistance is out of standard, then go to step 20.
17. Connect a jumper wire from the battery positive terminal to the shift solenoid wire harness
connector terminals, and connect another jumper
wire from the battery negative terminal to body
ground individually. A clicking sound should be
heard.
 If a clicking sound is heard, the valves are OK, and the test is complete, connect the connector.
 If no clicking sound is heard, replace the shift solenoid valve (see page 14-217). 18. Replace the shift solenoid harness if the test results
are OK.
19. Install a new O-ring on the shift solenoid wire harness connector, and install the connector in the
transmission housing.
20. Install a new gasket, the dowel pins, and the shift solenoid valve cover.
21. Check the shift solenoid wire harness connector for rust, dirt, or oil, then connect the connector
securely.
22. Refill the transmission with ATF (see step 5 on page 14-232).
23. Install the battery tray, the battery base, and the resonator.
24. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
25. Do the battery installation procedure (see page 22-69).
26. Install the splash shield.
08/08/21 14:46:44 61SNR030_140_0218
ProCarManuals.com
DYNOMITE -2009-

ÃŽ
ÃŽ
ÃŽ
(#'



 )
14-217
Shift Solenoid Valve and Shift Solenoid Wire Harness Replacement
A
18x1.5mm
49 N·m
(5.0 kgf·m, 36 lbf·ft) B A
B
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)
B
C
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
A
B
1. Raise the vehicle on a lift, or apply the parking
brake, block the rear wheels, and raise the front of
the vehicle. Make sure it is securely supported.
2. Remove the splash shield.
3. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).
4. Reinstall the drain plug with a new sealing washer (B).
5. Do the battery removal procedure (see page 22-69).
6. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345).
7. Remove the battery tray, the battery base, and the resonator. 8. Remove the shift solenoid valve cover (A), the
dowel pins (B), and the gasket (C).
9. Disconnect the shift solenoid valve connectors.  If replacing the shift solenoid valve(s), go to step10.
 If replacing the shift solenoid wire harness, remove the shift solenoid wire harness connector
(A), and replace it. Install a new O-ring (B) on a
new shift solenoid wire harness connector, and
install it in the transmission housing, then go to
step 15.
(cont’d)
Replace. Replace.
Replace.
08/08/21 14:46:45 61SNR030_140_0219
ProCarManuals.com
DYNOMITE -2009-


14-218Automatic Transmission
Shift Solenoid Valve and Shift Solenoid Wire Harness Replacement (cont’d)
F
6x1.0mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)
A
D E
FB
F
C
G
H
G G
G
G
10. Remove the mounting bolts (F), then hold the shift
solenoid valve body and remove the shift solenoid
valves. Do not hold the connector to remove the
shift solenoid valve.
11. Install new O-rings (two O-rings per solenoid valve) (G) on the reused solenoid valve.
NOTE: A new solenoid valve comes with new
O-rings. If you install a new solenoid valve, use the
O-rings provided with it.
12. Install shift solenoid valves C (brown connector), D (black connector), and E (black connector) by
holding the shift solenoid valve body; make sure
the mounting bracket contacts the servo body.
NOTE: Do not hold the shift solenoid valve
connector to install the shift solenoid valve. Be sure
to hold the shift solenoid valve body.
13. Install shift solenoid valve B (brown connector) by holding the shift solenoid valve body; make sure
the mounting bracket contacts the bracket of shift
solenoid valve E. 14. Install shift solenoid valve A (brown connector) by
holding the shift solenoid valve body; make sure
the mounting bracket contacts the bracket of shift
solenoid valve D.
NOTE: Do not install shift solenoid valves A and B
before installing shift solenoid valve D and E. If
shift solenoid valve A or B is installed before
installing shift solenoid valve D or E, it may
damage to hydraulic control system.
15. Connect YEL, WHT, and WHT harnesses terminal (H) to shift solenoid valve D. The ATF temperature
sensor is installed in the connector.
16. Connect the shift solenoid valve connectors:  BLU wire to shift solenoid valve A
 ORN wire to shift solenoid valve B
 GRN wire to shift solenoid valve C
 RED wire to shift solenoid valve E
17. Install a new gasket, the dowel pins, and the shift solenoid valve cover.
18. Check the connector for rust, dirt, or oil, then connect the connector securely.
19. Refill the transmission with ATF (see step 5 on page 14-232).
20. Install the battery base, the battery tray, and the resonator.
21. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
22. Do the battery installation procedure (see page 22-69).
23. Install the splash shield.
08/08/21 14:46:45 61SNR030_140_0220
ProCarManuals.com
DYNOMITE -2009-



(#'



) µ
Standard: 3 10
14-219
A/T Clutch Pressure Control Solenoid Valve A Test
A
A
1. Connect the HDS to the DLC (A) located under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go
to the DLC circuit troubleshooting (see page
11-204).
3. Select Clutch Pressure Control (Linear) Solenoid Valve A in the Miscellaneous Test Menu with the
HDS.
4. Test A/T clutch pressure control solenoid valve A with the HDS.
 If the valve tests OK, the test is complete. Disconnect the HDS.
 If the valve does not test OK, follow the instructions on the HDS.
 If the valve does not test OK, and the HDS does not determine the cause, go to step 5.
5. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345). 6. Disconnect the A/T clutch pressure control solenoid
valve A connector (A).
7. Measure the resistance between A/T clutch pressure control solenoid valve A connector
terminals No. 1 and No. 2.
 If the resistance is within the standard, go to step 8.
 If the resistance is out of standard, replace A/T clutch pressure control solenoid valve A
(see page 14-221).
8. Connect a jumper wire from the negative battery terminal to solenoid valve A connector terminal
No. 2, and connect another jumper wire from the
positive battery terminal to connector terminal
No. 1.
 If a clicking sound is heard, the valve is OK, and the test is complete, go to step 18.
 If no clicking sound is heard, go to step 9.
(cont’d)
08/08/21 14:46:46 61SNR030_140_0221
ProCarManuals.com
DYNOMITE -2009-

ÃŽ

14-220Automatic Transmission
A/T Clutch Pressure Control Solenoid Valve A Test (cont’d)
A
C B
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
E
D
9. Remove the mounting bolts and A/T clutch
pressure control solenoid valve A.
10. Remove the ATF pipe (B), the ATF joint pipes (C), the O-rings (D), and the gasket (E).
11. Check the fluid passage of the solenoid valve for contamination. 12. Connect a jumper wire from the negative battery
terminal to A/T clutch pressure control solenoid
valve A connector terminal No. 2, and connect
another jumper wire from the positive battery
terminal to connector terminal No. 1. Make sure
A/T clutch pressure control solenoid valve A moves.
13. Disconnect one of the jumper wires, and check valve movement at the fluid passage in the valve
body mounting surface. If the valve binds or moves
sluggishly, or if the solenoid valve does not operate,
replace A/T clutch pressure control solenoid
valve A.
14. Clean the mounting surfaces and the fluid passages of the A/T clutch pressure control solenoid valve
body and the transmission housing.
15. Install a new gasket on the transmission housing, and install the ATF pipe and the ATF joint pipes.
NOTE: Be sure to install a new gasket with the blue
side toward the transmission housing.
16. Install new O-rings over the ATF joint pipes.
17. Install A/T clutch pressure control solenoid valve A.
18. Check the connectors for rust, dirt, or oil, clean or repair if necessary, then connect the connectors
securely.
19. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
Replace.
Replace.
08/08/21 14:46:46 61SNR030_140_0222
ProCarManuals.com
DYNOMITE -2009-

ÃŽ
(#'



 )
14-221
A/T Clutch Pressure Control Solenoid Valve A Replacement
A
C B
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
E
D
1. Remove the intake air duct (see page 11-348) and
the air cleaner assembly (see page 11-345).
2. Disconnect the A/T clutch pressure control solenoid valve A connector.
3. Remove the mounting bolts and A/T clutch pressure control solenoid valve A.
4. Remove the ATF pipe (B), the ATF joint pipes (C), the O-rings (D), and the gasket (E). 5. Clean the mounting surface and the fluid passage
of the transmission housing.
6. Install a new gasket on the transmission housing, and install the ATF pipe and the ATF joint pipes.
NOTE: Be sure to install a new gasket with the blue
side toward the transmission housing.
7. Install new O-rings over the ATF joint pipes.
8. Install a new A/T clutch pressure control solenoid valve A.
9. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect it securely.
10. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
Replace.
Replace.
08/08/21 14:46:47 61SNR030_140_0223
ProCarManuals.com
DYNOMITE -2009-


(#'



) µ
Standard: 3 10
14-222
Automatic Transmission
A/T Clutch Pressure Control Solenoid Valve B Test
A
A
1. Connect the HDS to the DLC (A) located under thedriver’s side of the dashboard.
2. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go
to the DLC circuit troubleshooting (see page
11-204).
3. Select Clutch Pressure Control (Linear) Solenoid Valve B in the Miscellaneous Test Menu with the
HDS.
4. Test A/T clutch pressure control solenoid valve B with the HDS.
 If the valve tests OK, the test is complete. Disconnect the HDS.
 If the valve does not test OK, follow the instructions on the HDS.
 If the valve does not test OK, and the HDS does not determine the cause, go to step 5.
5. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345). 6. Disconnect the A/T clutch pressure control solenoid
valve B connector (A).
7. Measure the resistance between A/T clutch pressure control solenoid valve B connector
terminals No. 1 and No. 2.
 If the resistance is within the standard, go to step 8.
 If the resistance is out of standard, replace A/T clutch pressure control solenoid valve B
(see page 14-226).
8. Connect a jumper wire from the negative battery terminal to solenoid valve B connector terminal
No. 2, and connect another jumper wire from the
positive battery terminal to connector terminal
No. 1.
 If a clicking sound is heard, the valve is OK, and the test is complete, go to step 18.
 If no clicking sound is heard, go to step 9.
08/08/21 14:46:47 61SNR030_140_0224
ProCarManuals.com
DYNOMITE -2009-

ÃŽ
14-223
AD
BC
A
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft) F
E
B

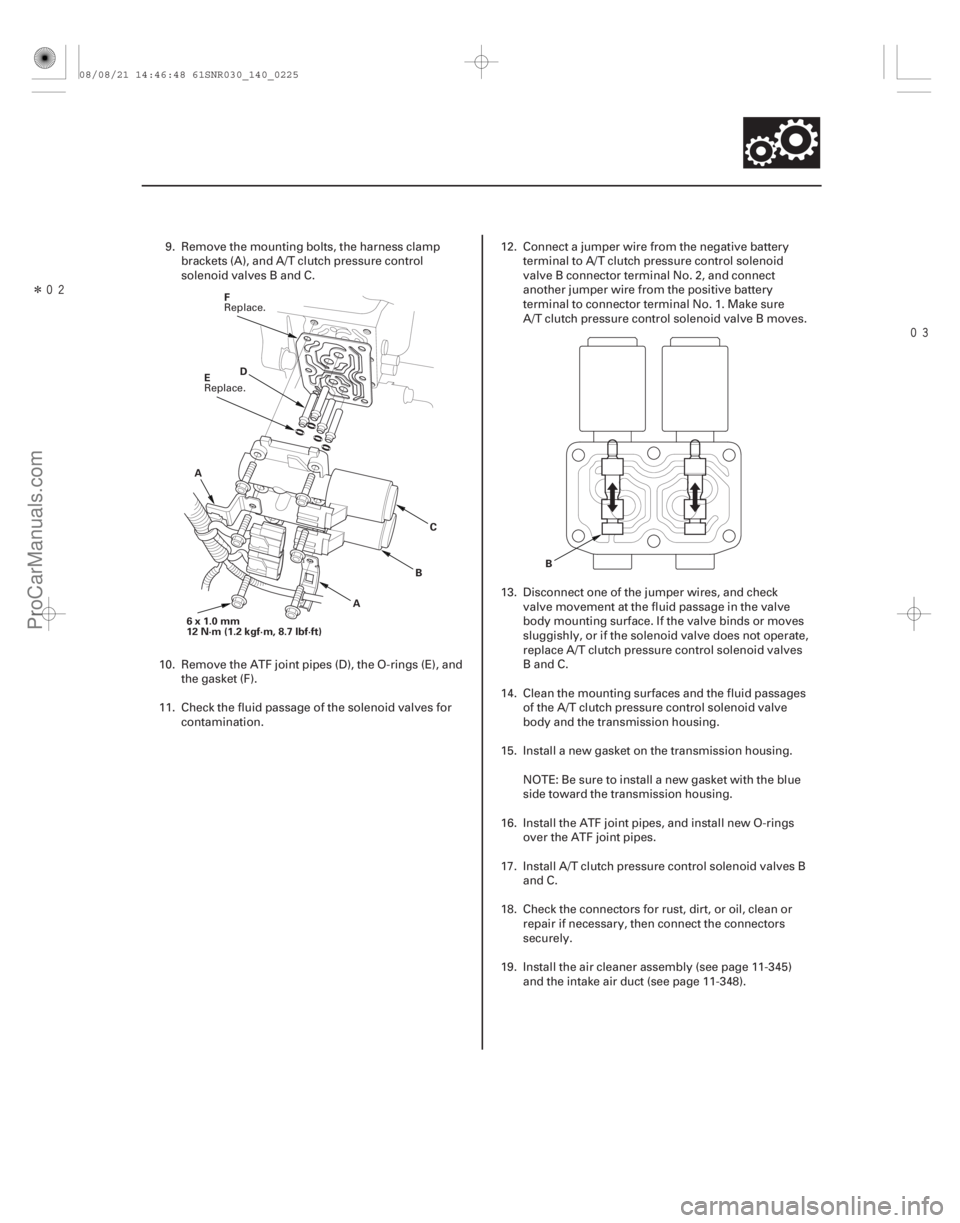

9. Remove the mounting bolts, the harness clampbrackets (A), and A/T clutch pressure control
solenoid valves B and C.
10. Remove the ATF joint pipes (D), the O-rings (E), and the gasket (F).
11. Check the fluid passage of the solenoid valves for contamination. 12. Connect a jumper wire from the negative battery
terminal to A/T clutch pressure control solenoid
valve B connector terminal No. 2, and connect
another jumper wire from the positive battery
terminal to connector terminal No. 1. Make sure
A/T clutch pressure control solenoid valve B moves.
13. Disconnect one of the jumper wires, and check valve movement at the fluid passage in the valve
body mounting surface. If the valve binds or moves
sluggishly, or if the solenoid valve does not operate,
replace A/T clutch pressure control solenoid valves
BandC.
14. Clean the mounting surfaces and the fluid passages of the A/T clutch pressure control solenoid valve
body and the transmission housing.
15. Install a new gasket on the transmission housing.
NOTE: Be sure to install a new gasket with the blue
side toward the transmission housing.
16. Install the ATF joint pipes, and install new O-rings over the ATF joint pipes.
17. Install A/T clutch pressure control solenoid valves B and C.
18. Check the connectors for rust, dirt, or oil, clean or repair if necessary, then connect the connectors
securely.
19. Install the air cleaner assembly (see page 11-345) and the intake air duct (see page 11-348).
Replace.
Replace.
08/08/21 14:46:48 61SNR030_140_0225
ProCarManuals.com
DYNOMITE -2009-


(#'



)
µ
Standard: 3 10
14-224
Automatic Transmission
A/T Clutch Pressure Control Solenoid Valve C Test
A
A
1. Connect the HDS to the DLC (A) located under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go
to the DLC circuit troubleshooting (see page
11-204).
3. Select Clutch Pressure Control (Linear) Solenoid Valve C in the Miscellaneous Test Menu with the
HDS.
4. Test A/T clutch pressure control solenoid valve C with the HDS.
 If the valve tests OK, the test is complete. Disconnect the HDS.
 If the valve does not test OK, follow the instructions on the HDS.
 If the valve does not test OK, and the HDS does not determine the cause, go to step 5.
5. Remove the intake air duct (see page 11-348) and the air cleaner assembly (see page 11-345). 6. Disconnect the A/T clutch pressure control solenoid
valve C connector (A).
7. Measure the resistance between A/T clutch pressure control solenoid valve C connector
terminals No. 1 and No. 2.
 If the resistance is within the standard, go to step 8.
 If the resistance is out of standard, replace A/T clutch pressure control solenoid valve C
(see page 14-226).
8. Connect a jumper wire from the negative battery terminal to solenoid valve C connector terminal
No. 2, and connect another jumper wire from the
positive battery terminal to connector terminal
No. 1.
 If a clicking sound is heard, the valve is OK, and the test is complete, go to step 18.
 If no clicking sound is heard, go to step 9.
08/08/21 14:46:48 61SNR030_140_0226
ProCarManuals.com
DYNOMITE -2009-
