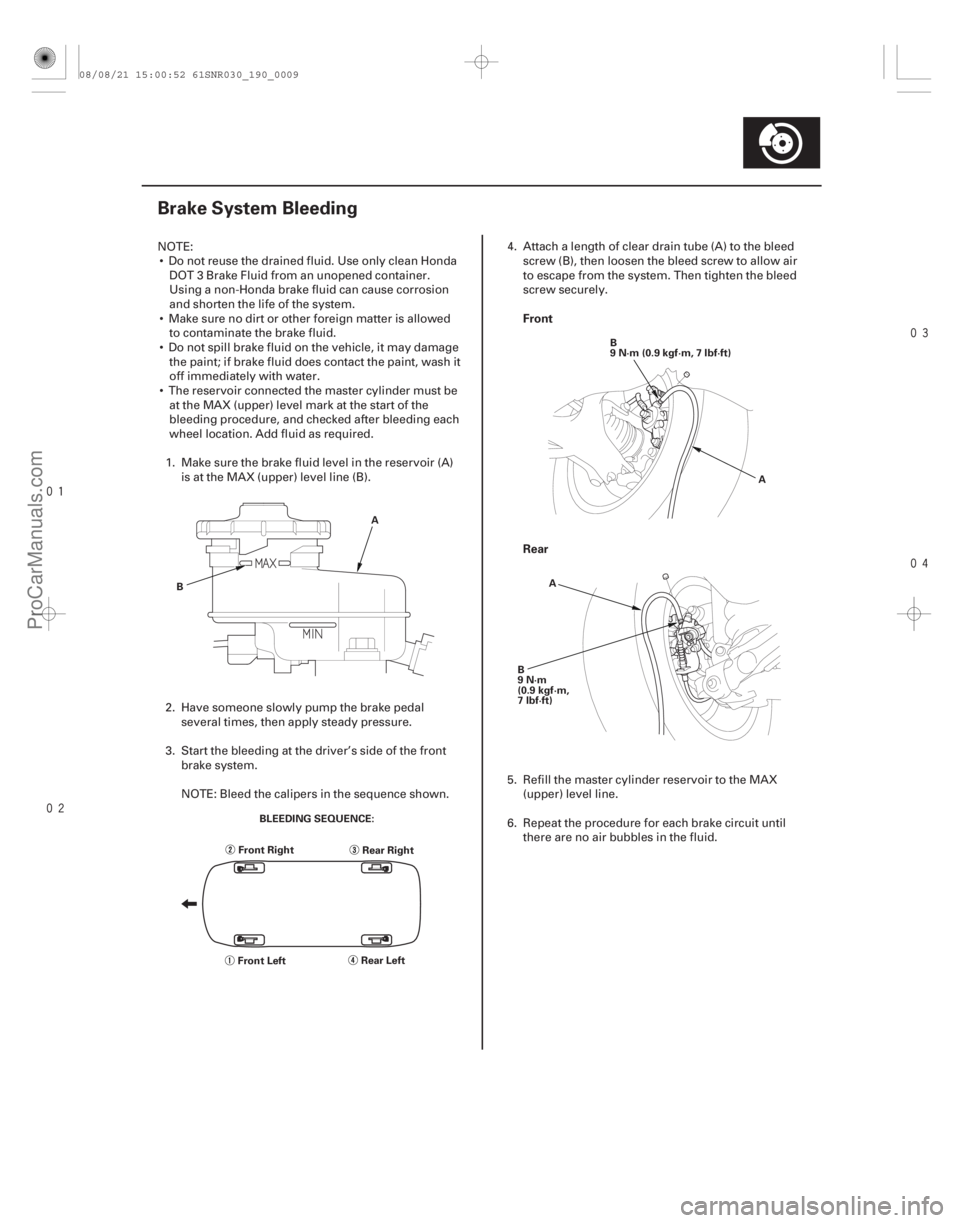

ACURA CSX 2006 Service Repair Manual




(#'
!)
Front
Rear
19-9
Brake System Bleeding
A
B
Front Right
Front Left Rear Right
Rear Left
BLEEDING SEQUENCE: B
9 N·m (0.9 kgf·m, 7 lbf·ft)
A
B
9N·m
(0.9 kgf·m,
7lbf·ft) A
NOTE:
 Do not reuse the drained fluid. Use only clean Honda DOT 3 Brake Fluid from an unopened container.
Using a non-Honda brake fluid can cause corrosion
and shorten the life of the system.
 Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.
 Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it
off immediately with water.
 The reservoir connected the master cylinder must be at the MAX (upper) l evel mark at the start of the
bleeding procedure, and checked after bleeding each
wheel location. Add fluid as required.
1. Make sure the brake fluid level in the reservoir (A) is at the MAX (upper) l evel line (B).
2. Have someone slowly pump the brake pedal several times, then apply steady pressure.
3. Start the bleeding at the driver’s side of the front brake system.
NOTE: Bleed the calipers in the sequence shown. 4. Attach a length of clear drain tube (A) to the bleed
screw (B), then loosen the bleed screw to allow air
to escape from the system. Then tighten the bleed
screw securely.
5. Refill the master cylinder reservoir to the MAX (upper) l evel line.
6. Repeat the procedure for each brake circuit until there are no air bubbles in the fluid.
08/08/21 15:00:52 61SNR030_190_0009
ProCarManuals.com
DYNOMITE -2009-


(#'

)
19-10Conventional Brake Components
Brake System Indicator Circuit Diagram
BRAKE FLUID
LEVEL SWITCH
CLOSED: Float down
OPEN: Float up
PARKING BRAKE
SWITCH
CLOSED: Lever pulled
OPEN: Lever released
BRAKE SYSTEM INDICATOR
GAUGE CONTROL MODULE (TACH)
INDICATOR DRIVER CIRCUIT
27 RED
WHT
1
19
28
G401 BLKGRN
ORN LT GRN ABS or VSA
MODULATOR-
CONTROL UNIT
(EBD INDICATOR)
ORN
2
1 1
08/08/21 15:00:52 61SNR030_190_0010
ProCarManuals.com
DYNOMITE -2009-


(#'

) 
(#'


)

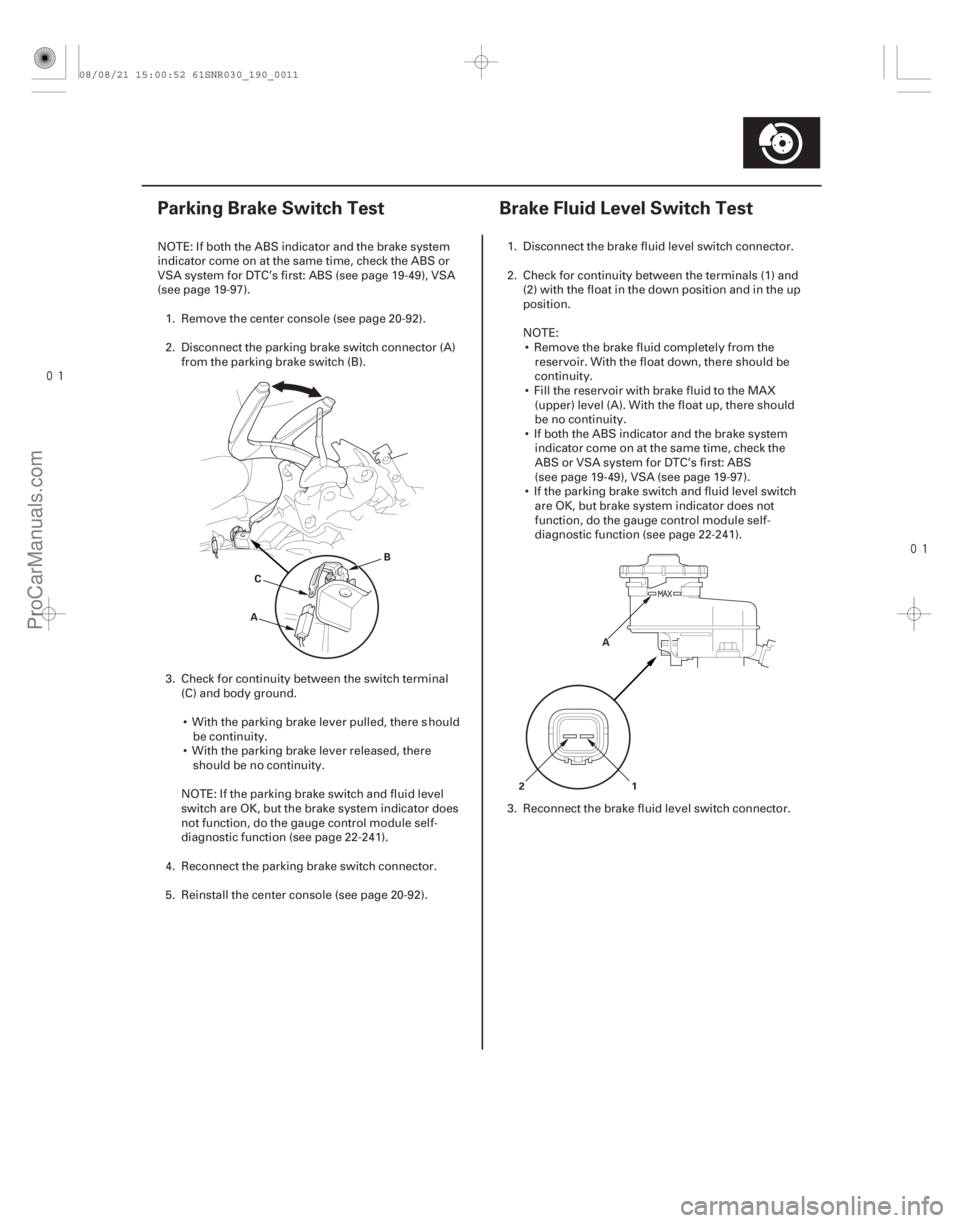

19-1119-11
Parking Brake Switch Test Brake Fluid Level Switch Test
AB
C
A
1
2
NOTE: If both the ABS indicator and the brake system
indicator come on at the same time, check the ABS or
VSA system for DTC’s first: ABS (see page 19-49), VSA
(see page 19-97).
1. Remove the center console (see page 20-92).
2. Disconnect the parking brake switch connector (A) from the parking brake switch (B).
3. Check for continuity between the switch terminal (C) and body ground.
 With the parking brake lever pulled, there s hould
be continuity.
 With the parking brake lever released, there should be no continuity.
NOTE: If the parking brake switch and fluid level
switch are OK, but the brake system indicator does
not function, do the gauge control module self-
diagnostic function (see page 22- 241).
4. Reconnect the parking brake switch connector.
5. Reinstall the center console (see page 20-92). 1. Disconnect the brake fluid level switch connector.
2. Check for continuity between the terminals (1) and
(2) with the float in the down position and in the up
position.
NOTE: Remove the brake fluid completely from the reservoir. With the float down, there should be
continuity.
 Fill the reservoir with brake fluid to the MAX (upper) level (A). With the float up, there should
be no continuity.
 If both the ABS indicator and the brake system indicator come on at the same time, check the
ABS or VSA system for DTC’s first: ABS
(see page 19-49), VSA (see page 19-97).
 If the parking brake switch and fluid level switch are OK, but brake system indicator does not
function, do the gauge control module self-
diagnostic function (see page 22-241).
3. Reconnect the brake fluid l evel switch connector.
08/08/21 15:00:52 61SNR030_190_0011
ProCarManuals.com
DYNOMITE -2009-



(#'


")

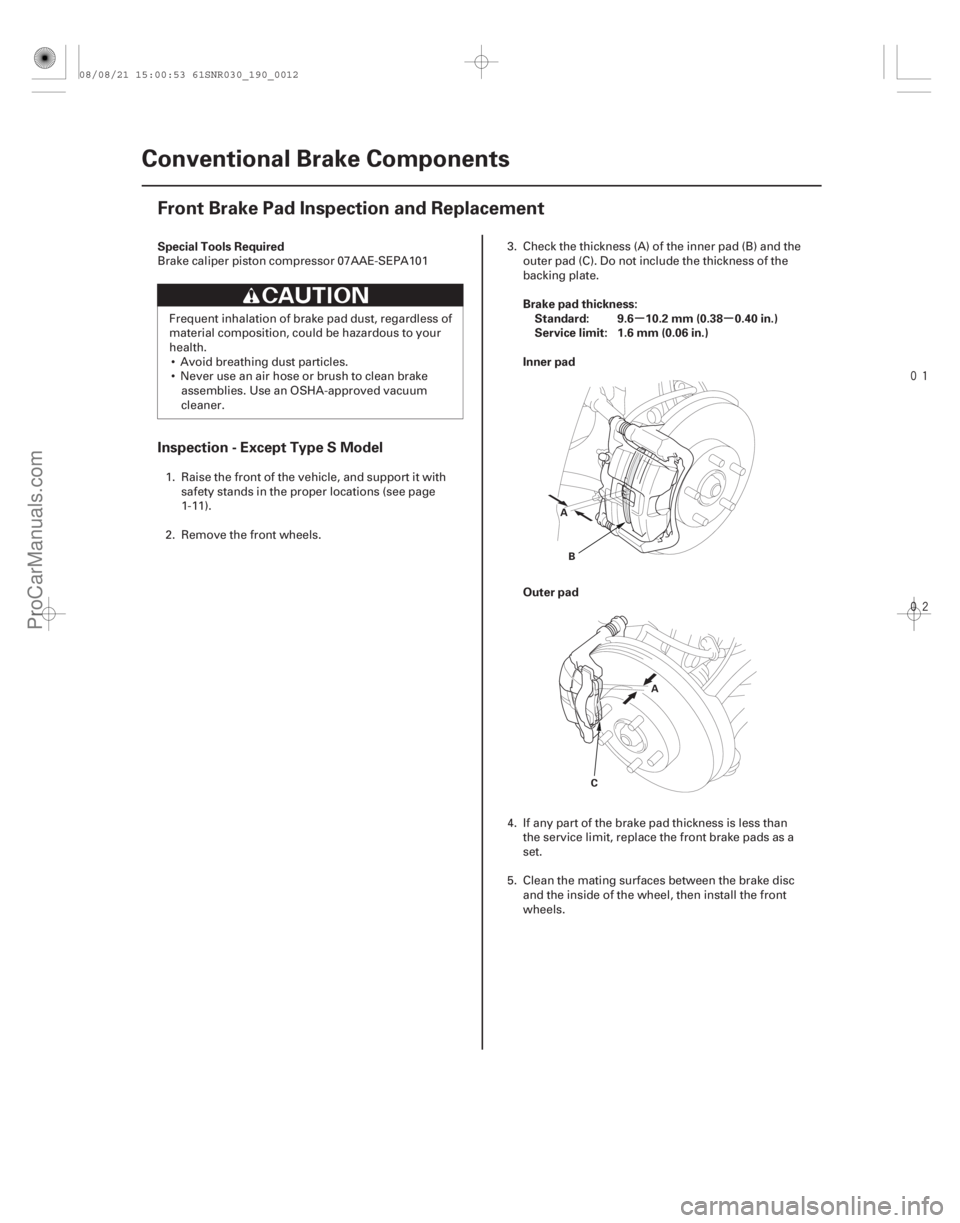

 µµ
Special Tools Required
Brake pad thickness:Standard: 9.6 10.2 mm (0.38 0.40 in.)
Service limit: 1.6 mm (0.06 in.)
Inner pad
Outer pad
Inspection - Except Type S Model
19-12 Conventional Brake Components
Front Brake Pad Inspection and Replacement
A
B
C A
Brake caliper piston compressor 07AAE-SEPA101
Frequent inhalation of brake pad dust, regardless of
material composition, could be hazardous to your
health. Avoid breathing dust particles.
 Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum
cleaner.
1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see page
1-11).
2. Remove the front wheels. 3. Check the thickness (A) of the inner pad (B) and the
outer pad (C). Do not include the thickness of the
backing plate.
4. If any part of the brake pad thickness is less than the service limit, replace the front brake pads as a
set.
5. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front
wheels.
08/08/21 15:00:53 61SNR030_190_0012
ProCarManuals.com
DYNOMITE -2009-



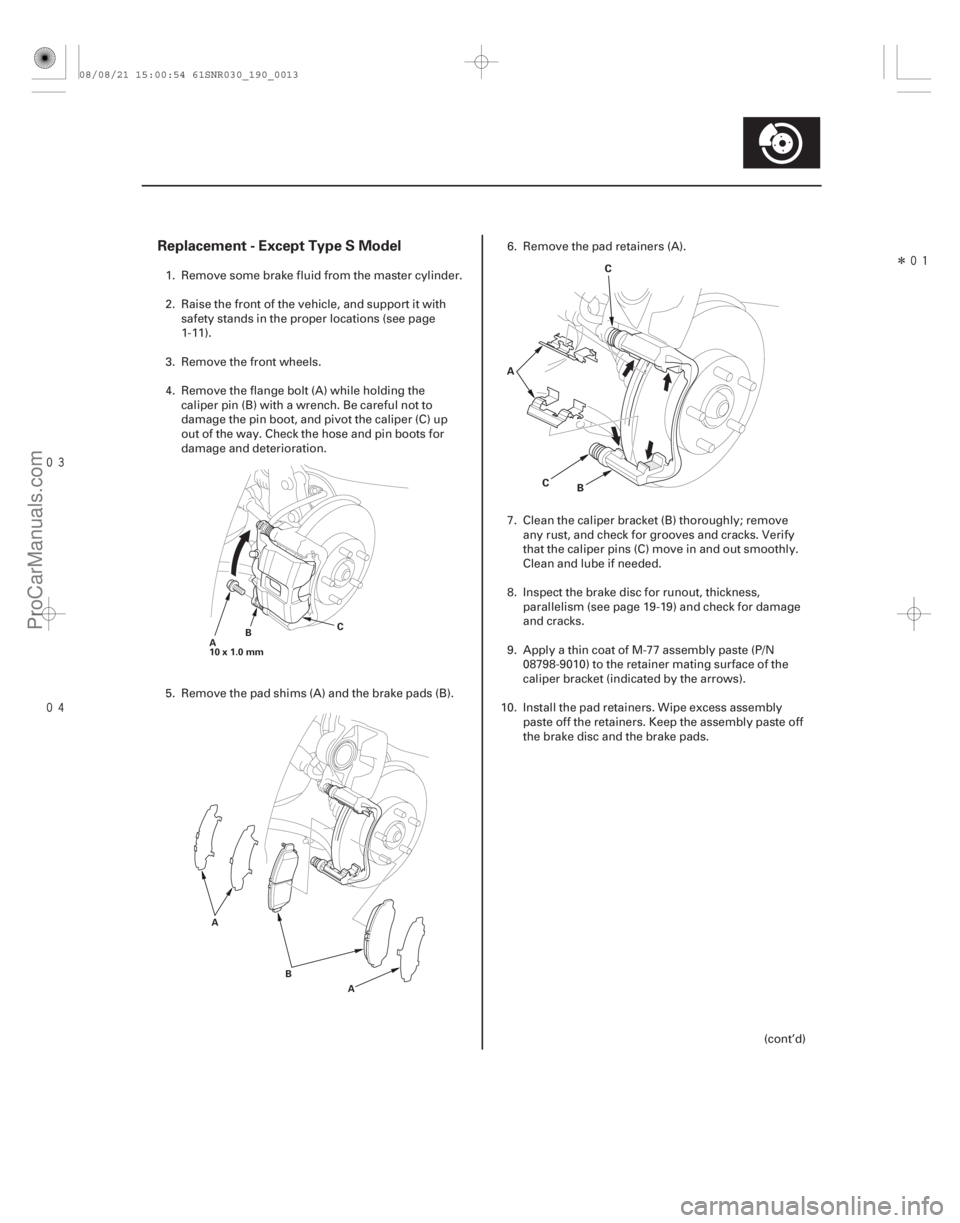

Î
Replacement - Except Type S Model
19-13
A
10 x 1.0 mm
B
C
A A
B
B
A
C C
1. Remove some brake fluid from the master cylinder.
2. Raise the front of the vehicle, and support it with
safety stands in the proper locations (see page
1-11).
3. Remove the front wheels.
4. Remove the flange bolt (A) while holding the caliper pin (B) with a wrench. Be careful not to
damage the pin boot, and pivot the caliper (C) up
out of the way. Check the hose and pin boots for
damage and deterioration.
5. Remove the pad shims (A) and the brake pads (B). 6. Remove the pad retainers (A).
7. Clean the caliper bracket (B) thoroughly; remove
any rust, and check for grooves and cracks. Verify
that the caliper pins (C) move in and out smoothly.
Clean and lube if needed.
8. Inspect the brake disc for runout, thickness, parallelism (see page 19-19) and check for damage
and cracks.
9. Apply a thin coat of M-77 assembly paste (P/N 08798-9010) to the retainer mating surface of the
caliper bracket (indicated by the arrows).
10. Install the pad retainers. Wipe excess assembly pasteofftheretainers.Keeptheassemblypasteoff
the brake disc and the brake pads.
(cont’d)
08/08/21 15:00:54 61SNR030_190_0013
ProCarManuals.com
DYNOMITE -2009-



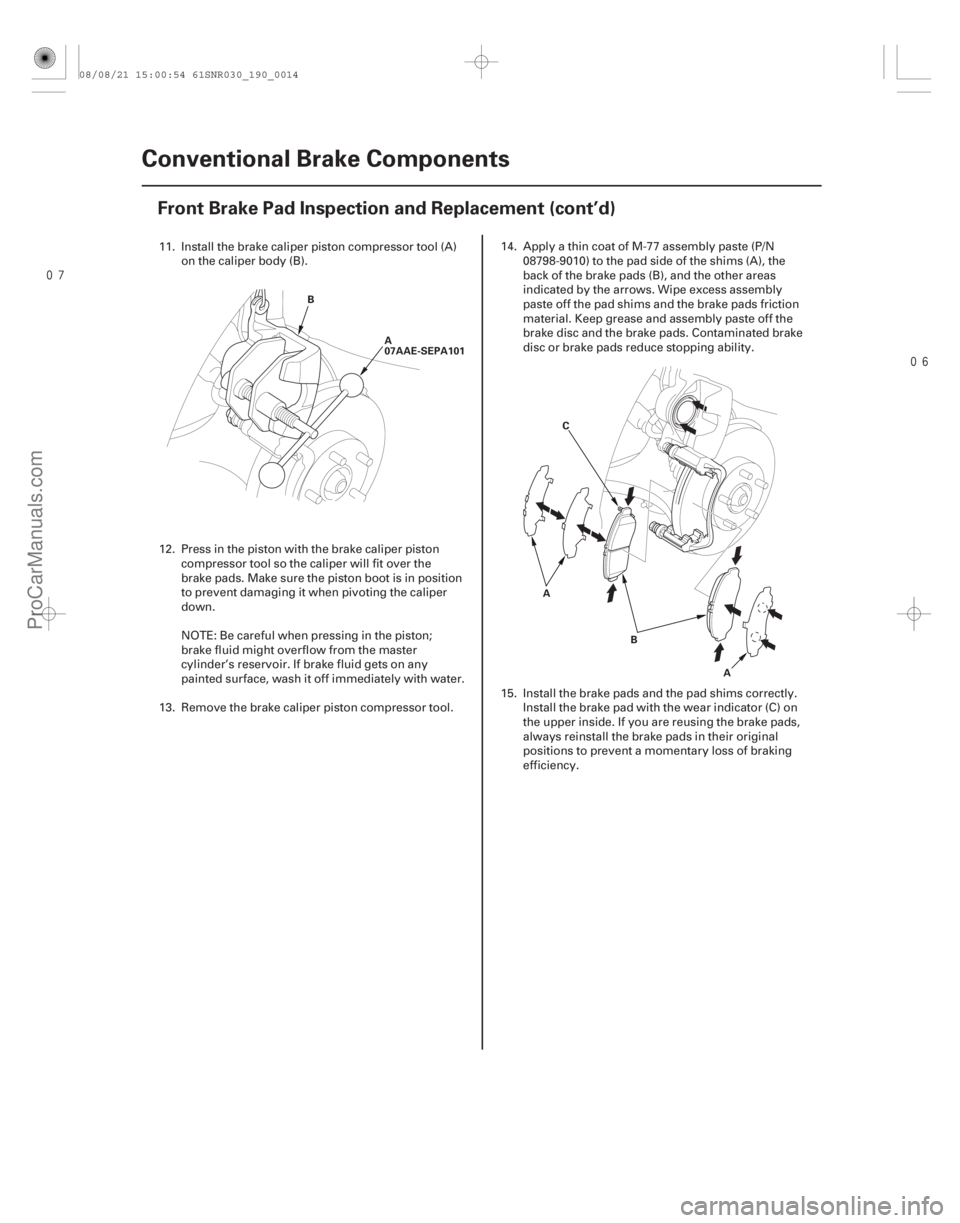

19-14Conventional Brake Components
Front Brake Pad Inspection and Replacement (cont’d)
B
A
07AAE-SEPA101
A A
B
C
11. Install the brake caliper piston compressor tool (A)
on the caliper body (B).
12. Press in the piston with the brake caliper piston compressor tool so the caliper will fit over the
brake pads. Make sure the piston boot is in position
to prevent damaging it when pivoting the caliper
down.
NOTE: Be careful when pressing in the piston;
brake fluid might overflow from the master
cylinder’s reservoir. If brake fluid gets on any
painted surface, wash it off immediately with water.
13. Remove the brake caliper piston compressor tool. 14. Apply a thin coat of M-77 assembly paste (P/N
08798-9010) to the pad side of the shims (A), the
back of the brake pads (B), and the other areas
indicated by the arrows. Wipe excess assembly
paste off the pad shims and the brake pads friction
material. Keep grease and assembly paste off the
brake disc and the brake pads. Contaminated brake
disc or brake pads reduce stopping ability.
15. Install the brake pads and the pad shims correctly. Install the brake pad with the wear indicator (C) on
the upper inside. If you are reusing the brake pads,
always reinstall the brake pads in their original
positions to prevent a momentary loss of braking
efficiency.
08/08/21 15:00:54 61SNR030_190_0014
ProCarManuals.com
DYNOMITE -2009-




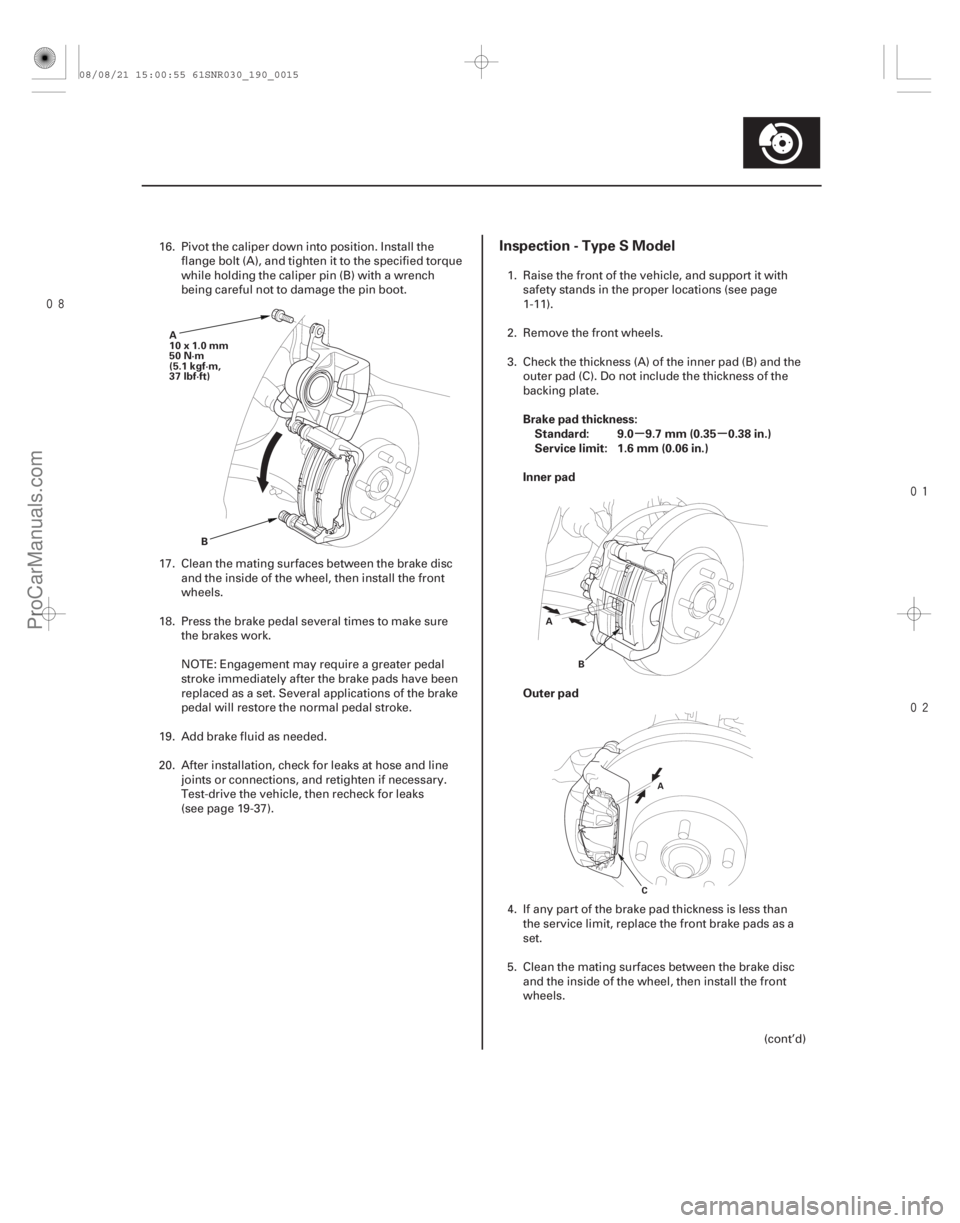

µµ
Inspection - Type S Model
Brake pad thickness:
Standard: 9.0 9.7 mm (0.35 0.38 in.)
Service limit: 1.6 mm (0.06 in.)
Inner pad
Outer pad
19-15
A
10x1.0mm
50 N·m
(5.1 kgf·m,
37 lbf·ft)
B
A B
A
C
16. Pivot the caliper down into position. Install the flange bolt (A), and tighten it to the specified torque
while holding the caliper pin (B) with a wrench
being careful not to damage the pin boot.
17. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front
wheels.
18. Press the brake pedal several times to make sure the brakes work.
NOTE: Engagement may require a greater pedal
stroke immediately after the brake pads have been
replaced as a set. Several applications of the brake
pedal will restore the normal pedal stroke.
19. Add brake fluid as needed.
20. After installation, check for leaks at hose and line joints or connections, and retighten if necessary.
Test-drive the vehicle, then recheck for leaks
(see page 19-37). 1. Raise the front of the vehicle, and support it with
safety stands in the proper locations (see page
1-11).
2. Remove the front wheels.
3. Check the thickness (A) of the inner pad (B) and the outer pad (C). Do not include the thickness of the
backing plate.
4. If any part of the brake pad thickness is less than the service limit, replace the front brake pads as a
set.
5. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front
wheels.
(cont’d)
08/08/21 15:00:55 61SNR030_190_0015
ProCarManuals.com
DYNOMITE -2009-



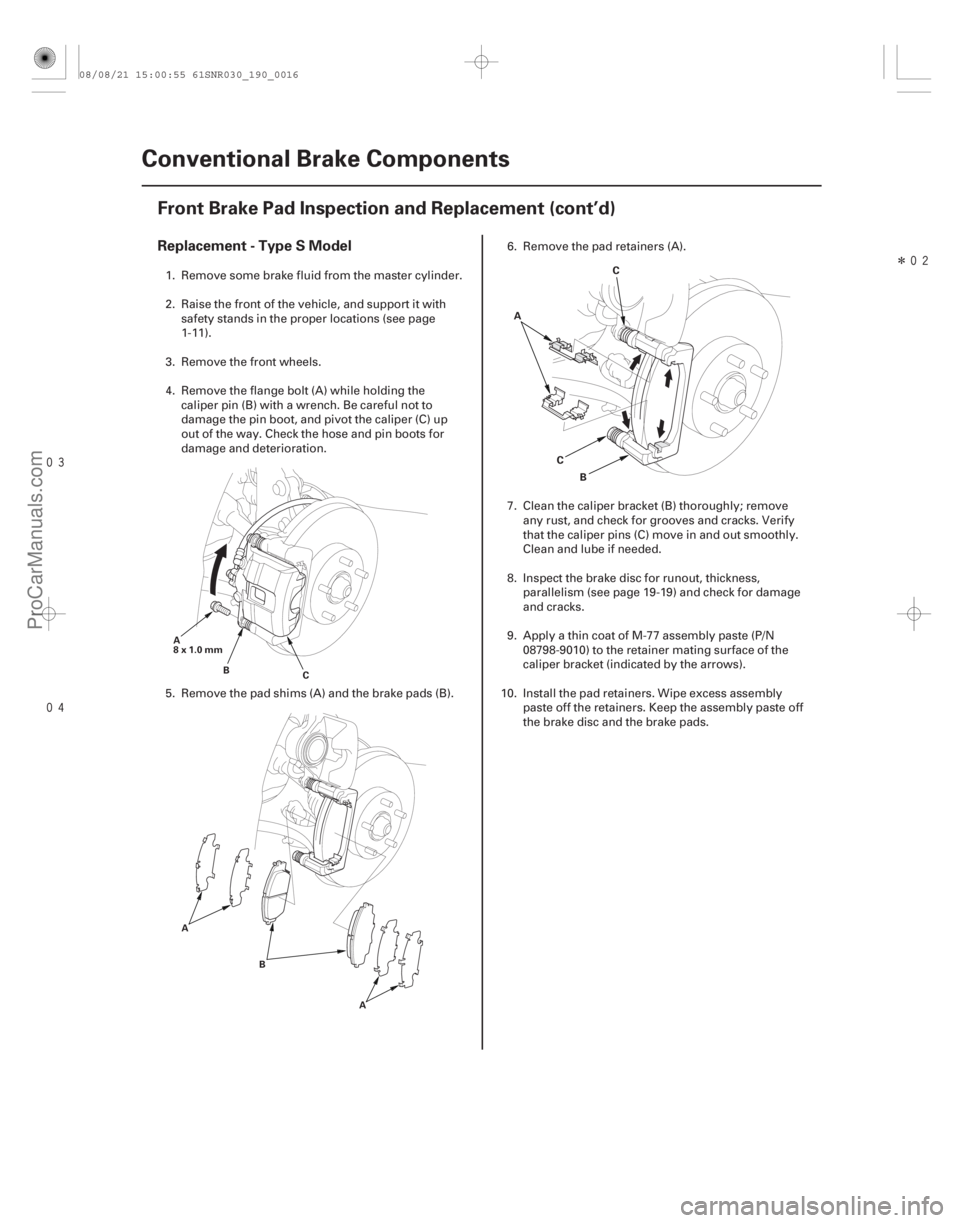

Î
Replacement - Type S Model
19-16Conventional Brake Components
Front Brake Pad Inspection and Replacement (cont’d)
A
8x1.0mm
B C
A B
A
A
B
C C
1. Remove some brake fluid from the master cylinder.
2. Raise the front of the vehicle, and support it with
safety stands in the proper locations (see page
1-11).
3. Remove the front wheels.
4. Remove the flange bolt (A) while holding the caliper pin (B) with a wrench. Be careful not to
damage the pin boot, and pivot the caliper (C) up
out of the way. Check the hose and pin boots for
damage and deterioration.
5. Remove the pad shims (A) and the brake pads (B). 6. Remove the pad retainers (A).
7. Clean the caliper bracket (B) thoroughly; remove
any rust, and check for grooves and cracks. Verify
that the caliper pins (C) move in and out smoothly.
Clean and lube if needed.
8. Inspect the brake disc for runout, thickness, parallelism (see page 19-19) and check for damage
and cracks.
9. Apply a thin coat of M-77 assembly paste (P/N 08798-9010) to the retainer mating surface of the
caliper bracket (indicated by the arrows).
10. Install the pad retainers. Wipe excess assembly pasteofftheretainers.Keeptheassemblypasteoff
the brake disc and the brake pads.
08/08/21 15:00:55 61SNR030_190_0016
ProCarManuals.com
DYNOMITE -2009-



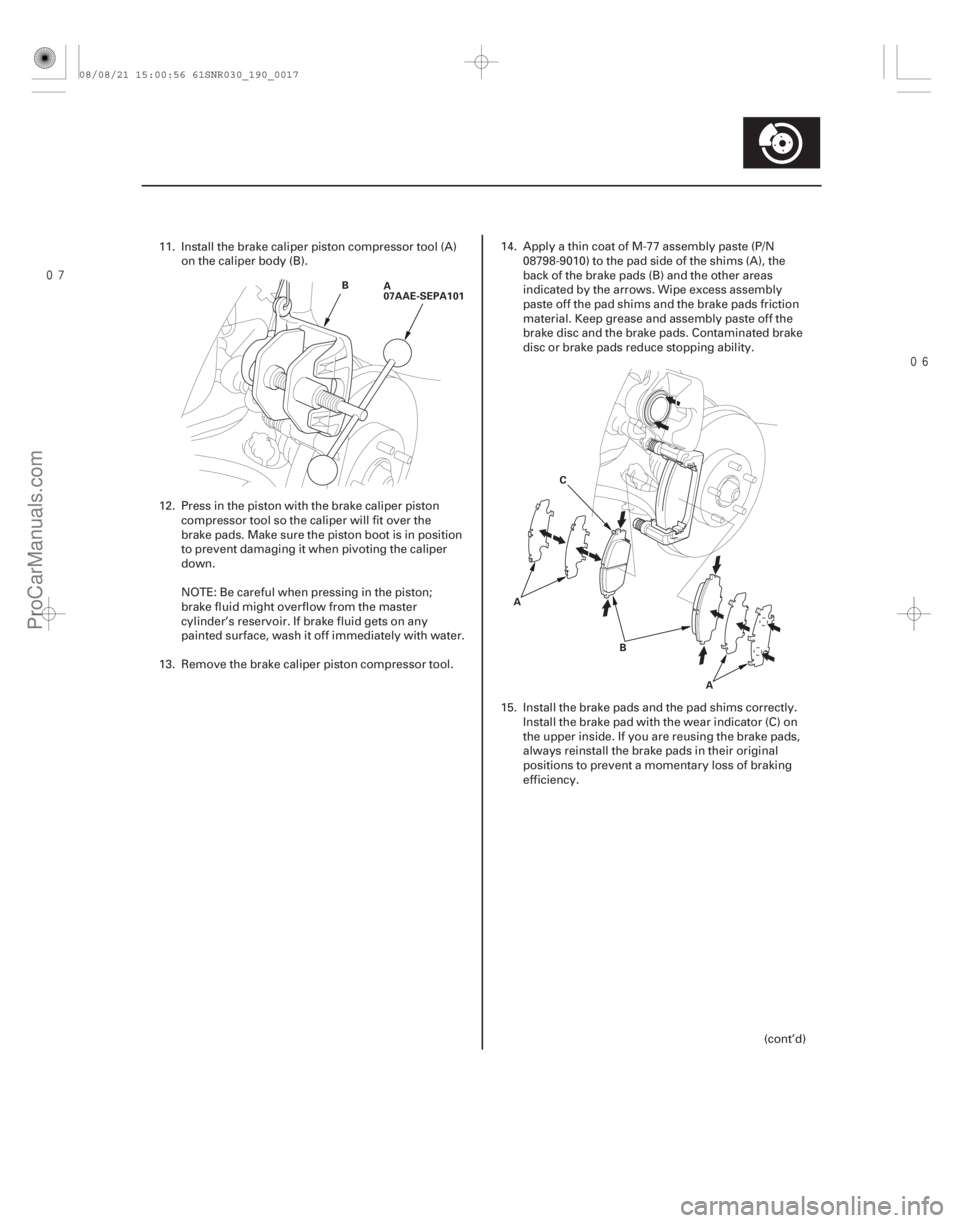

19-17
A
07AAE-SEPA101
B
ABA
C
11. Install the brake caliper piston compressor tool (A)
on the caliper body (B).
12. Press in the piston with the brake caliper piston compressor tool so the caliper will fit over the
brake pads. Make sure the piston boot is in position
to prevent damaging it when pivoting the caliper
down.
NOTE: Be careful when pressing in the piston;
brake fluid might overflow from the master
cylinder’s reservoir. If brake fluid gets on any
painted surface, wash it off immediately with water.
13. Remove the brake caliper piston compressor tool. 14. Apply a thin coat of M-77 assembly paste (P/N
08798-9010) to the pad side of the shims (A), the
back of the brake pads (B) and the other areas
indicated by the arrows. Wipe excess assembly
paste off the pad shims and the brake pads friction
material. Keep grease and assembly paste off the
brake disc and the brake pads. Contaminated brake
disc or brake pads reduce stopping ability.
15. Install the brake pads and the pad shims correctly. Install the brake pad with the wear indicator (C) on
the upper inside. If you are reusing the brake pads,
always reinstall the brake pads in their original
positions to prevent a momentary loss of braking
efficiency.
(cont’d)
08/08/21 15:00:56 61SNR030_190_0017
ProCarManuals.com
DYNOMITE -2009-


19-18Conventional Brake Components
Front Brake Pad Inspection and Replacement (cont’d)
A
8x1.0mm
33 N·m
(3.4 kgf·m,
25 lbf·ft)
B

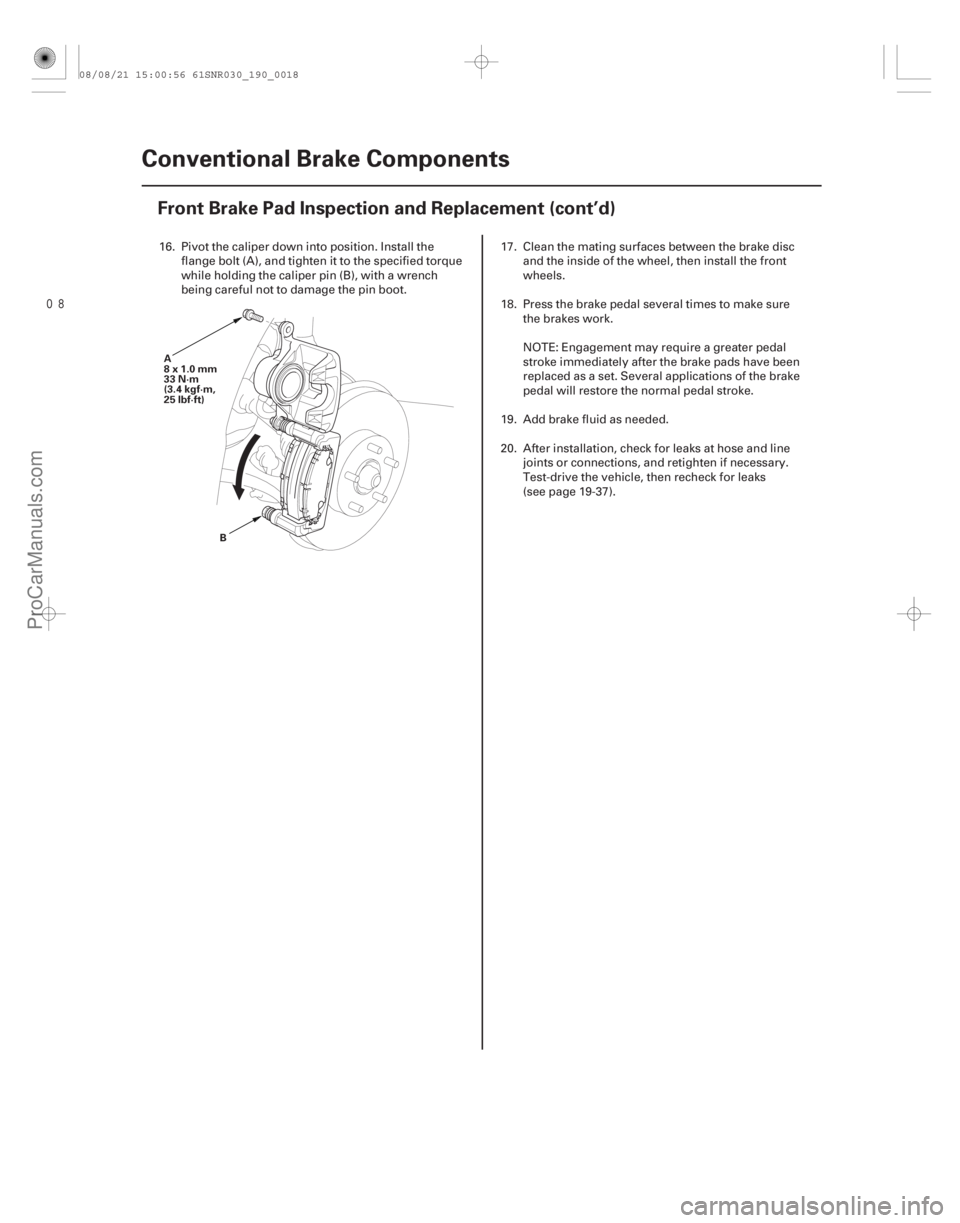

16. Pivot the caliper down into position. Install theflange bolt (A), and tighten it to the specified torque
while holding the caliper pin (B), with a wrench
being careful not to damage the pin boot. 17. Clean the mating surfaces between the brake disc
and the inside of the wheel, then install the front
wheels.
18. Press the brake pedal several times to make sure the brakes work.
NOTE: Engagement may require a greater pedal
stroke immediately after the brake pads have been
replaced as a set. Several applications of the brake
pedal will restore the normal pedal stroke.
19. Add brake fluid as needed.
20. After installation, check for leaks at hose and line joints or connections, and retighten if necessary.
Test-drive the vehicle, then recheck for leaks
(see page 19-37).
08/08/21 15:00:56 61SNR030_190_0018
ProCarManuals.com
DYNOMITE -2009-
