ACURA CSX 2006 Service Repair Manual



(#'



 )
20-1920-19

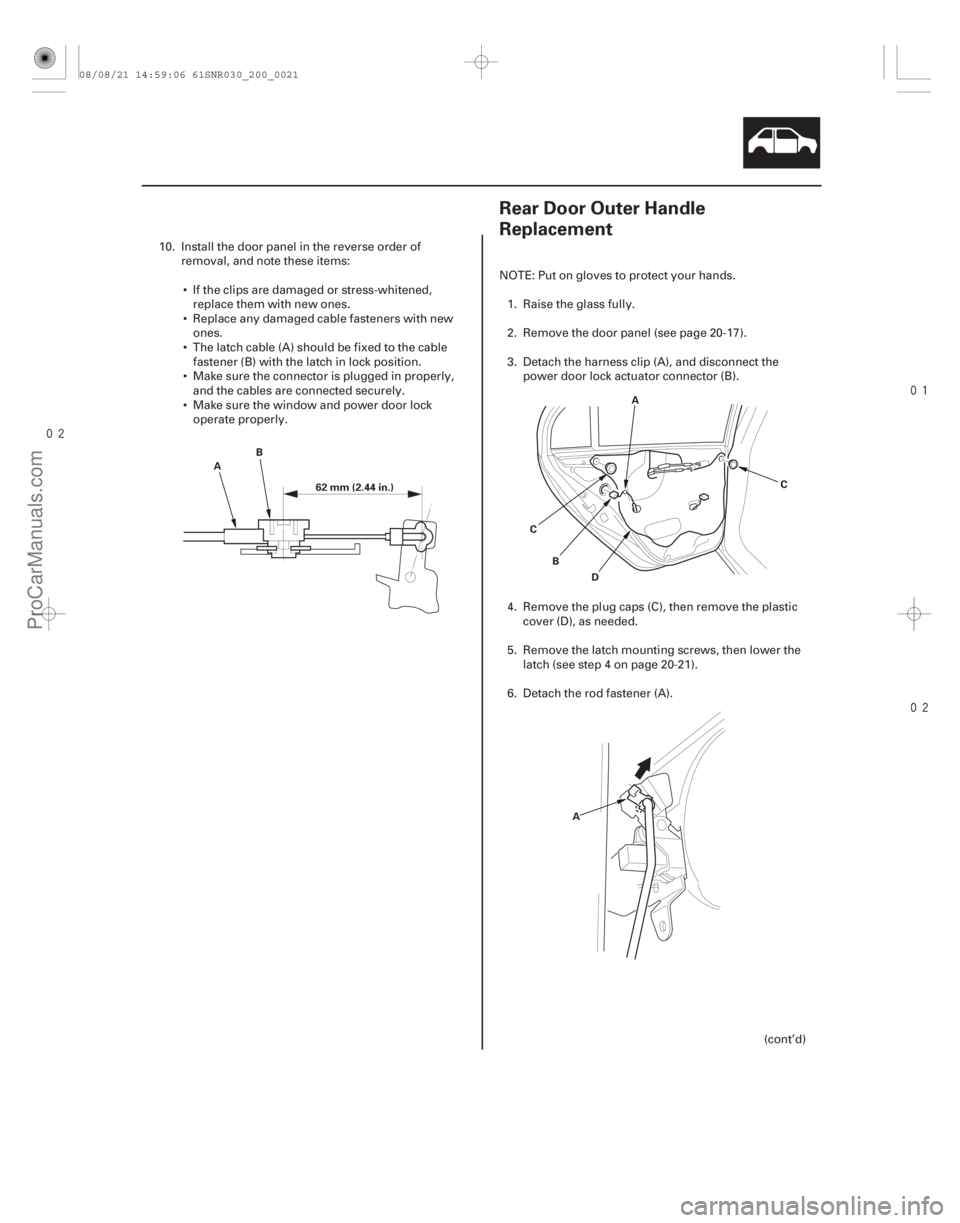

Rear Door Outer Handle
Replacement
A B
62 mm (2.44 in.) A
B
C
D C
A
10. Install the door panel in the r everse order of
removal, and note these items:
 If the clips are damaged or stress-whitened, replace them with new ones.
 Replace any damaged cable fasteners with new ones.
 The latch cable (A) should be fixed to the cable fastener (B) with the latch in lock position.
 Make sure the connector is plugged in properly, and the cables are connected securely.
 Make sure the window and power door lock operate properly. NOTE: Put on gloves to protect your hands.
1. Raise the glass fully.
2. Remove the door panel (see page 20-17).
3. Detach the harness clip (A), and disconnect the power door lock actuator connector (B).
4. Remove the plug caps (C), then remove the plastic cover (D), as needed.
5. Remove the latch mounting screws, then lower the latch (see step 4 on page 20-21).
6. Detach the rod fastener (A).
(cont’d)
08/08/21 14:59:06 61SNR030_200_0021
ProCarManuals.com
DYNOMITE -2009-



(#'



 )
20-1920-19
Rear Door Outer Handle
Replacement
A B
62 mm (2.44 in.) A
B
C
D C
A
10. Install the door panel in the r everse order of
removal, and note these items:
 If the clips are damaged or stress-whitened, replace them with new ones.
 Replace any damaged cable fasteners with new ones.
 The latch cable (A) should be fixed to the cable fastener (B) with the latch in lock position.
 Make sure the connector is plugged in properly, and the cables are connected securely.
 Make sure the window and power door lock operate properly. NOTE: Put on gloves to protect your hands.
1. Raise the glass fully.
2. Remove the door panel (see page 20-17).
3. Detach the harness clip (A), and disconnect the power door lock actuator connector (B).
4. Remove the plug caps (C), then remove the plastic cover (D), as needed.
5. Remove the latch mounting screws, then lower the latch (see step 4 on page 20-21).
6. Detach the rod fastener (A).
(cont’d)
08/08/21 14:59:06 61SNR030_200_0021
ProCarManuals.com
DYNOMITE -2009-



Î
20-20 Doors

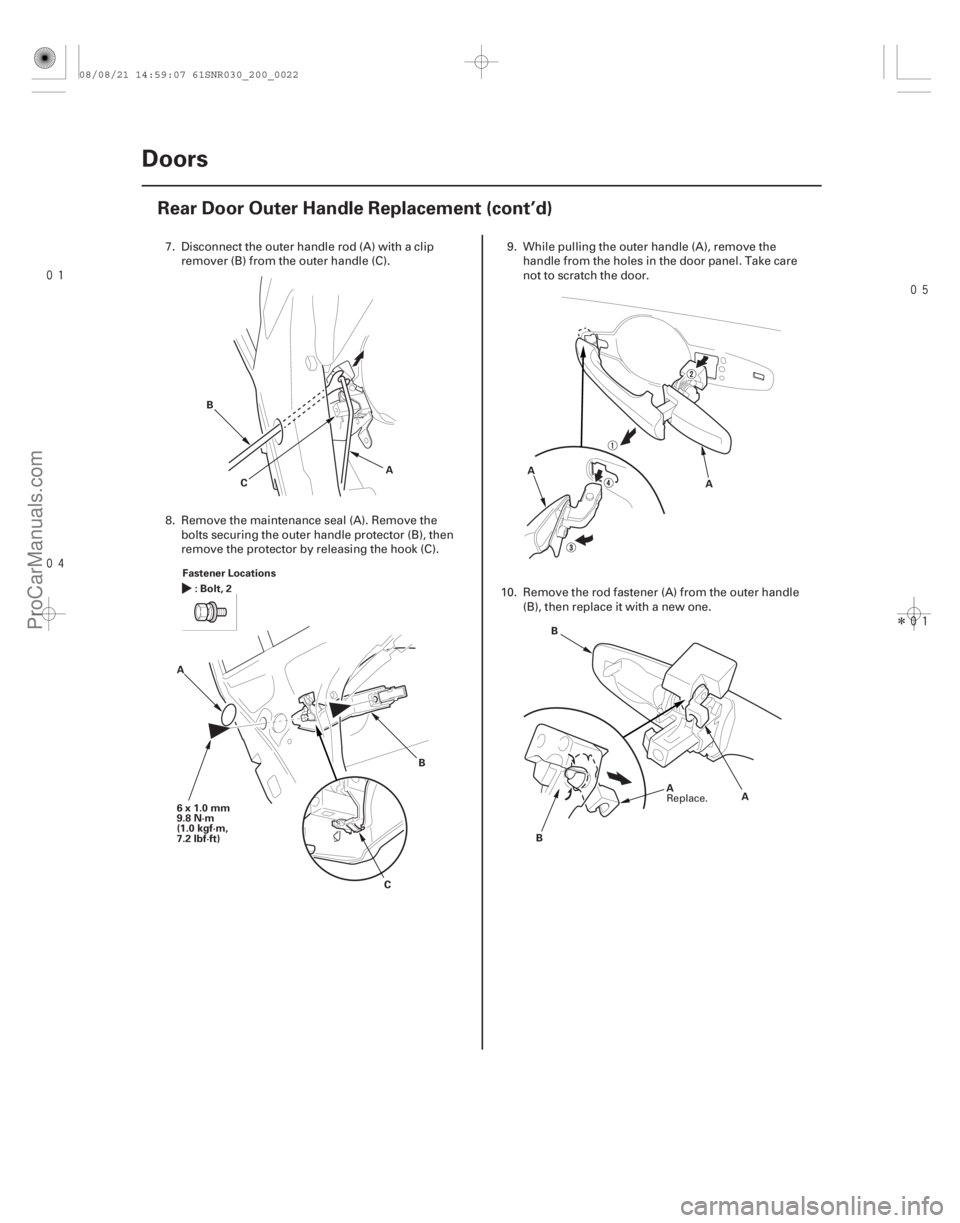

Rear Door Outer Handle Replacement (cont’d)
A
B
C
Fastener Locations :Bolt,2
6x1.0mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft) B
C
A
A
A
B
A
B A
7. Disconnect the outer handle rod (A) with a clip
remover (B) from the outer handle (C).
8. Remove the maintenance seal (A). Remove the bolts securing the outer handle protector (B), then
remove the protector by releasing the hook (C). 9. While pulling the outer handle (A), remove the
handle from the holes in the door panel. Take care
not to scratch the door.
10. Remove the rod fastener (A) from the outer handle (B), then replace it with a new one.
Replace.
08/08/21 14:59:07 61SNR030_200_0022
ProCarManuals.com
DYNOMITE -2009-


(#'


 )
20-2120-21

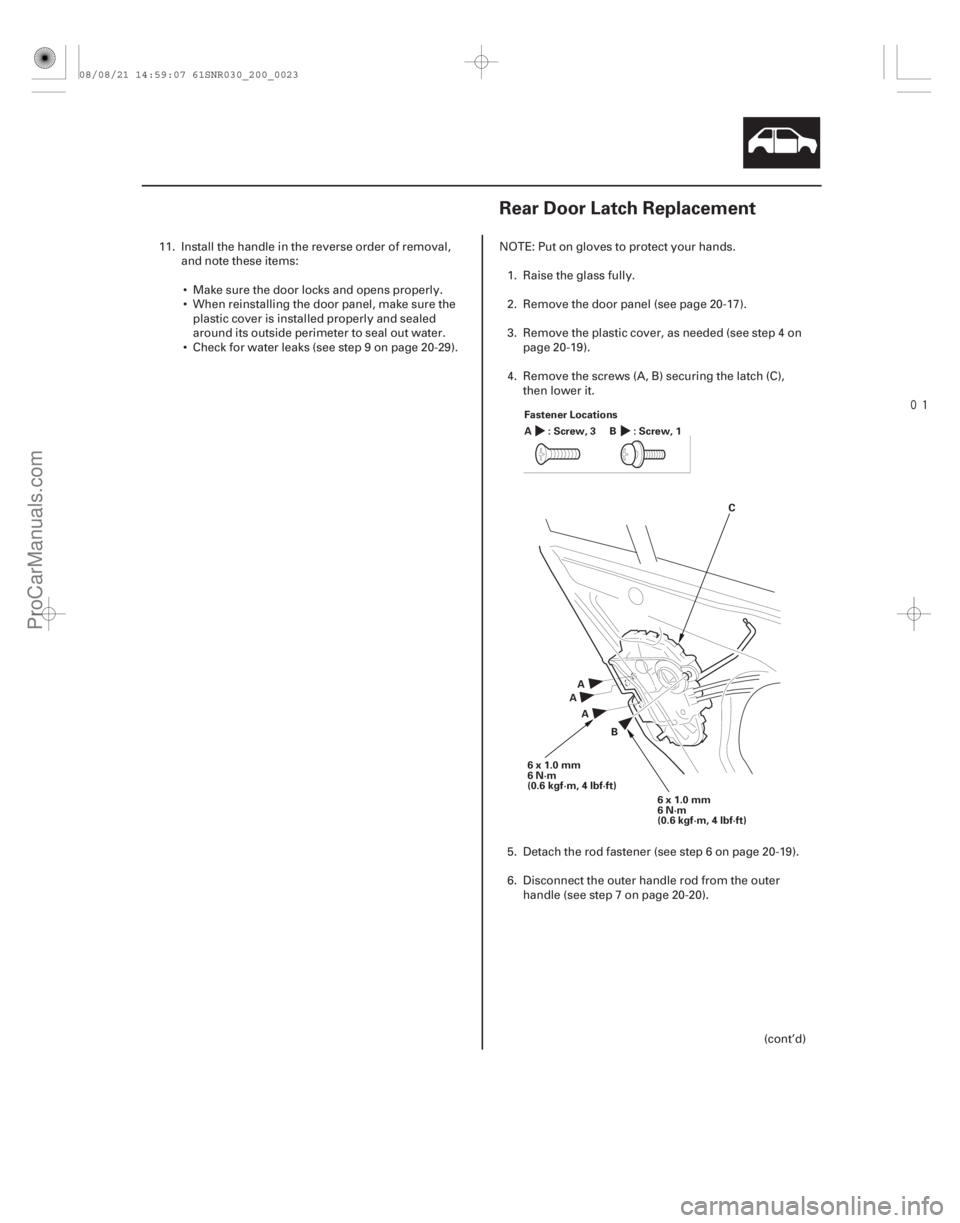

Rear Door Latch Replacement
Fastener Locations :Screw,3
A:Screw,1 B
A
A
A
6x1.0mm
6N·m
(0.6 kgf·m, 4 lbf·ft) 6x1.0mm
6N·m
(0.6 kgf·m, 4 lbf·ft)C
B
11. Install the handle in the reverse order of removal, and note these items:
 Make sure the door locks and opens properly.
 When reinstalling the door panel, make sure the
plastic cover is installed properly and sealed
around its outside perimeter to seal out water.
 Check for water leaks (see step 9 on page 20-29). NOTE: Put on gloves to protect your hands.
1. Raise the glass fully.
2. Remove the door panel (see page 20-17).
3. Remove the plastic cover, as needed (see step 4 on page 20-19).
4. Remove the screws (A, B) securing the latch (C), then lower it.
5. Detach the rod fastener (see step 6 on page 20-19).
6. Disconnect the outer handle rod from the outer handle (see step 7 on page 20-20).
(cont’d)
08/08/21 14:59:07 61SNR030_200_0023
ProCarManuals.com
DYNOMITE -2009-


(#'


 )
20-2120-21
Rear Door Latch Replacement
Fastener Locations :Screw,3
A:Screw,1 B
A
A
A
6x1.0mm
6N·m
(0.6 kgf·m, 4 lbf·ft) 6x1.0mm
6N·m
(0.6 kgf·m, 4 lbf·ft)C
B
11. Install the handle in the reverse order of removal, and note these items:
 Make sure the door locks and opens properly.
 When reinstalling the door panel, make sure the
plastic cover is installed properly and sealed
around its outside perimeter to seal out water.
 Check for water leaks (see step 9 on page 20-29). NOTE: Put on gloves to protect your hands.
1. Raise the glass fully.
2. Remove the door panel (see page 20-17).
3. Remove the plastic cover, as needed (see step 4 on page 20-19).
4. Remove the screws (A, B) securing the latch (C), then lower it.
5. Detach the rod fastener (see step 6 on page 20-19).
6. Disconnect the outer handle rod from the outer handle (see step 7 on page 20-20).
(cont’d)
08/08/21 14:59:07 61SNR030_200_0023
ProCarManuals.com
DYNOMITE -2009-



20-22Doors
Rear Door Latch Replacement (cont’d)
A
B
C
D F
E
Fastener Location :Screw,1
AB A
A
B
C
B
7. Detach the latch cable (A) and the inner handlecable (B) from the holder (C), then remove the latch
(D) out from between the rear lower channel (E)
and the door. Take care not to bend the outer
handle rod (F), the latch cable, or the inner handle
cable.
8. Remove the screw, then remove the latch protector (A) by releasing the hook (B). 9. Detach the latch cable (A) and the inner handle
cable (B) from the latch (C).
10. Install the latch in the reverse order of removal, and note these items:
 Make sure the connector is plugged in properly, and each rod is connected securely.
 Make sure the door locks and opens properly.
08/08/21 14:59:07 61SNR030_200_0024
ProCarManuals.com
DYNOMITE -2009-



(#'
 )
20-23

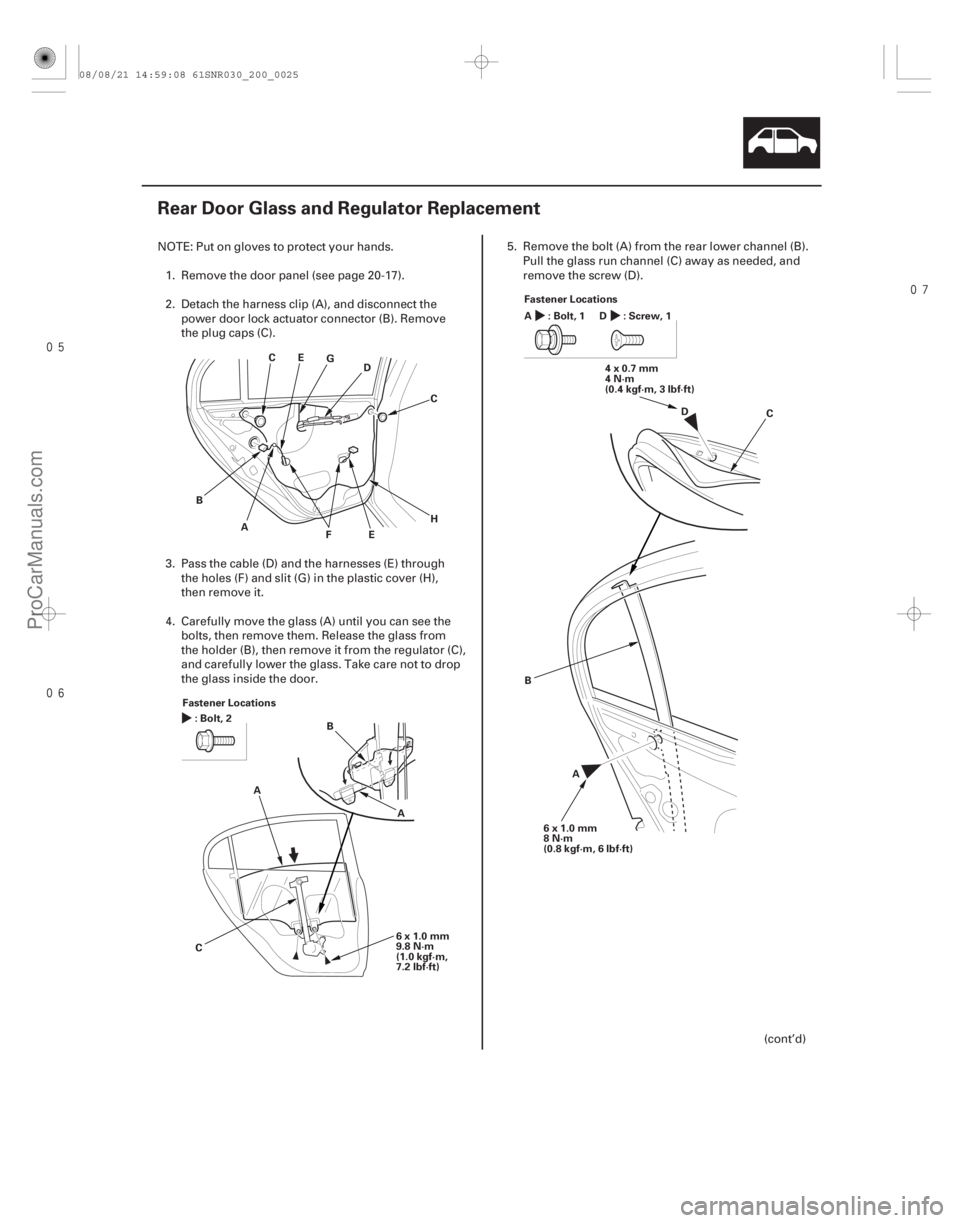

Rear Door Glass and Regulator Replacement
A
B C
FG
H
E
C
E
D
Fastener Locations :Bolt,2
6x1.0mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)A
B
A
C Fastener Locations
:Bolt,1
A:Screw,1 D
4x0.7mm
4N·m
(0.4 kgf·m, 3 lbf·ft)
6x1.0mm
8N·m
(0.8 kgf·m, 6 lbf·ft) A
B C
D
NOTE: Put on gloves to protect your hands.
1. Remove the door panel (see page 20-17).
2. Detach the harness clip (A), and disconnect the power door lock actuator connector (B). Remove
the plug caps (C).
3. Pass the cable (D) and the harnesses (E) through the holes (F) and slit (G) in the plastic cover (H),
then remove it.
4. Carefully move the glass (A) until you can see the bolts, then remove them. Release the glass from
the holder (B), then remove it from the regulator (C),
and carefully lower the glass. Take care not to drop
the glass inside the door. 5. Remove the bolt (A) from the rear lower channel (B).
Pull the glass run channel (C) away as needed, and
remove the screw (D).
(cont’d)
08/08/21 14:59:08 61SNR030_200_0025
ProCarManuals.com
DYNOMITE -2009-






20-24
Doors
Rear Door Glass and Regulator Replacement (cont’d)
A
B C
D
E
B
A B A
A A
B
B
A
6. Pull the glass run channel (A) away as needed. Pull
the rear lower channel (B) forward from the quarter
glass seal (C) then release the upper hook (D) from
the door. Remove the rear lower channel from the
rear door glass (E), then pull the channel up to
remove it.
7. Remove the rear lower channel (A) from the glass run channel (B). 8. Carefully remove the glass (A) out through the
window slot. Take care not to drop the glass inside
the door.
9. Remove the quarter glass (A). Take care not to damage the outer weatherstrip (B).
08/08/21 14:59:09 61SNR030_200_0026
ProCarManuals.com
DYNOMITE -2009-




20-25
6x1.0mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
(Black)
Fastener Locations
:Bolt,4
C:Bolt,1 D
(Gold)
CCC A
B C
D 6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
AA

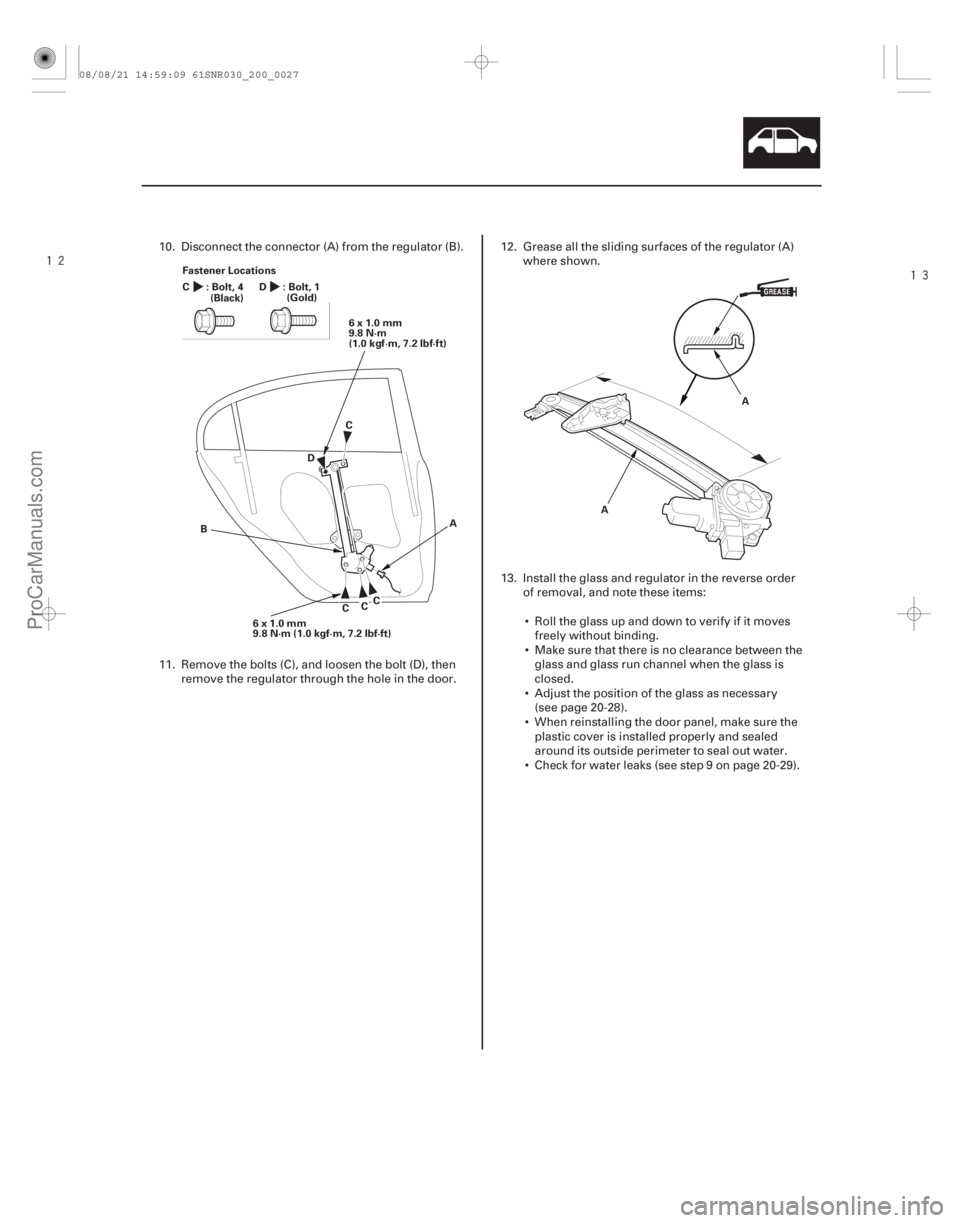

10. Disconnect the connector (A) from the regulator (B).
11. Remove the bolts (C), and loosen the bolt (D), then
remove the regulator through the hole in the door. 12. Grease all the sliding surfaces of the regulator (A)
where shown.
13. Install the glass and regulator in the reverse order of removal, and note these items:
 Roll the glass up and down to verify if it moves freely without binding.
 Make sure that there is no clearance between the glass and glass run channel when the glass is
closed.
 Adjust the position of the glass as necessary (see page 20-28).
 When reinstalling the door panel, make sure the
plastic cover is installed properly and sealed
around its outside perimeter to seal out water.
 Check for water leaks (see step 9 on page 20-29).
08/08/21 14:59:09 61SNR030_200_0027
ProCarManuals.com
DYNOMITE -2009-




(#'


 )

20-26 Doors

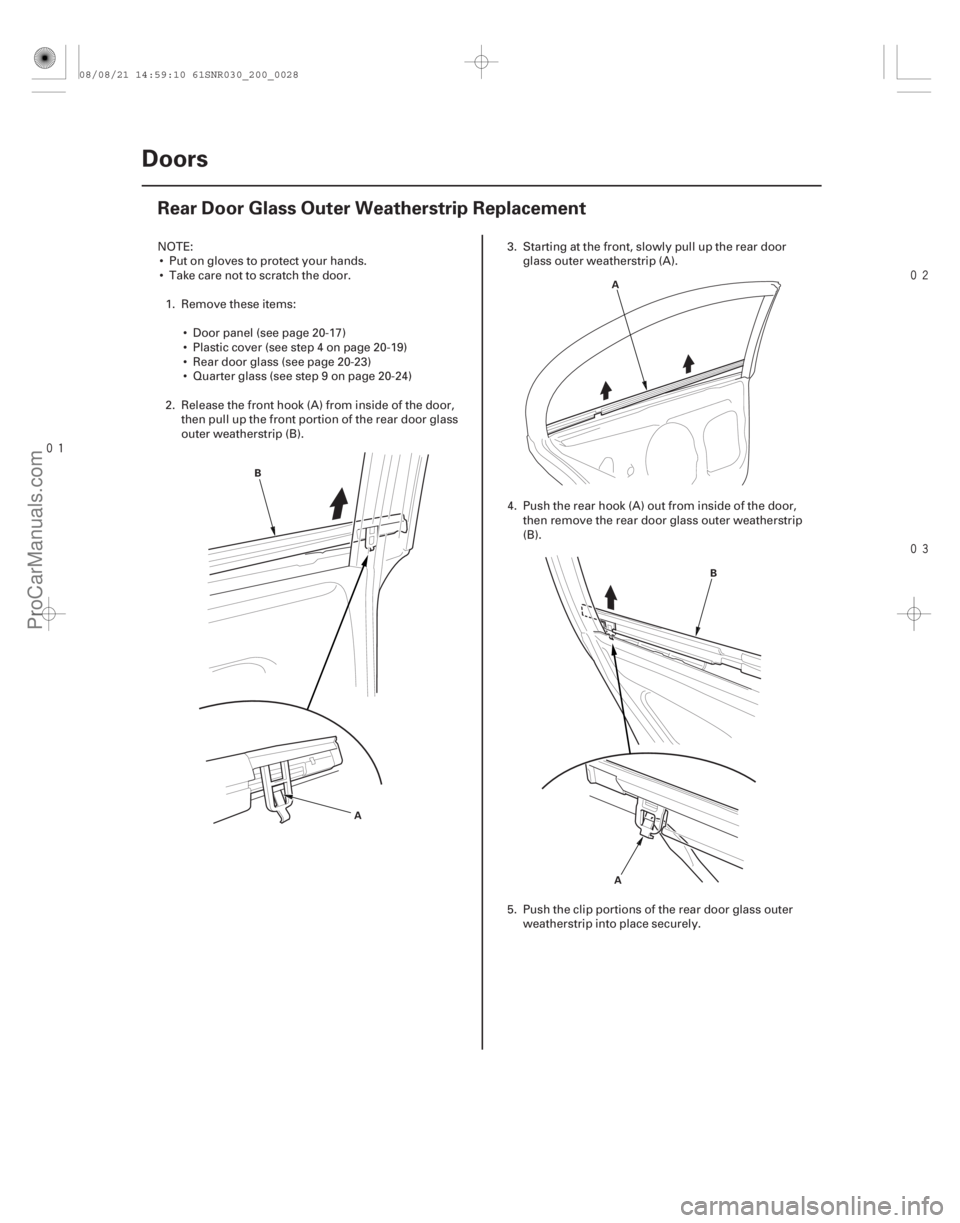

Rear Door Glass Outer Weatherstrip Replacement
A
B
A
A B
NOTE:
 Put on gloves to protect your hands.
 Take care not to scratch the door.
1. Remove these items:  Door panel (see page 20-17)
 Plastic cover (see step 4 on page 20-19)
 Rear door glass (see page 20-23)
 Quarter glass (see step 9 on page 20-24)
2. Release the front hook (A) from inside of the door, then pull up the front portion of the rear door glass
outer weatherstrip (B). 3. Starting at the front, slowly pull up the rear door
glass outer weatherstrip (A).
4. Push the rear hook (A) out from inside of the door, then remove the rear door glass outer weatherstrip
(B).
5. Push the clip portions of the rear door glass outer weatherstrip into place securely.
