ACURA CSX 2006 Service Repair Manual




(#'




")
22-173
Headlight Adjustment
A A
7.5 m (25 ft)
A A B
Headlights become very hot during use; do not
touch them or any attaching hardware immediately
after they have been turned off.
Before adjusting the headlights:  Park the vehicle on a level surface.
 Make sure the tire pressures are correct.
 The driver or someone who weighs the same should sit in the driver’s seat.
1. Clean the outer lens so that you can see the center (A) of the headlights. 2. Park the vehicle in front of a wall or a screen (A).
3. Turn the low beams on.
4. Determine if the headlights are aimed properly.
Vertical adjustment:
Measure the height of the headlights (A).
Adjust the cut line (B) to the lights height.
(cont’d)
08/08/21 14:27:01 61SNR030_220_0175
ProCarManuals.com
DYNOMITE -2009-


Î

(#'




 )
22-17422-174 Exterior Lights
Headlight Adjustment (cont’d) Headlight Replacement
U: UP
D: DOWN
A A
D B
C
A
5. If necessary, open the hood and adjust the
headlights to local requirements by turning the
adjusters (A). A transient high tension (25,000 V) occurs at the bulb sockets or the high intensity discharge (HID)
lamps when the combination light switch is turned
ON, it may cause serious electrical shock or
electrocution if you do not observe the cautions.
Do not service the headlights assembly in wet
conditions, such as rain or snow, near a sprinkler
system, or when your hands are wet to prevent
electrocution.
1. Remove the front bumper (see page 20-146).
2. Remove the connectors (A) from the headlight assembly (B).
3. Remove the five bolts, then remove the headlight.
4. Remove the bolt (C) and the corner upper beam (D) from the headlight.
5. Install the headlight in the reverse order of removal.
6. After replacement, adjust the headlight to local requirements.
The illustration is shown from
back side of left headlight.
08/08/21 14:27:01 61SNR030_220_0176
ProCarManuals.com
DYNOMITE -2009-


Î

(#'




 )
22-17422-174 Exterior Lights

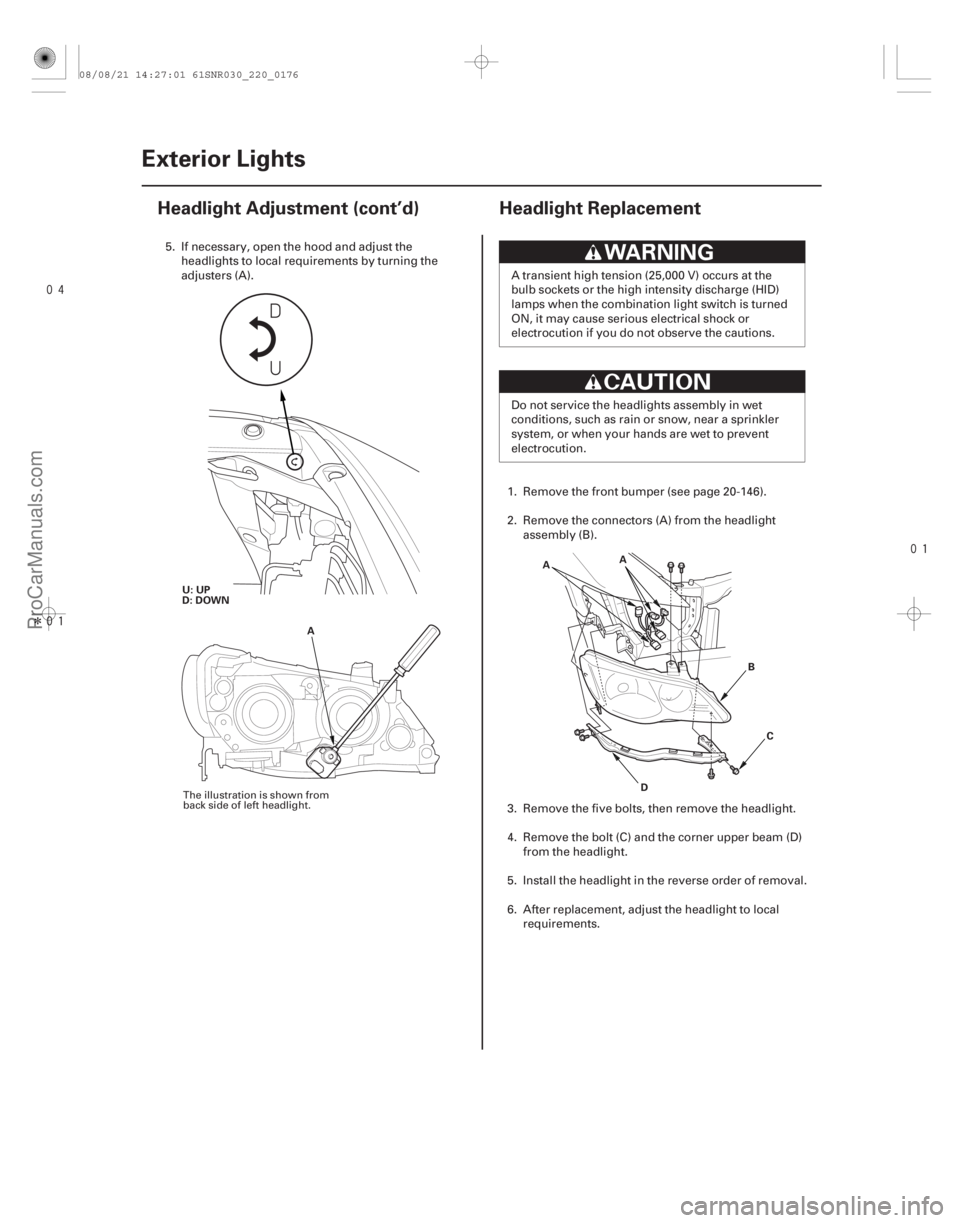

Headlight Adjustment (cont’d) Headlight Replacement
U: UP
D: DOWN
A A
D B
C
A
5. If necessary, open the hood and adjust the
headlights to local requirements by turning the
adjusters (A). A transient high tension (25,000 V) occurs at the bulb sockets or the high intensity discharge (HID)
lamps when the combination light switch is turned
ON, it may cause serious electrical shock or
electrocution if you do not observe the cautions.
Do not service the headlights assembly in wet
conditions, such as rain or snow, near a sprinkler
system, or when your hands are wet to prevent
electrocution.
1. Remove the front bumper (see page 20-146).
2. Remove the connectors (A) from the headlight assembly (B).
3. Remove the five bolts, then remove the headlight.
4. Remove the bolt (C) and the corner upper beam (D) from the headlight.
5. Install the headlight in the reverse order of removal.
6. After replacement, adjust the headlight to local requirements.
The illustration is shown from
back side of left headlight.
08/08/21 14:27:01 61SNR030_220_0176
ProCarManuals.com
DYNOMITE -2009-


(#'%



 ) Î
Î
(#'



 )
’07-08 models ’09 model
FOG LIGHT: 55 W FOG LIGHT: 55 W
22-17522-175

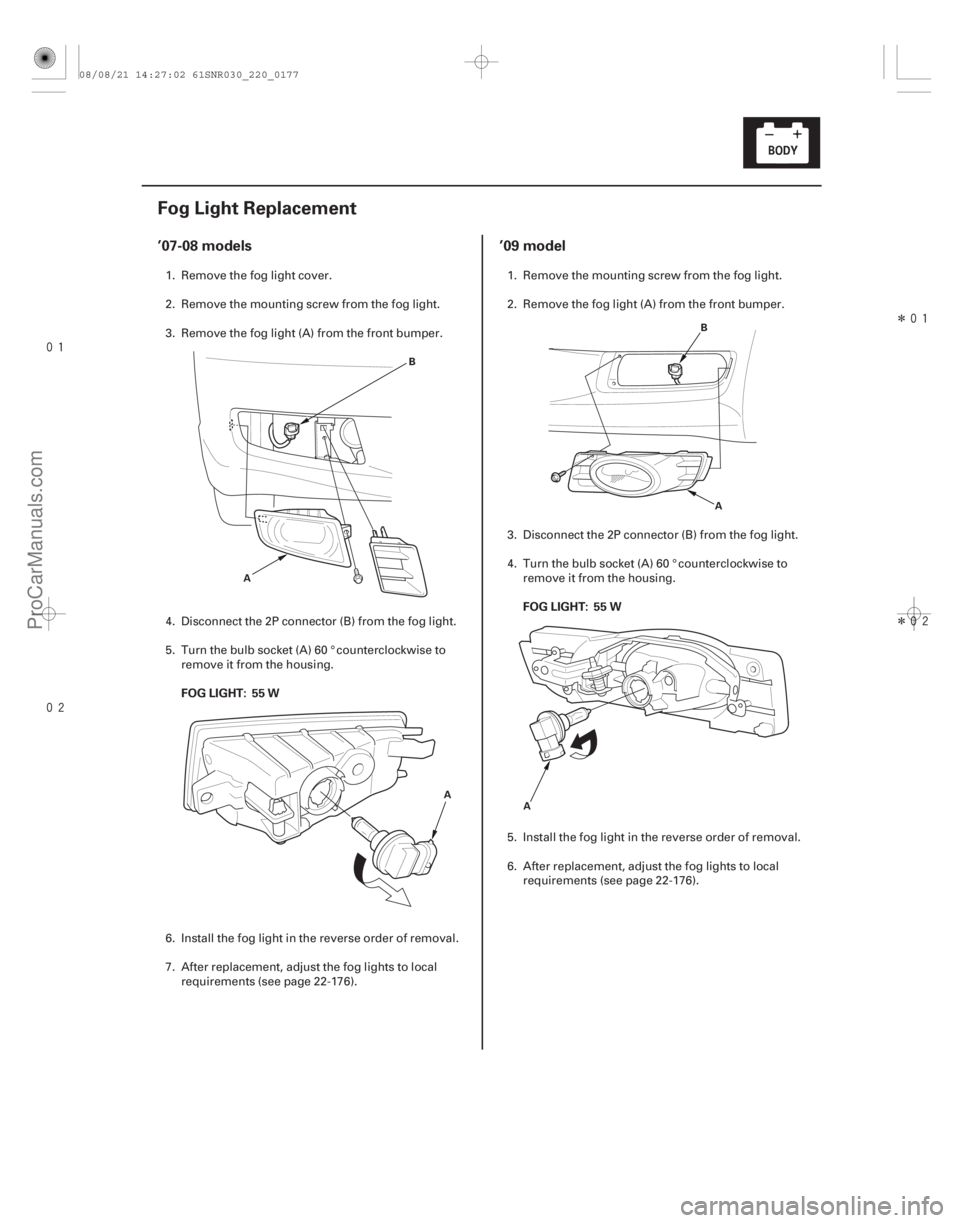

Fog Light Replacement
AB
A A
B
A
1. Remove the fog light cover.
2. Remove the mounting screw from the fog light.
3. Remove the fog light (A) from the front bumper.
4. Disconnect the 2P connector (B) from the fog light.
5. Turn the bulb socket (A) 60 ° counterclockwise to remove it from the housing.
6. Install the fog light in the reverse order of removal.
7. After replacement, adjust the fog lights to local requirements (see page 22-176). 1. Remove the mounting screw from the fog light.
2. Remove the fog light (A) from the front bumper.
3. Disconnect the 2P connector (B) from the fog light.
4. Turn the bulb socket (A) 60 ° counterclockwise to
remove it from the housing.
5. Install the fog light in the reverse order of removal.
6. After replacement, adjust the fog lights to local requirements (see page 22-176).
08/08/21 14:27:02 61SNR030_220_0177
ProCarManuals.com
DYNOMITE -2009-


Î
(#'



") ’07-08 models
’09 model
22-176Exterior Lights

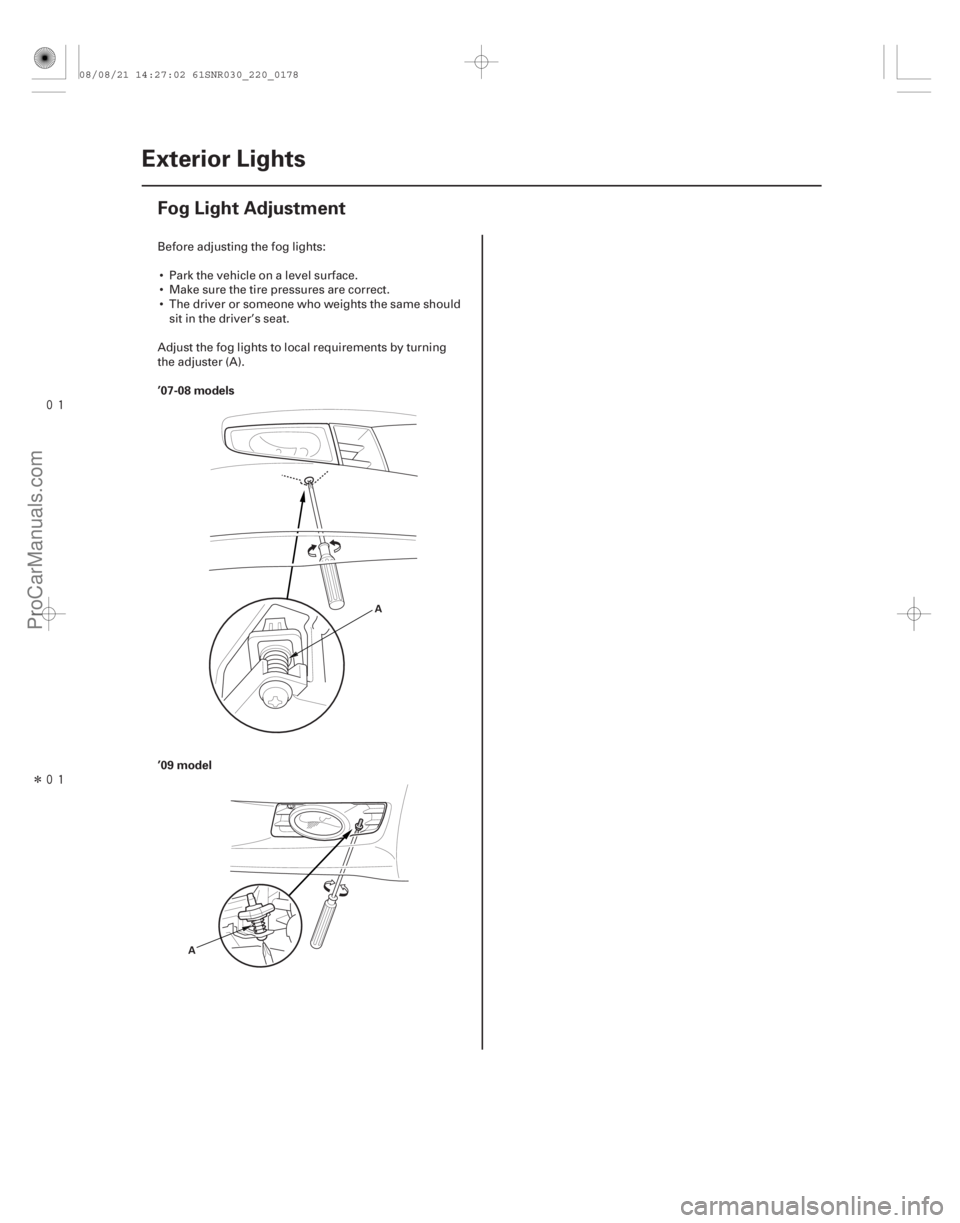

Fog Light Adjustment
A
A
Before adjusting the fog lights:  Park the vehicle on a level surface.
 Make sure the tire pressures are correct.
 The driver or someone who weights the same should sit in the driver’s seat.
Adjust the fog lights to local requirements by turning
the adjuster (A).
08/08/21 14:27:02 61SNR030_220_0178
ProCarManuals.com
DYNOMITE -2009-




(#'


 )
Headlight Front Side Marker Light
Headlight (High Beam): 60 W
Headlight (Low Beam) : 51 W
Without HID
High
Low Front Side Marker Light: 2 CP
22-177

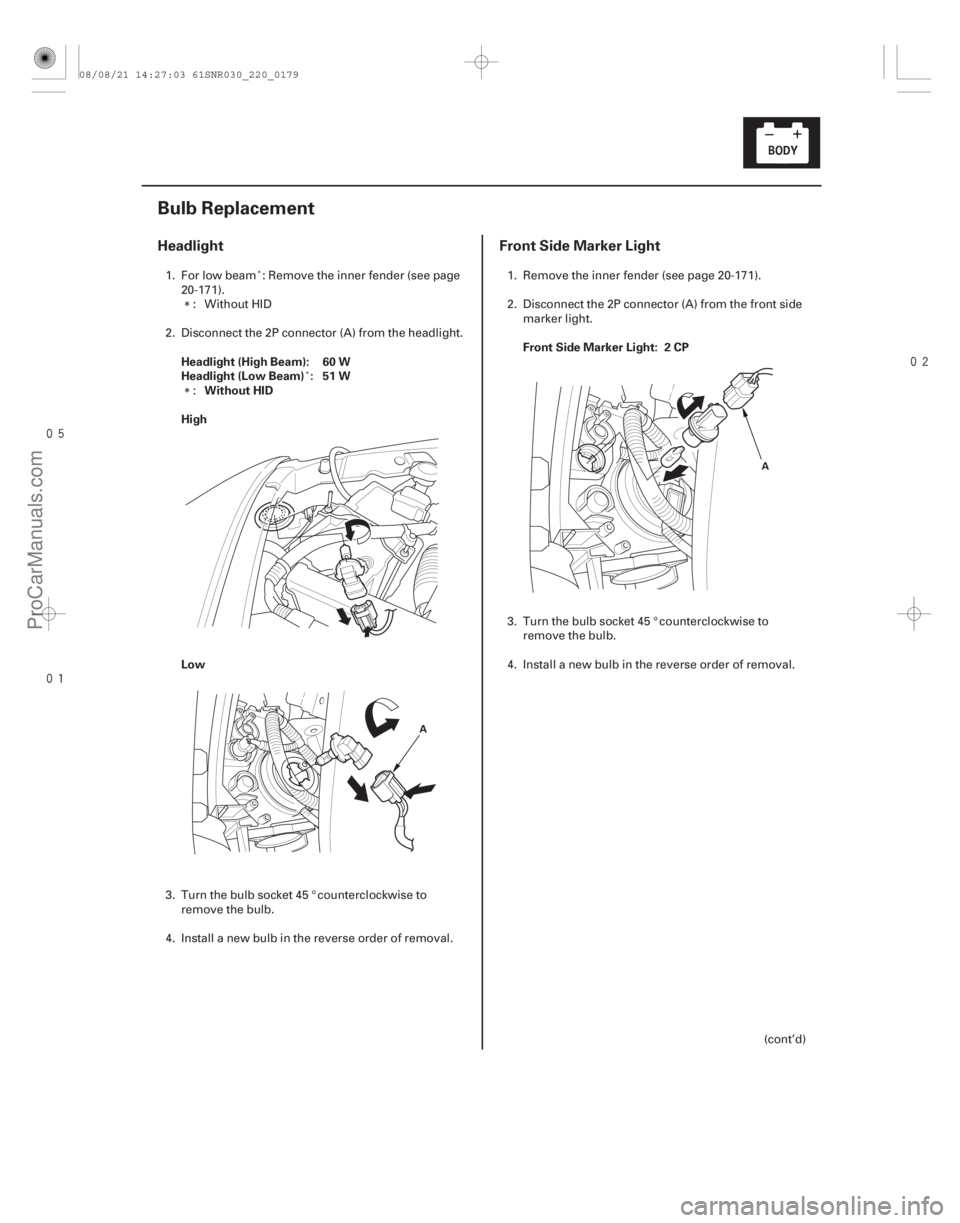

Bulb Replacement
A
A
1. For low beam : Remove the inner fender (see page
20-171).: Without HID
2. Disconnect the 2P connector (A) from the headlight.
:
3. Turn the bulb socket 45 ° counterclockwise to remove the bulb.
4. Install a new bulb in the reverse order of removal. 1. Remove the inner fender (see page 20-171).
2. Disconnect the 2P connector (A) from the front side
marker light.
3. Turn the bulb socket 45 ° counterclockwise to remove the bulb.
4. Install a new bulb in the reverse order of removal.
(cont’d)
08/08/21 14:27:03 61SNR030_220_0179
ProCarManuals.com
DYNOMITE -2009-


Front Parking LightFront Turn Signal Light
Front Parking Light: 3 CP Front Turn Signal Light: 24/2.2 CP
22-178Exterior Lights
Bulb Replacement (cont’d)
A
A
1. Disconnect the 2P connector (A) from the front
parking light.
2. Turn the bulb socket 45 ° counterclockwise to remove the bulb.
3. Install a new bulb in the reverse order of removal. 1. Disconnect the 3P connector (A) from the front turn
signal light.
2. Turn the bulb socket 45 ° counterclockwise to remove the bulb.
3. Install a new bulb in the reverse order of removal.
08/08/21 14:27:03 61SNR030_220_0180
ProCarManuals.com
DYNOMITE -2009-


(#'



 ) 
(#'



 )
Brake Lights/Taillights: 21/5 W
Rear Turn Signal Light: 21 W
Rear Side Marker Light: 3 CP
Taillight: 5 W
Back-up Light: 16 W
22-17922-179

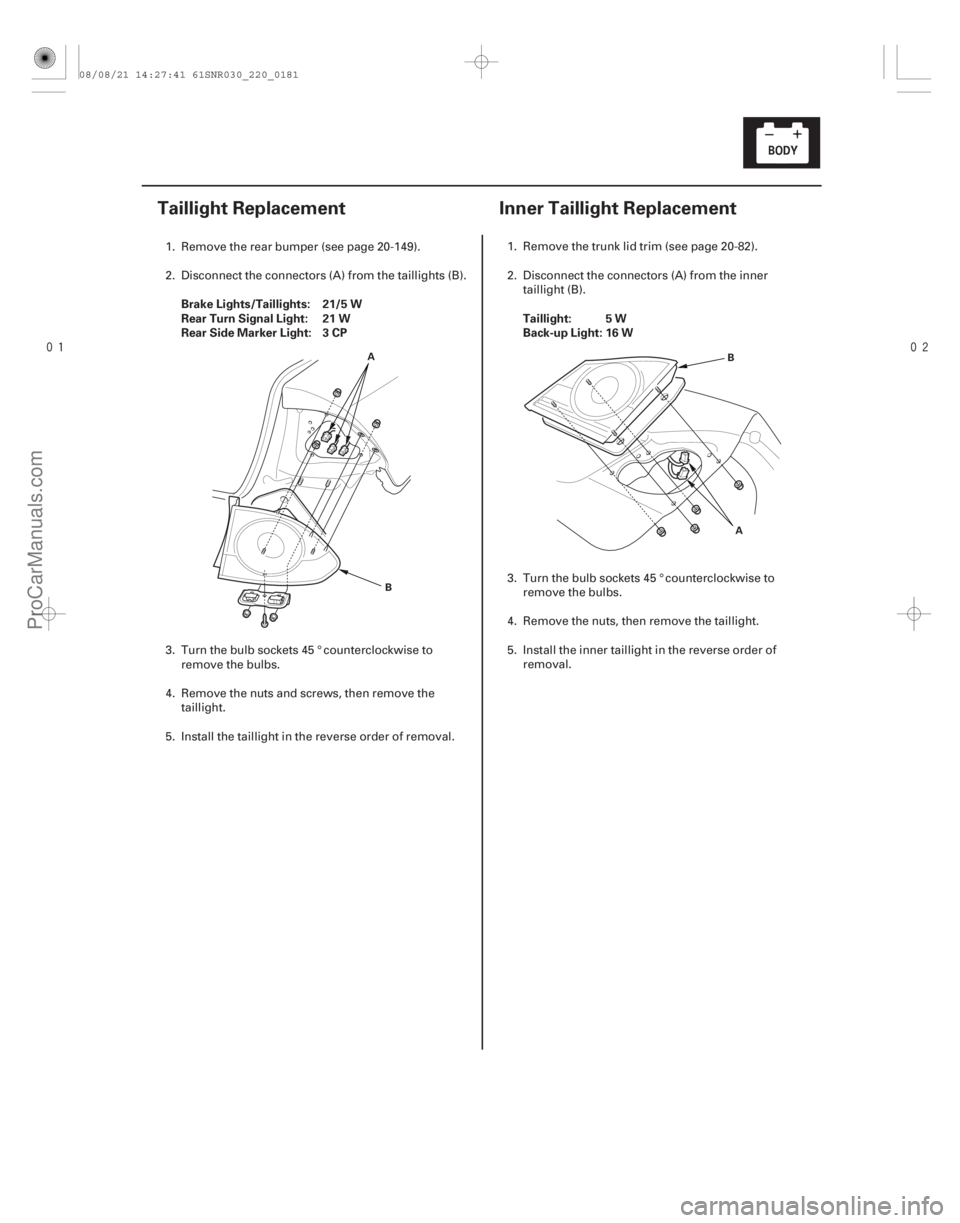

Taillight Replacement
Inner Taillight Replacement
A
B A
B
1. Remove the rear bumper (see page 20-149).
2. Disconnect the connectors (A) from the ta
illights (B).
3. Turn the bulb sockets 45 ° counterclockwise to remove the bulbs.
4. Remove the nuts and screws, then remove the taillight.
5. Install the taillight in the reverse order of removal. 1. Remove the trunk lid trim (see page 20-82).
2. Disconnect the connectors (A) from the inner
taillight (B).
3. Turn the bulb sockets 45 ° counterclockwise to remove the bulbs.
4. Remove the nuts, then remove the taillight.
5. Install the inner taillight in the reverse order of removal.
08/08/21 14:27:41 61SNR030_220_0181
ProCarManuals.com
DYNOMITE -2009-


(#'

 ) 

(#'



 )
License Plate Light: 5 W
High Mount Brake Light: 21 W
Except TYPE S model
22-18022-180Exterior Lights

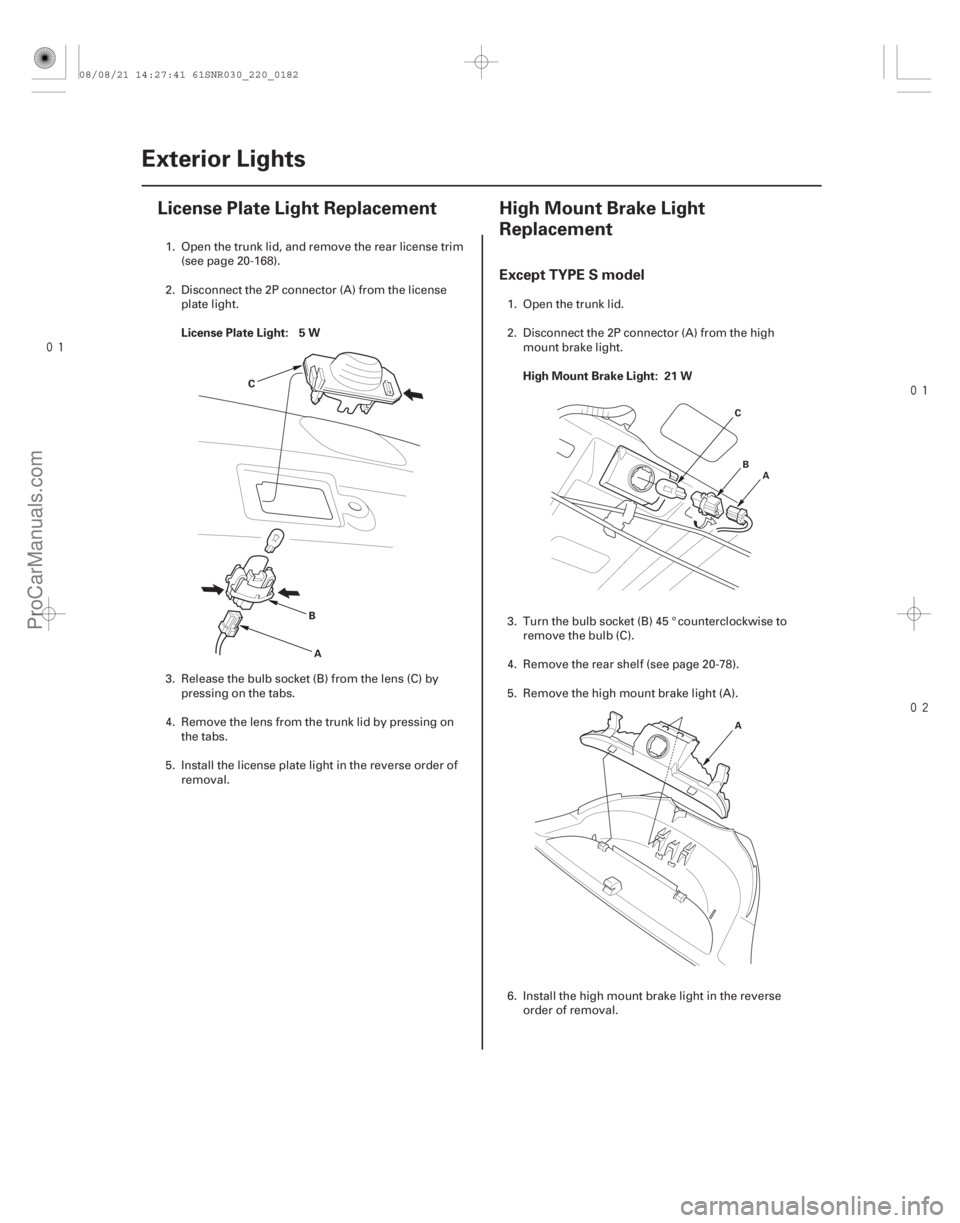

License Plate Light Replacement High Mount Brake Light
Replacement
A
B
C
A
B
C
A
1. Open the trunk lid, and remove the rear license trim (see page 20-168).
2. Disconnect the 2P connector (A) from the license plate light.
3. Release the bulb socket (B) from the lens (C) by pressing on the tabs.
4. Remove the lens from the trunk lid by pressing on the tabs.
5. Install the license plate light in the reverse order of removal. 1. Open the trunk lid.
2. Disconnect the 2P connector (A) from the high
mount brake light.
3. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb (C).
4. Remove the rear shelf (see page 20-78).
5. Remove the high mount brake light (A).
6. Install the high mount brake light in the reverse order of removal.
08/08/21 14:27:41 61SNR030_220_0182
ProCarManuals.com
DYNOMITE -2009-


(#'



 )
Î
(#'


)
TYPE S model
22-18122-181

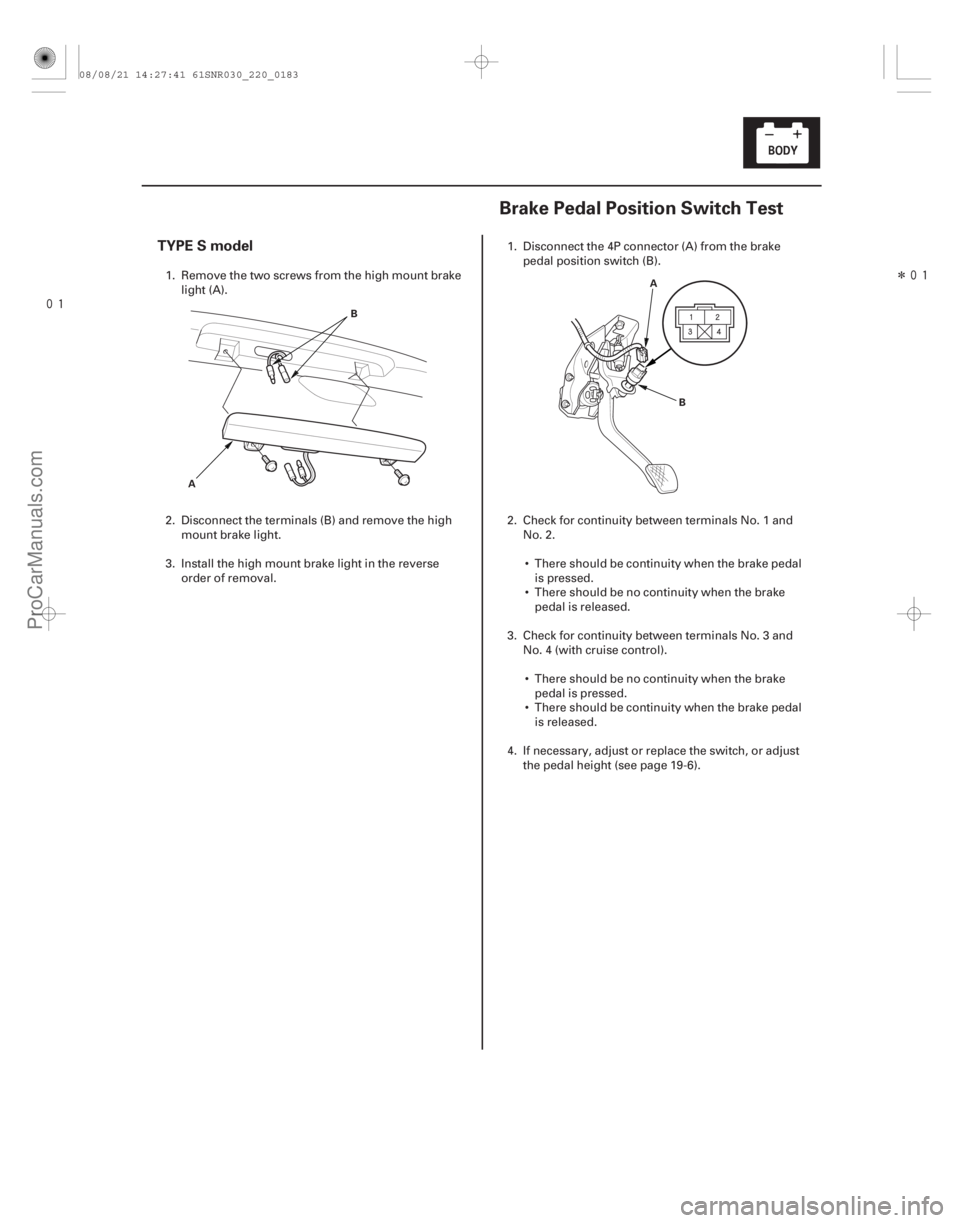

Brake Pedal Position Switch Test
A B
A
B
1. Remove the two screws from the high mount brakelight (A).
2. Disconnect the terminals (B) and remove the high mount brake light.
3. Install the high mount brake light in the r everse
order of removal. 1. Disconnect the 4P connector (A) from the brake
pedal position switch (B).
2. Check for continuity between terminals No. 1 and No. 2.
 There should be continuity when the brake pedal is pressed.
 There should be no continuity when the brake pedal is released.
3. Check for continuity between terminals No. 3 and No. 4 (with cruise control).
 There should be no continuity when the brake pedal is pressed.
 There should be continuity when the brake pedal is released.
4. If necessary, adjust or replace the switch, or adjust the pedal height (see page 19-6).
