Seat Belt Tensioner

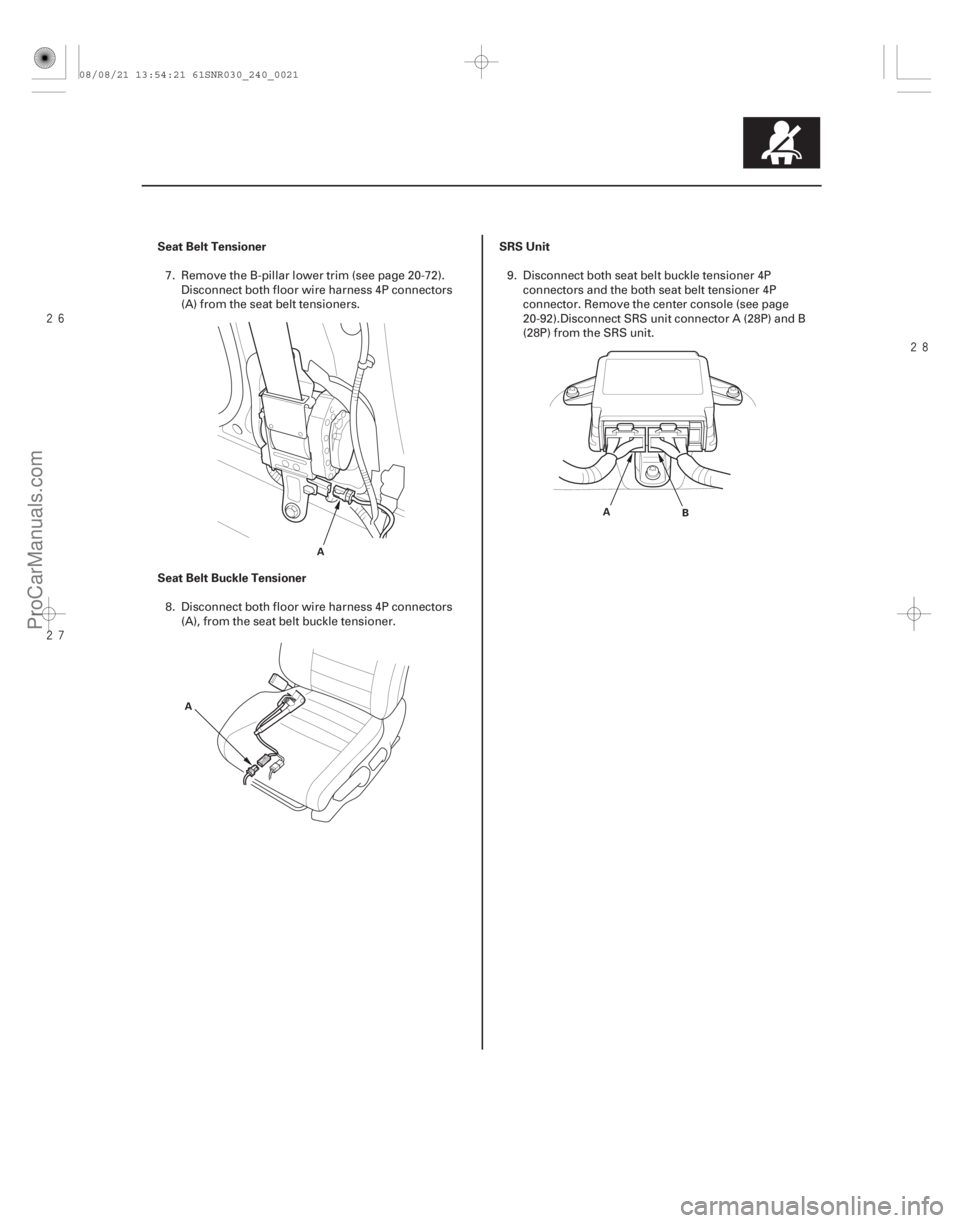

Seat Belt Buckle Tensioner SRS Unit
24-21
A
A B
A
7. Remove the B-pillar lower trim (see page 20-72).
Disconnect both floor wire harness 4P connectors
(A) from the seat belt tensioners.
8. Disconnect both floor wire harness 4P connectors (A), from the seat belt buckle tensioner. 9. Disconnect both seat belt buckle tensioner 4P
connectors and the both seat belt tensioner 4P
connector. Remove the center console (see page
20-92).Disconnect SRS unit connector A (28P) and B
(28P) from the SRS unit.
08/08/21 13:54:21 61SNR030_240_0021
ProCarManuals.com
DYNOMITE -2009-


(#'
)
DTC (Diagnostic Trouble Codes) Reading the DTC
Precautions
24-22SRS
General Troubleshooting Information
A
The self-diagnostic function of the SRS system allows it
to locate the causes of system problems and store this
information in memory. For easier troubleshooting, this
data can be retrieved via a data link circuit.
 When you turn the ignition switch to ON (II), the SRS indicator comes on. If it goes off after 6 seconds, the
system is normal, and is not currently detecting any
abnormality.
 If there is an abnormality, the system locates and defines the problem, stores this information in
memory, and turns on the SRS indicator. The data
remains in memory even if the ignition switch is
turned off or the battery is disconnected.
 The data is stored in memory as a diagnostic trouble code (DTC).
 The ‘‘x’’ at the end of each DTC denotes a numeric character (0 thru 9) or an alpha character (A thru F)
that is displayed on the HDS.
 DTCs are either latching or resetting depending on the malfunction. With resetting DTCs, the SRS
indicator goes off the next time the ignition switch is
turned to ON (II), and the system is normal, but the
DTC is still stored. With latching DTCs, the SRS
indicator does not turn to LOCK (0) until the
malfunction is repaired and the DTC is cleared.
 When you connect the HDS to the data link connector (DLC), you can retrieve a more detailed DTC in the
HDS ‘‘SRS’’ menu.
NOTE: Only read DTCs from the SRS menu, not from
the SWS menus. SWS (ODS unit) DTCs are subcodes
of SRS unit DTCs. Only troubleshoot the
corresponding SRS DTCs.
 After reading and recording the DTC, proceed with the troubleshooting procedure for that code.
 Use only a digital multimeter to check the system. Make sure its output is 10 mA (0.01 A) or less when
switched to the smallest value in the ohmmeter range.
A tester with a higher output could damage the
airbag circuit or cause accidental airbag deployment
and possible injury.  Whenever the ignition switch is in ON (II), or has been
turned to LOCK (0), for less than 3 minutes, be careful
not to bump the SRS unit; the airbags could
accidentally deploy and cause damage or injuries.
 Before removing the dashboard wire harness, floor wire harness, disconnect the driver’s airbag
connector, the front passenger’s airbag connector,
both side airbag connectors, both side curtain airbag
connectors and both seat belt tensioner connectors.
 Make sure the battery is fully charged. If the battery is dead or low, electrical measurements may not be
correct.
 Do not touch a tester probe to the terminals in the SRS unit or harness connectors, and do not connect
the SRS unit terminals or the sensor terminals with a
jumper wire. Use only the backprobe set and the
multimeter. Backprobe spring-loaded lock type
connectors correctly.
1. Make sure the ignition switch is in LOCK (0).
2. Connect the HDS to the data link connector (DLC) (A).
3. Turn the ignition switch to ON (II).
4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11-204).
08/08/21 13:54:21 61SNR030_240_0022
ProCarManuals.com
DYNOMITE -2009-



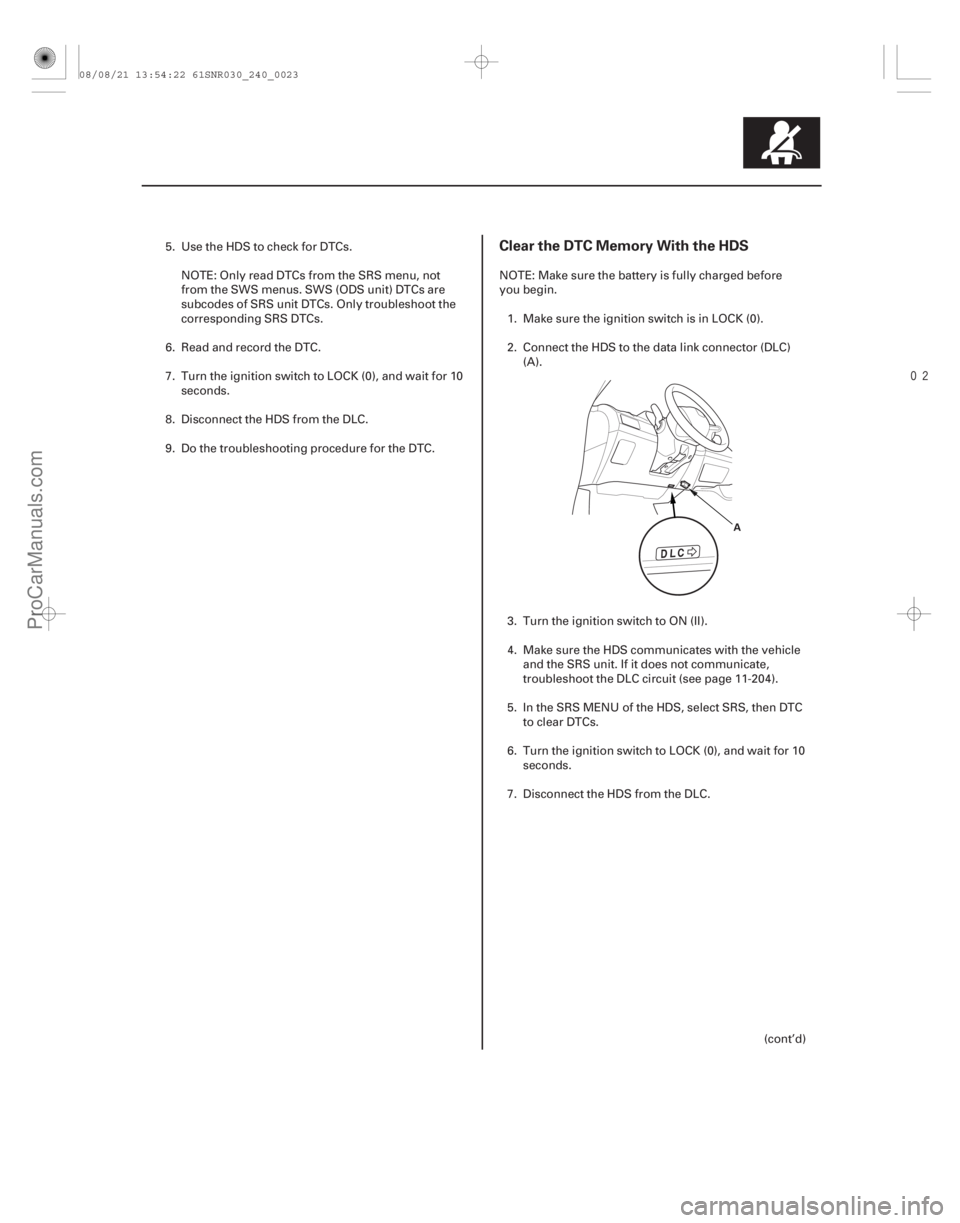

Clear the DTC Memory With the HDS
24-23
A
5. Use the HDS to check for DTCs.NOTE: Only read DTCs from the SRS menu, not
from the SWS menus. SWS (ODS unit) DTCs are
subcodes of SRS unit DTCs. Only troubleshoot the
corresponding SRS DTCs.
6. Read and record the DTC.
7. Turn the ignition switch to LOCK (0), and wait for 10 seconds.
8. Disconnect the HDS from the DLC.
9. Do the troubleshooting procedure for the DTC. NOTE: Make sure the battery is fully charged before
you begin.
1. Make sure the ignition switch is in LOCK (0).
2. Connect the HDS to the data link connector (DLC) (A).
3. Turn the ignition switch to ON (II).
4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11-204).
5. In the SRS MENU of the HDS, select SRS, then DTC to clear DTCs.
6. Turn the ignition switch to LOCK (0), and wait for 10 seconds.
7. Disconnect the HDS from the DLC.
(cont’d)
08/08/21 13:54:22 61SNR030_240_0023
ProCarManuals.com
DYNOMITE -2009-


Clear the DTC Memory Using MES
Connector Without the HDSTroubleshooting Intermittent Failures
Special Tools Required
24-24SRS
General Troubleshooting Information (cont’d)
B
A
07PAZ-001010A
SCS Service Connector 07PAZ-001010A
NOTE: Make sure the battery is fully charged before
you begin.
To clear the DTCs from the SRS unit, use the HDS or the
following procedure. 1. Make sure the ignition switch is in LOCK (0).
2. Connect the SCS service connector (A) to the yellow MES 2P connector (B). Do not use a jumper
wire.
3. Turn the ignition switch to ON (II).
4. The SRS indicator will come on for about 6 seconds, and then go off. Remove the SCS service connector
from the MES connector (2P) within 4 seconds after
the indicator goes off.
5. The SRS indicator will come on again. Reconnect the SCS service connector to the MES connector
(2P) within 4 seconds after the indicator comes on.
6. When the SRS indicator goes off, remove the SCS service connector from the MES connector (2P)
within 4 seconds.
7. The SRS indicator blinks two times, indicating that the memory has been cleared.
8. Turn the ignition switch to LOCK (0).
9. Turn the ignition switch to ON (II) again. If the SRS indicator comes on for 6 seconds, and then goes off,
the system is OK. If the indicator stays on,
troubleshoot the DTC, refer to symptom
troubleshooting. If there was a malfunction, but it does not recur, it will
be stored in the memory as an intermittent failure, and
the SRS indicator may come on depending on this
malfunction detected.
NOTE:
 Check the condition of the battery (see page 22-67) and the charging system (see page 4-23). Low battery
voltage may cause some intermittent failures.
 A faulty or damaged cable reel can cause intermittent problems related to the driver’s airbag inflator DTCs.
After checking the DTC, troubleshoot as follows: 1. Make sure the ignition switch is in LOCK (0).
2. Connect the HDS to the data link connector (DLC).
3. Turn the ignition switch to ON (II).
4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11-204).
5. In the SRS MENU on the HDS, select SRS, then DTC to clear DTCs.
6. Read the DTC (see ‘‘Reading the DTC’’).
7. Clear the DTC memory(see ‘‘Clear the DTC’’).
8. Set the parking brake, then start the engine, and let it idle.
9. The SRS indicator comes on for about 6 seconds and then goes off.
08/08/21 13:54:22 61SNR030_240_0024
ProCarManuals.com
DYNOMITE -2009-


Checking Front Passenger’s Weight Sensors
After a Vehicle Collision
24-25
A
10. Shake the related wire harnesses and theconnectors, and look for loose connections, poor
pinfits, and poor grounds.
11. Take a test-drive (quick acceleration, quick braking, and cornering), turn the steering wheel fully left
and right, and hold it there for 5 to 10 seconds. If
the problem recurs, the SRS indicator will come on.
12. If you cannot duplicate the concern, ask the client about the conditions when it occurred, or ask the
client to demonstrate the concern.
13. If you cannot duplicate the intermittent failure, the system is OK at this time. 1. Position the front passenger’s seat to the rearmost
position, adjust the seat-back to the forwardmost
position. Do not move it from this position.
2. Drive the vehicle, accelerate to 20 mph (36 km/h), then stop on level ground.
3. Make sure the ignition switch is in LOCK (0).
4. Connect the HDS to the data link connector (DLC) (A).
5. Turn the ignition switch to ON (II).
6. Make sure the HDS communicates with the vehicle and the SRS unit. If does not communicate,
troubleshoot the DLC circuit (see page 11-204).
7. From the SRS inspection menu, select Seat Weight Sensor, then Misc test, then SEAT OUTPUT CHK
and follow the prompts until the front passenger’s
weight sensor operation check is complete.
08/08/21 13:54:22 61SNR030_240_0025
ProCarManuals.com
DYNOMITE -2009-


(#'
)
24-26SRS
ODS Unit Initialization
A
When a seat-back cover, seat-back cushion, and/or ODS
unit is replaced, initialize the ODS by following the
procedure.
NOTE: A new (uninitialized) ODS unit installed with a
faulty OPDS sensor can cause DTC 85-71.
1. Clear the DTC memory (see page 24-23).
2. Make sure the front passenger’s seat is dry. Set the seat-back in a normal position, and make sure there
is nothing on the seat.
3. Make sure the ignition switch is in LOCK (0) and the MES connector is not shorted.
4. Connect the HDS to the data link connector (DLC) (A). 5. Turn the ignition switch to ON (II).
6. Make sure the HDS communicates with the vehicle
and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11-204).
7. From the HDS Main Menu, select SRS, then SRS, then Calibration. In the Calibration Menu, select
ODS INITIALIZATION. Follow the screen prompts to
initialize the ODS unit.
8. Turn the ignition switch to LOCK (0).
9. Disconnect the HDS from the DLC. NOTE: If the ODS unit fails to initialize after several
attempts, replace the OPDS sensor/seat-back and
retry. If the ODS unit continues to fail to initialize,
replace the ODS unit (see page 24-209).
08/08/21 13:54:22 61SNR030_240_0026
ProCarManuals.com
DYNOMITE -2009-

(#'
)
24-27
ODS Unit Calibration
A
When you replace the SRS unit, front passenger’s
weight sensors or ODS unit, calibrate the ODS unit.
While calibrating the ODS unit, observe these
precautions: Make sure all components of the front passenger’s seat are correctly installed.
 Make sure nothing is on or under the front passenger’s seat.
 Make sure there is nothing in the front passenger’s seat-back pocket.
 Keep the windows and moonroof closed.
 Do all calibration procedures except, test-driving, in the service bay.
 Make sure the vehicle is on level gr ound.
 Keep the A/C and the heater off.
 Do not touch the front passenger’s seat during calibration, unless you are prompted to or when you
have completed the calibration.
 Do not expose the front passenger’s seat to sudden temperature changes.
1. Position the front passenger’s seat to the rearmost position, and adjust the seat-back to the
forwardmost position. Do not move the seat from
these positions.
2. Make sure the ignition switch is in LOCK (0).
3. Connect the HDS to the data link connector (DLC) (A).
4. Turn the ignition switch to ON (II).
5. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11- 204).6. Drive the vehicle, and accelerate to 20 mph
(36 km/h), then stop on level ground.
7. From the Main Menu, select SRS, then Calibration, then Misc Test, then select SWS INITIALIZATION,
and follow the prompts until the calibration is
complete.
08/08/21 13:54:23 61SNR030_240_0027
ProCarManuals.com
DYNOMITE -2009-


(#'
")
Pre-operation Check Set-up After Replacing Front Passenger’s Seat
Component(s)
24-28SRS
ODS Unit Operation Check
A
Check the ODS operation after any of these actions.
 Replacement of front passenger’s seat component(s) (except ODS unit and/or weight sensors)
 After a vehicle collision
 SRS unit replacement
 Make sure all the components of the front passenger’s seat are correctly installed.
 Position the front passenger’s seat to the rearmost position.
 Adjust the seat-back to the forwardmost position.
 Do not move the seat from this position.
 Make sure nothing is on or under the front passenger’s seat.
 Make sure there is nothing in the front passenger’s seat-back pocket.
 Keep the windows and moonroof closed.
 Do all calibration procedures, except test-driving, in the service bay.
 Make sure the vehicle is on level gr ound.
 Turn the heater and the A/C off.
 Do not touch the front passenger’s seat during the calibration, unless you are prompted to or until you
have completed the operation check.
 Do not expose the front passenger’s seat to sudden temperature changes.
 Make sure all aftermarket devices such as amplifiers, fluorescent lights, air purifies, CB or HAM radios, etc.
are turned off. 1. Make sure the ignition switch is in LOCK (0).
2. Connect the HDS to the data link connector (DLC)
(A).
3. Turn the ignition switch to ON (II).
4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11-204).
5. Drive the vehicle, accelerate to 20 mph (36 km/h), then stop on level ground.
6. From the HDS Main Menu, select SRS, then Inspection. In the HDS Inspection Menu, select
SEAT OUTPUT CHK and follow the prompts until
the ODS unit operation check is complete.
08/08/21 13:54:23 61SNR030_240_0028
ProCarManuals.com
DYNOMITE -2009-


(#'")
24-29
Driver’s Seat Position Sensor Operation Check
A A
B C
Check the driver’s seat position after any of these
actions.
 Driver’s seat position sensor replacement
 Cover plate (front side of driver’s seat slide rail) replacement
1. Make sure the driver’s seat is at its full forward position.
2. Make sure the ignition switch is in LOCK (0).
3. Connect the HDS to the data link connector (DLC) (A).
4. Turn the ignition switch to ON (II).
5. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11- 204).
6. From the HDS Main Menu, select SRS, then Prameter Information, then Buckle Switch, Seat
Position Sensor. 7. Using a piece of tape (A), mark the location on the
seat’s outer cover (B) where the front riser cover
meets the seat riser (C). The driver’s seat position
sensor should read NEAR.
8. Move the seat back in small increments (about 0.2 in., 5 mm) until the driver’s seat position sensor
reads NOT NEAR. The seat should be about 25 mm
(1 in.) from the front.
NOTE: It takes a few seconds for the HDS to display changes, so wait about 5 seconds between each
move.
 If the driver’s seat position sensor data does not work as described, check the driver’s seat
positionsensororthecoverplatefordamage,
and replace parts as needed.
9. Turn the ignition switch to LOCK (0), and disconnect the HDS from the DLC.
08/08/21 13:54:23 61SNR030_240_0029
ProCarManuals.com
DYNOMITE -2009-

(#')
SRS Unit DTCDetection Item Notes
24-30SRS
DTC Troubleshooting Index
11-1x
Open in the driver’s airbag first inflator (see page 24-48)
11-3x Short to another wire or decreased resistance in the driver’s airbag first inflator (see page 24-50)
11-4x Open in the driver’s airbag second inflator (see page 24-48)
11-6x Short to another wire or decreased resistance in the driver’s airbag second inflator (see page 24-50)
11-8x Short to power in the driver’s airbag first inflator (see page 24-52)
11-9x Short to ground in the driver’s airbag first inflator (see page 24-54)
11-Ax Short to power in the driver’s airbag second inflator (see page 24-52)
11-Bx Short to ground in the driver’s airbag second inflator (see page 24-54)
12-1x Open in the front passenger’s airbag first inflator (see page 24-56)
12-3x Short to another wire or decreased resistance in the front passenger’s airbag first
inflator (see page 24-58)
12-4x Open in the front passenger’s airbag second inflator (see page 24-56)
12-6x Short to another wire or decreased resistance in the front passenger’s airbag
second inflator (see page 24-58)
12-8x Short to power in the front passenger’s airbag first inflator (see page 24-59)
12-9x Short to ground in the front passenger’s airbag first inflator (see page 24-61)
12-Ax Short to power in the front passenger’s airbag second inflator (see page 24-59)
12-Bx Short to ground in the front passenger’s airbag second inflator (see page 24-61)
21-1x Open in the driver’s seat belt tensioner (see page 24-62)
21-3x Short to another wire or decreased resistance in the driver’s seat belt tensioner (see page 24-63)
21-8x Short to power in the driver’s seat belt tensioner (see page 24-65)
21-9x Short to ground in the driver’s seat belt tensioner (see page 24-66)
22-1x Open in the front passenger’s seat belt tensioner (see page 24-68)
22-3x Short to another wire or decreased resistance in the front passenger’s seat belt
tensioner (see page 24-70)
22-8x Short to power in the front passenger’s seat belt tensioner (see page 24-72)
22-9x Short to ground in the front passenger’s seat belt tensioner (see page 24-74)
27-1x Open in the driver’s seat belt buckle tensioner (see page 24-76)
27-3x Short to another wire or decreased resistance in the driver’s seat belt buckle
tensioner (see page 24-78)
27-8x Short to power in the driver’s seat belt buckle tensioner (see page 24-80)
27-9x Short to ground in the driver’s seat belt buckle tensioner (see page 24-82)
28-1x Open in the front passenger’s seat belt buckle tensioner (see page 24-84)
28-3x Short to another wire or decreased resistance in the front passenger’s seat belt
buckle tensioner (see page 24-86)
28-8x Short to power in the front passenger’s seat belt buckle tensioner (see page 24-88)
28-9x Short to ground in the front passenger’s seat belt buckle tensioner (see page 24-90)
31-1x Open in the driver’s side airbag inflator (see page 24-92)
31-3x Short to another wire or decreased resistance in the driver’s side airbag inflator (see page 24-94)
31-8x Short to power in the driver’s side airbag inflator (see page 24-96)
31-9x Short to ground in the driver’s side airbag inflator (see page 24-97)
08/08/21 13:54:23 61SNR030_240_0030
ProCarManuals.com
DYNOMITE -2009-
