Acura MDX 2017 Navigation Manual

30
Interface SettingsClock Adjustment
System Setup
Clock Adjustment
HSETTINGS button  System Settings Clock
Set the automatic adjustment of the system clock for daylight saving and
international time zones.
Rotate i to select an item. Press u .
The following item s are available:
• Clock/Wallpaper Type : Changes the clock display type and the wallpaper type.
2
Setting the Clock Type P. 31
• Clock Adjustment : Adjust the current time manually.
2
Setting the Clock P. 31
• Clock Format : Sets the time notation to either 12-hour clock (12H, factory
default) or 24-hour clock (24H).
• Auto Time Zone : The navigation system automati cally adjusts the clock when
driving through different time zones.
On (factory default): Adjust s the clock automatically.
Off : Disables the feature.
• Auto Daylight : The navigation system automati cally adjusts the clock (“spring
ahead” or “fall back” by one hour) when a daylight saving time change occurs.
On (factory default): Adjust s the clock automatically.
Off : Disables the feature.
• Clock Reset : Resets the settings of all items in the Clock group.
1Clock Adjustment
Auto Time Zone
If you live and work in two different time zones,
you may want to turn Auto Time Zone to OFF.
When driving near a time zone boundary, the
displayed time zone ma y fluctuate between the
two zone times.
Auto Daylight
This function is not activated in areas that have
not adopted daylight saving time, even if you
have set Auto Daylight to ON .
You can turn the clock display in the audio/
information screen on and off.
2 Header Clock Display P. 38

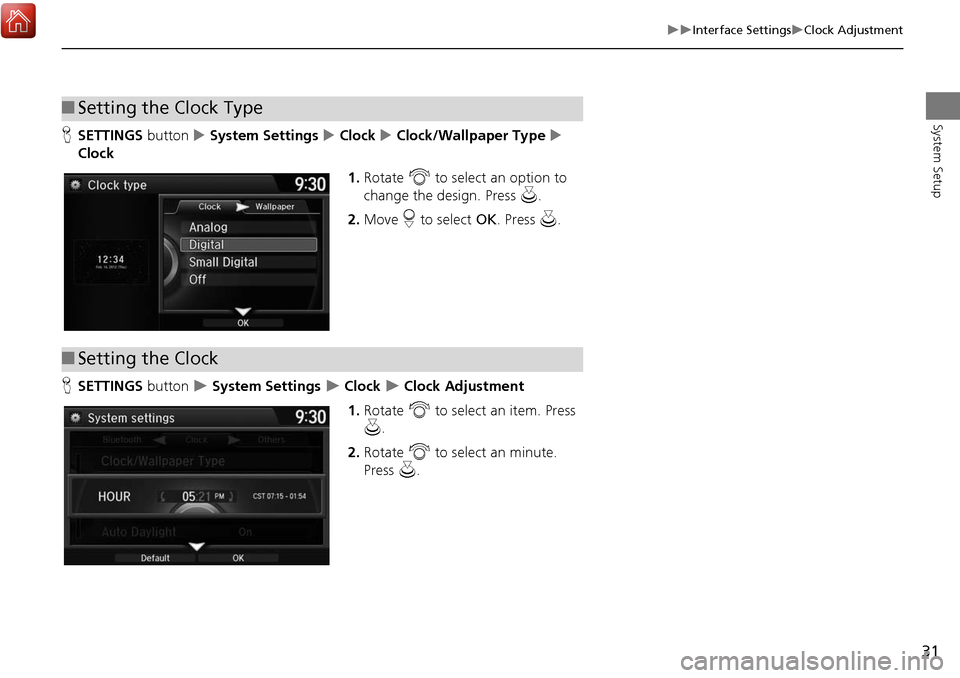

31
Interface SettingsClock Adjustment
System Setup
HSETTINGS button  System Settings  Clock  Clock/Wallpaper Type 
Clock
1.Rotate i to select an option to
change the design. Press u.
2. Move r to select OK. Press u.
H SETTINGS button
 System Settings  Clock  Clock Adjustment
1. Rotate i to select an item. Press
u .
2. Rotate i to select an minute.
Press u.
■Setting the Clock Type
■Setting the Clock

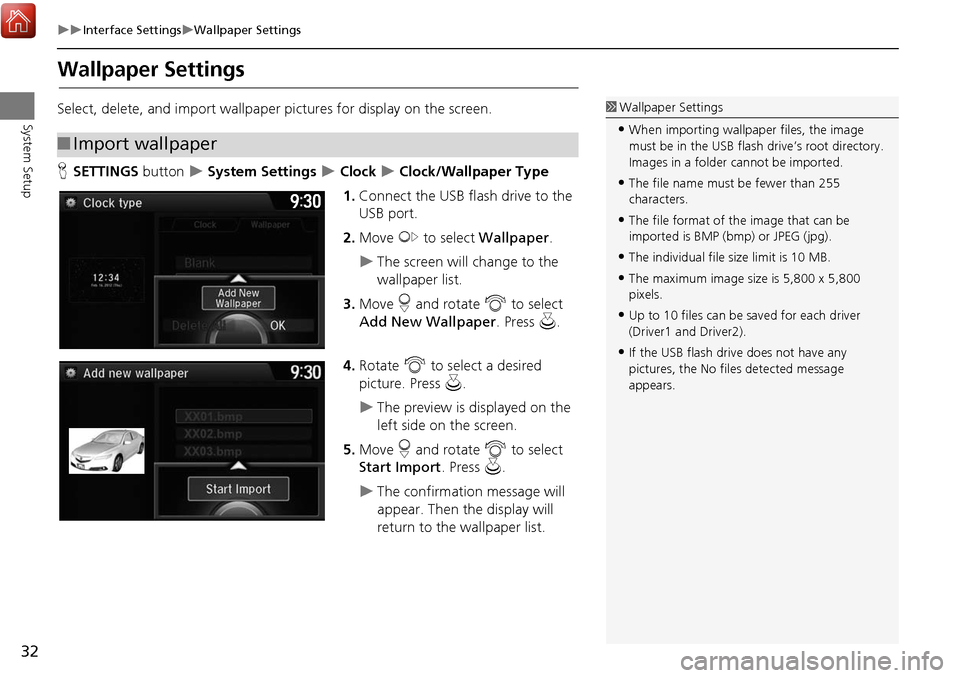

32
Interface SettingsWallpaper Settings
System Setup
Wallpaper Settings
Select, delete, and import wallpaper pictures for display on the screen.
H SETTINGS button
 System Settings  Clock  Clock/Wallpaper Type
1. Connect the USB flash drive to the
USB port.
2. Move y to select Wallpaper .
The screen will change to the
wallpaper list.
3. Move r and rotate i to select
Add New Wallpaper . Press u.
4. Rotate i to select a desired
picture. Press u.
The preview is displayed on the
left side on the screen.
5. Move r and rotate i to select
Start Import . Press u.
The confirmation message will
appear. Then the display will
return to the wallpaper list.
■Import wallpaper
1 Wallpaper Settings
•When importing wallpaper files, the image
must be in the USB flash drive’s root directory.
Images in a folder cannot be imported.
•The file name must be fewer than 255
characters.
•The file format of the image that can be
imported is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 10 MB.
•The maximum image size is 5,800 x 5,800
pixels.
•Up to 10 files can be saved for each driver
(Driver1 and Driver2).
•If the USB flash driv e does not have any
pictures, the No file s detected message
appears.

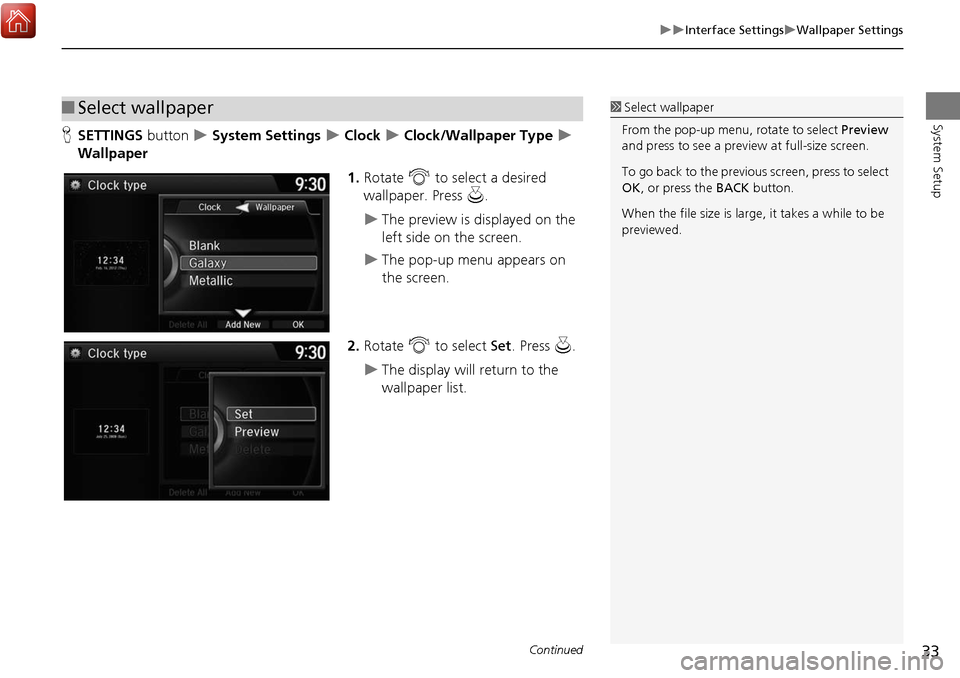

33
Interface SettingsWallpaper Settings
System Setup
HSETTINGS button  System Settings  Clock  Clock/Wallpaper Type 
Wallpaper
1.Rotate i to select a desired
wallpaper. Press u.
The preview is displayed on the
left side on the screen.
The pop-up menu appears on
the screen.
2. Rotate i to select Set. Press u.
The display will return to the
wallpaper list.
■Select wallpaper1 Select wallpaper
From the pop-up menu, rotate to select Preview
and press to see a preview at full-size screen.
To go back to the previous screen, press to select
OK , or press the BACK button.
When the file size is large, it takes a while to be
previewed.
Continued

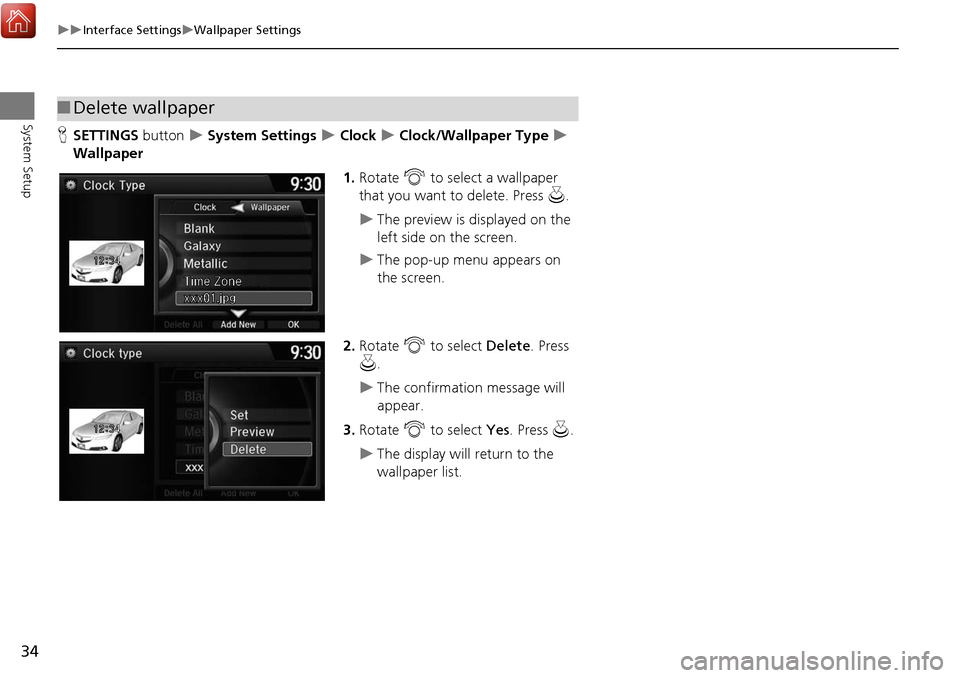

34
Interface SettingsWallpaper Settings
System Setup
HSETTINGS button  System Settings  Clock  Clock/Wallpaper Type 
Wallpaper
1.Rotate i to select a wallpaper
that you want to delete. Press u.
The preview is displayed on the
left side on the screen.
The pop-up menu appears on
the screen.
2. Rotate i to select Delete. Press
u .
The confirmation message will
appear.
3. Rotate i to select Yes. Press u.
The display will return to the
wallpaper list.
■Delete wallpaper

35

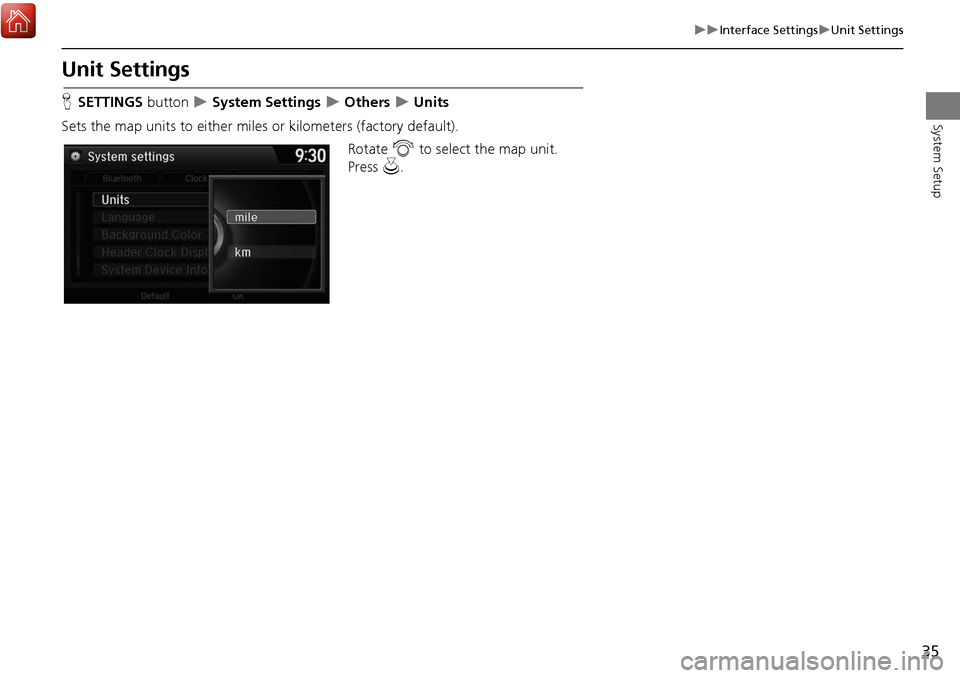

Interface SettingsUnit Settings
System Setup
Unit Settings
HSETTINGS button  System Settings  Others  Units
Sets the map units to either miles or kilometers (factory default).
Rotate i to select the map unit.
Press u.

36
Interface SettingsLanguage Settings
System Setup
Language Settings
HSETTINGS button  System Settings  Others  Language
Set the system language used on all scr eens. You can choose from three languages:
English , Français (French), Español (Spanish).
Rotate i to select the system
language. Press u.1Language Settings
Voice confirmation of ci ties and streets only
occurs when English is the system language.
When Français or Español is selected, some
messages continue to be displayed in English.

37

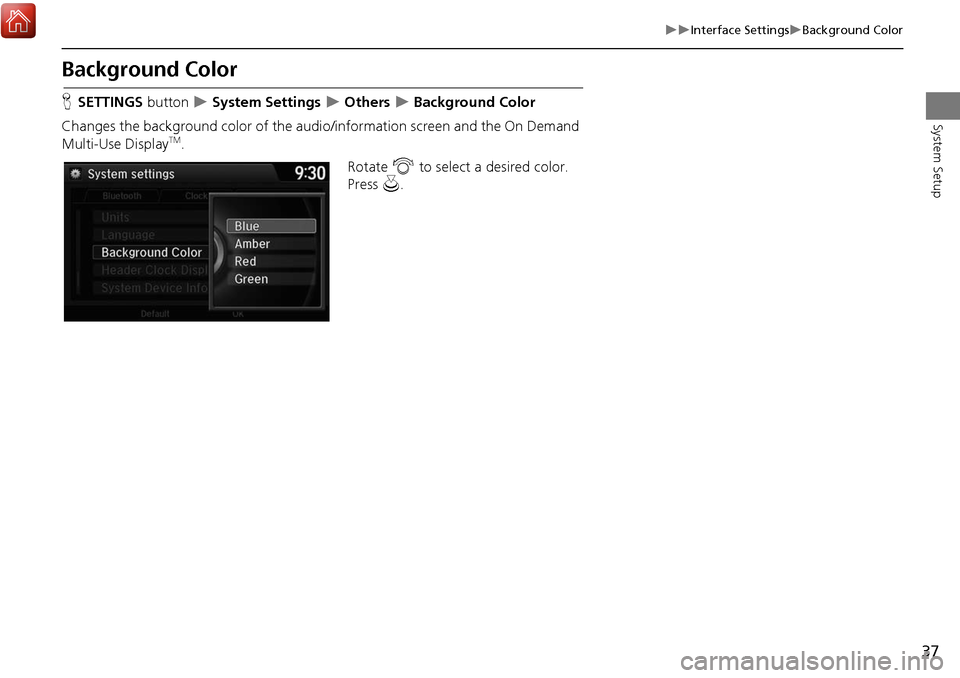

Interface SettingsBackground Color
System Setup
Background Color
HSETTINGS button  System Settings  Others  Background Color
Changes the background color of the audio/information screen and the On Demand
Multi-Use Display
TM. Rotate i to select a desired color.
Press u.

38

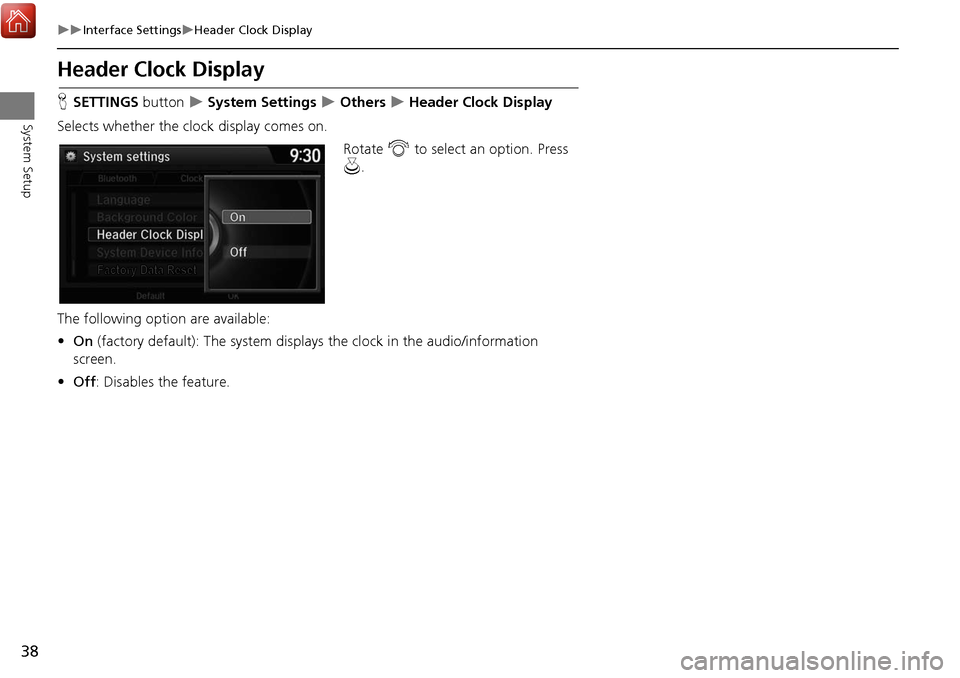

Interface SettingsHeader Clock Display
System Setup
Header Clock Display
HSETTINGS button  System Settings  Others  Header Clock Display
Selects whether the clock display comes on. Rotate i to select an option. Press
u .
The following option are available:
• On (factory default): The system displa ys the clock in the audio/information
screen.
• Off : Disables the feature.

39

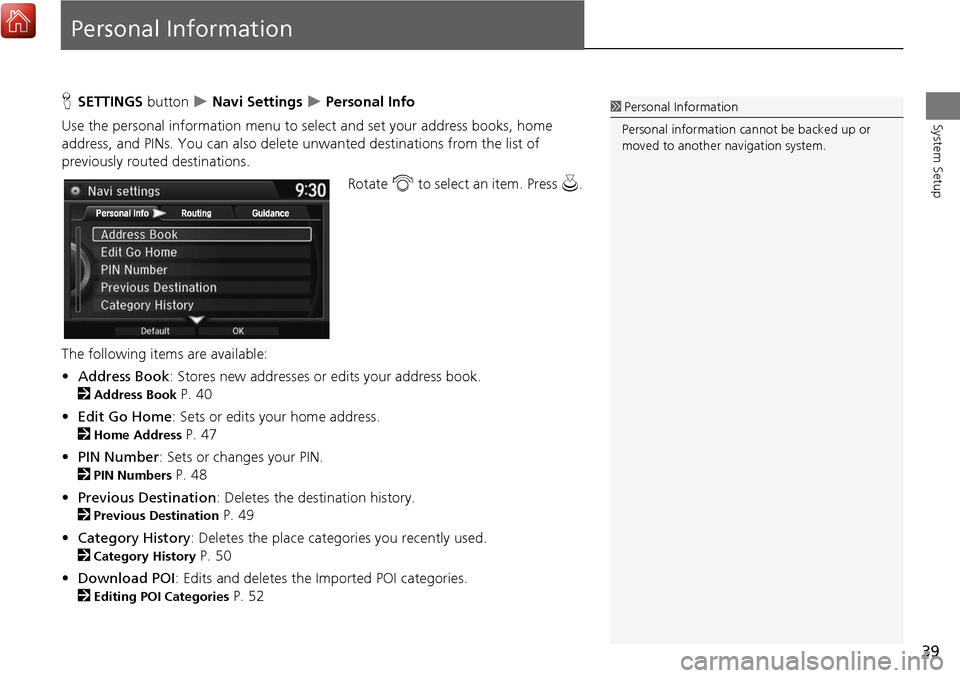

System Setup
Personal Information
HSETTINGS button  Navi Settings  Personal Info
Use the personal information menu to select and set your address books, home
address, and PINs. You can also delete unwanted destinations from the list of
previously routed destinations.
Rotate i to select an item. Press u.
The following items are available:
• Address Book : Stores new addresses or edits your address book.
2
Address Book P. 40
• Edit Go Home : Sets or edits your home address.
2
Home Address P. 47
• PIN Number : Sets or changes your PIN.
2
PIN Numbers P. 48
• Previous Destination : Deletes the destination history.
2
Previous Destination P. 49
• Category History : Deletes the place categories you recently used.
2
Category History P. 50
• Download POI: Edits and deletes the Imported POI categories.
2
Editing POI Categories P. 52
1Personal Information
Personal information cannot be backed up or
moved to another navigation system.
