ACURA NSX 2022 Owners Manual

89
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.•Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2 Keyless Access Remote Reminder P. 132
•Appears when the keyless access remote battery
becomes weak.• Replace the battery as soon as possible.
2 Replacing the Remote Battery P. 418
•Appears if the keyless access remote battery is too weak
to turn on the power system or the key is not within
operating range to turn on the power system.
A beeper sounds six times.• Bring the keyless access remote in front of the ENGINE
START/STOP button to be touched with.
2If the Keyless Access Remote Battery is Weak P. 448
•Appears three seconds after you bring the keyless
access remote in front of the ENGINE START/STOP
button when To Start, Hold Remote Near Start
Button appears. To Start Engine: Brake + Push
appears sequentially.• Unless you bring the keyless access remote in front of
the ENGINE START/STOP button, this message does
not appear.
2 If the Keyless Access Remote Battery is Weak P. 448
•Appears when you set the power mode to ACCESSORY
or ON.
2 Turning on the Power P. 319
•Appears if you press the ENGINE START/STOP button
while the vehicle is moving.• The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF.
22 ACURA NSX PMC-31T6N6500.book 89 ページ ２０２１年９月２８日　火曜日　午後４時７分

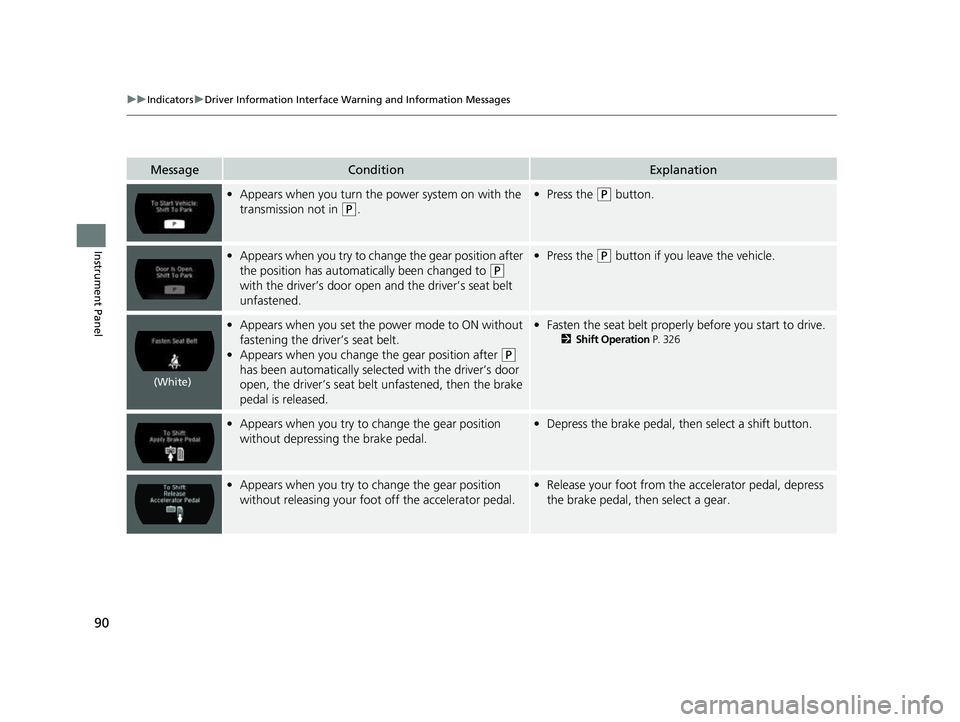

90
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you turn the power system on with the
transmission not in
(P.
• Press the (P button.
•Appears when you try to chan ge the gear position after
the position has automati cally been changed to
(P
with the driver’s door open and the driver’s seat belt
unfastened.
• Press the (P button if you leave the vehicle.
•Appears when you set the po wer mode to ON without
fastening the driver’s seat belt.
• Appears when you change the gear position after
(P
has been automatically select ed with the driver’s door
open, the driver’s seat belt unfastened, then the brake
pedal is released.
• Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 326
•Appears when you try to change the gear position
without depressing the brake pedal.• Depress the brake pedal, then select a shift button.
•Appears when you try to change the gear position
without releasing your foot off the accelerator pedal.• Release your foot from the accelerator pedal, depress
the brake pedal, then select a gear.
(White)
22 ACURA NSX PMC-31T6N6500.book 90 ページ ２０２１年９月２８日　火曜日　午後４時７分

91
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the park bu tton is pressed while the
vehicle is moving.
• Appears if you change the gear position to
(R while the
vehicle is moving forward, or to D or M while the
vehicle is reversing.
• Make sure that the vehicle comes to a stop before
operating the select button.
• Appears if you depress the accelerator pedal when the
transmission is in
(N.
•Release the accelerator pedal. After that, depress the
brake pedal and change the transmission position.
•Appears when the shift is repeatedly changed between
(P and any other position.
•Wait for a while then ch ange the shift position.
•Appears if there is a proble m with the electric system.
• Appears when you set the power mode to OFF while
driving.•Immediately stop in a safe place and set the parking
brake.
• Continue driving if the message goes off soon after.
• If there is a problem with the transmission system, the
transmission system indicator comes on.
2Transmission System Indicator P. 80
•Appears when you change to (N, and press the
ENGINE START/STOP button within five seconds.•The gear position remains in (N for 15 minutes, then
automatically switches to
(P.
2 If you want to keep the transmission in (N
position (car wash mode) P. 327
•Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.• Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 326
22 ACURA NSX PMC-31T6N6500.book 91 ページ ２０２１年９月２８日　火曜日　午後４時７分

92
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if any door or the trunk (hatch) is not
completely closed.
• Appears if any door or the trunk (hatch) is opened while
driving. The beeper sounds.•Goes off when all doors and the trunk (hatch) are
closed.
•Appears if there is a problem with the radiator system.•Drive slowly to prevent overheating and have your
vehicle checked by an author ized Acura NSX dealer as
soon as possible.
• Appears when there is a pr oblem with the headlights.•Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle checked by an authorized
Acura NSX dealer as soon as possible.
• Appears if there is a problem with the parking sensor
system.• Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by an
authorized Acura NSX dealer.
• Appears if the automatic brake hold is automatically
canceled while it is in operation.• Immediately depress the brake pedal.
Models with
parking sensor
system
22 ACURA NSX PMC-31T6N6500.book 92 ページ ２０２１年９月２８日　火曜日　午後４時７分

93
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 358
•Appears if there is a problem with the acoustic vehicle
alerting system.•Have your vehicle checked by an authorized Acura NSX
dealer.
•Appears when the automatic brake hold button is
pressed without wearing th e driver’s seat belt.•Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 358
•Appears when the automatic brake hold button is
pressed without depressing the brake pedal while the
automatic brake hold is in operation.•Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 358
•Appears when the parking brake is applied
automatically while it is in operation.2 Automatic Brake Hold P. 358
2 Parking Brake P. 355
•Appears after the 12-volt battery charging system
indicator comes on.•Your vehicle has less ability to accelerate and may be
harder to start on an incline.
• Contact an authorized Acura NSX dealer immediately.
22 ACURA NSX PMC-31T6N6500.book 93 ページ ２０２１年９月２８日　火曜日　午後４時７分

94
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the transmission temperature is too low
to operate (approx. -13°F [-25°C] or below).• You can start the engine an d use the climate control
system to warm up the interior, which will also warm
the transmission enough for you to drive the vehicle.
• The engine speed does not increase even if you fully
depress the accelerator pedal.
•Appears when the High Volt age battery temperature is
extremely low (-4°F [-20°C]).• Contact an authorized Acura NSX dealer immediately.
• To prevent the message to come on, store the vehicle in
the garage or drive in advance to warm up the High
Voltage battery.
• The minimum operation guarantee environmental
temperature is -4°F [-20°C].
•Appears when the twin motor unit fluid temperature is
extremely low.•Vehicle speed is limited to 81 mph (130 km/h) until twin
motor unit fluid warms up.
• Appears if the AWD system has a problem due to a
hybrid system or power distribution control failure.•Drives with the rear wheels only in this state.
Have your vehicle checked by an authorized Acura NSX
dealer.
•Appears when the engine is running and indicates that
the engine oil level is low.• Appears while driving - Immediately stop in a safe
place.
2 If the Check Engine Oil Level Warning Appears
P. 459
22 ACURA NSX PMC-31T6N6500.book 94 ページ ２０２１年９月２８日　火曜日　午後４時７分

95
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the engine is running and indicates that
there is a problem with the oil level sensor.• Have your vehicle checked by an authorized Acura NSX
dealer as soon as possible.
• Appears if the engine coolant temperature is
abnormally high.
2 Overheating P. 452
•Appears if there is a probl em with the fuel system.
Engine performance will be limited.• Immediately stop in a safe place and set the power
mode to VEHICLE OFF, then select the ON mode again.
Have your vehicle checked by an authorized Acura NSX
dealer if the message appears again.
• Appears if there is a tempor ary problem with the gear
shift mechanism and initia lization is necessary.•Depress the brake pedal and shift to (P.
•Appears when the transmission is undergoing
initialization.• Keep the brake pedal depressed.
•Appears when a tempor ary problem is fixed.•Initialization will be completed when the engine is
restarted.
22 ACURA NSX PMC-31T6N6500.book 95 ページ ２０２１年９月２８日　火曜日　午後４時７分

96
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when a problem with the transmission
prevents a gear from changing to
(R.
•Have your vehicle checked by an authorized Acura NSX
dealer.
• Appears when the High Voltage battery is extremely
low and cannot start the power system.•Have your vehicle checked by an authorized Acura NSX
dealer.
• Appears when the vehicle cannot be driven by the
engine.•Stop your vehicle in a sa fe place and contact an
authorized Acur a NSX dealer.
•Appears when the engine speed exceeds reduced REV
LIMIT while engine temperature is low.•Continue driving at a low engine speed until the engine
temperature becomes warm.
• Appears when braking ability is reduced.•Slow down and drive carefully. Have your vehicle
checked by an authorized Acura NSX dealer.
• Appears if you are driving at an extremely high speed
and one or more tires are underinflated.•Decelerate and drive your vehicle until the message
disappears.
22 ACURA NSX PMC-31T6N6500.book 96 ページ ２０２１年９月２８日　火曜日　午後４時７分

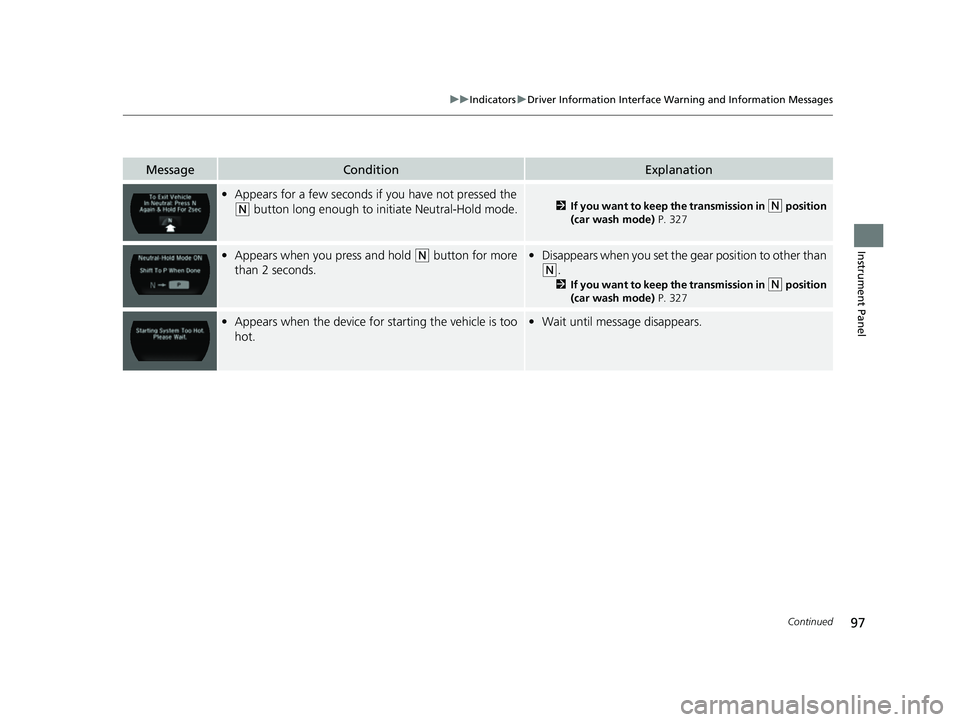

97
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears for a few seconds if you have not pressed the
(N button long enough to initiate Neutral-Hold mode.2 If you want to keep the transmission in (N position
(car wash mode) P. 327
•Appears when you press and hold (N button for more
than 2 seconds.• Disappears when you set the gear position to other than
(N.
2 If you want to keep the transmission in (N position
(car wash mode) P. 327
•Appears when the device for starting the vehicle is too
hot.• Wait until message disappears.
22 ACURA NSX PMC-31T6N6500.book 97 ページ ２０２１年９月２８日　火曜日　午後４時７分

98
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when launch control cannot be used due to
the condition of your vehicle.
2 Launch Control P. 339
•Appears if you shift the gear or do anything else after
Launch Mode is ready.
2 Launch Control P. 339
•Appears when Launch Mode is ready.
2 Launch Control P. 339
•Appears when the temperature of the transmission is
not in the operable range for launch control.
2 Launch Control P. 339
•Appears if the Integrated Dynamics System mode
cannot be changed due to ce rtain situations, such as a
system error or adverse driving conditions.
2 Integrated Dynamics System P. 334
22 ACURA NSX PMC-31T6N6500.book 98 ページ ２０２１年９月２８日　火曜日　午後４時７分
