ACURA NSX 2022 Repair Manual

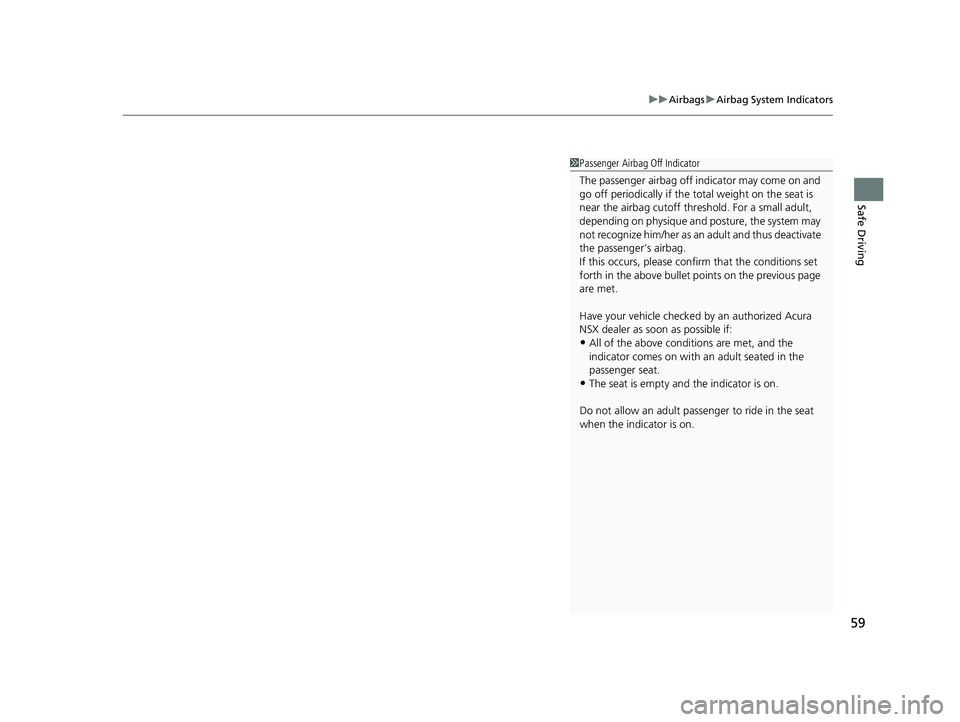

59
uuAirbags uAirbag System Indicators
Safe Driving
1Passenger Airbag Off Indicator
The passenger airbag off indicator may come on and
go off periodically if the tota l weight on the seat is
near the airbag cutoff threshold. For a small adult,
depending on physique and posture, the system may
not recognize him/her as an adult and thus deactivate
the passenger’s airbag.
If this occurs, please confirm that the conditions set
forth in the above bullet points on the previous page
are met.
Have your vehicle checked by an authorized Acura
NSX dealer as soon as possible if:
•All of the above conditions are met, and the
indicator comes on with an adult seated in the
passenger seat.
•The seat is empty and the indicator is on.
Do not allow an adult passe nger to ride in the seat
when the indicator is on.
22 ACURA NSX PMC-31T6N6500.book 59 ページ ２０２１年９月２８日　火曜日　午後４時７分

60
uuAirbags uAirbag Care
Safe Driving
Airbag Care
You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by an authorized Acura NSX dealer in the following situations:
■When the airbag s have deployed
If an airbag has inflated, th e control unit and other related parts must be replaced.
Similarly, once an automatic seat belt te nsioner has been activated, it must be
replaced.
■When the vehicl e has been in a moderate-to-severe collision
Even if the airbags did not inflate, have an authorized Acura NSX dealer inspect the
following: the weight sensors in the passeng er’s seat, seat belt tensioners, and each
seat belt that was worn during the crash.
■Do not remove or modify a seat without consulting an authorized Acura
NSX dealer
This would likely disable or affect the proper operation of the weight sensors in the
passenger’s seat. If it is necessary to re move or modify a seat to accommodate a
person with disabilities, contact an authoriz ed Acura NSX dealer, or for U.S. vehicles,
Acura Client Relations at 1-844-682-2872 and for Canadian vehicles, Acura Client
Service at 1-888-9-ACURA-9 or 1- 844-9-MYNSX-9 (NSX-specific).
1Airbag Care
We recommend against the use of salvaged airbag
system components, includi ng the airbag, tensioners,
sensors, and control unit.
22 ACURA NSX PMC-31T6N6500.book 60 ページ ２０２１年９月２８日　火曜日　午後４時７分

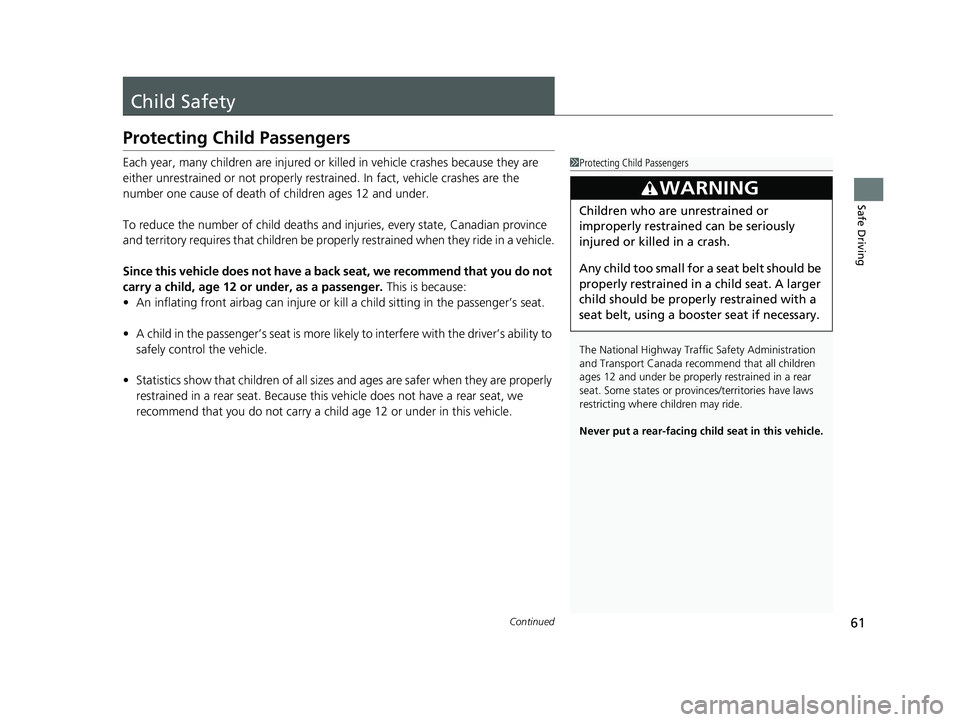

61Continued
Safe Driving
Child Safety
Protecting Child Passengers
Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly res trained. In fact, vehicle crashes are the
number one cause of death of children ages 12 and under.
To reduce the number of child deaths and injuries, every state, Canadian province
and territory requires that children be properl y restrained when they ride in a vehicle.
Since this vehicle does not have a back seat, we recommend that you do not
carry a child, age 12 or under, as a passenger. This is because:
• An inflating front airbag can injure or kill a child sitting in the passenger’s seat.
• A child in the passenger’s seat is more likel y to interfere with the driver’s ability to
safely control the vehicle.
• Statistics show that children of all sizes and ages are safer when they are properly
restrained in a rear seat. Because this vehicle does not have a rear seat, we
recommend that you do not carry a child age 12 or under in this vehicle.1 Protecting Child Passengers
The National Highway Traffic Safety Administration
and Transport Canada reco mmend that all children
ages 12 and under be properl y restrained in a rear
seat. Some states or provin ces/territories have laws
restricting where ch ildren may ride.
Never put a rear-facing child seat in this vehicle.
3WARNING
Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.
Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be properly restrained with a
seat belt, using a booster seat if necessary.
22 ACURA NSX PMC-31T6N6500.book 61 ページ ２０２１年９月２８日　火曜日　午後４時７分

uuChild Safety uProtecting Child Passengers
62
Safe Driving
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child an d cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly se cured to the vehicle using the lap belt
portion of the lap/shoulder belt.
• Do not allow children to operate the doors, windows, or seat adjustments.
• Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.1 Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the pa ssenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels. 2 Safety Labels P. 71
3WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt.
22 ACURA NSX PMC-31T6N6500.book 62 ページ ２０２１年９月２８日　火曜日　午後４時７分

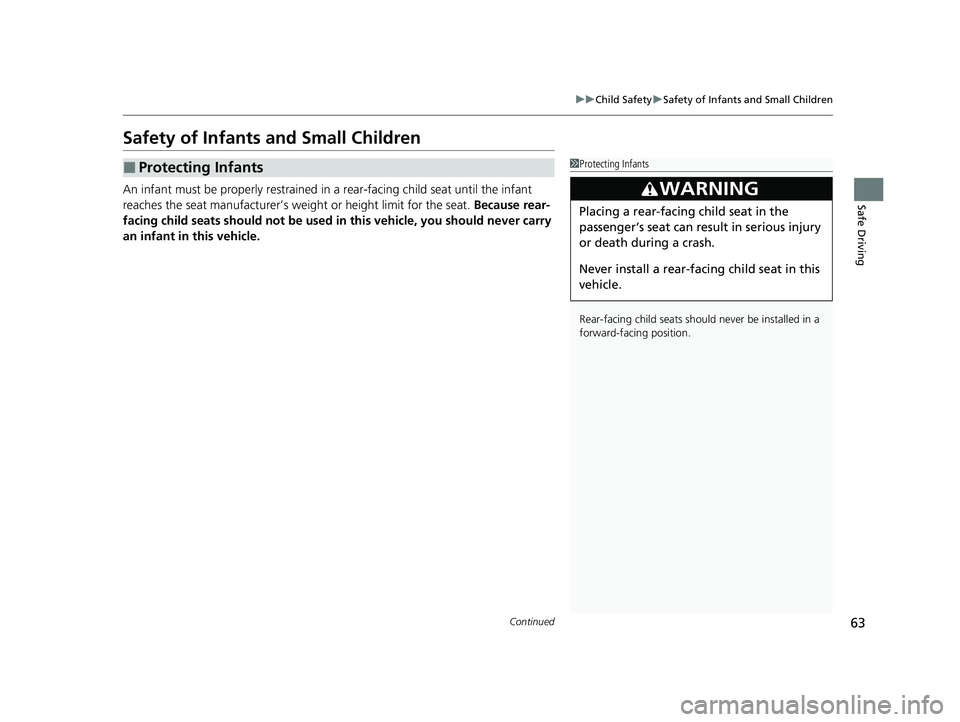

63
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
Safety of Infants and Small Children
An infant must be properly restrained in a rear-facing child seat until the infant
reaches the seat manufacturer’s wei ght or height limit for the seat. Because rear-
facing child seats should not be used in this vehicle, you should never carry
an infant in this vehicle.
■Protecting Infants1 Protecting Infants
Rear-facing child seats should never be installed in a
forward-facing position.
3WARNING
Placing a rear-facing child seat in the
passenger’s seat can result in serious injury
or death during a crash.
Never install a rear-facin g child seat in this
vehicle.
22 ACURA NSX PMC-31T6N6500.book 63 ページ ２０２１年９月２８日　火曜日　午後４時７分

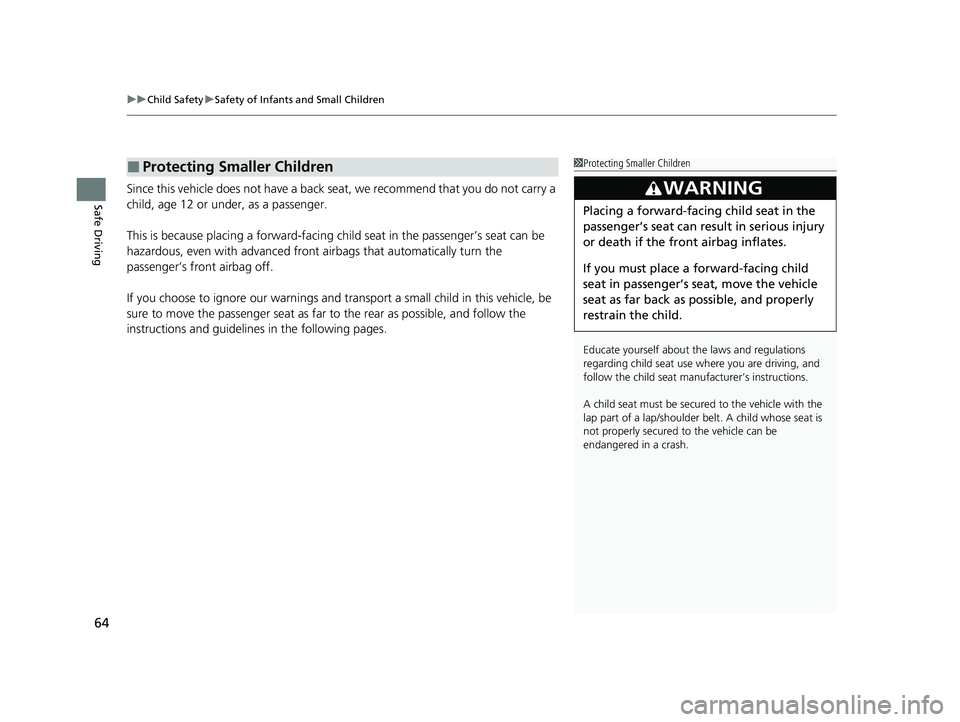

uuChild Safety uSafety of Infants and Small Children
64
Safe DrivingSince this vehicle does not have a back s eat, we recommend that you do not carry a
child, age 12 or under, as a passenger.
This is because placing a fo rward-facing child seat in the passenger’s seat can be
hazardous, even with advanced front airbags that automatically turn the
passenger’s front airbag off.
If you choose to ignore our warnings and transport a small child in this vehicle, be
sure to move the passenger seat as far to the rear as possible, and follow the
instructions and guidelines in the following pages.
■Protecting Smaller Children1 Protecting Smaller Children
Educate yourself about th e laws and regulations
regarding child seat use wh ere you are driving, and
follow the child seat manufacturer’s instructions.
A child seat must be secure d to the vehicle with the
lap part of a lap/shoulder be lt. A child whose seat is
not properly secured to the vehicle can be
endangered in a crash.
3WARNING
Placing a forward-facing child seat in the
passenger’s seat can result in serious injury
or death if the fron t airbag inflates.
If you must place a forward-facing child
seat in passenger’s seat, move the vehicle
seat as far back as possible, and properly
restrain the child.
22 ACURA NSX PMC-31T6N6500.book 64 ページ ２０２１年９月２８日　火曜日　午後４時７分

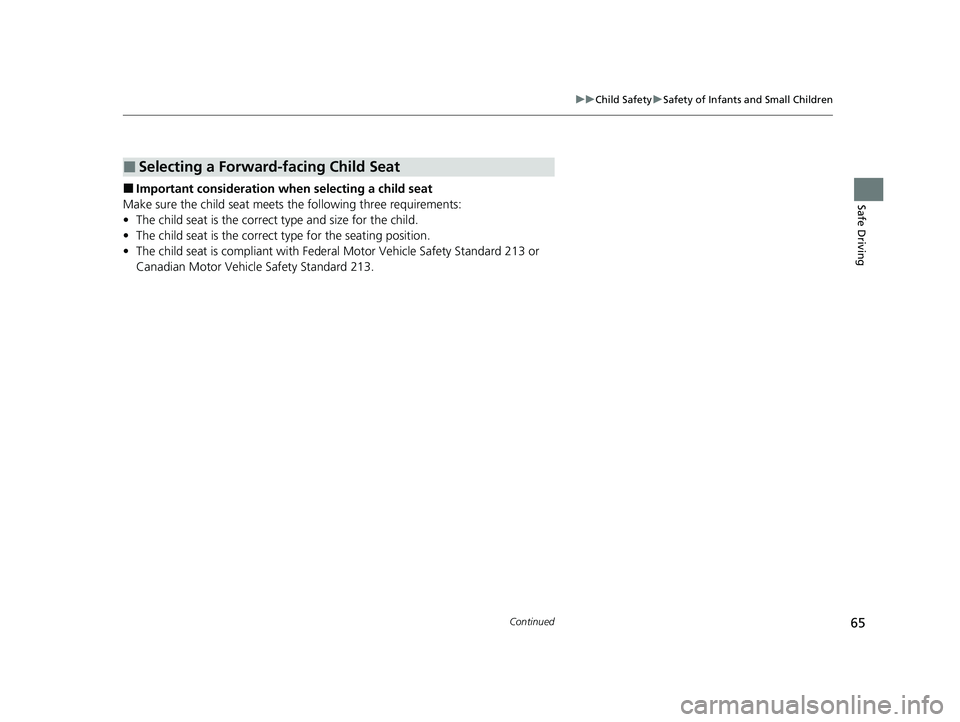

65
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving■Important consideration wh en selecting a child seat
Make sure the child seat meets the following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Forward-facing Child Seat
22 ACURA NSX PMC-31T6N6500.book 65 ページ ２０２１年９月２８日　火曜日　午後４時７分

uuChild Safety uSafety of Infants and Small Children
66
Safe Driving1. Move the passenger seat to the rearmost
position.
2. Place the child seat on the passenger seat.
3. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
4. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
5. Let the seat belt completely wind up into
the retractor, then try to pull it out to make
sure the retractor is locked.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Pull the seat belt all the way
out, and repeat steps 3 – 5.
6. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, plac e your weight on
the child seat and push it into the vehicle
seat.
■Installing a Child Seat1 Installing a Child Seat
A child seat must be secure d to the vehicle with the
lap part of a la p/shoulder belt.
For your child’s safety, when using a child seat
installed using the vehicle’ s seat belt system, check
that the seat is properly secured to the vehicle.
22 ACURA NSX PMC-31T6N6500.book 66 ページ ２０２１年９月２８日　火曜日　午後４時７分

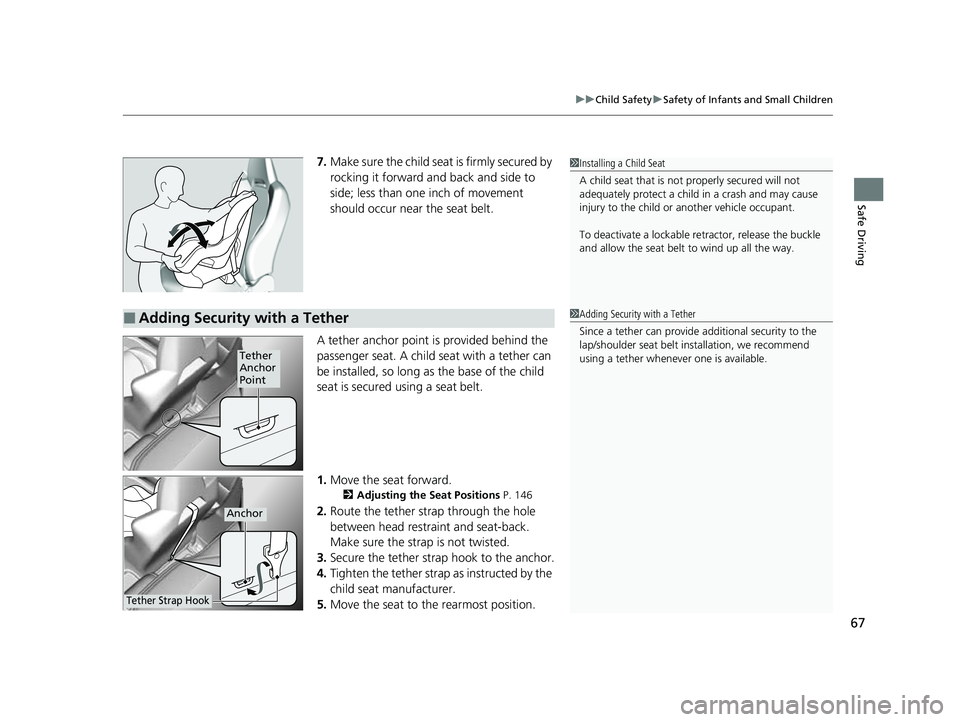

67
uuChild Safety uSafety of Infants and Small Children
Safe Driving
7. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.
A tether anchor point is provided behind the
passenger seat. A child seat with a tether can
be installed, so long as the base of the child
seat is secured using a seat belt.
1. Move the seat forward.
2 Adjusting the Seat Positions P. 146
2.Route the tether strap through the hole
between head restraint and seat-back.
Make sure the strap is not twisted.
3. Secure the tether strap hook to the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Move the seat to the rearmost position.
1Installing a Child Seat
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or another vehicle occupant.
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
■Adding Security with a Tether1 Adding Security with a Tether
Since a tether can provide additional security to the
lap/shoulder seat belt in stallation, we recommend
using a tether whenever one is available.
Tether
Anchor
Point
Tether Strap Hook
Anchor
22 ACURA NSX PMC-31T6N6500.book 67 ページ ２０２１年９月２８日　火曜日　午後４時７分

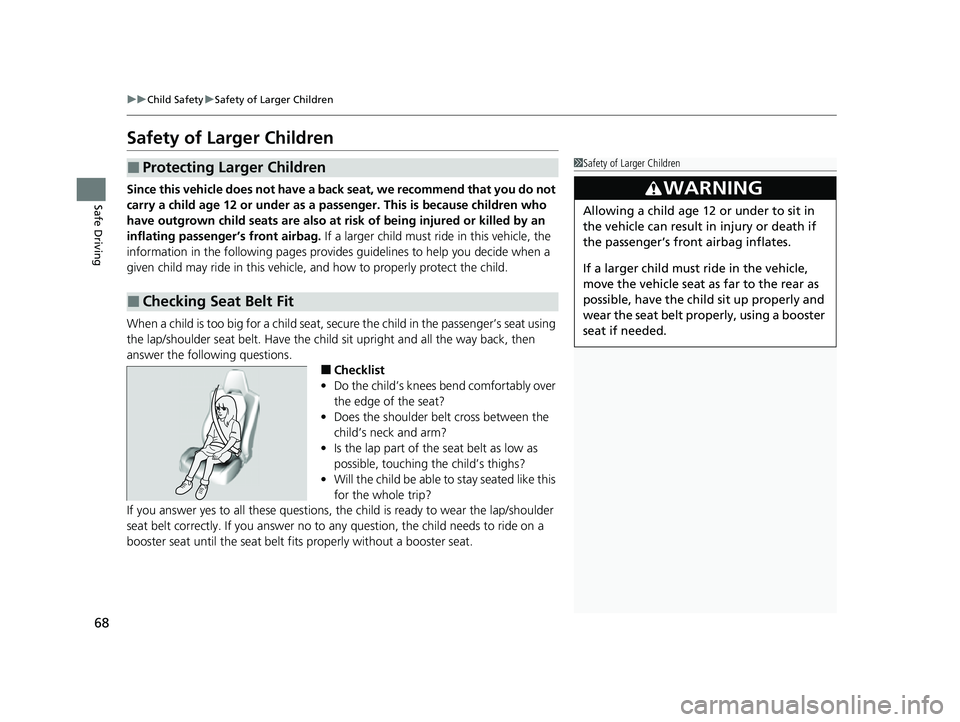

68
uuChild Safety uSafety of Larger Children
Safe Driving
Safety of Larger Children
Since this vehicle does not have a back seat, we recommend that you do not
carry a child age 12 or under as a passenger. This is because children who
have outgrown child seats are also at ri sk of being injured or killed by an
inflating passenge r’s front airbag. If a larger child must ride in this vehicle, the
information in the following pages provides guidelines to help you decide when a
given child may ride in this vehicle, and how to properly protect the child.
When a child is too big for a child seat, secure the child in the passenger’s seat using
the lap/shoulder seat belt. Have the chil d sit upright and all the way back, then
answer the following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all thes e questions, the child is read y to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
the vehicle can result in injury or death if
the passenger’s fron t airbag inflates.
If a larger child must ride in the vehicle,
move the vehicle seat as far to the rear as
possible, have the child sit up properly and
wear the seat belt properly, using a booster
seat if needed.
22 ACURA NSX PMC-31T6N6500.book 68 ページ ２０２１年９月２８日　火曜日　午後４時７分
