uuAirbags uFront Airbags (SRS)
Safe DrivingFront airbags are designed to inflate duri ng moderate-to-severe frontal collisions.
When the vehicle decelerates suddenly, the sensors send information to the control
unit which signals one or both front airbags to inflate.
A frontal collision can be either head-on or angled between two vehicles, or when a
vehicle crashes into a stationary object, such as a concrete wall.
While your seat belt restrains your torso, the
front airbag provides supplemental protection
for your head and chest.
The front airbags deflate immediately so that
they won’t interfere with the driver’s visibility
or the ability to steer or operate other
controls.
The total time for inflation and deflation is so fast that most occupants are not
aware that the airbags deployed until th ey see them lying in front of them.
■Operation
■How the Front Airbags Work1How the Front Airbags Work
Although the driver’s a nd passenger’s airbags
normally inflate within a spli t second of each other, it
is possible for only one airbag to deploy. This can
happen if the severity of a collision is at the margin,
or threshold that determines whether or not the
airbags will deploy. In such cases, the seat belt will
provide sufficient protec tion, and the supplemental
protection offered by the airbag would be minimal.
22 ACURA NSX PMC-31T6N6500.book 49 ページ 2021年9月28日 火曜日 午後4時7分
Page 52 of 492

50
uuAirbags uFront Airbags (SRS)
Safe Driving
■When front airbags should not deploy
Minor frontal crashes: Front airbags were designed to supplement seat belts and
help save lives, not to prevent minor scrape s, or even broken bones that might occur
during a less than moderate-to-severe frontal crash.
Side impacts: Front airbags can provide protection when a sudden deceleration
causes a driver or passenger to move towa rd the front of the vehicle. Side airbags
and side curtain airbags have been specifically designed to help reduce the severity
of injuries that can occur during a moderate-to-severe side impact which can cause
the driver or passenger to move toward the side of the vehicle.
Rear impacts: Head restraints and seat belts are your best protection during a rear
impact. Front airbags cannot provide any si gnificant protection and are not designed
to deploy in such collisions.
Rollovers: In a rollover, your best form of protection is a seat belt or, if your vehicle
is equipped with a rollover sensor, both a se at belt and a side curtain airbag. Front
airbags, however, are not designed to deploy in a rollover as they would provide
little if any protection.
■When front airbags deploy with little or no visible damage
Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might caus e one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in th e vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent.
■When front airbags may not deploy, even though exterior damage
appears severe
Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.
22 ACURA NSX PMC-31T6N6500.book 50 ページ 2021年9月28日 火曜日 午後4時7分
Page 53 of 492

51
uuAirbags uFront Airbags (SRS)
Safe DrivingThe passenger’s airbag have advanced f eatures to help reduce the likelihood of
airbag related injuries to a smaller occupant. The passenger’s advanced airbag system has
weight sensors. The sensors are used for
occupant classification to activate or
deactivate the passenger’s airbag.
For adult size occupant s, the system will
automatically activate the passenger’s airbag.
If a small adult sits in the passenger seat and
the system does not recognize him/her as an
adult, see
2 Passenger Airbag Off Indicator P. 58
We advise against allowing a child age 12 or under to ride in the passenger’s seat.
However, if you do allow a small child or in fant to ride in the passenger’s seat, the
system is designed to automatically deacti vate the passenger’s airbag. Do not let a
small child or infant ride in the passenger’ s seat if the airbag does not automatically
deactivate.
■Advanced Airbags1 Advanced Airbags
If there is a problem with the passenger’s seat weight
sensors, the SRS indicator will come on, and in the
event of a crash, the airbag will deploy (regardless of
the passenger’s occupant cl assification) with a force
corresponding to the se verity of the impact.
2 Supplemental Restraint System (SRS)
Indicator P. 57
For the advanced front airbags to work properly,
confirm that:
•The occupant is sitting in an upright position,
wearing the seat belt prope rly and the seat-back is
not excessively reclined.
•The occupant is not leaning against the door or
center console.
•The occupant’s feet are plac ed on the floor in front
of them.
•There are no objects hanging from the passenger’s
seat.
•The steering wheel and passenger’s side dashboard
are not obstructed by any object.
•No liquid has been spille d on or under the seat.
•There are no objects placed under or beside the
passenger’s seat. Improperly positioned objects can
interfere with the advanced airbag sensors.
2 Passenger Airbag Off Indicator P. 58
Passenger’s
Seat Weight
Sensors
22 ACURA NSX PMC-31T6N6500.book 51 ページ 2021年9月28日 火曜日 午後4時7分
Page 54 of 492

52
uuAirbags uDriver’s Knee Airbag
Safe Driving

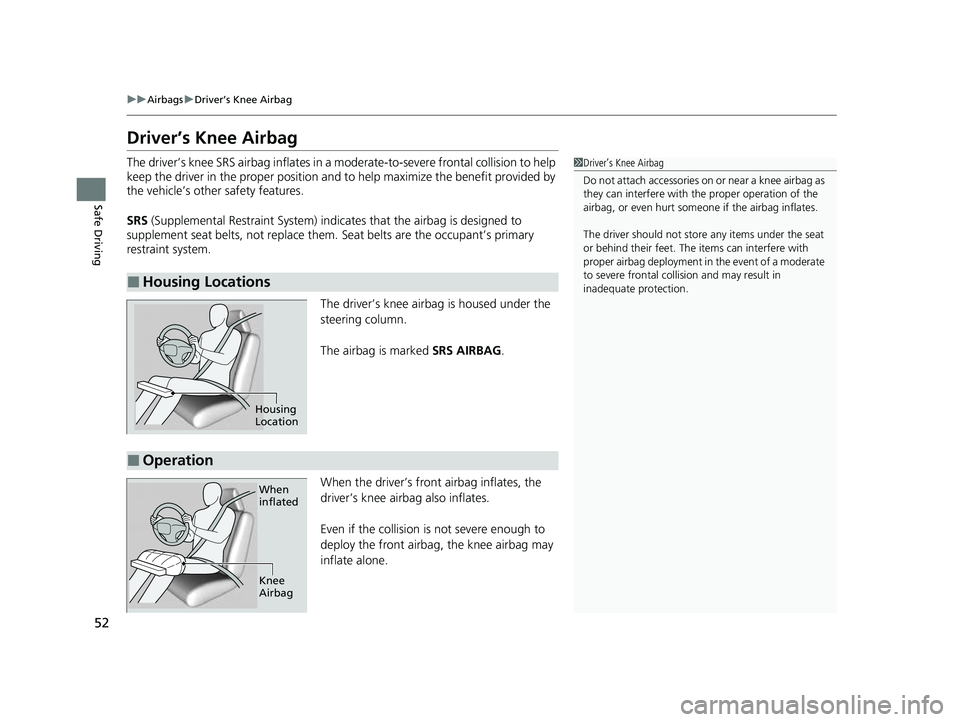

Driver’s Knee Airbag
The driver’s knee SRS airbag inflates in a moderate-to-severe fronta l collision to help
keep the driver in the proper position and to help maximize the benefit provided by
the vehicle’s other safety features.
SRS (Supplemental Restraint System) indica tes that the airbag is designed to
supplement seat belts, not replace them. Seat belts are the occupant’s primary
restraint system.
The driver’s knee airbag is housed under the
steering column.
The airbag is marked SRS AIRBAG.
When the driver’s front airbag inflates, the
driver’s knee airbag also inflates.
Even if the collision is not severe enough to
deploy the front airbag, the knee airbag may
inflate alone.
■Housing Locations
1 Driver’s Knee Airbag
Do not attach accessories on or near a knee airbag as
they can interfere with the proper operation of the
airbag, or even hurt someone if the airbag inflates.
The driver should not stor e any items under the seat
or behind their feet. The items can interfere with
proper airbag deployment in the event of a moderate
to severe frontal collision and may result in
inadequate protection.
Housing
Location
■Operation
When
inflated
Knee
Airbag
22 ACURA NSX PMC-31T6N6500.book 52 ページ 2021年9月28日 火曜日 午後4時7分
Page 55 of 492

53
uuAirbags uDriver’s Knee Airbag
Safe Driving

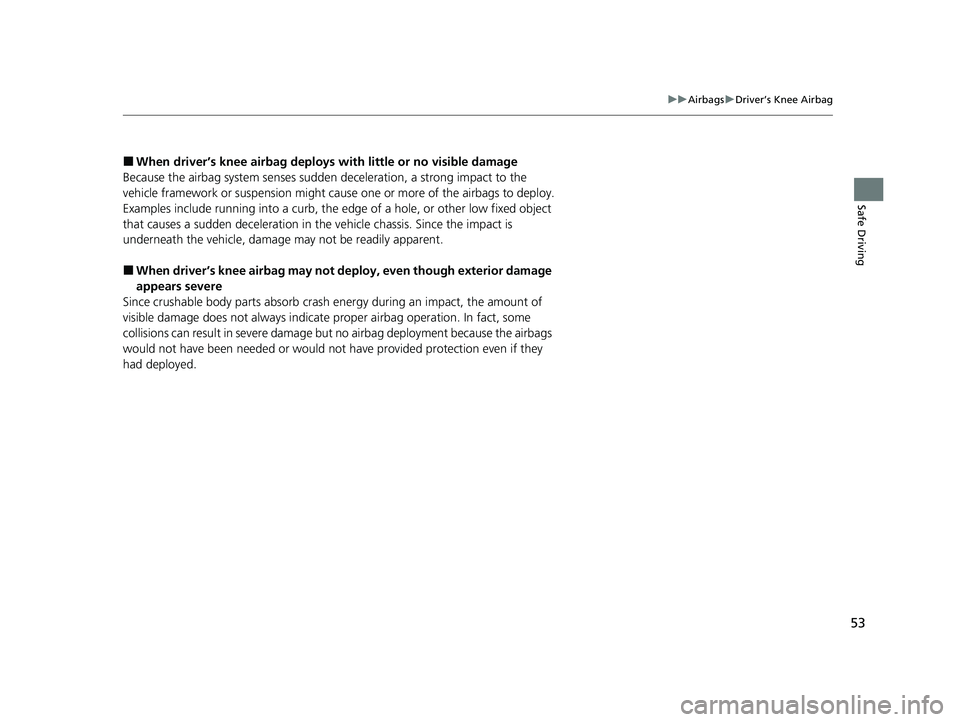

■When driver’s knee airbag deploys with little or no visible damage
Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might cause one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in th e vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent.
■When driver’s knee airbag may not deploy, even though exterior damage
appears severe
Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.
22 ACURA NSX PMC-31T6N6500.book 53 ページ 2021年9月28日 火曜日 午後4時7分
Page 56 of 492

54
uuAirbags uSide Airbags
Safe Driving
Side Airbags
The side airbags help protect the torso and pelvis of the driver or a passenger during
a moderate-to-severe side impact.
The side airbags are housed in the outside
edge of the driver’s and passenger’s seat-
backs.
Both are marked SIDE AIRBAG.
When the sensors detect a moderate-to-
severe side impact, the control unit signals the
side airbag on the impact side to immediately
inflate.
■Housing Locations
1 Side Airbags
Make sure you and your passenger always sit upright.
Leaning into the path of a side airbag can prevent the
airbag from deploying pr operly and increases your
risk of serious injury.
Do not attach accessories on or near the side airbags.
They can interfere with the proper operation of the
airbags, or hurt someone if an airbag inflates.
Do not cover or replace th e seat-back covers without
consulting an authorized Acura NSX dealer.
Improperly replacing or covering seat-back covers can
prevent your side airbag s from properly deploying
during a side impact.
Housing
Location
■Operation
When
inflated
Side
Airbag
22 ACURA NSX PMC-31T6N6500.book 54 ページ 2021年9月28日 火曜日 午後4時7分
Page 57 of 492

55
uuAirbags uSide Airbags
Safe Driving
■When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle’s framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag.
■When a side airbag may not deploy, even though visible damage appears
severe
It is possible for a side airbag not to deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was toward the
far front or rear of the vehicle, or when the vehicle’s crushable body parts absorbed
most of the crash energy. In either case , the side airbag would not have been
needed nor provided protection even if it had deployed.
22 ACURA NSX PMC-31T6N6500.book 55 ページ 2021年9月28日 火曜日 午後4時7分
Page 58 of 492

56
uuAirbags uSide Curtain Airbags
Safe Driving
Side Curtain Airbags
The side curtain airbags help protect the heads of the driver and any passengers
during a moderate-to-severe side impact. The side curtain airbags equipped in this
vehicle are also designed to help reduce the likelihood of partial and complete
ejection of vehicle occupants through side windows in crashes, particularly rollover
crashes.
The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.
The side curtain airbag is designed to deploy
in a rollover or a moderate-to-severe side
impact.
■Housing Locations
1Side Curtain Airbags
If the SRS control unit sens es that your vehicle is
about to rollover, it imme diately deploys both side
curtain airbags and activates both seat belt
tensioners.
If the impact is on the passenger’s side, the
passenger’s side curtain airbag deploys even if there
is no occupant on that side of the vehicle.
To get the best protecti on from the side curtain
airbags, occupants should wear their seat belts
properly and sit upr ight and well back in their seats.
Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.
Side Curtain Airbag Storage
■Operation
Deployed Side Curtain Airbag
22 ACURA NSX PMC-31T6N6500.book 56 ページ 2021年9月28日 火曜日 午後4時7分
Page 59 of 492

Continued57
uuAirbags uAirbag System Indicators
Safe Driving
■When side curtain airbags deploy in a frontal collision
One or both side curtain ai rbags may also inflate in a moderate-to-severe angled
frontal collision.
Airbag System Indicators
If a problem occurs in the airbag system , the SRS indicator will come on and a
message appears on the driver information interface.
■When the power mode is set to ON
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time , or does not come on at all, have the
system checked by an authorized Acura NSX dealer as soon as possible. If you don’t,
your airbags and seat belt tensioners may not work properly when they are needed.
■Supplemental Restraint System (SRS) Indicator
1Supplemental Restraint Sy stem (SRS) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by an
authorized Acura NSX dealer as soon as
possible if the SRS indicator alerts you to a
possible problem.
22 ACURA NSX PMC-31T6N6500.book 57 ページ 2021年9月28日 火曜日 午後4時7分
Page 60 of 492

uuAirbags uAirbag System Indicators
58
Safe Driving■When the passenger airbag off
indicator comes on
The indicator comes on to alert you that the
passenger’s airbag ha s been turned off.
This occurs when the weight sensors
determine that a small child or infant is on the
passenger seat.
Your vehicle is not recommended for child passengers. Never put a rear-facing child
seat in this vehicle.
If you decided to disregard our recommendations and transport a small child, they
should be properly restrained.
2 Child Safety P. 61
Objects placed on the seat ca n also cause the indicator to come on. If the indicator
is on in the event of a crash, the passenger’s airbag will not deploy.
If the passenger’s seat is empty, the pa ssenger’s airbag will not deploy and the
indicator will not come on.
■Passenger Airbag Off Indicator1 Passenger Airbag Off Indicator
To ensure the passenger is detected properly, confirm
that:
•The occupant is sitting in an upright position,
wearing the seat belt prope rly and the seat-back is
not excessively reclined.
•The occupant is not leaning against the door or
center console.
•The occupant’s feet are plac ed on the floor in front
of them.
•There are no objects hanging from the passenger’s
seat.
•No liquid has been spille d on or under the seat.
•There are no objects placed under or beside the
passenger’s seat. Improperly positioned objects can
interfere with the advanced airbag sensors.
U.S.Canada
22 ACURA NSX PMC-31T6N6500.book 58 ページ 2021年9月28日 火曜日 午後4時7分
