display Acura RL 2009 Owner's Manual

The set speed can be decreased
using the SET/DECEL button or the
brake pedal.
To decrease the set speed with the
SET/DECEL button, do this:
Press and hold the SET/DECEL
button. Release the button when you
reach the speed you want.
To slow down in small amounts, tap
the SET/DECEL button repeatedly.Each time you do this, your vehicle
slows down about 1 mph (1 km/h).
When the system detects a vehicle
ahead of you, a beeper sounds once
and a solid-line vehicle icon appears
on the multi-information display.
The set cruising speed will be shown
on the multi-information display.
On a steep downhill, the vehicle
speed may exceed the set cruising
speed.
To decrease the set speed with the
brake pedal, do this:
Tap the brake pedal. When the
vehicle slows down to the speed you
want, press the SET/DECEL button.
The set speed will be shown on the
multi-inf ormation display. If you use
the brake pedal to decrease speed,
andthenpresstheRES/ACCEL
button, your vehicle will return to the
previously set speed.
CONT INUED
Decreasing the Set Speed Detecting a Vehicle A head of You
A daptive Cruise Control (A CC)
Features
327
SET/DECEL BUTTON
U.S.
CANADA
2009 RL

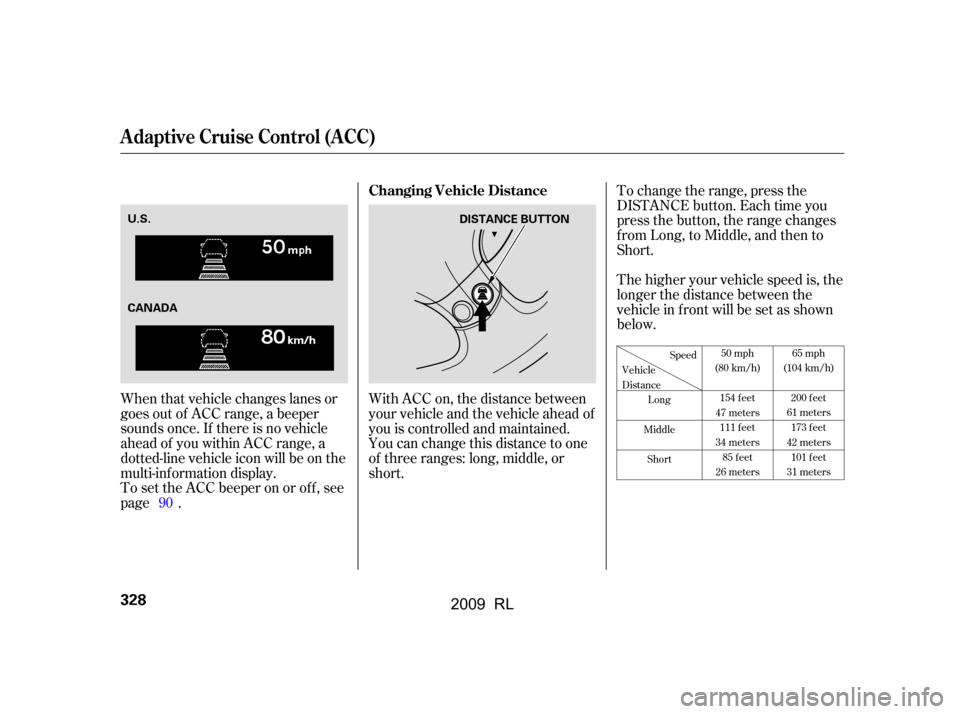

With ACC on, the distance between
your vehicle and the vehicle ahead of
you is controlled and maintained.
You can change this distance to one
of three ranges: long, middle, or
short.To change the range, press the
DISTANCE button. Each time you
press the button, the range changes
f rom Long, to Middle, and then to
Short.
The higher your vehicle speed is, the
longer the distance between the
vehicle in f ront will be set as shown
below.
When that vehicle changes lanes or
goes out of ACC range, a beeper
sounds once. If there is no vehicle
ahead of you within ACC range, a
dotted-line vehicle icon will be on the
multi-inf ormation display.
To set the ACC beeper on or of f , see
page . 90
50 mph
(80 km/h)
154 feet
47 meters 111 feet
34 meters 85 feet
26 meters 65 mph
(104 km/h)
200 feet
61 meters 173 feet
42 meters 101 feet
31 meters
Speed
Vehicle
Distance Long
Middle Short
Changing Vehicle Distance
A daptive Cruise Control (A CC)
328
DISTANCE BUTTON
U.S.
CANADA
2009 RL

Press the ACC button. The ACC
indicator in the instrument panel
goes off.
Tap the brake pedal.
Push the CANCEL button on the
steering wheel.If you cancel ACC by pressing the
ACC button, the previously set
cruising speed is erased f rom
memory.
The distance you select is also
shown on the multi-inf ormation
display.
ACC is canceled whenever you do
any of these actions:When you push the CANCEL button
or tap the brake pedal to cancel ACC,
the set cruising speed stays in
memory. When you turn on ACC
again, the speed is shown on the
multi-inf ormation display. To return
to that speed, accelerate to over 25
mph (40 km/h), then press the RES/
ACCEL button.
Canceling the A CC
A daptive Cruise Control (A CC)
Features
329
LONG
RANGE
MIDDLE
RANGE
SHORT
RANGE CANCEL BUTTON
U.S.
CANADA
U.S. CANADA
U.S.
CANADA
2009 RL

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem in the ACC
system. If this happens, take the
vehicle to your dealer to have it
checked.
The ACC system cannot be used
while this indicator is on.
The vehicle speed decreases
below22mph(35km/h).
Driving on a mountainous road, or
driving of f road f or extended
periods.
When the VSA indicator comes on.
When the ABS or VSA is activated.
Abrupt steering wheel movement.
If ACC is cancelled by any these
conditions, wait until the condition
improves, then press the RES/
ACCEL button to restore ACC.
When you do this, the vehicle will
resume its set cruising speed.
If you turn the ignition switch to the
ACCESSORY (I) or LOCK (0)
position af ter ACC was automatically
cancelled, the set speed is erased,
and you must enter it again (see
page ).
Poor weather (rain, f og, snow, etc.)
When the radar sensor in the front
grille gets dirty.
The vehicle ahead of you cannot
be detected.
An abnormal tire condition is
detected, or the tires are skidding.
When ACC is automatically canceled,
the beeper sounds about 1 second,
and an ACC OFF message appears
on the multi-inf ormation display f or 3
seconds.
Any of these conditions may cause
ACC to cancel:
324
Automatic ACC Cancellation ACC Indicator
A daptive Cruise Control (A CC)
330
ACC INDICATOR
2009 RL

The multi-inf ormation display shows
various messages related to ACC.
For a description of each ACC
message you may see, ref er to the
chart on this and the f ollowing page.
Message
CONT INUED
Description
ACC is on.
ACC detects a vehicle ahead of you.
You will hear a beep when the vehicle
moves out of the ACC radar sensor’s
range.
ACC does not detect a vehicle ahead
of you.
You will hear a beep when ACC
detects a vehicle ahead of you.
Messages on the
Multi-Inf ormation Display
A daptive Cruise Control (A CC)
Features
331
U.S.
U.S.
CANADA
CANADA
2009 RL

To switch f rom ACC to cruise
control, press the distance button on
the steering wheel, and hold it f or 1
second.Always be aware which mode is
selected.
When the cruise control is selected,
ACC does not sound a beeper or
display a message on the multi-
inf ormation display. Make sure to
keepasafedistancefromthevehicle
ahead of you.
When you press the button, you will
see CRUISE MODE SELECTED on
the multi-information display for 2
seconds.ToswitchbacktoACC,
press and hold the distance button
again for 1 second.
Switching to Cruise Control
A daptive Cruise Control (A CC)
Features
333
DISTANCE BUTTON
Press the distance button.
2009 RL

AcuraLink enhances your ownership
experience by providing a direct
communication link between your
vehicleandtheAcuraServer.
Working through the XM radio
satellite, AcuraLink works in
conjunction with the navigation
system, Bluetooth
HandsFreeLink
(HFL),andaudiosysteminyour
vehicle. It displays and receives
several kinds of messages, including:Operating tips and inf ormation on
your vehicle’s f eatures. Most AcuraLink f unctions are
controlled by the interf ace dial. The
interface dial has two parts, a knob
and a selector.
The knob turns lef t and right. Use it
to make selections or adjustments to
a list or menu on the screen. The selector can be pushed lef t,
right, up, down, and in. Use the
selector to scroll through lists, to
select menus, and to highlight menu
items. When you make a selection,
push the center of the selector
(ENTER)togotothatselection.
Important recall and safety
inf ormation.
Maintenance inf ormation to keep
your vehicle in top condition.
Diagnostic inf ormation to provide
inf ormation about any problems
with your vehicle.
RL Technology Package modelsInterf ace Dial
A curaL ink (U.S. models only)
338
KNOB SELECTORENTER
2009 RL

µ
µ
µ µ
µ
µ
Select this option to delete
the current message.
Select this option to hear a
voice read the entire message. This
gives you more inf ormation than the
screen can display at one time. When
you select the Voice option, it
changes to a Stop Reading option.
Select the option again to stop the
voice.
Select this option to call a
phone number embedded in the
message. When you select , the
Bluetooth
HandsFreeLink(HFL)
dials the number f or you.
To make a call, your Bluetooth
compatible phone must be paired to
the vehicle’s HandsFreeLink system,
powered on, and located within the
vehicle(seepage). Select this
option to get more inf ormation about
the current diagnostic message. To
use this option, your cellphone must
be paired with the HFL. In addition,
the paired phone must have a
compatible data service and be set
up with the AcuraLink system to
make a data connection. Access the
handsf reelink.com website to f ind
out which data services are currently
compatible with AcuraLink.
To set your AcuraLink pref erences
(thetypesof messagesyouwantto
receive, if any), visit the My Acura
website at , and
choose what you would like to
receive. If you do not have internet
access, call Acura Client Services at
(800) 382-2238; they can set your
message pref erences f or you.
Select this
option to f ind the nearest Acura
dealer using the navigation system.
Select this
option to call the Acura dealer you
purchased your vehicle f rom.
AcuraLink also directs you to this
dealer so you can schedule a
maintenance appointment or receive
inf ormation about a message. If your
assigned servicing dealer changes,
AcuraLink will reset to call that
dealer.
347
www.owners.acura.com
Delete
Voice
Call Call Diagnostic Inf o
Message Pref erences
Find Nearest Dealer
Call Your Dealer
A curaL ink (U.S. models only)
Features
341
2009 RL

These messages provide detailed
inf ormation about the service
needed f or your vehicle. When a
maintenance message appears on
the multi-information display, a list of
needed maintenance items is
provided through an AcuraLink
message. These messages tell you
the exact maintenance needed,
helping you to avoid unnecessary
maintenance costs.You can use the f ollowing message
options:
Make an appointment f rom the
schedule at the dealer.
Reschedule the appointment with
the dealer.
Call your dealer f or an
appointment.
Find the nearest dealer. You can make an appointment with
your dealer through the AcuraLink
when you receive a maintenance
minder message.
To use the automated appointment
f unction, you should visit the My
Acura website at
, register some
required settings, and complete the
Phone-Data Connection set-up (see
page ). Your Bluetooth
compatible phone should also be
paired and linked to your vehicle’s
Bluetooth
HFL (see page ). 355
353
www.owners.acura.com
Maintenance MinderA ut omat ed A ppoint ment
A curaL ink (U.S. models only)
344
2009 RL

CONT INUED
When you see the maintenance
minder message on the multi-
inf ormation display, you will also
receive a message in the navigation
screen. Select ‘‘AcuraLink/
Messages’’ on the Setup screen, then
press ENTER.Select the received message, then
press ENTER. You will see the
message as shown. To make an
appointment, select ‘‘Schedule
Dealer Appt.’’ then press ENTER.
The system will automatically
connect to the Acura server, then
show you an appropriate
appointment date and time on the
navigation screen. If you accept this
appointment, select ‘‘Conf irm
Appointment,’’ then press ENTER.
A curaL ink (U.S. models only)
Features
345
2009 RL
