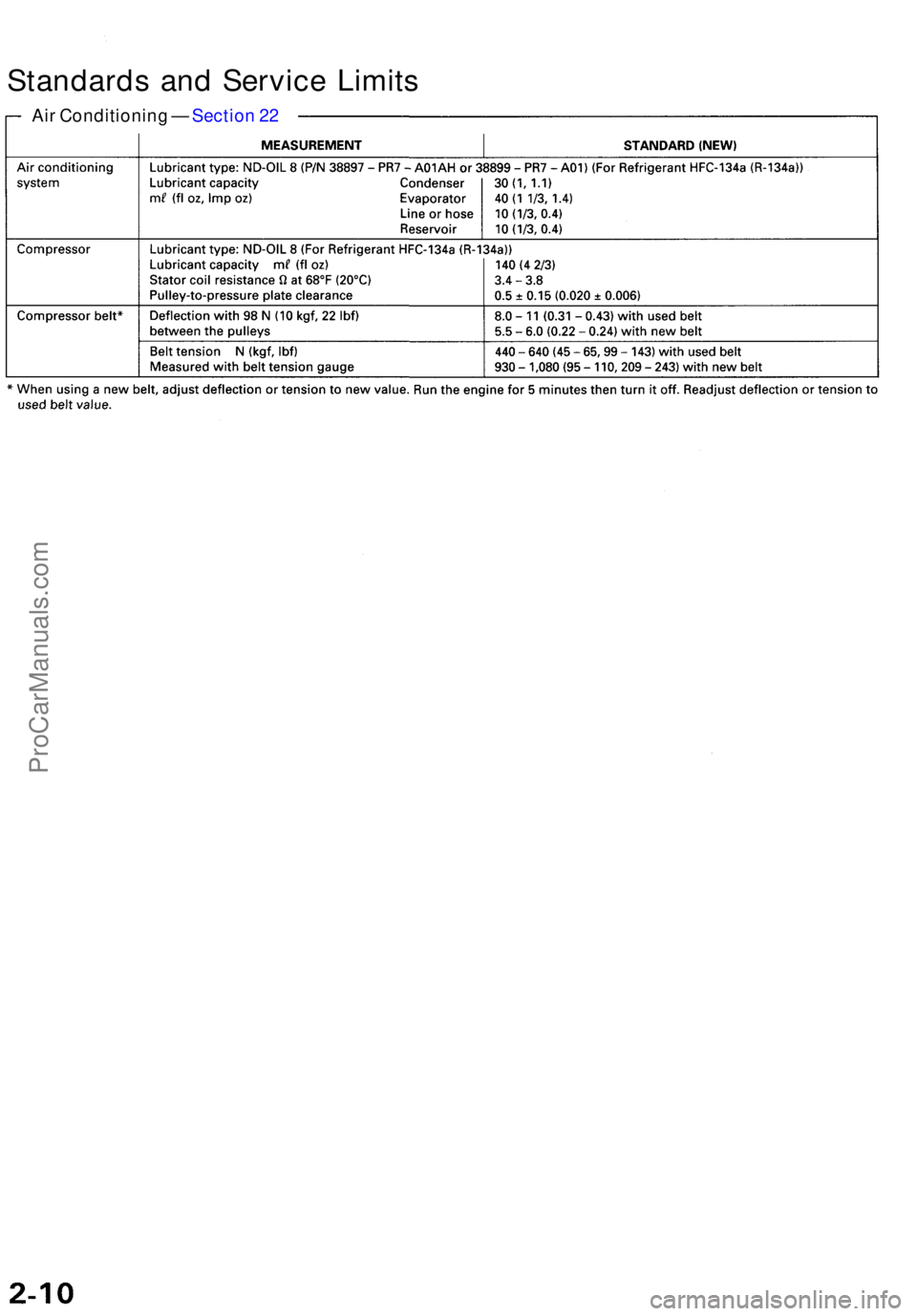

Page 71 of 1954

ACURA RL KA9 1996 Service Manual PDF Standards an d Servic e Limit s Air Conditioning — Section 22 ProCarManuals.com

Page 72 of 1954

ACURA RL KA9 1996 Service Manual PDF Design SpecificationsProCarManuals.com

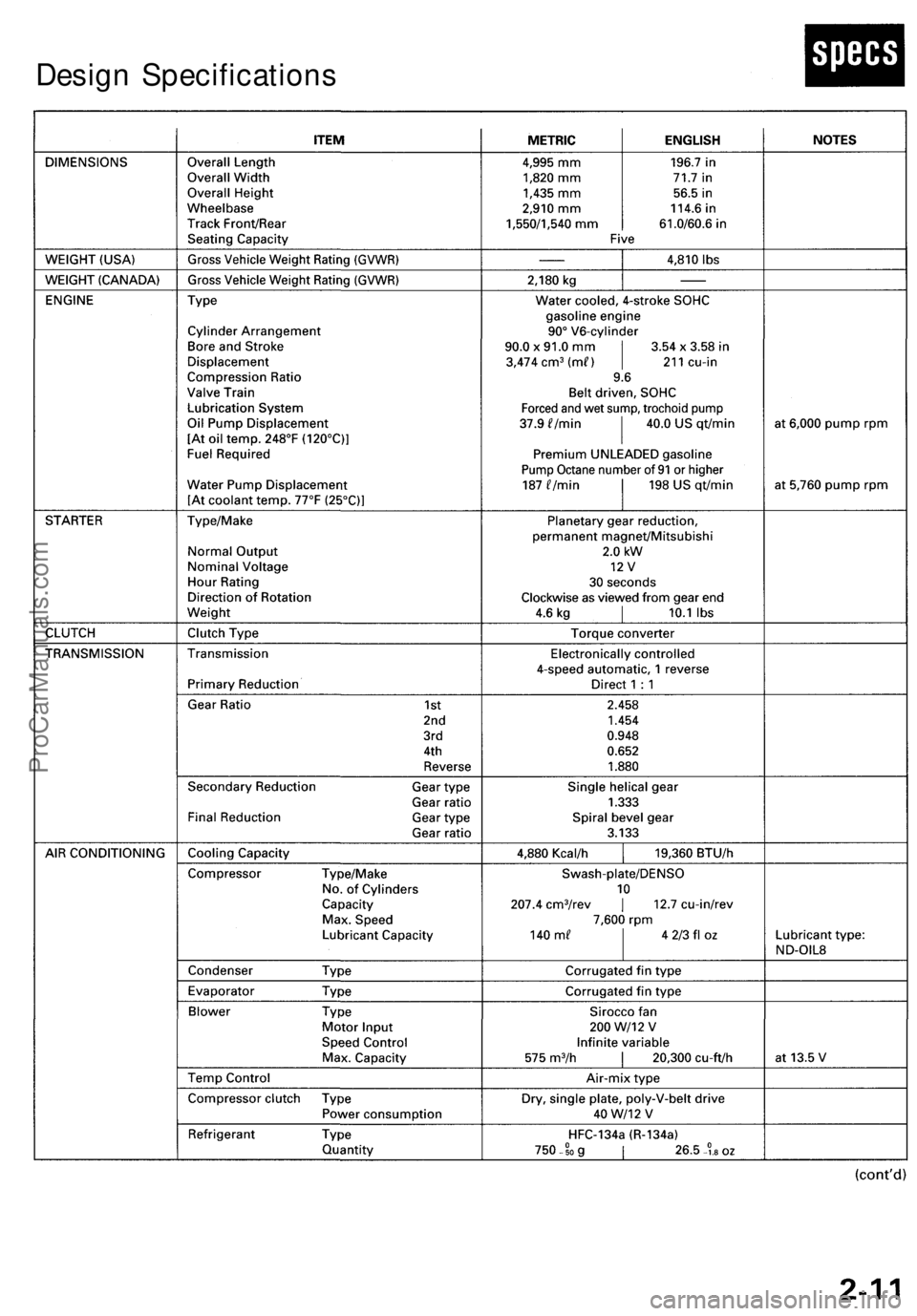

Page 73 of 1954

ACURA RL KA9 1996 Service Manual PDF Design SpecificationsProCarManuals.com

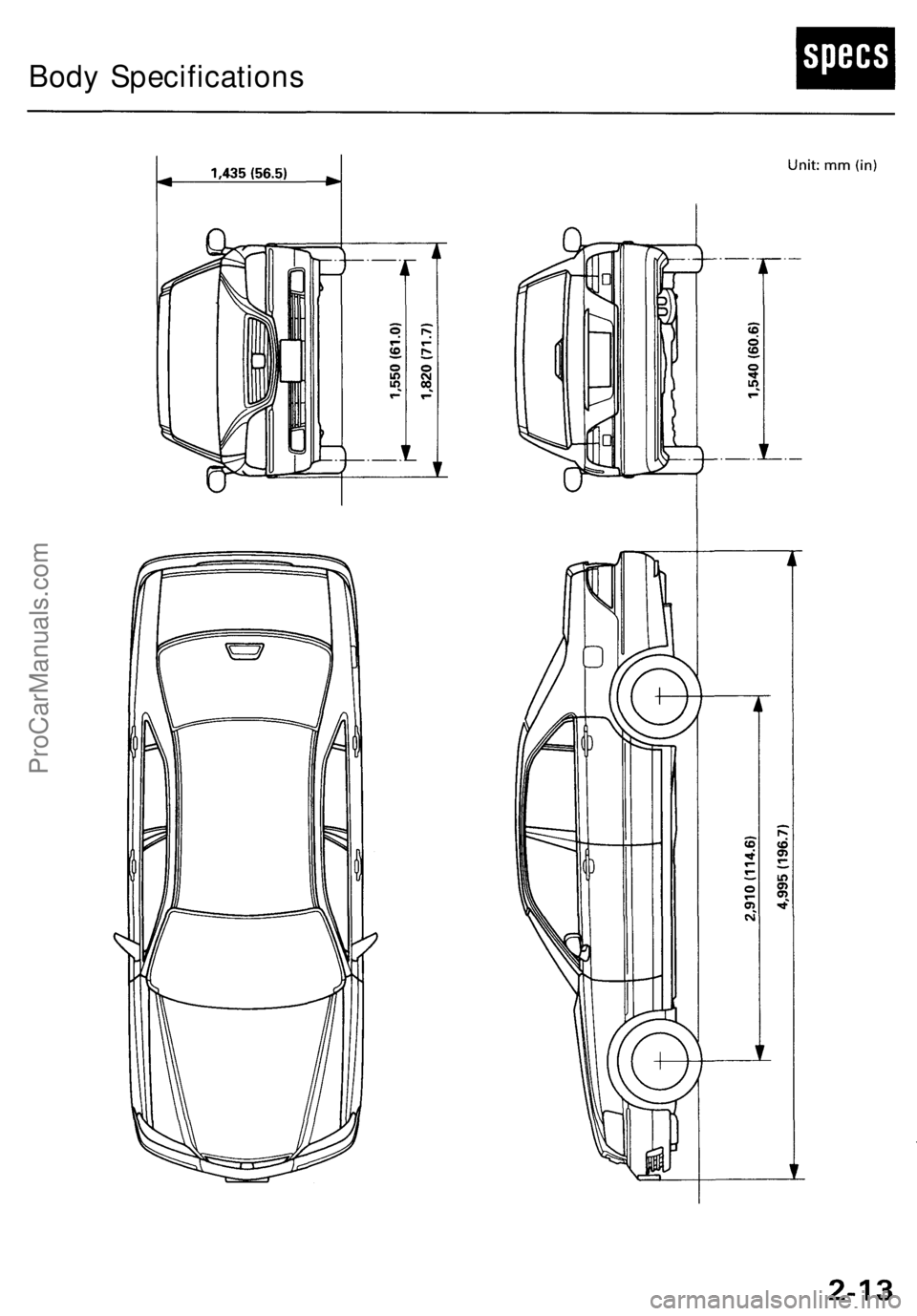

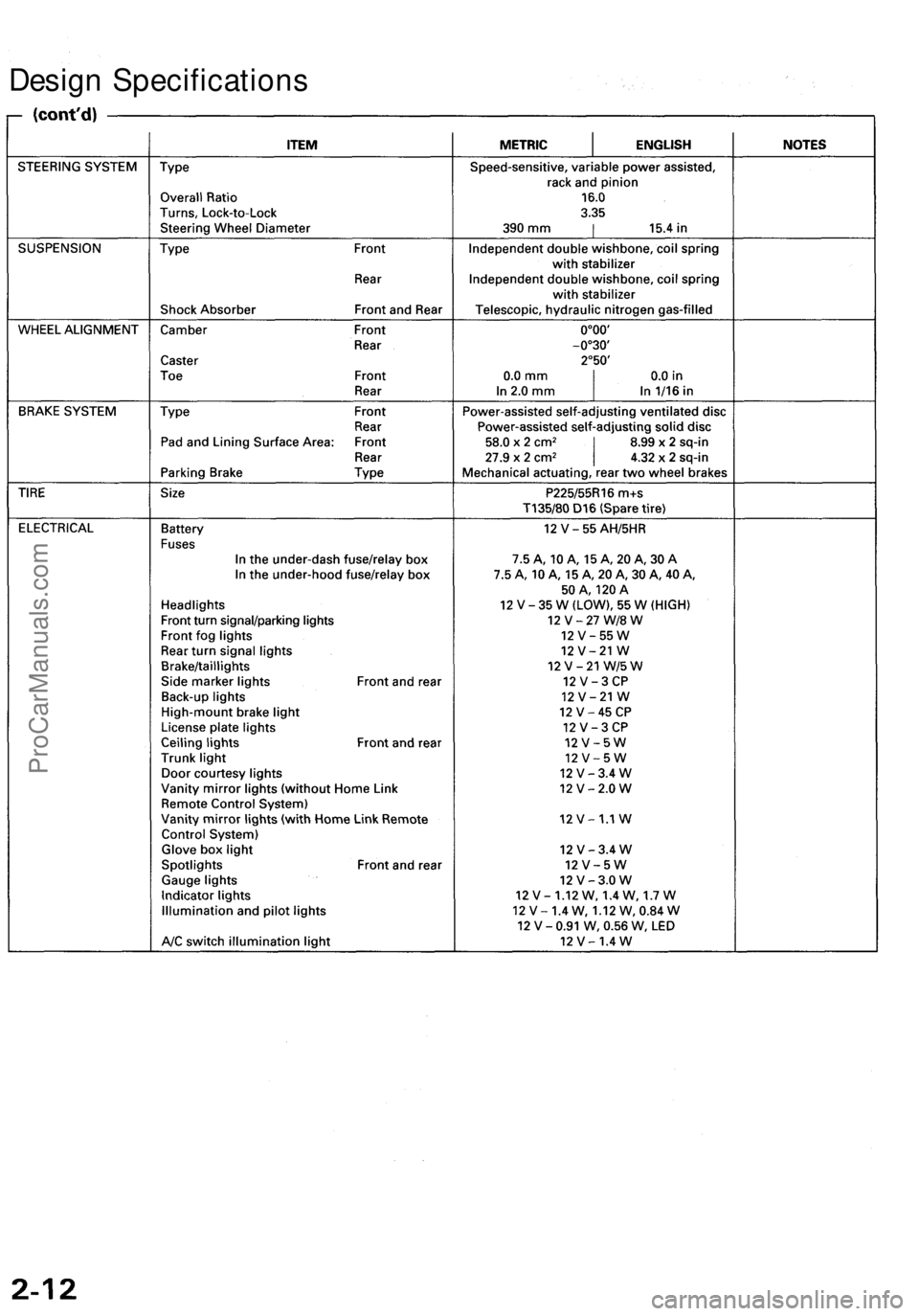

Page 74 of 1954

ACURA RL KA9 1996 Service Manual PDF Body SpecificationsProCarManuals.com

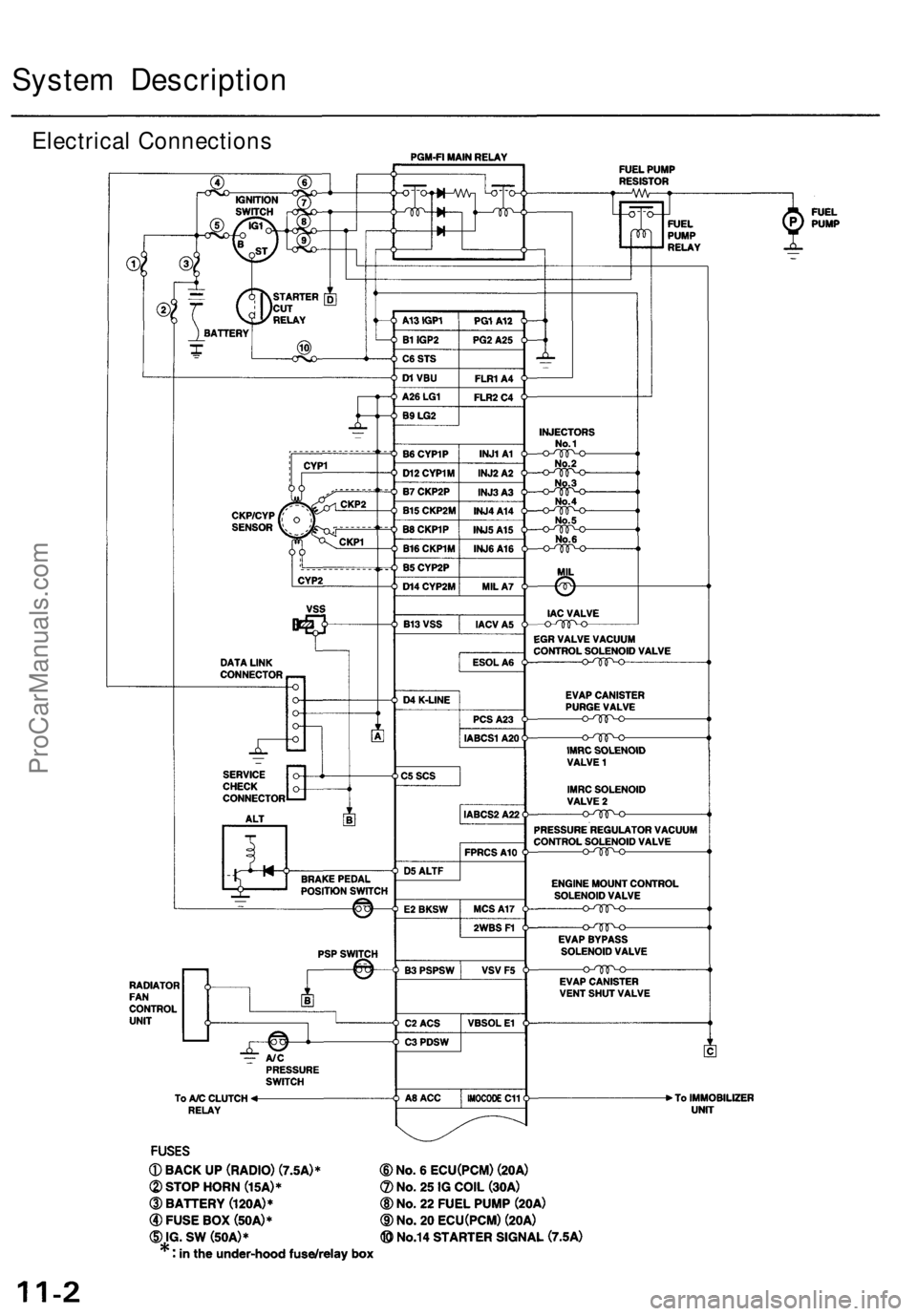

Page 75 of 1954

ACURA RL KA9 1996 Service Manual PDF System Description Electrical ConnectionsProCarManuals.com

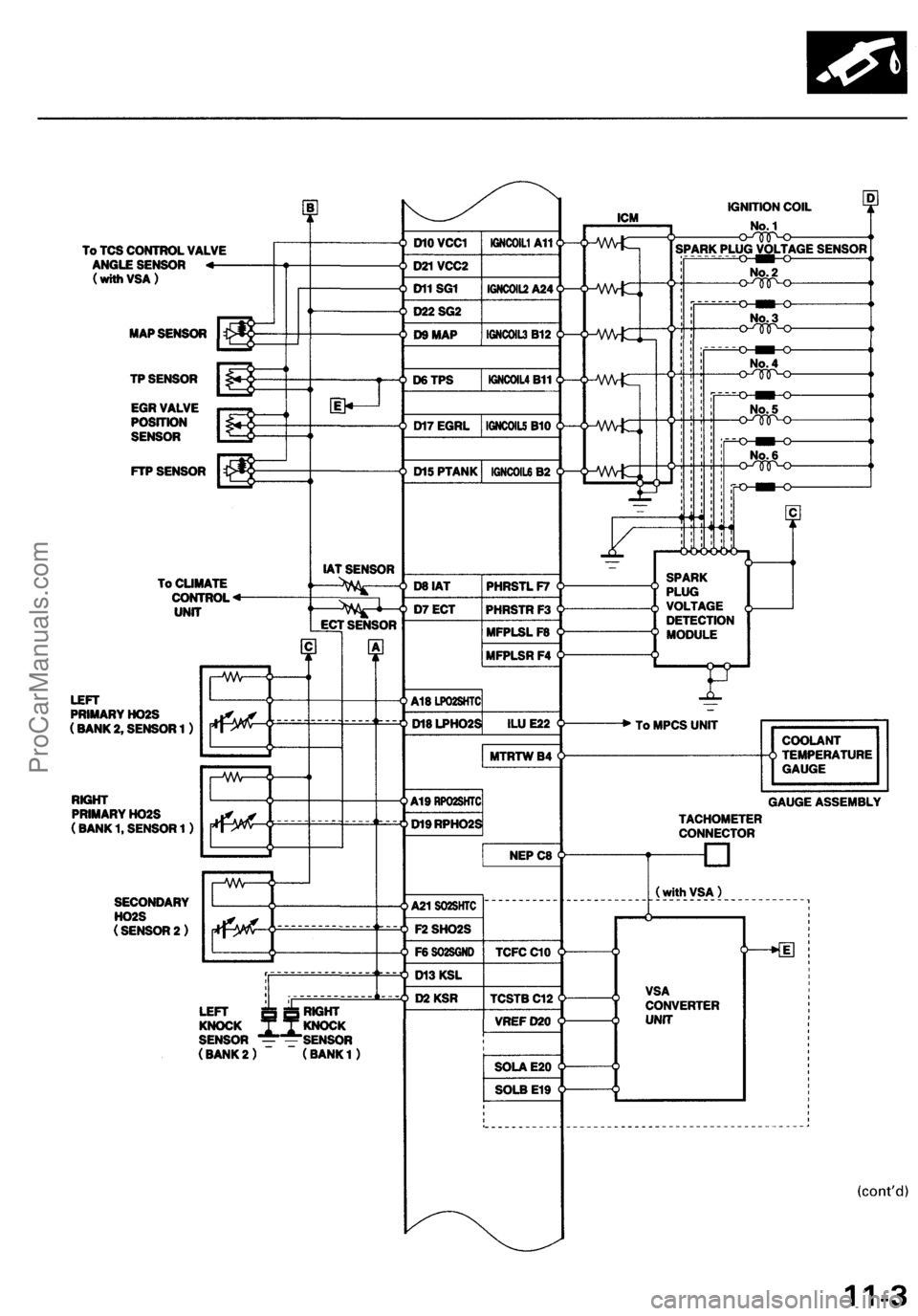

Page 76 of 1954

ACURA RL KA9 1996 Service Manual PDF ProCarManuals.com

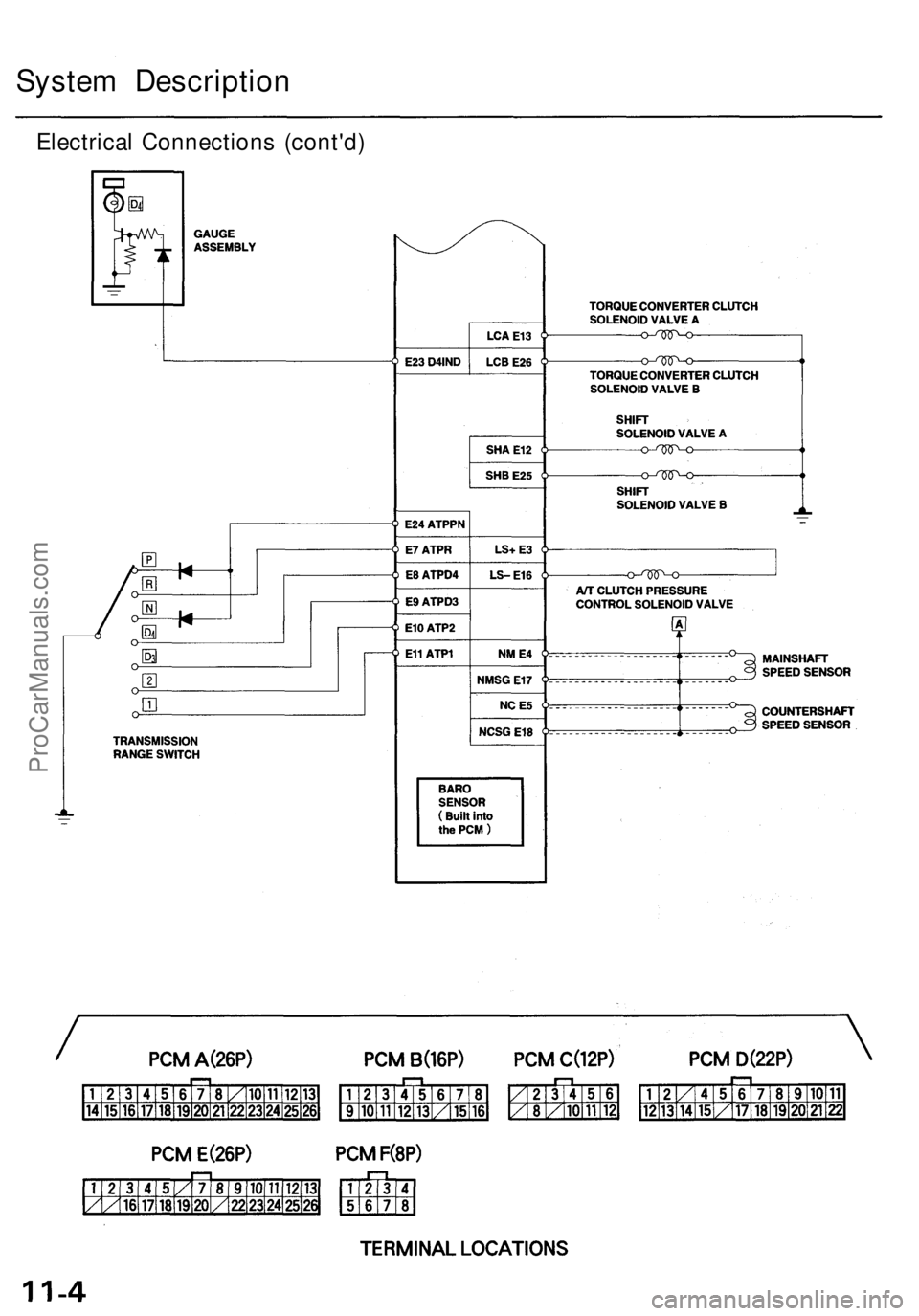

Page 77 of 1954

ACURA RL KA9 1996 Service Manual PDF System Description Electrical Connections (cont'd)ProCarManuals.com

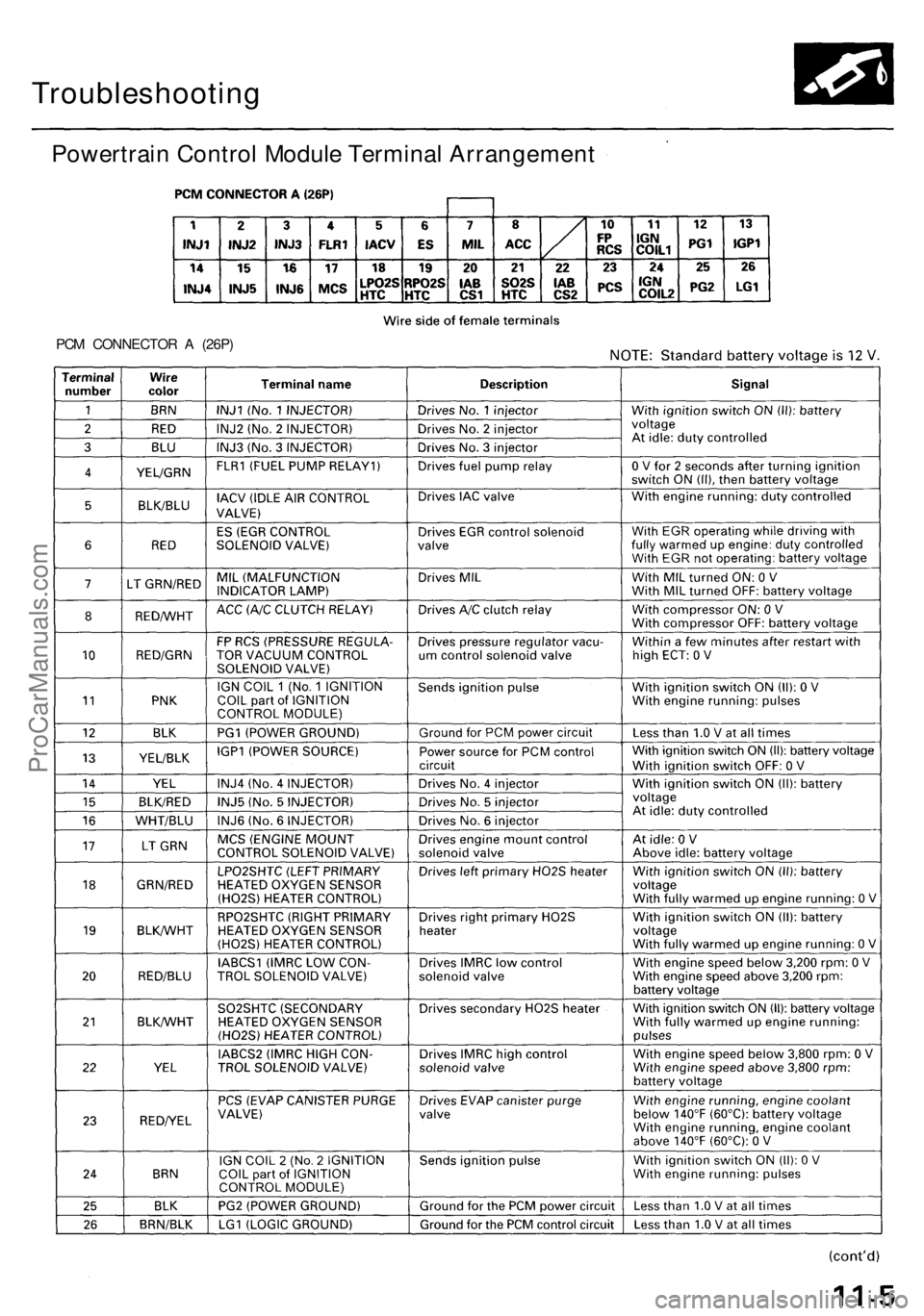

Page 78 of 1954

ACURA RL KA9 1996 Service Manual PDF Troubleshooting Powertrain Contro l Modul e Termina l Arrangemen t PCM CONNECTO R A (26P ) ProCarManuals.com

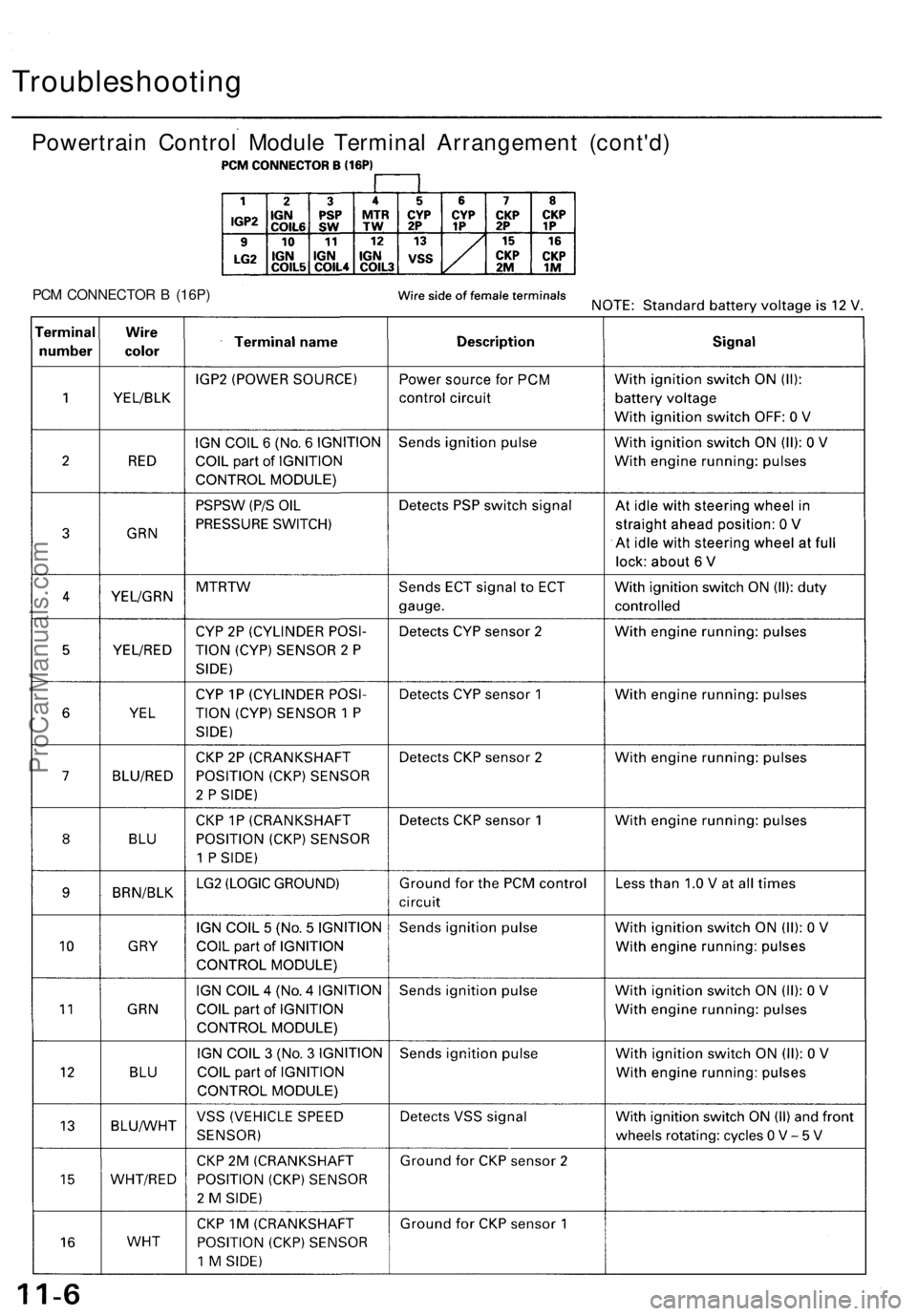

Page 79 of 1954

ACURA RL KA9 1996 Service Manual PDF Troubleshooting Powertrain Control Module Terminal Arrangement (cont'd) PCM CONNECTOR B (16P)ProCarManuals.com

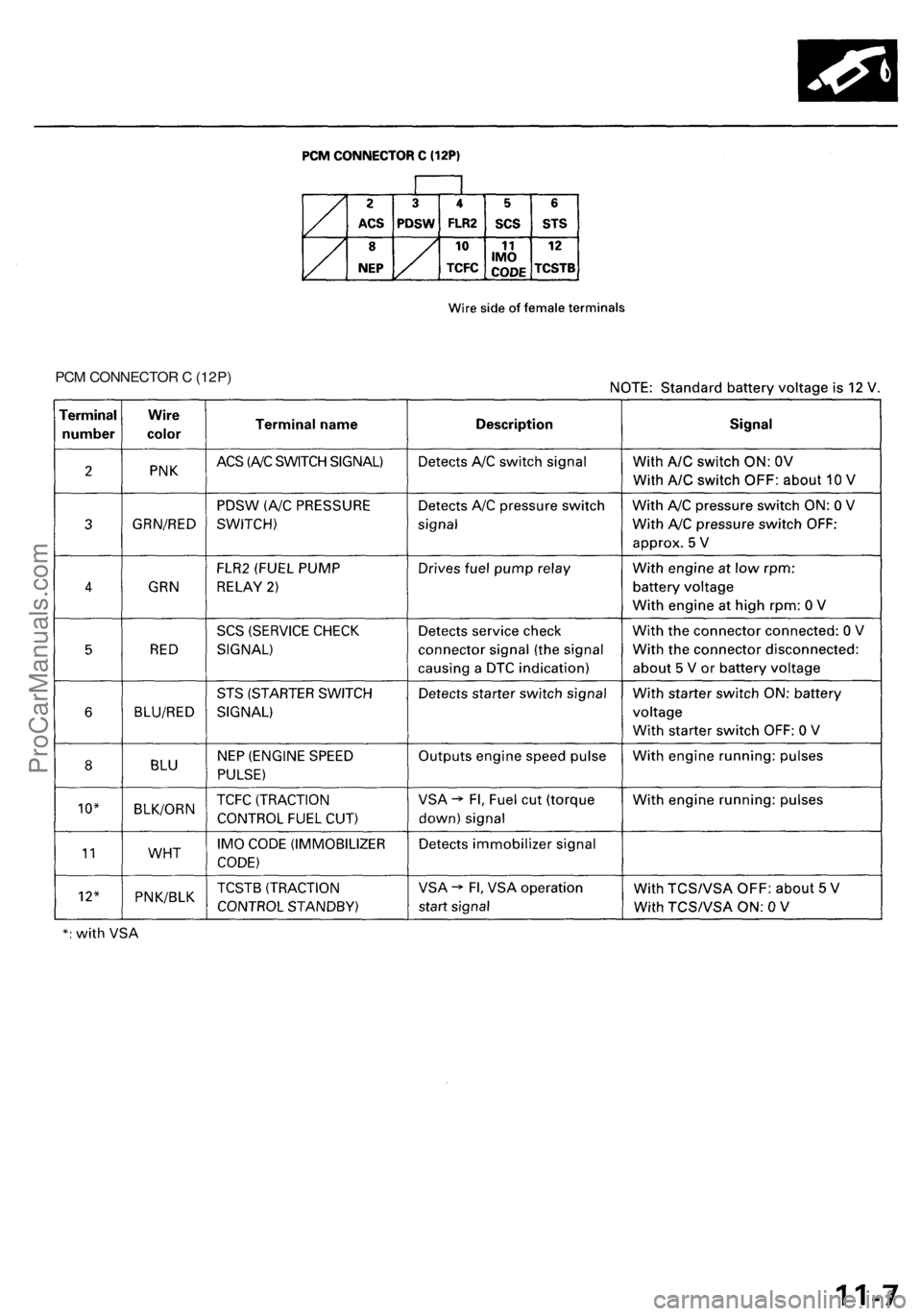

Page 80 of 1954

ACURA RL KA9 1996 Service Manual PDF PCM CONNECTOR C (12P)ProCarManuals.com
