Acura TLX 2019 Navigation Manual

Continued279
uuBluetooth ® HandsFreeLink ®u Phonebook Phonetic Modification
Bluetooth ® HandsFreeLink ®
■To modify a voice tag
1.Rotate to select the phone
you want to add phonetic
modification to. Press .
2. Rotate to select a contact
name you want to modify. Press
.
u The pop-up menu appears on
the screen.
3. Rotate to select Modify. Press
.
4. Rotate to select Record, then
press .
u Using the button, follow
the prompts to complete the
voice tag.
5. You will receive a confirmation
message on the screen. Rotate
to select OK. Press .
6. Rotate to select Options....
Press .
7. Rotate to select OK . Press .1Phonebook Phoneti c Modification
You can only modify or de lete contact names for the
currently connected phone.
19 ACURA TLX NAVI-31TZ38400.book 279 ページ ２０１８年３月７日　水曜日　午後４時２３分

280
uuBluetooth ® HandsFreeLink ®u Phonebook Phonetic Modification
Bluetooth ® HandsFreeLink ®
■To delete a modified voice tag
1.Rotate to select the phone
you want to delete phonetic
modification. Press .
2. Rotate to select a contact
name you want to delete. Press
.
u The pop-up menu appears on
the screen.
3. Rotate to select Delete, then
press .
u Items to be deleted are
indicated with a trash icon.
4. Rotate to select Options....
Press .
5. Rotate to select OK. Press .
Trash icon
19 ACURA TLX NAVI-31TZ38400.book 280 ページ ２０１８年３月７日　水曜日　午後４時２３分

281
uuBluetooth ® HandsFreeLink ®u Phonebook Phonetic Modification
Bluetooth ® HandsFreeLink ®
■To delete all modified voice tags
1.Rotate to select the phone
you want to delete phonetic
modification. Press .
u The contact name list appears.
2. Rotate to select Options....
Press .
3. Rotate to select Delete All.
Press .
4. You will receive a confirmation
message on the screen. Rotate
to select Yes. Press .
19 ACURA TLX NAVI-31TZ38400.book 281 ページ ２０１８年３月７日　水曜日　午後４時２３分

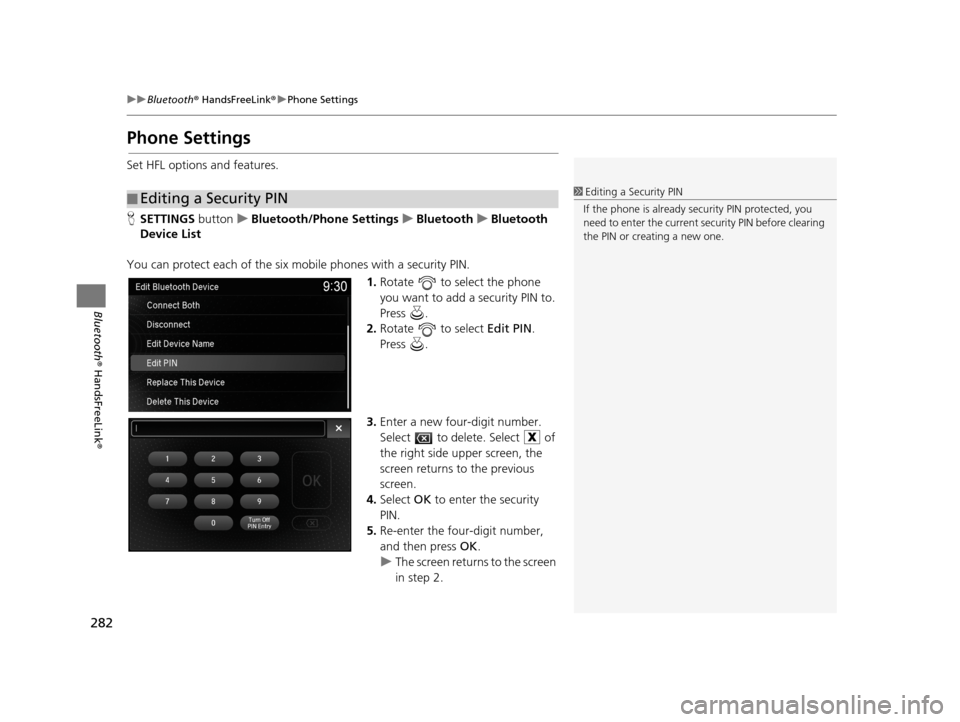

282
uuBluetooth ® HandsFreeLink ®u Phone Settings
Bluetooth ® HandsFreeLink ®
Phone Settings
Set HFL options and features.
HSETTINGS buttonuBluetooth/Phone Settings uBluetooth uBluetooth
Device List
You can protect each of the six mobile phones with a security PIN. 1.Rotate to select the phone
you want to add a security PIN to.
Press .
2. Rotate to select Edit PIN.
Press .
3. Enter a new four-digit number.
Select to delete. Select of
the right side u pper screen, the
screen returns to the previous
screen.
4. Select OK to enter the security
PIN.
5. Re-enter the four-digit number,
and then press OK.
u The screen return s to the screen
in step 2.
■ Editing a Security PIN1
Editing a Security PIN
If the phone is already secu rity PIN protected, you
need to enter the current security PIN before clearing
the PIN or creating a new one.
19 ACURA TLX NAVI-31TZ38400.book 282 ページ ２０１８年３月７日　水曜日　午後４時２３分

283
uuBluetooth ® HandsFreeLink ®u Phone Settings
Continued
Bluetooth ® HandsFreeLink ®
HSETTINGS buttonuBluetooth/Phone Settings uBluetooth uBluetooth
Device List
Edit the user name of a paired phone as follows: 1.Rotate to select a phone you
want to edit. Press .
2. Rotate to select Edit Device
Name. Press .
3. Enter a new name of the phone.
u Use the keyboard on the On
Demand Multi-Use Display
TM to
enter the name, then select
OK .
u Select to delete.
■Editing User Name
19 ACURA TLX NAVI-31TZ38400.book 283 ページ ２０１８年３月７日　水曜日　午後４時２３分

284
uuBluetooth ® HandsFreeLink ®u Phone Settings
Bluetooth ® HandsFreeLink ®
HSETTINGS buttonuBluetooth/Phone Settings uPhone uAuto Transfer
If you get into the vehicle while you are on the phone, the call can be automatically
transferred to HFL.
Press to select On or Off .
H SETTINGS buttonuBluetooth/Phone Settings uPhone uAuto Answer
You can set HFL to automatically answer an incoming call in four seconds. Press to select On or Off .
■Automatic Transferring
■Auto Answer
19 ACURA TLX NAVI-31TZ38400.book 284 ページ ２０１８年３月７日　水曜日　午後４時２３分

285
uuBluetooth ® HandsFreeLink ®u Phone Settings
Continued
Bluetooth ® HandsFreeLink ®
HSETTINGS buttonuBluetooth/Phone Settings uPhone uRing Tone
You can change the ring tone setting. Rotate to select your desired
setting item. Press .
uCheck mark is displayed.
The following items are available:
• Fixed : The fixed ring tone sounds from the speaker.
• Mobile Phone (Default setting): The ring tone stored in the connected mobile
phone sounds from the speaker.
• Off : No ring tones sound from the speaker.
■Ring Tone
19 ACURA TLX NAVI-31TZ38400.book 285 ページ ２０１８年３月７日　水曜日　午後４時２３分

uuBluetooth ® HandsFreeLink ®u Phone Settings
286
Bluetooth ® HandsFreeLink ®
HSETTINGS buttonuBluetooth/Phone Settings uPhone uAutomatic
Phone Sync
Press to select On or Off .
H SETTINGS buttonuBluetooth/Phone Settings uPhone uUse Contact
You can display a caller’s pict ure on an incoming call screen.
Press to select On or Off .
■Automatic Phone Sync Setting1
Automatic Phone Sync Setting
Select On if you want your call history and
phonebook automatically imported to HFL. If
prompted by your phone, please accept the import
request.
Not all phones require this additional step.
■ Use Contact Photo
19 ACURA TLX NAVI-31TZ38400.book 286 ページ ２０１８年３月７日　水曜日　午後４時２３分

287
uuBluetooth ® HandsFreeLink ®u Making a Call
Continued
Bluetooth ® HandsFreeLink ®
Making a Call
You can make calls by inputting any phone number, or by using the imported
phonebook, call history, speed dial entries, or redial.1Making a Call
Any voice-tagged speed di al entry, phonebook name,
or number can be dialed by voice from most screens.
Press the button and say ” Call“ and the voice tag
name, ”Call by name “ and the phonebook name, or
”Call “ and the phone number.
The maximum range be tween your phone and
vehicles is 30 ft (10 m).
Once a call is connected, you can hear the voice of
the person you are call ing through the audio
speakers.
While there is an active connection with Apple
CarPlay ®, phone calls cannot be made with
HandsFreeLink ® and are only made from Apple
CarPlay ®.
19 ACURA TLX NAVI-31TZ38400.book 287 ページ ２０１８年３月７日　水曜日　午後４時２３分

uuBluetooth ® HandsFreeLink ®u Making a Call
288
Bluetooth ® HandsFreeLink ®
HPHONE button uPhonebook
1.The phonebook is stored
alphabetically.
u You can use the keyboard on
the touchscreen for an
alphabetical search.
2. Rotate to select a number.
Press .
u Dialing starts automatically.
■Using the Phonebook1
Using the Phonebook
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number, phonebook name, or number using
voice commands. 2 Setting Up Speed Dialing P. 274
You can use the keyboard on the On Demand Multi-
Use Display
TM for an alphabetical search.
19 ACURA TLX NAVI-31TZ38400.book 288 ページ ２０１８年３月７日　水曜日　午後４時２３分
