Acura TSX 2012 Navigation Manual

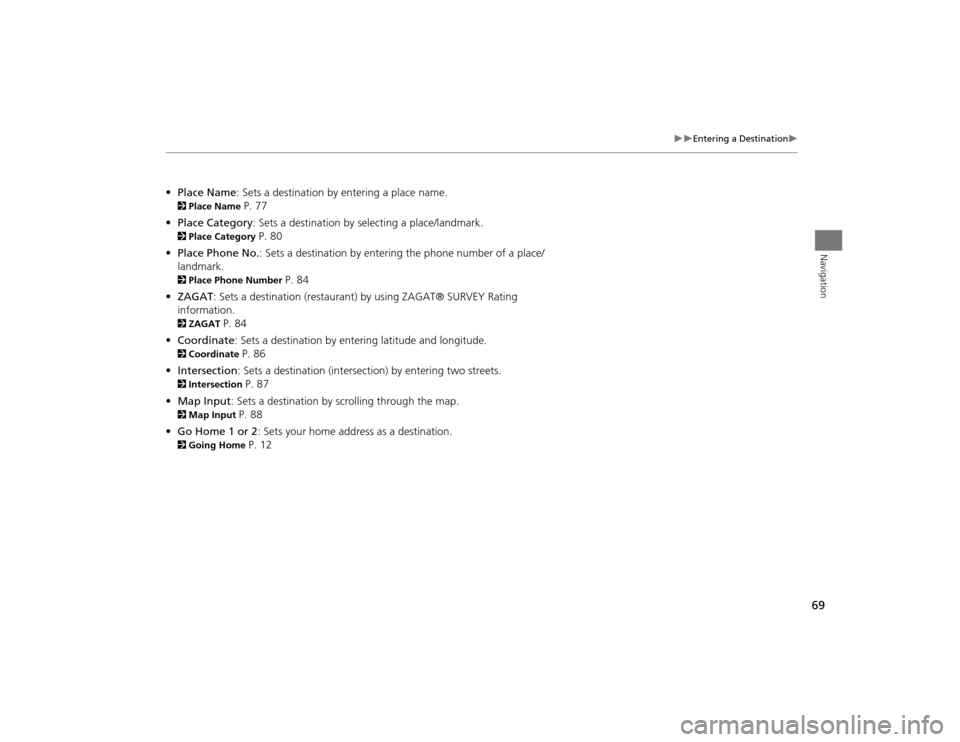

69

Entering a Destination

Navigation
•Place Name : Sets a destination by entering a place name. 2Place Name
P. 77
• Place Category : Sets a destination by selecting a place/landmark.
2Place Category
P. 80
• Place Phone No. : Sets a destination by entering the phone number of a place/
landmark.
2 Place Phone Number
P. 84
• ZAGAT: Sets a destination (restaurant) by using ZAGAT® SURVEY Rating
information.
2 ZAGAT
P. 84
• Coordinate : Sets a destination by entering latitude and longitude.
2Coordinate
P. 86
• Intersection : Sets a destination (intersectio n) by entering two streets.
2Intersection
P. 87
• Map Input : Sets a destination by scrolling through the map.
2Map Input
P. 88
• Go Home 1 or 2 : Sets your home addres s as a destination.
2Going Home
P. 12
TSX_KA-31TL1820.book 69 ページ ２０１１年６月２４日　金曜日　午後３時４３分

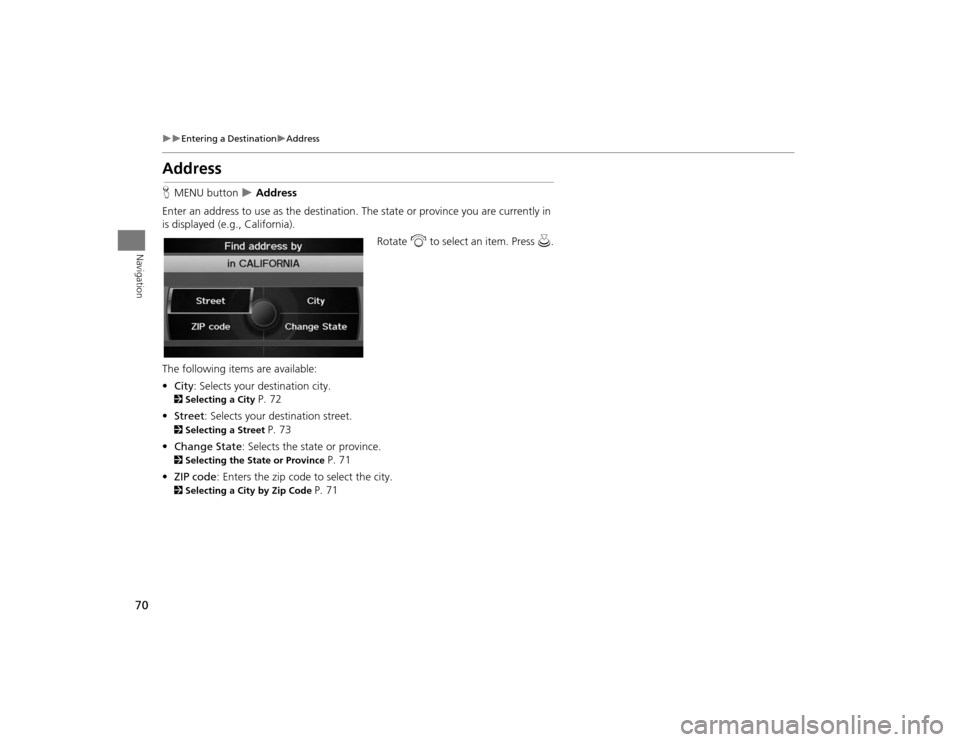

70

Entering a Destination
Address
Navigation
AddressHMENU button
 Address
Enter an address to use as th e destination. The state or pr ovince you are currently in
is displayed (e.g., California).
Rotate i to select an item. Press u.
The following item s are available:
• City : Selects your destination city.
2Selecting a City
P. 72
• Street : Selects your destination street.
2Selecting a Street
P. 73
• Change State : Selects the state or province.
2Selecting the State or Province
P. 71
• ZIP code : Enters the zip code to select the city.
2Selecting a City by Zip Code
P. 71
TSX_KA-31TL1820.book 70 ページ ２０１１年６月２４日　金曜日　午後３時４３分

71

Entering a Destination
Address
Navigation
HMENU button
 Address
 Change State
Rotate i to select a state from the
list. Press u.
H MENU button
 Address
 ZIP code
1.Enter the zip code of your
destination.
2. Move r to select OK.
■Selecting the State or Province
1 Selecting the State or Province
Move w to select USA for the American
mainland, Hawaii, and Puerto Rico. Move y to
select Canada/AK for Canada and Alaska.
■Selecting a City by Zip Code
1 Selecting a City by Zip Code
If your city is not listed, it may be part of a larger
metropolitan area. Try entering the street first.
Continued
TSX_KA-31TL1820.book 71 ページ ２０１１年６月２４日　金曜日　午後３時４３分

72

Entering a Destination
Address
Navigation
3.Rotate i to select the destination
city from the list. Press u.
Next, you are prompted to enter
a street name. 2Selecting a Street
P. 73
H MENU button
 Address
 City
The name of the city where you are currently located is displayed. 1.Enter the name of a different city,
or move r to select OK for the
current city.

Move r to select List to display
a list of cities.
■ Selecting a City
1 Selecting a City by Name
Vehicle position may not be displayed when:•the automobile is traveling off-road.•the vehicle position data cannot be updated.
You do not need to enter spaces or symbols
(e.g., &, -, %). Partia l matches are supported
(e.g., “ANGELES” to find “LOS ANGELES”).
Using Voice Command (English only)
Say d “City ” on the Find address by screen, and
the following screen is displayed:
Say d “Current City” to select your current
location, or say the name of a different city.
2 Selecting a Street P. 73
TSX_KA-31TL1820.book 72 ページ ２０１１年６月２４日　金曜日　午後３時４３分

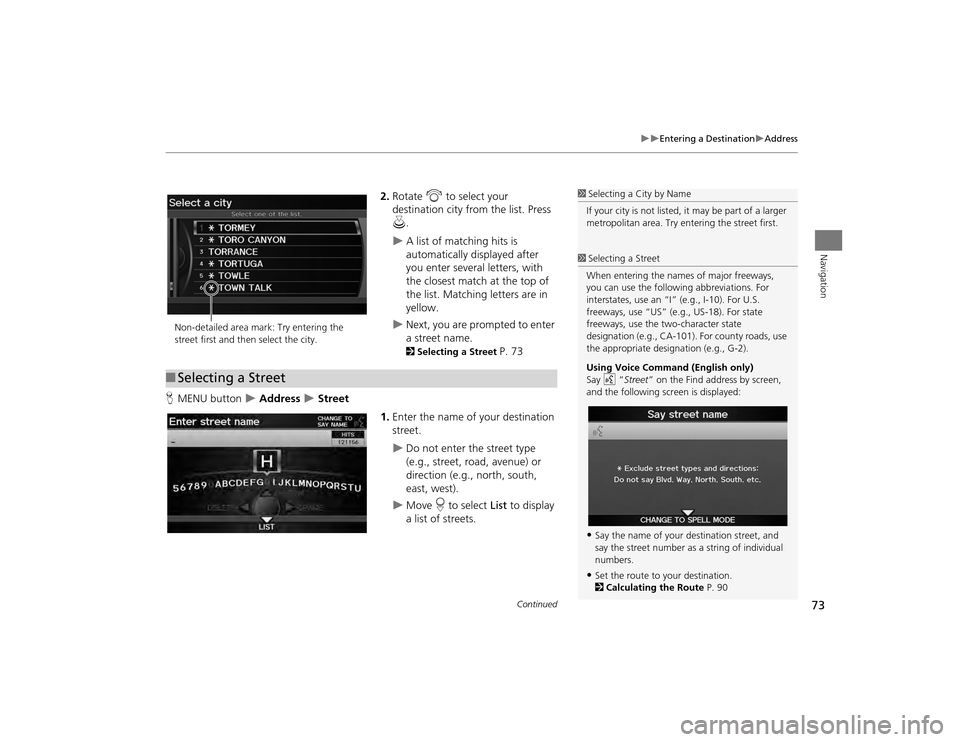

73

Entering a Destination
Address
Navigation
2.Rotate i to select your
destination city fr om the list. Press
u .
A list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list. Matching letters are in
yellow.

Next, you are prompted to enter
a street name. 2Selecting a Street
P. 73
H MENU button
 Address
 Street
1.Enter the name of your destination
street.

Do not enter the street type
(e.g., street, road, avenue) or
direction (e.g., north, south,
east, west).

Move r to select List to display
a list of streets.
1 Selecting a City by Name
If your city is not listed, it may be part of a larger
metropolitan area. Try entering the street first.
Non-detailed area mark: Try entering the
street first and then select the city.■ Selecting a Street
1 Selecting a Street
When entering the names of major freeways,
you can use the following abbreviations. For
interstates, use an “I ” (e.g., I-10). For U.S.
freeways, use “US” (e.g., US-18). For state
freeways, use the two-character state
designation (e.g., CA-101). For county roads, use
the appropriate desi gnation (e.g., G-2).
Using Voice Command (English only)
Say d “Street ” on the Find address by screen,
and the following screen is displayed:•Say the name of your destination street, and
say the street number as a string of individual
numbers.•Set the route to your destination.
2 Calculating the Route P. 90
Continued
TSX_KA-31TL1820.book 73 ページ ２０１１年６月２４日　金曜日　午後３時４３分

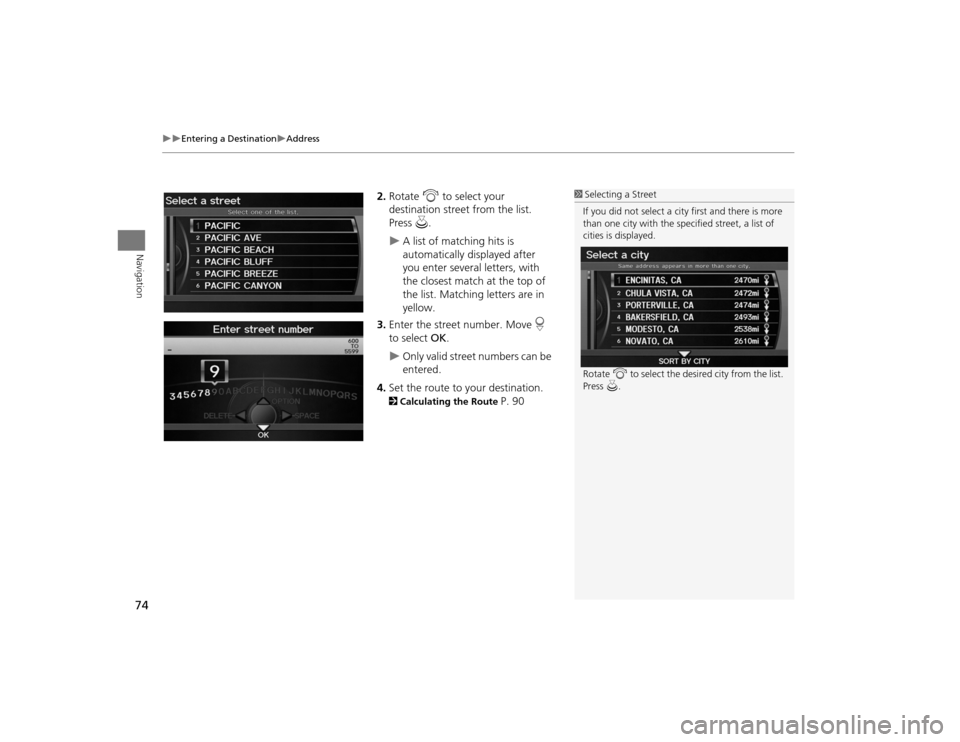

74

Entering a Destination
Address
Navigation
2.Rotate i to select your
destination street from the list.
Press u.
A list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list. Matching letters are in
yellow.
3. Enter the street number. Move r
to select OK.

Only valid street numbers can be
entered.
4. Set the route to your destination.
2 Calculating the Route
P. 90
1Selecting a Street
If you did not select a city first and there is more
than one city with the specified street, a list of
cities is displayed.
Rotate i to select the desired city from the list.
Press u.
TSX_KA-31TL1820.book 74 ページ ２０１１年６月２４日　金曜日　午後３時４３分

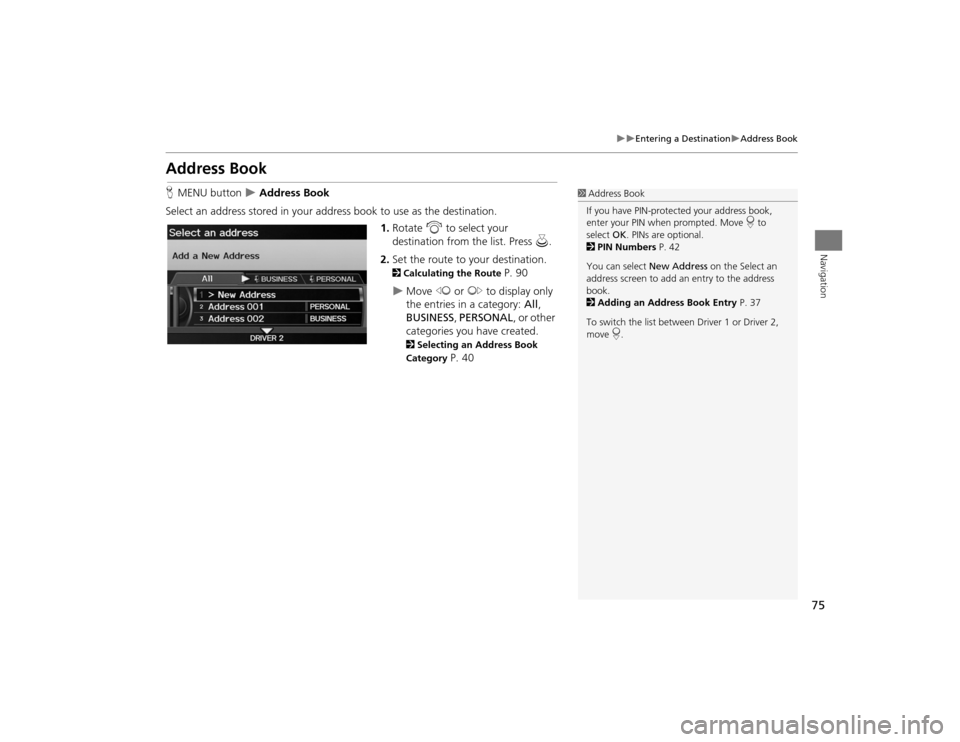

75

Entering a Destination
Address Book
Navigation
Address BookHMENU button
 Address Book
Select an address stored in your a ddress book to use as the destination.
1.Rotate i to select your
destination from the list. Press u.
2. Set the route to your destination.
2 Calculating the Route
P. 90

Move w or y to display only
the entries in a category: All,
BUSINESS , PERSONAL , or other
categories you have created. 2 Selecting an Address Book
Category
P. 40
1 Address Book
If you have PIN-protec ted your address book,
enter your PIN when prompted. Move r to
select OK. PINs are optional.
2 PIN Numbers P. 42
You can select New Address on the Select an
address screen to add an entry to the address
book.
2 Adding an Address Book Entry P. 37
To switch the list between Driver 1 or Driver 2,
move r.
TSX_KA-31TL1820.book 75 ページ ２０１１年６月２４日　金曜日　午後３時４３分

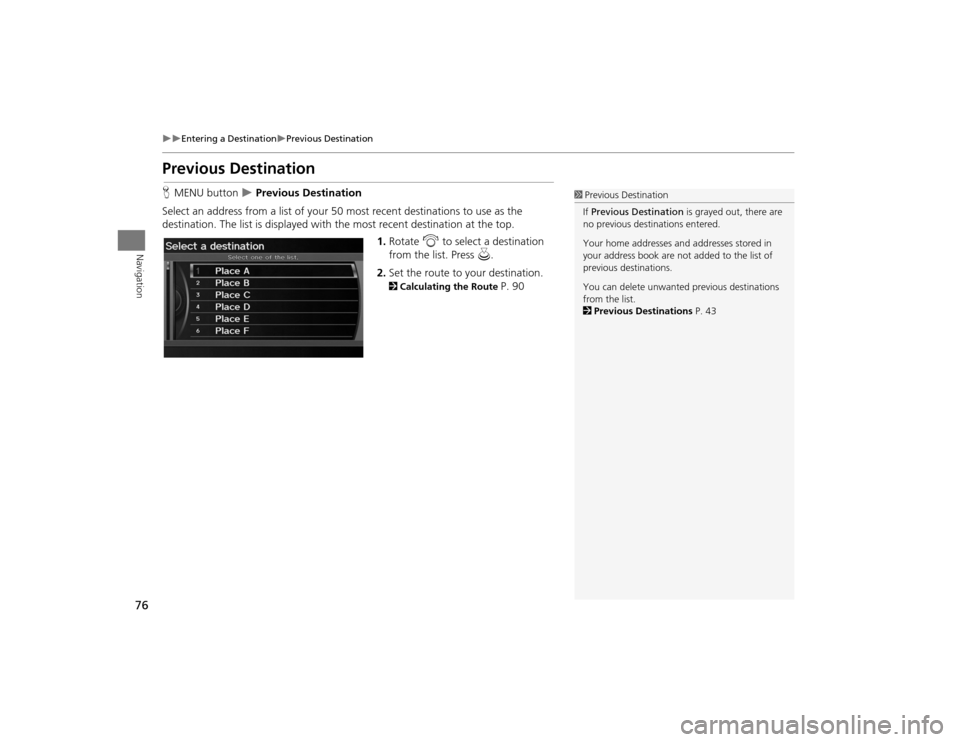

76

Entering a Destination
Previous Destination
Navigation
Previous DestinationHMENU button
 Previous Destination
Select an address from a list of your 50 most recent destinations to use as the
destination. The list is displayed with the most recent destination at the top.
1.Rotate i to select a destination
from the list. Press u.
2. Set the route to your destination.
2 Calculating the Route
P. 90
1Previous Destination
If Previous Destination is grayed out, there are
no previous destin ations entered.
Your home addresses and addresses stored in
your address book are not added to the list of
previous destinations.
You can delete unwanted previous destinations
from the list.
2 Previous Destinations P. 43
TSX_KA-31TL1820.book 76 ページ ２０１１年６月２４日　金曜日　午後３時４３分

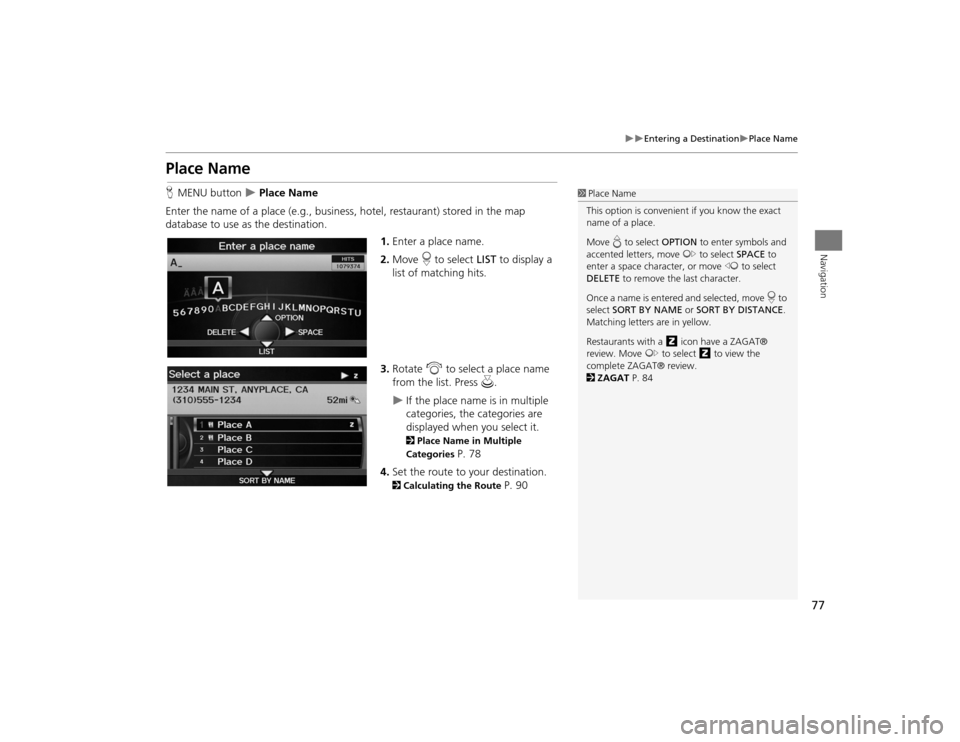

77

Entering a Destination
Place Name
Navigation
Place NameHMENU button
 Place Name
Enter the name of a place (e.g., busine ss, hotel, restaurant) stored in the map
database to use as the destination.
1.Enter a place name.
2. Move r to select LIST to display a
list of matching hits.
3. Rotate i to select a place name
from the list. Press u .

If the place name is in multiple
categories, the categories are
displayed when you select it. 2Place Name in Multiple
Categories
P. 78
4. Set the route to your destination.
2 Calculating the Route
P. 90
1Place Name
This option is convenient if you know the exact
name of a place.
Move e to select OPTION to enter symbols and
accented letters, move y to select SPACE to
enter a space character, or move w to select
DELETE to remove the last character.
Once a name is entered and selected, move r to
select SORT BY NAME or SORT BY DISTANCE .
Matching letters are in yellow.
Restaurants with a z icon have a ZAGAT®
review. Move y to select z to view the
complete ZAGAT® review.
2 ZAGAT P. 84
TSX_KA-31TL1820.book 77 ページ ２０１１年６月２４日　金曜日　午後３時４３分

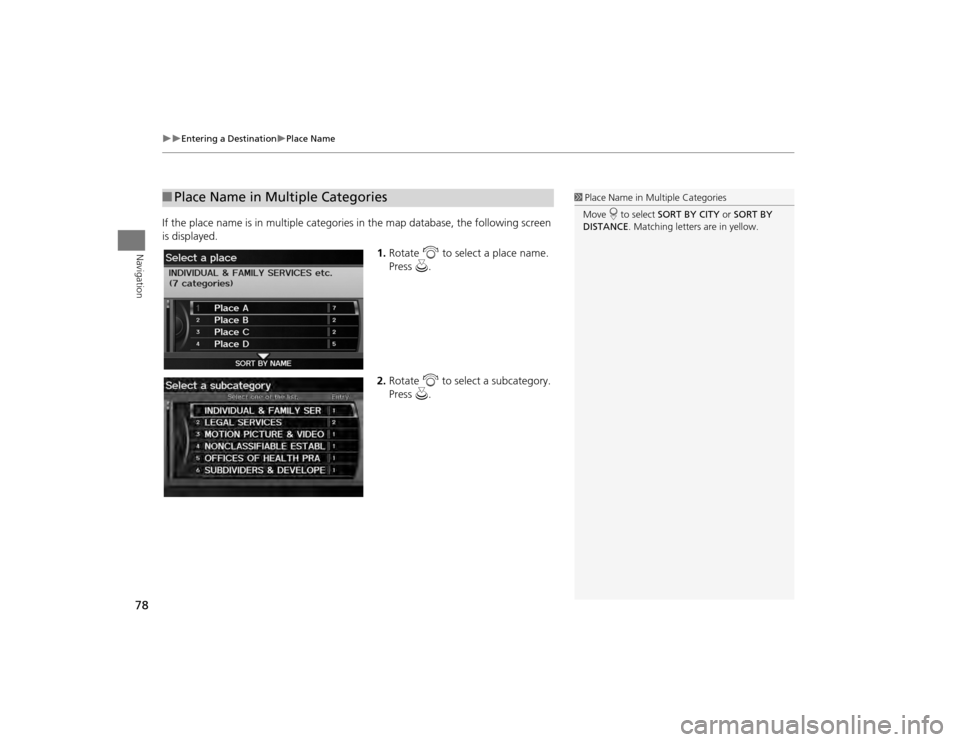

78

Entering a Destination
Place Name
Navigation
If the place name is in multiple categories in the map database, the following screen
is displayed.
1.Rotate i to select a place name.
Press u.
2. Rotate i to select a subcategory.
Press u.■Place Name in Multiple Categories
1 Place Name in Multiple Categories
Move r to select SORT BY CITY or SORT BY
DISTANCE . Matching letters are in yellow.
TSX_KA-31TL1820.book 78 ページ ２０１１年６月２４日　金曜日　午後３時４３分
