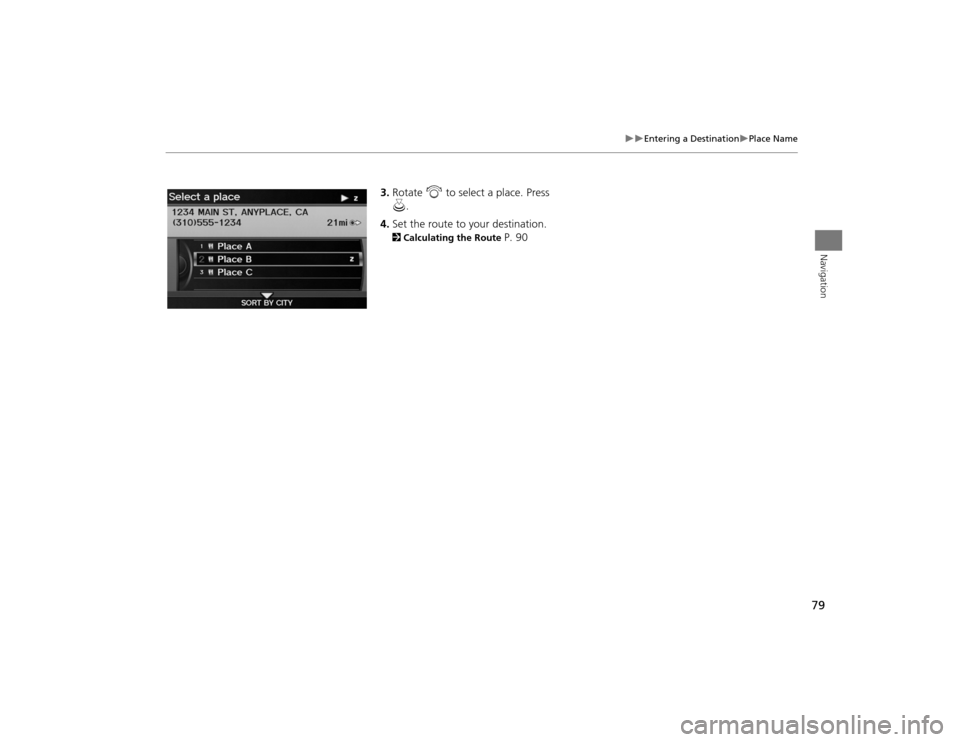

Acura TSX 2012 Navigation Manual

79

Entering a Destination
Place Name
Navigation
3.Rotate i to select a place. Press
u .
4. Set the route to your destination. 2 Calculating the Route
P. 90
TSX_KA-31TL1820.book 79 ページ ２０１１年６月２４日　金曜日　午後３時４３分

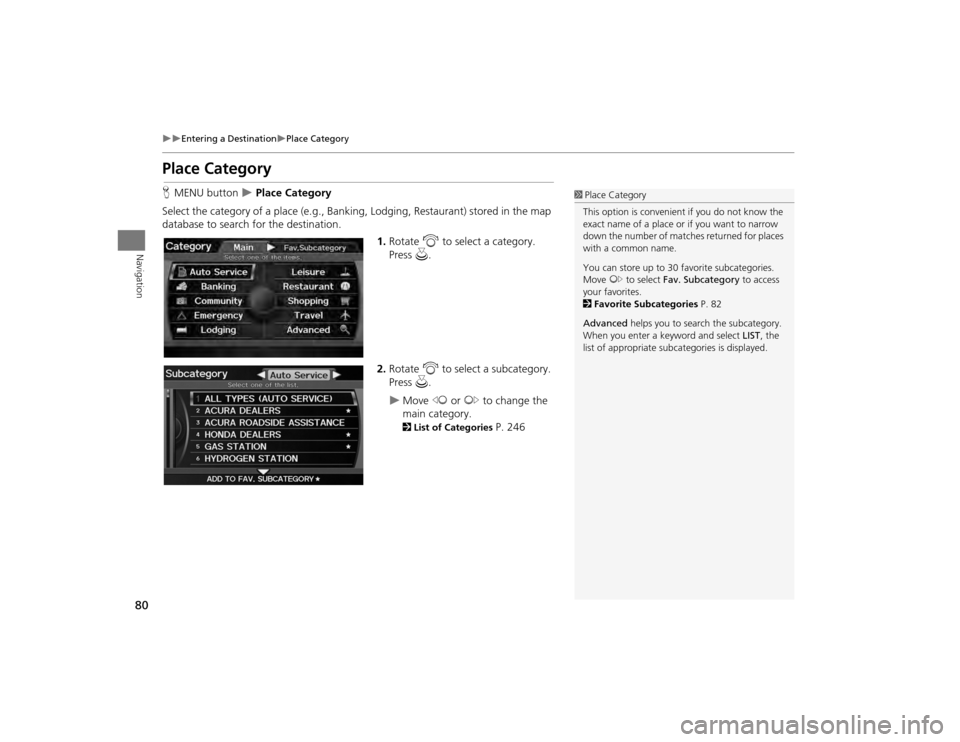

80

Entering a Destination
Place Category
Navigation
Place CategoryHMENU button
 Place Category
Select the category of a place (e.g., Banking, Lodging, Restaurant) stored in the map
database to search for the destination. 1.Rotate i to select a category.
Press u.
2. Rotate i to select a subcategory.
Press u.

Move w or y to change the
main category. 2 List of Categories
P. 246
1Place Category
This option is convenient if you do not know the
exact name of a place or if you want to narrow
down the number of matche s returned for places
with a common name.
You can store up to 30 fa vorite subcategories.
Move y to select Fav. Subcategory to access
your favorites.
2 Favorite Subcategories P. 82
Advanced helps you to search the subcategory.
When you enter a ke yword and select LIST, the
list of appropria te subcategories is displayed.
TSX_KA-31TL1820.book 80 ページ ２０１１年６月２４日　金曜日　午後３時４３分

81

Entering a Destination
Place Category
Navigation
3.Rotate i to select an item. Press
u .
The following items are available:
• Place Name : Searches for a place in the subcategory by name. Enter a city name
when prompted.
• City Vicinity : Searches for a place in the subcate gory within a 20-mile radius of a
specific city. Enter a city name and then a place name when prompted. Only the
first 1,000 matching places/landmarks are displayed.
• Sort by Distance to Travel : Displays all the places in the subcategory sorted by
distance from your current location. The closest place is displayed at the top.
• Search by Keyword : Searches for a place by keyw ord when you do not know the
exact category. Select Sort by Distance to Travel for locations near your current
location, or select City Vicinity for locations in a specific city. Enter a keyword
when prompted. Move r to select LIST to view a list of possible locations if one is
not found automatically.
1 Place Category
Sort by Distance to Travel
For locations sorted by dist ance to travel, you can
move r to select MORE to increase the scope of
the search. The number of locations increases to
100, 200, and up to 1000. When the number of
locations is 100 or less, you can increase the
scope to 500 miles, 1000 mile s, or the entire U.S.
Continued
TSX_KA-31TL1820.book 81 ページ ２０１１年６月２４日　金曜日　午後３時４３分

82

Entering a Destination
Place Category
Navigation
4.Rotate i to select a place name
from the list. Press u.
5. Set the route to your destination. 2 Calculating the Route
P. 90
H MENU button
 Place Category
 Fav. Subcategory
Store up to 30 favorite subcategories.
1 Place Category
The straight line distance (as the crow flies, not
driving distance) and dire ction to the destination
are shown for the highlighted place.
Restaurants with a z icon have a ZAGAT®
review. To display only restaurants with a
ZAGAT® review, select Restaurant > All Types
(Zagat Only) or say d “Zagat” .
2 Key to ZAGAT Ratings P. 206
■Favorite Subcategories
TSX_KA-31TL1820.book 82 ページ ２０１１年６月２４日　金曜日　午後３時４３分

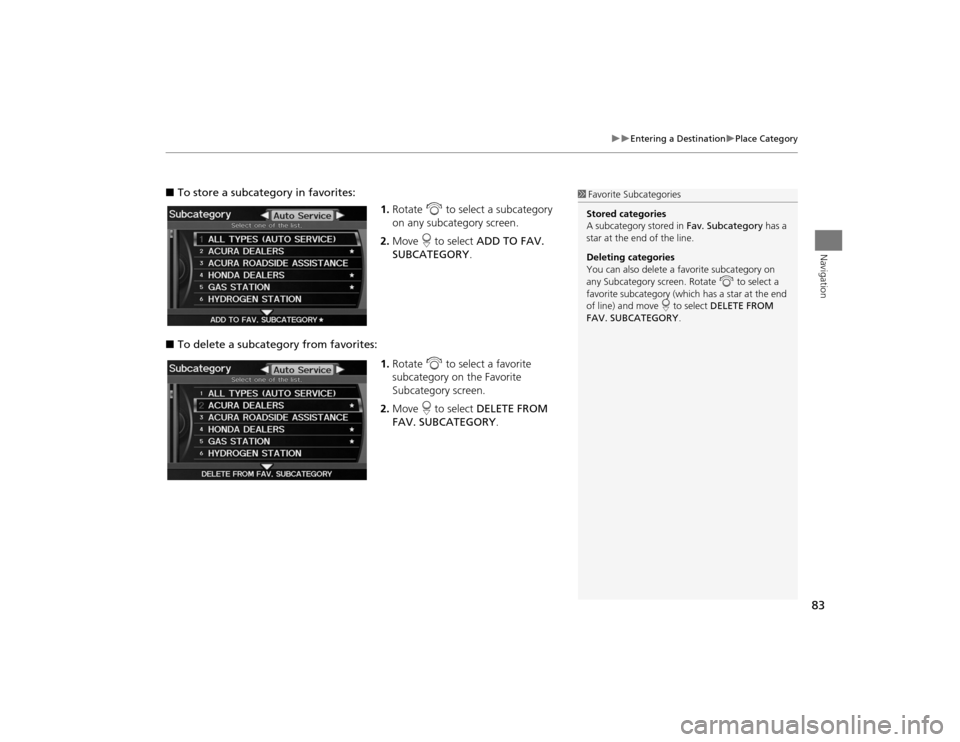

83

Entering a Destination
Place Category
Navigation
■To store a subcategory in favorites:
1.Rotate i to select a subcategory
on any subcategory screen.
2. Move r to select ADD TO FAV.
SUBCATEGORY .
■ To delete a subcategory from favorites:
1.Rotate i to select a favorite
subcategory on the Favorite
Subcategory screen.
2. Move r to select DELETE FROM
FAV. SUBCATEGORY .
1Favorite S ubcategories
Stored categories
A subcategory stored in Fav. Subcategory has a
star at the end of the line.
Deleting categories
You can also delete a favorite subcategory on
any Subcategory screen. Rotate i to select a
favorite subcategory (which has a star at the end
of line) and move r to select DELETE FROM
FAV. SUBCATEGORY .
TSX_KA-31TL1820.book 83 ページ ２０１１年６月２４日　金曜日　午後３時４３分

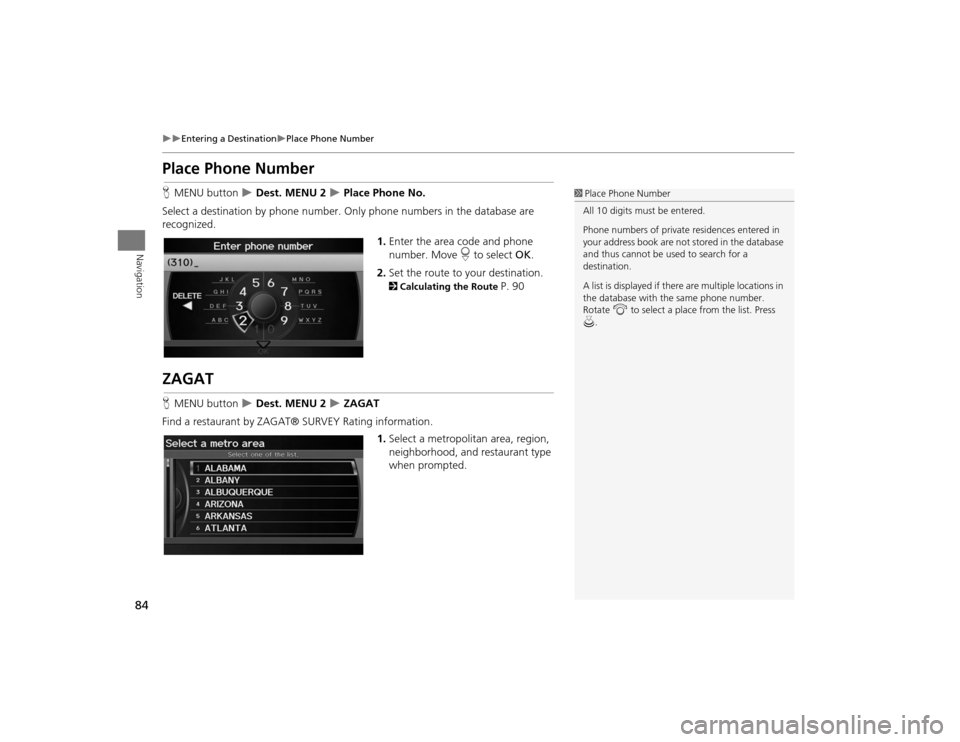

84

Entering a Destination
Place Phone Number
Navigation
Place Phone NumberHMENU button
 Dest. MENU 2
 Place Phone No.
Select a destination by phone number. On ly phone numbers in the database are
recognized.
1.Enter the area code and phone
number. Move r to select OK.
2. Set the route to your destination.
2 Calculating the Route
P. 90
ZAGATHMENU button
 Dest. MENU 2
 ZAGAT
Find a restaurant by ZAGAT® SURVEY Rating information. 1.Select a metropolitan area, region,
neighborhood, and restaurant type
when prompted.
1Place Phone Number
All 10 digits must be entered.
Phone numbers of private residences entered in
your address book are not stored in the database
and thus cannot be used to search for a
destination.
A list is displayed if there are multiple locations in
the database with the same phone number.
Rotate i to select a place from the list. Press
u .
TSX_KA-31TL1820.book 84 ページ ２０１１年６月２４日　金曜日　午後３時４３分

85

Entering a Destination
ZAGAT
Navigation
2.Rotate i to select the sort
method used to list the restaurants.
Press u.
The following options are available:
• Food, Decor, Service : Lists the restaurants by the rating value.
• Cost : Lists the restaurants by the average co st of a meal (including drink and tip).
3. Rotate i to select a restaurant.
Press u.
The ZAGAT® ratings are shown
across the top of the screen.

Move y to select z to view
the rating information.
4. Set the route to your destination.
2 Calculating the Route
P. 90
1ZAGAT®
Selecting this sorting method will show you
ZAGAT's highest-rated restaurants by the
options, and not necessari ly by distance from
your current location.
You can move y to select z (or say d
“ZAGAT List Number X,” where X is the list item
number) to view the complete ZAGAT® review.•Press u (or say d “Read List” ) to have the
system read the ZAGAT® review.•Move y to select ? (or say d “Key to ZAGAT
Rating” ) for details on the ra tings and symbols.
2 Key to ZAGAT Ratings P. 206•Scrolling through the review is disabled while
the vehicle is moving.•Move r to select OK to set the route to your
destination.
2 Calculating the Route P. 90
TSX_KA-31TL1820.book 85 ページ ２０１１年６月２４日　金曜日　午後３時４３分

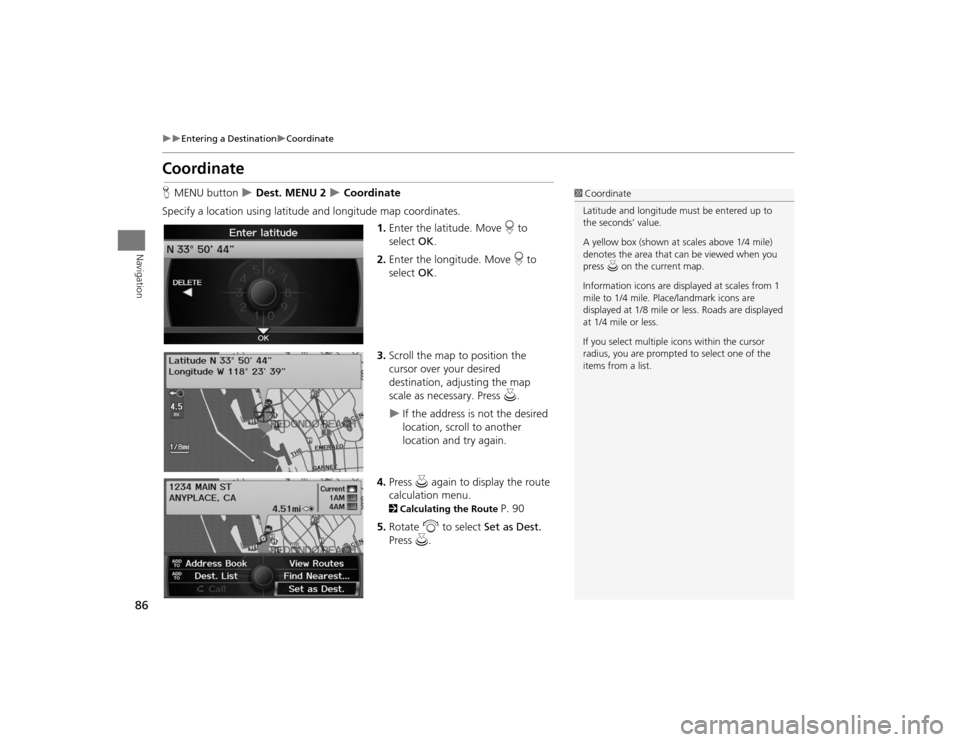

86

Entering a Destination
Coordinate
Navigation
CoordinateHMENU button
 Dest. MENU 2
 Coordinate
Specify a location using latitude and longitude map coordinates. 1.Enter the latitude. Move r to
select OK.
2. Enter the longitude. Move r to
select OK.
3. Scroll the map to position the
cursor over your desired
destination, adjusting the map
scale as necessary. Press u.

If the address is not the desired
location, scroll to another
location and try again.
4. Press u again to display the route
calculation menu.
2 Calculating the Route
P. 90
5. Rotate i to select Set as Dest.
Press u.
1Coordinate
Latitude and longitude mu st be entered up to
the seconds’ value.
A yellow box (shown at scales above 1/4 mile)
denotes the area that can be viewed when you
press u on the current map.
Information icons are disp layed at scales from 1
mile to 1/4 mile. Plac e/landmark icons are
displayed at 1/8 mile or less. Roads are displayed
at 1/4 mile or less.
If you select multiple icons within the cursor
radius, you are prompted to select one of the
items from a list.
TSX_KA-31TL1820.book 86 ページ ２０１１年６月２４日　金曜日　午後３時４３分

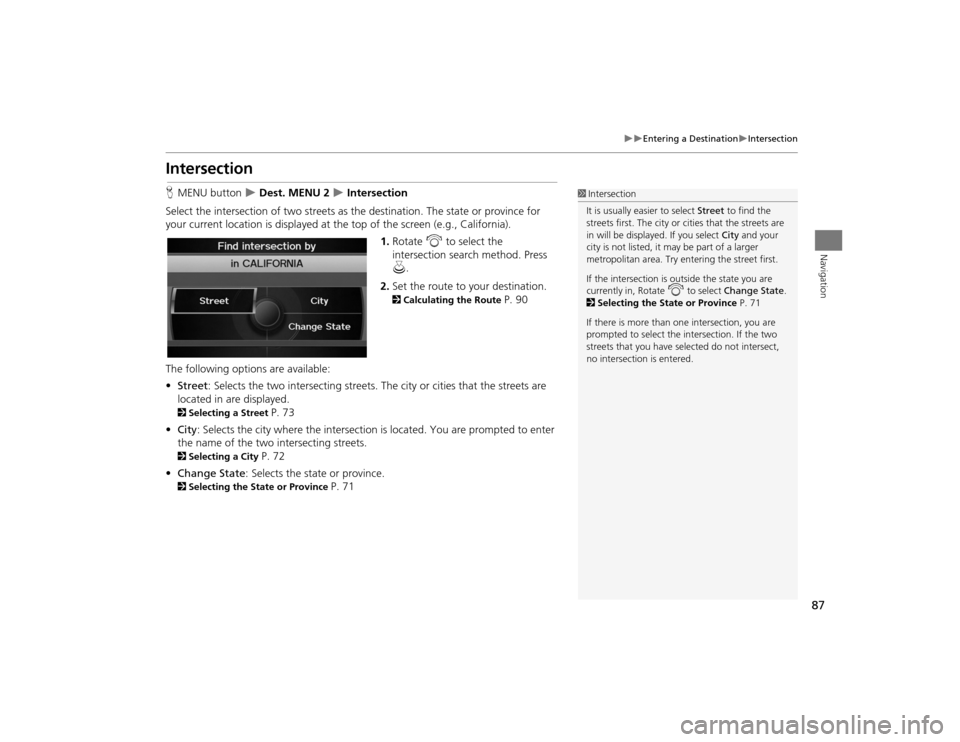

87

Entering a Destination
Intersection
Navigation
IntersectionHMENU button
 Dest. MENU 2
 Intersection
Select the intersection of two streets as the destination. The state or province for
your current location is displayed at the top of the screen (e.g., California).
1.Rotate i to select the
intersection search method. Press
u .
2. Set the route to your destination.
2 Calculating the Route
P. 90
The following options are available:
• Street : Selects the two intersecting streets. Th e city or cities that the streets are
located in are displayed.
2 Selecting a Street
P. 73
• City : Selects the city where the intersection is located. You are prompted to enter
the name of the two intersecting streets.
2 Selecting a City
P. 72
• Change State : Selects the state or province.
2Selecting the State or Province
P. 71
1Intersection
It is usually easier to select Street to find the
streets first. The city or cities that the streets are
in will be displaye d. If you select City and your
city is not listed, it ma y be part of a larger
metropolitan area. Try entering the street first.
If the intersection is outside the state you are
currently in, Rotate
i
to select Change State .
2 Selecting the State or Province P. 71
If there is more than one intersection, you are
prompted to select the intersection. If the two
streets that you have selected do not intersect,
no intersection is entered.
TSX_KA-31TL1820.book 87 ページ ２０１１年６月２４日　金曜日　午後３時４３分

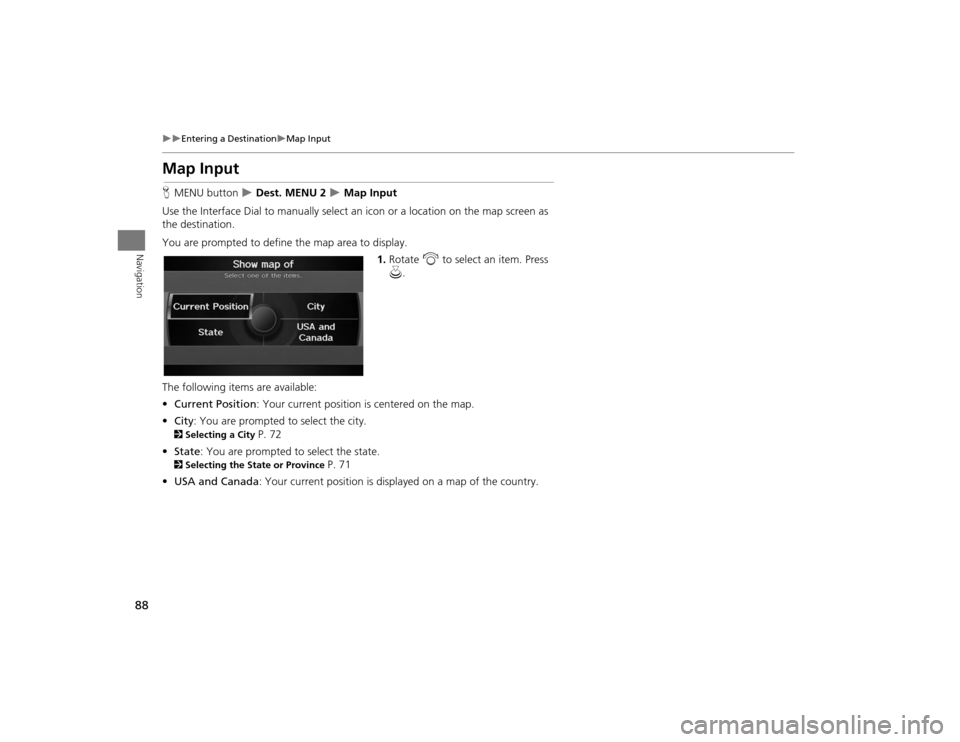

88

Entering a Destination
Map Input
Navigation
Map InputHMENU button
 Dest. MENU 2
 Map Input
Use the Interface Dial to manually select an icon or a location on the map screen as
the destination.
You are prompted to define the map area to display.
1.Rotate i to select an item. Press
u .
The following item s are available:
• Current Position : Your current position is centered on the map.
• City : You are prompted to select the city.
2Selecting a City
P. 72
• State : You are prompted to select the state.
2Selecting the State or Province
P. 71
• USA and Canada : Your current position is displayed on a map of the country.
TSX_KA-31TL1820.book 88 ページ ２０１１年６月２４日　金曜日　午後３時４３分
