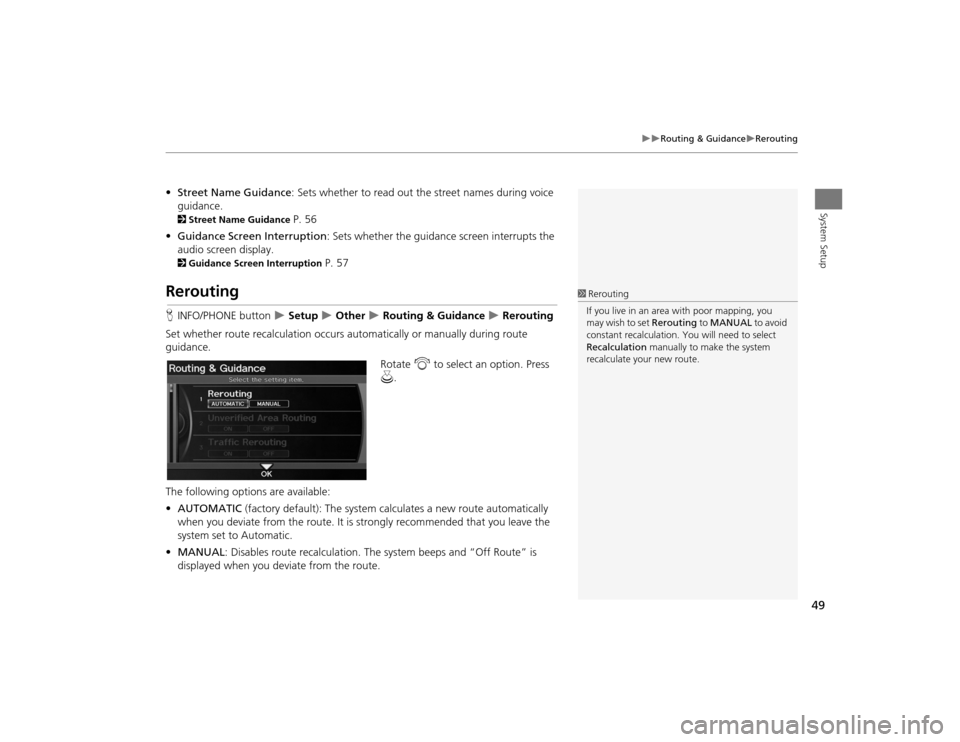

49

Routing & Guidance
Rerouting
System Setup
•Street Name Guidance : Sets whether to read out the street names during voice
guidance. 2 Street Name Guidance
P. 56
• Guidance Screen Interruption: Sets whether the guidanc e screen interrupts the
audio screen display.
2 Guidance Screen Interruption
P. 57
ReroutingHINFO/PHONE button
 Setup
 Other
 Routing & Guidance
 Rerouting
Set whether route recalculat ion occurs automatically or manually during route
guidance.
Rotate i to select an option. Press
u .
The following options are available:
• AUTOMATIC (factory default): The system ca lculates a new route automatically
when you deviate from the route. It is strongly recommended that you leave the
system set to Automatic.
• MANUAL : Disables route recalculation. Th e system beeps and “Off Route” is
displayed when you deviate from the route.
1 Rerouting
If you live in an area with poor mapping, you
may wish to set Rerouting to MANUAL to avoid
constant recalcul ation. You will need to select
Recalculation manually to make the system
recalculate your new route.
TSX_KA-31TL1820.book 49 ページ ２０１１年６月２４日　金曜日　午後３時４３分

50

Routing & Guidance
Unverified Area Routing
System Setup
Unverified Area RoutingHINFO/PHONE button
 Setup
 Other
 Routing & Guidance
 Unverified
Area Routing
Receive turn-by-turn map and voice guidance in unverified areas. Rotate i to select ON or OFF . Press
u .
1Unverified Area Routing
Unverified roads are found in rural areas, and
typically include residential streets away from the
center of a town. They may not be accurate, and
can contain errors in location, naming, and
address range.
Unverified roads are s hown only when viewing
the map in the 1/20, 1/8 and 1/4 mile map
scales.
Vector line (dotted)
Blue-pink route line
Differences OFF (factory default) ONON or OFF?
The driver wishes to manually
navigate using the navigation map
and choose the streets that lead to
the destination.
The driver chooses to let the
navigation system suggest
possible routing, knowing that the
guidance may not be accurate.
Route
calculation Route is usually longer, using
verified roads whenever possible. Route is shorter, but uses
unverified (purple) streets that
may not be accurate.
Route line
A blue dotted vector line is displayed
on the map that continually points
to your destination.
A blue-pink dashed route line
highlights suggested unverified
streets on the map while traveling
to your destination.
Cautionary
messages Cautionary pop-up screens and
voice announcements remind you to
obey all traffic restrictions. Cautionary pop-up screens and
voice announcements remind you
to exercise additional caution and
obey all traffic restrictions.
TSX_KA-31TL1820.book 50 ページ ２０１１年６月２４日　金曜日　午後３時４３分

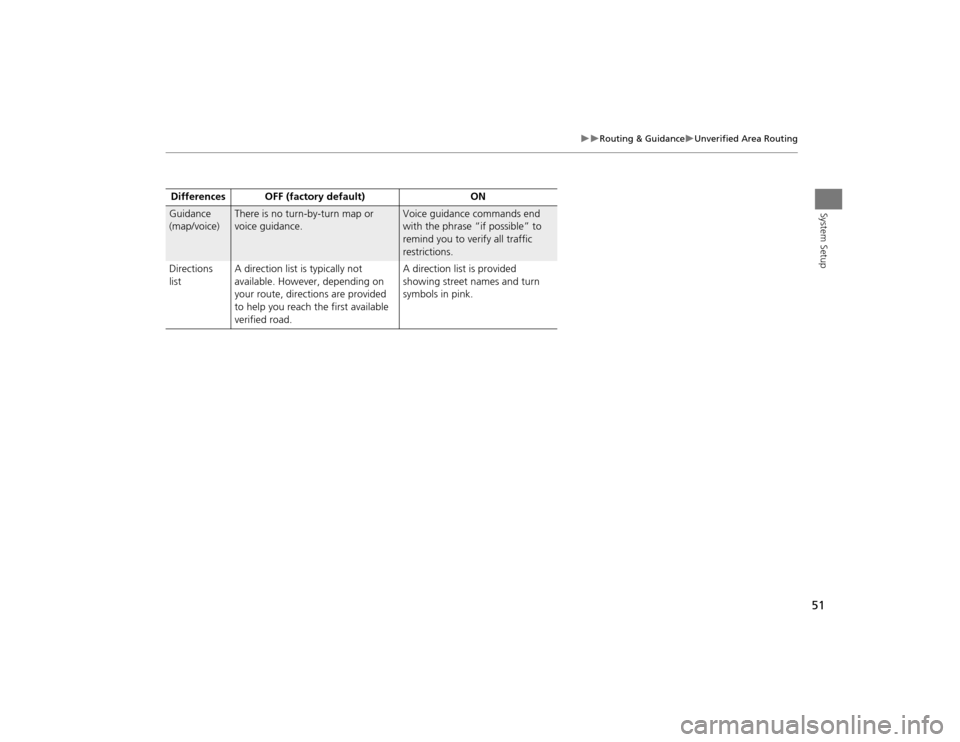

51

Routing & Guidance
Unverified Area Routing
System Setup
Guidance
(map/voice)
There is no turn-by-turn map or
voice guidance.
Voice guidance commands end
with the phrase “if possible” to
remind you to verify all traffic
restrictions.
Directions
list A direction list is typically not
available. However, depending on
your route, directions are provided
to help you reach the first available
verified road. A direction list is provided
showing street names and turn
symbols in pink.
Differences OFF (factory default) ON
TSX_KA-31TL1820.book 51 ページ ２０１１年６月２４日　金曜日　午後３時４３分

52

Routing & Guidance
Traffic Rerouting
System Setup
Traffic ReroutingHINFO/PHONE button
 Setup
 Other
 Routing & Guidance
 Traffic
Rerouting
A faster route can be calculated based on continuously updated traffic information.
2Traffic Rerouting™
P. 119
Rotate i to select an option. Press
u .
The following options are available:
• ON : The system reroutes automati cally based on traffic information.
• OFF (factory default): Disables the feature.
1Traffic Rerouting
Traffic Rerouting requires an AcuraLink Real-
Time Traffic™ subscription.
2 AcuraLink Real-Time Traffic™ P. 15
2 Subscribing to XM® Radio P. 144
Automatic traffic rerouting may not provide a
detour route dependi ng on circumstances.
TSX_KA-31TL1820.book 52 ページ ２０１１年６月２４日　金曜日　午後３時４３分

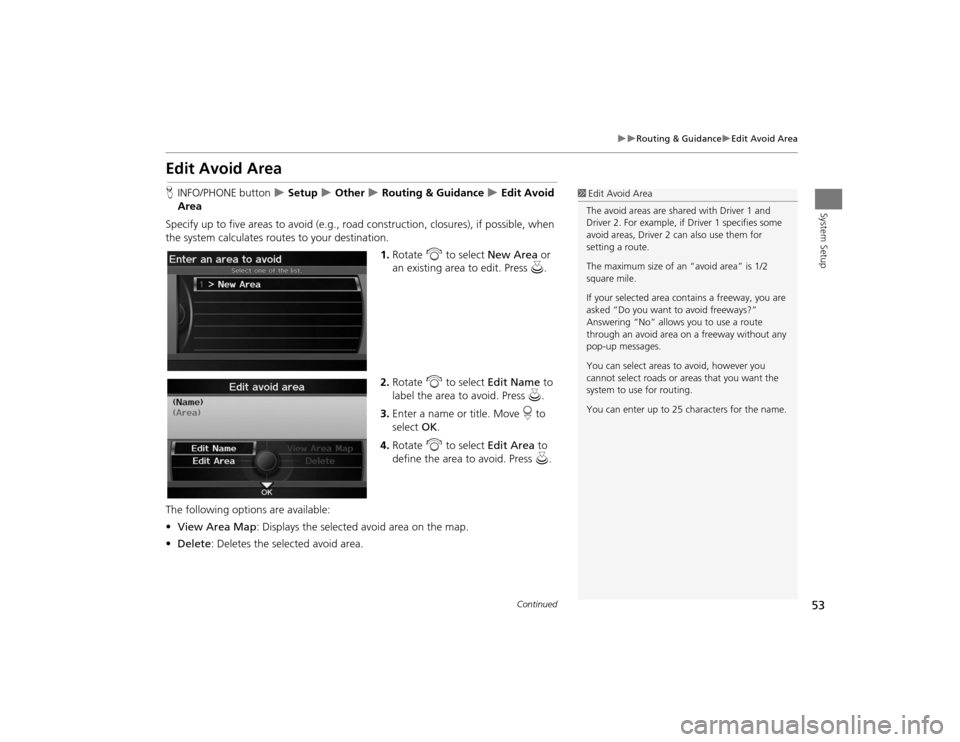

53

Routing & Guidance
Edit Avoid Area
System Setup
Edit Avoid AreaHINFO/PHONE button
 Setup
 Other
 Routing & Guidance
 Edit Avoid
Area
Specify up to five areas to avoid (e.g., road construction, closures), if possible, when
the system calculates routes to your destination.
1.Rotate i to select New Area or
an existing area to edit. Press u.
2. Rotate i to select Edit Name to
label the area to avoid. Press u.
3. Enter a name or title. Move r to
select OK.
4. Rotate i to select Edit Area to
define the area to avoid. Press u.
The following options are available:
• View Area Map: Displays the selected avoid area on the map.
• Delete : Deletes the selected avoid area.
1Edit Avoid Area
The avoid areas are shared with Driver 1 and
Driver 2. For example, if Driver 1 specifies some
avoid areas, Driver 2 can also use them for
setting a route.
The maximum size of an “avoid area” is 1/2
square mile.
If your selected area contains a freeway, you are
asked “Do you want to avoid freeways?”
Answering “No” allows you to use a route
through an avoid area on a freeway without any
pop-up messages.
You can select areas to avoid, however you
cannot select roads or areas that you want the
system to use for routing.
You can enter up to 25 ch aracters for the name.
Continued
TSX_KA-31TL1820.book 53 ページ ２０１１年６月２４日　金曜日　午後３時４３分

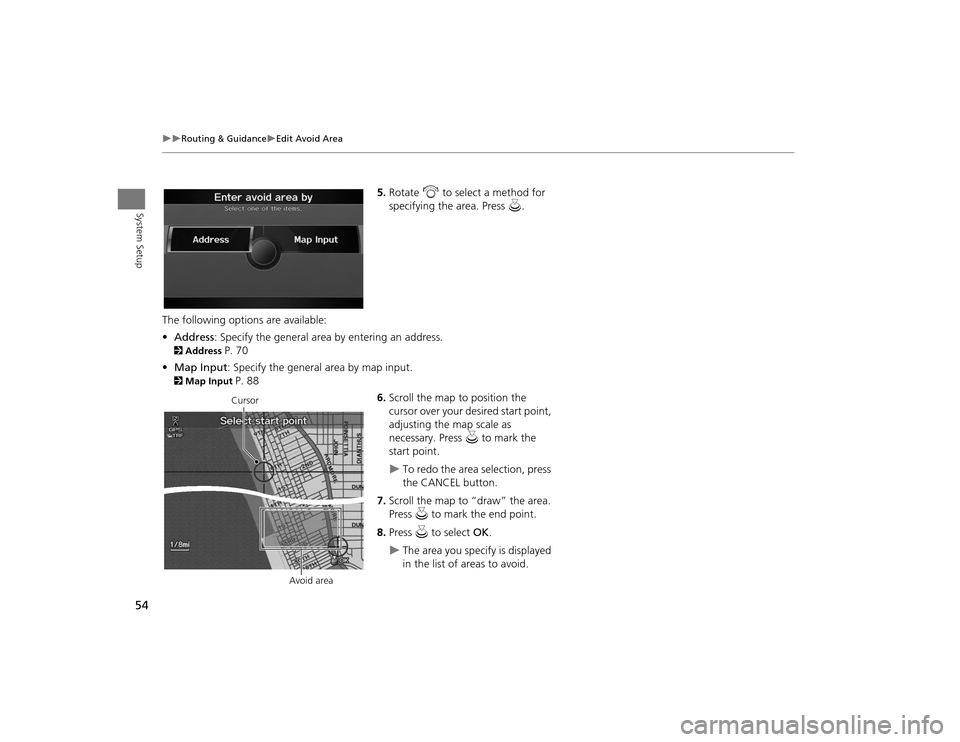

54

Routing & Guidance
Edit Avoid Area
System Setup
5.Rotate i to select a method for
specifying the area. Press u.
The following options are available:
• Address : Specify the general area by entering an address.
2Address
P. 70
• Map Input : Specify the general area by map input.
2Map Input
P. 88
6.Scroll the map to position the
cursor over your desired start point,
adjusting the map scale as
necessary. Press u to mark the
start point.

To redo the area selection, press
the CANCEL button.
7. Scroll the map to “draw” the area.
Press u to mark the end point.
8. Press u to select OK.

The area you specify is displayed
in the list of areas to avoid.
Cursor
Avoid area
TSX_KA-31TL1820.book 54 ページ ２０１１年６月２４日　金曜日　午後３時４３分

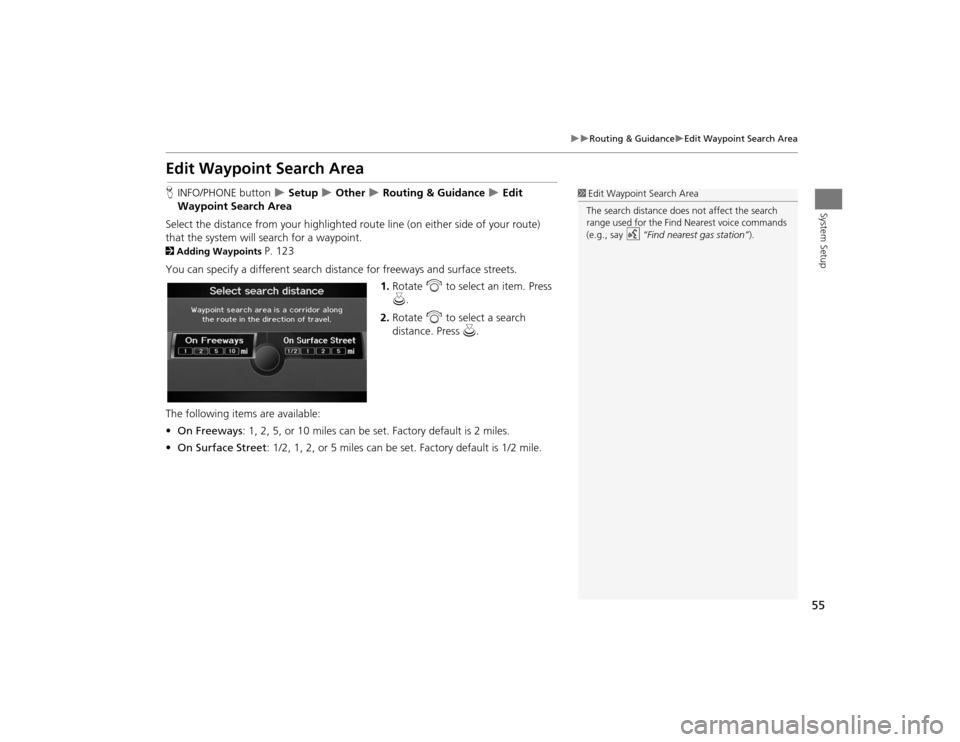

55

Routing & Guidance
Edit Waypoint Search Area
System Setup
Edit Waypoint Search AreaHINFO/PHONE button
 Setup
 Other
 Routing & Guidance
 Edit
Waypoint Search Area
Select the distance from your highlighted ro ute line (on either side of your route)
that the system will search for a waypoint.
2 Adding Waypoints
P. 123
You can specify a different search distance for freeways and surface streets. 1.Rotate i to select an item. Press
u .
2. Rotate i to select a search
distance. Press u.
The following items are available:
• On Freeways : 1, 2, 5, or 10 miles can be set. Factory default is 2 miles.
• On Surface Street : 1/2, 1, 2, or 5 miles can be set. Factory default is 1/2 mile.
1Edit Waypoint Search Area
The search distance does not affect the search
range used for the Find Nearest voice commands
(e.g., say
d
“Find nearest gas station” ).
TSX_KA-31TL1820.book 55 ページ ２０１１年６月２４日　金曜日　午後３時４３分

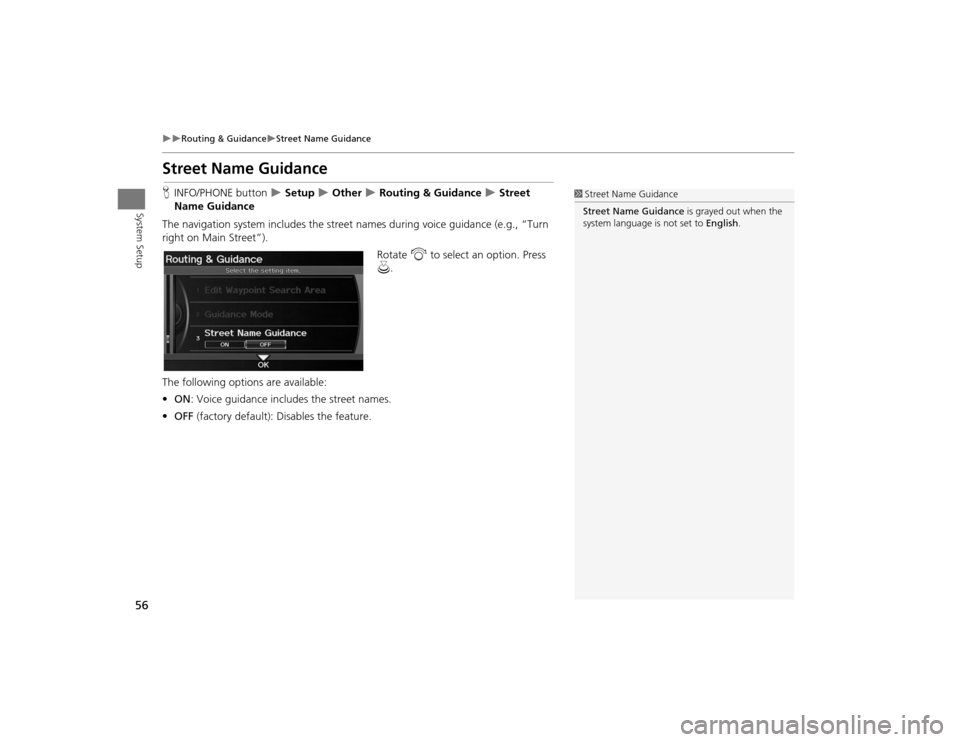

56

Routing & Guidance
Street Name Guidance
System Setup
Street Name GuidanceHINFO/PHONE button
 Setup
 Other
 Routing & Guidance
 Street
Name Guidance
The navigation system includes the street names during voice guidance (e.g., “Turn
right on Main Street”).
Rotate i to select an option. Press
u .
The following options are available:
• ON : Voice guidance includes the street names.
• OFF (factory default): Disables the feature.
1Street Name Guidance
Street Name Guidance is grayed out when the
system language is not set to English.
TSX_KA-31TL1820.book 56 ページ ２０１１年６月２４日　金曜日　午後３時４３分

57

Routing & Guidance
Guidance Screen Interruption
System Setup
Guidance Screen InterruptionHINFO/PHONE button
 Setup
 Other
 Routing & Guidance
 Guidance
Screen Interruption
The navigation system temporarily interrupt s the audio screen display to view the
guidance screen as you approach a guidance point.
Rotate i to select an option. Press
u .
The following options are available:
• ON : The guidance screen interrupts the audio screen.
• OFF (factory default): Disables the feature.
TSX_KA-31TL1820.book 57 ページ ２０１１年６月２４日　金曜日　午後３時４３分

58System Setup
Clock AdjustmentHINFO/PHONE button
 Setup
 Other
 Clock Adjustment
Set the automatic adjustment of the system clock for daylight saving and
international time zones.
Rotate i to select an item. Press u.
The following item s are available:
• Auto Daylight : The navigation system automati cally adjusts the clock (“spring
ahead” or “fall back” by one hour) when a daylight saving time change occurs.
ON (factory default): Adjust s the clock automatically.
OFF : Disables the feature.
• Auto Time Zone : The navigation system automati cally adjusts the clock when
driving through different time zones.
ON (factory default): Adjust s the clock automatically.
OFF : Disables the feature.
• ADJUST TIME : Adjust the current time manually.
2Adjust Time
P. 59
• Reset : Reset the clock settings to the factory default.
2Resetting the Clock Settings
P. 59
1Clock Adjustment
You can check the time and date from any
screen using voice commands.
2 Global Commands P. 236
Auto Daylight
This function is not activated in areas that have
not adopted daylight saving time, even if you
have set Auto Daylight to ON .
Auto Time Zone
If you live and work in two different time zones,
you may want to turn Auto Time Zone to OFF.
When driving near a time zone boundary, the
displayed time zone ma y fluctuate between the
two zone times.
