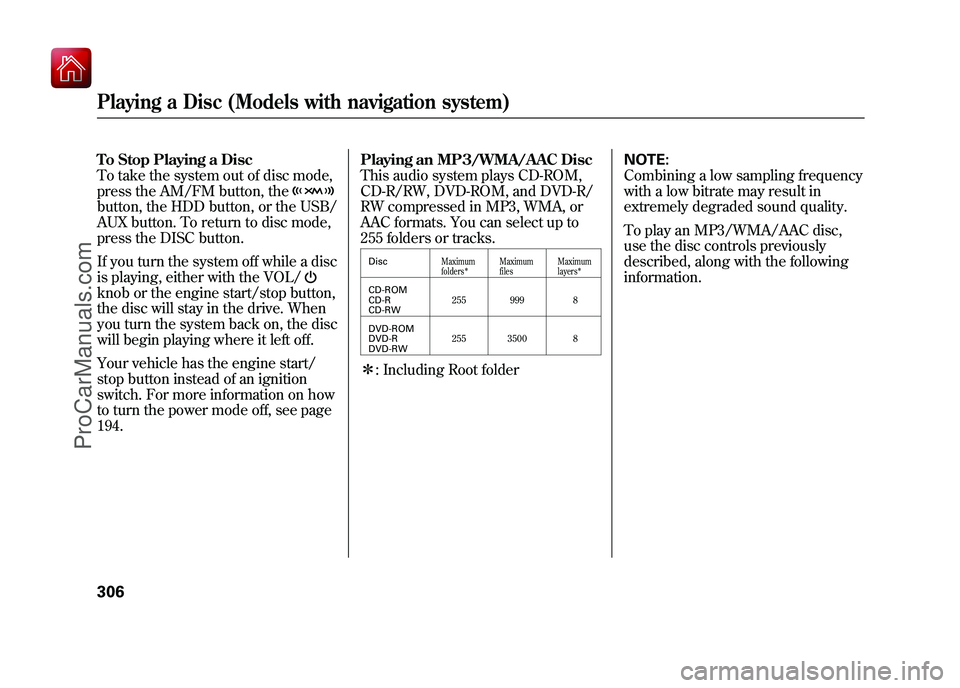

To Stop Playing a Disc
To take the system out of disc mode,
press the AM/FM button, thebutton, the HDD button, or the USB/
AUX button. To return to disc mode,
press the DISC button.
If you turn the system off while a disc
is playing, either with the VOL/knob or the engine start/stop button,
the disc will stay in the drive. When
you turn the system back on, the disc
will begin playing where it left off.
Your vehicle has the engine start/
stop button instead of an ignition
switch. For more information on how
to turn the power mode off, see page
194.Playing an MP3/WMA/AAC Disc
This audio system plays CD-ROM,
CD-R/RW, DVD-ROM, and DVD-R/
RW compressed in MP3, WMA, or
AAC formats. You can select up to
255 folders or tracks.
Disc
Maximum
folders
ꭧ
Maximum
files
Maximum
layers
ꭧ
CD-ROM
CD-R
CD-RW 255 999 8
DVD-ROM
DVD-R
DVD-RW 255 3500 8ꭧ
: Including Root folder NOTE:
Combining a low sampling frequency
with a low bitrate may result in
extremely degraded sound quality.
To play an MP3/WMA/AAC disc,
use the disc controls previously
described, along with the following
information.
Playing a Disc (Models with navigation system)30609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

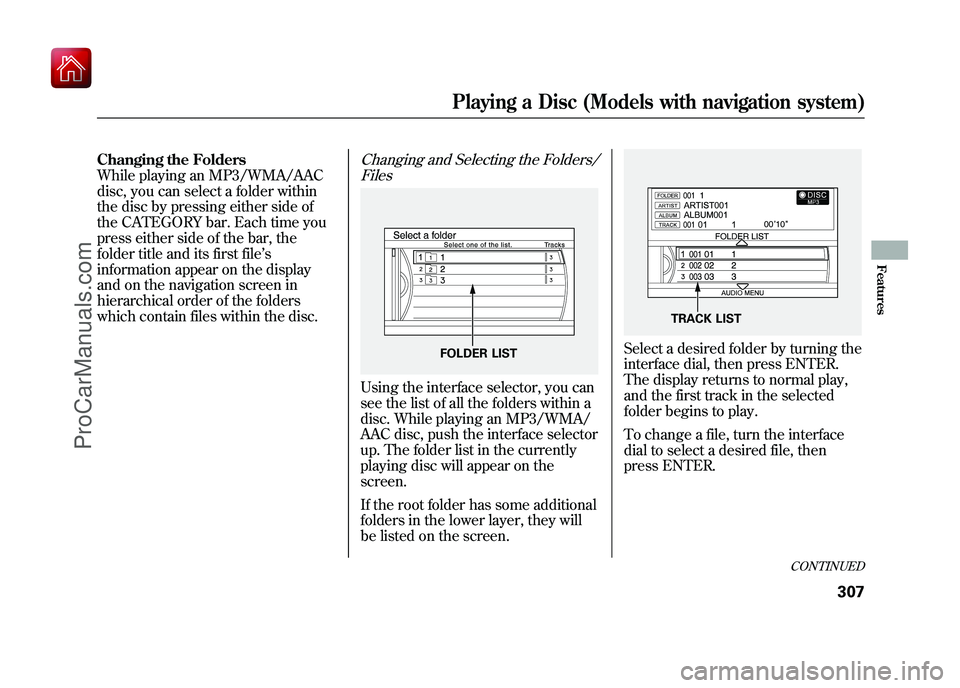

Changing the Folders
While playing an MP3/WMA/AAC
disc, you can select a folder within
the disc by pressing either side of
the CATEGORY bar. Each time you
press either side of the bar, the
folder title and its first file’s
information appear on the display
and on the navigation screen in
hierarchical order of the folders
which contain files within the disc.
Changing and Selecting the Folders/ FilesUsing the interface selector, you can
see the list of all the folders within a
disc. While playing an MP3/WMA/
AAC disc, push the interface selector
up. The folder list in the currently
playing disc will appear on the
screen.
If the root folder has some additional
folders in the lower layer, they will
be listed on the screen.
Select a desired folder by turning the
interface dial, then press ENTER.
The display returns to normal play,
and the first track in the selected
folder begins to play.
To change a file, turn the interface
dial to select a desired file, then
press ENTER.
FOLDER LIST
TRACK LIST
CONTINUED
Playing a Disc (Models with navigation system)
307
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

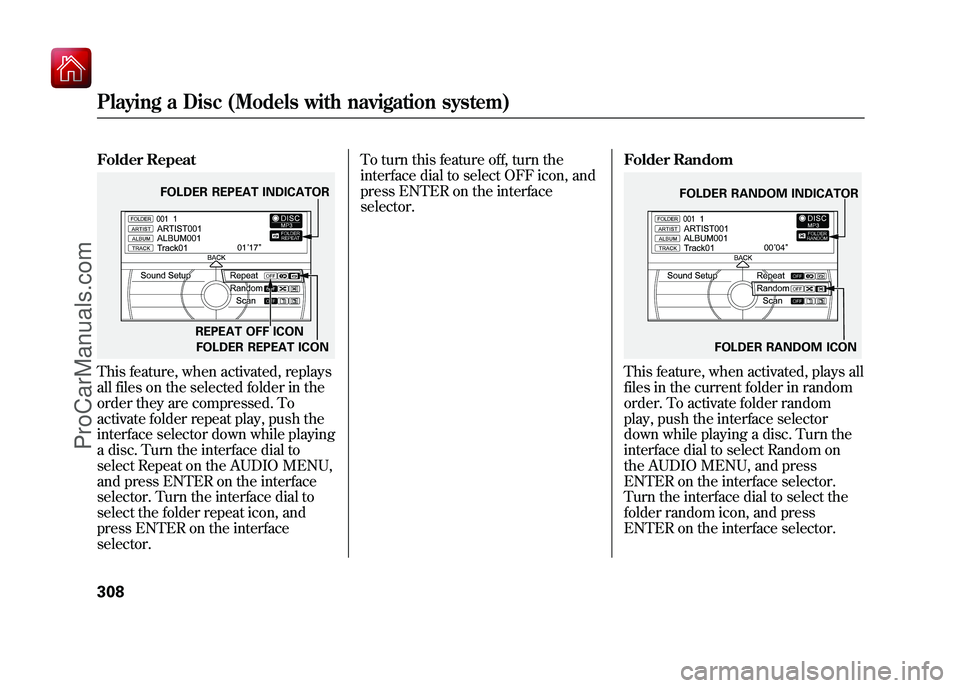

Folder RepeatThis feature, when activated, replays
all files on the selected folder in the
order they are compressed. To
activate folder repeat play, push the
interface selector down while playing
a disc. Turn the interface dial to
select Repeat on the AUDIO MENU,
and press ENTER on the interface
selector. Turn the interface dial to
select the folder repeat icon, and
press ENTER on the interface
selector.To turn this feature off, turn the
interface dial to select OFF icon, and
press ENTER on the interface
selector.
Folder Random
This feature, when activated, plays all
files in the current folder in random
order. To activate folder random
play, push the interface selector
down while playing a disc. Turn the
interface dial to select Random on
the AUDIO MENU, and press
ENTER on the interface selector.
Turn the interface dial to select the
folder random icon, and press
ENTER on the interface selector.
FOLDER REPEAT INDICATOR
REPEAT OFF ICONFOLDER REPEAT ICON
FOLDER RANDOM INDICATOR
FOLDER RANDOM ICON
Playing a Disc (Models with navigation system)30809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

To turn this feature off, turn the
interface dial to select OFF icon, and
press ENTER on the interface

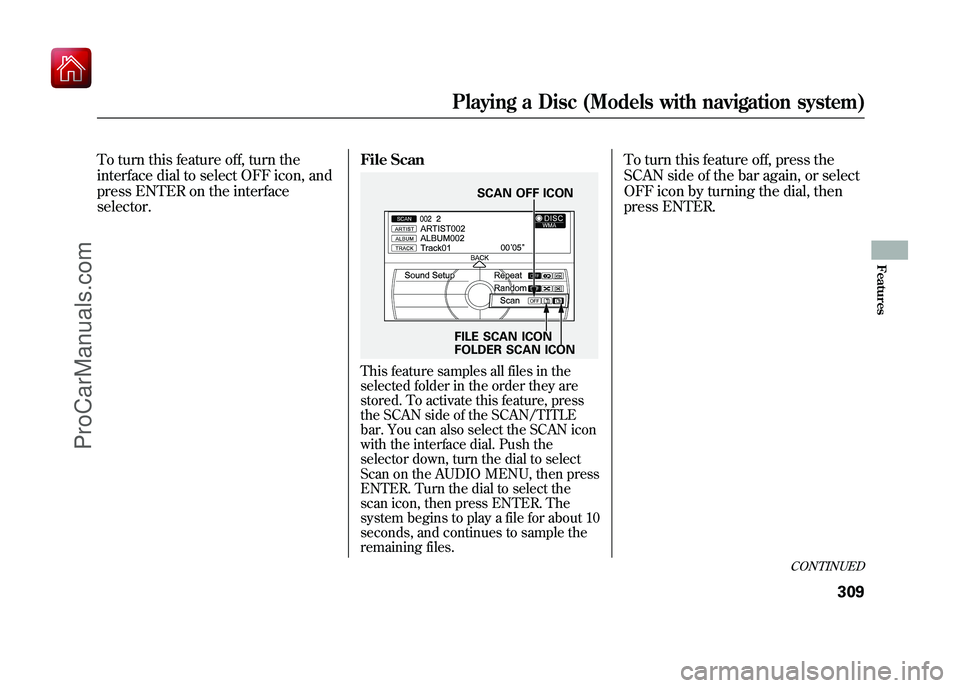

selector.File Scan
This feature samples all files in the
selected folder in the order they are
stored. To activate this feature, press
the SCAN side of the SCAN/TITLE
bar. You can also select the SCAN icon
with the interface dial. Push the
selector down, turn the dial to select
Scan on the AUDIO MENU, then press
ENTER. Turn the dial to select the
scan icon, then press ENTER. The
system begins to play a file for about 10
seconds, and continues to sample the
remaining files.
To turn this feature off, press the
SCAN side of the bar again, or select
OFF icon by turning the dial, then
press ENTER.
SCAN OFF ICON
FILE SCAN ICON
FOLDER SCAN ICON
CONTINUED
Playing a Disc (Models with navigation system)
309
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

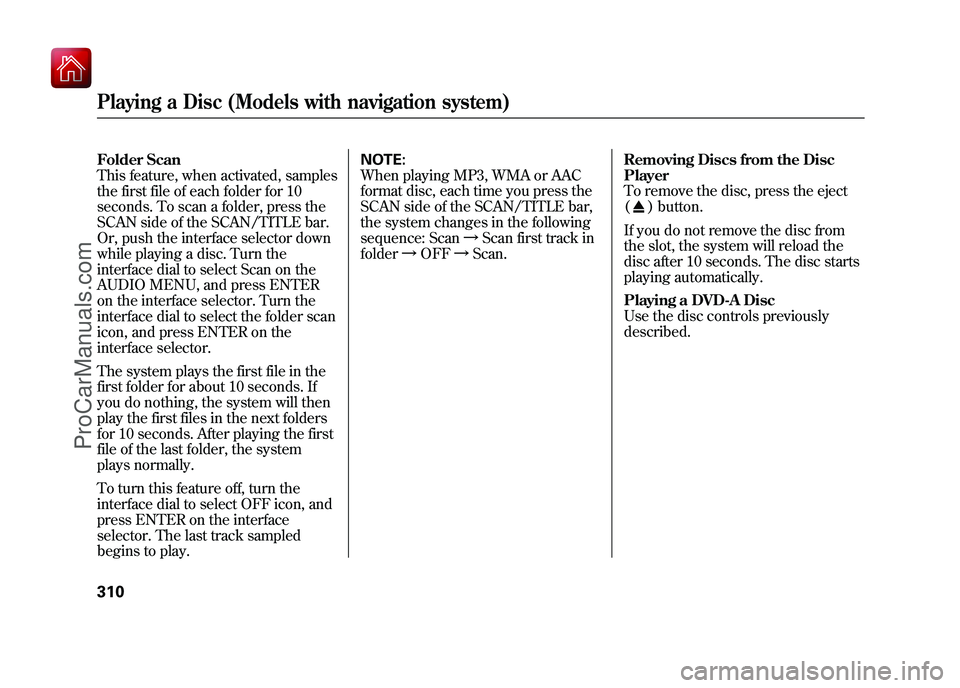

Folder Scan
This feature, when activated, samples
the first file of each folder for 10
seconds. To scan a folder, press the
SCAN side of the SCAN/TITLE bar.
Or, push the interface selector down
while playing a disc. Turn the
interface dial to select Scan on the
AUDIO MENU, and press ENTER
on the interface selector. Turn the
interface dial to select the folder scan
icon, and press ENTER on the
interface selector.
The system plays the first file in the
first folder for about 10 seconds. If
you do nothing, the system will then
play the first files in the next folders
for 10 seconds. After playing the first
file of the last folder, the system
plays normally.
To turn this feature off, turn the
interface dial to select OFF icon, and
press ENTER on the interface
selector. The last track sampled
begins to play.NOTE:
When playing MP3, WMA or AAC
format disc, each time you press the
SCAN side of the SCAN/TITLE bar,
the system changes in the following
sequence: Scan
ꭟScan first track in
folder ꭟOFF ꭟScan. Removing Discs from the Disc
Player
To remove the disc, press the eject
(
) button.
If you do not remove the disc from
the slot, the system will reload the
disc after 10 seconds. The disc starts
playing automatically.
Playing a DVD-A Disc
Use the disc controls previously
described.
Playing a Disc (Models with navigation system)31009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

The chart on the right explains the
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page 366.
The audio system will try to play the
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the
disc. Insert a different disc. If the
new disc plays, there is a problem
with the first disc. If the error
message cycle repeats and you
cannot clear it, take your vehicle to a
dealer.
Error
Message Cause SolutionBAD DISC
PLEASE CHECK OWNER'SMANUAL Servo Error
Press the eject button and pull out the disc. Check
the disc for serious damage, signs of deformation,
excessive scratches, and/or dirt (see page 366 ).
Insert the disc again. If the code does not
disappear, or the disc cannot be removed, consult
your dealer. Do not try to force the disc out of the
player.
BAD DISC
PLEASE CHECK OWNER'SMANUAL
PUSH EJECT Mechanical Error
MECH ERROR CHECK DISC FOCUS Error
DISC violates copyright
Disc not supported
CHECK DISC LOAD Load Error
UNSUPPORTED Track/File format not supported Current track will be skipped. The next supported
track or file plays automatically.
HEAT ERROR High Temperature Will disappear when the temperature returns to
normal.
Disc Player Error Messages (Models with navigation system)
311
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

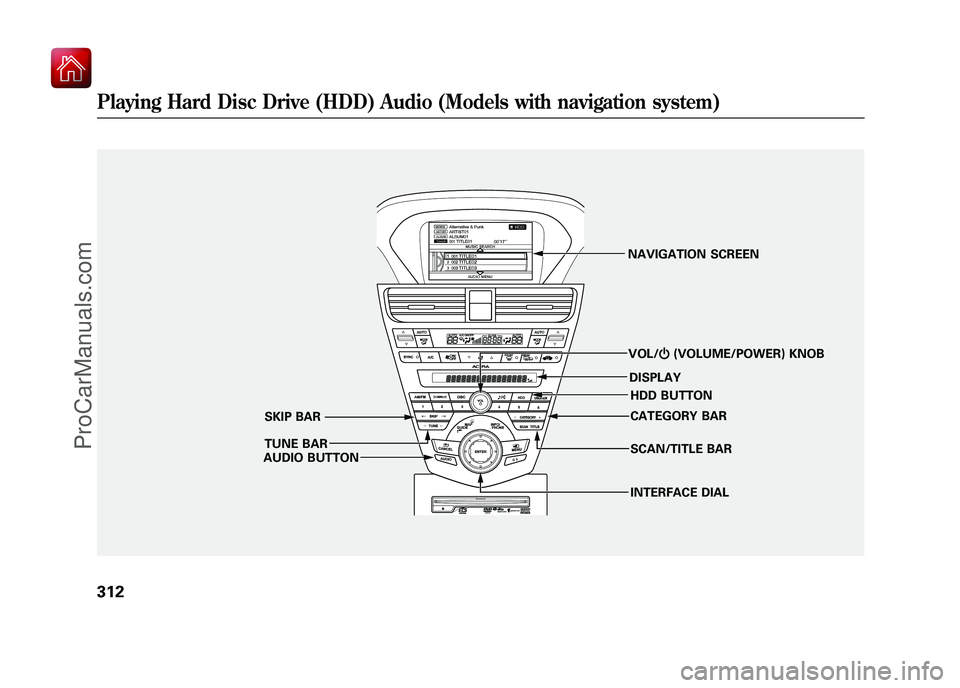

SCAN/TITLE BAR
VOL/
ꂻ(VOLUME/POWER) KNOB
TUNE BAR SKIP BAR
AUDIO BUTTON CATEGORY BAR
NAVIGATION SCREEN
DISPLAYHDD BUTTON
INTERFACE DIAL
Playing Hard Disc Drive (HDD) Audio (Models with navigation system)31209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

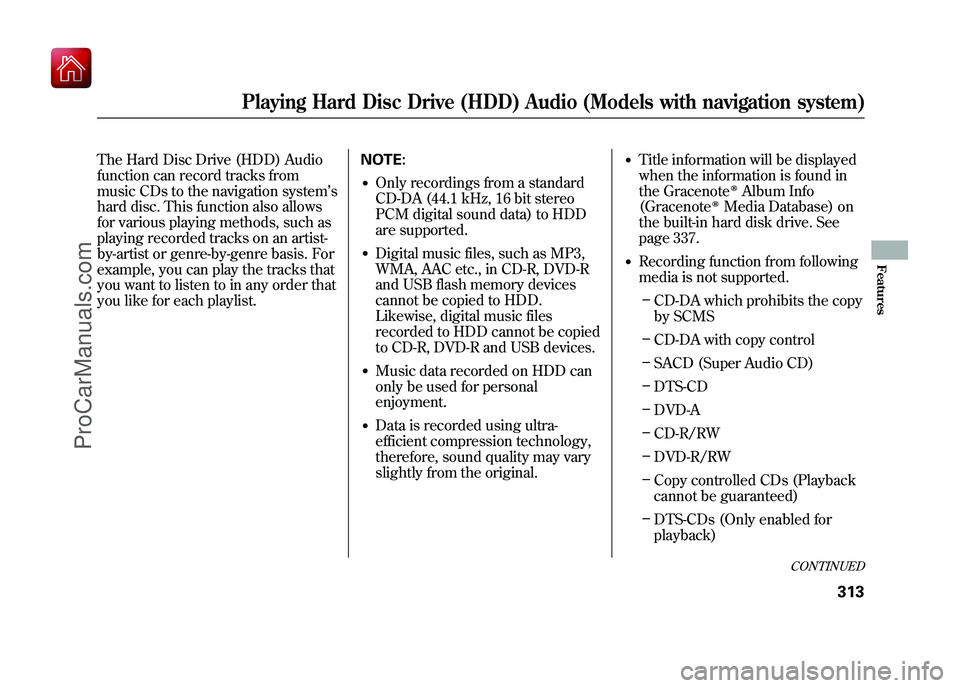

The Hard Disc Drive (HDD) Audio
function can record tracks from
music CDs to the navigation system’s
hard disc. This function also allows
for various playing methods, such as
playing recorded tracks on an artist-
by-artist or genre-by-genre basis. For
example, you can play the tracks that
you want to listen to in any order that
you like for each playlist. NOTE:
●Only recordings from a standard
CD-DA (44.1 kHz, 16 bit stereo
PCM digital sound data) to HDD
are supported.●Digital music files, such as MP3,
WMA, AAC etc., in CD-R, DVD-R
and USB flash memory devices
cannot be copied to HDD.
Likewise, digital music files
recorded to HDD cannot be copied
to CD-R, DVD-R and USB devices.●Music data recorded on HDD can
only be used for personal
enjoyment.●Data is recorded using ultra-
efficient compression technology,
therefore, sound quality may vary
slightly from the original.
●Title information will be displayed
when the information is found in
the Gracenote
ꭂAlbum Info
(Gracenote
ꭂMedia Database) on
the built-in hard disk drive. See
page 337.
●Recording function from following
media is not supported.
– CD-DA which prohibits the copy
by SCMS
– CD-DA with copy control
– SACD (Super Audio CD)
– DTS-CD
– DVD-A
– CD-R/RW
– DVD-R/RW
– Copy controlled CDs (Playback
cannot be guaranteed)
– DTS-CDs (Only enabled for
playback)
CONTINUED
Playing Hard Disc Drive (HDD) Audio (Models with navigation system)
313
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

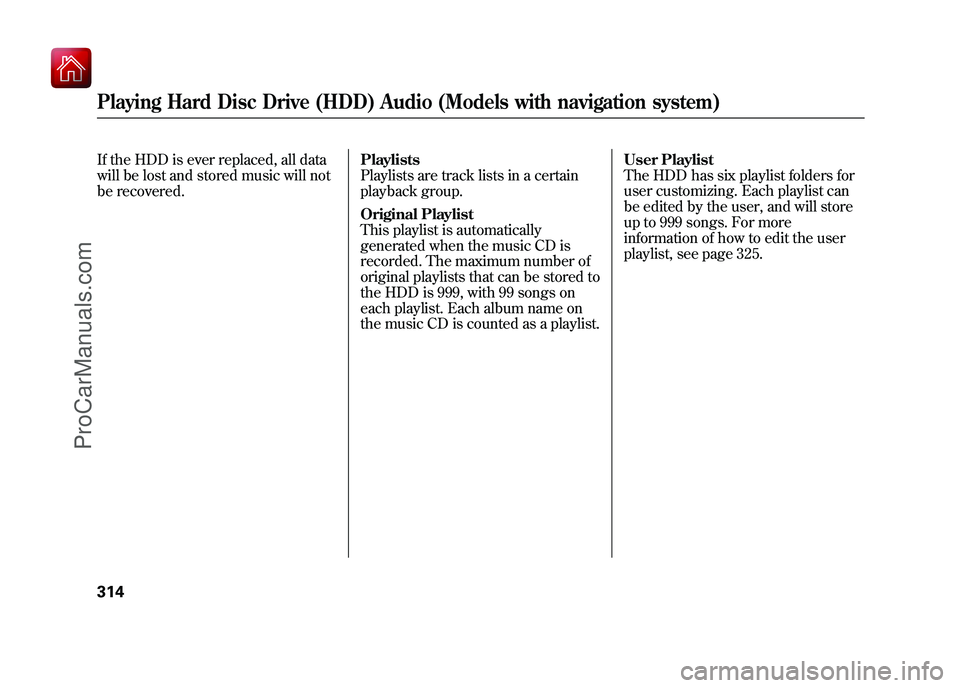

If the HDD is ever replaced, all data
will be lost and stored music will not
be recovered.Playlists
Playlists are track lists in a certain
playback group.
Original Playlist
This playlist is automatically
generated when the music CD is
recorded. The maximum number of
original playlists that can be stored to
the HDD is 999, with 99 songs on
each playlist. Each album name on
the music CD is counted as a playlist.User Playlist
The HDD has six playlist folders for
user customizing. Each playlist can
be edited by the user, and will store
up to 999 songs. For more
information of how to edit the user
playlist, see page 325.Playing Hard Disc Drive (HDD) Audio (Models with navigation system)31409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com

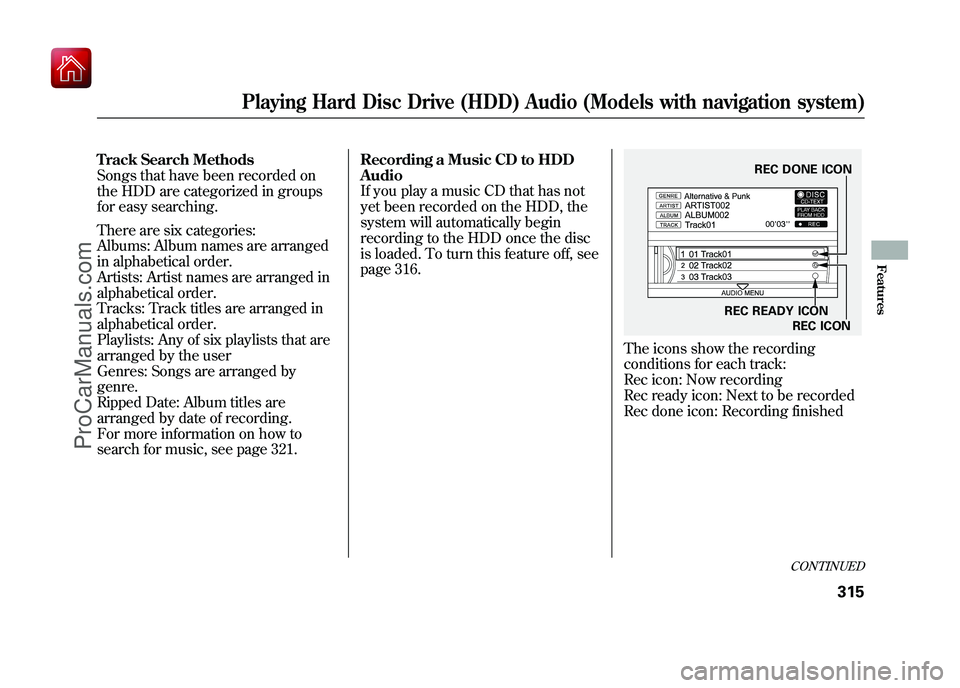

Track Search Methods
Songs that have been recorded on
the HDD are categorized in groups
for easy searching.
There are six categories:
Albums: Album names are arranged
in alphabetical order.
Artists: Artist names are arranged in
alphabetical order.
Tracks: Track titles are arranged in
alphabetical order.
Playlists: Any of six playlists that are
arranged by the user
Genres: Songs are arranged by
genre.
Ripped Date: Album titles are
arranged by date of recording.
For more information on how to
search for music, see page 321.Recording a Music CD to HDD
Audio
If you play a music CD that has not
yet been recorded on the HDD, the
system will automatically begin
recording to the HDD once the disc
is loaded. To turn this feature off, see
page 316.
The icons show the recording
conditions for each track:
Rec icon: Now recording
Rec ready icon: Next to be recorded
Rec done icon: Recording finished
REC DONE ICON
REC READY ICON REC ICON
CONTINUED
Playing Hard Disc Drive (HDD) Audio (Models with navigation system)
315
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
ProCarManuals.com
