Acura ZDX 2012 Owner's Manual

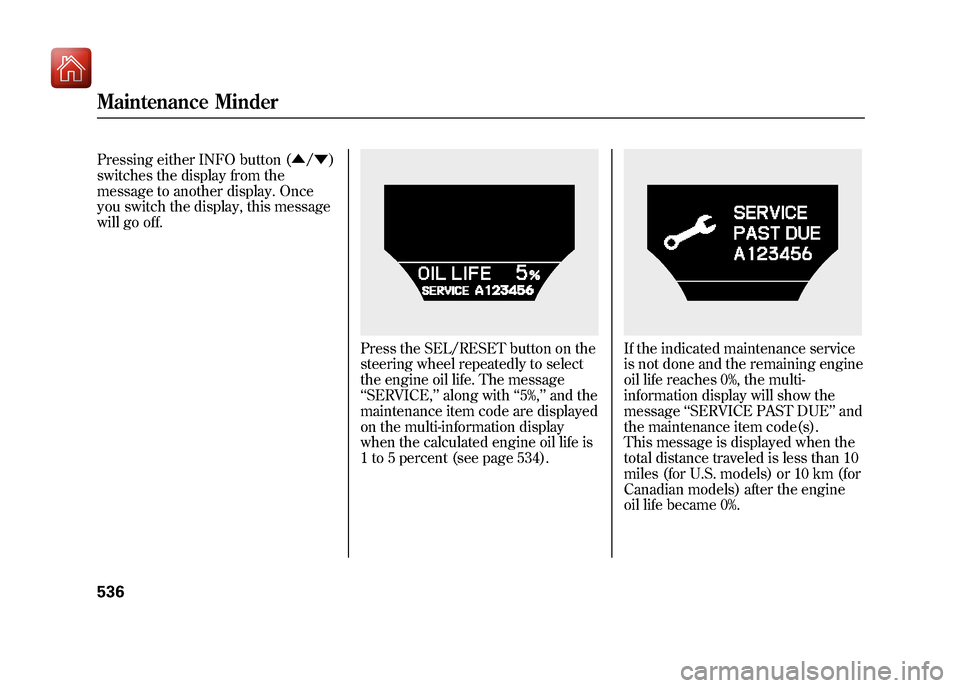

Pressing either INFO button (▲/▼ )
switches the display from the
message to another display. Once
you switch the display, this message
will go off.
Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil life. The message
‘‘ SERVICE, ’’along with ‘‘5%, ’’and the
maintenance item code are displayed
on the multi-information display
when the calculated engine oil life is
1 to 5 percent (see page 534).
If the indicated maintenance service
is not done and the remaining engine
oil life reaches 0%, the multi-
information display will show the
message ‘‘SERVICE PAST DUE ’’and
the maintenance item code(s).
This message is displayed when the
total distance traveled is less than 10
miles (for U.S. models) or 10 km (for
Canadian models) after the engine
oil life became 0%.
Maintenance Minder53609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

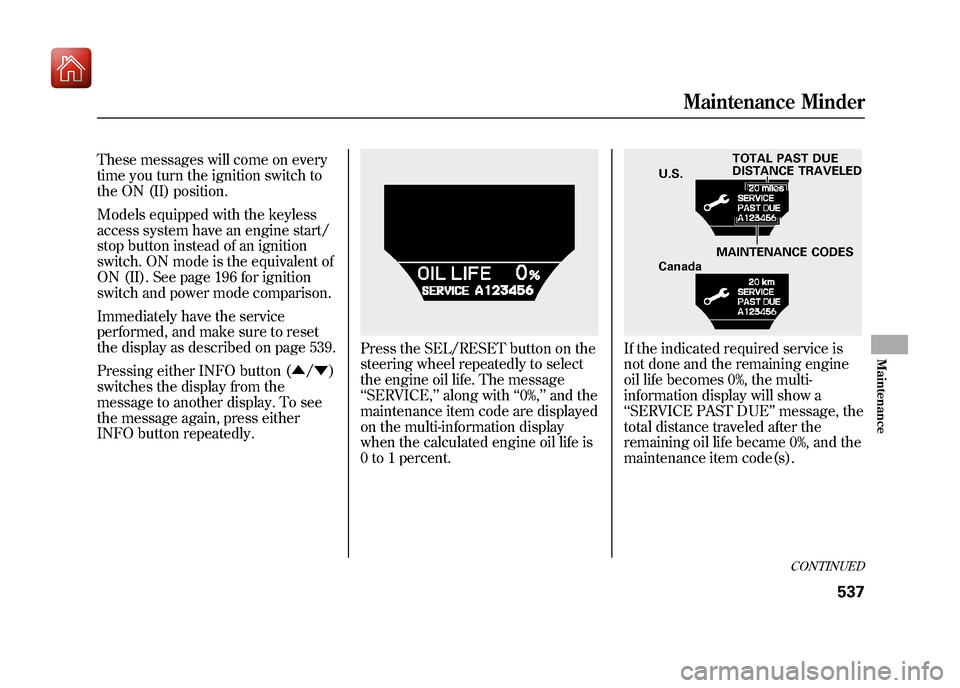

These messages will come on every
time you turn the ignition switch to
the ON (II) position.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON mode is the equivalent of
ON (II). See page 196 for ignition
switch and power mode comparison.
Immediately have the service
performed, and make sure to reset
the display as described on page 539.
Pressing either INFO button (▲/▼ )
switches the display from the
message to another display. To see
the message again, press either
INFO button repeatedly.
Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil life. The message
‘‘ SERVICE, ’’along with ‘‘0%, ’’and the
maintenance item code are displayed
on the multi-information display
when the calculated engine oil life is
0 to 1 percent.
If the indicated required service is
not done and the remaining engine
oil life becomes 0%, the multi-
information display will show a
‘‘ SERVICE PAST DUE ’’message, the
total distance traveled after the
remaining oil life became 0%, and the
maintenance item code(s).
TOTAL PAST DUE
DISTANCE TRAVELED
U.S.
MAINTENANCE CODES
Canada
CONTINUED
Maintenance Minder
537
Maintenance
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

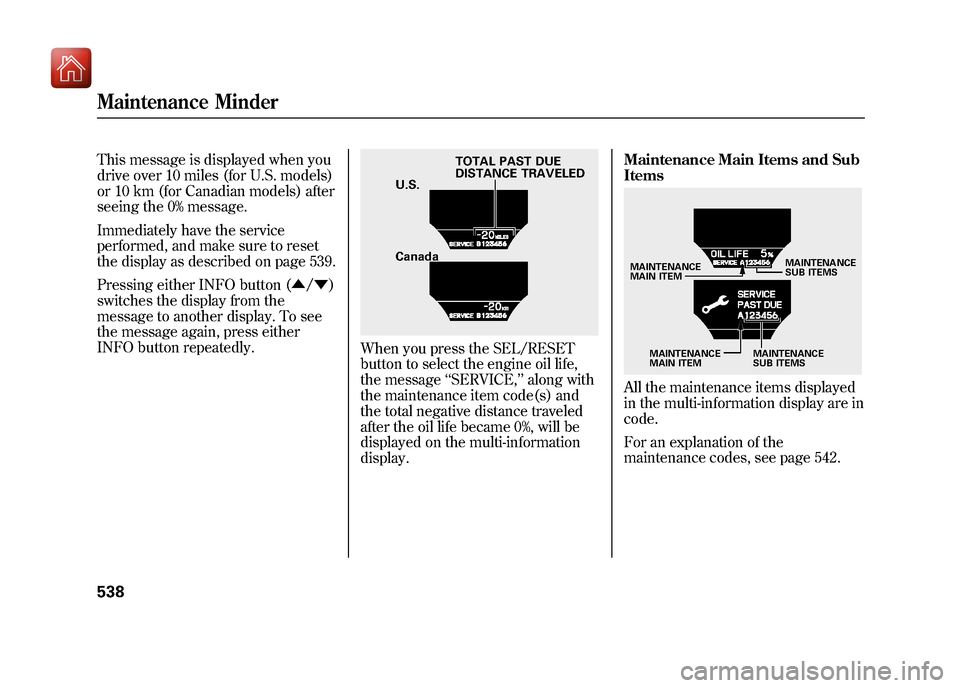

This message is displayed when you
drive over 10 miles (for U.S. models)
or 10 km (for Canadian models) after
seeing the 0% message.
Immediately have the service
performed, and make sure to reset
the display as described on page 539.
Pressing either INFO button (▲/▼ )
switches the display from the
message to another display. To see
the message again, press either
INFO button repeatedly.
When you press the SEL/RESET
button to select the engine oil life,
the message ‘‘SERVICE, ’’along with
the maintenance item code(s) and
the total negative distance traveled
after the oil life became 0%, will be
displayed on the multi-information
display. Maintenance Main Items and Sub
Items
All the maintenance items displayed
in the multi-information display are in
code.
For an explanation of the
maintenance codes, see page 542.
U.S.
Canada
TOTAL PAST DUE
DISTANCE TRAVELED
MAINTENANCE
SUB ITEMS
MAINTENANCE
MAIN ITEM
MAINTENANCE
MAIN ITEM
MAINTENANCE
SUB ITEMS
Maintenance Minder53809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

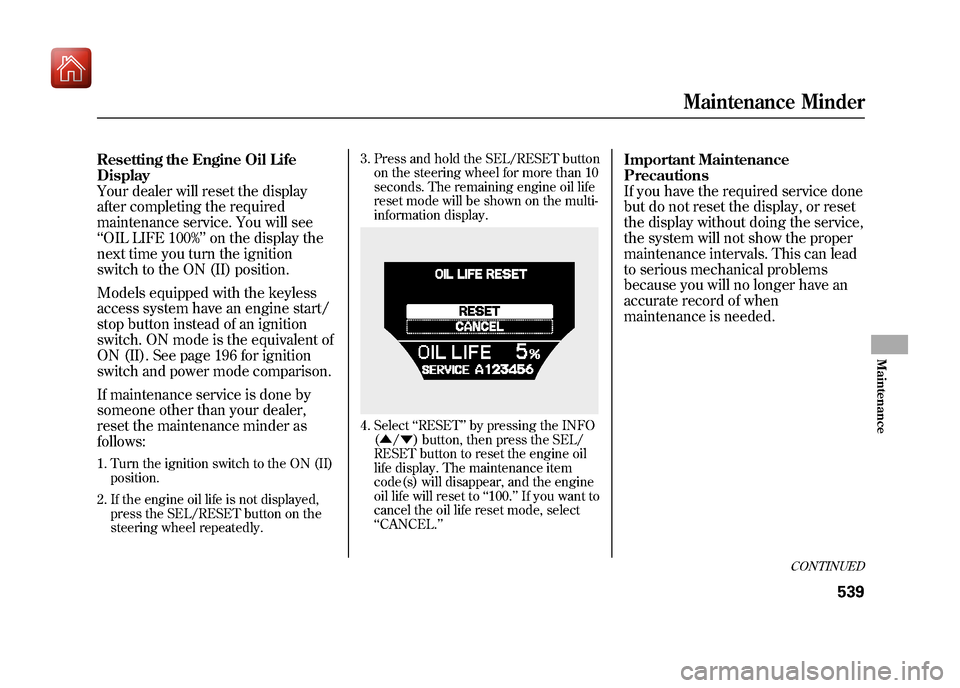

Resetting the Engine Oil Life
Display
Your dealer will reset the display
after completing the required
maintenance service. You will see
‘‘OIL LIFE 100% ’’on the display the
next time you turn the ignition
switch to the ON (II) position.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON mode is the equivalent of
ON (II). See page 196 for ignition
switch and power mode comparison.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
follows:1. Turn the ignition switch to the ON (II)
position.
2. If the engine oil life is not displayed, press the SEL/RESET button on the
steering wheel repeatedly. 3. Press and hold the SEL/RESET button
on the steering wheel for more than 10
seconds. The remaining engine oil life
reset mode will be shown on the multi-
information display.
4. Select ‘‘RESET’’ by pressing the INFO
( ▲ /▼ ) button, then press the SEL/
RESET button to reset the engine oil
life display. The maintenance item
code(s) will disappear, and the engine
oil life will reset to ‘‘100. ’’If you want to
cancel the oil life reset mode, select
‘‘ CANCEL. ’’
Important Maintenance
Precautions
If you have the required service done
but do not reset the display, or reset
the display without doing the service,
the system will not show the proper
maintenance intervals. This can lead
to serious mechanical problems
because you will no longer have an
accurate record of when
maintenance is needed.
CONTINUED
Maintenance Minder
539
Maintenance
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

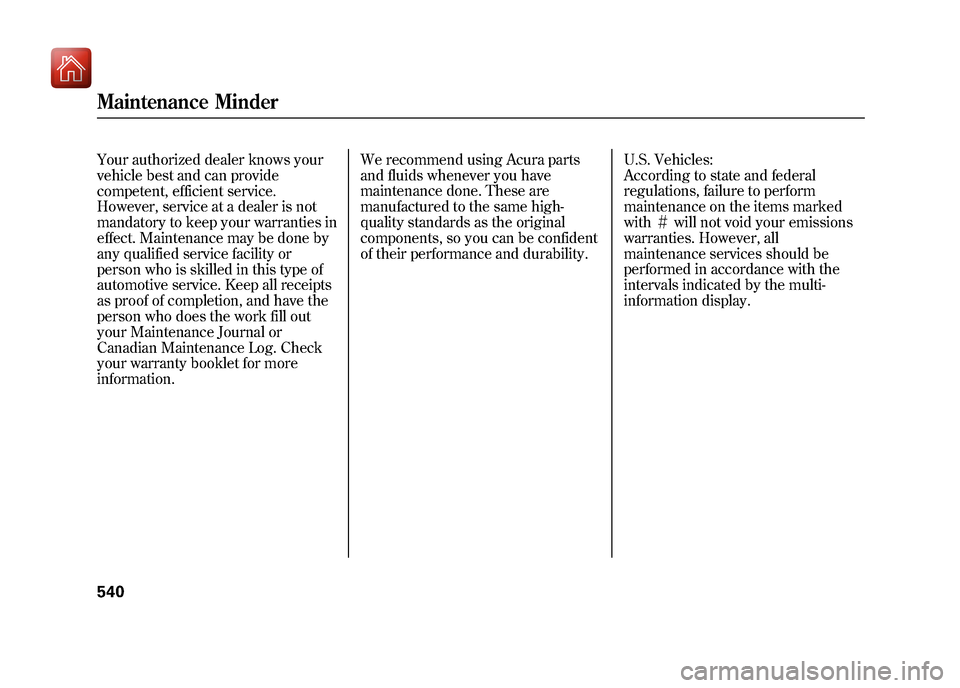

Your authorized dealer knows your
vehicle best and can provide
competent, efficient service.
However, service at a dealer is not
mandatory to keep your warranties in
effect. Maintenance may be done by
any qualified service facility or
person who is skilled in this type of
automotive service. Keep all receipts
as proof of completion, and have the
person who does the work fill out
your Maintenance Journal or
Canadian Maintenance Log. Check
your warranty booklet for more
information.We recommend using Acura parts
and fluids whenever you have
maintenance done. These are
manufactured to the same high-
quality standards as the original
components, so you can be confident
of their performance and durability.
U.S. Vehicles:
According to state and federal
regulations, failure to perform
maintenance on the items marked
with
＃will not void your emissions
warranties. However, all
maintenance services should be
performed in accordance with the
intervals indicated by the multi-
information display.Maintenance Minder54009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Owner's Maintenance Checks
You should check the following
items at the specified intervals. If you
are unsure of how to perform any
check, turn to the appropriate page
listed.●Engine oil level－Check every
time you fill the fuel tank. See page
458.●Engine coolant level －Check the
radiator reserve tank every time
you fill the fuel tank. See page 459.●Automatic transmission －Check
the fluid level monthly. See page
551.●Brakes －Check the fluid level
monthly. See page 553.●Tires －Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
568.
●Lights －Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page 555.
Maintenance Minder
541
Maintenance
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

SymbolMaintenance Main Items
A
●Replace engine oil
1
B
●Replace engine oil
1and oil filter
●Inspect front and rear brakes●Check parking brake adjustment●Inspect these items:●Tie rod ends, steering gear box, and boots●Suspension components●Driveshaft boots●Brake hoses and lines (including ABS/VSA)●All fluid levels and condition of fluids●Exhaust system
＃
●Fuel lines and connections
＃
1: If the message ‘‘SERVICE DUE NOW ’’does not appear more than
12 months after the display is reset, change the engine oil every
year.
＃ : See information on maintenance and emissions warranty on page
539.
NOTE:
●Independent of the maintenance messages in the multi-
information display, replace the brake fluid every 3 years.●Inspect idle speed every 160,000 miles (256,000 km).●Adjust the valves during services A, B, 1, 2, or 3 if they are
noisy. Symbol Maintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element
If you drive in dusty conditions, replace every 15,000
miles (24,000 km).●Replace dust and pollen filterIf you drive primarily in urban areas that have high
concentrations of soot in the air from industry and from
diesel-powered vehicles, replace every 15,000 miles
(24,000 km).●Inspect drive belt
3●Replace transmission and transfer fluid
4●Replace spark plugs●Replace timing belt and inspect water pump If you drive regularly in very high temperatures (over
110°F, 43°C), in very low temperatures (under －20°F, －
29°C), or tow a trailer, replace every 60,000 miles (U.S.)/
100,000 km (Canada).●Inspect valve clearance
5●Replace engine coolant
6●Replace rear differential fluid Driving in mountainous areas at very low vehicle
speeds or trailer towing results in higher level of
mechanical (shear) stress to fluid. This requires
differential fluid changes more frequently than
recommended by the maintenance minder. If you
regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000
km), then every 15,000 miles (24,000 km).
Maintenance Minder
Maintenance Minder
54209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

WASHER FLUID
(Black cap with blue icon)
POWER STEERING FLUID
(Black cap with red
steering mark)
ENGINE OIL DIPSTICK
(Orange loop)
ENGINE COOLANT
RESERVOIR
AUTOMATIC TRANSMISSION FLUID
DIPSTICK (Yellow loop)BRAKE FLUID
(Black cap)
RADIATOR CAP ENGINE OIL FILL CAP
Fluid Locations
543
Maintenance
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

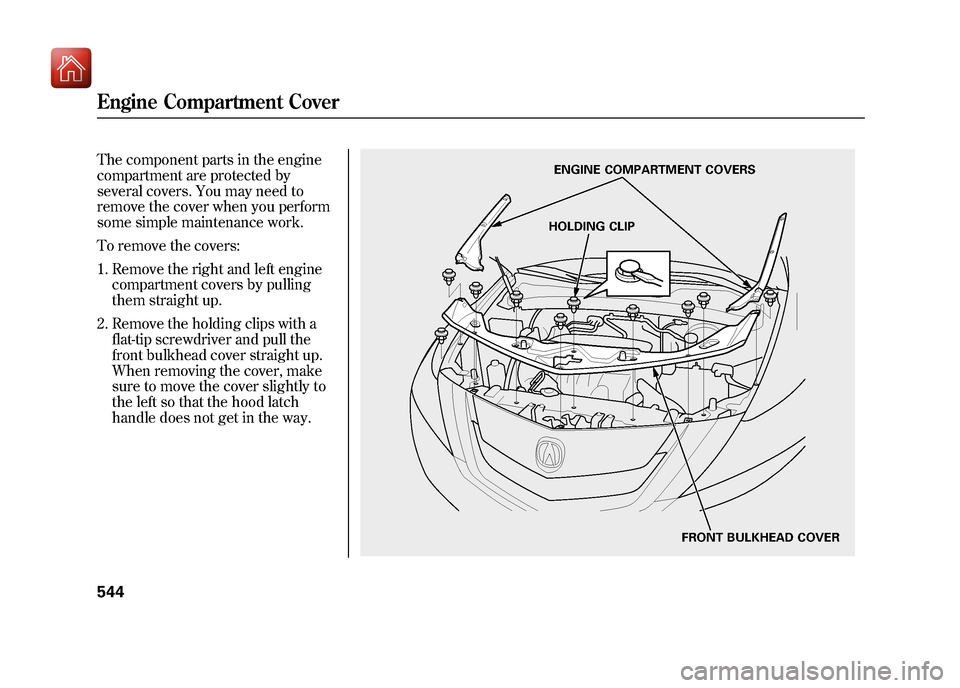

The component parts in the engine
compartment are protected by
several covers. You may need to
remove the cover when you perform
some simple maintenance work.
To remove the covers:1. Remove the right and left engine compartment covers by pulling
them straight up.
2. Remove the holding clips with a flat-tip screwdriver and pull the
front bulkhead cover straight up.
When removing the cover, make
sure to move the cover slightly to
the left so that the hood latch
handle does not get in the way.
FRONT BULKHEAD COVER
ENGINE COMPARTMENT COVERS
HOLDING CLIP
Engine Compartment Cover54409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Unscrew and remove the engine oil
fill cap on top of the valve cover. Pour
in the oil slowly and carefully so you
do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment.
Reinstall the engine oil fill cap, and
tighten it securely. Wait a few
minutes, and recheck the oil level on
the engine oil dipstick. Do not fill
above the upper mark; you could
damage the engine.Recommended Engine Oil
Oil is a major contributor to your
engine's performance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute's latest requirements. It is
highly recommended that you use
Acura motor oil in your vehicle.
Make sure the API Certification Seal
says
‘‘For Gasoline Engines. ’’
The oil viscosity or weight is
provided on the container's label.
5W-20 oil is formulated for year-
round protection of your vehicle to
improve cold weather starting and
fuel economy.
ENGINE OIL FILL CAP
API CERTIFICATION SEAL
Ambient Temperature
CONTINUED
Adding Engine Oil
545
Maintenance
