Acura ZDX 2012 Owner's Manual

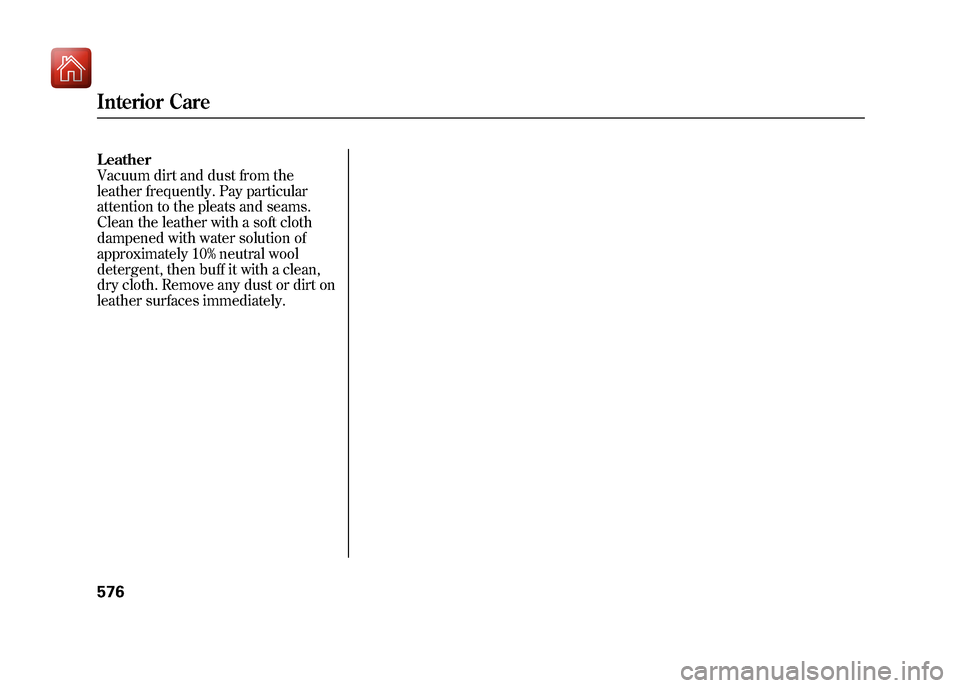

Leather
Vacuum dirt and dust from the
leather frequently. Pay particular
attention to the pleats and seams.
Clean the leather with a soft cloth
dampened with water solution of
approximately 10% neutral wool
detergent, then buff it with a clean,
dry cloth. Remove any dust or dirt on
leather surfaces immediately.Interior Care57609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

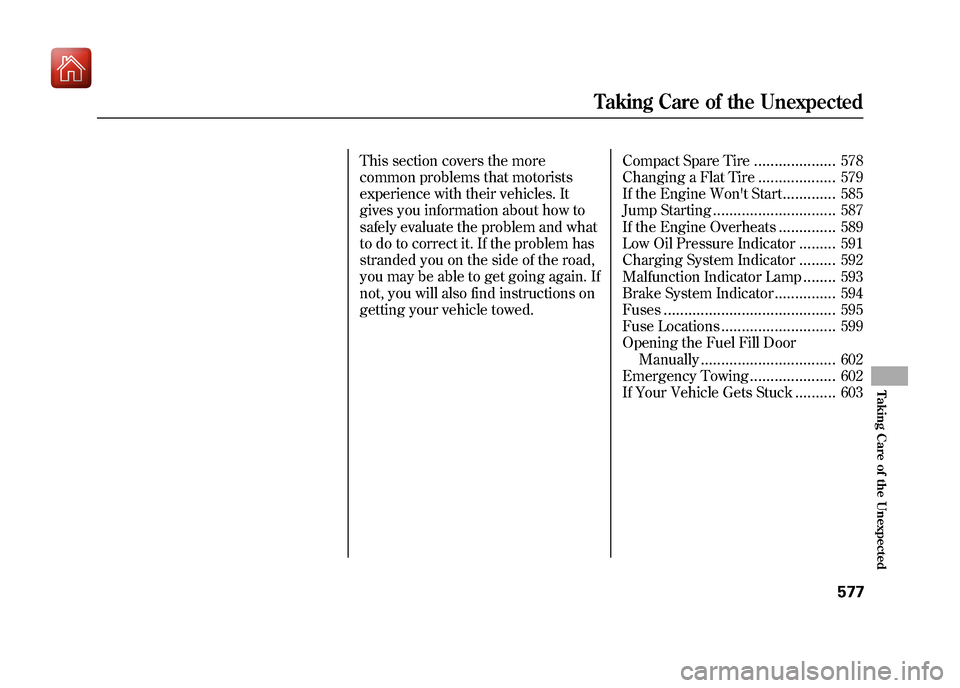

This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again. If
not, you will also find instructions on
getting your vehicle towed.Compact Spare Tire
....................
578
Changing a Flat Tire
...................
579
If the Engine Won't Start
.............
585
Jump Starting
..............................
587
If the Engine Overheats
..............
589
Low Oil Pressure Indicator
.........
591
Charging System Indicator
.........
592
Malfunction Indicator Lamp
........
593
Brake System Indicator
...............
594
Fuses
..........................................
595
Fuse Locations
............................
599
Opening the Fuel Fill Door Manually
.................................
602
Emergency Towing
.....................
602
If Your Vehicle Gets Stuck
..........
603
Taking Care of the Unexpected
577
Taking Care of the Unexpected
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

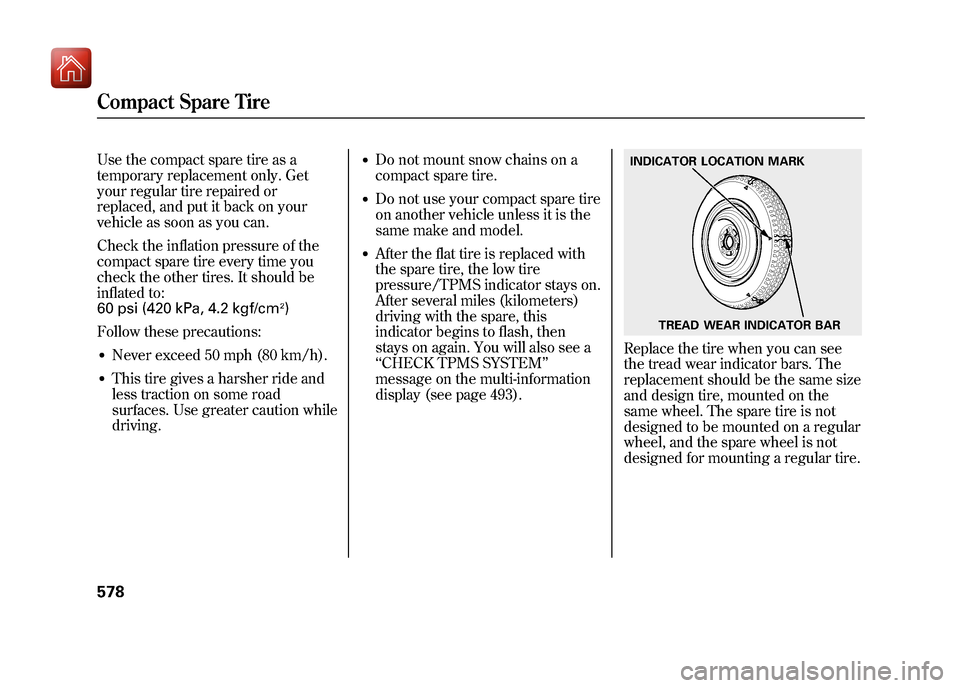

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or
replaced, and put it back on your
vehicle as soon as you can.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
60 psi (420 kPa, 4.2 kgf/cm
2)
Follow these precautions:
●Never exceed 50 mph (80 km/h).●This tire gives a harsher ride and
less traction on some road
surfaces. Use greater caution while
driving.
●Do not mount snow chains on a
compact spare tire.●Do not use your compact spare tire
on another vehicle unless it is the
same make and model.●After the flat tire is replaced with
the spare tire, the low tire
pressure/TPMS indicator stays on.
After several miles (kilometers)
driving with the spare, this
indicator begins to flash, then
stays on again. You will also see a
‘‘ CHECK TPMS SYSTEM’’
message on the multi-information
display (see page 493).
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
Compact Spare Tire57809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
1. Park the vehicle on firm, level, and non-slippery ground. Put the
transmission in Park. Apply the
parking brake.
2. Turn on the hazard warning lights,and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire. Models equipped with the keyless
access system have an engine
start/stop button instead of an
ignition switch. VEHICLE OFF
(LOCK) mode is the equivalent of
LOCK (0). See page 196 for
ignition switch and power mode
comparison.
JACK
TOOLS
SPARE TIRE
CONTINUED
Changing a Flat Tire
579
Taking Care of the Unexpected
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

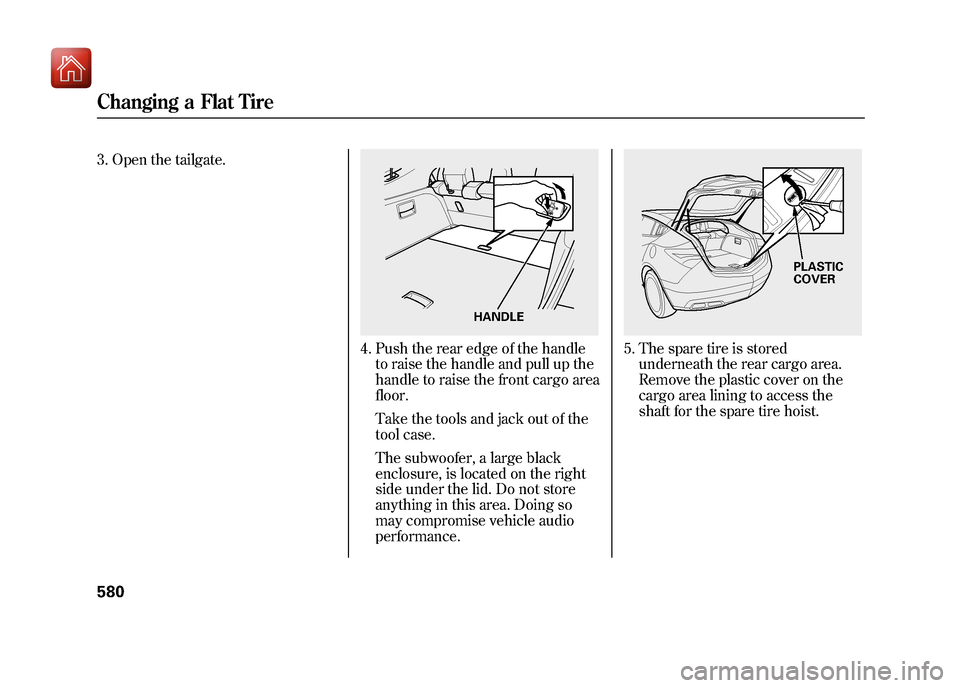

3. Open the tailgate.
4. Push the rear edge of the handleto raise the handle and pull up the
handle to raise the front cargo area
floor.
Take the tools and jack out of the
tool case.
The subwoofer, a large black
enclosure, is located on the right
side under the lid. Do not store
anything in this area. Doing so
may compromise vehicle audio
performance.
5. The spare tire is storedunderneath the rear cargo area.
Remove the plastic cover on the
cargo area lining to access the
shaft for the spare tire hoist.
HANDLE
PLASTIC
COVER
Changing a Flat Tire58009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

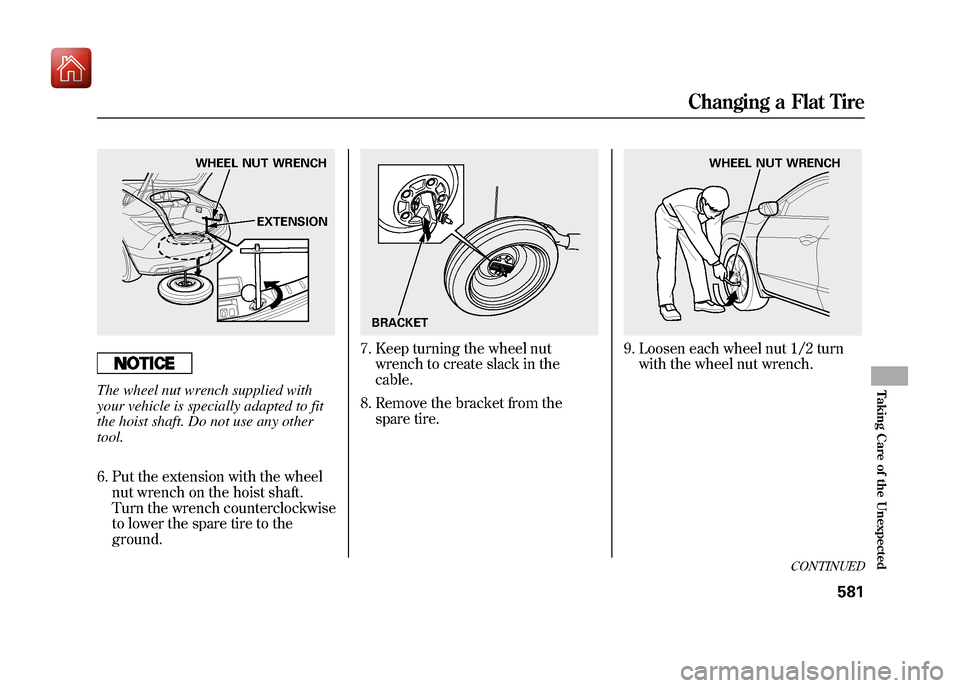

The wheel nut wrench supplied with
your vehicle is specially adapted to fit
the hoist shaft. Do not use any other
tool.6. Put the extension with the wheel nut wrench on the hoist shaft.
Turn the wrench counterclockwise
to lower the spare tire to the
ground.
7. Keep turning the wheel nutwrench to create slack in the
cable.
8. Remove the bracket from the spare tire.
9. Loosen each wheel nut 1/2 turnwith the wheel nut wrench.
WHEEL NUT WRENCH
EXTENSION
BRACKET
WHEEL NUT WRENCH
CONTINUED
Changing a Flat Tire
581
Taking Care of the Unexpected
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

10. Place the jack under the jackingpoint nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
resting in the jack notch.
11. Use the extension and the wheelnut wrench as shown to raise the
vehicle until the flat tire is off the
ground.
12. Remove the wheel nuts, then remove the flat tire.
13. Before mounting the spare tire,wipe any dirt off the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully; it may be hot from
driving.
JACKING POINT
WHEEL NUT WRENCH EXTENSION
BRAKE HUB
Changing a Flat Tire58209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

14. Put on the spare tire. Put thewheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is firmly against the
hub. Do not try to tighten the
wheel nuts fully.
15. Lower the vehicle to the ground, and remove the jack.
16. Tighten the wheel nuts securely inthe same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to:
94 lbf·ft (127 N·m, 13 kgf·m)
17. Remove the center cap from the flat tire. 18. Place the flat tire face up under the
hoist.
19. Insert the hoist bracket into the center hole of the flat tire.
CONTINUED
Changing a Flat Tire
583
Taking Care of the Unexpected
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

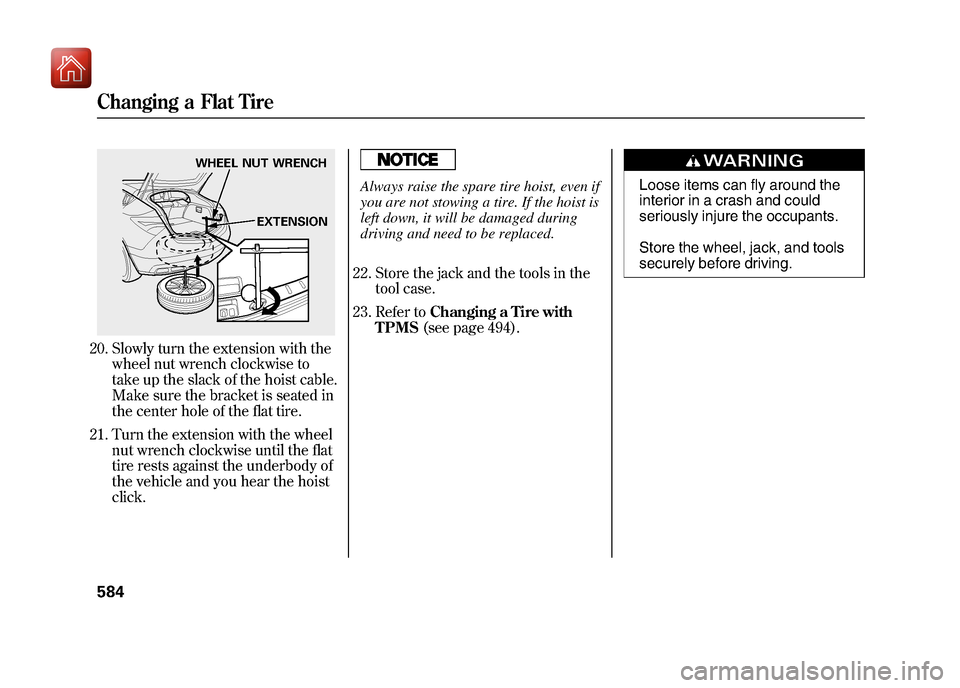

20. Slowly turn the extension with thewheel nut wrench clockwise to
take up the slack of the hoist cable.
Make sure the bracket is seated in
the center hole of the flat tire.
21. Turn the extension with the wheel nut wrench clockwise until the flat
tire rests against the underbody of
the vehicle and you hear the hoist
click.
Always raise the spare tire hoist, even if
you are not stowing a tire. If the hoist is
left down, it will be damaged during
driving and need to be replaced.
22. Store the jack and the tools in the tool case.
23. Refer to Changing a Tire with
TPMS (see page 494).
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
WHEEL NUT WRENCH
EXTENSION
Changing a Flat Tire58409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Diagnosing why the engine won't
start falls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position or on models with keyless
access system, press the engine
start/stop button to set START mode
(see page 194):●You hear nothing, or almost
nothing. The engine's starter
motor does not operate at all, or
operates very slowly.●You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.Nothing Happens or the Starter
Motor Operates Very Slowly
When you turn the ignition switch to
the START (III) position or on
models with keyless access system,
press the engine start/stop button to
set START mode (see page 194), you
do not hear the normal noise of the
engine trying to start. You may hear
a clicking sound, a series of clicks, or
nothing at all.
Check these things:
●Check the transmission interlock.
The transmission must be in Park
or neutral or the starter will not
operate.
●Turn the ignition switch to the ON
(II) position or on models with
keyless access system, press the
engine start/stop button to set ON
mode (see page 194). Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged. See
Jump Starting
on page 587.●Turn the ignition switch to the
START (III) position or on models
with keyless access system, press
the engine start/stop button to set
START mode (see page 194). If the
headlights do not dim, check the
condition of the fuses. If the fuses
are OK, there is probably
something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualified technician to
determine the problem. See
Emergency Towing on page 602.
CONTINUED
If the Engine Won't Start
585
Taking Care of the Unexpected
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
