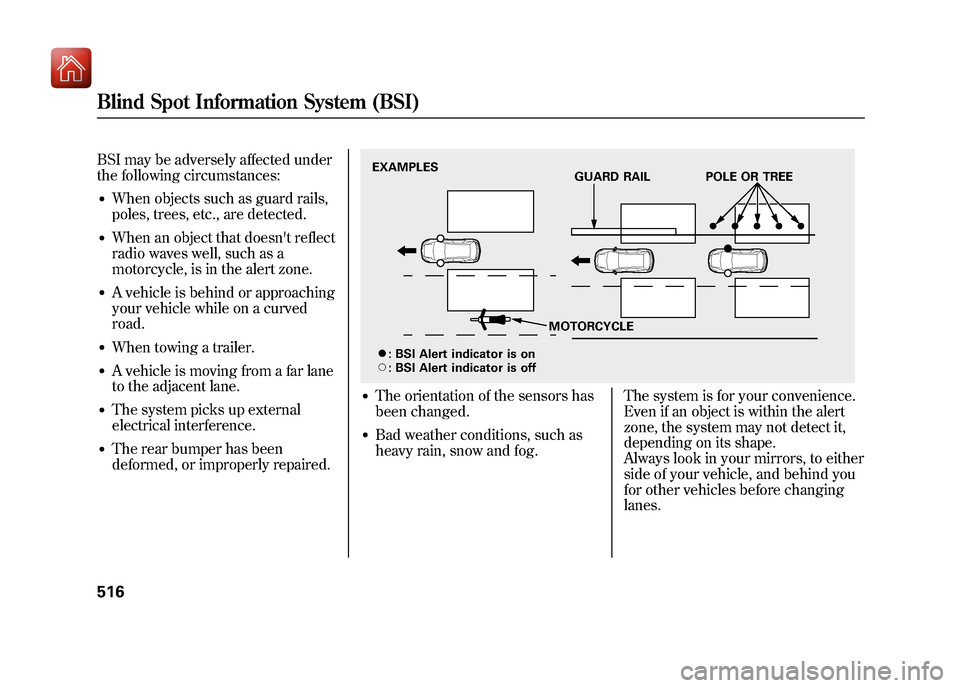

BSI may be adversely affected under
the following circumstances:●When objects such as guard rails,
poles, trees, etc., are detected.●When an object that doesn't reflect
radio waves well, such as a
motorcycle, is in the alert zone.●A vehicle is behind or approaching
your vehicle while on a curved
road.●When towing a trailer.●A vehicle is moving from a far lane
to the adjacent lane.●The system picks up external
electrical interference.●The rear bumper has been
deformed, or improperly repaired.
●The orientation of the sensors has
been changed.●Bad weather conditions, such as
heavy rain, snow and fog.The system is for your convenience.
Even if an object is within the alert
zone, the system may not detect it,
depending on its shape.
Always look in your mirrors, to either
side of your vehicle, and behind you
for other vehicles before changing
lanes.EXAMPLES
GUARD RAIL POLE OR TREE
MOTORCYCLE
ꭍ :
\b :BSI Alert indicator is on
BSI Alert indicator is off
Blind Spot Information System (BSI)51609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

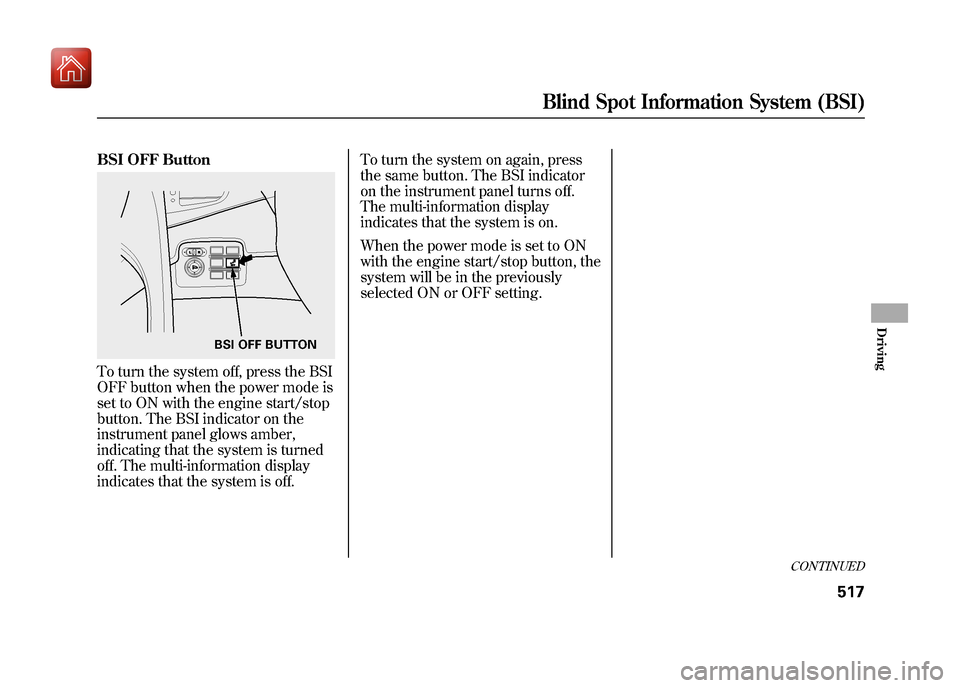

BSI OFF ButtonTo turn the system off, press the BSI
OFF button when the power mode is
set to ON with the engine start/stop
button. The BSI indicator on the
instrument panel glows amber,
indicating that the system is turned
off. The multi-information display
indicates that the system is off.To turn the system on again, press
the same button. The BSI indicator
on the instrument panel turns off.
The multi-information display
indicates that the system is on.
When the power mode is set to ON
with the engine start/stop button, the
system will be in the previously
selected ON or OFF setting.
BSI OFF BUTTON
CONTINUED
Blind Spot Information System (BSI)
517
Driving
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

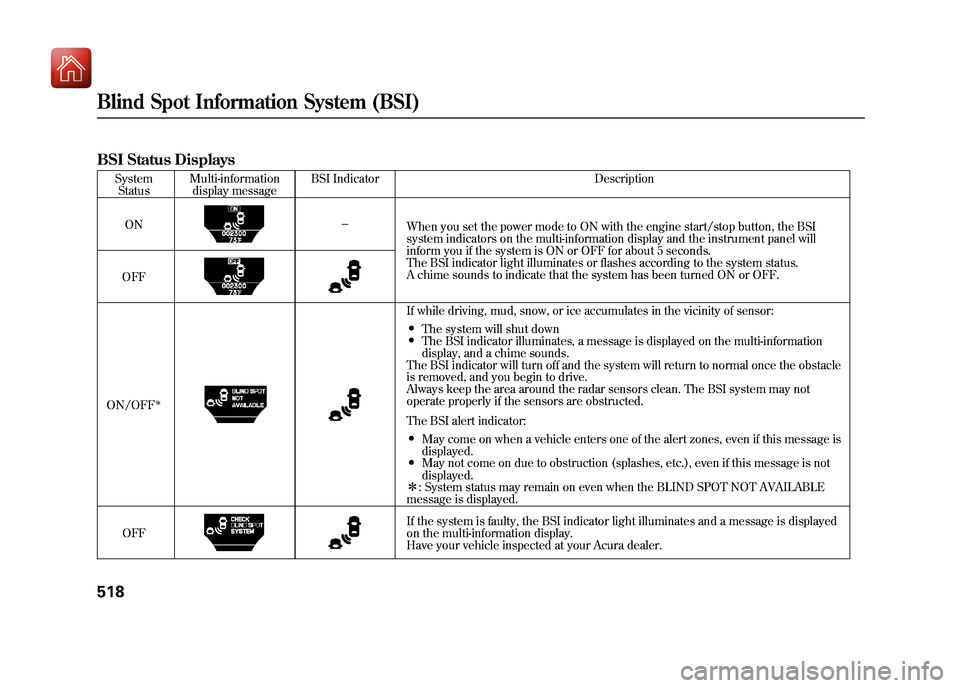

BSI Status Displays
SystemStatus Multi-information
display message BSI Indicator Description
ON －
When you set the power mode to ON with the engine start/stop button, the BSI
system indicators on the multi-information display and the instrument panel will
inform you if the system is ON or OFF for about 5 seconds.
The BSI indicator light illuminates or flashes according to the system status.
A chime sounds to indicate that the system has been turned ON or OFF.
OFF
ON/OFF
ꭧ
If while driving, mud, snow, or ice accumulates in the vicinity of sensor:●The system will shut down●The BSI indicator illuminates, a message is displayed on the multi-information
display, and a chime sounds.
The BSI indicator will turn off and the system will return to normal once the obstacle
is removed, and you begin to drive.
Always keep the area around the radar sensors clean. The BSI system may not
operate properly if the sensors are obstructed.
The BSI alert indicator:●May come on when a vehicle enters one of the alert zones, even if this message is
displayed.●May not come on due to obstruction (splashes, etc.), even if this message is not
displayed.
ꭧ : System status may remain on even when the BLIND SPOT NOT AVAILABLE
message is displayed.
OFF If the system is faulty, the BSI indicator light illuminates and a message is displayed
on the multi-information display.
Have your vehicle inspected at your Acura dealer.
Blind Spot Information System (BSI)51809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

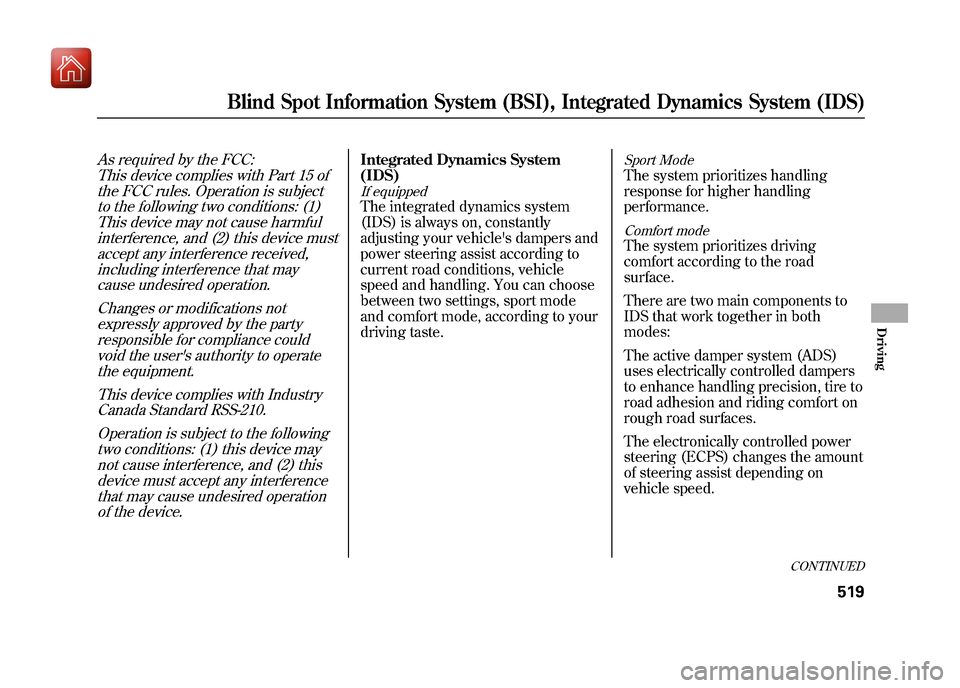

As required by the FCC:This device complies with Part 15 ofthe FCC rules. Operation is subjectto the following two conditions: (1)
This device may not cause harmfulinterference, and (2) this device mustaccept any interference received,including interference that maycause undesired operation.
Changes or modifications notexpressly approved by the partyresponsible for compliance could
void the user's authority to operatethe equipment.
This device complies with IndustryCanada Standard RSS-210.
Operation is subject to the followingtwo conditions: (1) this device maynot cause interference, and (2) this
device must accept any interferencethat may cause undesired operationof the device.
Integrated Dynamics System
(IDS)If equippedThe integrated dynamics system
(IDS) is always on, constantly
adjusting your vehicle's dampers and
power steering assist according to
current road conditions, vehicle
speed and handling. You can choose
between two settings, sport mode
and comfort mode, according to your
driving taste.
Sport ModeThe system prioritizes handling
response for higher handling
performance.Comfort modeThe system prioritizes driving
comfort according to the road
surface.
There are two main components to
IDS that work together in both
modes:
The active damper system (ADS)
uses electrically controlled dampers
to enhance handling precision, tire to
road adhesion and riding comfort on
rough road surfaces.
The electronically controlled power
steering (ECPS) changes the amount
of steering assist depending on
vehicle speed.
CONTINUED
Blind Spot Information System (BSI), Integrated Dynamics System (IDS)
519
Driving
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

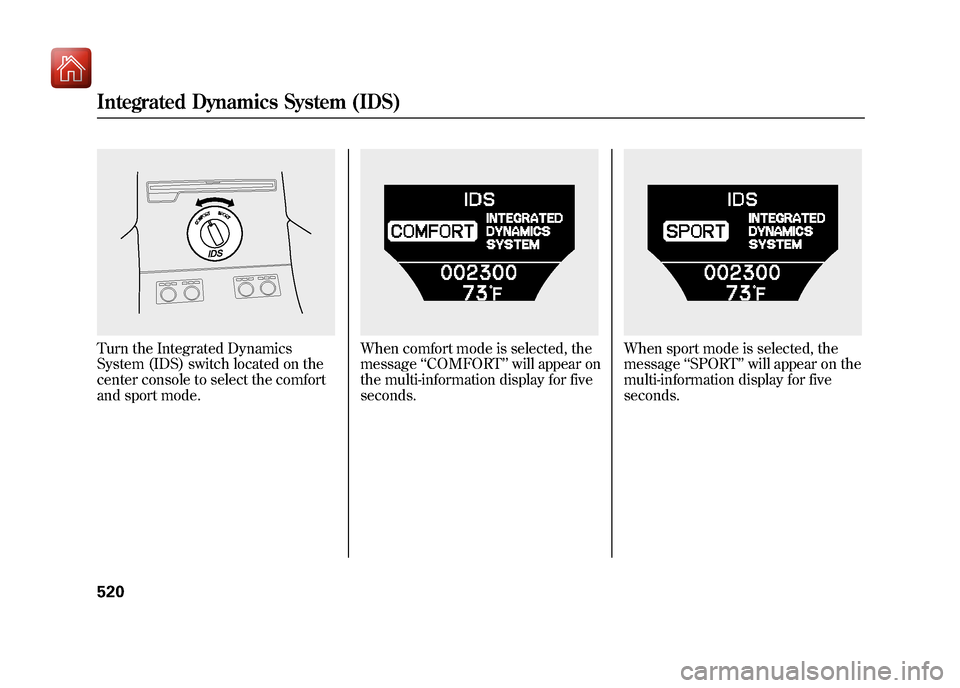

Turn the Integrated Dynamics
System (IDS) switch located on the
center console to select the comfort
and sport mode.
When comfort mode is selected, the
message‘‘COMFORT ’’will appear on
the multi-information display for five
seconds.
When sport mode is selected, the
message ‘‘SPORT ’’will appear on the
multi-information display for five
seconds.
Integrated Dynamics System (IDS)52009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

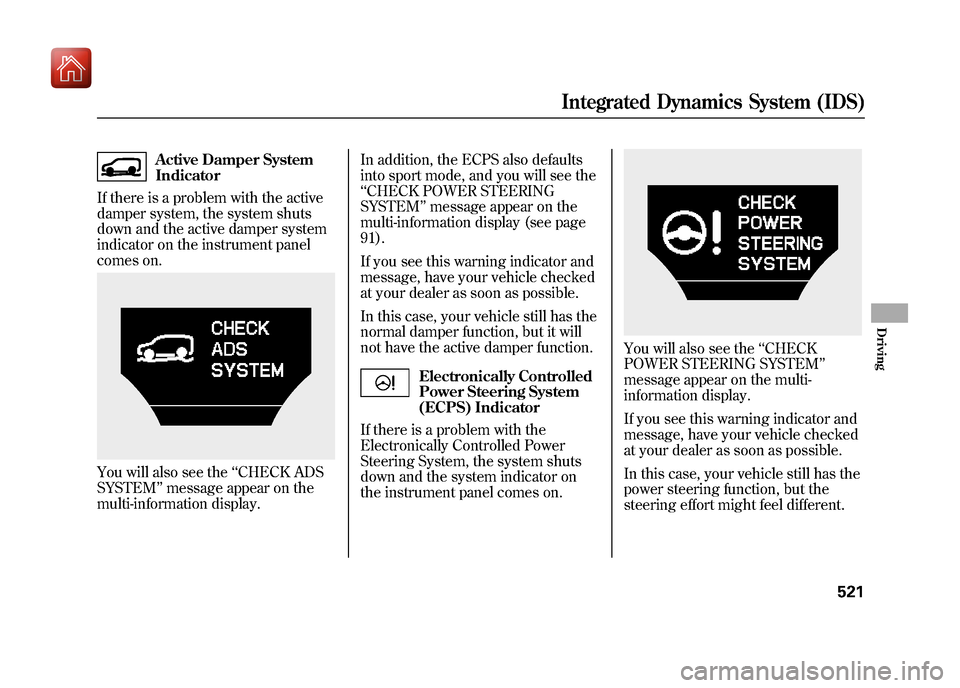

Active Damper System
Indicator
If there is a problem with the active
damper system, the system shuts
down and the active damper system
indicator on the instrument panel
comes on.
You will also see the ‘‘CHECK ADS
SYSTEM ’’message appear on the
multi-information display. In addition, the ECPS also defaults
into sport mode, and you will see the
‘‘
CHECK POWER STEERING
SYSTEM ’’message appear on the
multi-information display (see page
91).
If you see this warning indicator and
message, have your vehicle checked
at your dealer as soon as possible.
In this case, your vehicle still has the
normal damper function, but it will
not have the active damper function.
Electronically Controlled
Power Steering System
(ECPS) Indicator
If there is a problem with the
Electronically Controlled Power
Steering System, the system shuts
down and the system indicator on
the instrument panel comes on.
You will also see the ‘‘CHECK
POWER STEERING SYSTEM’’
message appear on the multi-
information display.
If you see this warning indicator and
message, have your vehicle checked
at your dealer as soon as possible.
In this case, your vehicle still has the
power steering function, but the
steering effort might feel different.
Integrated Dynamics System (IDS)
521
Driving
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Your vehicle has been designed
primarily to carry passengers and
their cargo. You can also use it to tow
a trailer if you carefully observe the
load limits, use the proper
equipment, and follow the guidelines
in this section.
If your vehicle is equipped with the
blind spot information system (BSI),
do not use it when towing a trailer.
For more information see page 517.Break-In PeriodAvoid towing a trailer during your
vehicle's first 600 miles (1,000 km)
(see page 454).
Be sure to read theOff-Highway
Driving Guidelines section on page
528 if you plan to tow off paved
surfaces.
Exceeding any load limit or
improperly loading your vehicle
and trailer can cause a crash in
which you can be seriously hurt
or killed.
Check the loading of your
vehicle and trailer carefully
before starting to drive. Load Limit
Total Trailer WeightThe maximum allowable weight of
the trailer and everything in or on it
must not exceed 1,500 lbs (680 kg).
Towing a load that is too heavy can
seriously affect your vehicle's
handling and performance. It can
also damage the engine and
transmission.
Towing a Trailer52209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

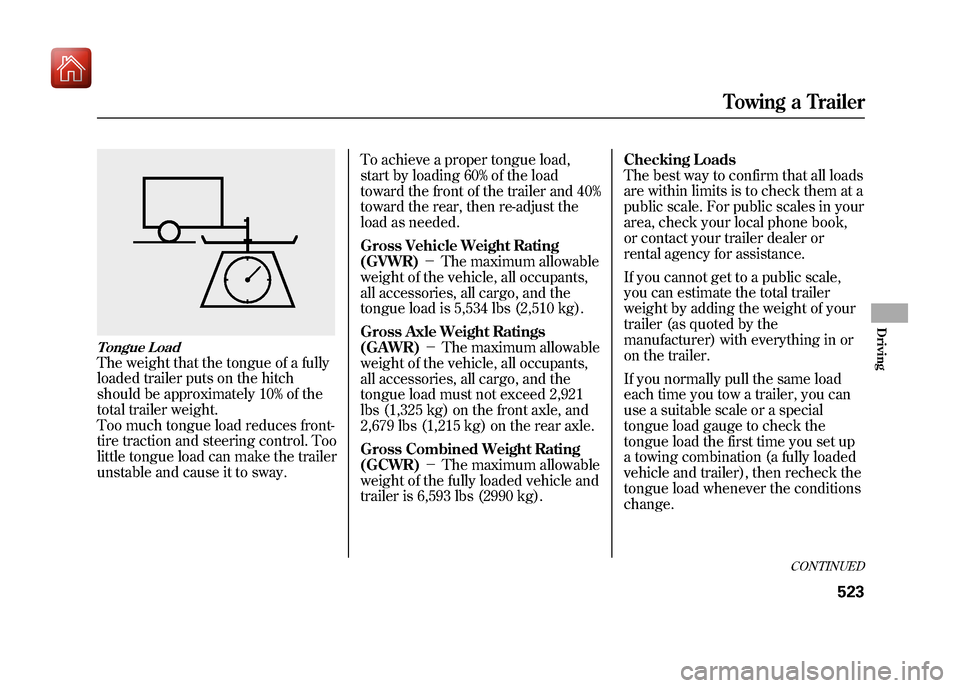

Tongue LoadThe weight that the tongue of a fully
loaded trailer puts on the hitch
should be approximately 10% of the
total trailer weight.
Too much tongue load reduces front-
tire traction and steering control. Too
little tongue load can make the trailer
unstable and cause it to sway.To achieve a proper tongue load,
start by loading 60% of the load
toward the front of the trailer and 40%
toward the rear, then re-adjust the
load as needed.
Gross Vehicle Weight Rating
(GVWR)
－The maximum allowable
weight of the vehicle, all occupants,
all accessories, all cargo, and the
tongue load is 5,534 lbs (2,510 kg).
Gross Axle Weight Ratings
(GAWR) －The maximum allowable
weight of the vehicle, all occupants,
all accessories, all cargo, and the
tongue load must not exceed 2,921
lbs (1,325 kg) on the front axle, and
2,679 lbs (1,215 kg) on the rear axle.
Gross Combined Weight Rating
(GCWR) －The maximum allowable
weight of the fully loaded vehicle and
trailer is 6,593 lbs (2990 kg). Checking Loads
The best way to confirm that all loads
are within limits is to check them at a
public scale. For public scales in your
area, check your local phone book,
or contact your trailer dealer or
rental agency for assistance.
If you cannot get to a public scale,
you can estimate the total trailer
weight by adding the weight of your
trailer (as quoted by the
manufacturer) with everything in or
on the trailer.
If you normally pull the same load
each time you tow a trailer, you can
use a suitable scale or a special
tongue load gauge to check the
tongue load the first time you set up
a towing combination (a fully loaded
vehicle and trailer), then recheck the
tongue load whenever the conditions
change.
CONTINUED
Towing a Trailer
523
Driving
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

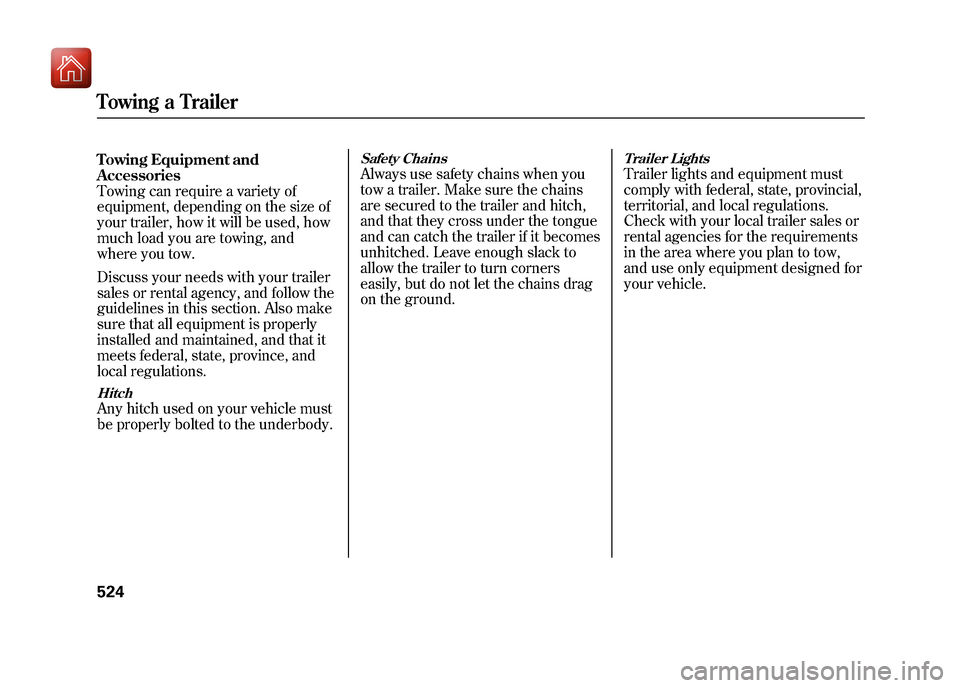

Towing Equipment and
Accessories
Towing can require a variety of
equipment, depending on the size of
your trailer, how it will be used, how
much load you are towing, and
where you tow.
Discuss your needs with your trailer
sales or rental agency, and follow the
guidelines in this section. Also make
sure that all equipment is properly
installed and maintained, and that it
meets federal, state, province, and
local regulations.HitchAny hitch used on your vehicle must
be properly bolted to the underbody.
Safety ChainsAlways use safety chains when you
tow a trailer. Make sure the chains
are secured to the trailer and hitch,
and that they cross under the tongue
and can catch the trailer if it becomes
unhitched. Leave enough slack to
allow the trailer to turn corners
easily, but do not let the chains drag
on the ground.
Trailer LightsTrailer lights and equipment must
comply with federal, state, provincial,
territorial, and local regulations.
Check with your local trailer sales or
rental agencies for the requirements
in the area where you plan to tow,
and use only equipment designed for
your vehicle.
Towing a Trailer52409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Your vehicle has a trailer lighting
connector located under the right
side tool case in the cargo area. Refer
to the drawing above for the wiring
color code and purpose of each pin.Since lighting and wiring vary by
trailer type and brand, you should
have a qualified technician install a
suitable connector between the
vehicle and the trailer. Improper
equipment or installation can cause
damage to your vehicle
’s electrical
system and affect your vehicle
warranty.
Additional Towing EquipmentMany states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don ’t,
you should install special mirrors if
you cannot clearly see behind you, or
if the trailer creates a blind spot.
Ask your trailer sales or rental
agency if any other items are
recommended or required for your
towing situation. Pre-Tow Checklist
When preparing to tow, and before
driving away, be sure to check the
following:
●The vehicle has been properly
serviced, and the suspension,
cooling system, and lights are in
good operating condition.●The trailer has been properly
serviced and is in good condition.●All weights and loads are within
limits.●The hitch, safety chains, and any
other attachments are secure.●All items in or on the trailer are
properly secured and cannot shift
while you drive.
＋
B TAILLIGHT AND
AUXILIARY LIGHTS
(YELLOW) RIGHT TURN
SIGNAL
(GREEN) LEFT TURN
SIGNAL
(BLUE)
＋ B TURN/STOP
(WHITE)
STOP LIGHT SIGNAL
(LIGHT GREEN) TAILLIGHT
SIGNAL
(PINK)
CONTINUED
Towing a Trailer
525
Driving
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
