display Acura ZDX 2013 Workshop Manual

uuMaintenance Minder
TMuTo Use Maintenance Minder
TM

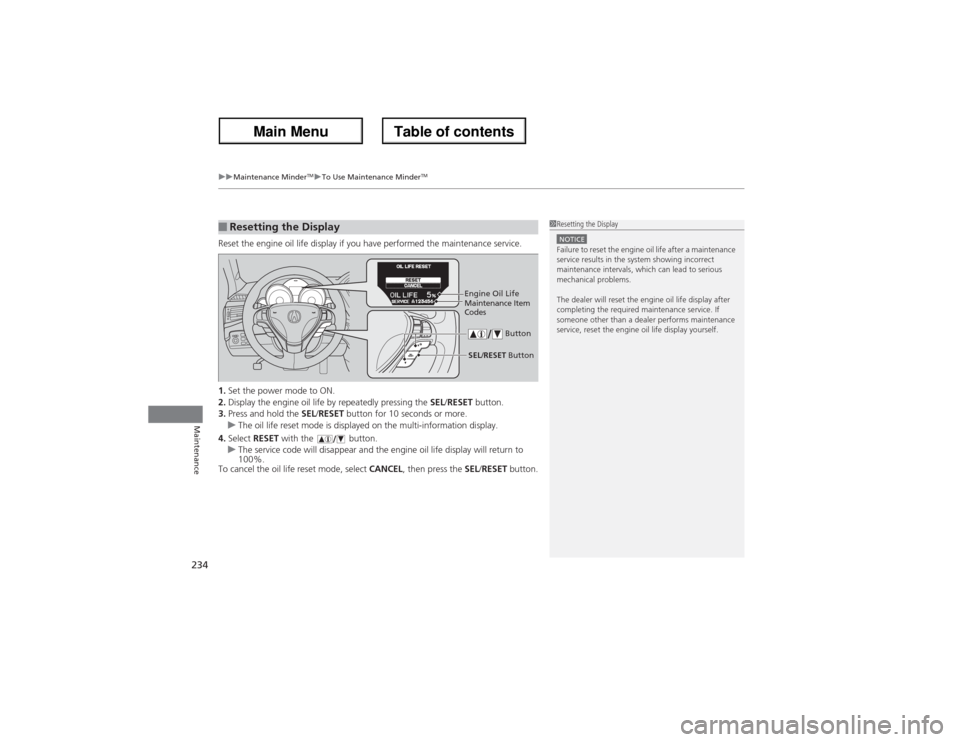

234Maintenance
Reset the engine oil life display if you have performed the maintenance service.
1.Set the power mode to ON.
2.Display the engine oil life by repeatedly pressing the SEL/RESET button.
3.Press and hold the SEL/RESET button for 10 seconds or more.
uThe oil life reset mode is displayed on the multi-information display.
4.Select RESET with the button.
uThe service code will disappear and the engine oil life display will return to
100%.
To cancel the oil life reset mode, select CANCEL, then press the SEL/RESET button.■Resetting the Display
1Resetting the DisplayNOTICEFailure to reset the engine oil life after a maintenance
service results in the system showing incorrect
maintenance intervals, which can lead to serious
mechanical problems.
The dealer will reset the engine oil life display after
completing the required maintenance service. If
someone other than a dealer performs maintenance
service, reset the engine oil life display yourself.
Engine Oil Life
SEL/RESET Button ButtonMaintenance Item
Codes

241
uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter
Continued
Maintenance

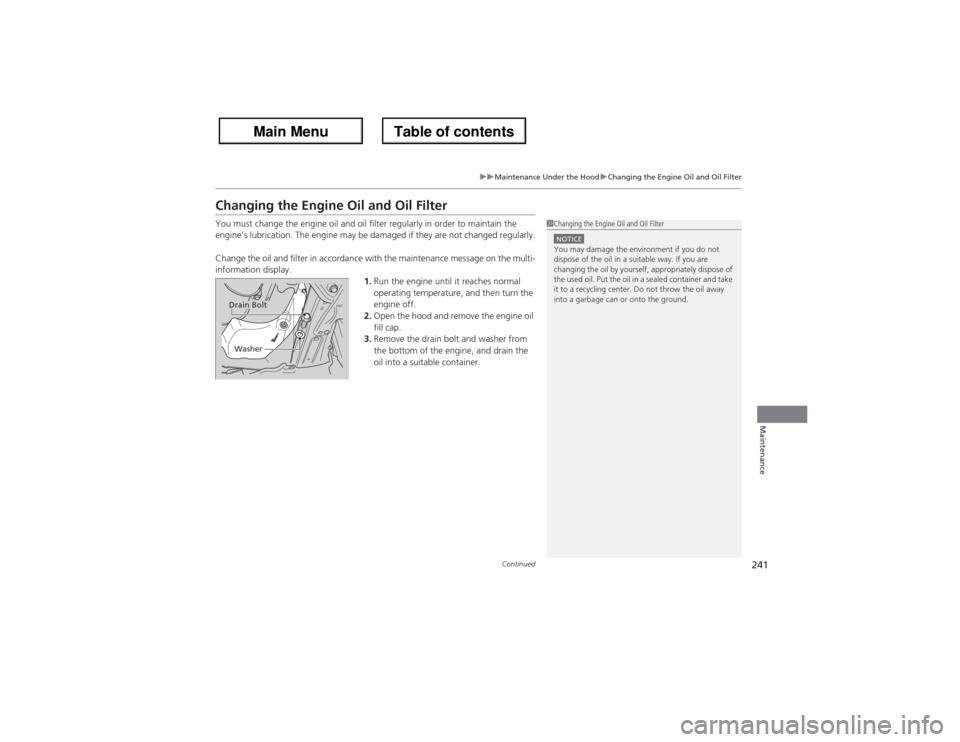

Changing the Engine Oil and Oil FilterYou must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordance with the maintenance message on the multi-
information display.
1.Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2.Open the hood and remove the engine oil
fill cap.
3.Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.
1Changing the Engine Oil and Oil FilterNOTICEYou may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself, appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
WasherDrain Bolt

248
uuMaintenance Under the HooduRefilling Window Washer Fluid
Maintenance
Refilling Window Washer FluidIf the washer fluid is low, a message appears on the multi-information display.
Pour the washer fluid carefully. Do not overflow the reservoir.
1Refilling Window Washer FluidNOTICEDo not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the windshield
washer pump.

265
uuChecking and Maintaining TiresuTire Rotation
Maintenance
Tire RotationRotating tires according to the maintenance messages on the multi-information
display helps to distribute wear more evenly and increase tire life.■Tires without rotation marks
Rotate the tires as shown here.■Tires with rotation marks
Rotate the tires as shown here.
1Tire Rotation
Tires with directional tread patterns should only be
rotated front to back (not from one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.Front
Direction Mark
FrontFront

283
uuIf a Tire Goes FlatuChanging a Flat Tire
Handling the Unexpected
1.Remove the center cap and place the flat
tire face up under the hoist.
2.Insert the hoist bracket into the center hole
of the flat tire.
3.Turn the extension bar with the wheel nut
wrench clockwise until the flat tire rests
against the underbody of the vehicle and
you hear the hoist click.
4.Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
cargo area.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM appears on the multi-information display, but this is normal.
If you replace the tire with a specified regular tire, the warning message on the
multi-information display and the TPMS indicator will go off after a few miles
(kilometers).

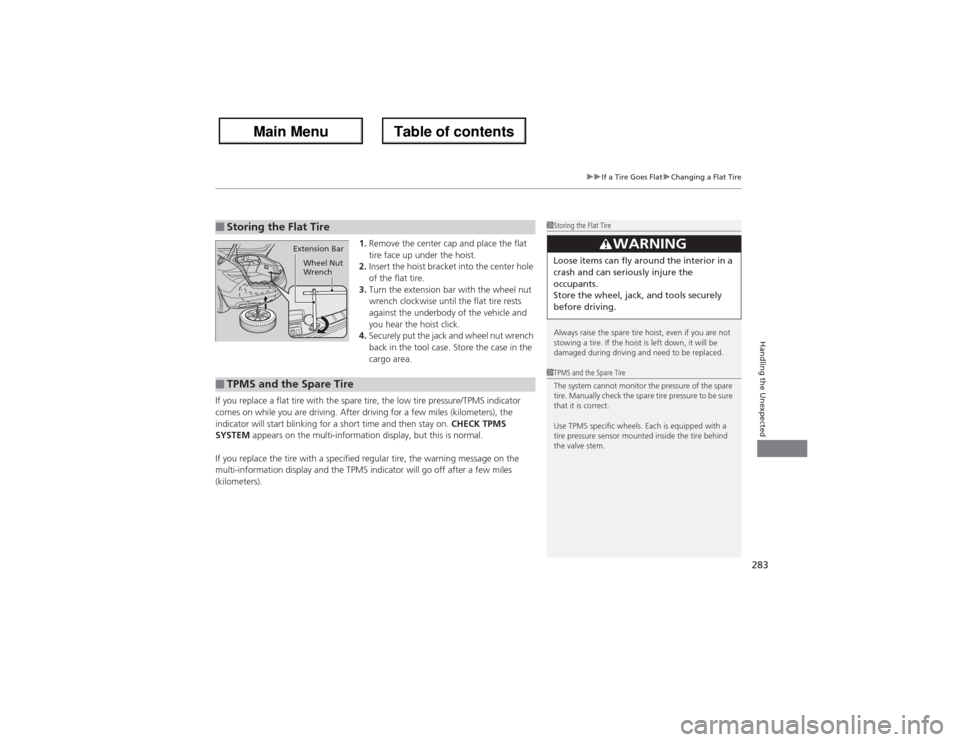

■Storing the Flat Tire
1Storing the Flat Tire
Always raise the spare tire hoist, even if you are not
stowing a tire. If the hoist is left down, it will be
damaged during driving and need to be replaced.
3
WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Extension Bar
Wheel Nut
Wrench
■TPMS and the Spare Tire
1TPMS and the Spare Tire
The system cannot monitor the pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use TPMS specific wheels. Each is equipped with a
tire pressure sensor mounted inside the tire behind
the valve stem.

284Handling the Unexpected
Engine Does Not StartChecking the EngineIf the engine does not start, check the starter.
Starter condition
Checklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the multi-information display.●If the CHANGE KEYLESS REMOTE BATTERY message appears
2If the Keyless Access Remote Battery is Weak P. 285
Check brightness of the interior light.
Turn on interior lights and check brightness.●If the interior lights are dim or do not come on at all
2Checking the Battery P. 267
●If the interior lights come on normally
2 Fuses P. 295
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 185
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.2Immobilizer System P. 122Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 86
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.2Inspecting and Changing Fuses P. 300If the problem continues:2Emergency Towing P. 301
1Checking the Engine
If you must start the vehicle immediately, use an
assisting vehicle to jump start it.
2Jump Starting P. 287

285
uuEngine Does Not StartuIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Remote Battery is WeakIf the beeper sounds and the CHANGE KEYLESS REMOTE BATTERY message
appears on the multi-information display and the indicator on the ENGINE START/
STOP button flashes and the engine won’t start, start the engine as follows:
1.Insert the remote into the keyless access
remote slot to set the power mode and
start the engine.
2.Depress the brake pedal and press the
ENGINE START/STOP button.
uIf you don’t depress the pedal, the mode
will change to ACCESSORY.
1If the Keyless Access Remote Battery is Weak
Inserting the remote does not charge the remote
battery. You should replace the battery as soon as
possible.

318Index
Engine Coolant......................................... 243
Adding to the Radiator ............................ 244
Adding to the Reserve Tank ..................... 243
Overheating............................................. 290
Temperature Gauge................................... 86
Engine Oil.................................................. 238
Adding .................................................... 240
Checking ................................................. 239
Displaying Oil Life .................................... 231
Low Oil Pressure Indicator .................. 66, 292
Recommended Engine Oil ........................ 238
Exhaust Gas Hazard
(Carbon Monoxide)................................... 63
Exterior Care (Cleaning)........................... 272
Exterior Mirrors......................................... 143FFeatures..................................................... 167
Filters
Dust and Pollen ....................................... 269
Oil ........................................................... 241
Flat Tire..................................................... 277
Floor Mats................................................. 271
Fluids
Automatic Transmission ........................... 245
Brake ....................................................... 246
Engine Coolant ........................................ 243
Windshield Washer .................................. 248
Fog Light Indicator..................................... 73
Folding Down the Rear Seats................... 150Foot Brake................................................ 213
Forward Collision Warning (FCW)........... 196
Front Airbags (SRS)..................................... 37
Front Seat Heaters and Seat
Ventilation.............................................. 161
Front Seats................................................ 144
Adjusting ................................................ 144
Fuel...................................................... 13, 221
Economy ................................................. 224
Gauge ....................................................... 86
Instant Fuel Economy ................................ 90
Low Fuel Indicator ..................................... 69
Range ....................................................... 90
Recommendation .................................... 221
Refueling................................................. 221
Fuel Economy........................................... 224
Fuel Fill Cap........................................ 13, 223
Message.................................................. 293
Fuel Fill Door...................................... 13, 222
Fuses
Locations................................................. 295
GGasoline (Fuel)
Economy ................................................. 224
Gauge ....................................................... 86
Information ............................................. 221
Instant Fuel Economy ................................ 90
Low Fuel Indicator ..................................... 69
Refueling................................................. 221Gauges........................................................ 86
Gear Shift Lever Positions
Automatic Transmission .......................... 189
Glass (care)............................................... 273
Glove Box................................................. 154
HHalogen Bulbs.......................................... 250
Handling the Unexpected....................... 275
Hazard Warning Button.............................. 2
Head Restraints........................................ 146
Headlights................................................ 132
Aiming.................................................... 249
Automatic Operation .............................. 133
Dimming......................................... 132, 134
Operating ............................................... 132
Heaters (Seat)................................... 161, 162
High-Beam Indicator.................................. 73
HomeLink® Universal Transceiver........... 169IIdentification Numbers............................ 307
Engine and Transmission ......................... 307
Vehicle Identification............................... 307
Illumination Control................................ 137
Button .................................................... 137
Immobilizer System.................................. 122
Indicator ................................................... 74
Indicators.................................................... 66

320Index
MMaintenance............................................. 227
Battery..................................................... 267
Brake ....................................................... 246
Cleaning .................................................. 270
Climate Control ....................................... 269
Coolant ................................................... 243
Maintenance Minder
TM............................ 231
Oil ........................................................... 239
Precautions .............................................. 228
Radiator................................................... 244
Remote Transmitter ................................. 268
Replacing Light Bulbs ............................... 249
Safety ...................................................... 229
Service Items............................................ 233
Tires ........................................................ 258
Transmission Fluid.................................... 245
Under the Hood....................................... 235
Malfunction Indicator Lamp.............. 67, 293
Map Lights................................................ 153
Maximum Load Limit................................ 175
Meters, Gauges........................................... 86
Mirrors....................................................... 142
Adjusting ................................................. 142
Door ........................................................ 143
Exterior .................................................... 143
Interior Rearview...................................... 142
Modifications (and Accessories)............... 225
Multi-Information Display.......................... 87
NNumbers (Identification).......................... 307OOdometer................................................... 88
Oil (Engine)............................................... 238
Adding .................................................... 240
Checking................................................. 239
Displaying Oil Life .................................... 231
Low Oil Pressure Indicator ................. 66, 292
Recommended Engine Oil ....................... 238
Viscosity .................................................. 238
Opening/Closing
Hood....................................................... 236
Panoramic Glass Roof .............................. 128
Power Windows ...................................... 125
Tailgate ........................................... 116, 303
Outside Temperature Display.................... 89
Overheating.............................................. 290PPaddle Shifters (Sequential Shift
Mode)...................................................... 191
Panic Mode............................................... 124
Panoramic Glass Roof............................... 128
Parking...................................................... 216
Parking Brake........................................... 212
Parking Brake and Brake System
Indicator............................................ 66, 294Parking Sensor System............................. 217
Passenger Airbag Off Indicator................. 46
Passing Indicators..................................... 132
Power Windows....................................... 125
Precautions While Driving....................... 187
Rain ........................................................ 187
Pregnant Women....................................... 32
Puncture (Tire)......................................... 277
RRadiator.................................................... 244
Range.......................................................... 90
Readiness Codes (Emissions Testing)...... 310
Rear Defogger/Heated Door Mirror
Button..................................................... 138
Rear Seat Heaters..................................... 162
Rear Seats (Folding Down)...................... 150
Rearview Mirror....................................... 142
Rearview Mirror with Rearview Camera
Display.................................................... 220
Refueling.................................................. 221
Fuel Gauge ............................................... 86
Gasoline ......................................... 221, 306
Low Fuel Indicator..................................... 69
Regulations.............................. 210, 261, 308
Remote Transmitter................................. 108

321Index
Replacement
Battery .................................................... 268
Bulbs ...................................................... 249
Fuses ...................................................... 295
Tires........................................................ 264
Wiper Blade Rubber ................................ 256
Reporting Safety Defects......................... 309
Resetting a Trip Meter............................... 89
Reverse Tilt Door Mirror.......................... 143SSafe Driving................................................ 21
Safety Check............................................... 26
Safety Labels.............................................. 64
Safety Message.......................................... 19
Seat Belts.................................................... 27
Adjusting the Shoulder Anchor ................. 31
Automatic Seat Belt Tensioners ................. 29
Checking .................................................. 33
Fastening .................................................. 30
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 57
Pregnant Women...................................... 32
Reminder .................................................. 28
Warning Indicator ............................... 28, 69
Seat Heaters..................................... 161, 162
Seats.......................................................... 144
Adjusting ................................................ 144
Front Seats.............................................. 144
Rear Seats ............................................... 150Seat Heaters .................................... 161, 162
Security System......................................... 122
Immobilizer System Indicator ..................... 74
Security System Alarm Indicator ................. 75
SEL/RESET Button........................................ 87
Select Lever......................................... 12, 189
Operation .......................... 12, 190, 191, 192
Releasing ................................................. 289
Won’t Move ............................................ 289
Selecting a Child Seat................................. 53
Sequential Shift Mode............................. 191
Setting the Clock.......................................... 9
SH-AWD®................................................... 204
Indicator .................................................... 76
Shift Lever........................................... 12, 189
Shift Position Indicator....................... 68, 190
Shifting...................................................... 189
Shoulder Anchor......................................... 31
Side Airbags................................................ 41
Cutoff System ........................................... 43
Off Indicator .............................................. 43
Side Curtain Airbags................................... 44
Side Storage Compartment..................... 156
Snow Tires................................................. 266
Spare Tire.......................................... 277, 306
Spark Plugs................................................ 306
Specifications............................................ 306
Specified Fuel.................................... 221, 306
Speedometer.............................................. 86
SRS Airbags (Airbags)................................. 37Starting the Engine.................................. 185
Does Not Start......................................... 284
Jump Starting .......................................... 287
Steering Wheel......................................... 141
Adjusting ................................................ 141
Stopping................................................... 216
Super Handling-All Wheel Drive
TM (SH-AWD®)
System..................................................... 204
Supplemental Restraint System (SRS)........ 37
Switches (Around the Steering
Wheel)............................................. 2, 3, 129
SYNC Mode............................................... 165
System Message Indicator.......................... 72
TTachometer................................................. 86
Tailgate..................................................... 116
Unable to Open....................................... 303
Temperature
Outside Temperature Display ..................... 89
Temperature Sensor................................. 166
Time (Setting)............................................... 9
Tire Pressure Monitoring System
(TPMS)..................................................... 208
Indicator............................................ 72, 294
