GETTING TO KNOW YOUR CAR6
ALFA ROMEO
CODE SYSTEMTo increase protection against attempted
theft, the car is fitted with an electronic en-
gine lock system (Alfa Romeo CODE) which
is activated automatically when the ignition
key is removed. In fact the grip of each key
contains an electronic device which modu-
lates the radio frequency signal transmit-
ted when the engine is started by a special
aerial incorporated in the ignition switch. This
modulated signal is the “password” by
which the control unit recognises the key
and only in this condition can the engine
be started.
THE KEYSThe car is delivered with two keys, key
(A-fig.1) with metal insert and remote
control function and another key with metal
insert only, without remote control.
The key remote control operates:
– door centralised opening/locking
– opening luggage compartment boot/
tailgate
– activation/deactivation of electronic
alarm (if existing)
G G
E E
T T
T T
I I
N N
G G

T T
O O

K K
N N
O O
W W

Y Y
O O
U U
R R

C C
A A
R R
SYMBOLSSpecial coloured labels have been attached
near to or actually on some of the compo-
nents making up your Alfa 156.
These labels bear symbols that remind you
of the precautions to be taken as regards
that particular component.
fig. 1
A0B0016m

GETTING TO KNOW YOUR CAR7
Key metal insert operates:
– the ignition switch
– the driver's door lock and, optional for
versions/markets where applicable, the pas-
senger's door lock
– passenger’s side Air bag deactivation.
WARNINGIn order to ensure perfect ef-
ficiency of the electronic devices contained
inside the keys, they should never be directly
exposed to the rays of the sun.
If the car changes owner,
the new owner must be
given all the keys and the
CODE card.
fig. 2
A0B0010m
The CODE card (fig. 2) is also supplied
with the key and it contains the codes of the
keys (both the mechanical one and the elec-
tronic one for emergency starting).
The code numbers on the CODE card must
be kept in a safe place, not in the car.
The driver should always keep the elec-
tronic code given on the CODE card with him
in the event of having to carry out emer-
gency starting.
KEY WITH REMOTE CONTROLThe key with remote control (fig. 3) is
fitted with:
– a metal insert (A) that can be enclosed
in the key grip
– button (B) for remote opening/clos-
ing of the doors and turning the electronic
alarm on/off (where fitted)
– a button (C) for remote boot unlock-
ing
– removable hook ring (D)
– a button (E) for power-assisted opening
of the metal insert.fig. 3
A0B9000m

GETTING TO KNOW YOUR CAR8
To insert the metallic insert in the key grip,
press the button (E-fig. 3) to release the
insert and turn it in the direction of the ar-
row until it clicks.
To open/close the doors by remote con-
trol, press button (B). On cars fitted with
electronic alarm system, pressing button (B)
also turns the electronic alarm.
WARNINGCertain radio devices outside
the car (e.g. mobile phones, HAM radio sys-
tems) could disturb the remote control fre-
quency. In this case the remote control could
malfunction.
OPENING THE BOOTThe boot can be opened by remote control
from outside pressing button (C-fig. 3),
also when the electronic alarm (where fit-
ted) is on.
In this case the alarm system switches off
the boot volumetric protection and control
sensor, the system gives two “beeps” (with
the exceptions of versions for certain mar-
kets) and the direction indicators light up for
about three seconds.
Closing the boot again, the control func-
tions are restored, the system gives two
“beeps” (with the exceptions of versions for
certain markets) and the direction indicators
light up for about three seconds. The metallic insert (A) of the key oper-
ates:
– the ignition switch
– the driver's door lock and, optional for
versions/markets where applicable, the pas-
senger's door lock
– passenger’s Air bag deactivation.
To move the metallic insert out of the key
grip, press button (E).
When button (E) is
pressed, take the utmost
care to prevent the metal insert
from causing injury or damage
when it comes out. Button (E) must
only be pressed when the key is
away from the body, in particular
the eyes, and from objects that
could be spoilt (e.g. clothes). Never
leave the key unattended to pre-
vent anyone, especially children,
from holding it and pressing button
(E) inadvertently.
WARNING

GETTING TO KNOW YOUR CAR11
To change the battery (fig. 7):
– move the metal insert (A) to the un-
locking position;
– turn the pin (B), taking the reference
mark (dot) of the cut to the UNLOCKpo-
sition (2);
– working on the notch (C) remove the
battery holder (D);
– change the battery (E) putting it in the
position shown on the holder;
– insert the holder back in the key and
lock it, turning the reference mark of the pin
(B) to the LOCKposition (1).
ELECTRONIC ALARM(optional for versions/markets
where applicable)DESCRIPTIONThe system comprises: transmitter, re-
ceiver, control unit with siren and volumet-
ric sensors and anti-lift sensor. The electronic
alarm is controlled by a receiver inside the
car and it is turned on and off through the
remote control incorporated in the key which
sends the crypted and variable code. The
electronic alarm monitors: unlawful opening
of the doors, bonnet and boot (perimetral
protection), operation of the ignition key,
battery and emergency key cable cutting,
the presence of moving bodies (volumetric
protection), any abnormal raising/sloping
of the car (for versions/markets where ap-
plicable) and operates the central door lock-
ing system. It also makes it possible to cut
off the volumetric protection.
WARNINGThe engine inhibitor function
is guaranteed by the Alfa Romeo CODE sys-
tem which is activated automatically when
the ignition key is removed.
fig. 7
A0B0047m
REMOTE CONTROL
(fig. 8)
The remote control is built into the key and
it is fitted with a button for activating the
alarm (B-fig.8)
fig. 8
A0B9000m

GETTING TO KNOW YOUR CAR12
REQUEST FOR ADDITIONAL
KEYS WITH REMOTE CONTROLThe receiver can recognise up to 5 keys
with remote control. If during the life of the
car a new key with remote control is needed
for any reason whatsoever, contact Alfa
Romeo Authorized Services directly, taking
with you the CODE card, a personal iden-
tity document and the car’s possession doc-
uments.
ACTIVATING THE ALARMWhen the doors and boot/bonnet lids are
closed and the ignition key is in the STOP
or PARKposition (key removed), point the
remote control towards the car and then
press and release the button (B-fig. 8).
With the exception of some markets the
system sounds a beep and the door lock is
engaged.
Engagement of the alarm is preceded by
a self-diagnosis phase characterised by a
change in the frequency at which the de-
terrent led (A-fig. 9) on the dashboard
flashes. If an anomaly is detected the sys-
tem gives off a further beep.fig. 9
A0B0563m
Surveillance
When the system has been turned on, the
led (A-fig. 9) on the dashboard will flash
to indicate that the system is in the surveil-
lance mode. The led will flash continuously
while the system is under surveillance.
WARNINGOperation of the electronic
alarm is adapted at the origin to the regu-
lations of the different countries.

GETTING TO KNOW YOUR CAR13
Self-diagnosis and monitoring
of doors and bonnet/boot
If, after the alarm has been activated, a
second acoustic signal is heard, check that
all the doors and bonnet/boot are closed
properly and engage the system once again.
On the other if a door or bonnet/boot lid
is not correctly closed it will not be controlled
by the system.
If the control signal is repeated when the
doors and bonnet/boot are closed properly
this means that the self-diagnosis function
has detected a system operating fault, in
which case it is necessary to contact Alfa
Romeo Authorized Services.
DEACTIVATING THE ALARMTo deactivate the alarm, press the button
on the key with remote control. The system
performs the following (with the exception
of some markets):
– the direction indicators turn on twice
briefly
– two beeps are sounded briefly by the
siren
– the doors are released.
WARNINGIf the led (A-fig. 9) in the
car stays on when the system has been de-
activated, (maximum of 2 minutes or until
the ignition key is moved to MAR) the fol-
lowing should be borne in mind:
– if the led stays on permanently, it means
that the remote control batteries are flat and
need replacing;– if the led continues to flash, but at dif-
ferent intervals than normal, it means that
attempts to steal the car have been made,
counting the number of flashes it is also pos-
sible to identify the type of attempt:
1 flash: right front door
2 flashes: left front door
3 flashes: right rear door
4 flashes: left rear door
5 flashes: volumetric sensors
6 flashes: bonnet
7 flashes: boot
8 flashes: tampering with car starting
cables
9 flashes: tampering with battery or
cutting emergency key ca-
bles
10 flashes: at least three causes of
alarm.

GETTING TO KNOW YOUR CAR14
AUTOMATIC ENGAGEMENT
OF THE ALARM (optional for versions/markets
where applicable)
If the alarm has not been engaged with
the remote control it will come on auto-
matically after an established time of 30
seconds from the moment that the ignition
key has been turned to the STOPor
PARKpositions and a door or the boot has
been opened and then closed again. This
condition is shown by the intermittent illu-
mination of the led in the car and by the sig-
nalling described previously.
To deactivate the alarm press the button
on the remote control.
The alarm is also automatically engaged
when the doors are closed using the key.
When the alarm is engaged automatically
the doors are not locked.
WHEN THE ALARM
IS TRIGGEREDWhen the alarm is engaged it will sound
when:
– one of the doors, the bonnet or the tail-
gate is opened;
– the battery is disconnected or the elec-
tric cables are cut, or the emergency key ca-
bles are cut;
– intrusion into the passenger compart-
ment, e.g. window being broken (volumetric
protection);
– attempt to start the engine (key at
MAR);
– abnormal car raising/sloping (for ver-
sions/markets where applicable).
Depending on the markets, the triggering
of the alarm will activate the siren and the
hazard warning lights (for about 26 sec-
onds). The methods of operation and the
number of cycles may vary depending on
the versions/markets.
However a maximum number of cycles is
foreseen.
Once the alarm cycle has come to an end,
the system will return to its normal moni-
toring state.
INTERRUPTING THE ALARMTo interrupt the alarm press the button on
the remote control or, if the remote control
battery is down, get into the car, insert the
key into the ignition switch and turn the key
to MAR.
WARNINGIf it is necessary for the ve-
hicle to lie inactive for long periods (over 3
weeks), close the vehicle using the key to
deactivate the alarm.

GETTING TO KNOW YOUR CAR19
OPENING/CLOSING
FROM INSIDEFront doors
– To open the door pull the handle (A-
fig. 16) regardless of the position of knob
(B).
– To close the door pull the flap. To pre-
vent the door from being opened from out-
side press knob (B).Rear doors fig. 15
A0B0025m
fig. 16
A0B0024m
fig. 17
A0B0026m
– To open the door pull handle (A-
fig. 17).
– To close the door press the knob (B)
even when the flap is open, and then close
the flap.
If the boot is not properly shut, the warn-
ing light ´will come on on the instrument
panel or (where applicable) on the Info-
center display (together with relevant mes-
sage).
CENTRALIZED LOCKINGThis permits centralized locking of all
doors, both front and rear.
To operate the centralized locking device
the doors must be perfectly closed otherwise
the system will not work.
For versions/markets, where applicable,
central locking depends on the complete
closing of all the doors and of the boot.
– From outside:when the doors are
closed, insert and turn the key in the lock of
one of the two front doors.
– From inside:when the doors are
closed, press one of the knobs (B-fig. 16)
located on the front doors, engage/release
the centralized locking system.
The rear doors can only be
opened if the child safety
lock has been released.
WARNING

GETTING TO KNOW YOUR CAR
135

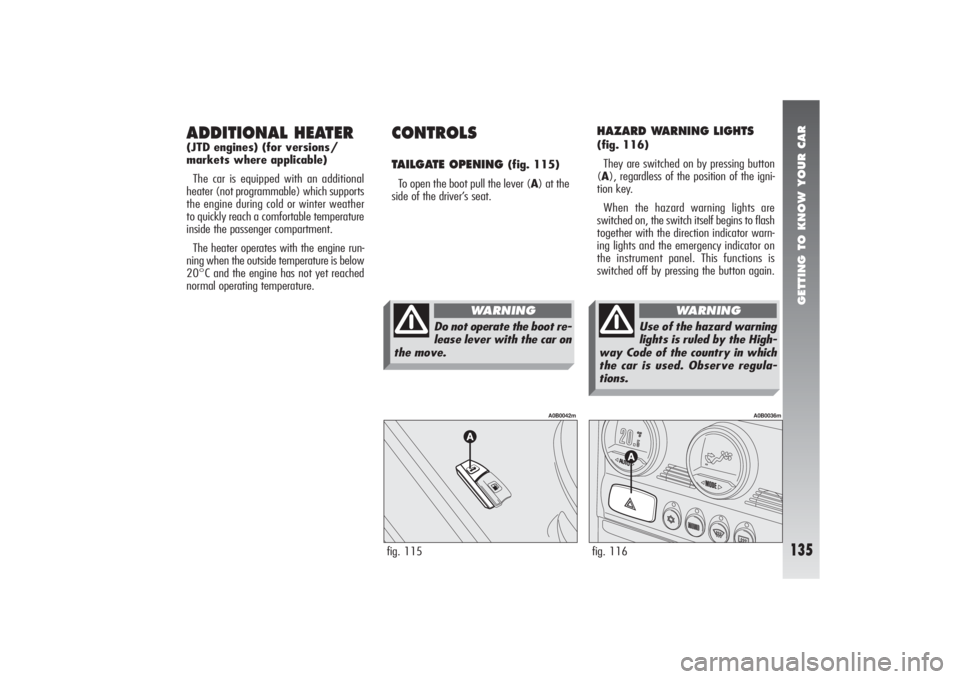

ADDITIONAL HEATER(JTD engines) (for versions/
markets where applicable)
The car is equipped with an additional
heater (not programmable) which supports
the engine during cold or winter weather
to quickly reach a comfortable temperature
inside the passenger compartment.
The heater operates with the engine run-
ning when the outside temperature is below
20°C and the engine has not yet reached
normal operating temperature.
HAZARD WARNING LIGHTS(fig. 116)
They are switched on by pressing button
(A), regardless of the position of the igni-
tion key.
When the hazard warning lights are
switched on, the switch itself begins to flash
together with the direction indicator warn-
ing lights and the emergency indicator on
the instrument panel. This functions is
switched off by pressing the button again.
CONTROLSTAILGATE OPENING
(fig. 115)
To open the boot pull the lever (A) at the
side of the driver’s seat.
fig. 115
A0B0042m
fig. 116
A0B0036m
Do not operate the boot re-
lease lever with the car on
the move.
WARNING
Use of the hazard warning
lights is ruled by the High-
way Code of the country in which
the car is used. Observe regula-
tions.
WARNING

GETTING TO KNOW YOUR CAR
169
fig. 158
A0B0247m
EMERGENCY OPERATIONIf the electrical control device does not
work, the sunroof can be opened manually
as follows:
– apply leverage to the points indicated
by the arrows and remove the plate with
switch (D-fig. 159);
– use the outfit screwdriver or the special
wrench (B-fig. 160) supplied for the ver-
sions / market where provided, and located
in the object holder drawer, push on and turn
the sunroof control bushing (C-fig. 160)
clockwise to open it and anti-clockwise to
close it. WARNINGAt the end of the operation,
before removing the screwdriver or the
wrench, it is necessary to turn it by half a
turn in the direction opposite to that used,
until a click is felt.
LUGGAGE
COMPARTMENTThe boot lid can be opened from outside
the vehicle (pressing the button on the key)
and from inside the vehicle.
WARNINGIf the boot is not properly
shut, the warning light
´
will come on on
the instrument panel or (where applicable)
on the Infocenter display (together with rel-
evant message).
fig. 159
A0B0246m
fig. 160
A0B0245m
