Alfa Romeo 4C Spider 2019 Owner's Manual

3. Remove protective cover from headlamp assembly.
4. Remove the electric connector (1) and then rotate thebulb holder (2) clockwise and remove it.
5. Extract the bulb and replace it.
6. Refit the new bulb, making sure that it is lockedcorrectly, and reconnect the electrical connector.
7. Reinstall protective cover in the headlamp assembly and close the protective flap.
Protective Cover
Bulb Holder
1 — Electrical Connector
2 — Bulb Holder
7
IN CASE OF EMERGENCY 169

Low/High Beam HID & LED Headlights
For the replacement, contact an authorized dealer.
Direction Indicators
Front:
1. Turn the steering wheel completely.
2. Open the protective flap by rotating the screw.3. Remove protective cover from headlamp assembly.
4. Rotate the bulb holder counterclockwise and remove
it.
5. Rotate the bulb assembly counter clockwise to re- move from bulb holder.
6. Install the new bulb, making sure that it is locked in correctly, and reinstall into headlamp assembly.
7. Reinstall protective cover in the headlamp assembly and close the protective flap.
Front Fender Liner
1 — Direction Indicator Bulb Protective Flap
2 — Headlamp Bulb Protective Flap
Protective Cover
170 IN CASE OF EMERGENCY

Side:
1. Compress the retaining clip, then pull the sidemarker assembly outwards.
2. Turn the bulb holder counterclockwise, remove the bulb and replace it. 3. Install the bulb holder in the lens and turn it clock-
wise.
4. Install the cluster making sure that the internal clip clicks into position.
Front Side Marker
To change the bulb, proceed as follows:
1. Turn the front wheels to gain access and then removethe fastener from the inner wheel liner.
2. Fold back wheel liner door to access bulb housing.
Side Direction Indicator
1 — Lens
2 — Bulb Holder
Bulb Housing Location
7
IN CASE OF EMERGENCY 171

3. Remove bulb from bulb housing then remove andreplace bulb and reinstall.
Rear Light Clusters
These contain the bulbs for the side lights, direction
indicators and brake lights.
Direction Indicators
To change the bulb, proceed as follows:
1. Remove the protective cap (one for each side) on theside cover of the luggage compartment.
2. Remove the second protective cap insert a hand inside the opening.
Front Side Marker Bulb
First Protective Cap
172 IN CASE OF EMERGENCY

3. Rotate clockwise to remove the bulb holder removethe bulb from the bulb holder.
4. Install the bulb by pressing it into bulb holder then turn install the bulb holder and turn it counterclock-
wise.
5. Install the previously removed protective caps.
Tail Lights/Brake Lights
These are LEDs. For the replacement, contact an autho-
rized dealer.
Reversing Light
WARNING!
The reverse lights are located close to the exhaust
pipes; take the utmost care not to get burnt during
the bulb replacement.
To replace the reversing lights, turn the bulb holder
counterclockwise, remove the bulb and replace it.
Second Protective Cap
Rear Of Vehicle
1 — Reverse Light Location
2 — Reverse Light Location
7
IN CASE OF EMERGENCY 173

Third Brake Lights
These are LEDs. For the replacement, contact an autho-
rized dealer.
License Plate Lights
To replace the bulbs proceed as follows:
1. Compress the retaining clip, then pull the licenseplate light cluster out.
Reversing Light Bulb Holder
License Plate Lamp Removal
174 IN CASE OF EMERGENCY

2. Turn bulb holder counterclockwise, remove bulb andreplace it.Roof Light
To change the bulb, proceed as follows:
1. Remove roof light working at the points indicated bythe arrows.
1 — Bulb Holder
2 — Bulb
Roof Light
7
IN CASE OF EMERGENCY 175

2. Open protective flap (2) and replace bulb (1), releas-ing it from the side contacts. Make sure that the new
bulb is correctly secured between the contacts.
3. Close protective flap (2) and install roof light in its housing, making sure that it is locked in place.Luggage Compartment Roof Light
To replace the bulb, proceed as follows:
1. Open the luggage compartment and remove luggagecompartment roof light, working in the direction
shown by the arrow.
1 — Bulb
2 — Protective Flap
1 — Light Cover
2 — Light Protector
176 IN CASE OF EMERGENCY

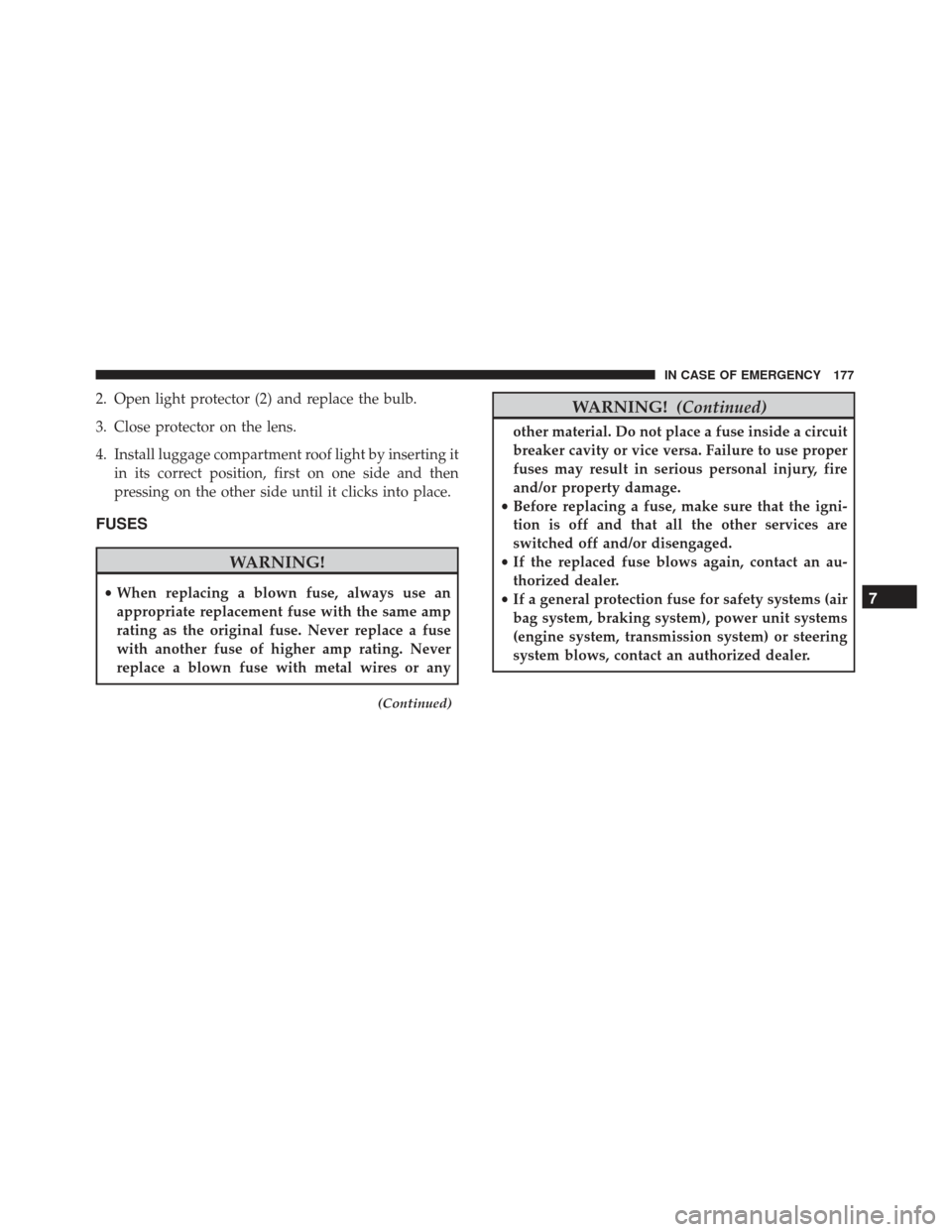

2. Open light protector (2) and replace the bulb.
3. Close protector on the lens.
4. Install luggage compartment roof light by inserting itin its correct position, first on one side and then
pressing on the other side until it clicks into place.
FUSES
WARNING!
•When replacing a blown fuse, always use an
appropriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any
(Continued)
WARNING! (Continued)
other material. Do not place a fuse inside a circuit
breaker cavity or vice versa. Failure to use proper
fuses may result in serious personal injury, fire
and/or property damage.
• Before replacing a fuse, make sure that the igni-
tion is off and that all the other services are
switched off and/or disengaged.
• If the replaced fuse blows again, contact an au-
thorized dealer.
• If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, transmission system) or steering
system blows, contact an authorized dealer.
7
IN CASE OF EMERGENCY 177

General Information
The fuses protect electrical systems against excessive
current.
When a device does not work, you must check the fuse
element inside the blade fuse for a break/melt.
Also, please be aware that when using power outlets for
extended periods of time with the engine off may result
in vehicle battery discharge.
Engine Compartment Fuses
The engine compartment fuse box is located on the left
side of the engine compartment, next to the battery. To
access the fuses, remove screws, and then remove the
cover.
The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.
Blade Fuses1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element.
3 — Blade fuse with a NOT functional / BAD fuse element
(blown fuse).
Engine Compartment Fuse Box
1 — Forward Screw
2 — Fuse Box Cover
3 — Rearward Screw
178 IN CASE OF EMERGENCY
