Alfa Romeo 4C Spider 2019 Owner's Manual

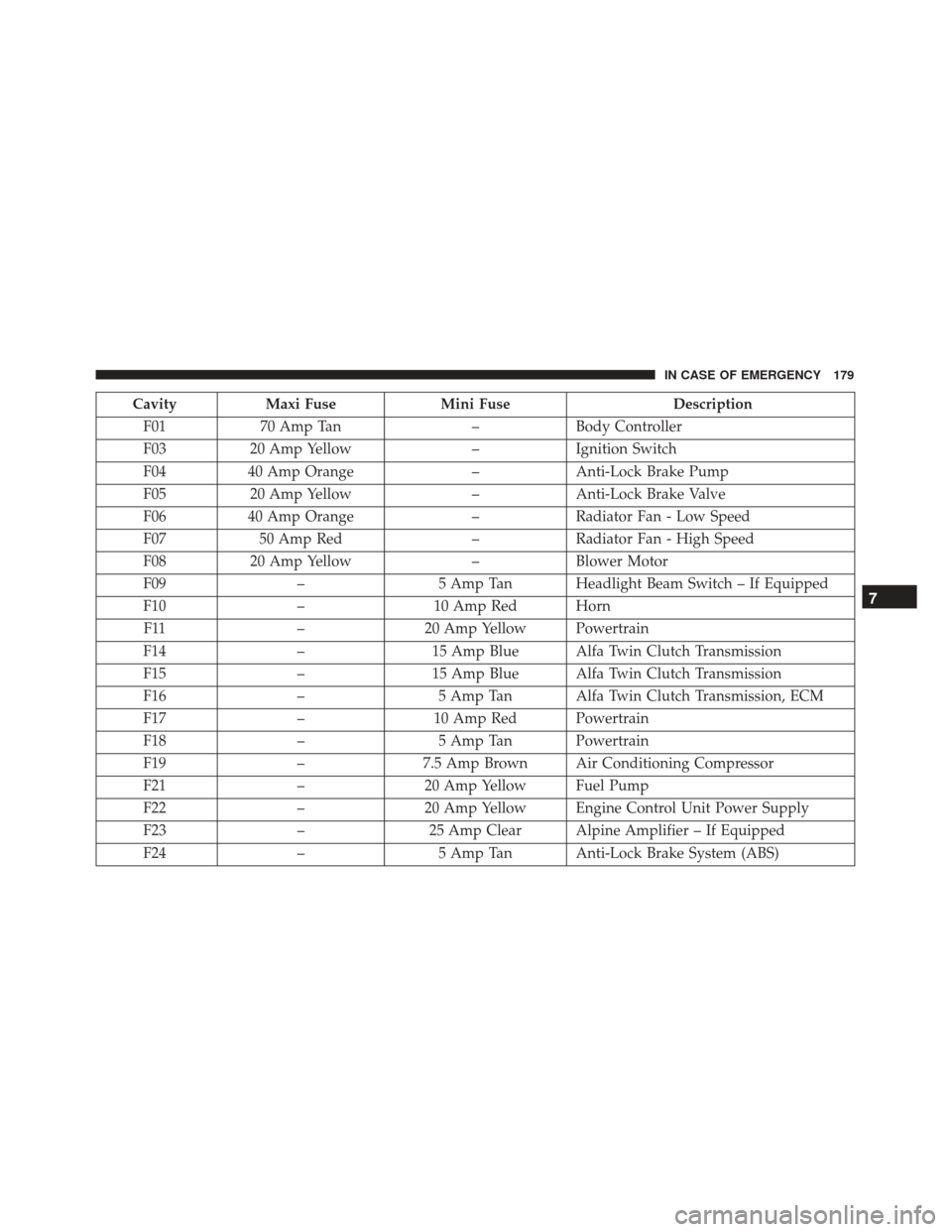

CavityMaxi Fuse Mini Fuse Description
F01 70 Amp Tan –Body Controller
F03 20 Amp Yellow –Ignition Switch
F04 40 Amp Orange –Anti-Lock Brake Pump
F05 20 Amp Yellow –Anti-Lock Brake Valve
F06 40 Amp Orange –Radiator Fan - Low Speed
F07 50 Amp Red –Radiator Fan - High Speed
F08 20 Amp Yellow –Blower Motor
F09 –5 Amp Tan Headlight Beam Switch – If Equipped
F10 –10 Amp Red Horn
F11 –20 Amp Yellow Powertrain
F14 –15 Amp Blue Alfa Twin Clutch Transmission
F15 –15 Amp Blue Alfa Twin Clutch Transmission
F16 –5 Amp Tan Alfa Twin Clutch Transmission, ECM
F17 –10 Amp Red Powertrain
F18 –5 Amp Tan Powertrain
F19 –7.5 Amp Brown Air Conditioning Compressor
F21 –20 Amp Yellow Fuel Pump
F22 –20 Amp Yellow Engine Control Unit Power Supply
F23 –25 Amp Clear Alpine Amplifier – If Equipped
F24 –5 Amp Tan Anti-Lock Brake System (ABS)
7
IN CASE OF EMERGENCY 179

CavityMaxi Fuse Mini Fuse Description
F30 –10 Amp Red Water Pump, HVAC
F82 30 Amp Green –Headlamp Washer – If Equipped
F83 40 Amp Orange –Alfa Twin Clutch Transmission Pump
F84 –5 Amp Tan After Run Pump
F86 –15 Amp Blue Rear Power Outlet 12V
F88 –7.5 Amp Brown Heated Mirrors
Dashboard Fuse Box
The dashboard fuse box is part of the Body Control
Module (BCM) and is located on the passenger side
under the forward passenger floor. Remove the six
screws and the forward floor pan to access the BCM.
CavityVehicle Fuse
Number Mini Fuse
Description
3 F53 7.5 Amp Brown Instrument Panel Node
4 F38 15 Amp Blue Central Door Locking
5 F36 10 Amp Red Diagnostic Socket, Vehicle Radio, TPMS, Alarm
6 F43 20 Amp Yellow Bi-Directional Washer
7 F48 20 Amp Yellow Passenger Power Window
9 F50 7.5 Amp Brown Airbag
180 IN CASE OF EMERGENCY

CavityVehicle Fuse
Number Mini Fuse
Description

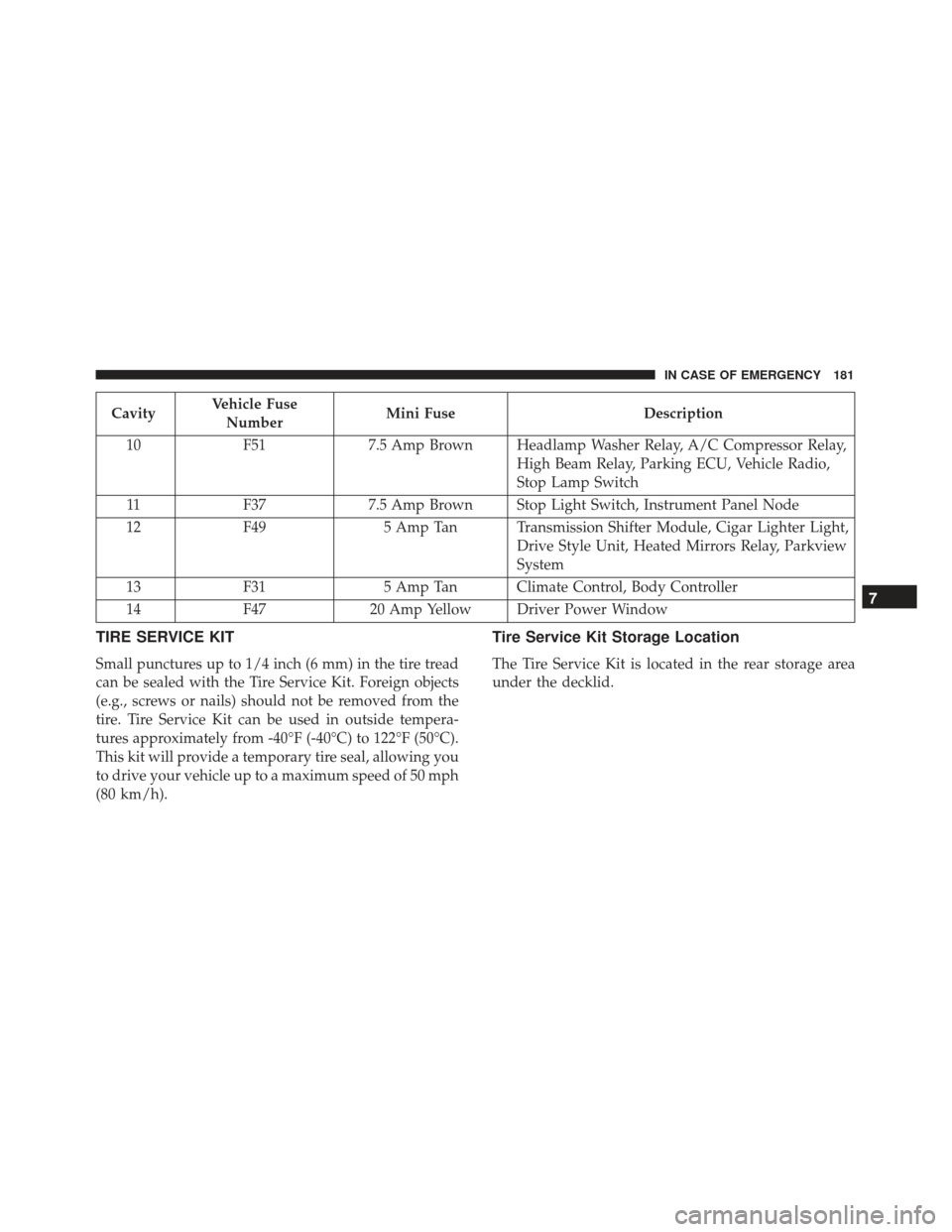

10 F51 7.5 Amp Brown Headlamp Washer Relay, A/C Compressor Relay,
High Beam Relay, Parking ECU, Vehicle Radio,
Stop Lamp Switch
11 F37 7.5 Amp Brown Stop Light Switch, Instrument Panel Node
12 F49 5 Amp Tan Transmission Shifter Module, Cigar Lighter Light,
Drive Style Unit, Heated Mirrors Relay, Parkview
System
13 F31 5 Amp Tan Climate Control, Body Controller
14 F47 20 Amp Yellow Driver Power Window
TIRE SERVICE KIT
Small punctures up to 1/4 inch (6 mm) in the tire tread
can be sealed with the Tire Service Kit. Foreign objects
(e.g., screws or nails) should not be removed from the
tire. Tire Service Kit can be used in outside tempera-
tures approximately from -40°F (-40°C) to 122°F (50°C).
This kit will provide a temporary tire seal, allowing you
to drive your vehicle up to a maximum speed of 50 mph
(80 km/h).
Tire Service Kit Storage Location
The Tire Service Kit is located in the rear storage area
under the decklid.
7
IN CASE OF EMERGENCY 181

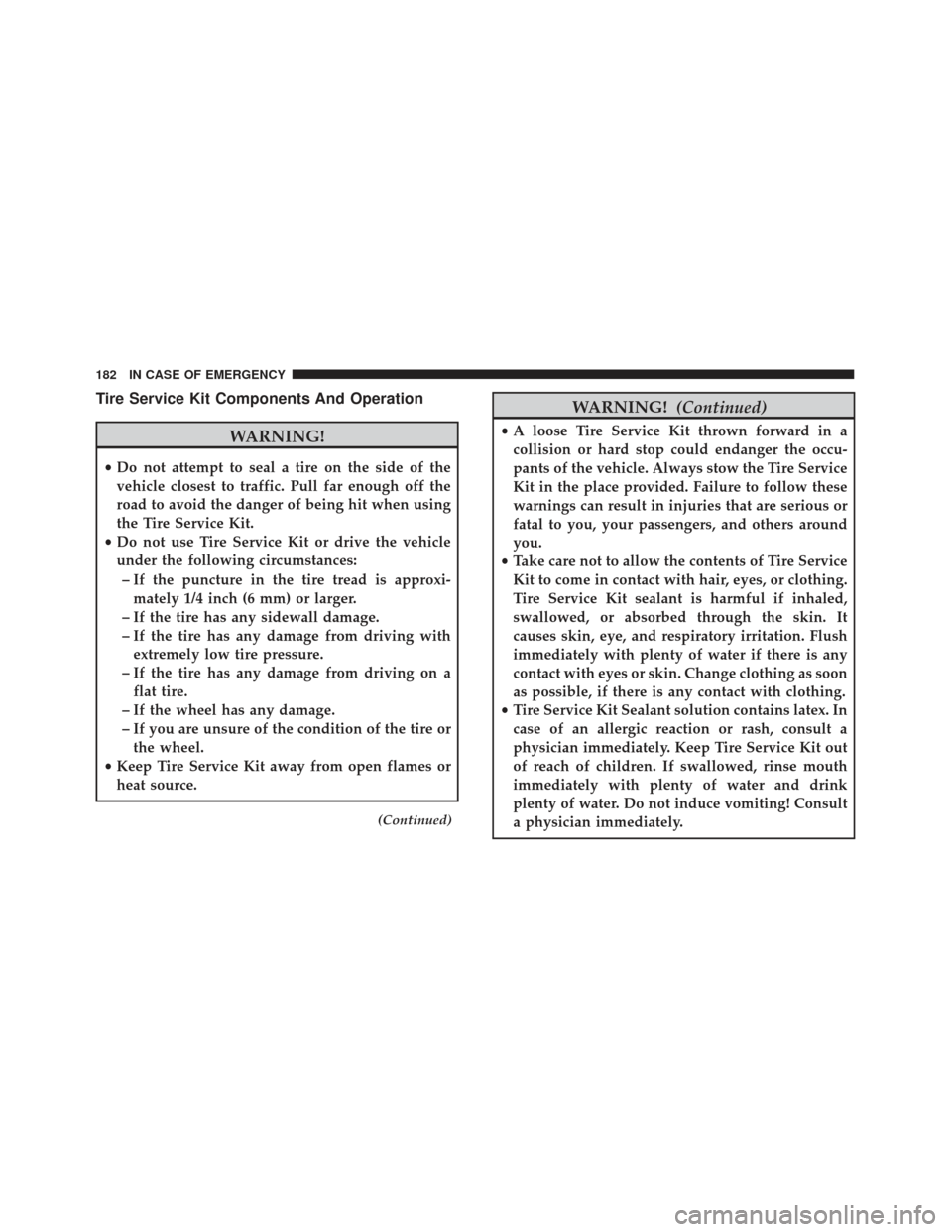

Tire Service Kit Components And Operation
WARNING!
•Do not attempt to seal a tire on the side of the
vehicle closest to traffic. Pull far enough off the
road to avoid the danger of being hit when using
the Tire Service Kit.
• Do not use Tire Service Kit or drive the vehicle
under the following circumstances:
– If the puncture in the tire tread is approxi- mately 1/4 inch (6 mm) or larger.
– If the tire has any sidewall damage.
– If the tire has any damage from driving with extremely low tire pressure.
– If the tire has any damage from driving on a flat tire.
– If the wheel has any damage.
– If you are unsure of the condition of the tire or the wheel.
• Keep Tire Service Kit away from open flames or
heat source.
(Continued)
WARNING! (Continued)
•A loose Tire Service Kit thrown forward in a
collision or hard stop could endanger the occu-
pants of the vehicle. Always stow the Tire Service
Kit in the place provided. Failure to follow these
warnings can result in injuries that are serious or
fatal to you, your passengers, and others around
you.
• Take care not to allow the contents of Tire Service
Kit to come in contact with hair, eyes, or clothing.
Tire Service Kit sealant is harmful if inhaled,
swallowed, or absorbed through the skin. It
causes skin, eye, and respiratory irritation. Flush
immediately with plenty of water if there is any
contact with eyes or skin. Change clothing as soon
as possible, if there is any contact with clothing.
• Tire Service Kit Sealant solution contains latex. In
case of an allergic reaction or rash, consult a
physician immediately. Keep Tire Service Kit out
of reach of children. If swallowed, rinse mouth
immediately with plenty of water and drink
plenty of water. Do not induce vomiting! Consult
a physician immediately.
182 IN CASE OF EMERGENCY

Tire Service Kit Components (Top View)
1 — Sealant Cartridge Receptacle
2 — Pressure Gauge
3 — Deflation Button
4 — Power Button
Tire Service Kit Components (Bottom View)
1 — Power Plug
2 — Air Pump Hose (Black)
7
IN CASE OF EMERGENCY 183

Whenever You Stop To Use Tire Service Kit
1. Pull over to a safe location and turn on the vehicle’sHazard Warning flashers.
2. Verify that the valve stem (on the wheel with the deflated tire) is in a position that is near to the
ground. This will allow the Tire Service Kit Hoses
and to reach the valve stem and keep the Tire Service
Kit flat on the ground. This will provide the best positioning of the kit when injecting the sealant into
the deflated tire and running the air pump. Move the
vehicle as necessary to place the valve stem in this
position before proceeding.
3. Place the transmission in PARK and place the igni- tion in the OFF position.
4. Apply the parking brake.
5. Remove speed limit sticker off of the sealant car- tridge and place it inside the vehicle visually avail-
able for the driver to see.
Setting Up To Use The Tire Service Kit
1. Push in the sealant cartridge inlet into the sealant cartridge receptacle.
2. Uncoil the Sealant Hose.
3. Place the Tire Service Kit flat on the ground next to the deflated tire.
4. Remove the cap from the valve stem and then screw the fitting at the end of the Sealant Hose onto the
valve stem.
5. Uncoil the Power Plug and insert the plug into the vehicle’s 12 Volt power outlet.
Sealant Cartridge Components
1 — Sealant Hose (Clear)
2 — Sealant Cartridge
3 — Sealant Cartridge Inlet 184 IN CASE OF EMERGENCY

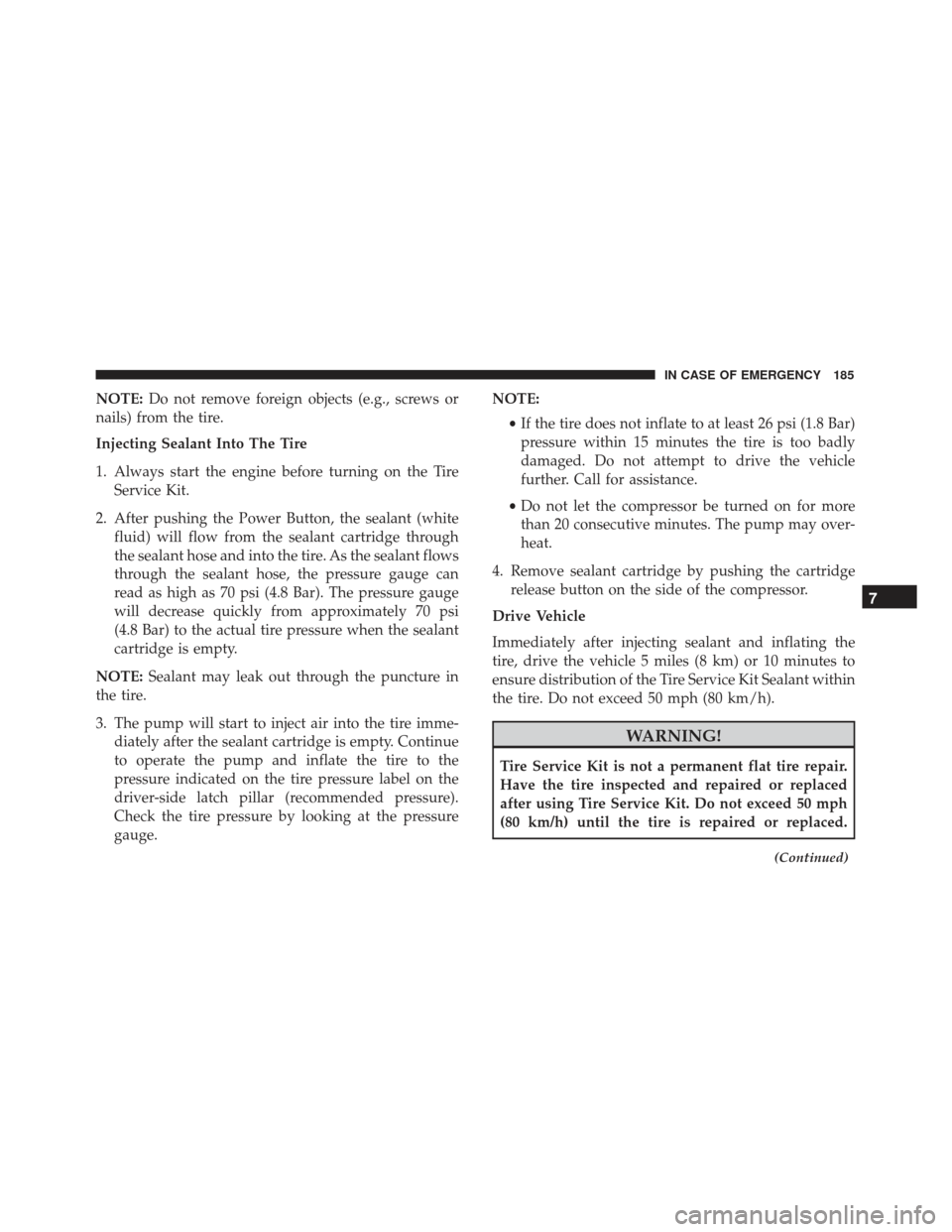

NOTE:Do not remove foreign objects (e.g., screws or
nails) from the tire.
Injecting Sealant Into The Tire
1. Always start the engine before turning on the Tire Service Kit.
2. After pushing the Power Button, the sealant (white fluid) will flow from the sealant cartridge through
the sealant hose and into the tire. As the sealant flows
through the sealant hose, the pressure gauge can
read as high as 70 psi (4.8 Bar). The pressure gauge
will decrease quickly from approximately 70 psi
(4.8 Bar) to the actual tire pressure when the sealant
cartridge is empty.
NOTE: Sealant may leak out through the puncture in
the tire.
3. The pump will start to inject air into the tire imme- diately after the sealant cartridge is empty. Continue
to operate the pump and inflate the tire to the
pressure indicated on the tire pressure label on the
driver-side latch pillar (recommended pressure).
Check the tire pressure by looking at the pressure
gauge. NOTE:
•If the tire does not inflate to at least 26 psi (1.8 Bar)
pressure within 15 minutes the tire is too badly
damaged. Do not attempt to drive the vehicle
further. Call for assistance.
• Do not let the compressor be turned on for more
than 20 consecutive minutes. The pump may over-
heat.
4. Remove sealant cartridge by pushing the cartridge release button on the side of the compressor.
Drive Vehicle
Immediately after injecting sealant and inflating the
tire, drive the vehicle 5 miles (8 km) or 10 minutes to
ensure distribution of the Tire Service Kit Sealant within
the tire. Do not exceed 50 mph (80 km/h).
WARNING!
Tire Service Kit is not a permanent flat tire repair.
Have the tire inspected and repaired or replaced
after using Tire Service Kit. Do not exceed 50 mph
(80 km/h) until the tire is repaired or replaced.
(Continued)
7
IN CASE OF EMERGENCY 185

WARNING!(Continued)
Failure to follow this warning can result in injuries
that are serious or fatal to you, your passengers, and
others around you.
After Driving
1. Attach the air pump hose (black) to the repaired tire.
2. Check the pressure in the tire by reading the pressure gauge. If the pressure is less than 19 psi (1.3 Bar), the
tire is too badly damaged. Do not attempt to drive
the vehicle further. Call for assistance.
NOTE: A replacement sealant cartridge is available at
an authorized dealer.
Tire Service Kit Usage Precautions
• Replace the Tire Service Kit Sealant Cartridge and
Sealant Hose prior to the expiration date (printed on
the left hand side of the cartridge label) to assure
optimum operation of the system.
• The Sealant Cartridge and Sealant Hose are a one tire
application use and need to be replaced after each
use. Always replace these components immediately
at an authorized dealer. •
When the Tire Service Kit sealant is in a liquid form,
clean water, and a damp cloth will remove the
material from the vehicle or tire and wheel compo-
nents. Once the sealant dries, it can easily be peeled
off and properly discarded.
• For optimum performance, make sure the valve stem
on the wheel is free of debris before connecting the
Tire Service Kit.
• Do not lift or carry the Tire Service Kit by the hoses.
JUMP STARTING
If your vehicle has a discharged battery, it can be jump
started using a set of jumper cables and a battery in
another vehicle, or by using a portable battery booster
pack. Jump starting can be dangerous if done improp-
erly, so please follow the procedures in this section
carefully.
WARNING!
Do not attempt jump starting if the battery is
frozen. It could rupture or explode and cause per-
sonal injury.
186 IN CASE OF EMERGENCY

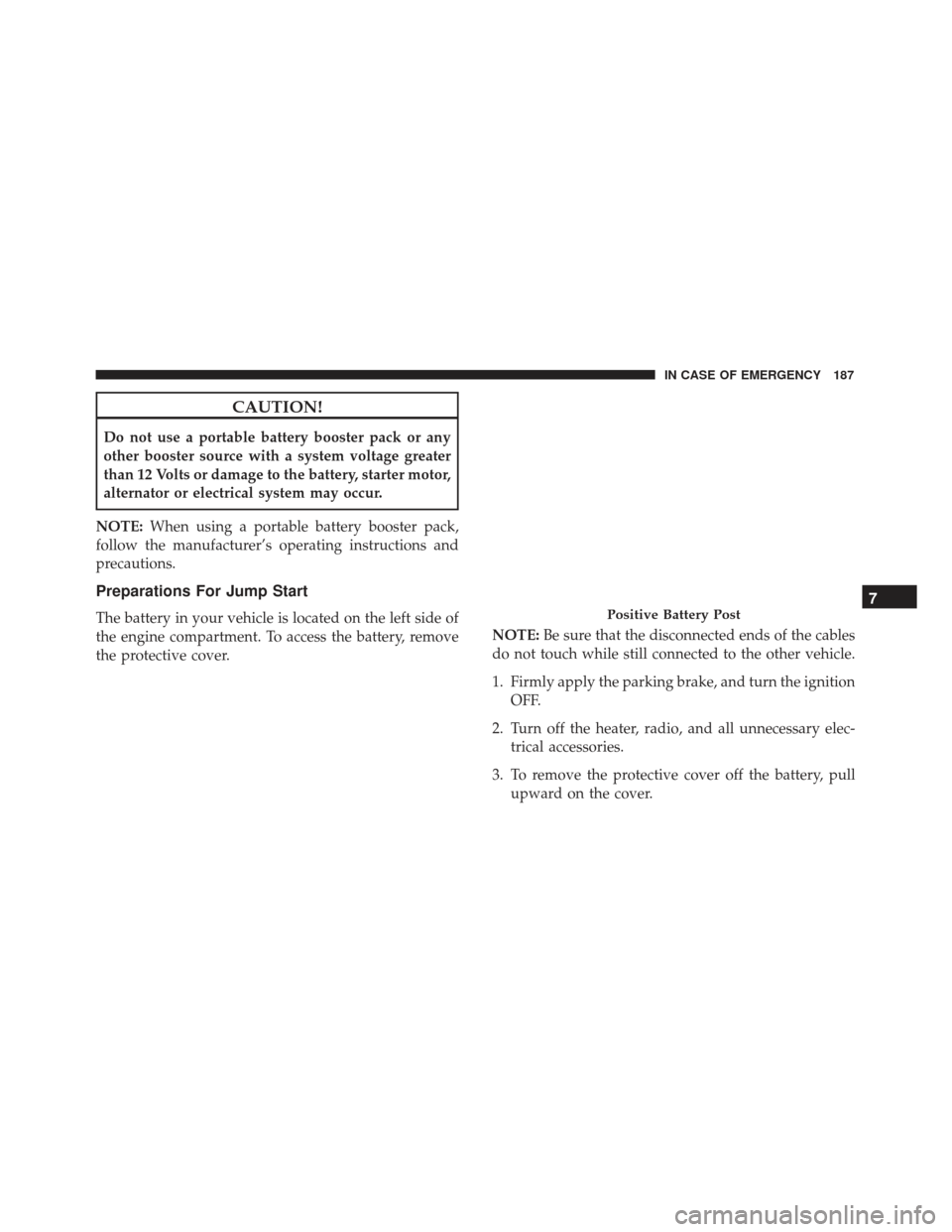

CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
NOTE: When using a portable battery booster pack,
follow the manufacturer’s operating instructions and
precautions.
Preparations For Jump Start
The battery in your vehicle is located on the left side of
the engine compartment. To access the battery, remove
the protective cover. NOTE:
Be sure that the disconnected ends of the cables
do not touch while still connected to the other vehicle.
1. Firmly apply the parking brake, and turn the ignition OFF.
2. Turn off the heater, radio, and all unnecessary elec- trical accessories.
3. To remove the protective cover off the battery, pull upward on the cover.Positive Battery Post7
IN CASE OF EMERGENCY 187

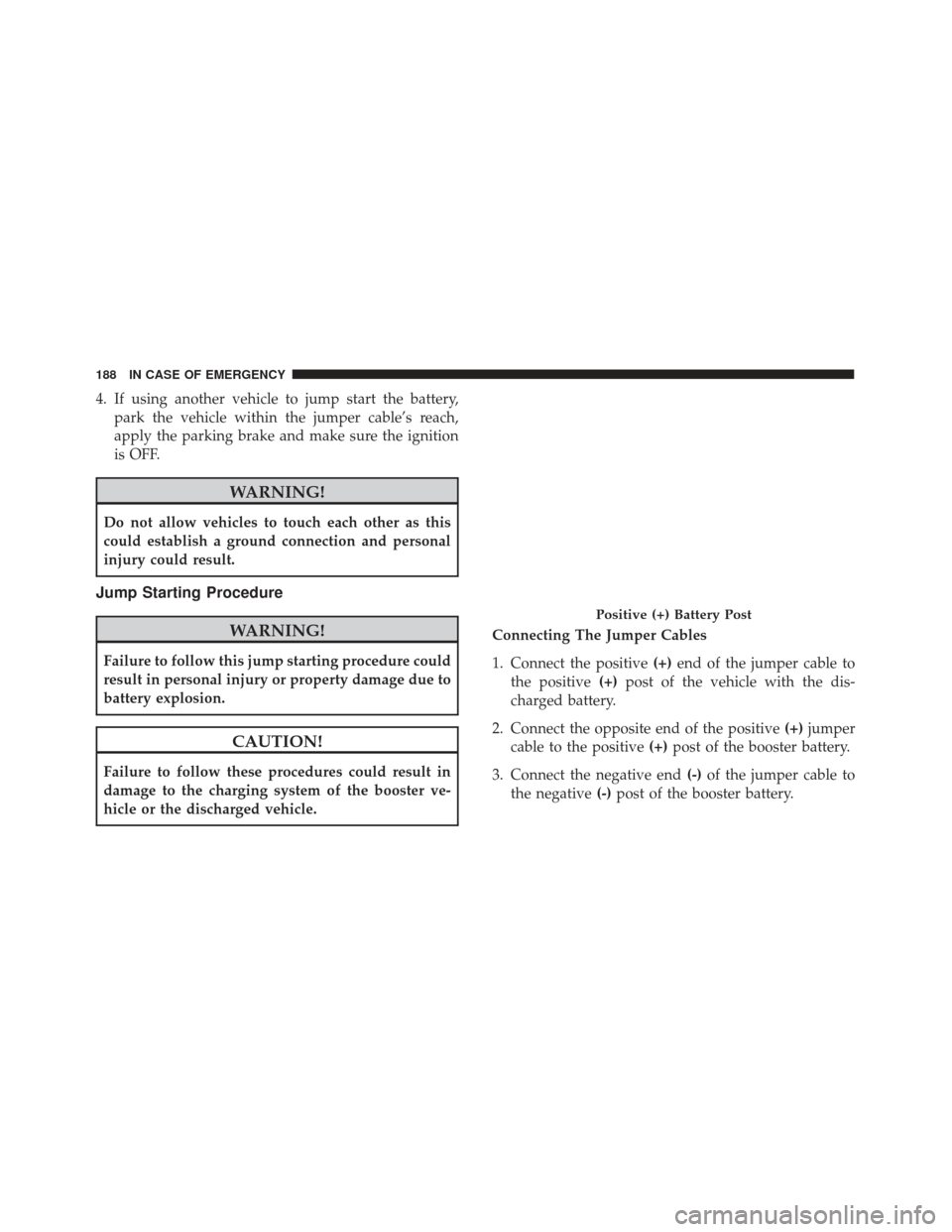

4. If using another vehicle to jump start the battery,park the vehicle within the jumper cable’s reach,
apply the parking brake and make sure the ignition
is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump Starting Procedure
WARNING!
Failure to follow this jump starting procedure could
result in personal injury or property damage due to
battery explosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster ve-
hicle or the discharged vehicle. Connecting The Jumper Cables
1. Connect the positive
(+)end of the jumper cable to
the positive (+)post of the vehicle with the dis-
charged battery.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
3. Connect the negative end (-)of the jumper cable to
the negative (-)post of the booster battery.
Positive (+) Battery Post
188 IN CASE OF EMERGENCY
