Alfa Romeo Brera/Spider 2008 Owner handbook (in English)

170
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

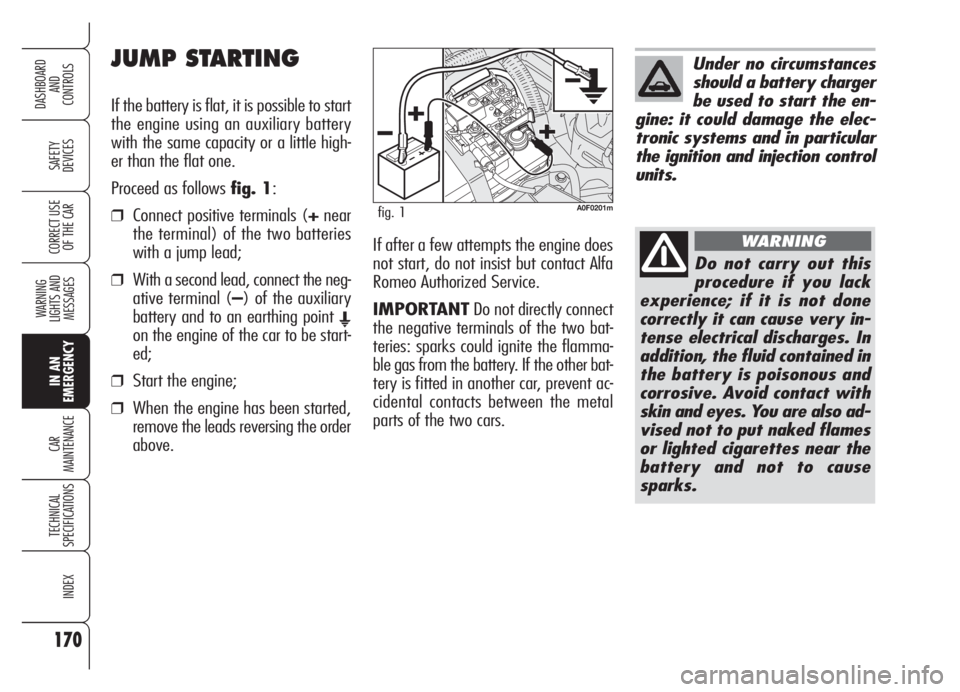

JUMP STARTING
If the battery is flat, it is possible to start
the engine using an auxiliary battery
with the same capacity or a little high-
er than the flat one.
Proceed as follows fig. 1:
❒Connect positive terminals (+near
the terminal) of the two batteries
with a jump lead;
❒With a second lead, connect the neg-
ative terminal (–) of the auxiliary
battery and to an earthing point
E
on the engine of the car to be start-
ed;
❒Start the engine;
❒When the engine has been started,
remove the leads reversing the order
above.If after a few attempts the engine does
not start, do not insist but contact Alfa
Romeo Authorized Service.
IMPORTANTDo not directly connect
the negative terminals of the two bat-
teries: sparks could ignite the flamma-
ble gas from the battery. If the other bat-
tery is fitted in another car, prevent ac-
cidental contacts between the metal
parts of the two cars.
Under no circumstances
should a battery charger
be used to start the en-
gine: it could damage the elec-
tronic systems and in particular
the ignition and injection control
units.
Do not carry out this
procedure if you lack
experience; if it is not done
correctly it can cause very in-
tense electrical discharges. In
addition, the fluid contained in
the battery is poisonous and
corrosive. Avoid contact with
skin and eyes. You are also ad-
vised not to put naked flames
or lighted cigarettes near the
battery and not to cause
sparks.
WARNING
A0F0201mfig. 1

171
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

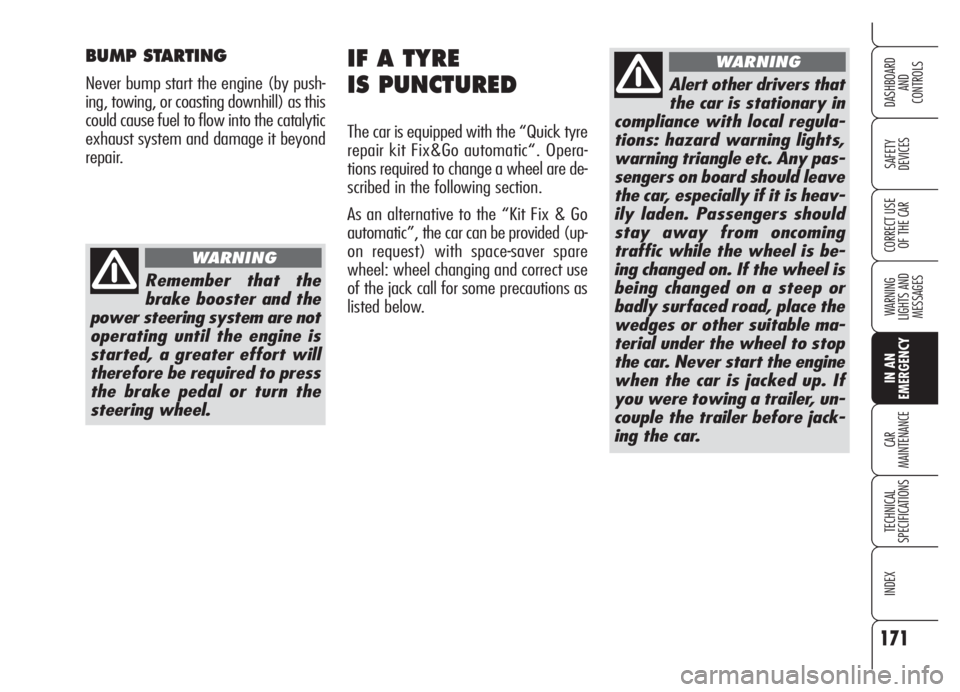

IF A TYRE
IS PUNCTURED
The car is equipped with the “Quick tyre
repair kit Fix&Go automatic“. Opera-
tions required to change a wheel are de-
scribed in the following section.
As an alternative to the “Kit Fix & Go
automatic”, the car can be provided (up-
on request) with space-saver spare
wheel: wheel changing and correct use
of the jack call for some precautions as
listed below.
BUMP STARTING
Never bump start the engine (by push-
ing, towing, or coasting downhill) as this
could cause fuel to flow into the catalytic
exhaust system and damage it beyond
repair.
Remember that the
brake booster and the
power steering system are not
operating until the engine is
started, a greater effort will
therefore be required to press
the brake pedal or turn the
steering wheel.
WARNING
Alert other drivers that
the car is stationary in
compliance with local regula-
tions: hazard warning lights,
warning triangle etc. Any pas-
sengers on board should leave
the car, especially if it is heav-
ily laden. Passengers should
stay away from oncoming
traffic while the wheel is be-
ing changed on. If the wheel is
being changed on a steep or
badly surfaced road, place the
wedges or other suitable ma-
terial under the wheel to stop
the car. Never start the engine
when the car is jacked up. If
you were towing a trailer, un-
couple the trailer before jack-
ing the car.
WARNING

172
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

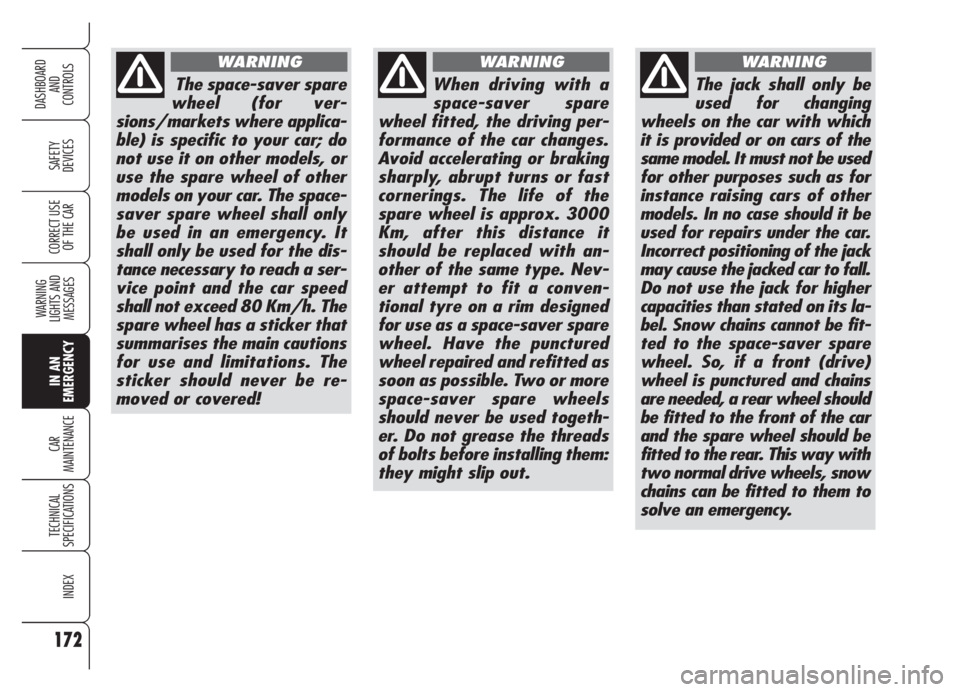

The space-saver spare
wheel (for ver-
sions/markets where applica-
ble) is specific to your car; do
not use it on other models, or
use the spare wheel of other
models on your car. The space-
saver spare wheel shall only
be used in an emergency. It
shall only be used for the dis-
tance necessary to reach a ser-
vice point and the car speed
shall not exceed 80 Km/h. The
spare wheel has a sticker that
summarises the main cautions
for use and limitations. The
sticker should never be re-
moved or covered!
WARNING
When driving with a
space-saver spare
wheel fitted, the driving per-
formance of the car changes.
Avoid accelerating or braking
sharply, abrupt turns or fast
cornerings. The life of the
spare wheel is approx. 3000
Km, after this distance it
should be replaced with an-
other of the same type. Nev-
er attempt to fit a conven-
tional tyre on a rim designed
for use as a space-saver spare
wheel. Have the punctured
wheel repaired and refitted as
soon as possible. Two or more
space-saver spare wheels
should never be used togeth-
er. Do not grease the threads
of bolts before installing them:
they might slip out.
WARNING
The jack shall only be
used for changing
wheels on the car with which
it is provided or on cars of the
same model. It must not be used
for other purposes such as for
instance raising cars of other
models. In no case should it be
used for repairs under the car.
Incorrect positioning of the jack
may cause the jacked car to fall.
Do not use the jack for higher
capacities than stated on its la-
bel. Snow chains cannot be fit-
ted to the space-saver spare
wheel. So, if a front (drive)
wheel is punctured and chains
are needed, a rear wheel should
be fitted to the front of the car
and the spare wheel should be
fitted to the rear. This way with
two normal drive wheels, snow
chains can be fitted to them to
solve an emergency.
WARNING

173
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

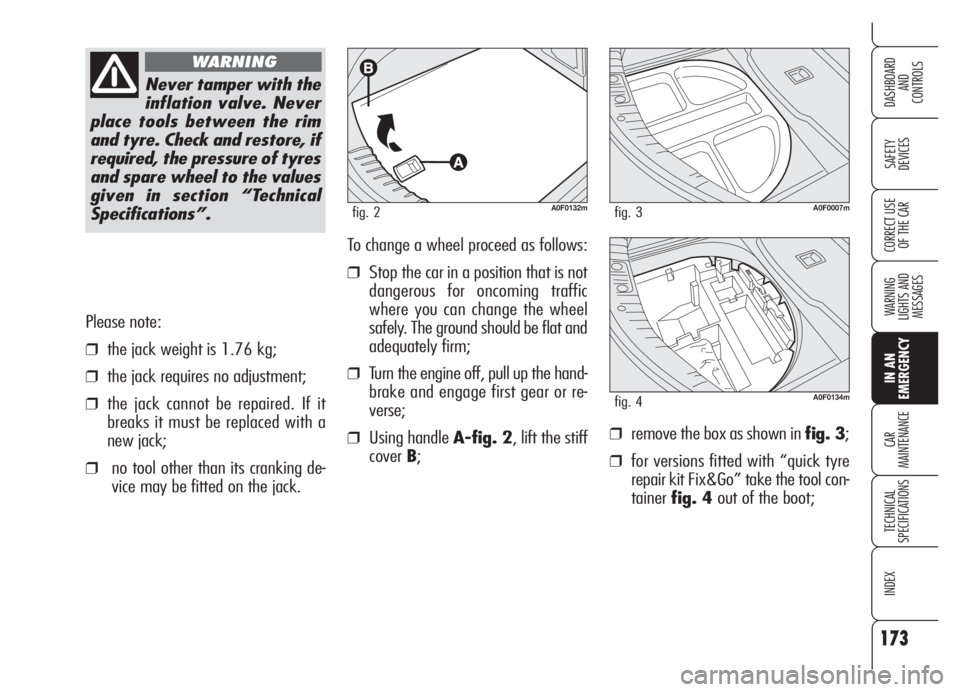

Please note:
❒the jack weight is 1.76 kg;
❒the jack requires no adjustment;
❒the jack cannot be repaired. If it
breaks it must be replaced with a
new jack;
❒no tool other than its cranking de-
vice may be fitted on the jack.To change a wheel proceed as follows:
❒Stop the car in a position that is not
dangerous for oncoming traffic
where you can change the wheel
safely. The ground should be flat and
adequately firm;
❒Turn the engine off, pull up the hand-
brake and engage first gear or re-
verse;
❒Using handle A-fig. 2, lift the stiff
coverB;
Never tamper with the
inflation valve. Never
place tools between the rim
and tyre. Check and restore, if
required, the pressure of tyres
and spare wheel to the values
given in section “Technical
Specifications”.
WARNING
A0F0132mfig. 2
❒remove the box as shown in fig. 3;
❒for versions fitted with “quick tyre
repair kit Fix&Go” take the tool con-
tainerfig. 4out of the boot;
A0F0007mfig. 3
A0F0134mfig. 4

174
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

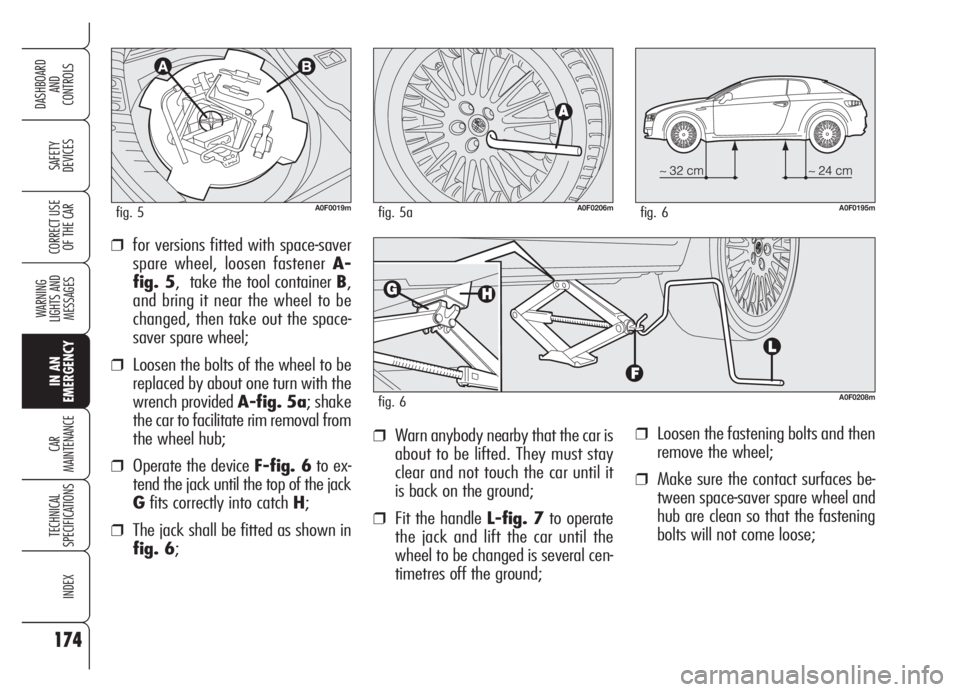

❒Loosen the fastening bolts and then
remove the wheel;
❒Make sure the contact surfaces be-
tween space-saver spare wheel and
hub are clean so that the fastening
bolts will not come loose;
❒for versions fitted with space-saver
spare wheel, loosen fastener A-
fig. 5, take the tool container B,
and bring it near the wheel to be
changed, then take out the space-
saver spare wheel;
❒Loosen the bolts of the wheel to be
replaced by about one turn with the
wrench provided A-fig. 5a; shake
the car to facilitate rim removal from
the wheel hub;
❒Operate the device F-fig. 6to ex-
tend the jack until the top of the jack
Gfits correctly into catch H;
❒The jack shall be fitted as shown in
fig. 6;
A0F0208mfig. 6
A0F0195mfig. 6
❒Warn anybody nearby that the car is
about to be lifted. They must stay
clear and not touch the car until it
is back on the ground;
❒Fit the handle L-fig. 7to operate
the jack and lift the car until the
wheel to be changed is several cen-
timetres off the ground;
A0F0206mfig. 5aA0F0019mfig. 5

175
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

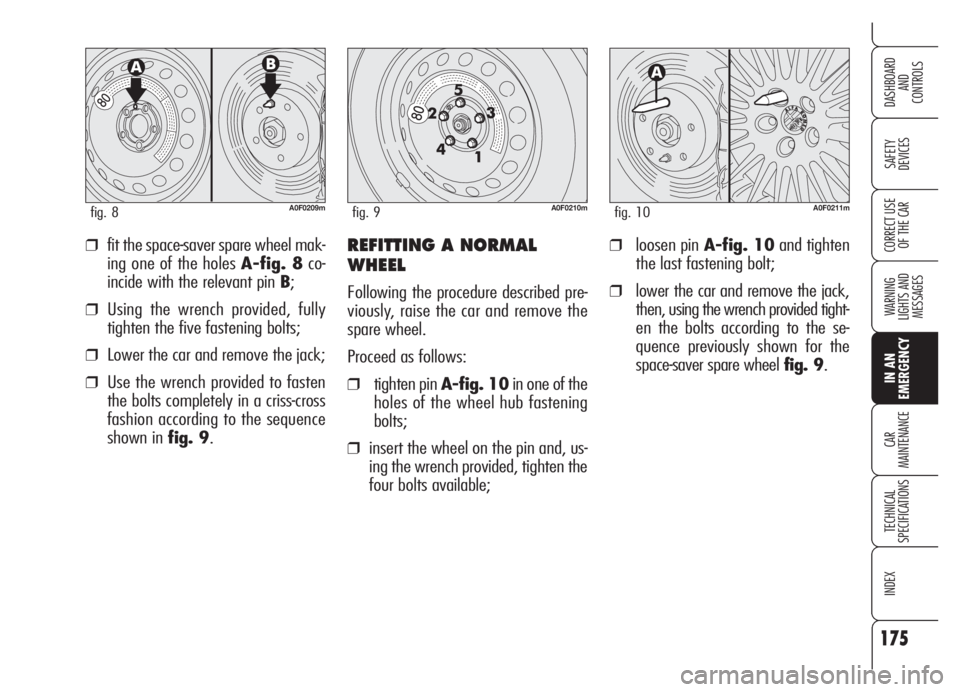

OF THE CAR❒fit the space-saver spare wheel mak-
ing one of the holes A-fig. 8co-
incide with the relevant pin B;
❒Using the wrench provided, fully
tighten the five fastening bolts;
❒Lower the car and remove the jack;
❒Use the wrench provided to fasten
the bolts completely in a criss-cross
fashion according to the sequence
shown in fig. 9.
REFITTING A NORMAL
WHEEL
Following the procedure described pre-
viously, raise the car and remove the
spare wheel.
Proceed as follows:
❒tighten pin A-fig. 10in one of the
holes of the wheel hub fastening
bolts;
❒insert the wheel on the pin and, us-
ing the wrench provided, tighten the
four bolts available;
A0F0210mfig. 9A0F0209mfig. 8A0F0211mfig. 10
❒loosen pin A-fig. 10and tighten
the last fastening bolt;
❒lower the car and remove the jack,
then, using the wrench provided tight-
en the bolts according to the se-
quence previously shown for the
space-saver spare wheel fig. 9.

176
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

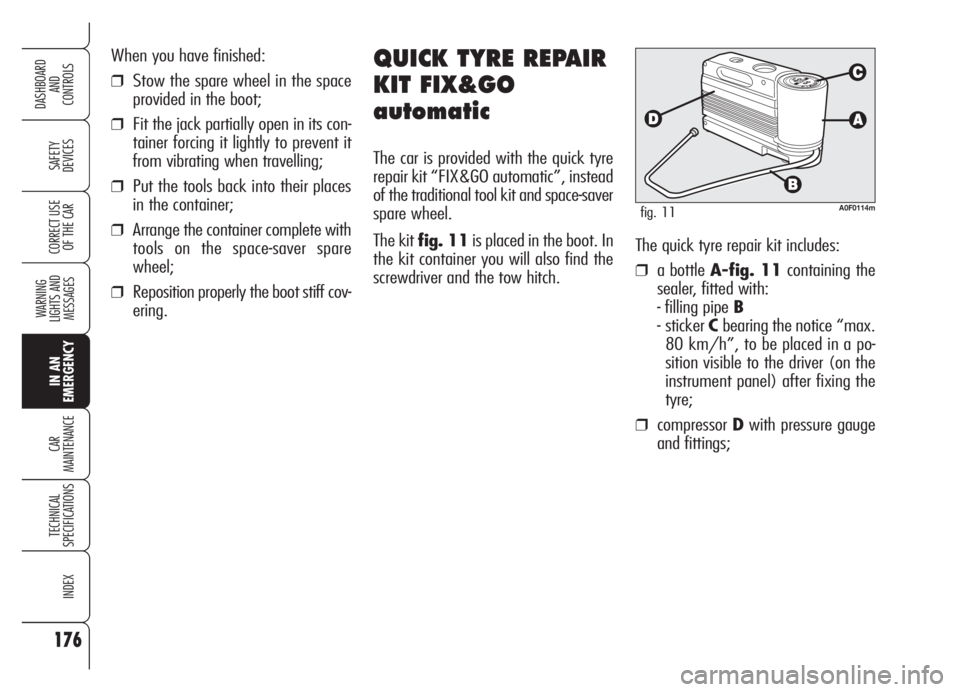

When you have finished:
❒Stow the spare wheel in the space
provided in the boot;
❒Fit the jack partially open in its con-
tainer forcing it lightly to prevent it
from vibrating when travelling;
❒Put the tools back into their places
in the container;
❒Arrange the container complete with
tools on the space-saver spare
wheel;
❒Reposition properly the boot stiff cov-
ering.
A0F0114mfig. 11
QUICK TYRE REPAIR
KIT FIX&GO
automatic
The car is provided with the quick tyre
repair kit “FIX&GO automatic”, instead
of the traditional tool kit and space-saver
spare wheel.
The kit fig. 11is placed in the boot. In
the kit container you will also find the
screwdriver and the tow hitch. The quick tyre repair kit includes:
❒a bottle A-fig. 11containing the
sealer, fitted with:
- filling pipe B
- sticker Cbearing the notice “max.
80 km/h”, to be placed in a po-
sition visible to the driver (on the
instrument panel) after fixing the
tyre;
❒compressorDwith pressure gauge
and fittings;

177
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

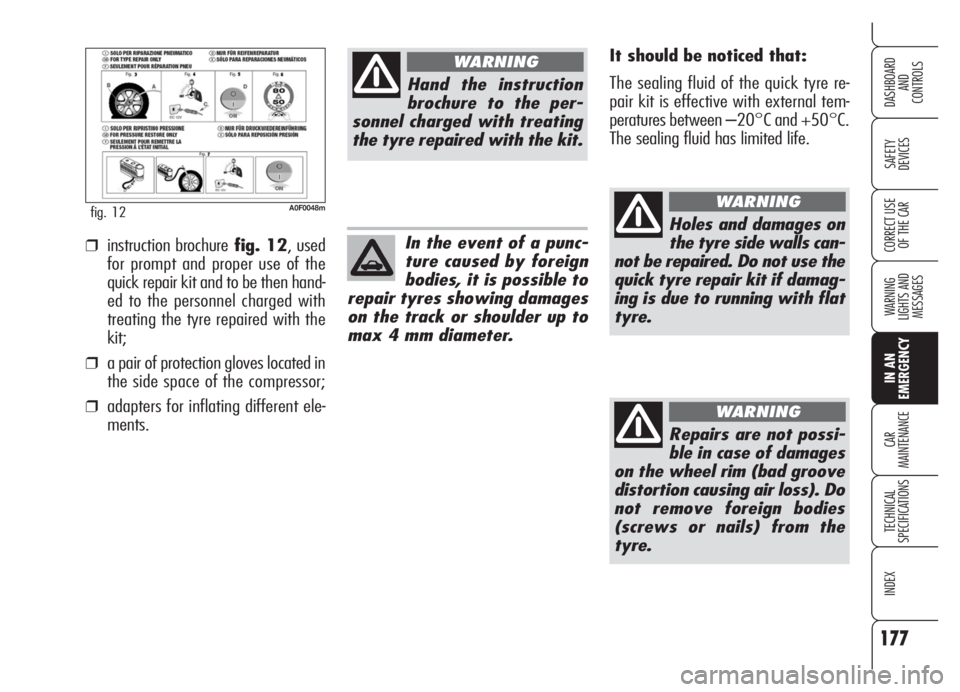

A0F0048mfig. 12
It should be noticed that:
The sealing fluid of the quick tyre re-
pair kit is effective with external tem-
peratures between –20°C and +50°C.
The sealing fluid has limited life.
❒instruction brochurefig. 12, used
for prompt and proper use of the
quick repair kit and to be then hand-
ed to the personnel charged with
treating the tyre repaired with the
kit;
❒a pair of protection gloves located in
the side space of the compressor;
❒adapters for inflating different ele-
ments.
Hand the instruction
brochure to the per-
sonnel charged with treating
the tyre repaired with the kit.
WARNING
In the event of a punc-
ture caused by foreign
bodies, it is possible to
repair tyres showing damages
on the track or shoulder up to
max 4 mm diameter.
Holes and damages on
the tyre side walls can-
not be repaired. Do not use the
quick tyre repair kit if damag-
ing is due to running with flat
tyre.
WARNING
Repairs are not possi-
ble in case of damages
on the wheel rim (bad groove
distortion causing air loss). Do
not remove foreign bodies
(screws or nails) from the
tyre.
WARNING

178
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

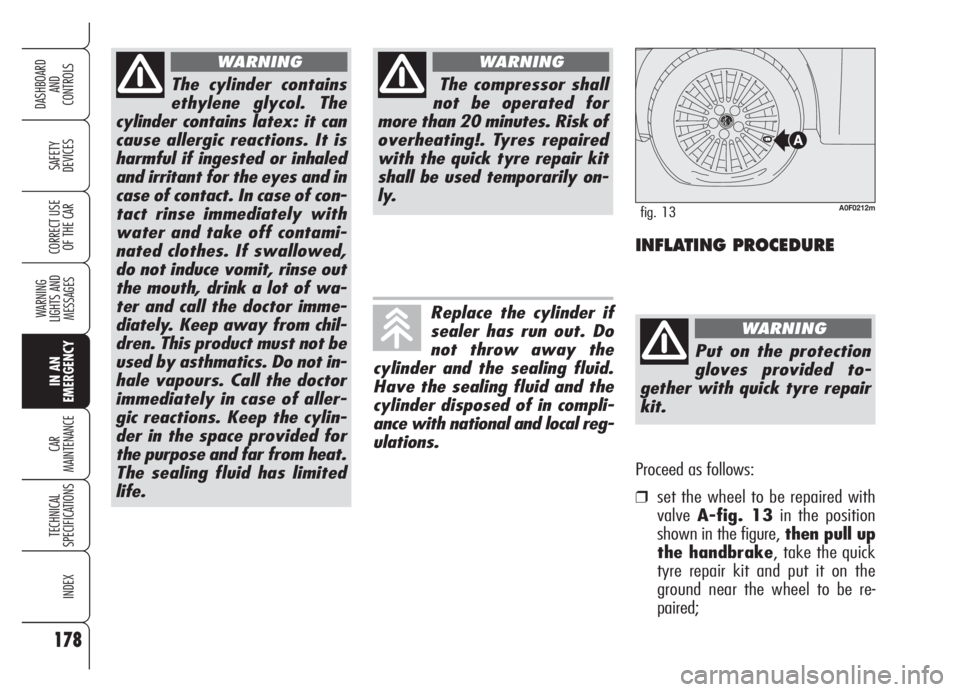

The cylinder contains
ethylene glycol. The
cylinder contains latex: it can
cause allergic reactions. It is
harmful if ingested or inhaled
and irritant for the eyes and in
case of contact. In case of con-
tact rinse immediately with
water and take off contami-
nated clothes. If swallowed,
do not induce vomit, rinse out
the mouth, drink a lot of wa-
ter and call the doctor imme-
diately. Keep away from chil-
dren. This product must not be
used by asthmatics. Do not in-
hale vapours. Call the doctor
immediately in case of aller-
gic reactions. Keep the cylin-
der in the space provided for
the purpose and far from heat.
The sealing fluid has limited
life.
WARNING
Proceed as follows:
❒set the wheel to be repaired with
valveA-fig. 13in the position
shown in the figure, then pull up
the handbrake, take the quick
tyre repair kit and put it on the
ground near the wheel to be re-
paired;
INFLATING PROCEDURE
A0F0212mfig. 13
Put on the protection
gloves provided to-
gether with quick tyre repair
kit.
WARNING
The compressor shall
not be operated for
more than 20 minutes. Risk of
overheating!. Tyres repaired
with the quick tyre repair kit
shall be used temporarily on-
ly.
WARNING
Replace the cylinder if
sealer has run out. Do
not throw away the
cylinder and the sealing fluid.
Have the sealing fluid and the
cylinder disposed of in compli-
ance with national and local reg-
ulations.

179
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

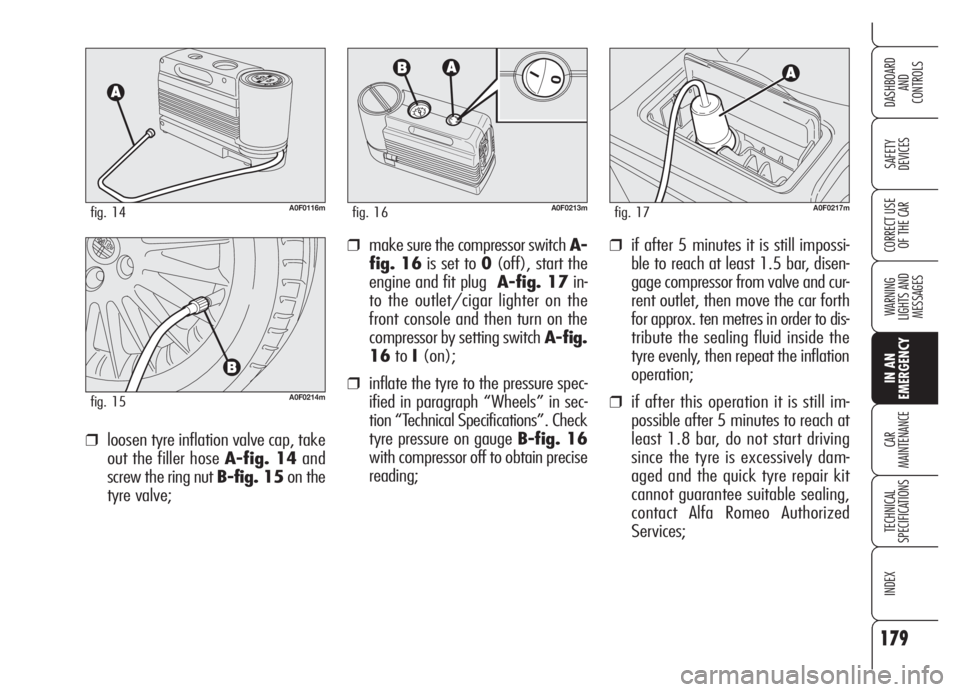

OF THE CAR❒if after 5 minutes it is still impossi-
ble to reach at least 1.5 bar, disen-
gage compressor from valve and cur-
rent outlet, then move the car forth
for approx. ten metres in order to dis-
tribute the sealing fluid inside the
tyre evenly, then repeat the inflation
operation;
❒if after this operation it is still im-
possible after 5 minutes to reach at
least 1.8 bar, do not start driving
since the tyre is excessively dam-
aged and the quick tyre repair kit
cannot guarantee suitable sealing,
contact Alfa Romeo Authorized
Services;
❒loosen tyre inflation valve cap, take
out the filler hose A-fig. 14and
screw the ring nut B-fig. 15on the
tyre valve;
❒make sure the compressor switch A-
fig. 16is set to 0(off), start the
engine and fit plug A-fig. 17in-
to the outlet/cigar lighter on the
front console and then turn on the
compressor by setting switch A-fig.
16toI(on);
❒inflate the tyre to the pressure spec-
ified in paragraph “Wheels” in sec-
tion “Technical Specifications”. Check
tyre pressure on gauge B-fig. 16
with compressor off to obtain precise
reading;
A0F0116mfig. 14
A0F0214mfig. 15
A0F0213mfig. 16A0F0217mfig. 17
