Alfa Romeo Brera/Spider 2008 Owner handbook (in English)

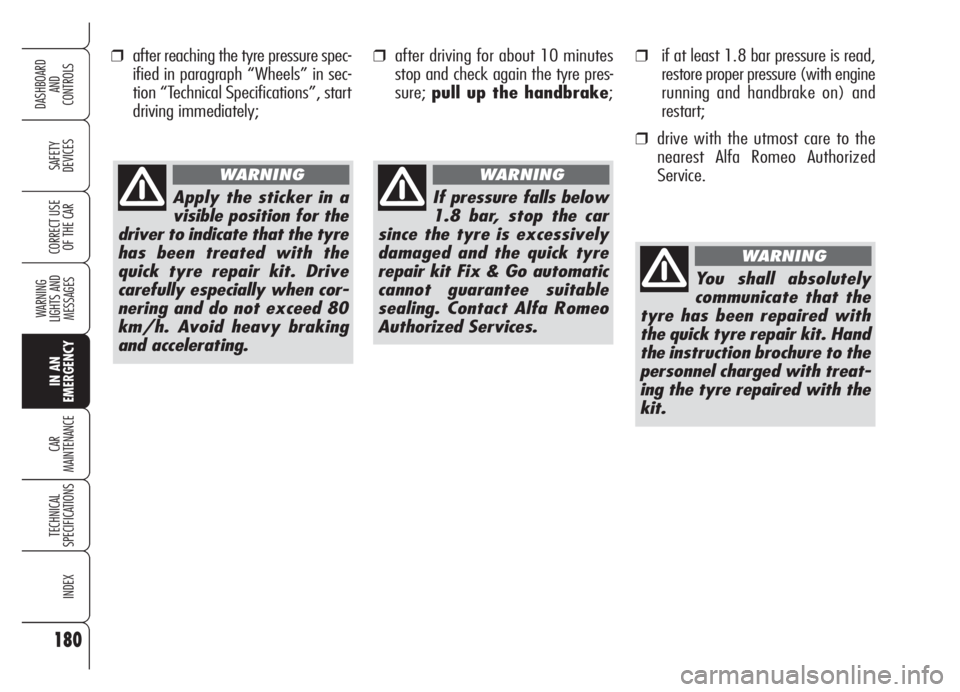

❒after reaching the tyre pressure spec-
ified in paragraph “Wheels” in sec-
tion “Technical Specifications”, start
driving immediately;
180
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Apply the sticker in a
visible position for the
driver to indicate that the tyre
has been treated with the
quick tyre repair kit. Drive
carefully especially when cor-
nering and do not exceed 80
km/h. Avoid heavy braking
and accelerating.
WARNING
You shall absolutely
communicate that the
tyre has been repaired with
the quick tyre repair kit. Hand
the instruction brochure to the
personnel charged with treat-
ing the tyre repaired with the
kit.
WARNING
If pressure falls below
1.8 bar, stop the car
since the tyre is excessively
damaged and the quick tyre
repair kit Fix & Go automatic
cannot guarantee suitable
sealing. Contact Alfa Romeo
Authorized Services.
WARNING
❒after driving for about 10 minutes
stop and check again the tyre pres-
sure;pull up the handbrake;❒if at least 1.8 bar pressure is read,
restore proper pressure (with engine
running and handbrake on) and
restart;
❒drive with the utmost care to the
nearest Alfa Romeo Authorized
Service.

181
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
A0F0215mfig. 18A0F0216mfig. 19
CHECKING AND RESTORING
PRESSURE ONLY
The compressor can be also used just for
restoring pressure. Disconnect the quick
connectionA-fig. 18and connect it di-
rectly to the tyre valve fig. 19; in this
way the cylinder is not connected to com-
pressor and the sealing fluid will not flow
into the tyre.
A0F0047mfig. 20
Inform other people
driving the car that the
tyre has been repaired using
the quick tyre kit. Hand the
sticker to the personnel that
will carry out restoring oper-
ations.
WARNINGCYLINDER REPLACEMENT
PROCEDURE
To replace the cylinder proceed as fol-
lows:
❒disconnect connection A-fig. 20
and hose B;
❒turn counter-clockwise the cylinder
to replace and raise it;
❒fit the new cylinder and turn it clock-
wise;
❒refit connection Aor connect hose
Binto its seat.

182
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

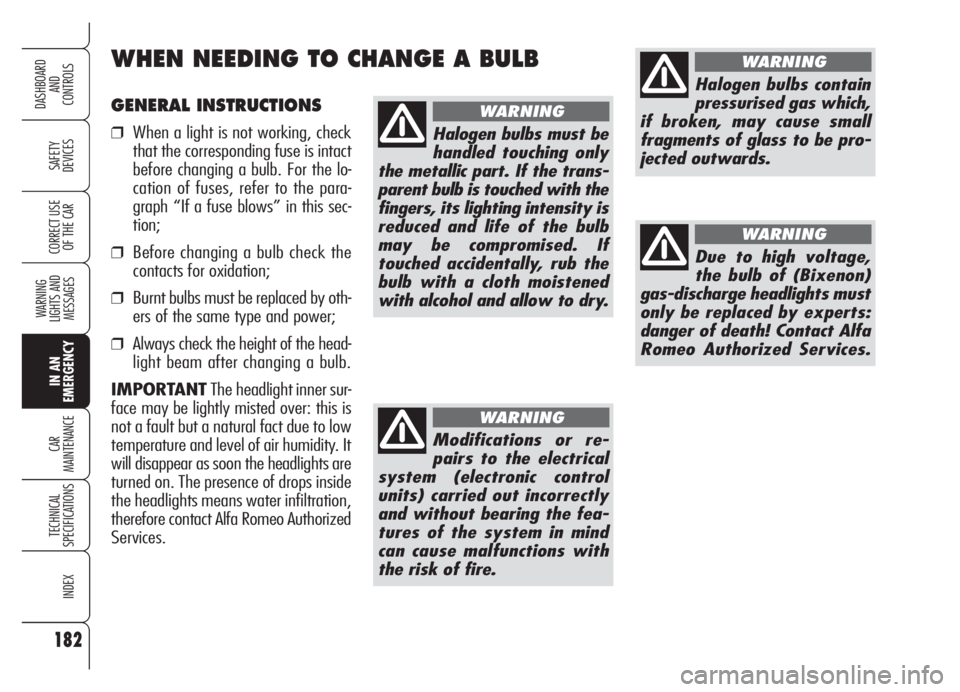

GENERAL INSTRUCTIONS
❒When a light is not working, check
that the corresponding fuse is intact
before changing a bulb. For the lo-
cation of fuses, refer to the para-
graph “If a fuse blows” in this sec-
tion;
❒Before changing a bulb check the
contacts for oxidation;
❒Burnt bulbs must be replaced by oth-
ers of the same type and power;
❒Always check the height of the head-
light beam after changing a bulb.
IMPORTANTThe headlight inner sur-
face may be lightly misted over: this is
not a fault but a natural fact due to low
temperature and level of air humidity. It
will disappear as soon the headlights are
turned on. The presence of drops inside
the headlights means water infiltration,
therefore contact Alfa Romeo Authorized
Services.
WHEN NEEDING TO CHANGE A BULB
Modifications or re-
pairs to the electrical
system (electronic control
units) carried out incorrectly
and without bearing the fea-
tures of the system in mind
can cause malfunctions with
the risk of fire.
WARNING
Due to high voltage,
the bulb of (Bixenon)
gas-discharge headlights must
only be replaced by experts:
danger of death! Contact Alfa
Romeo Authorized Services.
WARNING
Halogen bulbs contain
pressurised gas which,
if broken, may cause small
fragments of glass to be pro-
jected outwards.
WARNING
Halogen bulbs must be
handled touching only
the metallic part. If the trans-
parent bulb is touched with the
fingers, its lighting intensity is
reduced and life of the bulb
may be compromised. If
touched accidentally, rub the
bulb with a cloth moistened
with alcohol and allow to dry.
WARNING

183
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARB Bayonet type bulbs:press the
bulb, turn counter-clockwise to re-
move this type of bulb from its
holder.
C Tubular bulbs:release them
from their contacts to remove.D-E Halogen bulbs: to remove the
bulb, release the clip holding the
bulb in place.
F Gas-discharge bulbs
(Bixenon).TYPES OF BULBS fig. 21
Various types of bulbs are fitted to your
car:
A Glass bulbs: clipped into posi-
tion. Pull to remove.
A0F0117mfig. 21

184
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

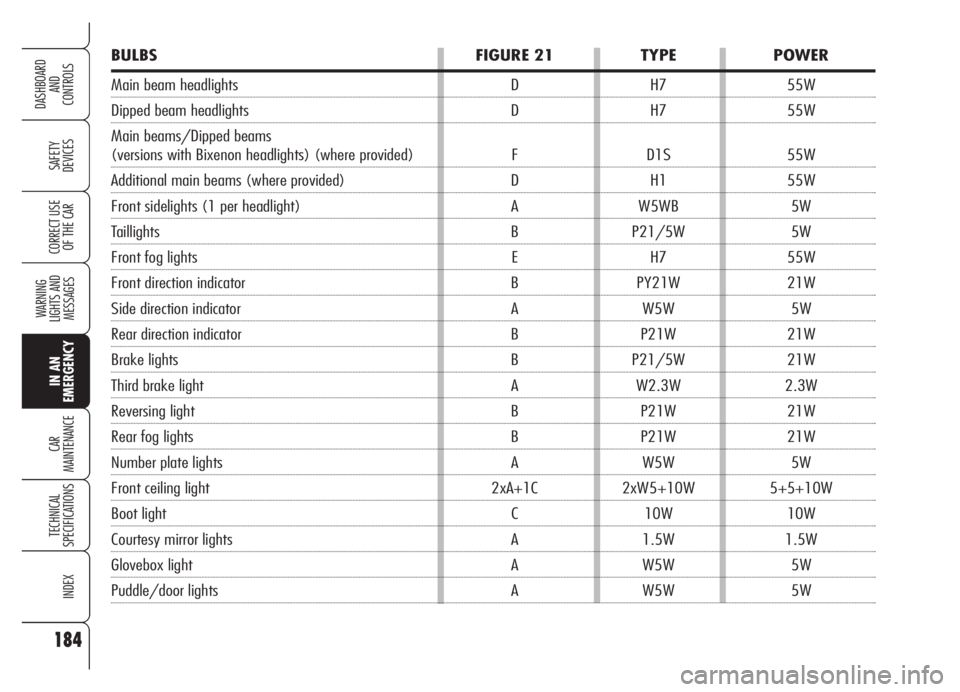

BULBS FIGURE 21 TYPE POWER
Main beam headlights D H7 55W
Dipped beam headlights D H7 55W
Main beams/Dipped beams
(versions with Bixenon headlights) (where provided) F D1S 55W
Additional main beams (where provided) D H1 55W
Front sidelights (1 per headlight) A W5WB 5W
Taillights B P21/5W 5W
Front fog lights E H7 55W
Front direction indicator B PY21W 21W
Side direction indicator A W5W 5W
Rear direction indicator B P21W 21W
Brake lights B P21/5W 21W
Third brake light A W2.3W 2.3W
Reversing light B P21W 21W
Rear fog lights B P21W 21W
Number plate lights A W5W 5W
Front ceiling light 2xA+1C 2xW5+10W 5+5+10W
Boot light C 10W 10W
Courtesy mirror lights A 1.5W 1.5W
Glovebox light A W5W 5W
Puddle/door lights A W5W 5W

185
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Main beam headlights
(halogen bulbs)
To change the bulb, proceed as follows:
❒remove cover A-fig. 22by turning
it counter-clockwise;
❒disconnect the electric connectorA-
fig. 23;
❒release the bulb holder catch B;
IF AN EXTERIOR
LIGHT BURNS OUT
For the type of bulb and power rating,
see “When needing to change a bulb”.
FRONT LIGHT UNITS
The front light units contain main beam,
sidelights, direction indicator and dipped
beam bulbs.
To change the bulbs, turn cap counter-
clockwise and then remove it.
The bulbs are arranged inside the light
unitfig. 22as follows:
AMain beam headlights
BSidelights/direction indicators
CDipped beam headlights
A0F0191mfig. 22
After replacement, re-
fit the covers correctly
checking that they are proper-
ly secured.
WARNING
A0F0223mfig. 23
❒remove the bulb and replace it;
❒fit the new bulb and refit bulb hold-
er catch B;
❒reconnect the electrical connector A;
❒refit the protective cover properly.

186
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARSidelights
To change the bulb, proceed as follows:
❒turn cover B-fig. 22counter-clock-
wise;
❒press tab A-fig. 24, remove the
bulb and replace it;
❒refit the bulb holder, it shall click in-
to place; look at the light from the
outside to check for proper bulb po-
sitioning;
❒refit the protective cover properly.
A0F0193mfig. 24A0F0194mfig. 25A0F0192mfig. 26
Front direction indicators
To change the bulb, proceed as follows:
❒turn cover B-fig. 22counter-clock-
wise;
❒turn the bulb holder A-fig. 25coun-
terclockwise, remove the bulb and re-
place it;
❒refit the bulb holder, it shall click into
place; look at the light from the out-
side to check for proper bulb posi-
tioning;
❒refit the protective cover properly.Dipped beam headlights
(halogen bulbs)
To change the bulb, proceed as follows:
❒turn cover C-fig. 22counter-clock-
wise;
❒disconnect the electric connector A-
fig. 26;
❒release the bulb holder catch B;
❒remove the bulb and replace it;
❒fit the new bulb and refit bulb holder
catchB;
❒refit the protective cover properly.

187
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

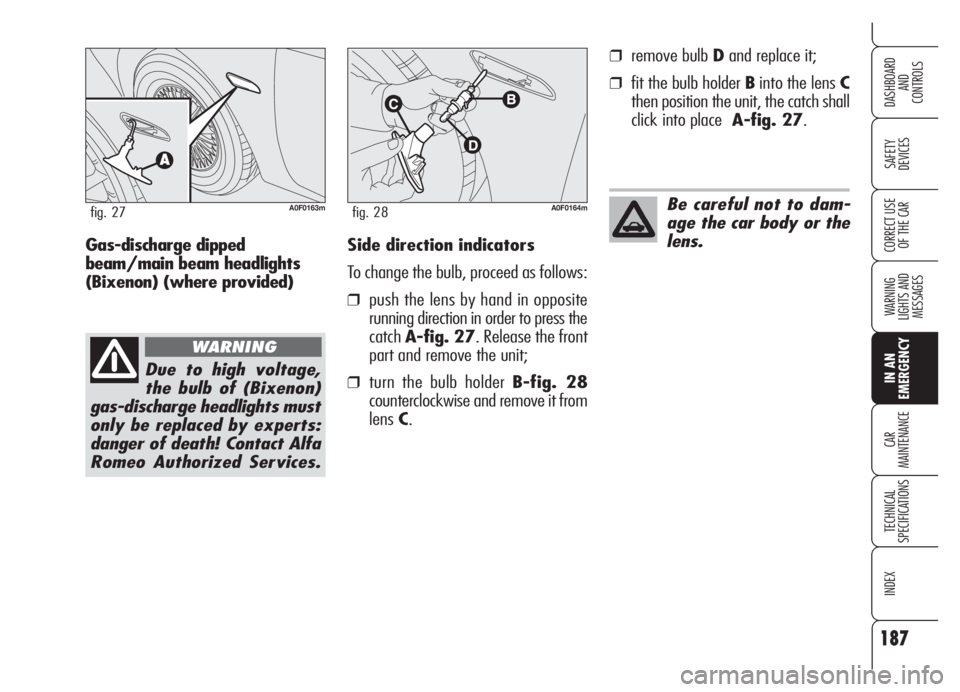

OF THE CARSide direction indicators
To change the bulb, proceed as follows:
❒push the lens by hand in opposite
running direction in order to press the
catchA-fig. 27. Release the front
part and remove the unit;
❒turn the bulb holder B-fig. 28
counterclockwise and remove it from
lensC.
A0F0163mfig. 27A0F0164mfig. 28Be careful not to dam-
age the car body or the
lens.
Due to high voltage,
the bulb of (Bixenon)
gas-discharge headlights must
only be replaced by experts:
danger of death! Contact Alfa
Romeo Authorized Services.
WARNING
Gas-discharge dipped
beam/main beam headlights
(Bixenon) (where provided)
❒remove bulb Dand replace it;
❒fit the bulb holder Binto the lens C
then position the unit, the catch shall
click into place A-fig. 27.

188
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

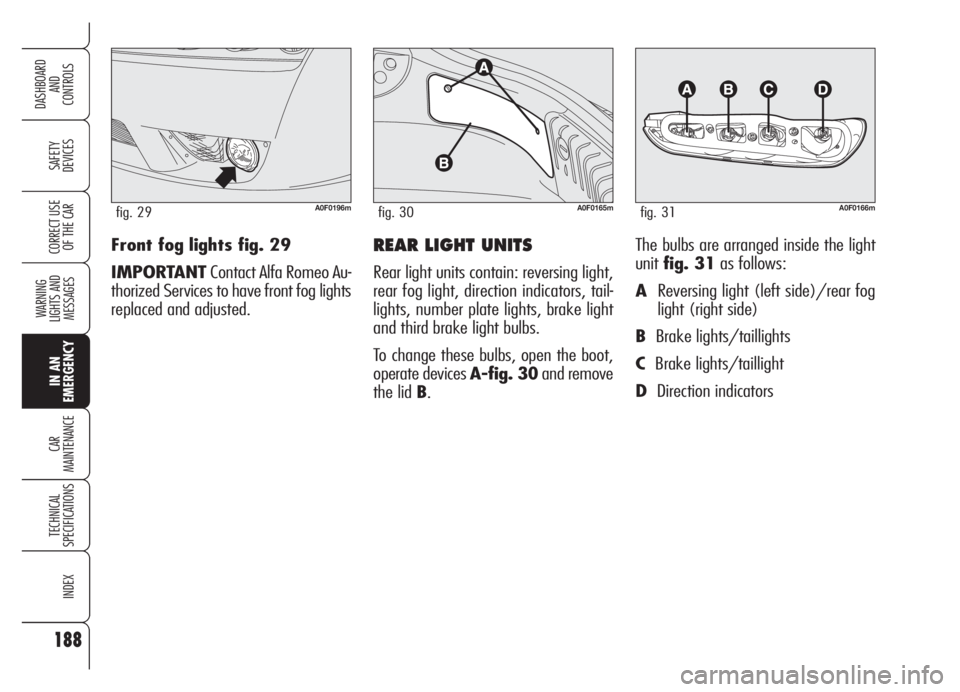

OF THE CARREAR LIGHT UNITS
Rear light units contain: reversing light,
rear fog light, direction indicators, tail-
lights, number plate lights, brake light
and third brake light bulbs.
To change these bulbs, open the boot,
operate devices A-fig. 30and remove
the lid B.
A0F0165mfig. 30A0F0166mfig. 31
The bulbs are arranged inside the light
unitfig. 31as follows:
AReversing light (left side)/rear fog
light (right side)
BBrake lights/taillights
CBrake lights/taillight
DDirection indicators
A0F0196mfig. 29
Front fog lights fig. 29
IMPORTANTContact Alfa Romeo Au-
thorized Services to have front fog lights
replaced and adjusted.

189
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARReversing light/rear fog light
Reversing light and rear fog light are lo-
cated inside the rear light unit, one on
the left and the other on the right of the
car (according to running direction).
To change the bulb, proceed as follows:
❒open the boot and the lid as de-
scribed previously (see fig. 30);
❒turn the bulb holder A-fig. 32
counterclockwise, remove the bulb
Band replace it;
❒refit the bulb holder, it shall click in-
to place; look at the light from the
outside to check for proper bulb po-
sitioning.
A0F0040mfig. 32A0F0229mfig. 34
Taillights/Brake lights
The rear light unit houses two bulbs for
taillights/brake lights.
To change the bulb, proceed as follows:
❒open the boot and the lid as de-
scribed previously (see fig. 30);
A0F0170mfig. 33
❒turn the bulb holder A-fig. 33or
A-fig. 34counterclockwise, re-
move the bulb Band replace it;
❒refit the bulb holder, it shall click in-
to place; look at the light from the
outside to check for proper bulb po-
sitioning.
