OF THE CARDirection indicators

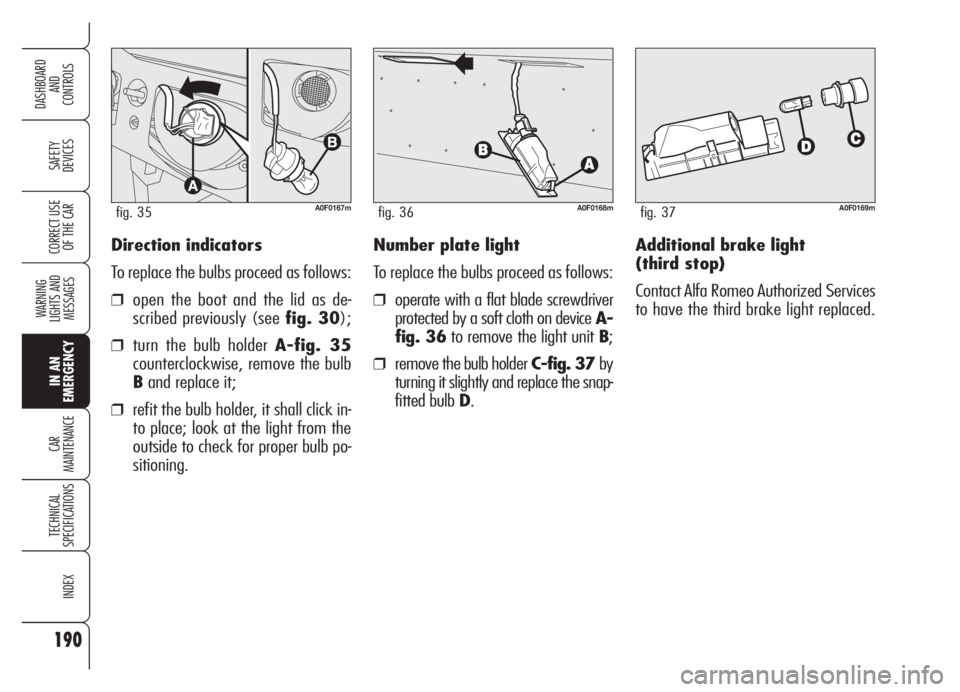

To replace the bulbs proceed as follows:
❒open the boot and the lid as de-
scribed previously (see fig. 30);
❒turn the bulb holder A-fig. 35
counterclockwise, remove the bulb
Band replace it;
❒refit the bulb holder, it shall click in-
to place; look at the light from the
outside to check for proper bulb po-
sitioning.
A0F0167mfig. 35
Additional brake light
(third stop)
Contact Alfa Romeo Authorized Services
to have the third brake light replaced. Number plate light
To replace the bulbs proceed as follows:
❒operate with a flat blade screwdriver
protected by a soft cloth on device A-
fig. 36to remove the light unit B;
❒remove the bulb holderC-fig. 37 by
turning it slightly and replace the snap-
fitted bulb D.
A0F0168mfig. 36A0F0169mfig. 37

191
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
IF AN INTERIOR
LIGHT BURNS OUT
For the type of bulb and power rating,
see “When needing to change a bulb”.
FRONT CEILING LIGHT
Contact Alfa Romeo Authorized Services
to have the bulb replaced.
COURTESY MIRROR LIGHTS

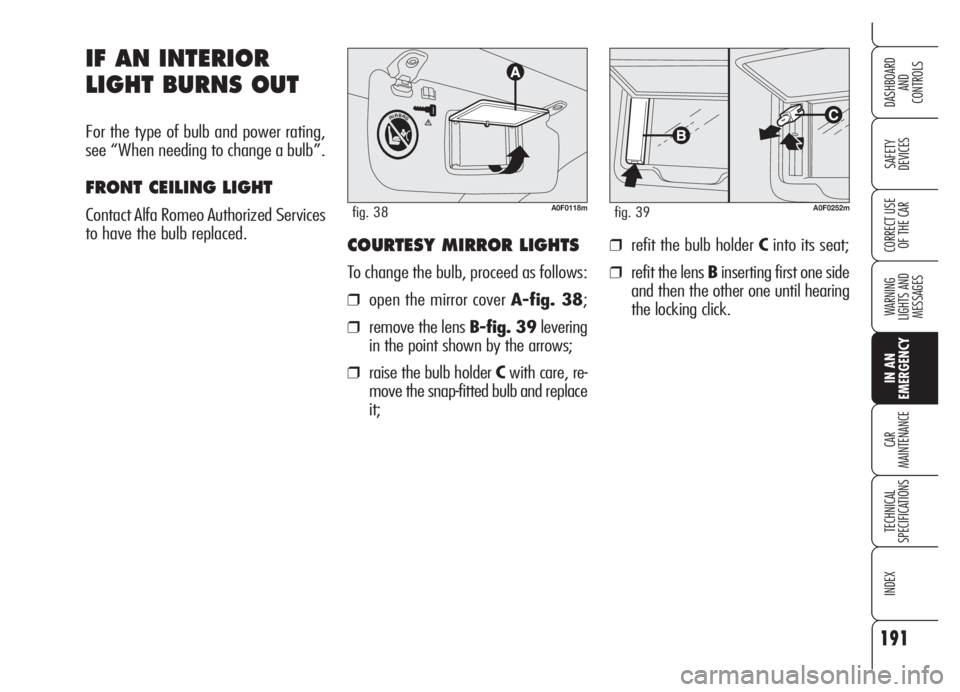

To change the bulb, proceed as follows:
❒open the mirror cover A-fig. 38;
❒remove the lens B-fig. 39levering
in the point shown by the arrows;
❒raise the bulb holder Cwith care, re-
move the snap-fitted bulb and replace
it;
❒refit the bulb holder Cinto its seat;
❒refit the lens Binserting first one side
and then the other one until hearing
the locking click.
A0F0118mfig. 38A0F0252mfig. 39

192
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR❒close protection B-fig. 41on light
unitA-fig. 40;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.

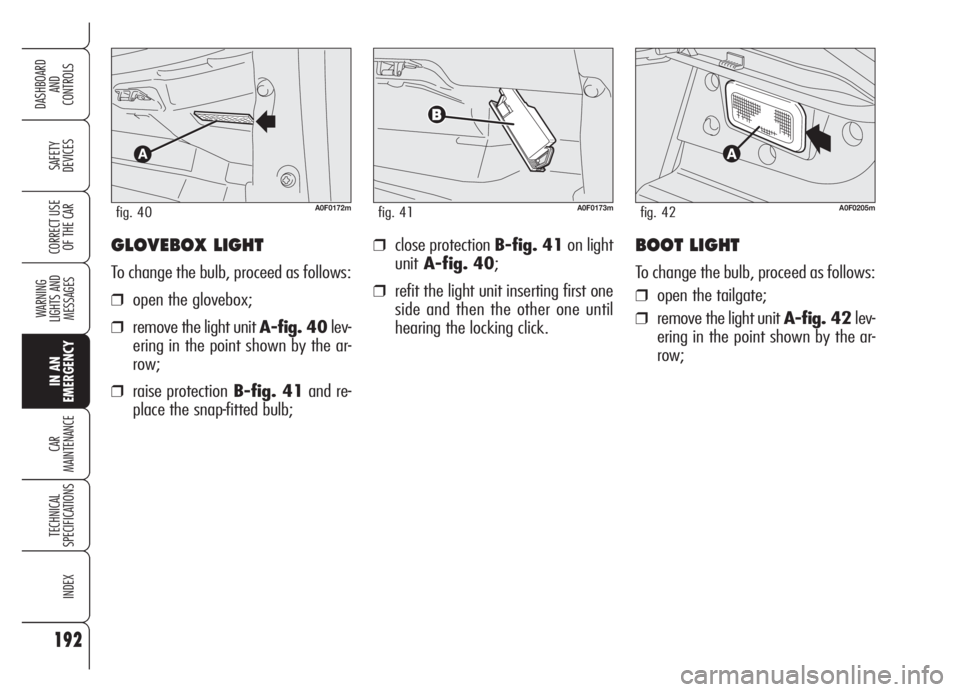

GLOVEBOX LIGHT
To change the bulb, proceed as follows:
❒open the glovebox;
❒remove the light unit A-fig. 40lev-
ering in the point shown by the ar-
row;
❒raise protectionB-fig. 41and re-
place the snap-fitted bulb;
A0F0172mfig. 40A0F0173mfig. 41
BOOT LIGHT
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the light unit A-fig. 42lev-
ering in the point shown by the ar-
row;
A0F0205mfig. 42

193
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
A0F0204mfig. 43
❒open the protection cover B-fig.
43and replace the bulb releasing it
from the side contacts making sure
that the new bulb is correctly
clamped between the contacts;
❒re-close the protective cover B;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.

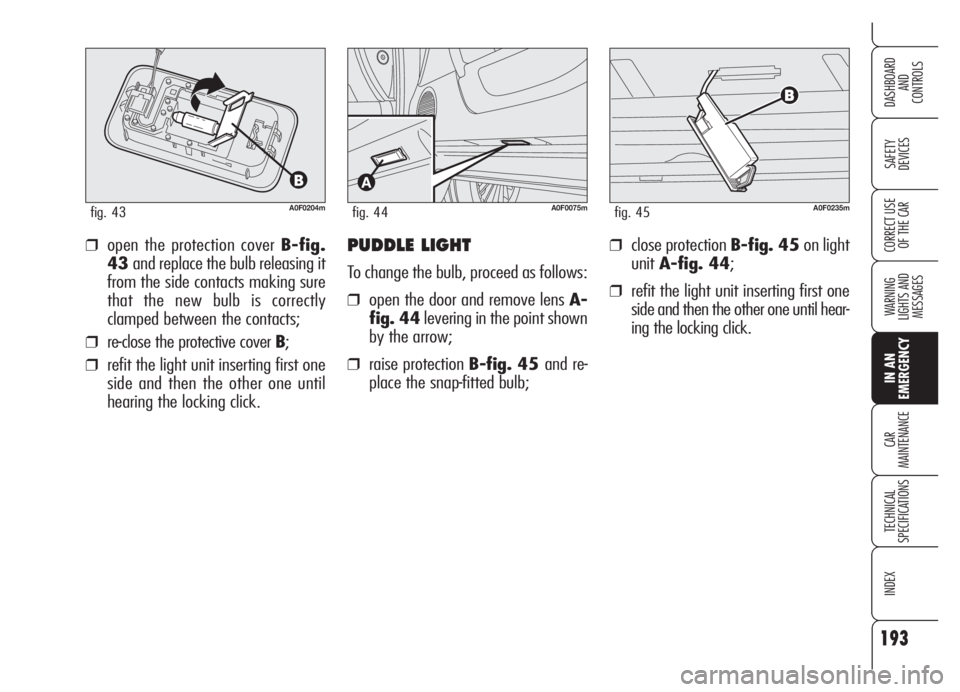

PUDDLE LIGHT
To change the bulb, proceed as follows:
❒open the door and remove lens A-
fig. 44levering in the point shown
by the arrow;
❒raise protection B-fig. 45 and re-
place the snap-fitted bulb;
A0F0075mfig. 44
❒close protection B-fig. 45 on light
unitA-fig. 44;
❒refit the light unit inserting first one
side and then the other one until hear-
ing the locking click.
A0F0235mfig. 45

194
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
A0F0119mfig. 46
Never replace a broken
fuse with anything oth-
er than a new fuse.
Never change a fuse
with another with a
higher amp rating, danger of
fire.
WARNING
If a general fuse
(MEGA-FUSE, MAXI-
FUSE) cuts in, do not attempt
any repair and contact Alfa
Romeo Authorized Services.
Before changing a fuse, check
the ignition key has been re-
moved and that all the other
electric devices have been
turned off/disabled.
WARNING
If the fuse blows again,
contact Alfa Romeo Au-
thorized Services.
WARNING

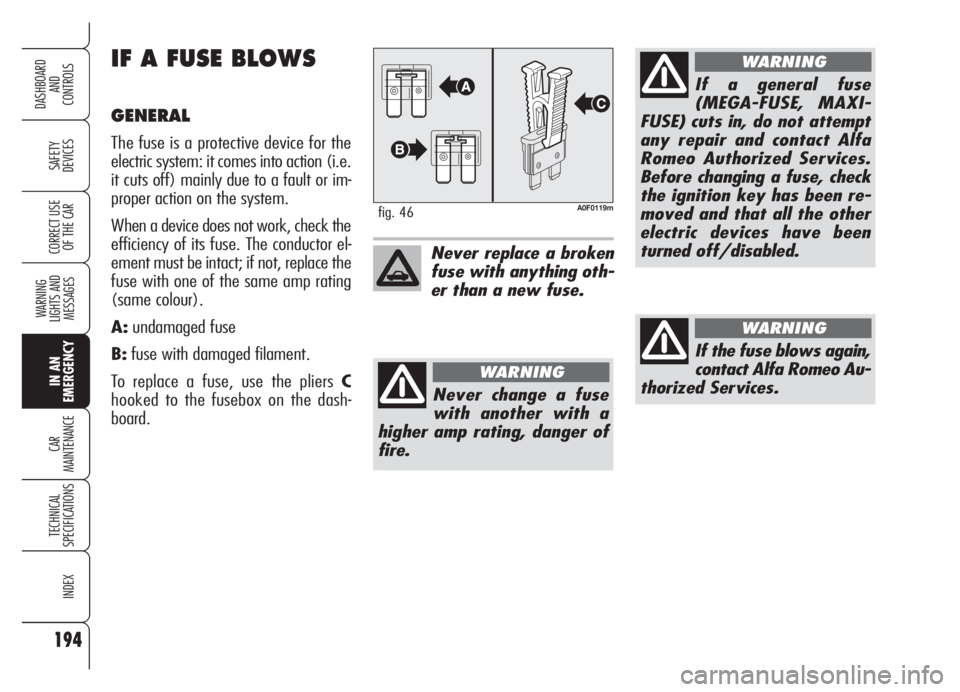

IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse. The conductor el-
ement must be intact; if not, replace the
fuse with one of the same amp rating
(same colour).
A:undamaged fuse
B:fuse with damaged filament.
To replace a fuse, use the pliers C
hooked to the fusebox on the dash-
board.

195
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

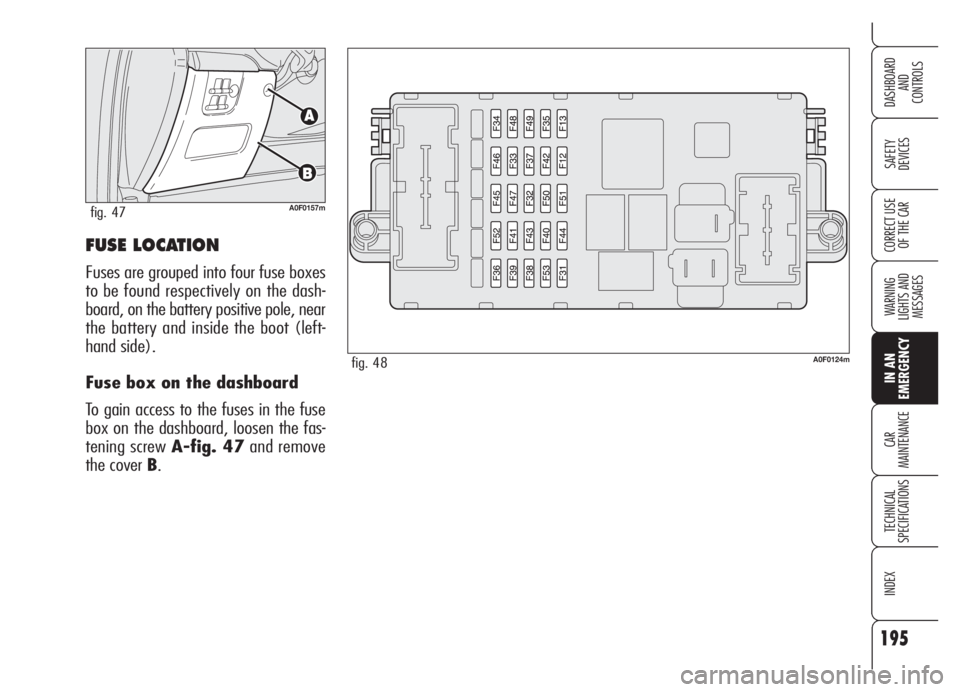

OF THE CARFUSE LOCATION
Fuses are grouped into four fuse boxes
to be found respectively on the dash-
board, on the battery positive pole, near
the battery and inside the boot (left-
hand side).
Fuse box on the dashboard
To gain access to the fuses in the fuse
box on the dashboard, loosen the fas-
tening screw A-fig. 47and remove
the cover B.
A0F0157mfig. 47
A0F0124mfig. 48

196
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

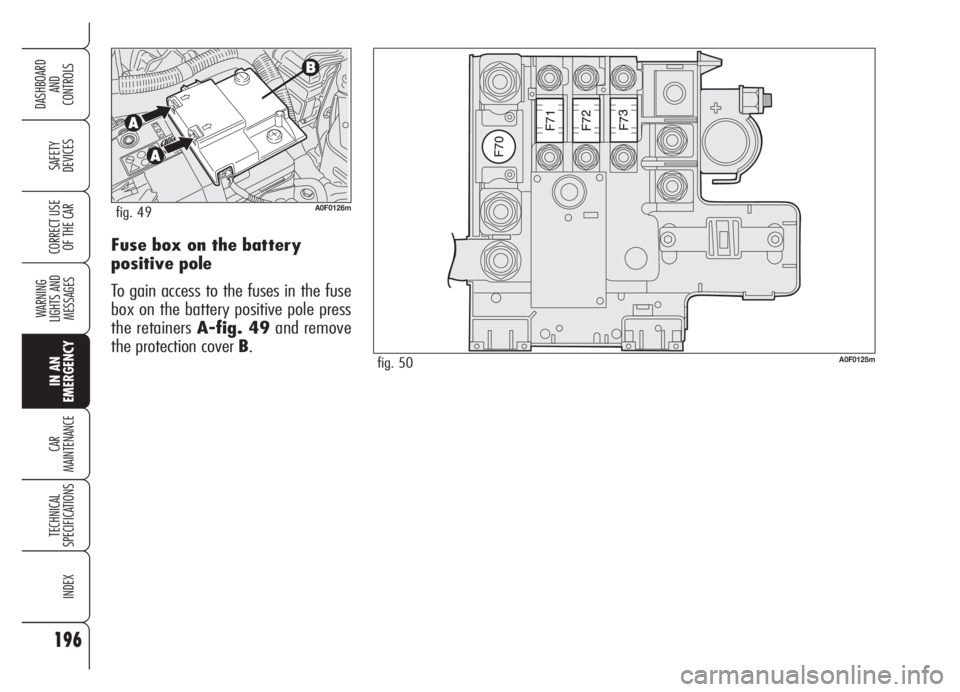

OF THE CARFuse box on the battery
positive pole
To gain access to the fuses in the fuse
box on the battery positive pole press
the retainers A-fig. 49and remove
the protection cover B.
A0F0126mfig. 49
A0F0125mfig. 50

197
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARFuse box near the battery
To gain access to the fuses, loosen the
two fastening screws A-fig. 51 and
remove the protection cover B.
A0F0128mfig. 51
A0F0123mfig. 52

198
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARFuse box in the boot

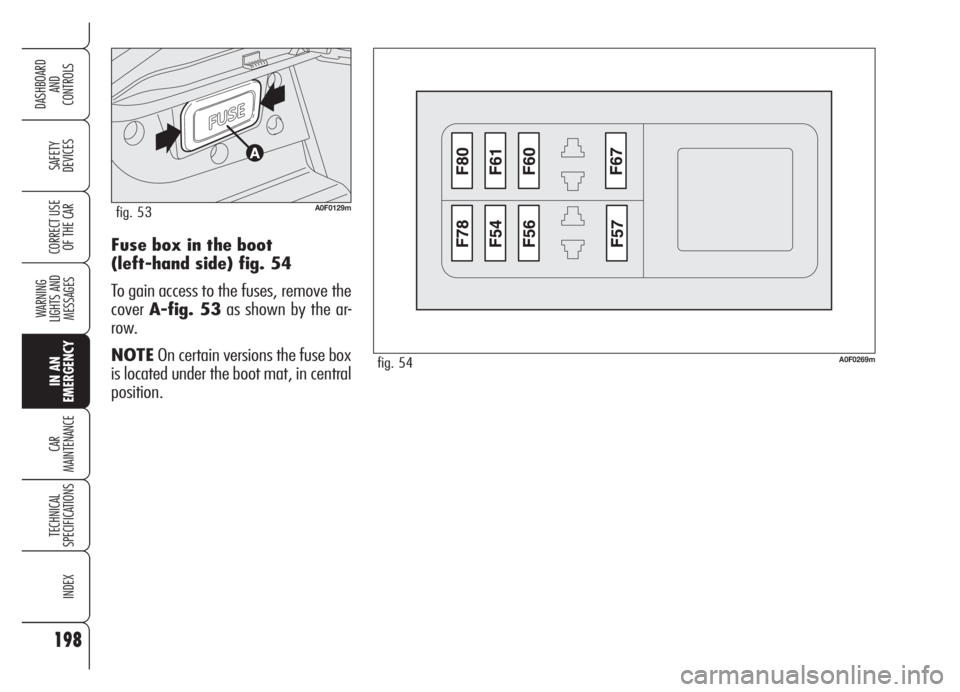

(left-hand side) fig. 54
To gain access to the fuses, remove the
coverA-fig. 53as shown by the ar-
row.
NOTEOn certain versions the fuse box
is located under the boot mat, in central
position.
A0F0129mfig. 53
A0F0269mfig. 54

199
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
FUSE SUMMARY TABLE
LIGHTS FUSE AMPERE FIGURE
Right main beam headlight F14 10 52
Left main beam headlight F15 10 52
Right dipped beam headlight F12 15 48
Left dipped beam headlight F13 15 48
Front fog light F30 15 52
Reversing light F35 7.5 48
Third brake light F37 10 48
Front/rear ceiling light F39 10 48
Front ceiling light F49 7.5 48
Direction indicators F53 10 48
Hazard lights F53 10 48
USERS FUSE AMPERE FIGURE
Engine compartment control unit F70 (MEGA-FUSE) 150 50
Instrument panel control unit F71 70 50
Fuel pre-heating unit (diesel versions) F73 60 50
Boot control unit F01 (MAXI-FUSE) 70 52
Instrument panel control unit F01 (MAXI-FUSE) 70 52
