Alfa Romeo Brera/Spider 2008 Owner handbook (in English)

200
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
USERS FUSE AMPERE FIGURE
Climate control system fan F02 (MAXI-FUSE) 40 52
Electric steering lock F03 (MAXI-FUSE) 20 52
Brake branch point (pump) F04 (MAXI-FUSE) 40 52
Brake branch point (solenoid valve) F05 (MAXI-FUSE) 40 52
Radiator fan (low speed) F06 (MAXI-FUSE) 40 52
Radiator fan (high speed) F07 (MAXI-FUSE) 50 52
Headlight washer F09 20 52
Horns F10 15 52
Electronic injection sundry secondary services F11 15 52
+ INT for electronic injection system F16 7.5 52
Electronic injection primary services F17 10 52
Engine control branch point F18 15 52
Climate control system compressor F19 7.5 52
Rear window heating F20 20 52
Fuel pump supply F21 20 52
Ignition coils/injectors (petrol versions) F22 15 52
Electronic injection primary services (diesel versions) F22 20 52
Sound system/Radionavigation system power F23 15 52
Body Computer branch point/Headlight washer relay coil F31 7.5 48
Driver’s door branch point/passenger’s door branch point/ignition
device F32 15 48
Disponible F33 – 48
Disponible F34 – 48

201
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
USERS FUSE AMPERE FIGURE
Water in diesel fuel filter sensor/flow meter F35 7.5 48
Brake light switch/central console control panel F35 7.5 48
Cruise Control F35 7.5 48
AQS sensor F35 7.5 48
Disponible F36 – 48
Instrument panel branch point F37 10 48
Front headlight control unit/Power to control unit
for gas-discharge headights (Bixenon) (where provided) F37 10 48
Boot locking/unlocking gearmotor F38 15 48
EOBD system diagnostic socket F39 10 48
T.P.M.S. control unit F39 10 48
Mobile phone presetting F39 10 48
Alarm system control unit (where provided) F39 10 48
Climate control system F39 10 48
Heated rear window F40 30 48
Windscreen washer/rear window washer nozzle demister F41 7.5 48
Heated mirror demister F41 7.5 48
Brake branch point power (ABS/VDC) –
Steering angle branch point – Yawing sensor F42 7.5 48
Windscreen wiper/washer F43 30 48

202
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

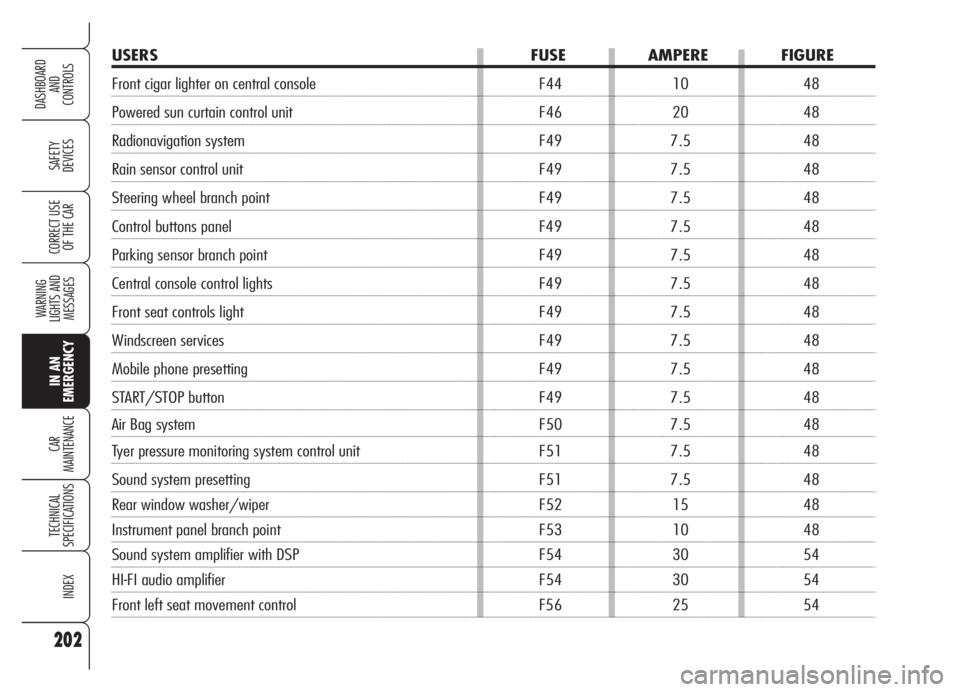

USERS FUSE AMPERE FIGURE
Front cigar lighter on central console F44 10 48
Powered sun curtain control unit F46 20 48
Radionavigation system F49 7.5 48
Rain sensor control unit F49 7.5 48
Steering wheel branch point F49 7.5 48
Control buttons panel F49 7.5 48
Parking sensor branch point F49 7.5 48
Central console control lights F49 7.5 48
Front seat controls light F49 7.5 48
Windscreen services F49 7.5 48
Mobile phone presetting F49 7.5 48
START/STOP button F49 7.5 48
Air Bag system F50 7.5 48
Tyer pressure monitoring system control unit F51 7.5 48
Sound system presetting F51 7.5 48
Rear window washer/wiper F52 15 48
Instrument panel branch point F53 10 48
Sound system amplifier with DSP F54 30 54
HI-FI audio amplifier F54 30 54
Front left seat movement control F56 25 54

203
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

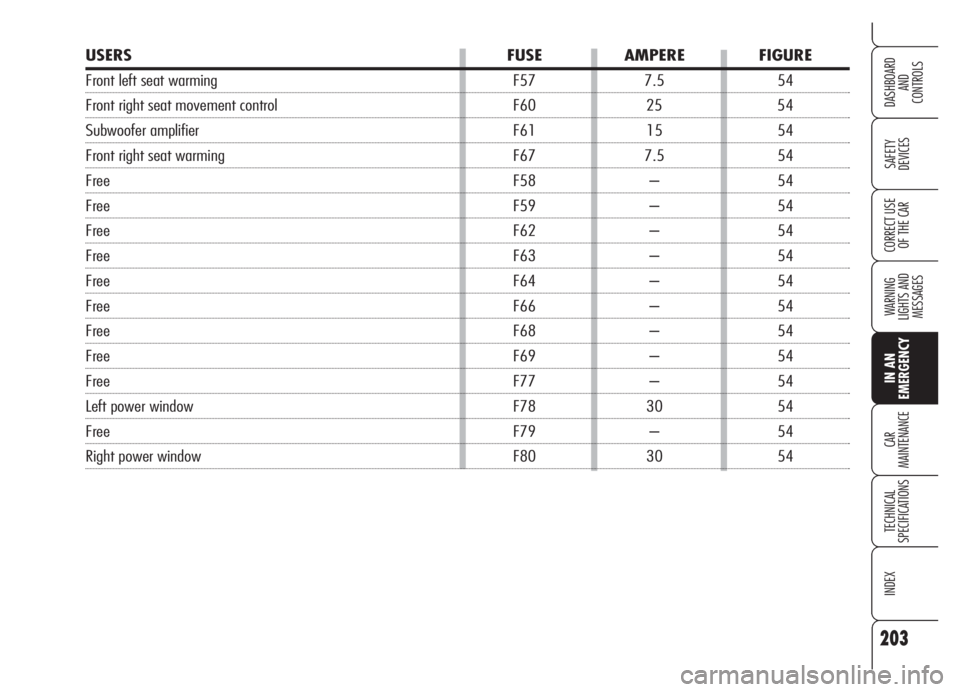

USERS FUSE AMPERE FIGURE
Front left seat warming F57 7.5 54
Front right seat movement control F60 25 54
Subwoofer amplifier F61 15 54
Front right seat warming F67 7.5 54
Free F58 – 54
Free F59 – 54
Free F62 – 54
Free F63 – 54
Free F64 – 54
Free F66 – 54
Free F68 – 54
Free F69 – 54
Free F77 – 54
Left power window F78 30 54
Free F79 – 54
Right power window F80 30 54

204
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

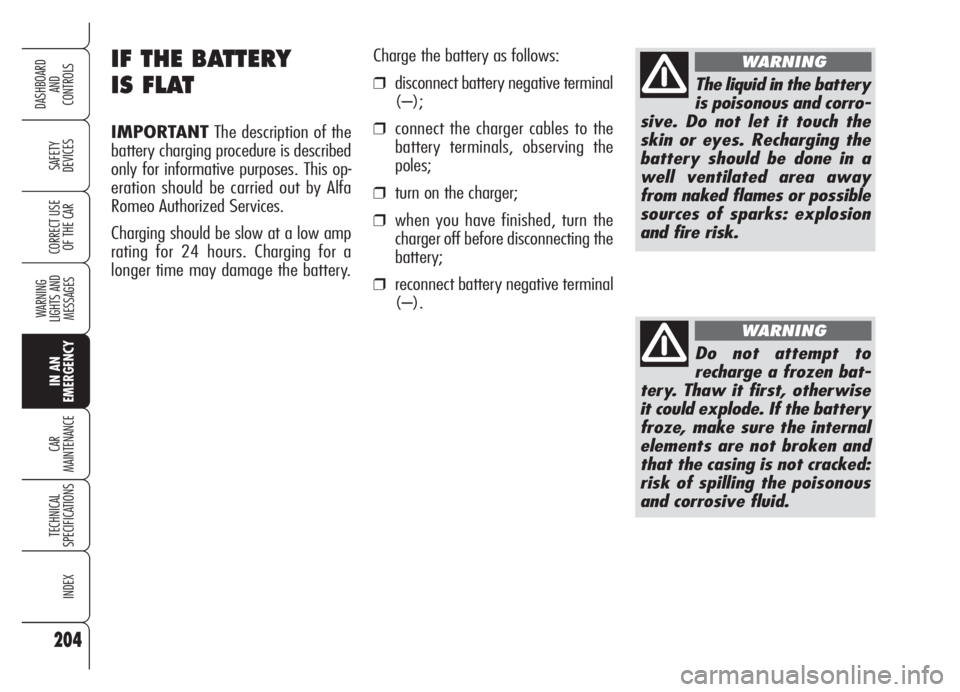

IF THE BATTERY
IS FLAT
IMPORTANTThe description of the
battery charging procedure is described
only for informative purposes. This op-
eration should be carried out by Alfa
Romeo Authorized Services.
Charging should be slow at a low amp
rating for 24 hours. Charging for a
longer time may damage the battery.Charge the battery as follows:
❒disconnect battery negative terminal
(–);
❒connect the charger cables to the
battery terminals, observing the
poles;
❒turn on the charger;
❒when you have finished, turn the
charger off before disconnecting the
battery;
❒reconnect battery negative terminal
(–).
The liquid in the battery
is poisonous and corro-
sive. Do not let it touch the
skin or eyes. Recharging the
battery should be done in a
well ventilated area away
from naked flames or possible
sources of sparks: explosion
and fire risk.
WARNING
Do not attempt to
recharge a frozen bat-
tery. Thaw it first, otherwise
it could explode. If the battery
froze, make sure the internal
elements are not broken and
that the casing is not cracked:
risk of spilling the poisonous
and corrosive fluid.
WARNING

205
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

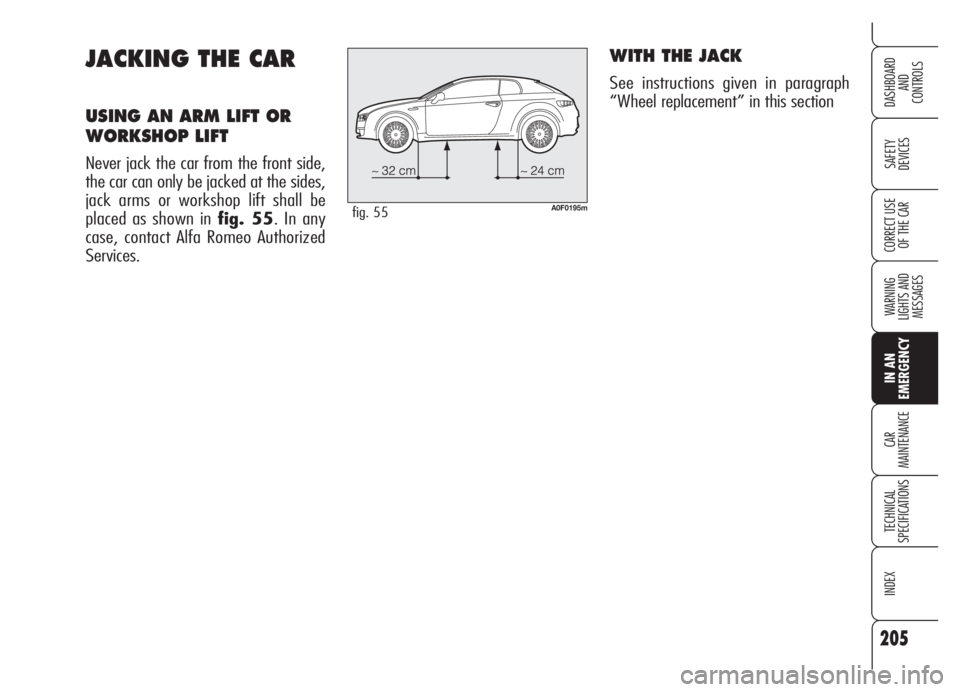

JACKING THE CAR
USING AN ARM LIFT OR
WORKSHOP LIFT
Never jack the car from the front side,
the car can only be jacked at the sides,
jack arms or workshop lift shall be
placed as shown in fig. 55. In any
case, contact Alfa Romeo Authorized
Services.
A0F0195mfig. 55
WITH THE JACK
See instructions given in paragraph
“Wheel replacement” in this section

206
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

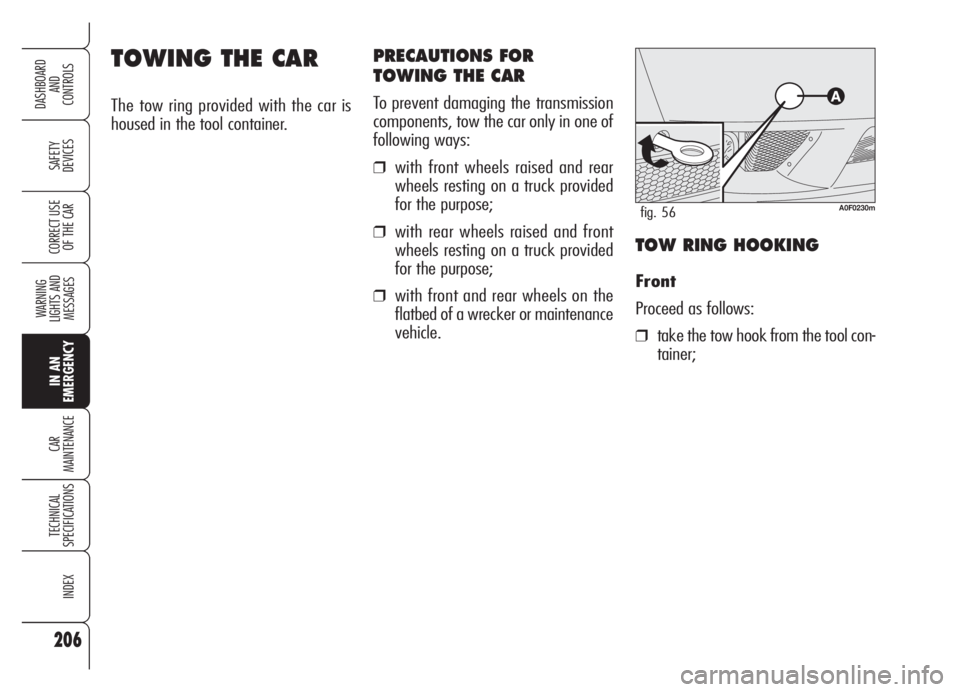

TOWING THE CAR
The tow ring provided with the car is
housed in the tool container.
A0F0230mfig. 56
TOW RING HOOKING
Front
Proceed as follows:
❒take the tow hook from the tool con-
tainer;
PRECAUTIONS FOR
TOWING THE CAR
To prevent damaging the transmission
components, tow the car only in one of
following ways:
❒with front wheels raised and rear
wheels resting on a truck provided
for the purpose;
❒with rear wheels raised and front
wheels resting on a truck provided
for the purpose;
❒with front and rear wheels on the
flatbed of a wrecker or maintenance
vehicle.

207
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

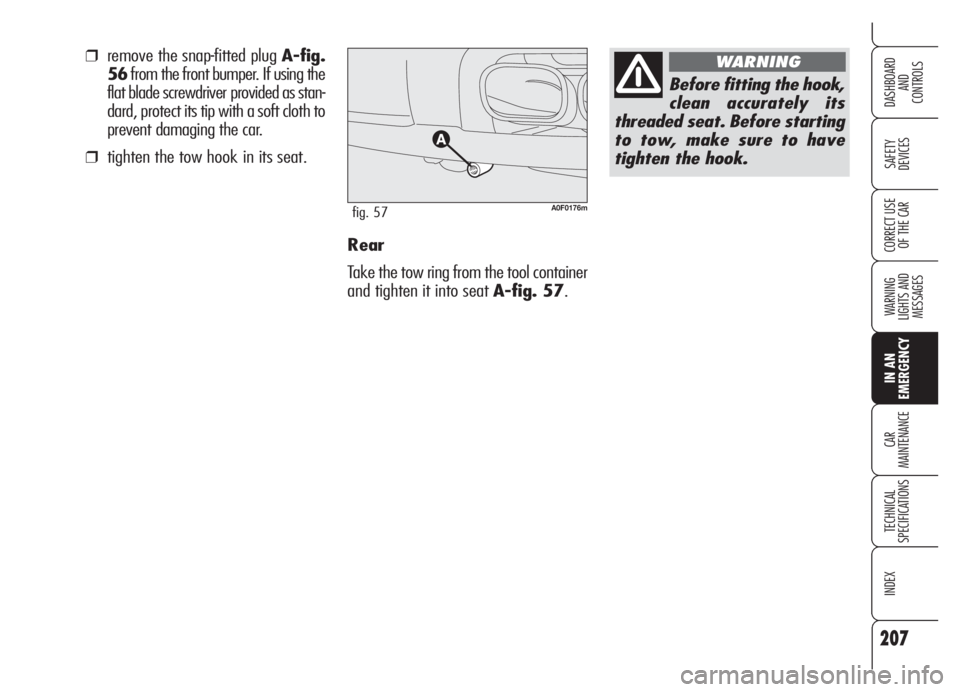

OF THE CARRear
Take the tow ring from the tool container
and tighten it into seat A-fig. 57.
❒remove the snap-fitted plug A-fig.
56from the front bumper. If using the
flat blade screwdriver provided as stan-
dard, protect its tip with a soft cloth to
prevent damaging the car.
❒tighten the tow hook in its seat.
A0F0176mfig. 57
Before fitting the hook,
clean accurately its
threaded seat. Before starting
to tow, make sure to have
tighten the hook.
WARNING

208
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

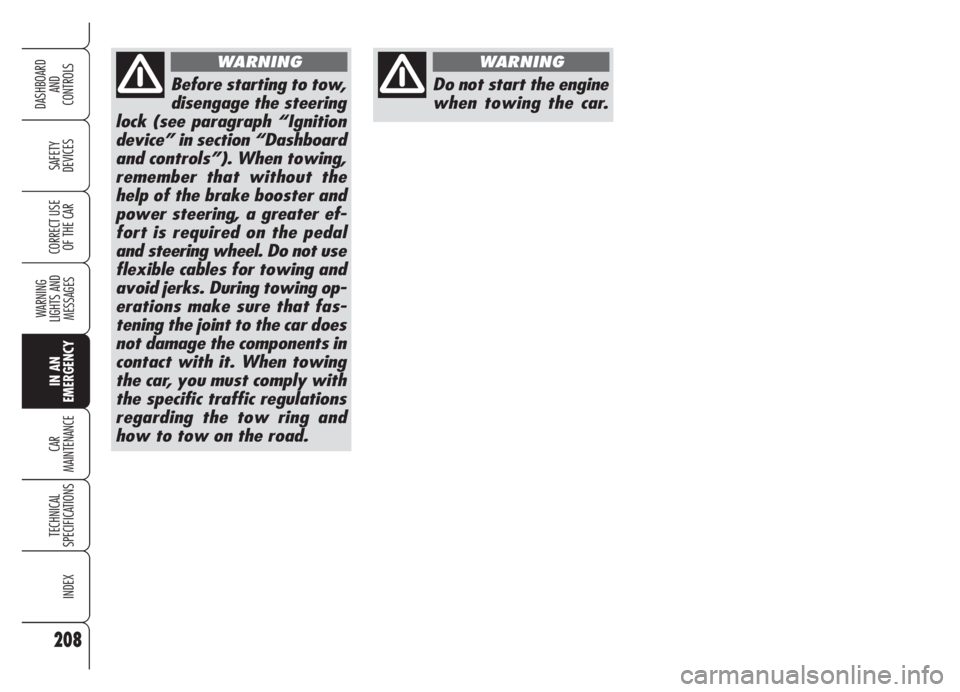

Do not start the engine
when towing the car.
WARNING
Before starting to tow,
disengage the steering
lock (see paragraph “Ignition
device” in section “Dashboard
and controls”). When towing,
remember that without the
help of the brake booster and
power steering, a greater ef-
fort is required on the pedal
and steering wheel. Do not use
flexible cables for towing and
avoid jerks. During towing op-
erations make sure that fas-
tening the joint to the car does
not damage the components in
contact with it. When towing
the car, you must comply with
the specific traffic regulations
regarding the tow ring and
how to tow on the road.
WARNING

209
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
C C
A A
R R
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E

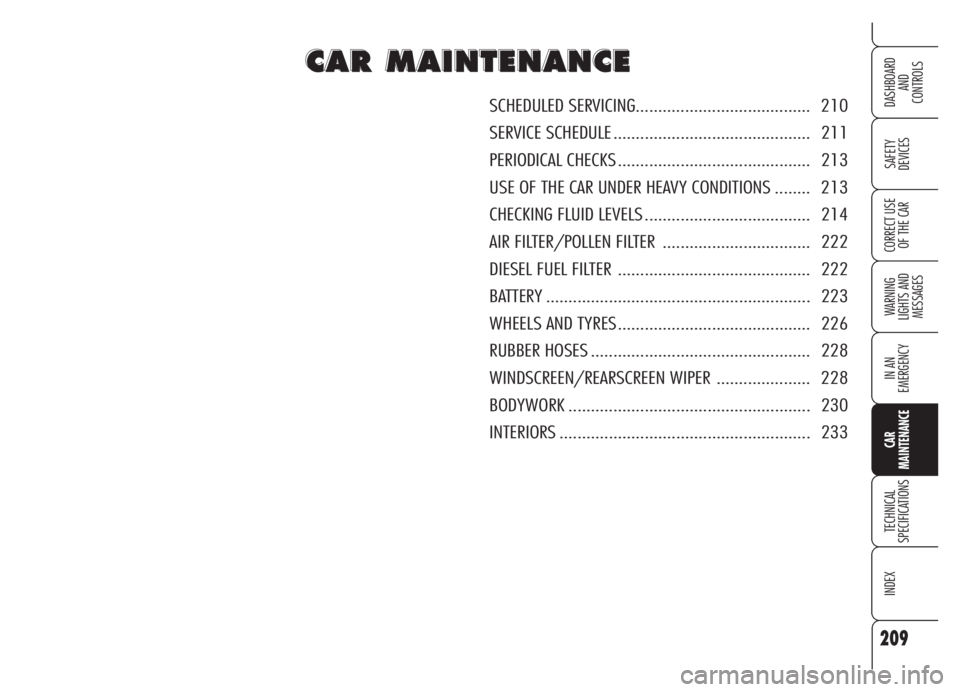

SCHEDULED SERVICING....................................... 210
SERVICE SCHEDULE ............................................ 211
PERIODICAL CHECKS ........................................... 213
USE OF THE CAR UNDER HEAVY CONDITIONS ........ 213
CHECKING FLUID LEVELS ..................................... 214
AIR FILTER/POLLEN FILTER ................................. 222
DIESEL FUEL FILTER ........................................... 222
BATTERY ........................................................... 223
WHEELS AND TYRES........................................... 226
RUBBER HOSES ................................................. 228
WINDSCREEN/REARSCREEN WIPER ..................... 228
BODYWORK ...................................................... 230
INTERIORS ........................................................ 233
