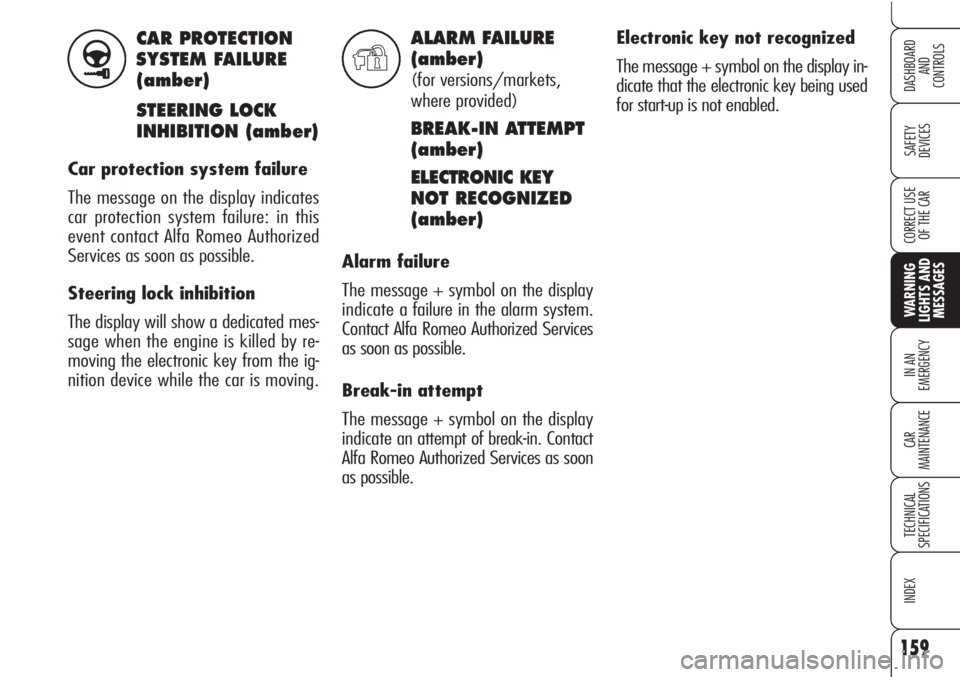

CORRECT USE
OF THE CAR
CAR PROTECTION
SYSTEM FAILURE
(amber)
STEERING LOCK
INHIBITION(amber)
Car protection system failure
The message on the display indicates
car protection system failure: in this
event contact Alfa Romeo Authorized
Services as soon as possible.
Steering lock inhibition
The display will show a dedicated mes-
sage when the engine is killed by re-
moving the electronic key from the ig-
nition device while the car is moving.
>
ALARM FAILURE
(amber)
(for versions/markets,
where provided)
BREAK-IN ATTEMPT
(amber)
ELECTRONIC KEY
NOT RECOGNIZED
(amber)
Alarm failure
The message + symbol on the display
indicate a failure in the alarm system.
Contact Alfa Romeo Authorized Services
as soon as possible.
Break-in attempt
The message + symbol on the display
indicate an attempt of break-in. Contact
Alfa Romeo Authorized Services as soon
as possible.
Y
Electronic key not recognized
The message + symbol on the display in-
dicate that the electronic key being used
for start-up is not enabled.

160
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

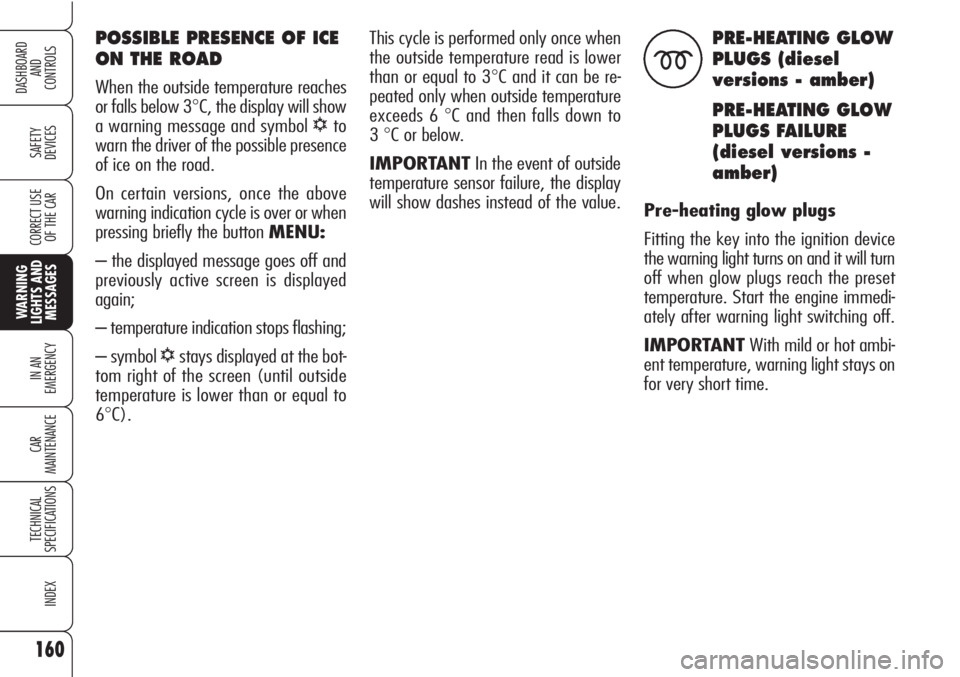

This cycle is performed only once when
the outside temperature read is lower
than or equal to 3
°C and it can be re-
peated only when outside temperature
exceeds 6
°C and then falls down to
3
°C or below.
IMPORTANTIn the event of outside
temperature sensor failure, the display
will show dashes instead of the value.
PRE-HEATINGGLOW
PLUGS (diesel
versions - amber)
PRE-HEATING GLOW
PLUGS FAILURE
(diesel versions -
amber)
Pre-heating glow plugs
Fitting the key into the ignition device
the warning light turns on and it will turn
off when glow plugs reach the preset
temperature. Start the engine immedi-
ately after warning light switching off.
IMPORTANTWith mild or hot ambi-
ent temperature, warning light stays on
for very short time.
m
POSSIBLE PRESENCE OF ICE
ON THE ROAD
When the outside temperature reaches
or falls below 3
°C, the display will show
a warning message and symbol
√to
warn the driver of the possible presence
of ice on the road.
On certain versions, once the above
warning indication cycle is over or when
pressing briefly the button MENU:
– the displayed message goes off and
previously active screen is displayed
again;
– temperature indication stops flashing;
– symbol
√stays displayed at the bot-
tom right of the screen (until outside
temperature is lower than or equal to
6
°C).

161
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Pre-heating glow plugs failure
The warning light (on certain versions
together with the message on the dis-
play) will flash to indicate a failure in the
pre-heating glow plugs system. Contact
Alfa Romeo Authorized Services as soon
as possible to have the failure eliminat-

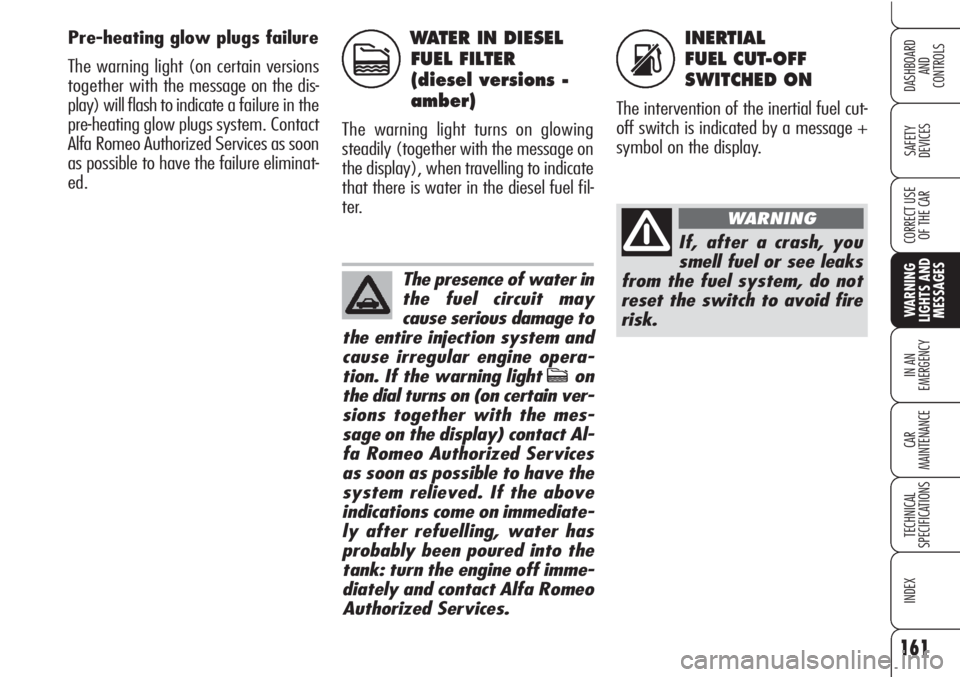

ed.WATER IN DIESEL
FUEL FILTER
(diesel versions -
amber)
The warning light turns on glowing
steadily (together with the message on
the display), when travelling to indicate
that there is water in the diesel fuel fil-
ter.
c
The presence of water in
the fuel circuit may
cause serious damage to
the entire injection system and
cause irregular engine opera-
tion. If the warning light
con
the dial turns on (on certain ver-
sions together with the mes-
sage on the display) contact Al-
fa Romeo Authorized Services
as soon as possible to have the
system relieved. If the above
indications come on immediate-
ly after refuelling, water has
probably been poured into the
tank: turn the engine off imme-
diately and contact Alfa Romeo
Authorized Services.
INERTIAL
FUEL CUT-OFF
SWITCHED ON
The intervention of the inertial fuel cut-
off switch is indicated by a message +
symbol on the display.
If, after a crash, you
smell fuel or see leaks
from the fuel system, do not
reset the switch to avoid fire
risk.
WARNING
s

162
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

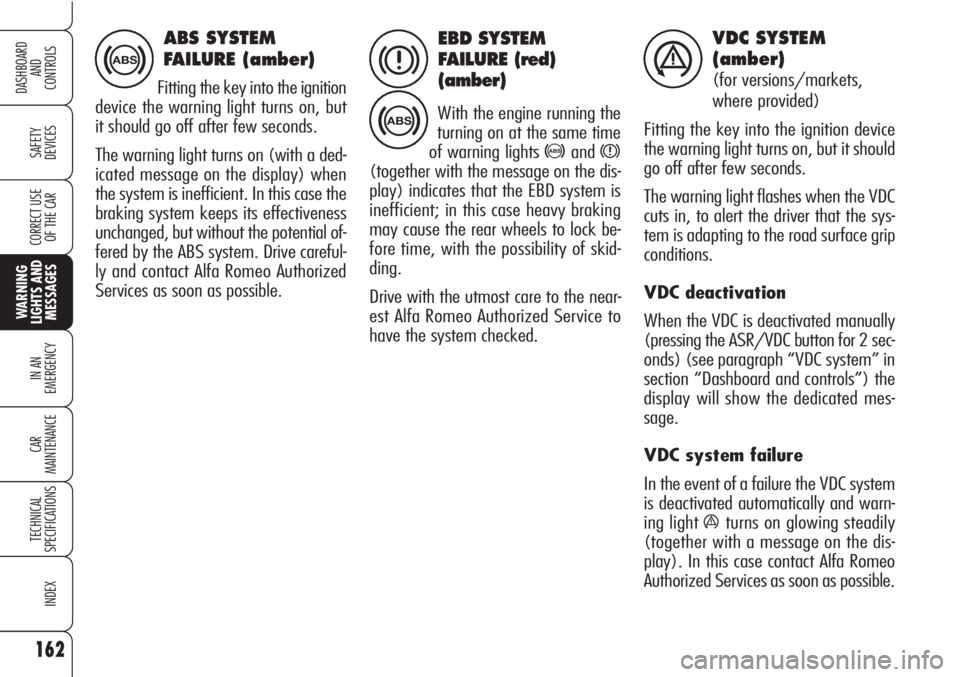

EBD SYSTEM
FAILURE (red)
(amber)
With the engine running the
turning on at the same time
of warning lights
>andx
(together with the message on the dis-
play) indicates that the EBD system is
inefficient; in this case heavy braking
may cause the rear wheels to lock be-
fore time, with the possibility of skid-
ding.
Drive with the utmost care to the near-
est Alfa Romeo Authorized Service to
have the system checked.
VDC SYSTEM
(amber)
(for versions/markets,
where provided)
Fitting the key into the ignition device
the warning light turns on, but it should
go off after few seconds.
The warning light flashes when the VDC
cuts in, to alert the driver that the sys-
tem is adapting to the road surface grip
conditions.
VDC deactivation
When the VDC is deactivated manually
(pressing the ASR/VDC button for 2 sec-
onds) (see paragraph “VDC system” in
section “Dashboard and controls”) the
display will show the dedicated mes-
sage.
VDC system failure
In the event of a failure the VDC system
is deactivated automatically and warn-
ing light
áturns on glowing steadily
(together with a message on the dis-
play). In this case contact Alfa Romeo
Authorized Services as soon as possible.
ABS SYSTEM
FAILURE (amber)
Fitting the key into the ignition
device the warning light turns on, but
it should go off after few seconds.
The warning light turns on (with a ded-
icated message on the display) when
the system is inefficient. In this case the
braking system keeps its effectiveness
unchanged, but without the potential of-
fered by the ABS system. Drive careful-
ly and contact Alfa Romeo Authorized
Services as soon as possible.
>
>
xá

163
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

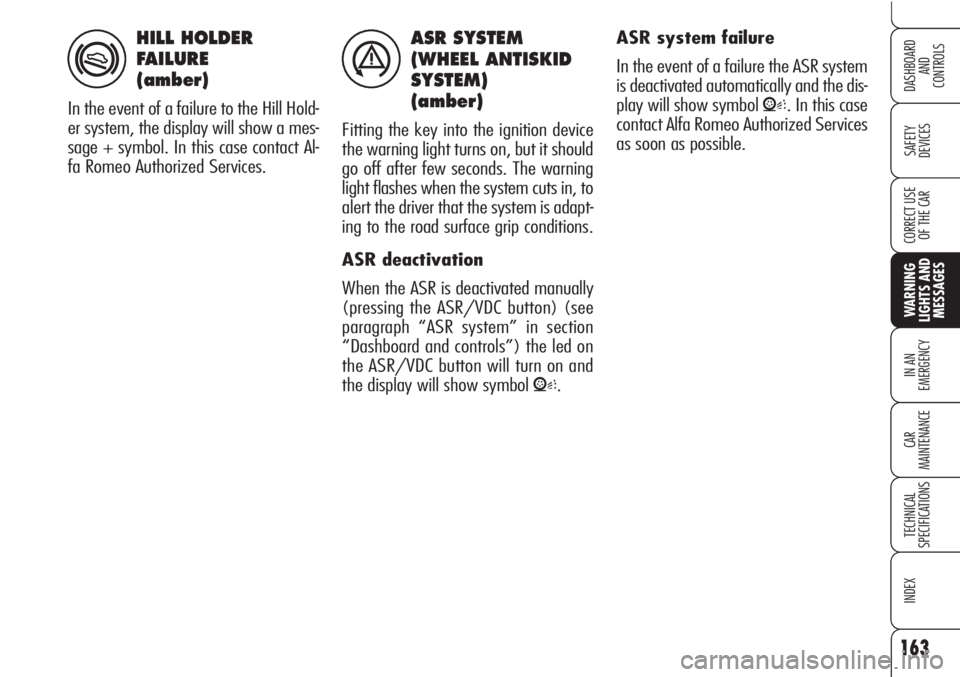

ASR SYSTEM
(WHEEL ANTISKID
SYSTEM)
(amber)
Fitting the key into the ignition device
the warning light turns on, but it should
go off after few seconds. The warning
light flashes when the system cuts in, to
alert the driver that the system is adapt-
ing to the road surface grip conditions.
ASR deactivation
When the ASR is deactivated manually
(pressing the ASR/VDC button) (see
paragraph “ASR system” in section
“Dashboard and controls”) the led on
the ASR/VDC button will turn on and
the display will show symbol
V.
á
HILL HOLDER
FAILURE
(amber)
In the event of a failure to the Hill Hold-
er system, the display will show a mes-
sage + symbol. In this case contact Al-
fa Romeo Authorized Services.
*
ASR system failure
In the event of a failure the ASR system
is deactivated automatically and the dis-
play will show symbol
V. In this case
contact Alfa Romeo Authorized Services
as soon as possible.

164
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

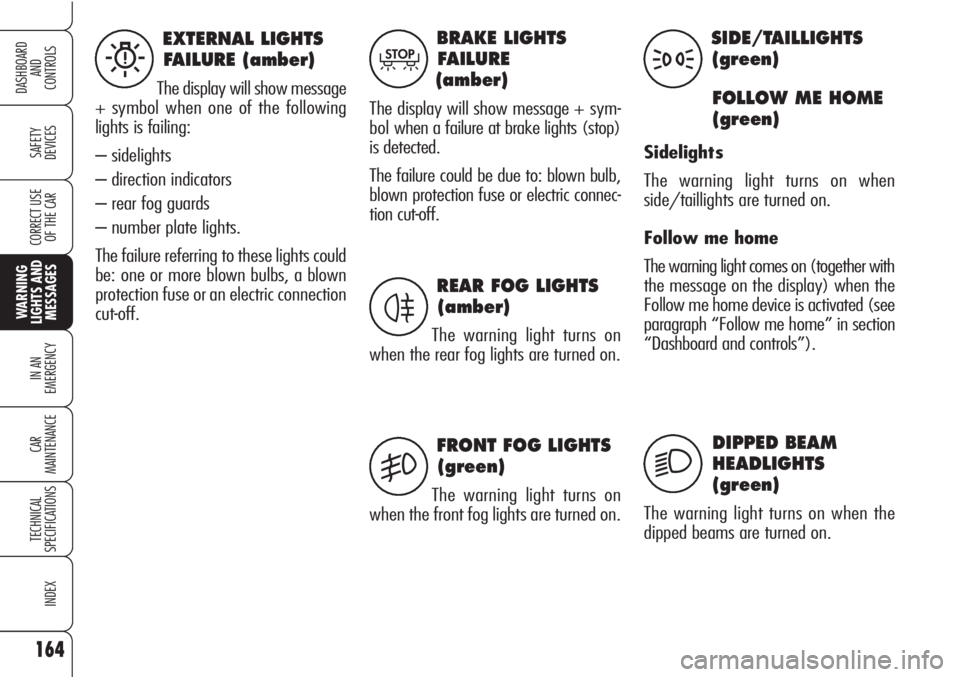

EXTERNAL LIGHTS
FAILURE (amber)
The display will show message
+ symbol when one of the following
lights is failing:
– sidelights
– direction indicators
– rear fog guards
– number plate lights.
The failure referring to these lights could
be: one or more blown bulbs, a blown
protection fuse or an electric connection
cut-off.
W
BRAKE LIGHTS
FAILURE
(amber)
The display will show message + sym-
bol when a failure at brake lights (stop)
is detected.
The failure could be due to: blown bulb,
blown protection fuse or electric connec-
tion cut-off.
T
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are turned on.
FRONT FOG LIGHTS
(green)
The warning light turns on
when the front fog lights are turned on.
4
5
SIDE/TAILLIGHTS
(green)
FOLLOW ME HOME
(green)
Sidelights
The warning light turns on when
side/taillights are turned on.
Follow me home
The warning light comes on (together with
the message on the display) when the
Follow me home device is activated (see
paragraph “Follow me home” in section
“Dashboard and controls”).
3
2
DIPPED BEAM
HEADLIGHTS
(green)
The warning light turns on when the
dipped beams are turned on.

165
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

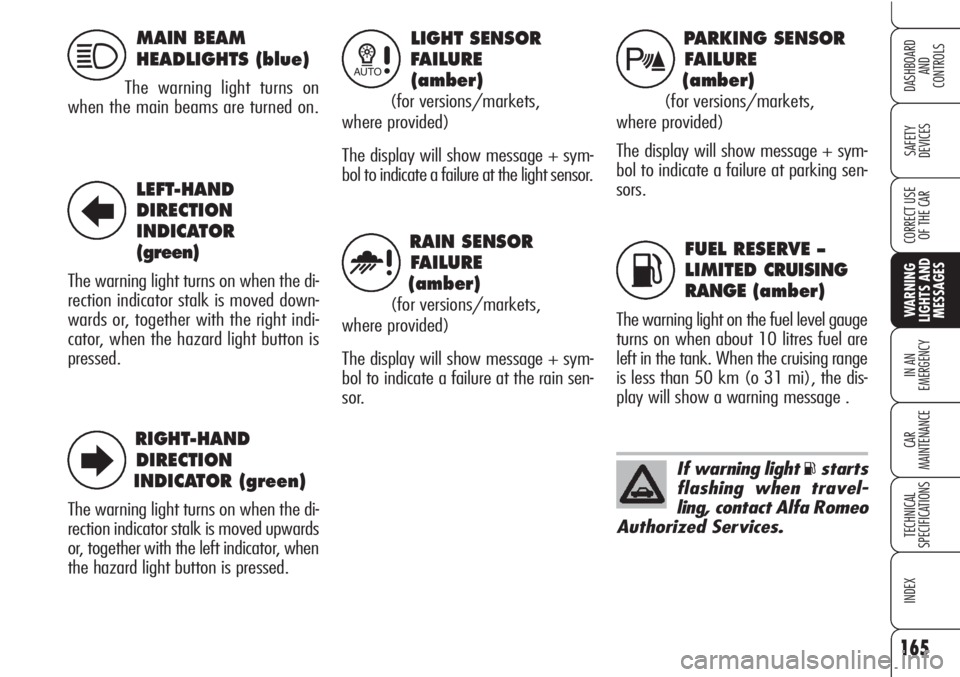

MAIN BEAM
HEADLIGHTS (blue)
The warning light turns on
when the main beams are turned on.
1
LEFT-HAND
DIRECTION
INDICATOR
(green)
The warning light turns on when the di-
rection indicator stalk is moved down-
wards or, together with the right indi-
cator, when the hazard light button is
pressed.
RIGHT-HAND
DIRECTION
INDICATOR (green)
The warning light turns on when the di-
rection indicator stalk is moved upwards
or, together with the left indicator, when
the hazard light button is pressed.
R
E
LIGHT SENSOR
FAILURE
(amber)
(for versions/markets,
where provided)
The display will show message + sym-
bol to indicate a failure at the light sensor.
1
RAIN SENSOR
FAILURE
(amber)
(for versions/markets,
where provided)
The display will show message + sym-
bol to indicate a failure at the rain sen-
sor.
u
PARKING SENSOR
FAILURE
(amber)
(for versions/markets,
where provided)
The display will show message + sym-
bol to indicate a failure at parking sen-
sors.
t
FUEL RESERVE –
LIMITED CRUISING
RANGE (amber)
The warning light on the fuel level gauge
turns on when about 10 litres fuel are
left in the tank. When the cruising range
is less than 50 km (o 31 mi), the dis-
play will show a warning message .
K
If warning light Kstarts
flashing when travel-
ling, contact Alfa Romeo
Authorized Services.

166
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

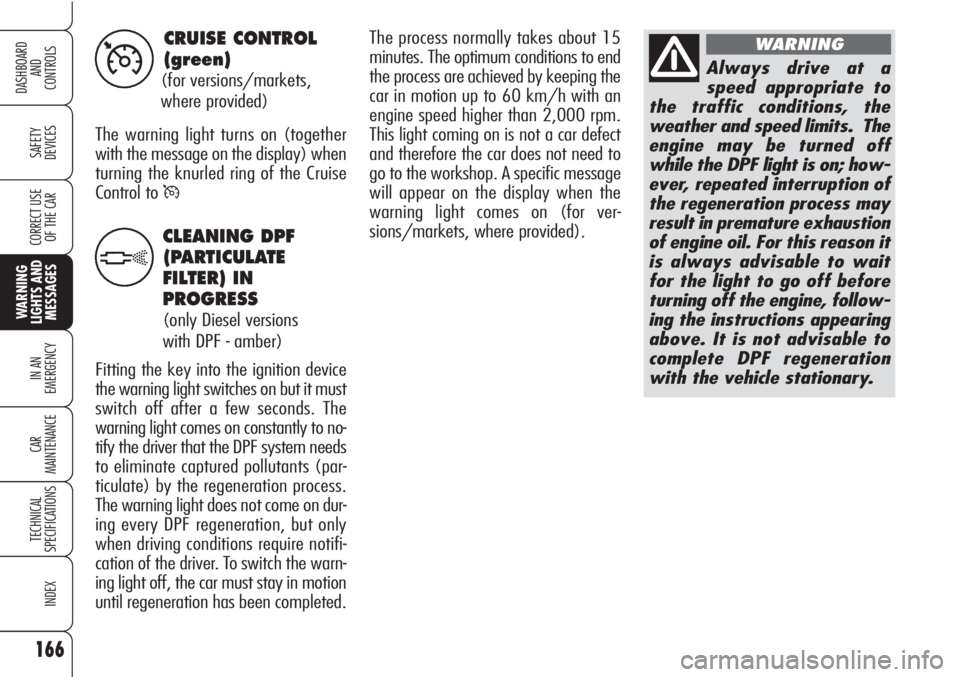

CRUISE CONTROL
(green)
(for versions/markets,
where provided)
The warning light turns on (together
with the message on the display) when
turning the knurled ring of the Cruise
Control to
Ü
Ü
CLEANING DPF
(PARTICULATE
FILTER) IN
PROGRESS
(only Diesel versions
with DPF - amber)
Fitting the key into the ignition device
the warning light switches on but it must
switch off after a few seconds. The
warning light comes on constantly to no-
tify the driver that the DPF system needs
to eliminate captured pollutants (par-
ticulate) by the regeneration process.
The warning light does not come on dur-
ing every DPF regeneration, but only
when driving conditions require notifi-
cation of the driver. To switch the warn-
ing light off, the car must stay in motion
until regeneration has been completed.
h
The process normally takes about 15
minutes. The optimum conditions to end
the process are achieved by keeping the
car in motion up to 60 km/h with an
engine speed higher than 2,000 rpm.
This light coming on is not a car defect
and therefore the car does not need to
go to the workshop. A specific message
will appear on the display when the
warning light comes on (for ver-
sions/markets, where provided).
Always drive at a
speed appropriate to
the traffic conditions, the
weather and speed limits. The
engine may be turned off
while the DPF light is on; how-
ever, repeated interruption of
the regeneration process may
result in premature exhaustion
of engine oil. For this reason it
is always advisable to wait
for the light to go off before
turning off the engine, follow-
ing the instructions appearing
above. It is not advisable to
complete DPF regeneration
with the vehicle stationary.
WARNING

167
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

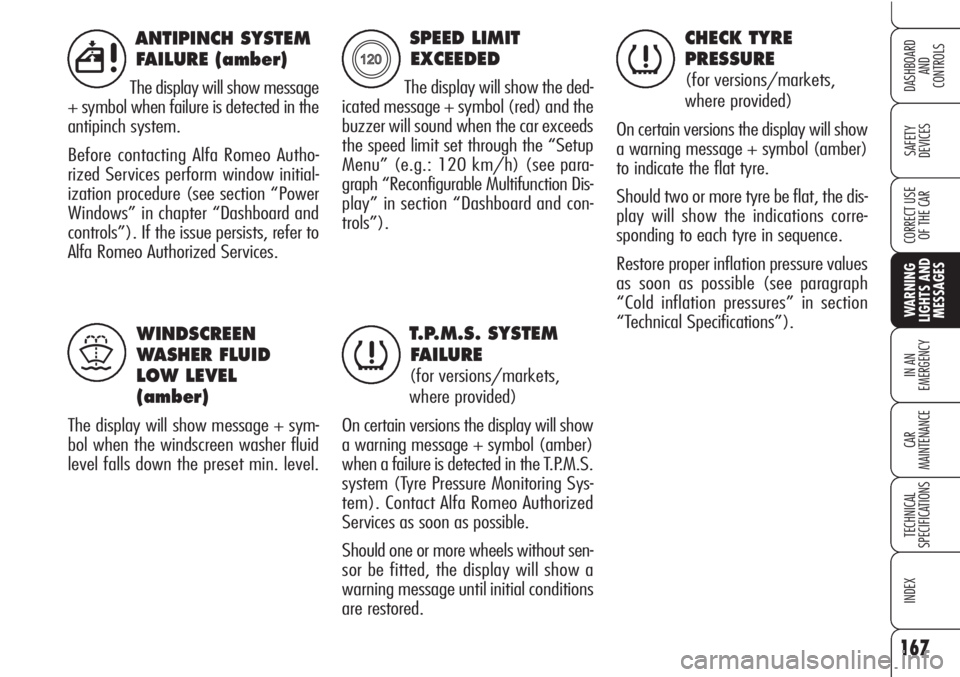

ANTIPINCH SYSTEM
FAILURE (amber)
The display will show message
+ symbol when failure is detected in the
antipinch system.
Before contacting Alfa Romeo Autho-
rized Services perform window initial-
ization procedure (see section “Power
Windows” in chapter “Dashboard and
controls”). If the issue persists, refer to
Alfa Romeo Authorized Services.
5
WINDSCREEN
WASHER FLUID
LOW LEVEL
(amber)
The display will show message + sym-
bol when the windscreen washer fluid
level falls down the preset min. level.
)
SPEED LIMIT
EXCEEDED
The display will show the ded-
icated message + symbol (red) and the
buzzer will sound when the car exceeds
the speed limit set through the “Setup
Menu” (e.g.: 120 km/h) (see para-
graph “Reconfigurable Multifunction Dis-
play” in section “Dashboard and con-
trols”).X
T.P.M.S. SYSTEM
FAILURE
(for versions/markets,
where provided)
On certain versions the display will show
a warning message + symbol (amber)
when a failure is detected in the T.P.M.S.
system (Tyre Pressure Monitoring Sys-
tem). Contact Alfa Romeo Authorized
Services as soon as possible.
Should one or more wheels without sen-
sor be fitted, the display will show a
warning message until initial conditions
are restored.n
CHECK TYRE
PRESSURE
(for versions/markets,
where provided)
On certain versions the display will show
a warning message + symbol (amber)
to indicate the flat tyre.
Should two or more tyre be flat, the dis-
play will show the indications corre-
sponding to each tyre in sequence.
Restore proper inflation pressure values
as soon as possible (see paragraph
“Cold inflation pressures” in section
“Technical Specifications”).n

168
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

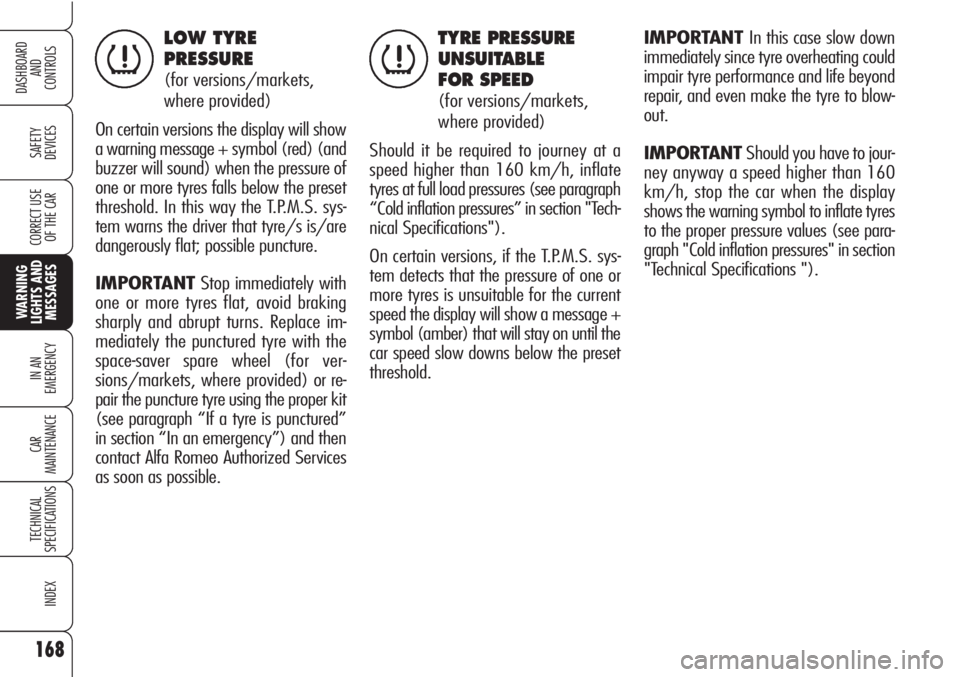

TYRE PRESSURE
UNSUITABLE
FOR SPEED
(for versions/markets,
where provided)
Should it be required to journey at a
speed higher than 160 km/h, inflate
tyres at full load pressures (see paragraph
“Cold inflation pressures” in section "Tech-
nical Specifications").
On certain versions, if the T.P.M.S. sys-
tem detects that the pressure of one or
more tyres is unsuitable for the current
speed the display will show a message +
symbol (amber) that will stay on until the
car speed slow downs below the preset
threshold.
n
IMPORTANT In this case slow down
immediately since tyre overheating could
impair tyre performance and life beyond
repair, and even make the tyre to blow-
out.
IMPORTANT Should you have to jour-
ney anyway a speed higher than 160
km/h, stop the car when the display
shows the warning symbol to inflate tyres
to the proper pressure values (see para-
graph "Cold inflation pressures" in section
"Technical Specifications ").LOW TYRE
PRESSURE
(for versions/markets,
where provided)
On certain versions the display will show
a warning message + symbol (red) (and
buzzer will sound) when the pressure of
one or more tyres falls below the preset
threshold. In this way the T.P.M.S. sys-
tem warns the driver that tyre/s is/are
dangerously flat; possible puncture.
IMPORTANTStop immediately with
one or more tyres flat, avoid braking
sharply and abrupt turns. Replace im-
mediately the punctured tyre with the
space-saver spare wheel (for ver-
sions/markets, where provided) or re-
pair the puncture tyre using the proper kit
(see paragraph “If a tyre is punctured”
in section “In an emergency”) and then
contact Alfa Romeo Authorized Services
as soon as possible.n
