OWNER’S MANUALALFA

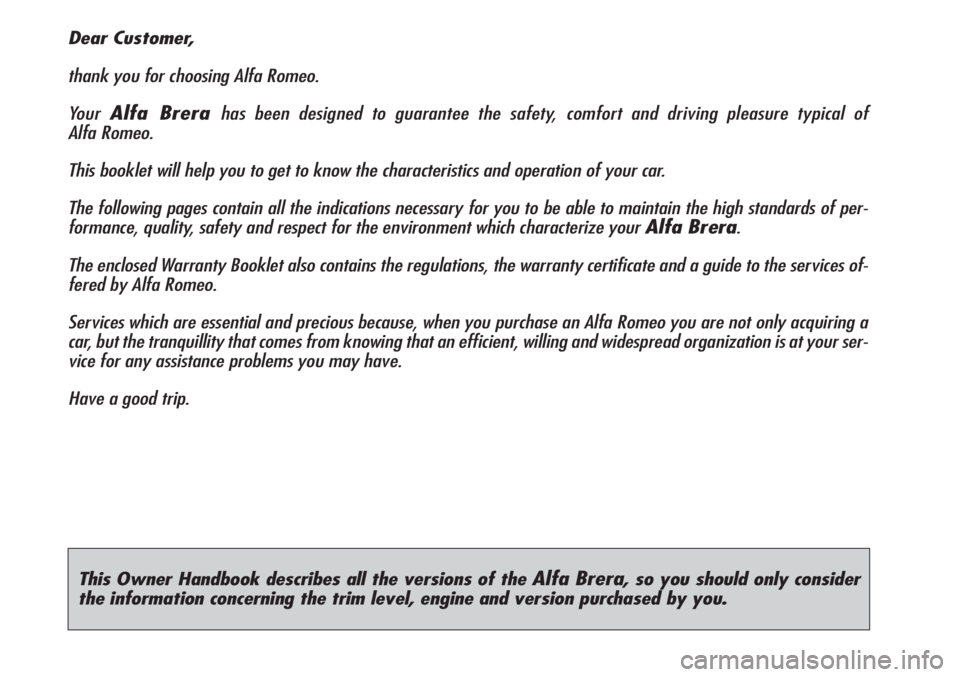

This Owner Handbook describes all the versions of the Alfa Brera, so you should only consider
the information concerning the trim level, engine and version purchased by you. Dear Customer,
thank you for choosing Alfa Romeo.
Yo u r
Alfa Brerahas been designed to guarantee the safety, comfort and driving pleasure typical of
Alfa Romeo.
This booklet will help you to get to know the characteristics and operation of your car.
The following pages contain all the indications necessary for you to be able to maintain the high standards of per-
formance, quality, safety and respect for the environment which characterize your
Alfa Brera.
The enclosed Warranty Booklet also contains the regulations, the warranty certificate and a guide to the services of-
fered by Alfa Romeo.
Services which are essential and precious because, when you purchase an Alfa Romeo you are not only acquiring a
car, but the tranquillity that comes from knowing that an efficient, willing and widespread organization is at your ser-
vice for any assistance problems you may have.
Have a good trip.

MUST BE READ!
REFUELLING
Petrol engines:only refuel with unleaded petrol with octane rating (RON) not less than 95.
Diesel engines: only refuel with diesel fuel conforming to the European specification EN590. The use of
other products or mixtures may irreparably damage the engine with invalidation of the warranty due to the
damage caused.
K
ENGINE STARTING
Petrol engines: ensure that the handbrake is up, fully press the clutch pedal, without pressing the accelerator, put
the gear lever neutral, fit the electronic key into the ignition device to stop limit, briefly press the START/STOPbut-
ton.
Diesel engines:ensure that the handbrake is up, fully press the clutch pedal, without pressing the accelerator, put
the gear lever neutral, fit the electronic key down into the ignition device until it stops. The instrument panel warning
light
mwill turn on, wait for the warning light mto turn off. The hotter the engine is, the quicker this will happen,
briefly press the START/STOPbutton as soon as the warning light
mturns on.
PARKING ON FLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the car over grass, dry leaves, pine
needles or any other inflammable materials: risk of fire.

RESPECTING THE ENVIRONMENT
A system for continuously monitoring emission system components to ensure greater environmental protec-
tion is fitted in your car.

ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (that will gradually drain the battery), contact Al-
fa Romeo Authorized Services. They can calculate the overall electrical requirement and check that the car’s elec-
tric system can support the required load.

CODE CARD (for versions/markets, where provided)
Keep the code card in a safe place, not in the car.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring it stays in tip-top condition and safeguards its safety fea-
tures, its environmental friendliness and low running costs for a long time to come.
THE OWNER HANDBOOK CONTAINS…
…information, tips and important warnings regarding the safe, correct driving of your car, and its mainte-
nance. Pay particular attention to the symbols
"(personal safety) #(environmental protection) â(car well-be-
ing).

Any queries concerning servicing should be forwarded to the showroom from which the car was purchased, the sub-
sidiary company or to our branch offices or any point of the Alfa Romeo Network.
Warranty Booklet
The Warranty Booklet is delivered together with every new car and contains the regulations tied to the services giv-
en by Alfa Romeo Services and to the warranty conditions.
Correctly carrying out the scheduled services specified by the manufacturer is the best way to maintain the perfor-
mance, safety characteristics and low running costs of your car. It is also necessary to maintain warranty cover.
“Service” guide
This contains the Alfa Romeo Authorized Services. The services can be recognized by the presence of the Alfa Romeo
badge and logo.
The Alfa Romeo organization in Italy can be found in the telephone book under the letter “A” Alfa Romeo.
Not all the models described in this booklet are available in all countries. Only some of the fittings described in this
booklet are fitted as standard to the car. The list of available accessories should be requested from the Alfa Romeo
Dealers.

THE SYMBOLS USED IN THIS BOOKLET
The symbols illustrated in these pages show the subjects which should,
in particular, be closely studied.
Warning: partially or fully ignoring
these rules may lead to serious injury.This indicates the correct procedures
to be followed to prevent
the car from damaging the environment.Warning: partially or fully ignoring these
rules may lead to serious damage
being caused to the car which, in some
circumstances, may cause forfeiture of the
warranty cover.
The texts, illustrations and specifications given in this booklet refer to the car
at the time of going to press.
As part of our ongoing striving to improve our products, Alfa Romeo may introduce technical changes during production,
therefore the specifications and fittings may be altered without prior notice.
For details on this subject, please apply to the manufacturer’s sales network.
PERSONAL
SAFETYPROTECTING THE
ENVIRONMENT CAR SAFETY

6
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
D D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
CEILING LIGHTS................................................ 75
CONTROLS....................................................... 77
INTERIOR FITTINGS............................................ 80
FIXED PANORAMA ROOF .................................... 84
DOORS ........................................................... 86
POWER WINDOWS........................................... 88
BOOT .............................................................. 90
BONNET.......................................................... 96
ROOF RACK/SKI RACK ...................................... 97
HEADLIGHTS..................................................... 97
ABS SYSTEM ................................................... 99
VDC SYSTEM ................................................... 100
EOBD SYSTEM ................................................. 104
SOUND SYSTEM............................................... 104
ACCESSORIES PURCHASED BY THE OWNER .......... 105
INSTALLATION OF ELECTRIC/ELECTRONIC DEVICES .. 105
PARKING SENSORS ........................................... 106
TYRE PRESSURE MONITORING SYSTEM (T.P.M.S.) .. 109
AT THE FILLING STATION .................................... 112
PROTECTING THE ENVIRONMENT ........................ 114 DASHBOARD.................................................... 7
INSTRUMENT PANEL ......................................... 8
SYMBOLS ....................................................... 9
THE ALFA ROMEO CODE SYSTEM ......................... 9
ELECTRONIC KEY .............................................. 11
ALARM ........................................................... 17
IGNITION DEVICE............................................... 19
INSTRUMENTS.................................................. 22
RECONFIGURABLE MULTIFUNCTION DISPLAY .......... 26
SEATS ............................................................ 41
HEAD RESTRAINTS............................................. 44
STEERING WHEEL ............................................. 45
REARVIEW MIRRORS ......................................... 46
CLIMATE CONTROL SYSTEM ............................... 49
MANUAL CLIMATE CONTROL SYSTEM ................... 51
AUTOMATIC TWO-ZONE CLIMATE CONTROL SYSTEM 54
ADDITIONAL HEATER ......................................... 64
EXTERNAL LIGHTS............................................ 65
WINDOW WASHING ......................................... 68
CRUISE CONTROL............................................. 72

7
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
DASHBOARD
A0F0056mfig. 1
1.Adjustable and swivel side air vents - 2.Front side window demisting/defrosting vents - 3.External lights control lever
-4.Instrument panel - 5.Driver’s air bag and horn - 6.Windscreen wiper control lever - 7.Upper central vent - 8.Ad-
justable and swivel central air vents - 9.Fuel level gauge/engine coolant temperature gauge/engine oil temperature gauge
(petrol versions) or turbocharger pressure gauge (diesel versions) - 10.Passenger’s air bag - 11.Passenger’s knees air
bag (for versions/markets, where provided) - 12.Glove box - 13.Sound system - 14.Heating/ventilation/climate con-
trols - 15.EngineSTART/STOPbutton - 16.Ignition device - 17.Driver’s knees air bag - 18.Sound system controls
on the steering wheel
(for versions/markets, where provided)-19.Cruise Control lever (for versions/markets, where provided)-
20.Bonnet opening lever - 21.Dashboard fusebox lid - 22.Switches for external lights, trip meter reset and headlamp aim-
ing device.

8
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
INSTRUMENT PANEL
A.Speedometer (speed indicator)
B.Warning lights
C.Rev counter
D.Reconfigurable multifunction display
cmWarning lights on diesel
versions only
On diesel versions the rev counter
end scale value is at 6000 rpm.
Fig. 2A0F0198m
Fig. 2/a - 1750 TURBO BENZINA version A0F0330m
A.Speedometer (speed indicator)
B.Warning lights
C.Rev counter
D.Reconfigurable multifunction display
