Page 181 of 260

Alfa Romeo Giulia 2018  Owners Manual Fuse Location
The fuses, which can be replaced by the
user, are grouped in two boxes below the
passenger side foot board and inside the
trunk.
Control Unit Under Passenger Side
Footboard
To access the

Page 182 of 260

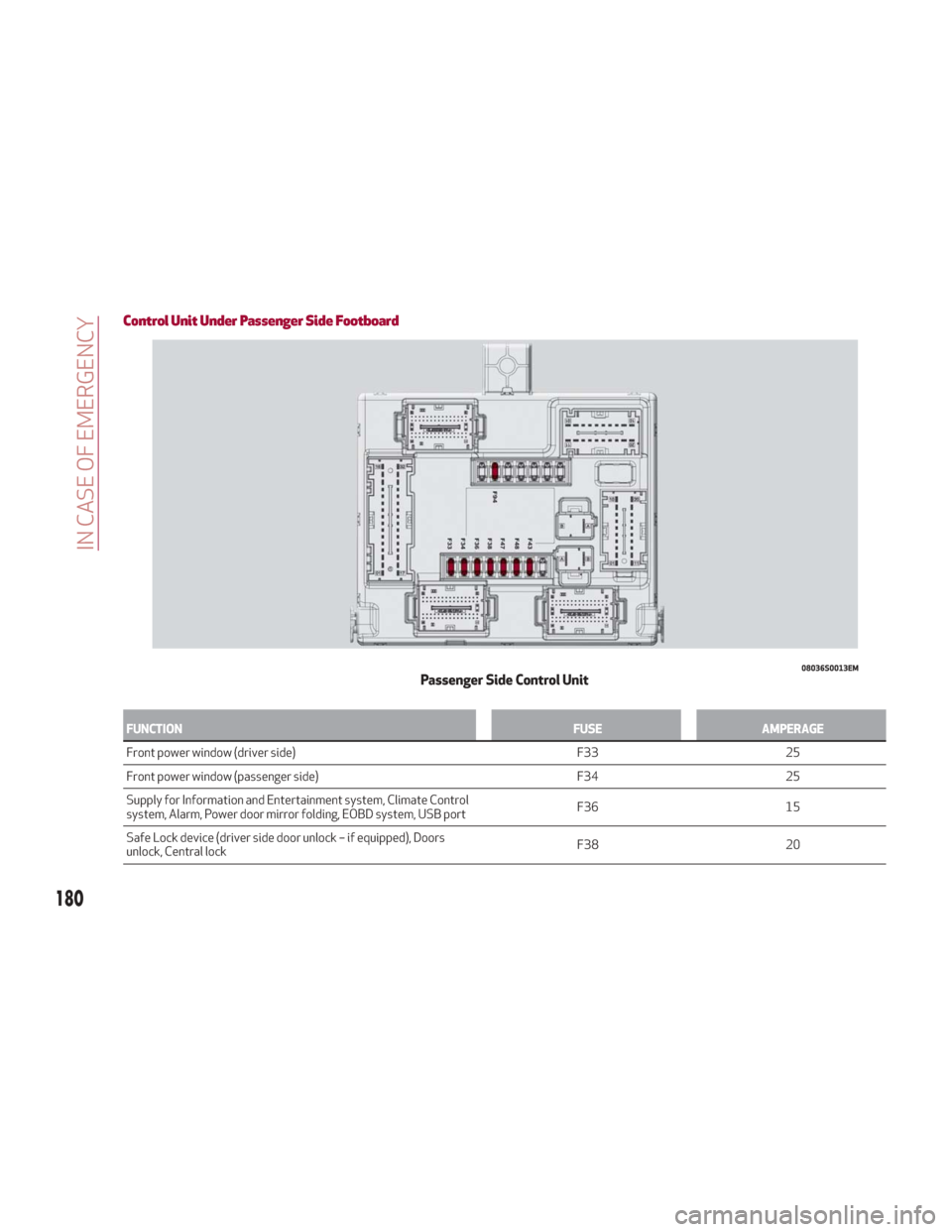

Alfa Romeo Giulia 2018  Owners Manual Control Unit Under Passenger Side Footboard
FUNCTIONFUSEAMPERAGE
Front power window (driver side) F3325
Front
 power window (passenger side) F3425
Supply for Information and Entertainment system, Clim

Page 183 of 260

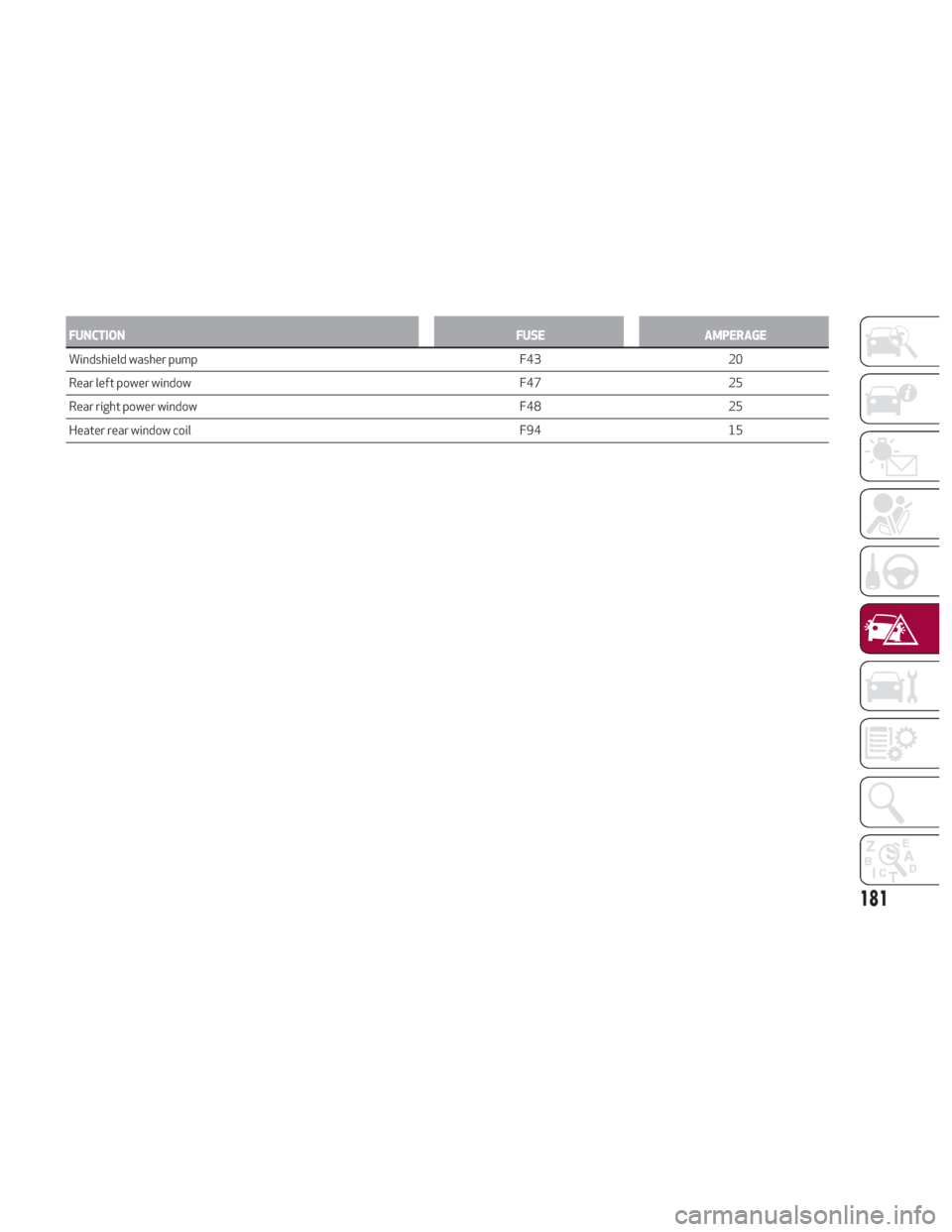

Alfa Romeo Giulia 2018  Owners Manual FUNCTIONFUSEAMPERAGE
Windshield washer pump F4320
Rear
 left power window F4725
Rear right power window F4825
Heater rear window coil F9415
181

Page 184 of 260

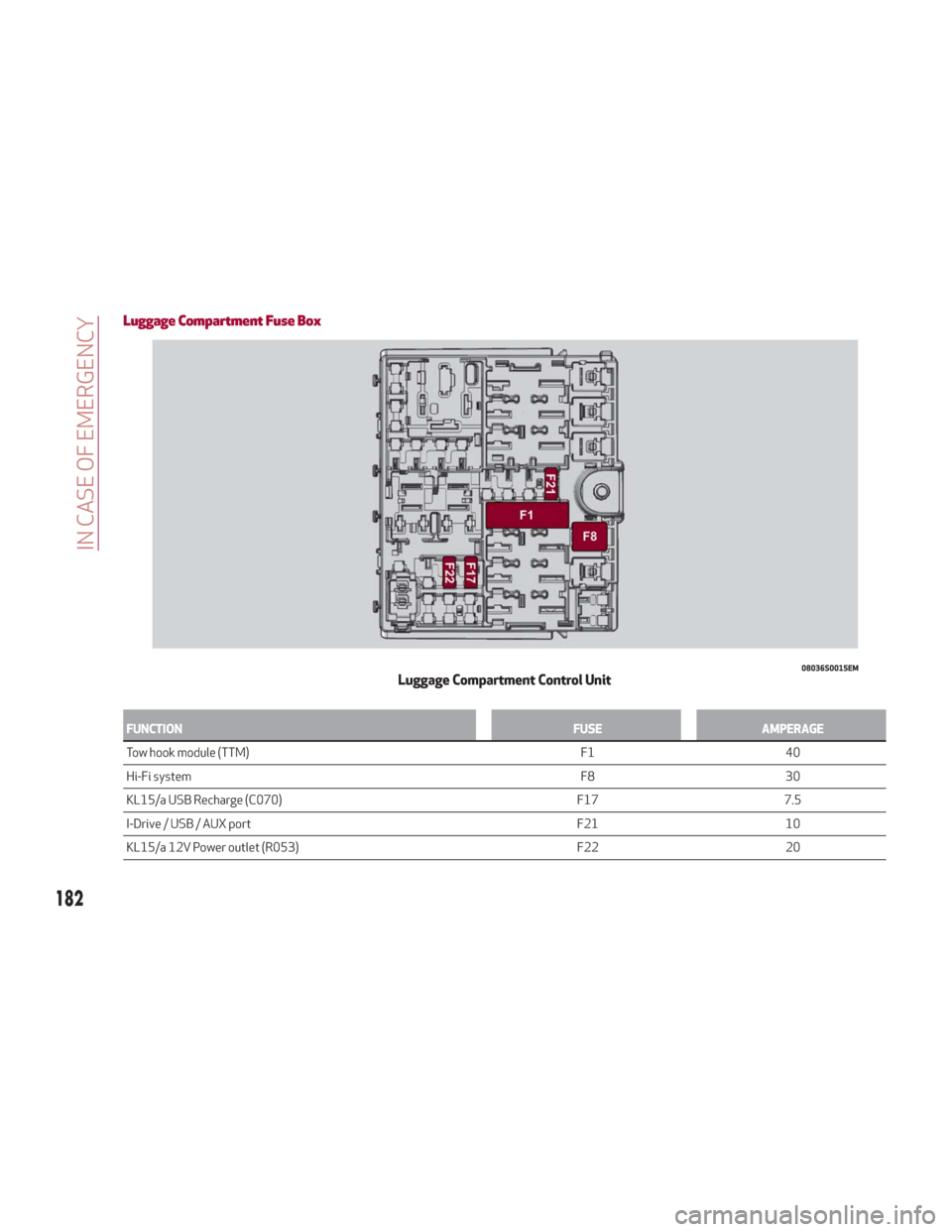

Alfa Romeo Giulia 2018  Owners Manual Luggage Compartment Fuse Box
FUNCTIONFUSEAMPERAGE
Tow hook module (TTM) F140
Hi-Fi
 system F830
KL15/a USB Recharge (C070) F177.5
I-Drive / USB / AUX port F2110
KL15/a 12V Power outlet (R053) F2220
08

Page 185 of 260

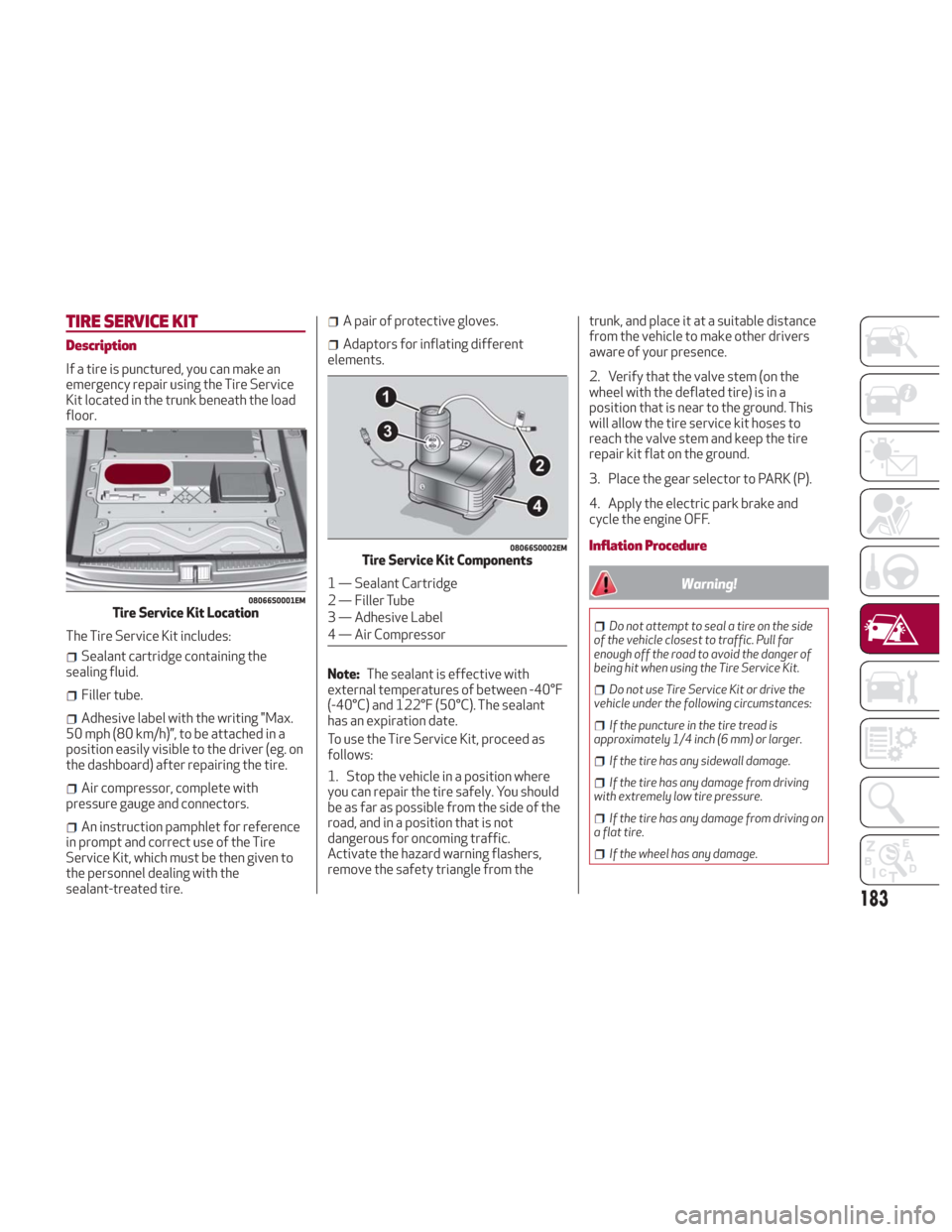

Alfa Romeo Giulia 2018  Owners Manual TIRE SERVICE KIT
Description
If a tire is punctured, you can make an
emergency repair using the Tire Service
Kit located in the trunk beneath the load
floor.
The Tire Service Kit includes:
Sealant car

Page 186 of 260

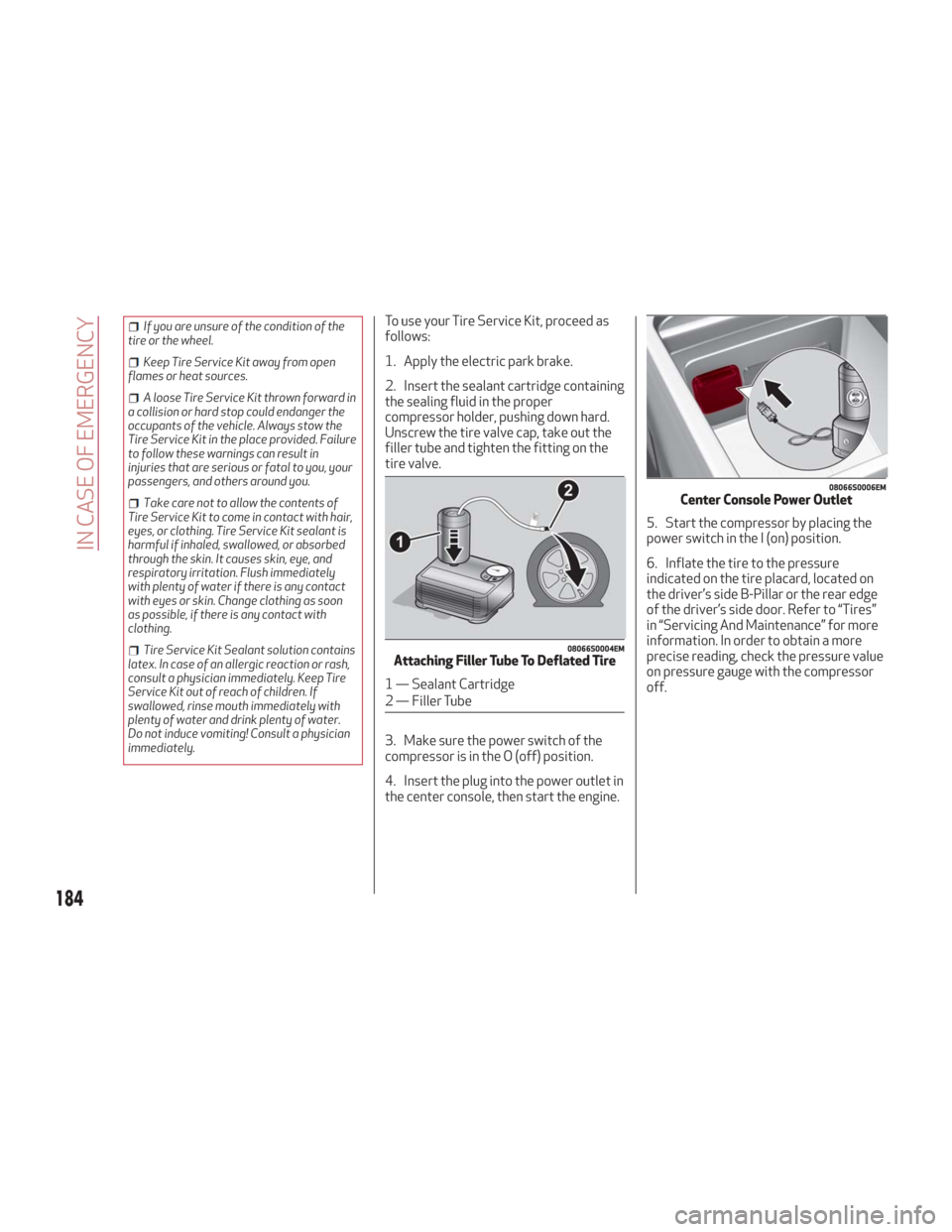

Alfa Romeo Giulia 2018  Owners Manual If you are unsure of the condition of the
tire or the wheel.
Keep Tire Service Kit away from open
flames or heat sources.
A loose Tire Service Kit thrown forward in
a collision or hard stop could enda

Page 187 of 260

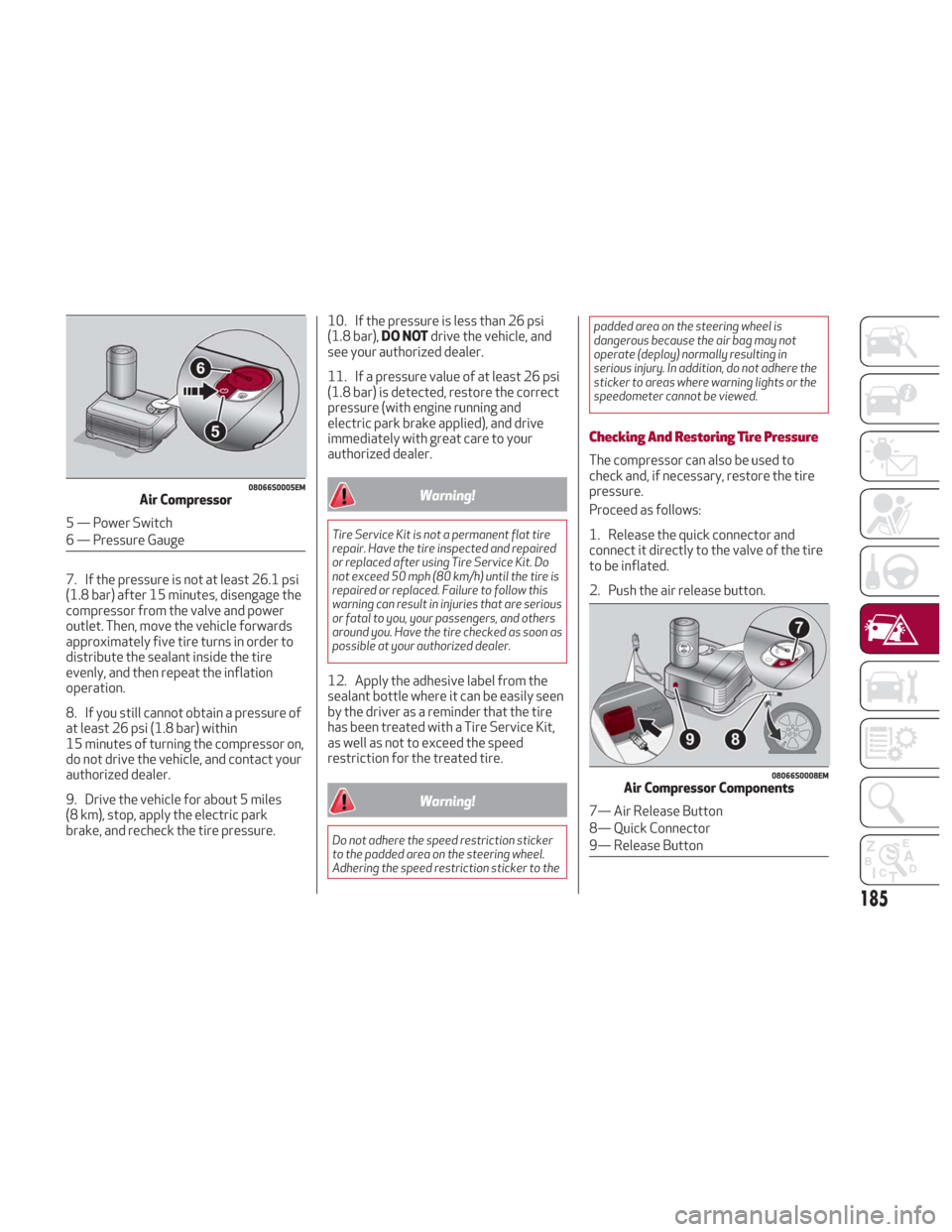

Alfa Romeo Giulia 2018  Owners Manual 7. If the pressure is not at least 26.1 psi
(1.8 bar) after 15 minutes, disengage the
compressor from the valve and power
outlet. Then, move the vehicle forwards
approximately five tire turns in order

Page 188 of 260

Alfa Romeo Giulia 2018  Owners Manual Sealant Cartridge Replacement
Note:Only use original cartridges, which
can be purchased at an authorized dealer.
Proceed as follows:
1. Remove the sealant cartridge by
pushing the release button locat

Page 189 of 260

Alfa Romeo Giulia 2018  Owners Manual The positive post (+) can be accessed by
lifting the protective flap.
To carry out the operation, you need to
have the correct cables to connect to the
battery of another vehicle or a portable
battery

Page 190 of 260

Alfa Romeo Giulia 2018  Owners Manual Cable Disconnection
Once the engine is started, remove the
connection cables in reverse sequence,
as described below:
1. Disconnect the negative (-) jumper
cable from the remote negative (-) post
of t
